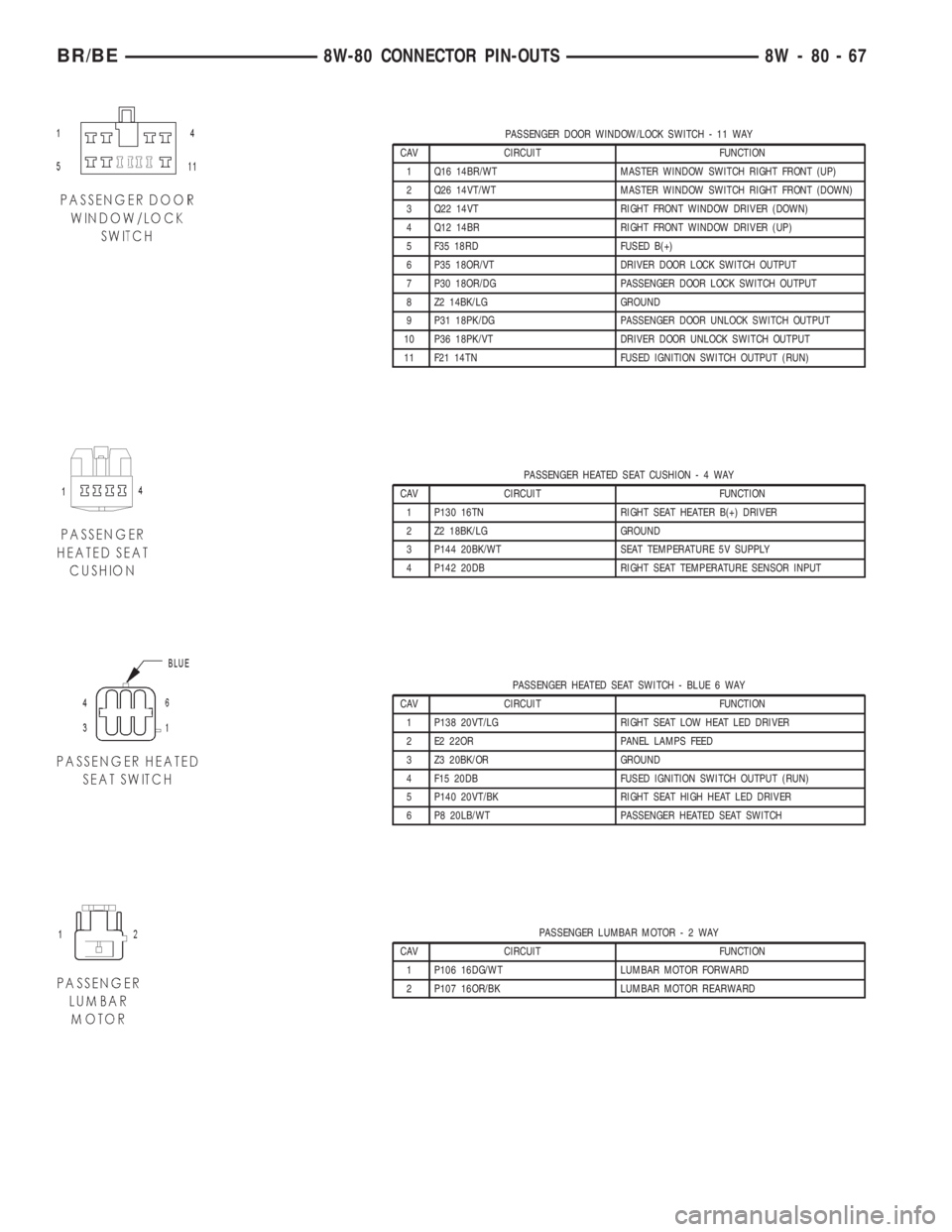

PASSENGER DOOR WINDOW/LOCK SWITCH - 11 WAY
CAV CIRCUIT FUNCTION
1 Q16 14BR/WT MASTER WINDOW SWITCH RIGHT FRONT (UP)
2 Q26 14VT/WT MASTER WINDOW SWITCH RIGHT FRONT (DOWN)
3 Q22 14VT RIGHT FRONT WINDOW DRIVER (DOWN)
4 Q12 14BR RIGHT FRONT WINDOW DRIVER (UP)
5 F35 18RD FUSED B(+)
6 P35 18OR/VT DRIVER DOOR LOCK SWITCH OUTPUT
7 P30 18OR/DG PASSENGER DOOR LOCK SWITCH OUTPUT
8 Z2 14BK/LG GROUND
9 P31 18PK/DG PASSENGER DOOR UNLOCK SWITCH OUTPUT
10 P36 18PK/VT DRIVER DOOR UNLOCK SWITCH OUTPUT
11 F21 14TN FUSED IGNITION SWITCH OUTPUT (RUN)
PASSENGER HEATED SEAT CUSHION-4WAY
CAV CIRCUIT FUNCTION
1 P130 16TN RIGHT SEAT HEATER B(+) DRIVER
2 Z2 18BK/LG GROUND
3 P144 20BK/WT SEAT TEMPERATURE 5V SUPPLY
4 P142 20DB RIGHT SEAT TEMPERATURE SENSOR INPUT
PASSENGER HEATED SEAT SWITCH - BLUE 6 WAY
CAV CIRCUIT FUNCTION
1 P138 20VT/LG RIGHT SEAT LOW HEAT LED DRIVER
2 E2 22OR PANEL LAMPS FEED
3 Z3 20BK/OR GROUND
4 F15 20DB FUSED IGNITION SWITCH OUTPUT (RUN)
5 P140 20VT/BK RIGHT SEAT HIGH HEAT LED DRIVER
6 P8 20LB/WT PASSENGER HEATED SEAT SWITCH
PASSENGER LUMBAR MOTOR-2WAY
CAV CIRCUIT FUNCTION
1 P106 16DG/WT LUMBAR MOTOR FORWARD
2 P107 16OR/BK LUMBAR MOTOR REARWARD
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 67

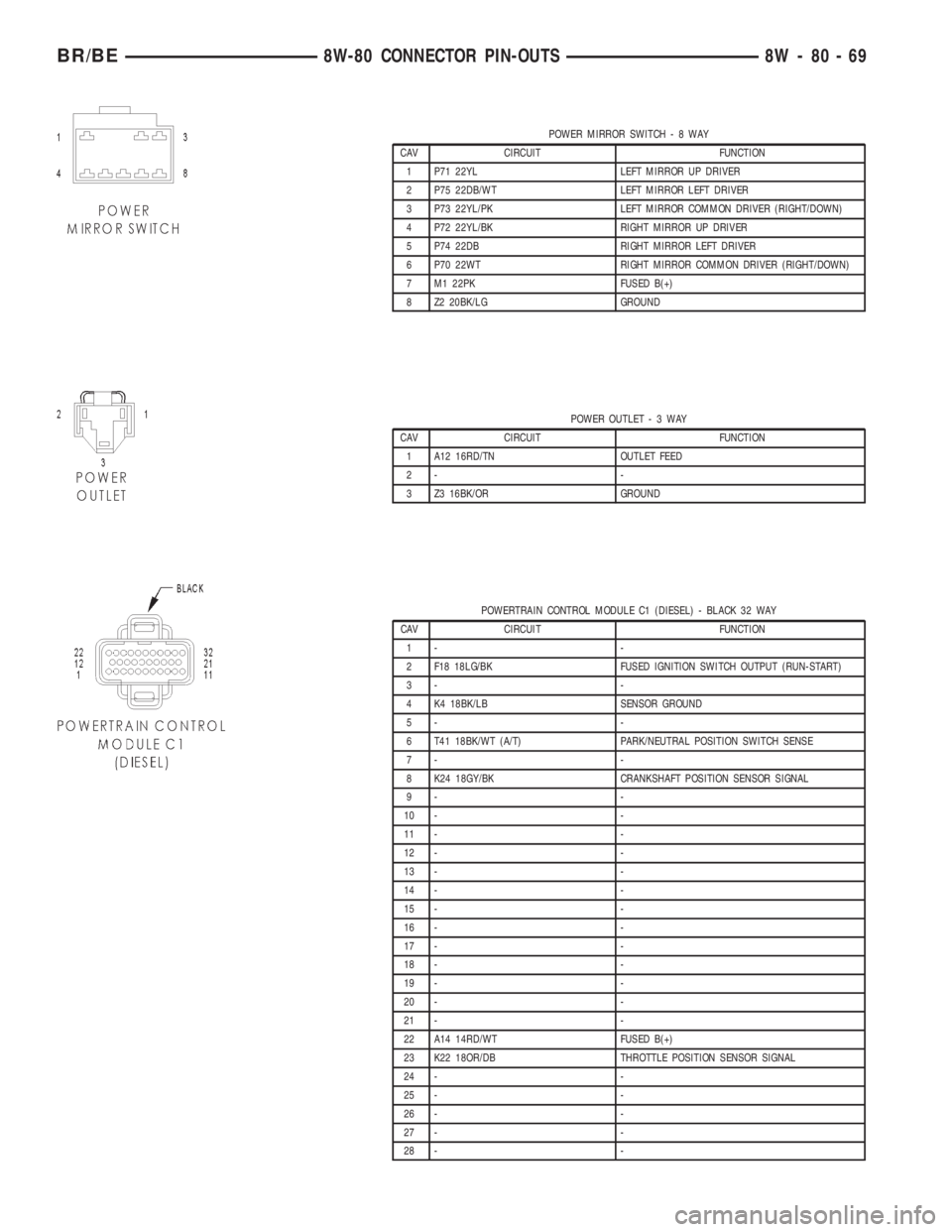

POWER MIRROR SWITCH-8WAY
CAV CIRCUIT FUNCTION
1 P71 22YL LEFT MIRROR UP DRIVER
2 P75 22DB/WT LEFT MIRROR LEFT DRIVER
3 P73 22YL/PK LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
4 P72 22YL/BK RIGHT MIRROR UP DRIVER
5 P74 22DB RIGHT MIRROR LEFT DRIVER
6 P70 22WT RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
7 M1 22PK FUSED B(+)
8 Z2 20BK/LG GROUND
POWER OUTLET-3WAY
CAV CIRCUIT FUNCTION
1 A12 16RD/TN OUTLET FEED
2- -
3 Z3 16BK/OR GROUND
POWERTRAIN CONTROL MODULE C1 (DIESEL) - BLACK 32 WAY
CAV CIRCUIT FUNCTION
1- -
2 F18 18LG/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
3- -
4 K4 18BK/LB SENSOR GROUND
5- -
6 T41 18BK/WT (A/T) PARK/NEUTRAL POSITION SWITCH SENSE
7- -
8 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
9- -
10 - -
11 - -
12 - -
13 - -
14 - -
15 - -
16 - -
17 - -
18 - -
19 - -
20 - -
21 - -
22 A14 14RD/WT FUSED B(+)
23 K22 18OR/DB THROTTLE POSITION SENSOR SIGNAL
24 - -
25 - -
26 - -
27 - -
28 - -
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 69

POWERTRAIN CONTROL MODULE C1 (DIESEL) - BLACK 32 WAY
CAV CIRCUIT FUNCTION
29 - -
30 - -
31 Z12 14BK/TN GROUND
32 Z12 14BK/TN GROUND
POWERTRAIN CONTROL MODULE C1 (GAS)- BLACK 32 WAY
CAV CIRCUIT FUNCTION
1 K32 18YL/GY(8.0L) IGNITION COIL NO. 4 DRIVER
2 F18 18LG/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 K18 18RD/BK(8.0L) IGNITION COIL NO. 3 DRIVER
4 K4 18BK/LB SENSOR GROUND
5 K43 18DG/GY(8.0L) IGNITION COIL NO. 5 DRIVER
6 T41 18BK/WT (A/T) PARK/NEUTRAL POSITION SWITCH SENSE
7 K19 18BK/GY IGNITION COIL NO.1
7 K19 18BK/GY(5.9L) IGNITION COIL NO. 1 DRIVER
8 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
9 K17 18DB/WT(8.0L) IGNITION COIL NO. 2 DRIVER
10 K60 18YL/BK IDLE AIR CONTROL NO. 2 DRIVER
11 K40 18BR/WT IDLE AIR CONTROL NO. 3 DRIVER
12 - -
13 G113 18OR PTO SWITCH SENSE
14 - -
15 K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
16 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
17 K6 18VT/WT 5V SUPPLY
18 K44 18TN/YL CAMSHAFT POSITION SENSOR SIGNAL
19 K39 18GY/RD IDLE AIR CONTROL NO. 1 DRIVER
20 K59 18VT/BK IDLE AIR CONTROL NO. 4 DRIVER
21 - -
22 A14 16RD/WT FUSED B(+)
23 K22 18OR/DB THROTTLE POSITION SENSOR SIGNAL
24 K41 18BK/DG(5.9L/8.0L) OXYGEN SENSOR 1/1 SIGNAL
24 K141 18TN/WT(CALIFORNIA) OXYGEN SENSOR 1/1 SIGNAL
25 K341 18OR/BK(5.9L)(CALIFORNIA) OXYGEN SENSOR 1/2 SIGNAL
25 K341 18OR/BK(A/T)(CALIFORNIA) OXYGEN SENSOR 1/3 SIGNAL
26 K241 18LG/RD(CALIFORNIA) OXYGEN SENSOR 2/1 SIGNAL
26 K241 18LG/RD(8.0L/5.9L) OXYGEN SENSOR 2/1 SIGNAL
27 K1 18DG/RD MAP SENSOR SIGNAL
28 - -
29 K141 18TN/WT(8.0L)(A/T)(CALIFORNIA) OXYGEN SENSOR 1/2 SIGNAL
29 K441 18OR/TN(5.9L)(CALIFORNIA) OXYGEN SENSOR 2/2 SIGNAL
30 - -
31 Z12 14BK/TN GROUND
32 Z12 14BK/TN GROUND
A24 K141 18TN/WT(5.9L) OXYGEN SENSOR 1/1 SIGNAL
B24 K141 18TN/WT(5.9L) OXYGEN SENSOR 1/1 SIGNAL
8W - 80 - 70 8W-80 CONNECTOR PIN-OUTSBR/BE

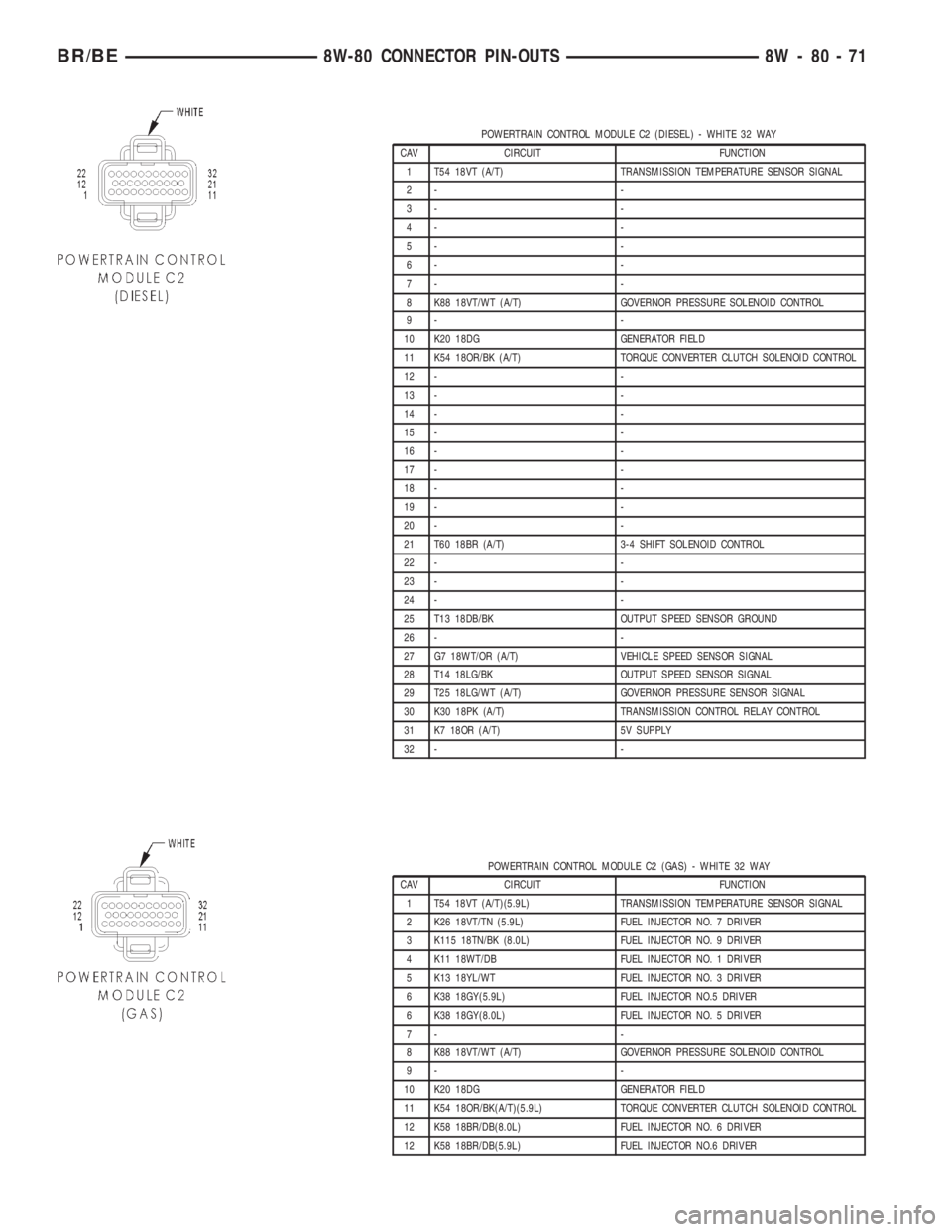

POWERTRAIN CONTROL MODULE C2 (DIESEL) - WHITE 32 WAY
CAV CIRCUIT FUNCTION
1 T54 18VT (A/T) TRANSMISSION TEMPERATURE SENSOR SIGNAL
2- -
3- -
4- -
5- -
6- -
7- -
8 K88 18VT/WT (A/T) GOVERNOR PRESSURE SOLENOID CONTROL
9- -
10 K20 18DG GENERATOR FIELD
11 K54 18OR/BK (A/T) TORQUE CONVERTER CLUTCH SOLENOID CONTROL
12 - -
13 - -
14 - -
15 - -
16 - -
17 - -
18 - -
19 - -
20 - -
21 T60 18BR (A/T) 3-4 SHIFT SOLENOID CONTROL
22 - -
23 - -
24 - -
25 T13 18DB/BK OUTPUT SPEED SENSOR GROUND
26 - -
27 G7 18WT/OR (A/T) VEHICLE SPEED SENSOR SIGNAL
28 T14 18LG/BK OUTPUT SPEED SENSOR SIGNAL
29 T25 18LG/WT (A/T) GOVERNOR PRESSURE SENSOR SIGNAL
30 K30 18PK (A/T) TRANSMISSION CONTROL RELAY CONTROL
31 K7 18OR (A/T) 5V SUPPLY
32 - -
POWERTRAIN CONTROL MODULE C2 (GAS) - WHITE 32 WAY
CAV CIRCUIT FUNCTION
1 T54 18VT (A/T)(5.9L) TRANSMISSION TEMPERATURE SENSOR SIGNAL
2 K26 18VT/TN (5.9L) FUEL INJECTOR NO. 7 DRIVER
3 K115 18TN/BK (8.0L) FUEL INJECTOR NO. 9 DRIVER
4 K11 18WT/DB FUEL INJECTOR NO. 1 DRIVER
5 K13 18YL/WT FUEL INJECTOR NO. 3 DRIVER
6 K38 18GY(5.9L) FUEL INJECTOR NO.5 DRIVER
6 K38 18GY(8.0L) FUEL INJECTOR NO. 5 DRIVER
7- -
8 K88 18VT/WT (A/T) GOVERNOR PRESSURE SOLENOID CONTROL
9- -
10 K20 18DG GENERATOR FIELD
11 K54 18OR/BK(A/T)(5.9L) TORQUE CONVERTER CLUTCH SOLENOID CONTROL
12 K58 18BR/DB(8.0L) FUEL INJECTOR NO. 6 DRIVER
12 K58 18BR/DB(5.9L) FUEL INJECTOR NO.6 DRIVER
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 71

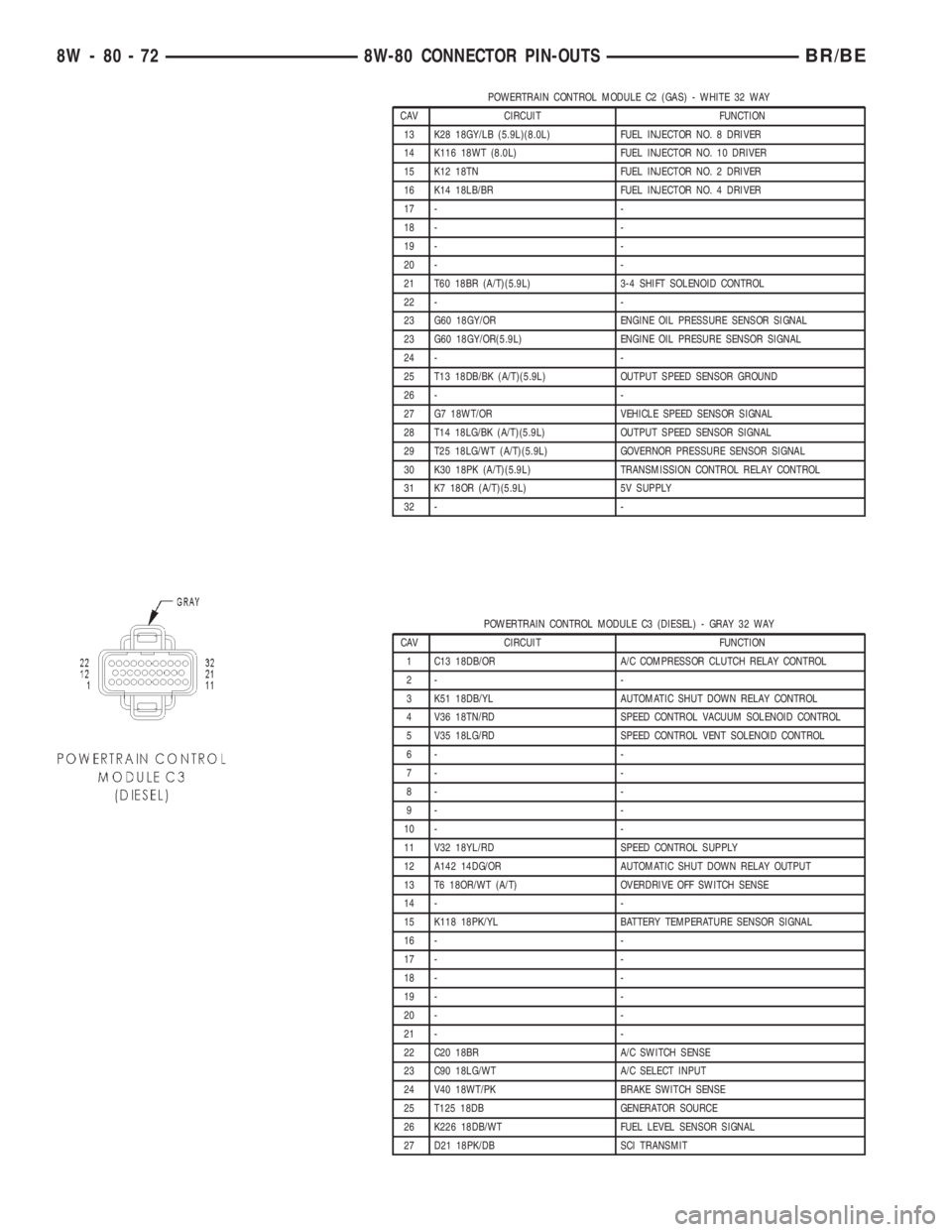

POWERTRAIN CONTROL MODULE C2 (GAS) - WHITE 32 WAY
CAV CIRCUIT FUNCTION
13 K28 18GY/LB (5.9L)(8.0L) FUEL INJECTOR NO. 8 DRIVER
14 K116 18WT (8.0L) FUEL INJECTOR NO. 10 DRIVER
15 K12 18TN FUEL INJECTOR NO. 2 DRIVER
16 K14 18LB/BR FUEL INJECTOR NO. 4 DRIVER
17 - -
18 - -
19 - -
20 - -
21 T60 18BR (A/T)(5.9L) 3-4 SHIFT SOLENOID CONTROL
22 - -
23 G60 18GY/OR ENGINE OIL PRESSURE SENSOR SIGNAL
23 G60 18GY/OR(5.9L) ENGINE OIL PRESURE SENSOR SIGNAL
24 - -
25 T13 18DB/BK (A/T)(5.9L) OUTPUT SPEED SENSOR GROUND
26 - -
27 G7 18WT/OR VEHICLE SPEED SENSOR SIGNAL
28 T14 18LG/BK (A/T)(5.9L) OUTPUT SPEED SENSOR SIGNAL
29 T25 18LG/WT (A/T)(5.9L) GOVERNOR PRESSURE SENSOR SIGNAL
30 K30 18PK (A/T)(5.9L) TRANSMISSION CONTROL RELAY CONTROL
31 K7 18OR (A/T)(5.9L) 5V SUPPLY
32 - -
POWERTRAIN CONTROL MODULE C3 (DIESEL) - GRAY 32 WAY
CAV CIRCUIT FUNCTION
1 C13 18DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
2- -
3 K51 18DB/YL AUTOMATIC SHUT DOWN RELAY CONTROL
4 V36 18TN/RD SPEED CONTROL VACUUM SOLENOID CONTROL
5 V35 18LG/RD SPEED CONTROL VENT SOLENOID CONTROL
6- -
7- -
8- -
9- -
10 - -
11 V32 18YL/RD SPEED CONTROL SUPPLY
12 A142 14DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
13 T6 18OR/WT (A/T) OVERDRIVE OFF SWITCH SENSE
14 - -
15 K118 18PK/YL BATTERY TEMPERATURE SENSOR SIGNAL
16 - -
17 - -
18 - -
19 - -
20 - -
21 - -
22 C20 18BR A/C SWITCH SENSE
23 C90 18LG/WT A/C SELECT INPUT
24 V40 18WT/PK BRAKE SWITCH SENSE
25 T125 18DB GENERATOR SOURCE
26 K226 18DB/WT FUEL LEVEL SENSOR SIGNAL
27 D21 18PK/DB SCI TRANSMIT
8W - 80 - 72 8W-80 CONNECTOR PIN-OUTSBR/BE

POWERTRAIN CONTROL MODULE C3 (DIESEL) - GRAY 32 WAY
CAV CIRCUIT FUNCTION
28 D2 18WT/BK CCD BUS(-)
29 D220 18WT/VT SCI RECEIVE
30 D1 18VT/BR CCD BUS(+)
31 - -
32 V37 18RD/LG SPEED CONTROL SWITCH SIGNAL
POWERTRAIN CONTROL MODULE C3 (GAS) - GRAY 32 WAY
CAV CIRCUIT FUNCTION
1 C13 18DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
2- -
3 K51 18DB/YL AUTOMATIC SHUT DOWN RELAY CONTROL
4 V36 18TN/RD SPEED CONTROL VACUUM SOLENOID CONTROL
5 V35 18LG/RD SPEED CONTROL VENT SOLENOID CONTROL
6- -
7- -
8 K199 18BR/VT(5.9L) OXYGEN SENSOR 1/1 HEATER CONTROL
8 Z11 18BK/WT(5.9HD/8.0L) OXYGEN SENSOR 1/1 HEATER CONTROL
8 K199 18BR/VT (CALIFORNIA)(5.9L) OXYGEN SENSOR 1/1 HEATER CONTROL
9 K145 20DG/PK (CALIFORNIA)(5.9L) OXYGEN SENSOR DOWNSTREAM RELAY CONTROL
10 K106 18WT/DG LEAK DETECTION PUMP SOLENOID CONTROL
11 V32 18YL/RD SPEED CONTROL SUPPLY
12 A142 14DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
13 T6 18OR/WT (A/T) OVERDRIVE OFF SWITCH SENSE
14 K107 18OR LEAK DETECTION PUMP SWITCH SENSE
15 K118 18PK/YL BATTERY TEMPERATURE SENSOR SIGNAL
16 Z11 18BK/WT(5.9LHD/8.0L) No Function Defined
16 K299 18BR.WT(CALIFORNIA)(5.9L) OXYGEN SENSOR 2/1 HEATER CONTROL
16 K299 18BR/WT(5.9L) OXYGEN SENSOR 1/2 SIGNAL CONTROL
17 - -
18 - -
19 K31 18BR/WT FUEL PUMP RELAY CONTROL
20 K52 18PK/WT EVAPORATIVE EMISSION SOLENOID CONTROL
21 - -
22 C20 18BR A/C SWITCH SENSE
23 C90 18LG/WT A/C SELECT INPUT
24 V40 18WT/PK BRAKE SWITCH SENSE
25 T125 18DB GENERATOR SOURCE
26 K226 18DB/WT(CALIFORNIA)(5.9L) FUEL LEVEL SENSOR SIGNAL
27 D21 18PK/DB SCI TRANSMIT
28 D2 18WT/BK CCD BUS (-)
29 D20 18DG SCI RECEIVE
30 D1 18VT/BR CCD BUS (+)
31 - -
32 V37 18RD/LG SPEED CONTROL SWITCH SIGNAL
A8 K199 18BR/VT(5.9L) OXYGEN SENSOR 1/1 HEATER CONTROL
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 73

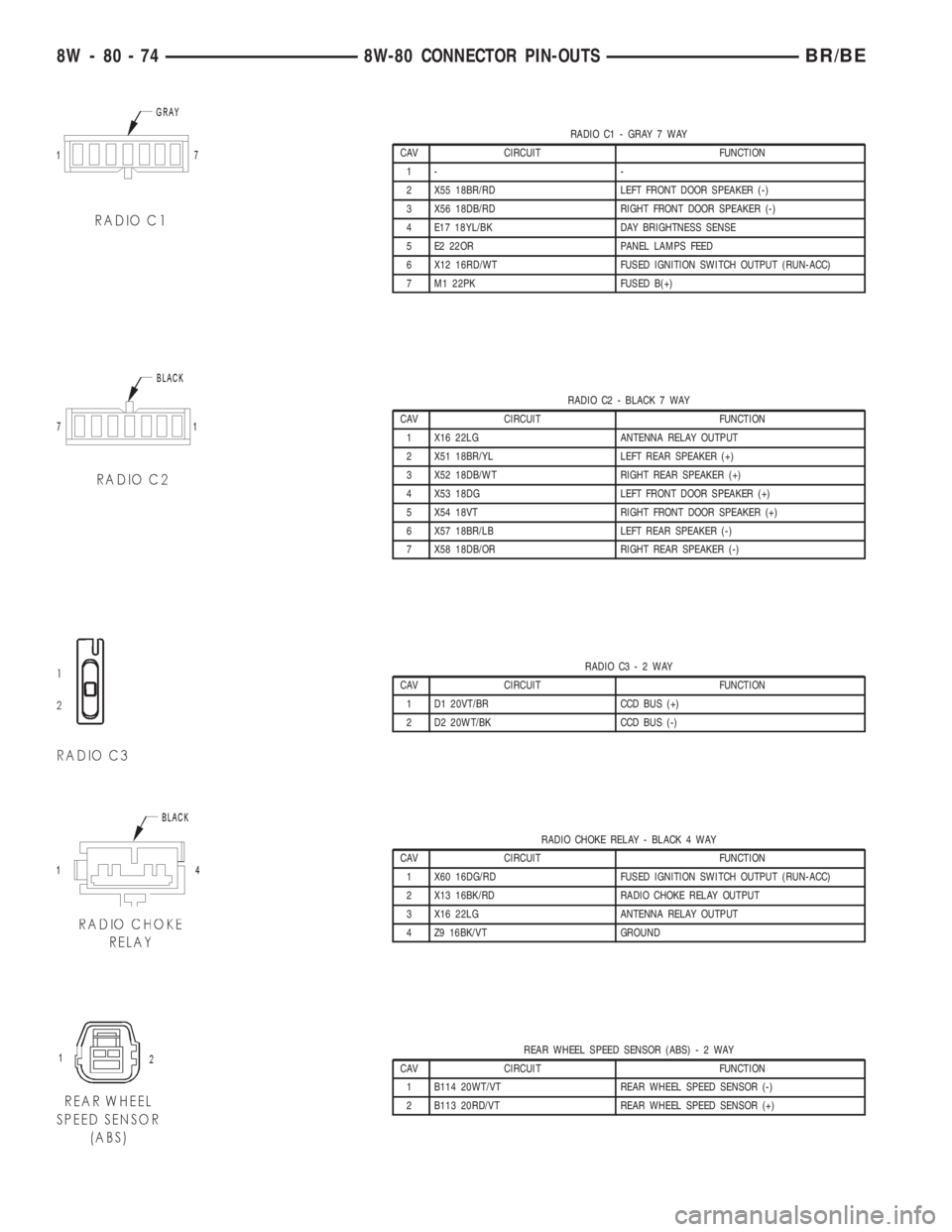

RADIO C1 - GRAY 7 WAY
CAV CIRCUIT FUNCTION
1- -
2 X55 18BR/RD LEFT FRONT DOOR SPEAKER (-)
3 X56 18DB/RD RIGHT FRONT DOOR SPEAKER (-)
4 E17 18YL/BK DAY BRIGHTNESS SENSE
5 E2 22OR PANEL LAMPS FEED
6 X12 16RD/WT FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
7 M1 22PK FUSED B(+)
RADIO C2 - BLACK 7 WAY
CAV CIRCUIT FUNCTION
1 X16 22LG ANTENNA RELAY OUTPUT
2 X51 18BR/YL LEFT REAR SPEAKER (+)
3 X52 18DB/WT RIGHT REAR SPEAKER (+)
4 X53 18DG LEFT FRONT DOOR SPEAKER (+)
5 X54 18VT RIGHT FRONT DOOR SPEAKER (+)
6 X57 18BR/LB LEFT REAR SPEAKER (-)
7 X58 18DB/OR RIGHT REAR SPEAKER (-)
RADIO C3-2WAY
CAV CIRCUIT FUNCTION
1 D1 20VT/BR CCD BUS (+)
2 D2 20WT/BK CCD BUS (-)
RADIO CHOKE RELAY - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 X60 16DG/RD FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2 X13 16BK/RD RADIO CHOKE RELAY OUTPUT
3 X16 22LG ANTENNA RELAY OUTPUT
4 Z9 16BK/VT GROUND
REAR WHEEL SPEED SENSOR (ABS)-2WAY
CAV CIRCUIT FUNCTION
1 B114 20WT/VT REAR WHEEL SPEED SENSOR (-)
2 B113 20RD/VT REAR WHEEL SPEED SENSOR (+)
8W - 80 - 74 8W-80 CONNECTOR PIN-OUTSBR/BE

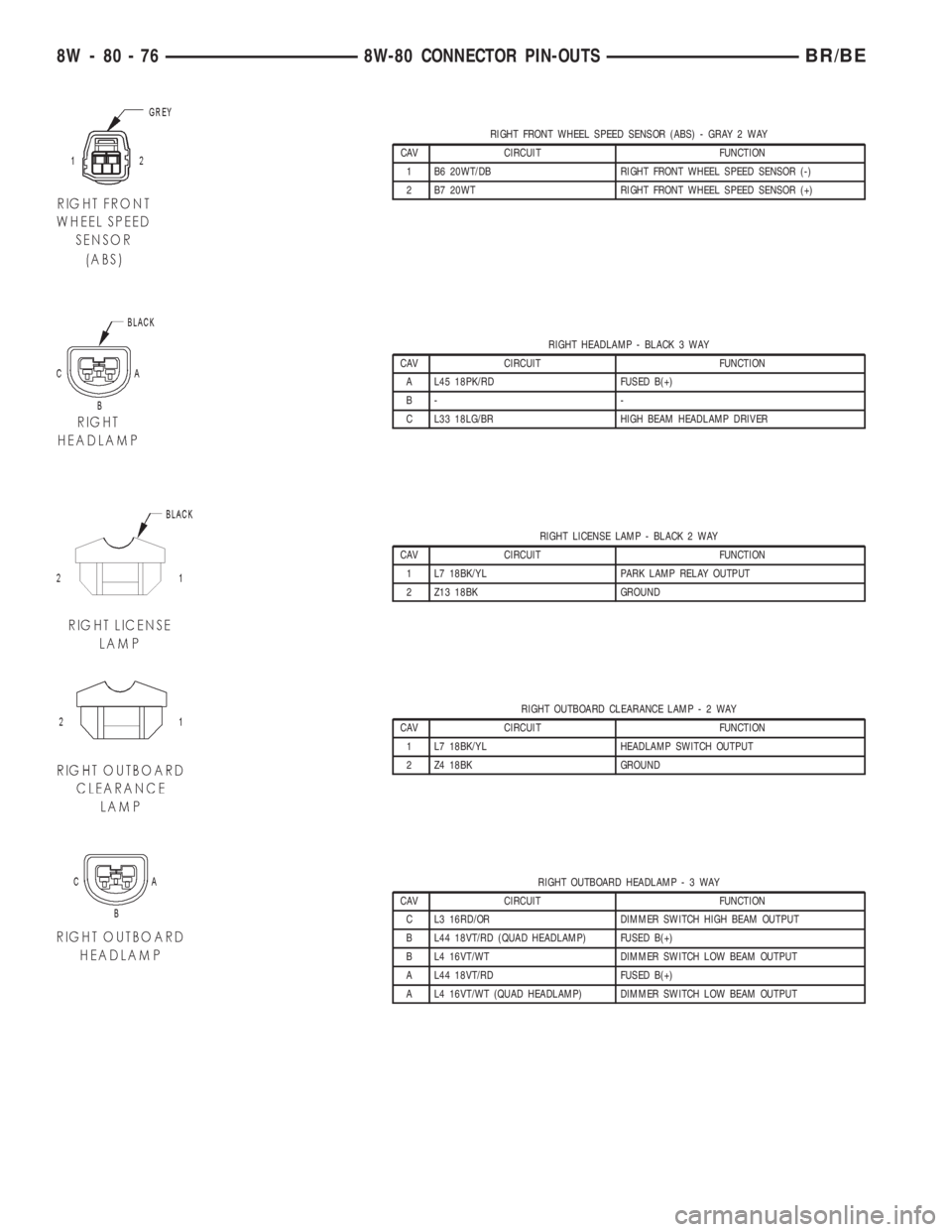

RIGHT FRONT WHEEL SPEED SENSOR (ABS) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B6 20WT/DB RIGHT FRONT WHEEL SPEED SENSOR (-)
2 B7 20WT RIGHT FRONT WHEEL SPEED SENSOR (+)
RIGHT HEADLAMP - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A L45 18PK/RD FUSED B(+)
B- -
C L33 18LG/BR HIGH BEAM HEADLAMP DRIVER
RIGHT LICENSE LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL PARK LAMP RELAY OUTPUT
2 Z13 18BK GROUND
RIGHT OUTBOARD CLEARANCE LAMP-2WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL HEADLAMP SWITCH OUTPUT
2 Z4 18BK GROUND
RIGHT OUTBOARD HEADLAMP-3WAY
CAV CIRCUIT FUNCTION
C L3 16RD/OR DIMMER SWITCH HIGH BEAM OUTPUT
B L44 18VT/RD (QUAD HEADLAMP) FUSED B(+)
B L4 16VT/WT DIMMER SWITCH LOW BEAM OUTPUT
A L44 18VT/RD FUSED B(+)
A L4 16VT/WT (QUAD HEADLAMP) DIMMER SWITCH LOW BEAM OUTPUT
8W - 80 - 76 8W-80 CONNECTOR PIN-OUTSBR/BE

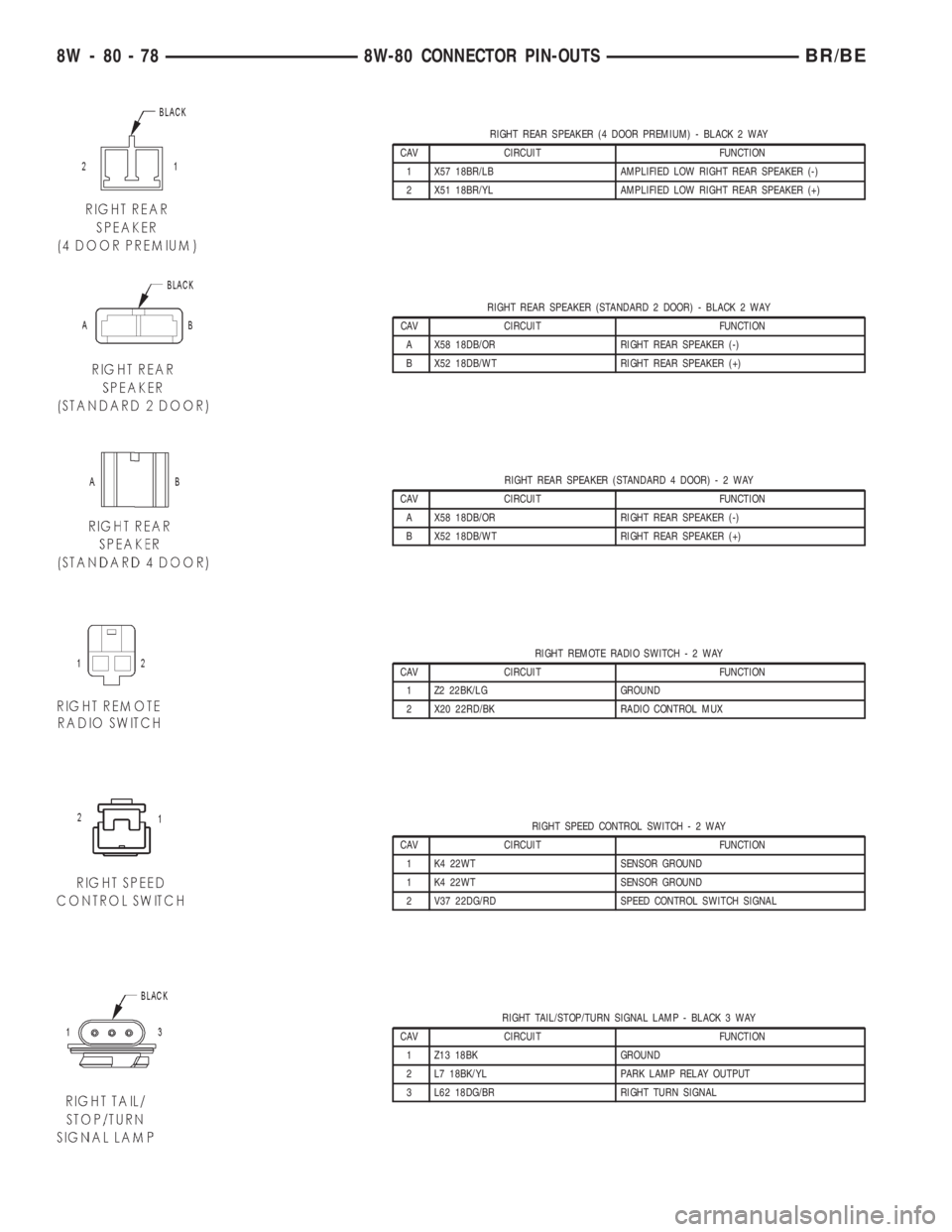

RIGHT REAR SPEAKER (4 DOOR PREMIUM) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X57 18BR/LB AMPLIFIED LOW RIGHT REAR SPEAKER (-)
2 X51 18BR/YL AMPLIFIED LOW RIGHT REAR SPEAKER (+)
RIGHT REAR SPEAKER (STANDARD 2 DOOR) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A X58 18DB/OR RIGHT REAR SPEAKER (-)
B X52 18DB/WT RIGHT REAR SPEAKER (+)
RIGHT REAR SPEAKER (STANDARD 4 DOOR)-2WAY
CAV CIRCUIT FUNCTION
A X58 18DB/OR RIGHT REAR SPEAKER (-)
B X52 18DB/WT RIGHT REAR SPEAKER (+)
RIGHT REMOTE RADIO SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 Z2 22BK/LG GROUND
2 X20 22RD/BK RADIO CONTROL MUX
RIGHT SPEED CONTROL SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 K4 22WT SENSOR GROUND
1 K4 22WT SENSOR GROUND
2 V37 22DG/RD SPEED CONTROL SWITCH SIGNAL
RIGHT TAIL/STOP/TURN SIGNAL LAMP - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z13 18BK GROUND
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 L62 18DG/BR RIGHT TURN SIGNAL

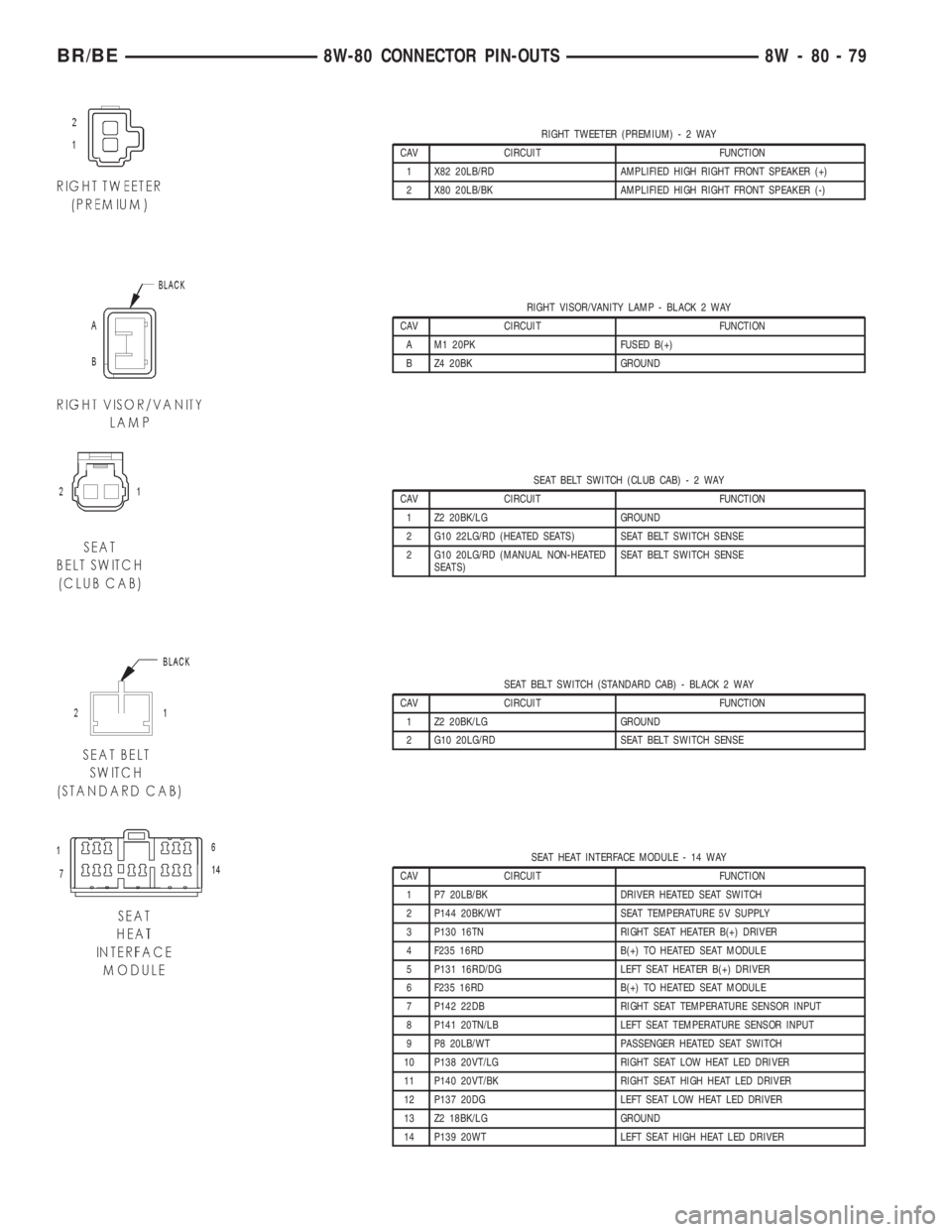

8W - 80 - 78 8W-80 CONNECTOR PIN-OUTSBR/BE

RIGHT TWEETER (PREMIUM)-2WAY
CAV CIRCUIT FUNCTION
1 X82 20LB/RD AMPLIFIED HIGH RIGHT FRONT SPEAKER (+)
2 X80 20LB/BK AMPLIFIED HIGH RIGHT FRONT SPEAKER (-)
RIGHT VISOR/VANITY LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A M1 20PK FUSED B(+)
B Z4 20BK GROUND
SEAT BELT SWITCH (CLUB CAB)-2WAY
CAV CIRCUIT FUNCTION
1 Z2 20BK/LG GROUND
2 G10 22LG/RD (HEATED SEATS) SEAT BELT SWITCH SENSE
2 G10 20LG/RD (MANUAL NON-HEATED
SEATS)SEAT BELT SWITCH SENSE
SEAT BELT SWITCH (STANDARD CAB) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z2 20BK/LG GROUND
2 G10 20LG/RD SEAT BELT SWITCH SENSE
SEAT HEAT INTERFACE MODULE - 14 WAY
CAV CIRCUIT FUNCTION
1 P7 20LB/BK DRIVER HEATED SEAT SWITCH
2 P144 20BK/WT SEAT TEMPERATURE 5V SUPPLY
3 P130 16TN RIGHT SEAT HEATER B(+) DRIVER
4 F235 16RD B(+) TO HEATED SEAT MODULE
5 P131 16RD/DG LEFT SEAT HEATER B(+) DRIVER
6 F235 16RD B(+) TO HEATED SEAT MODULE
7 P142 22DB RIGHT SEAT TEMPERATURE SENSOR INPUT
8 P141 20TN/LB LEFT SEAT TEMPERATURE SENSOR INPUT
9 P8 20LB/WT PASSENGER HEATED SEAT SWITCH
10 P138 20VT/LG RIGHT SEAT LOW HEAT LED DRIVER
11 P140 20VT/BK RIGHT SEAT HIGH HEAT LED DRIVER
12 P137 20DG LEFT SEAT LOW HEAT LED DRIVER
13 Z2 18BK/LG GROUND
14 P139 20WT LEFT SEAT HIGH HEAT LED DRIVER
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 79
