sensor DODGE RAM 2002 Service Repair Manual

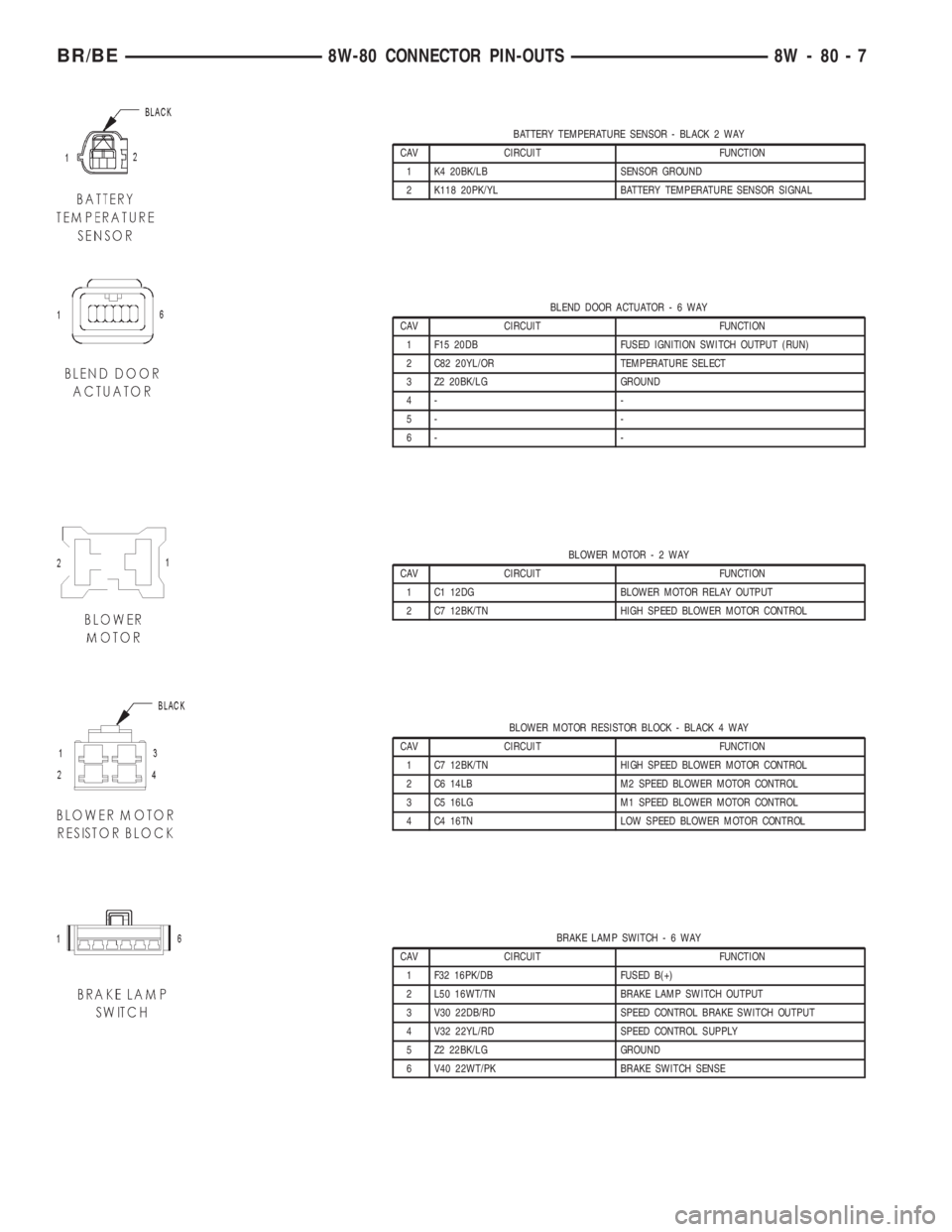

BATTERY TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K4 20BK/LB SENSOR GROUND
2 K118 20PK/YL BATTERY TEMPERATURE SENSOR SIGNAL
BLEND DOOR ACTUATOR-6WAY
CAV CIRCUIT FUNCTION
1 F15 20DB FUSED IGNITION SWITCH OUTPUT (RUN)
2 C82 20YL/OR TEMPERATURE SELECT
3 Z2 20BK/LG GROUND
4- -
5- -
6- -
BLOWER MOTOR-2WAY
CAV CIRCUIT FUNCTION
1 C1 12DG BLOWER MOTOR RELAY OUTPUT
2 C7 12BK/TN HIGH SPEED BLOWER MOTOR CONTROL
BLOWER MOTOR RESISTOR BLOCK - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 C7 12BK/TN HIGH SPEED BLOWER MOTOR CONTROL
2 C6 14LB M2 SPEED BLOWER MOTOR CONTROL
3 C5 16LG M1 SPEED BLOWER MOTOR CONTROL
4 C4 16TN LOW SPEED BLOWER MOTOR CONTROL
BRAKE LAMP SWITCH-6WAY
CAV CIRCUIT FUNCTION
1 F32 16PK/DB FUSED B(+)
2 L50 16WT/TN BRAKE LAMP SWITCH OUTPUT
3 V30 22DB/RD SPEED CONTROL BRAKE SWITCH OUTPUT
4 V32 22YL/RD SPEED CONTROL SUPPLY
5 Z2 22BK/LG GROUND
6 V40 22WT/PK BRAKE SWITCH SENSE
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 7

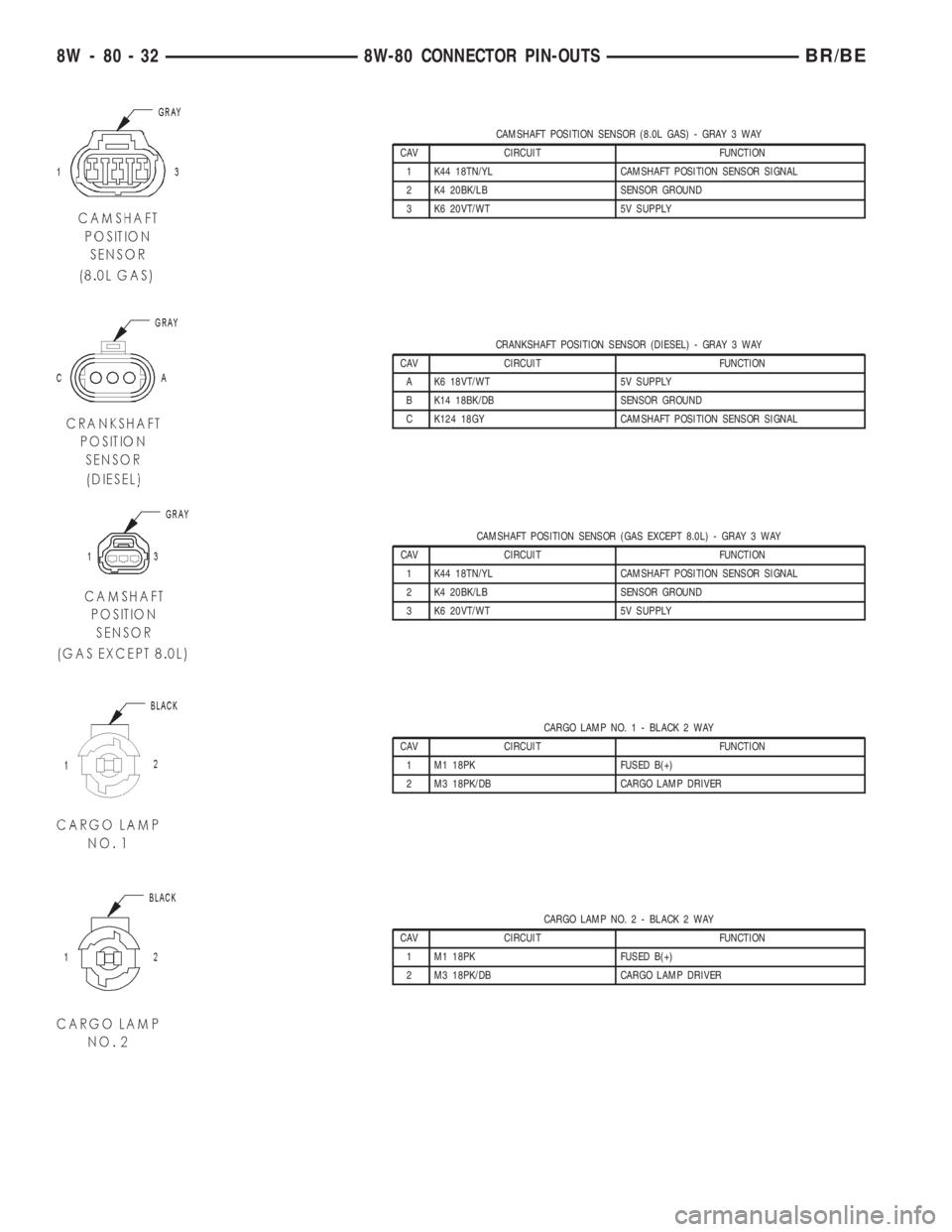

CAMSHAFT POSITION SENSOR (8.0L GAS) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 K44 18TN/YL CAMSHAFT POSITION SENSOR SIGNAL
2 K4 20BK/LB SENSOR GROUND
3 K6 20VT/WT 5V SUPPLY
CRANKSHAFT POSITION SENSOR (DIESEL) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
A K6 18VT/WT 5V SUPPLY
B K14 18BK/DB SENSOR GROUND
C K124 18GY CAMSHAFT POSITION SENSOR SIGNAL
CAMSHAFT POSITION SENSOR (GAS EXCEPT 8.0L) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 K44 18TN/YL CAMSHAFT POSITION SENSOR SIGNAL
2 K4 20BK/LB SENSOR GROUND
3 K6 20VT/WT 5V SUPPLY
CARGO LAMP NO. 1 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 M1 18PK FUSED B(+)
2 M3 18PK/DB CARGO LAMP DRIVER
CARGO LAMP NO. 2 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 M1 18PK FUSED B(+)
2 M3 18PK/DB CARGO LAMP DRIVER
8W - 80 - 32 8W-80 CONNECTOR PIN-OUTSBR/BE

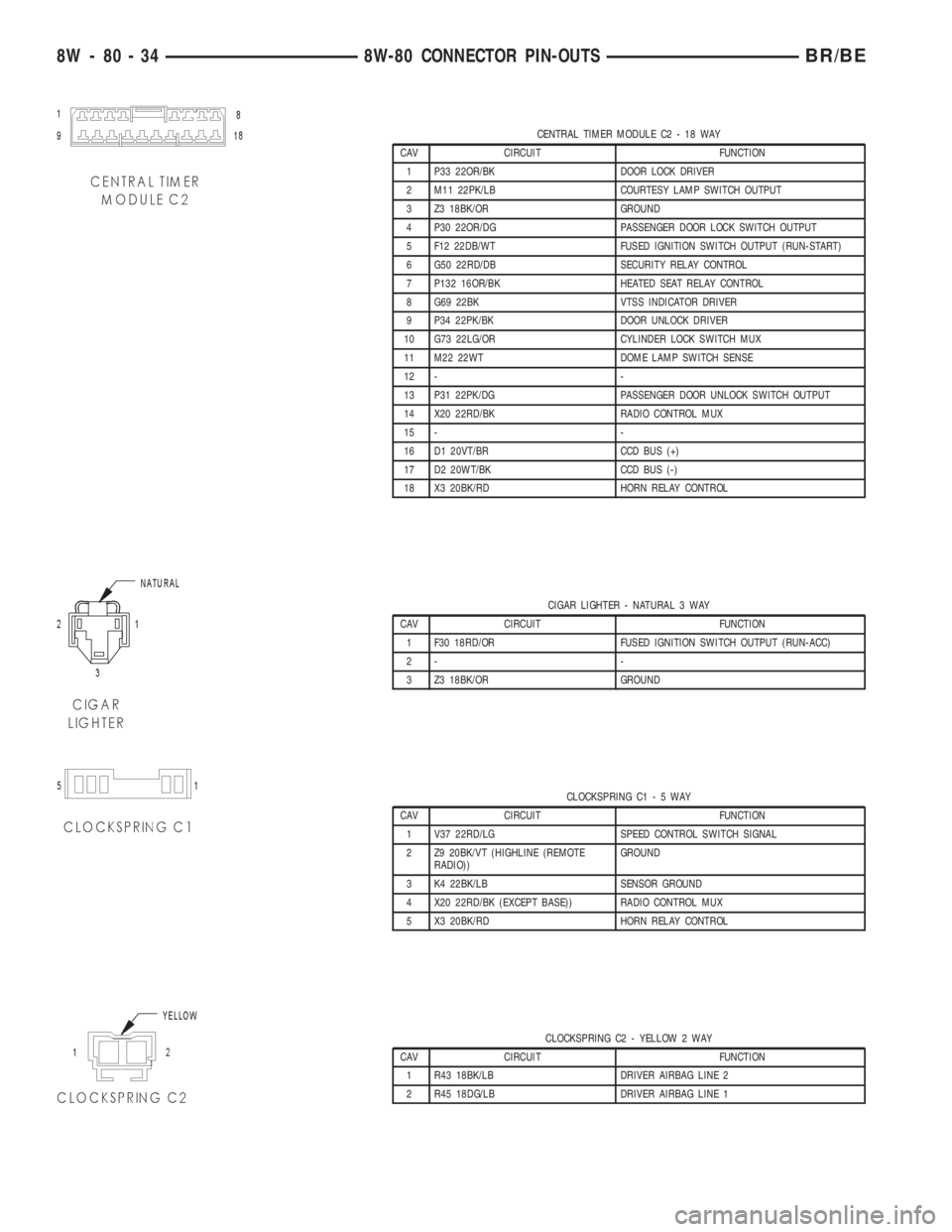

CENTRAL TIMER MODULE C2 - 18 WAY
CAV CIRCUIT FUNCTION
1 P33 22OR/BK DOOR LOCK DRIVER
2 M11 22PK/LB COURTESY LAMP SWITCH OUTPUT
3 Z3 18BK/OR GROUND
4 P30 22OR/DG PASSENGER DOOR LOCK SWITCH OUTPUT
5 F12 22DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 G50 22RD/DB SECURITY RELAY CONTROL
7 P132 16OR/BK HEATED SEAT RELAY CONTROL
8 G69 22BK VTSS INDICATOR DRIVER
9 P34 22PK/BK DOOR UNLOCK DRIVER
10 G73 22LG/OR CYLINDER LOCK SWITCH MUX
11 M22 22WT DOME LAMP SWITCH SENSE
12 - -
13 P31 22PK/DG PASSENGER DOOR UNLOCK SWITCH OUTPUT
14 X20 22RD/BK RADIO CONTROL MUX
15 - -
16 D1 20VT/BR CCD BUS (+)
17 D2 20WT/BK CCD BUS (-)
18 X3 20BK/RD HORN RELAY CONTROL
CIGAR LIGHTER - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 F30 18RD/OR FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2- -
3 Z3 18BK/OR GROUND
CLOCKSPRING C1-5WAY
CAV CIRCUIT FUNCTION
1 V37 22RD/LG SPEED CONTROL SWITCH SIGNAL
2 Z9 20BK/VT (HIGHLINE (REMOTE
RADIO))GROUND
3 K4 22BK/LB SENSOR GROUND
4 X20 22RD/BK (EXCEPT BASE)) RADIO CONTROL MUX
5 X3 20BK/RD HORN RELAY CONTROL
CLOCKSPRING C2 - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R43 18BK/LB DRIVER AIRBAG LINE 2
2 R45 18DG/LB DRIVER AIRBAG LINE 1
8W - 80 - 34 8W-80 CONNECTOR PIN-OUTSBR/BE

CLOCKSPRING C3-4WAY
CAV CIRCUIT FUNCTION
A V37 22DG/RD SPEED CONTROL SWITCH SIGNAL
B Z2 22BK/LG GROUND
D X20 22RD/BK RADIO CONTROL MUX
C K4 22WT SENSOR GROUND
CLUTCH PEDAL POSITION SWITCH (M/T) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A41 14YL FUSED IGNITION SWITCH OUTPUT (START)
2 T141 14YL/RD CLUTCH PEDAL POSITION SWITCH OUTPUT
CONTROLLER ANTILOCK BRAKE C1 - BLACK 14 WAY
CAV CIRCUIT FUNCTION
1 B113 20RD/VT REAR WHEEL SPEED SENSOR (+)
2 G107 20GY 4WD SWITCH SENSE
3 D1 20VT/BR CCD BUS (+)
4 A20 20RD/DB FUSED IGNITION SWITCH OUTPUT (RUN)
5- -
6 Z8 14BK/VT GROUND
7 A10 14RD/DG FUSED B(+)
8 B114 20WT/VT REAR WHEEL SPEED SENSOR (-)
9 V40 20WT/PK BRAKE SWITCH SENSE
10 D2 20WT/BK CCD BUS (-)
11 G9 20GY/BK BRAKE PRESSURE SWITCH SENSE
12 G7 20WT/OR VEHICLE SPEED SENSOR SIGNAL
13 Z8 14BK/VT GROUND
14 A10 14RD/DG FUSED B(+)
CONTROLLER ANTILOCK BRAKE C2 (ABS) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 B9 20RD LEFT FRONT WHEEL SPEED SENSOR (+)
2 B8 20RD/GY LEFT FRONT WHEEL SPEED SENSOR (-)
3 B6 20WT/DB RIGHT FRONT WHEEL SPEED SENSOR (-)
4 B7 20WT RIGHT FRONT WHEEL SPEED SENSOR (+)
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 35

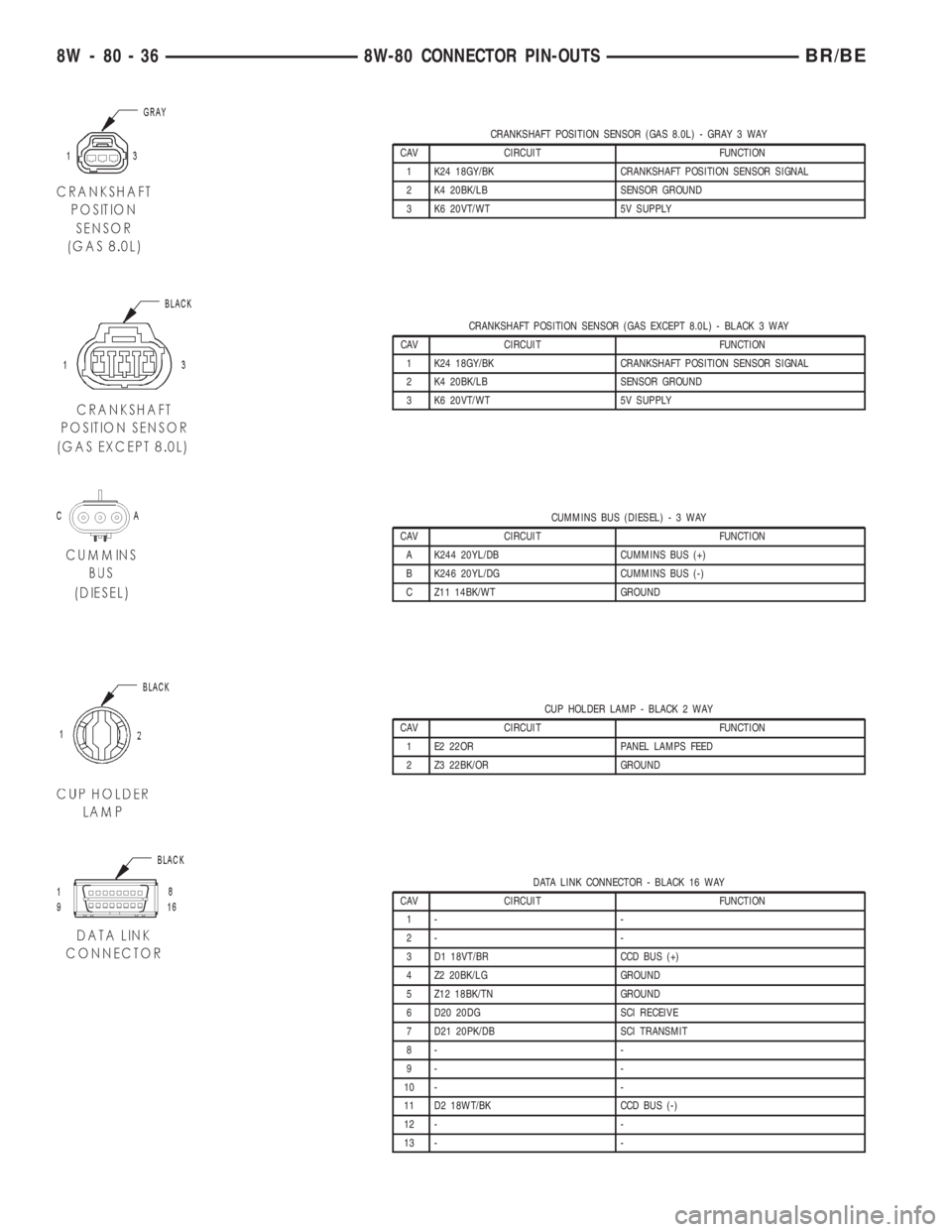

CRANKSHAFT POSITION SENSOR (GAS 8.0L) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
2 K4 20BK/LB SENSOR GROUND
3 K6 20VT/WT 5V SUPPLY
CRANKSHAFT POSITION SENSOR (GAS EXCEPT 8.0L) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
2 K4 20BK/LB SENSOR GROUND
3 K6 20VT/WT 5V SUPPLY
CUMMINS BUS (DIESEL)-3WAY
CAV CIRCUIT FUNCTION
A K244 20YL/DB CUMMINS BUS (+)
B K246 20YL/DG CUMMINS BUS (-)
C Z11 14BK/WT GROUND
CUP HOLDER LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 E2 22OR PANEL LAMPS FEED
2 Z3 22BK/OR GROUND
DATA LINK CONNECTOR - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 D1 18VT/BR CCD BUS (+)
4 Z2 20BK/LG GROUND
5 Z12 18BK/TN GROUND
6 D20 20DG SCI RECEIVE
7 D21 20PK/DB SCI TRANSMIT
8- -
9- -
10 - -
11 D2 18WT/BK CCD BUS (-)
12 - -
13 - -
8W - 80 - 36 8W-80 CONNECTOR PIN-OUTSBR/BE

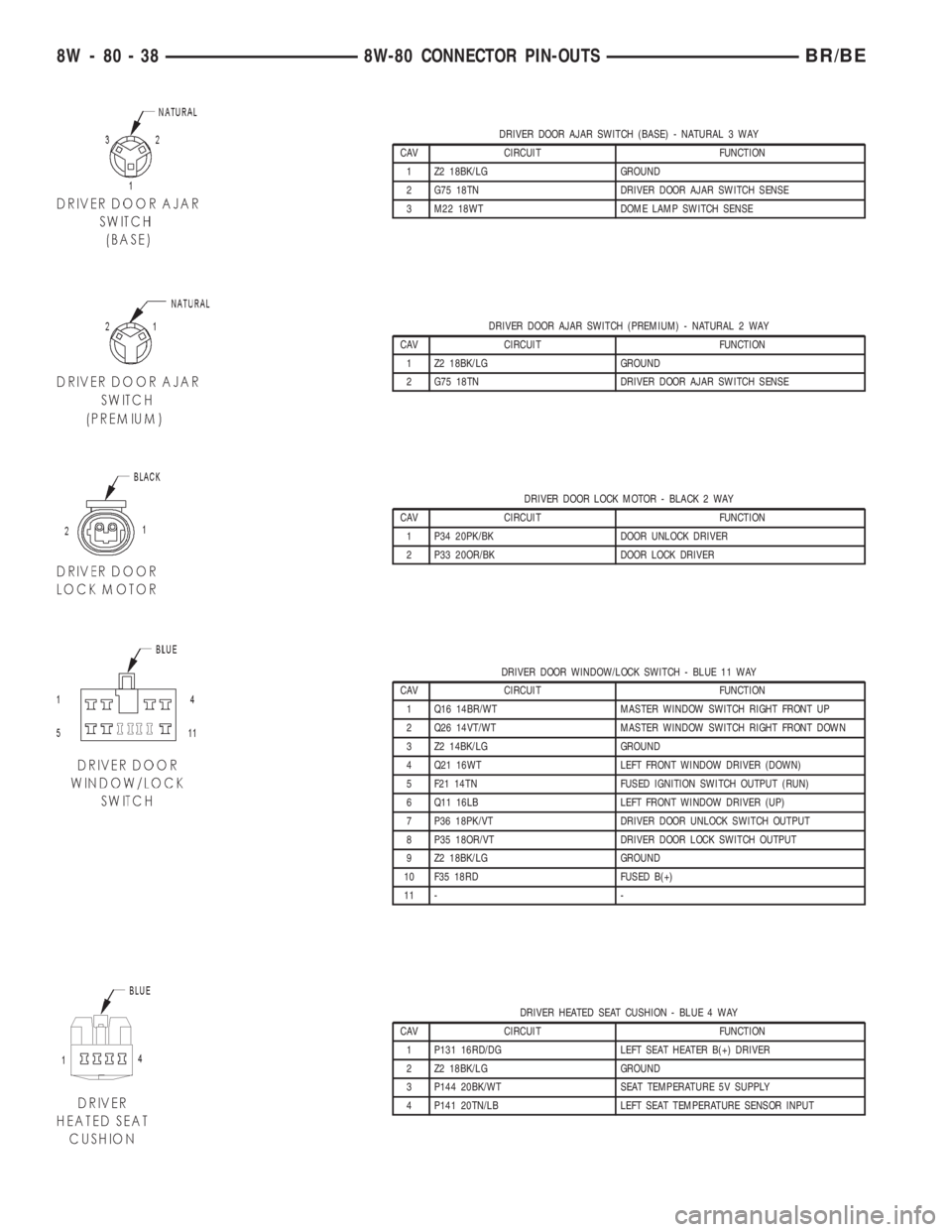

DRIVER DOOR AJAR SWITCH (BASE) - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 Z2 18BK/LG GROUND
2 G75 18TN DRIVER DOOR AJAR SWITCH SENSE
3 M22 18WT DOME LAMP SWITCH SENSE
DRIVER DOOR AJAR SWITCH (PREMIUM) - NATURAL 2 WAY
CAV CIRCUIT FUNCTION
1 Z2 18BK/LG GROUND
2 G75 18TN DRIVER DOOR AJAR SWITCH SENSE
DRIVER DOOR LOCK MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P34 20PK/BK DOOR UNLOCK DRIVER
2 P33 20OR/BK DOOR LOCK DRIVER
DRIVER DOOR WINDOW/LOCK SWITCH - BLUE 11 WAY
CAV CIRCUIT FUNCTION
1 Q16 14BR/WT MASTER WINDOW SWITCH RIGHT FRONT UP
2 Q26 14VT/WT MASTER WINDOW SWITCH RIGHT FRONT DOWN
3 Z2 14BK/LG GROUND
4 Q21 16WT LEFT FRONT WINDOW DRIVER (DOWN)
5 F21 14TN FUSED IGNITION SWITCH OUTPUT (RUN)
6 Q11 16LB LEFT FRONT WINDOW DRIVER (UP)
7 P36 18PK/VT DRIVER DOOR UNLOCK SWITCH OUTPUT
8 P35 18OR/VT DRIVER DOOR LOCK SWITCH OUTPUT
9 Z2 18BK/LG GROUND
10 F35 18RD FUSED B(+)
11 - -
DRIVER HEATED SEAT CUSHION - BLUE 4 WAY
CAV CIRCUIT FUNCTION
1 P131 16RD/DG LEFT SEAT HEATER B(+) DRIVER
2 Z2 18BK/LG GROUND
3 P144 20BK/WT SEAT TEMPERATURE 5V SUPPLY
4 P141 20TN/LB LEFT SEAT TEMPERATURE SENSOR INPUT
8W - 80 - 38 8W-80 CONNECTOR PIN-OUTSBR/BE

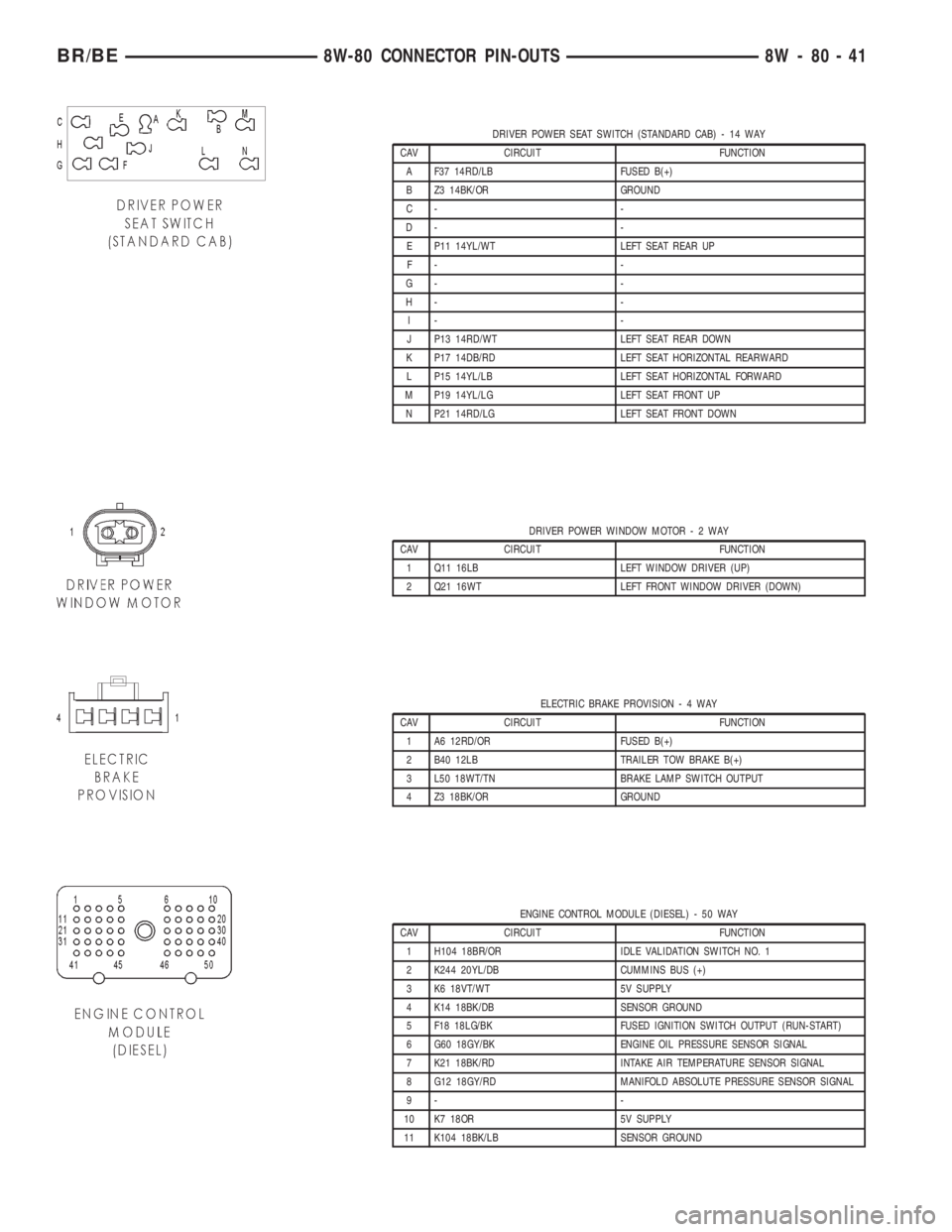

DRIVER POWER SEAT SWITCH (STANDARD CAB) - 14 WAY
CAV CIRCUIT FUNCTION
A F37 14RD/LB FUSED B(+)
B Z3 14BK/OR GROUND
C- -
D- -
E P11 14YL/WT LEFT SEAT REAR UP
F- -
G- -
H- -
I- -
J P13 14RD/WT LEFT SEAT REAR DOWN
K P17 14DB/RD LEFT SEAT HORIZONTAL REARWARD
L P15 14YL/LB LEFT SEAT HORIZONTAL FORWARD
M P19 14YL/LG LEFT SEAT FRONT UP
N P21 14RD/LG LEFT SEAT FRONT DOWN
DRIVER POWER WINDOW MOTOR-2WAY
CAV CIRCUIT FUNCTION
1 Q11 16LB LEFT WINDOW DRIVER (UP)
2 Q21 16WT LEFT FRONT WINDOW DRIVER (DOWN)
ELECTRIC BRAKE PROVISION-4WAY
CAV CIRCUIT FUNCTION
1 A6 12RD/OR FUSED B(+)
2 B40 12LB TRAILER TOW BRAKE B(+)
3 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
4 Z3 18BK/OR GROUND
ENGINE CONTROL MODULE (DIESEL) - 50 WAY
CAV CIRCUIT FUNCTION
1 H104 18BR/OR IDLE VALIDATION SWITCH NO. 1
2 K244 20YL/DB CUMMINS BUS (+)
3 K6 18VT/WT 5V SUPPLY
4 K14 18BK/DB SENSOR GROUND
5 F18 18LG/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 G60 18GY/BK ENGINE OIL PRESSURE SENSOR SIGNAL
7 K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
8 G12 18GY/RD MANIFOLD ABSOLUTE PRESSURE SENSOR SIGNAL
9- -
10 K7 18OR 5V SUPPLY
11 K104 18BK/LB SENSOR GROUND
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 41

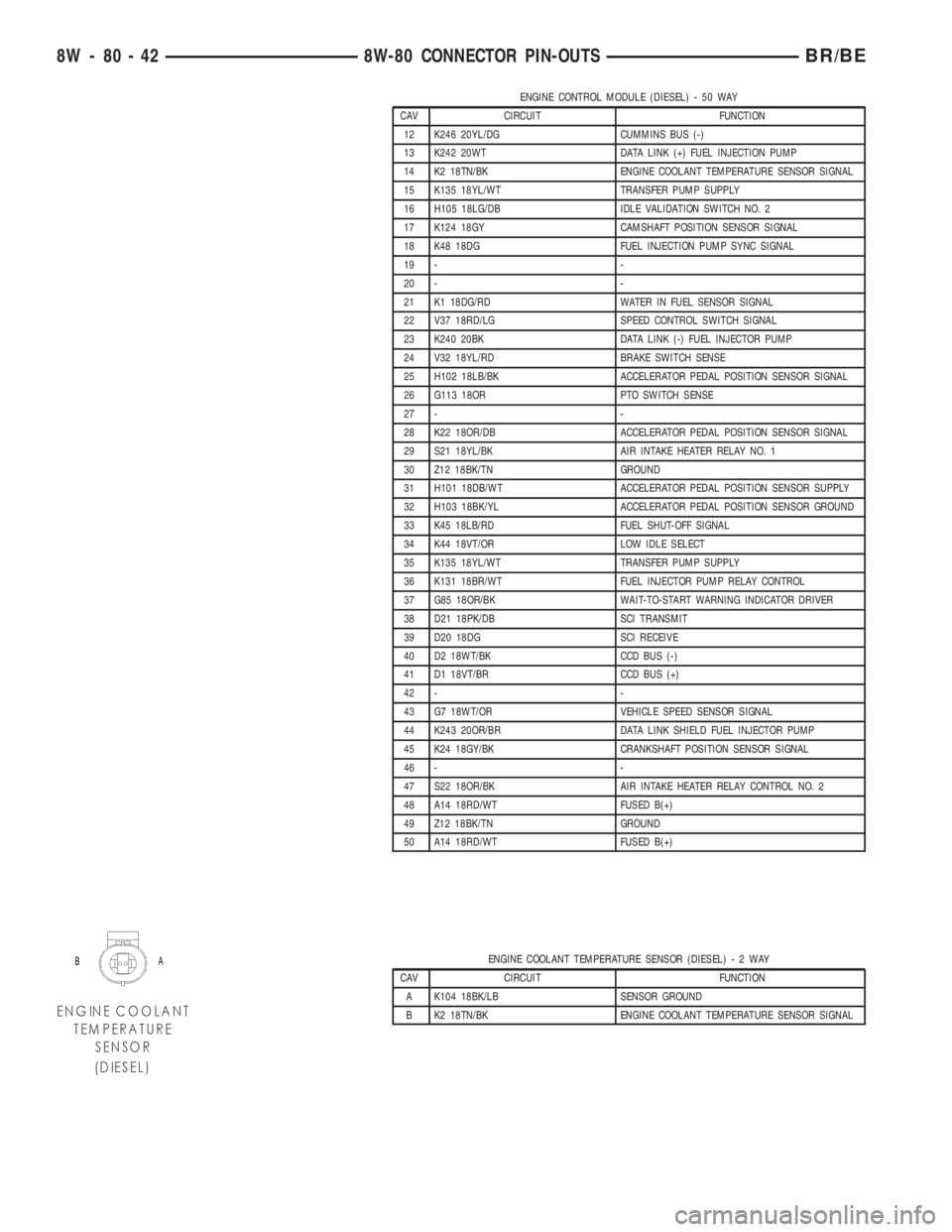

ENGINE CONTROL MODULE (DIESEL) - 50 WAY
CAV CIRCUIT FUNCTION
12 K246 20YL/DG CUMMINS BUS (-)
13 K242 20WT DATA LINK (+) FUEL INJECTION PUMP
14 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
15 K135 18YL/WT TRANSFER PUMP SUPPLY
16 H105 18LG/DB IDLE VALIDATION SWITCH NO. 2
17 K124 18GY CAMSHAFT POSITION SENSOR SIGNAL
18 K48 18DG FUEL INJECTION PUMP SYNC SIGNAL
19 - -
20 - -
21 K1 18DG/RD WATER IN FUEL SENSOR SIGNAL
22 V37 18RD/LG SPEED CONTROL SWITCH SIGNAL
23 K240 20BK DATA LINK (-) FUEL INJECTOR PUMP
24 V32 18YL/RD BRAKE SWITCH SENSE
25 H102 18LB/BK ACCELERATOR PEDAL POSITION SENSOR SIGNAL
26 G113 18OR PTO SWITCH SENSE
27 - -
28 K22 18OR/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
29 S21 18YL/BK AIR INTAKE HEATER RELAY NO. 1
30 Z12 18BK/TN GROUND
31 H101 18DB/WT ACCELERATOR PEDAL POSITION SENSOR SUPPLY
32 H103 18BK/YL ACCELERATOR PEDAL POSITION SENSOR GROUND
33 K45 18LB/RD FUEL SHUT-OFF SIGNAL
34 K44 18VT/OR LOW IDLE SELECT
35 K135 18YL/WT TRANSFER PUMP SUPPLY
36 K131 18BR/WT FUEL INJECTOR PUMP RELAY CONTROL
37 G85 18OR/BK WAIT-TO-START WARNING INDICATOR DRIVER
38 D21 18PK/DB SCI TRANSMIT
39 D20 18DG SCI RECEIVE
40 D2 18WT/BK CCD BUS (-)
41 D1 18VT/BR CCD BUS (+)
42 - -
43 G7 18WT/OR VEHICLE SPEED SENSOR SIGNAL
44 K243 20OR/BR DATA LINK SHIELD FUEL INJECTOR PUMP
45 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
46 - -
47 S22 18OR/BK AIR INTAKE HEATER RELAY CONTROL NO. 2
48 A14 18RD/WT FUSED B(+)
49 Z12 18BK/TN GROUND
50 A14 18RD/WT FUSED B(+)
ENGINE COOLANT TEMPERATURE SENSOR (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
A K104 18BK/LB SENSOR GROUND
B K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
8W - 80 - 42 8W-80 CONNECTOR PIN-OUTSBR/BE

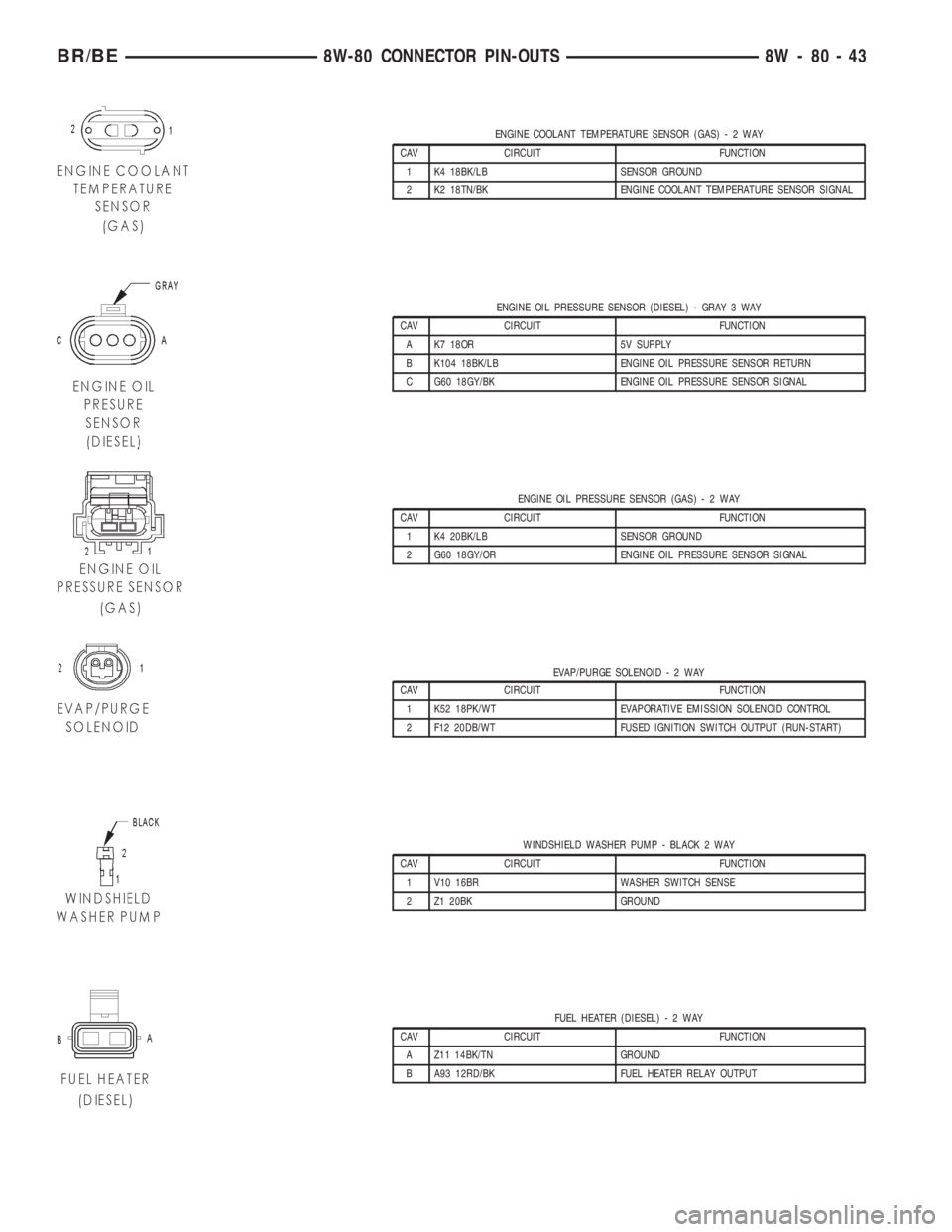

ENGINE COOLANT TEMPERATURE SENSOR (GAS)-2WAY
CAV CIRCUIT FUNCTION
1 K4 18BK/LB SENSOR GROUND
2 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
ENGINE OIL PRESSURE SENSOR (DIESEL) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
A K7 18OR 5V SUPPLY
B K104 18BK/LB ENGINE OIL PRESSURE SENSOR RETURN
C G60 18GY/BK ENGINE OIL PRESSURE SENSOR SIGNAL
ENGINE OIL PRESSURE SENSOR (GAS)-2WAY
CAV CIRCUIT FUNCTION
1 K4 20BK/LB SENSOR GROUND
2 G60 18GY/OR ENGINE OIL PRESSURE SENSOR SIGNAL
EVAP/PURGE SOLENOID-2WAY
CAV CIRCUIT FUNCTION
1 K52 18PK/WT EVAPORATIVE EMISSION SOLENOID CONTROL
2 F12 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
WINDSHIELD WASHER PUMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 V10 16BR WASHER SWITCH SENSE
2 Z1 20BK GROUND
FUEL HEATER (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
A Z11 14BK/TN GROUND
B A93 12RD/BK FUEL HEATER RELAY OUTPUT
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 43

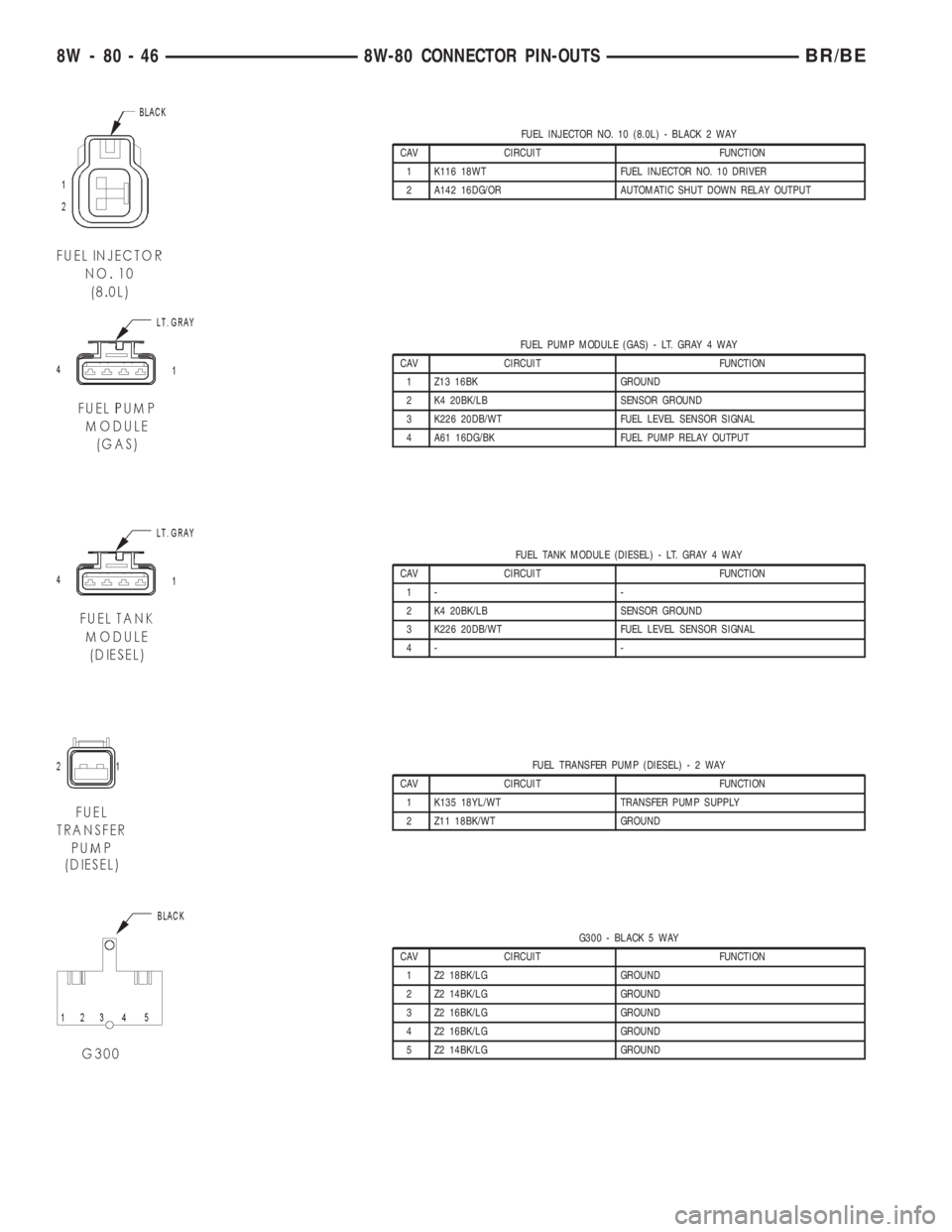

FUEL INJECTOR NO. 10 (8.0L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K116 18WT FUEL INJECTOR NO. 10 DRIVER
2 A142 16DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
FUEL PUMP MODULE (GAS) - LT. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z13 16BK GROUND
2 K4 20BK/LB SENSOR GROUND
3 K226 20DB/WT FUEL LEVEL SENSOR SIGNAL
4 A61 16DG/BK FUEL PUMP RELAY OUTPUT
FUEL TANK MODULE (DIESEL) - LT. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1- -
2 K4 20BK/LB SENSOR GROUND
3 K226 20DB/WT FUEL LEVEL SENSOR SIGNAL
4- -
FUEL TRANSFER PUMP (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
1 K135 18YL/WT TRANSFER PUMP SUPPLY
2 Z11 18BK/WT GROUND
G300 - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 Z2 18BK/LG GROUND
2 Z2 14BK/LG GROUND
3 Z2 16BK/LG GROUND
4 Z2 16BK/LG GROUND
5 Z2 14BK/LG GROUND
8W - 80 - 46 8W-80 CONNECTOR PIN-OUTSBR/BE
