Page 2031 of 2255

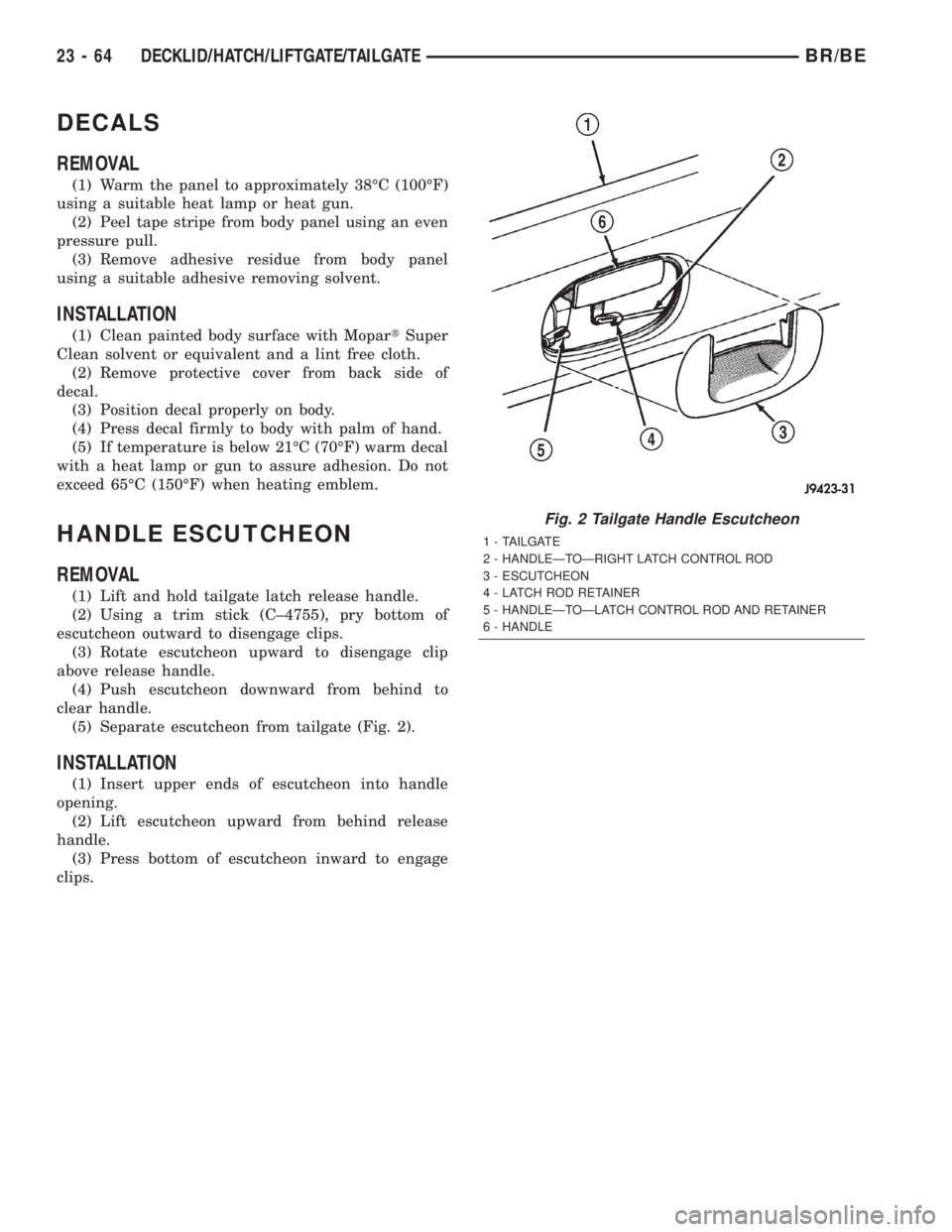

DODGE RAM 2002  Service Repair Manual DECALS
REMOVAL
(1) Warm the panel to approximately 38ÉC (100ÉF)
using a suitable heat lamp or heat gun.
(2) Peel tape stripe from body panel using an even
pressure pull.
(3) Remove adhesive residue

Page 2032 of 2255

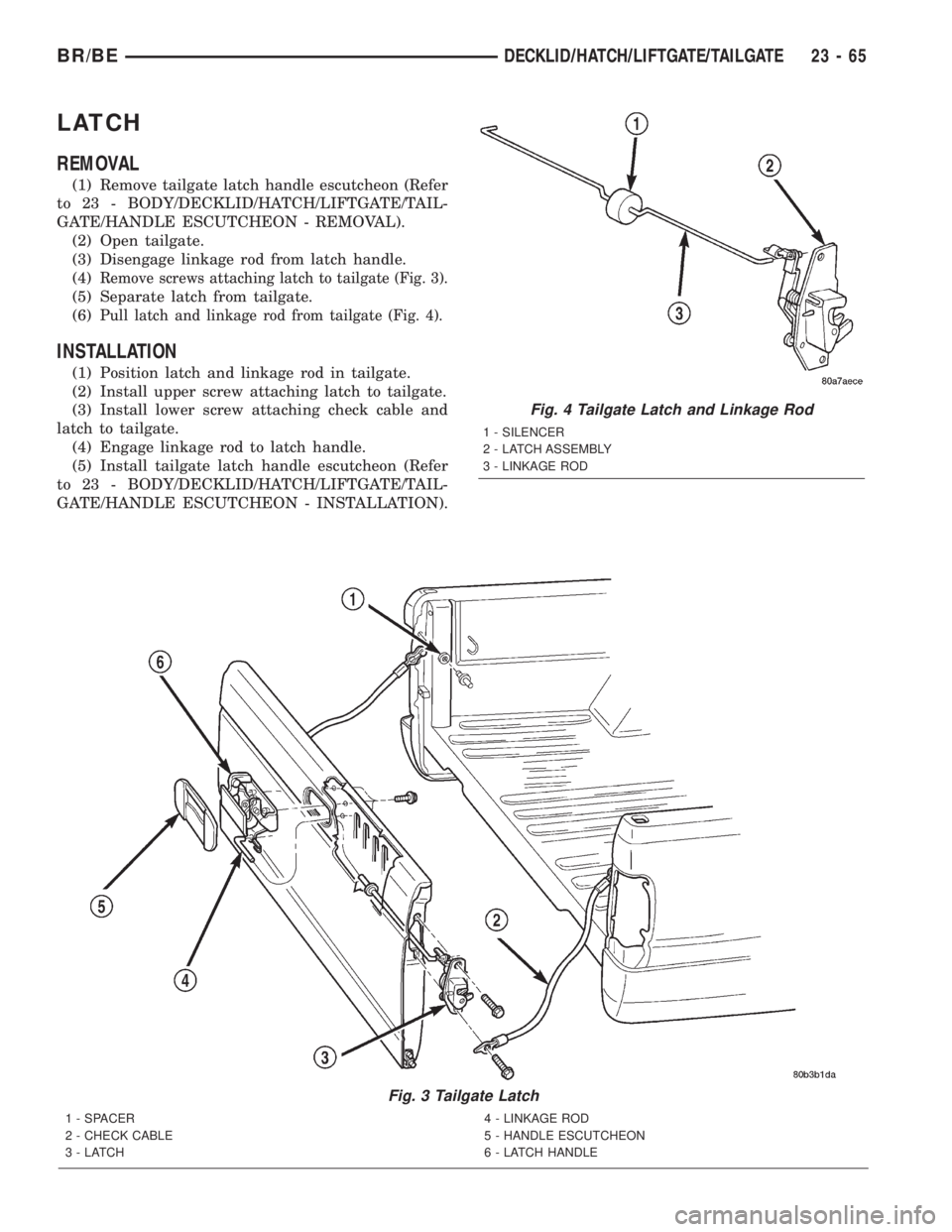

DODGE RAM 2002  Service Repair Manual LATCH
REMOVAL
(1) Remove tailgate latch handle escutcheon (Refer
to 23 - BODY/DECKLID/HATCH/LIFTGATE/TAIL-
GATE/HANDLE ESCUTCHEON - REMOVAL).
(2) Open tailgate.
(3) Disengage linkage rod from latch ha

Page 2033 of 2255

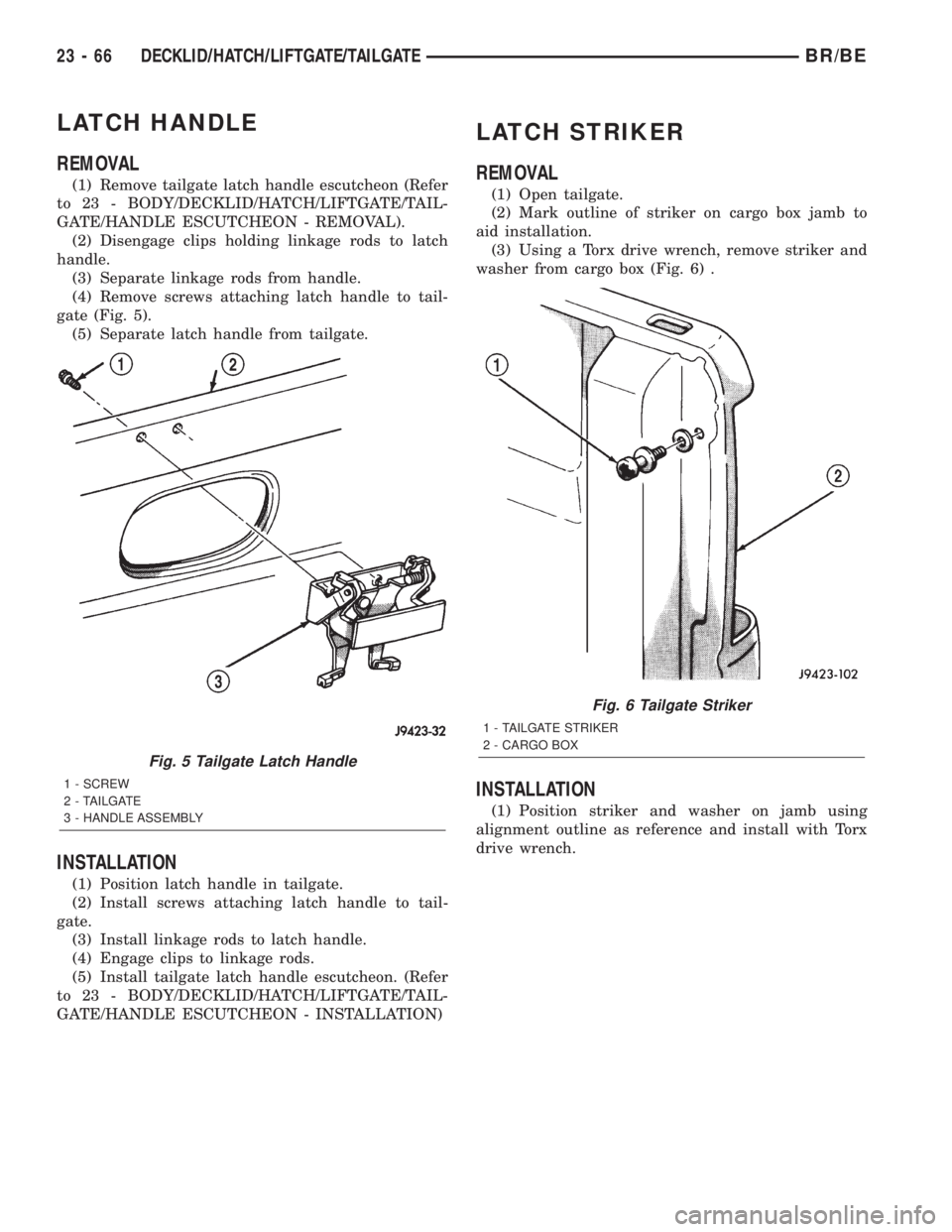

DODGE RAM 2002  Service Repair Manual LATCH HANDLE
REMOVAL
(1) Remove tailgate latch handle escutcheon (Refer
to 23 - BODY/DECKLID/HATCH/LIFTGATE/TAIL-
GATE/HANDLE ESCUTCHEON - REMOVAL).
(2) Disengage clips holding linkage rods to latch
h

Page 2034 of 2255

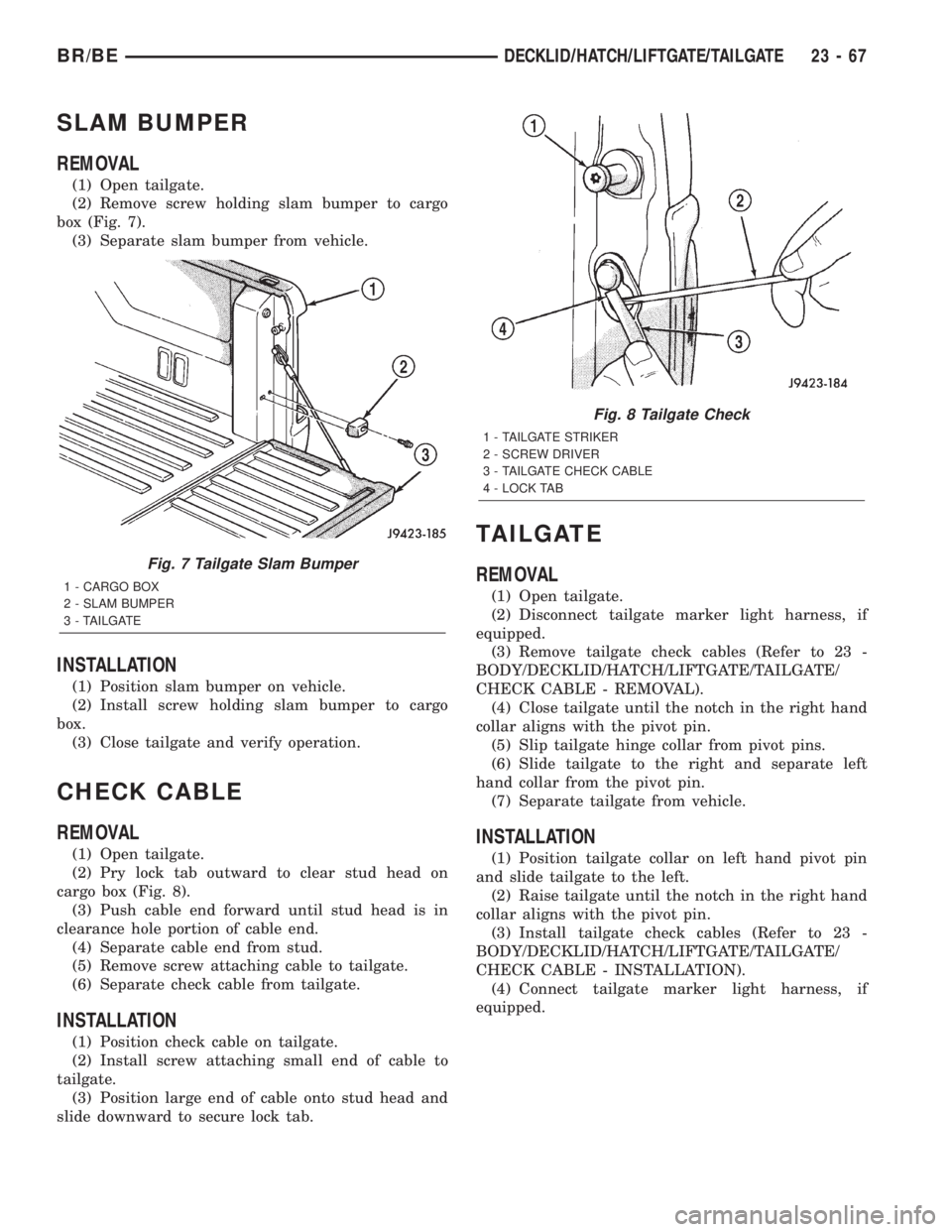

DODGE RAM 2002  Service Repair Manual SLAM BUMPER
REMOVAL
(1) Open tailgate.
(2) Remove screw holding slam bumper to cargo
box (Fig. 7).
(3) Separate slam bumper from vehicle.
INSTALLATION
(1) Position slam bumper on vehicle.
(2) Install

Page 2035 of 2255

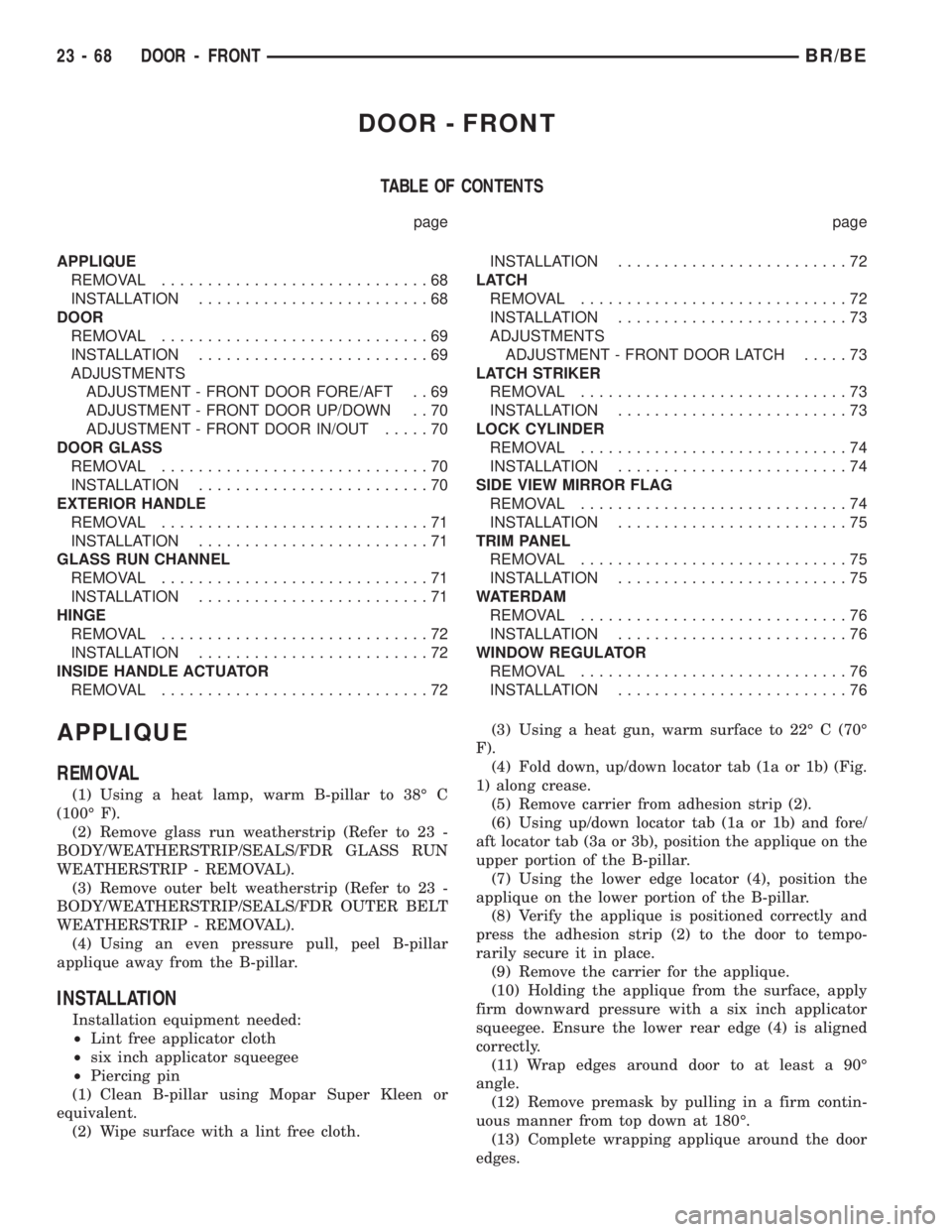

DODGE RAM 2002  Service Repair Manual DOOR - FRONT
TABLE OF CONTENTS
page page
APPLIQUE
REMOVAL.............................68
INSTALLATION.........................68
DOOR
REMOVAL.............................69
INSTALLATION...............

Page 2036 of 2255

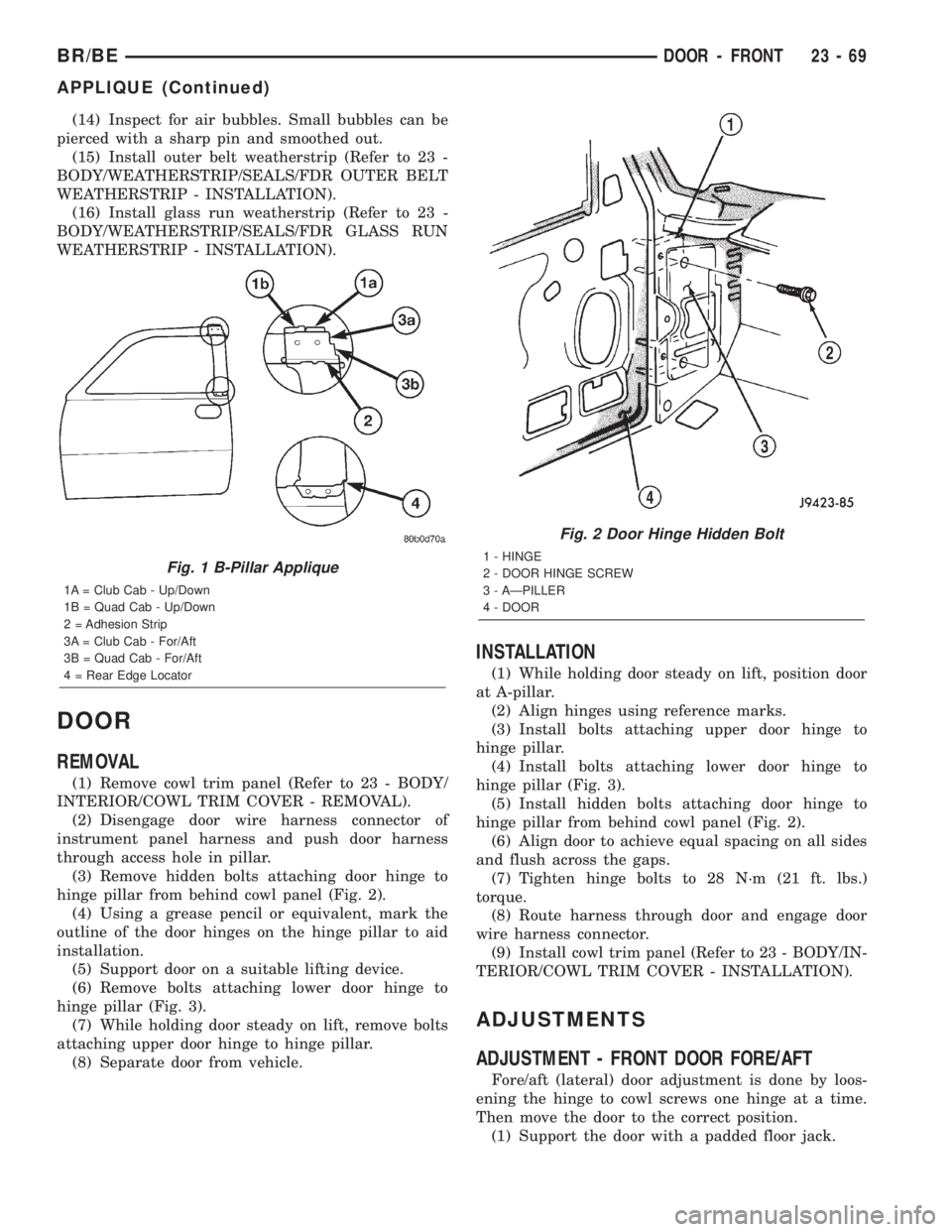

DODGE RAM 2002  Service Repair Manual (14) Inspect for air bubbles. Small bubbles can be
pierced with a sharp pin and smoothed out.
(15) Install outer belt weatherstrip (Refer to 23 -
BODY/WEATHERSTRIP/SEALS/FDR OUTER BELT
WEATHERSTRIP -

Page 2037 of 2255

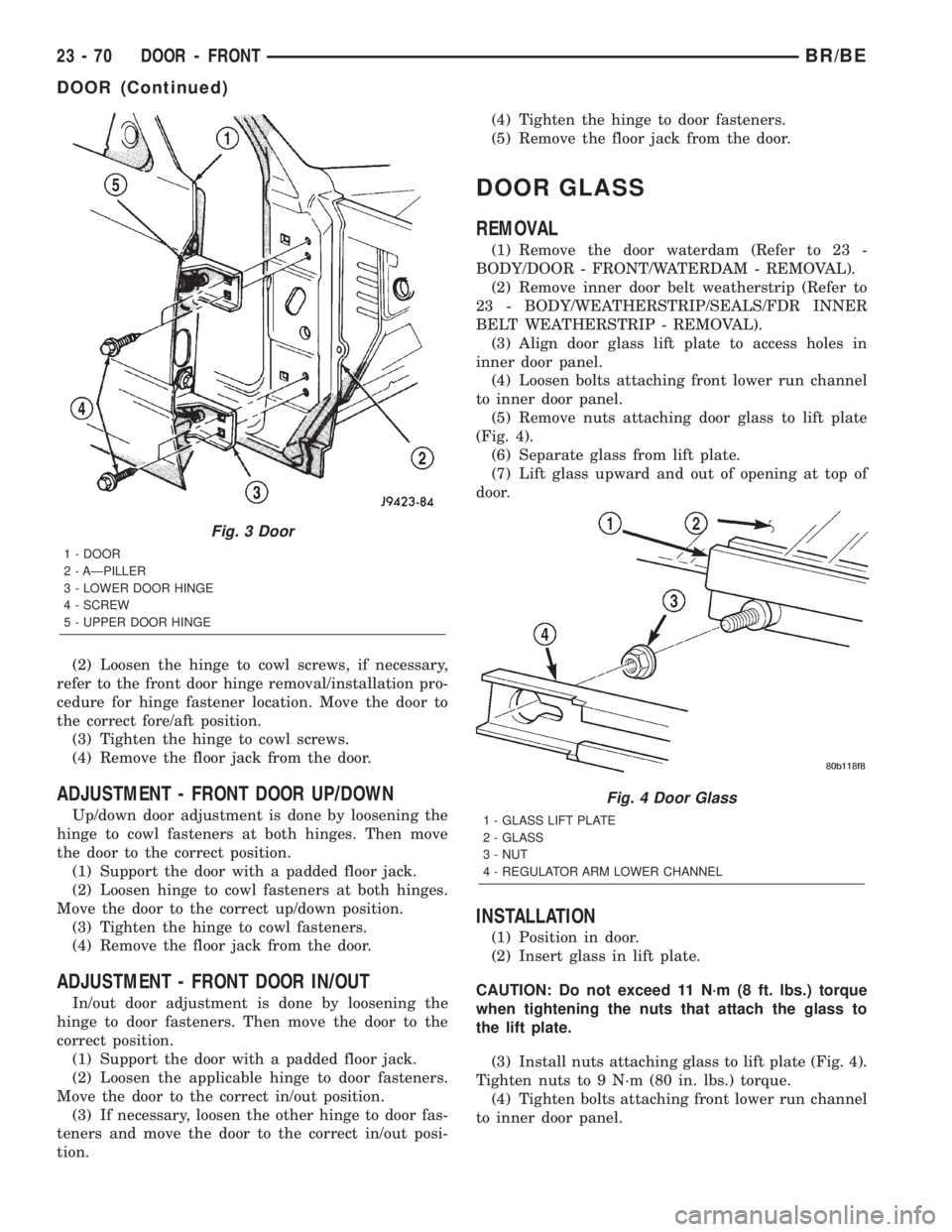

DODGE RAM 2002  Service Repair Manual (2) Loosen the hinge to cowl screws, if necessary,
refer to the front door hinge removal/installation pro-
cedure for hinge fastener location. Move the door to
the correct fore/aft position.
(3) Tight

Page 2038 of 2255

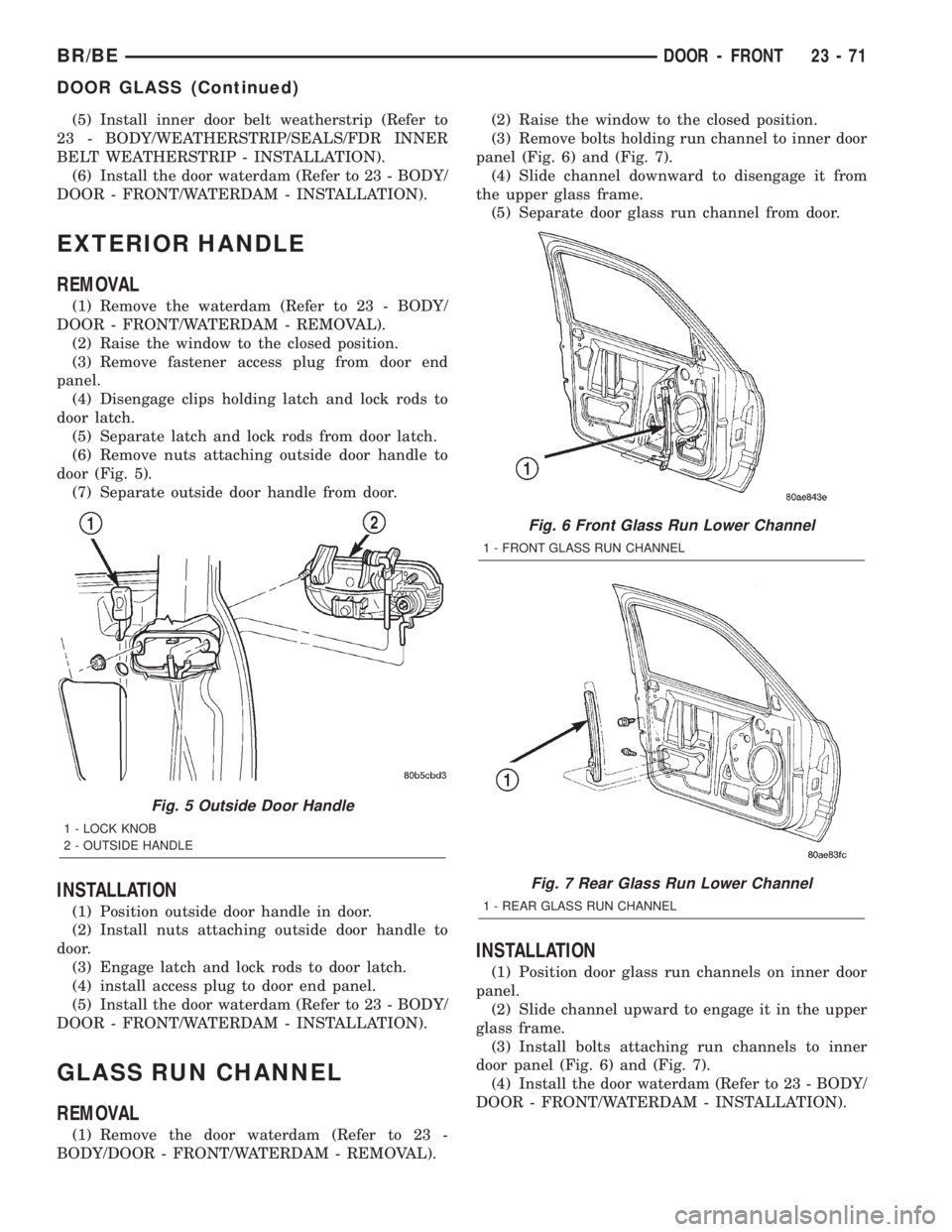

DODGE RAM 2002  Service Repair Manual (5) Install inner door belt weatherstrip (Refer to
23 - BODY/WEATHERSTRIP/SEALS/FDR INNER
BELT WEATHERSTRIP - INSTALLATION).
(6) Install the door waterdam (Refer to 23 - BODY/
DOOR - FRONT/WATERDAM -

Page 2039 of 2255

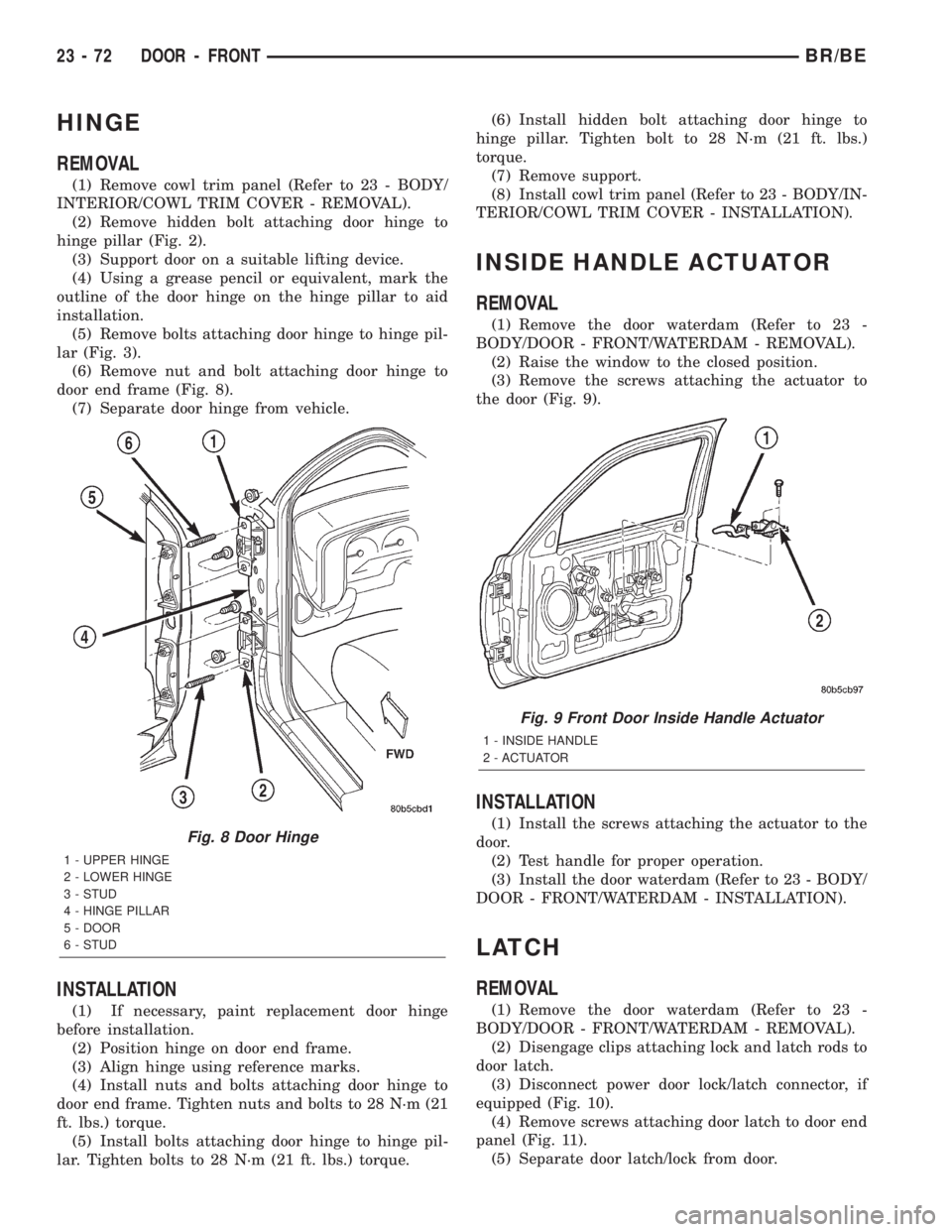

DODGE RAM 2002  Service Repair Manual HINGE
REMOVAL
(1) Remove cowl trim panel (Refer to 23 - BODY/
INTERIOR/COWL TRIM COVER - REMOVAL).
(2) Remove hidden bolt attaching door hinge to
hinge pillar (Fig. 2).
(3) Support door on a suitable

Page 2040 of 2255

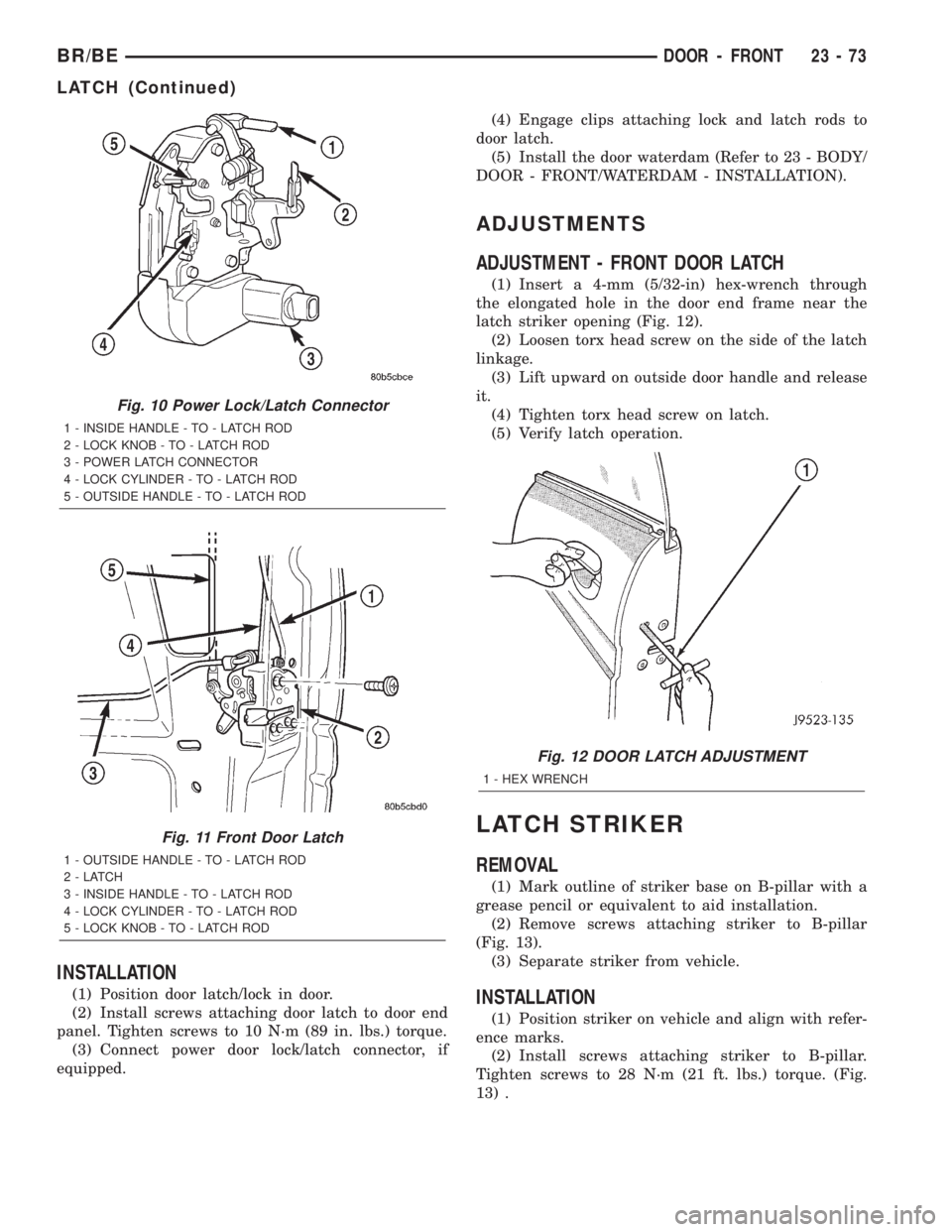

DODGE RAM 2002  Service Repair Manual INSTALLATION
(1) Position door latch/lock in door.
(2) Install screws attaching door latch to door end
panel. Tighten screws to 10 N´m (89 in. lbs.) torque.
(3) Connect power door lock/latch connecto
