DODGE RAM 2002 Service Repair Manual

QUAD CAB
(1) Clamp seat belt to prevent belt from retracting.
(2) Move seats to full rearward position.
(3) Remove bolts attaching front of seat tracks to
floor.
(4) Move seats to full forward position.
(5) Remove bolts attaching rear of outboard seat
tracks to floor (Fig. 6).
(6) Remove nuts attaching inboard seat tracks to
floor.
(7) Disengage wire connectors from body harness.
(8) Lift seats upward to clear rear studs.
(9) With the aid of a helper, separate seat from
vehicle.
INSTALLATION
STANDARD CAB
(1) Position seat in vehicle.
(2) Connect power seat wire connector to body har-
ness, if equipped.
(3) Install bolts holding front of seat tracks to
floor. Tighten the bolts to 40 N´m (30 ft. lbs.) torque.
(4) Install bolt holding inboard seat track to bot-
tom of center occupant seat. Tighten the bolt to 28
N´m (21 ft. lbs) torque.(5) Install nuts holding outboard and inboard
tracks to floor. Tighten the inboard nuts to 40 N´m
(30 ft. lbs.) torque. Tighten the outer nuts to 54 N´m
(40 ft. lbs. torque).
QUAD CAB
(1) Position seat in vehicle.
CAUTION: Verify that power is not being supplied
when engaging connector.
(2) Engage driver's seat belt buckle wire connector.
Engage power seat wire connector to body harness, if
equipped.
(3) Ensure seats are in full forward position.
(4) Install outboard bolts attaching rear of seat
tracks to floor (Fig. 6). Tighten the bolts to 54 N´m
(40 ft. lbs.) torque.
(5) Install nuts attaching inboard seat tracks to
floor. Tighten the nuts to 40 N´m (30 ft. lbs.) torque.
(6) Move seats to full forward position.
(7) Install bolts attaching front of seat tracks to
floor. Tighten the bolts to 54 N´m (40 ft. lbs.) torque.

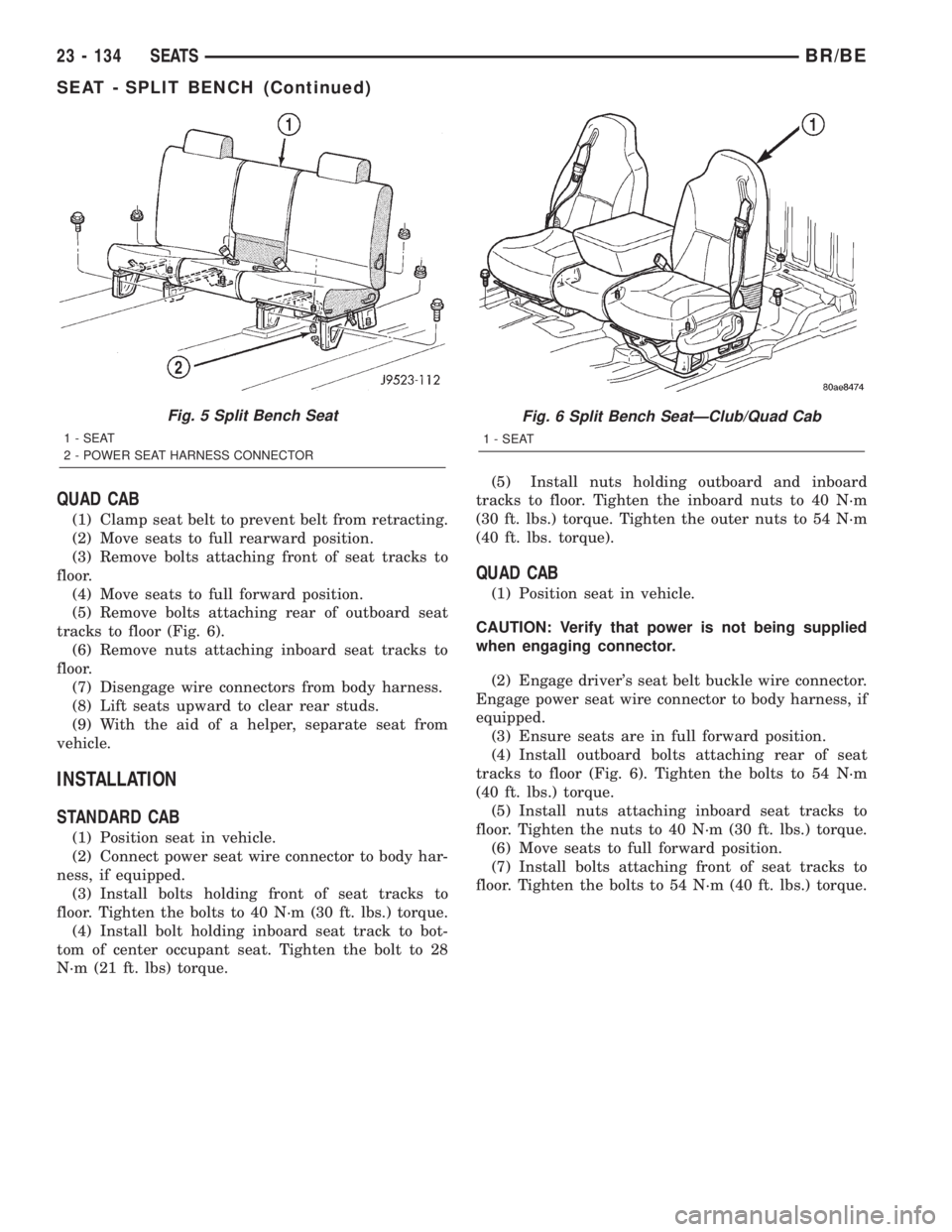

Fig. 5 Split Bench Seat
1 - SEAT
2 - POWER SEAT HARNESS CONNECTOR
Fig. 6 Split Bench SeatÐClub/Quad Cab
1 - SEAT
23 - 134 SEATSBR/BE
SEAT - SPLIT BENCH (Continued)

SEAT BACK - BENCH SEAT
REMOVAL
(1) Move seat to the full forward position.
(2) Release J-Strap and peel back side of cover
(corner flap) (Fig. 8).
(3) Remove bolts attaching seat back to seat cush-
ion and separate seat back from seat cushion (Fig. 7).
INSTALLATION
(1) Align seat cushion with seat back.(2) Install bolts through seat back latch into seat
cushion frame. Tighten bolts to 25 N´m (18 ft. lbs.)
torque.
(3) Pull side of cover (corner flap) facing rear of
the cushion over and secure J-Strap (Fig. 8).
(4) Plastic cover on side cover (corner flap) at rear
of cushion must be over the pin on the inertia
latches.
SEAT BACK - SPLIT BENCH
REMOVAL
STANDARD CAB
(1) Disconnect power seat switch connector, if
equipped.
(2) Remove center seat/console armrest. (Refer to
23 - BODY/SEATS/CENTER SEAT ARMREST /
CONSOLE - REMOVAL).
(3) Disconnect rear end flap J-Straps and peel
back rear J-Strap.
(4) Remove bolts attaching seat back to seat cush-
ion frame.
(5) Separate seat back from seat cushion (Fig. 9).
QUAD CAB
(1) Remove screw attaching recliner handle and
pull handle to remove.
(2) Remove seat dump handle, 2±door ªBEº vehi-
cles only.
(3) Remove screws attaching side shield to seat
track adjuster.

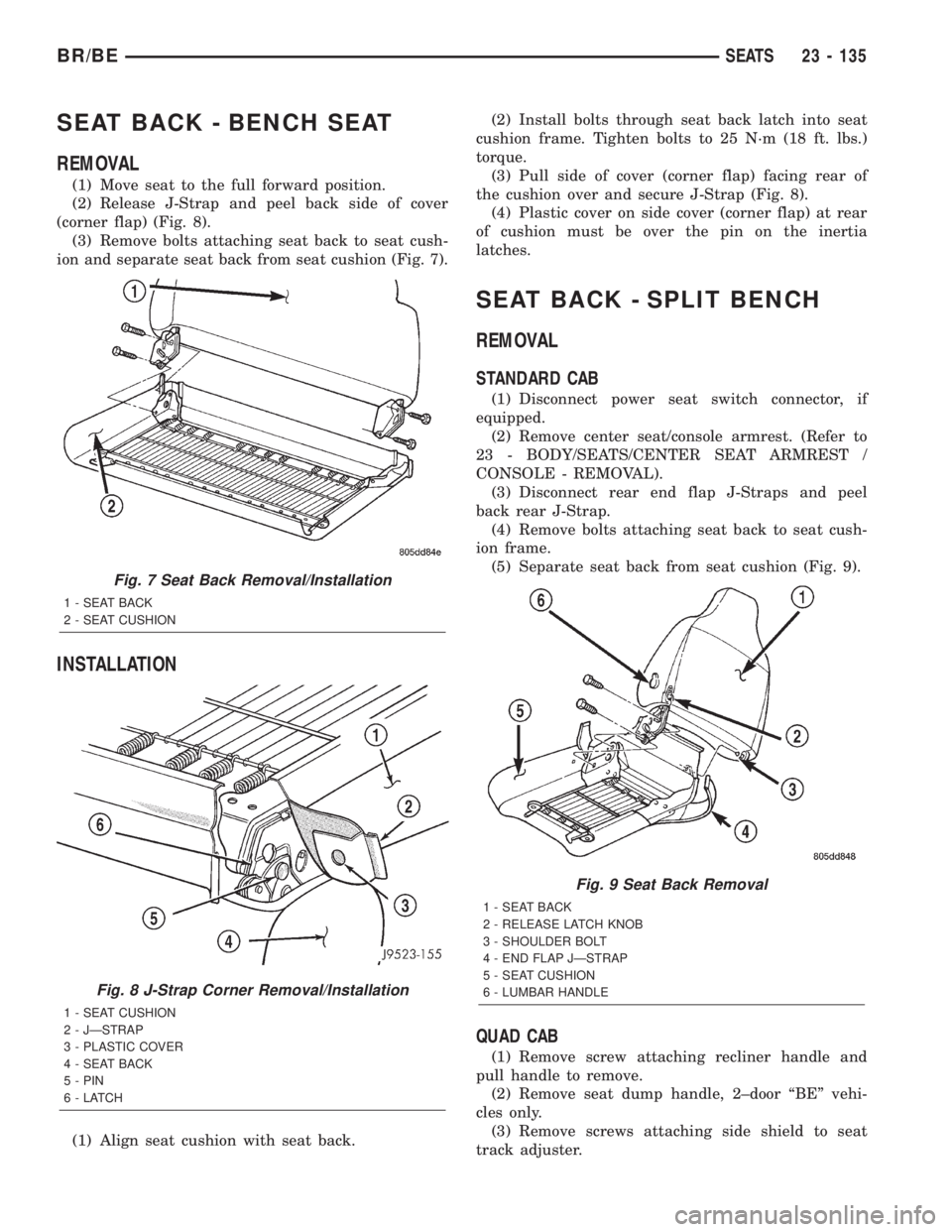

Fig. 7 Seat Back Removal/Installation
1 - SEAT BACK
2 - SEAT CUSHION
Fig. 8 J-Strap Corner Removal/Installation
1 - SEAT CUSHION
2 - JÐSTRAP
3 - PLASTIC COVER
4 - SEAT BACK
5 - PIN
6-LATCH
Fig. 9 Seat Back Removal
1 - SEAT BACK
2 - RELEASE LATCH KNOB
3 - SHOULDER BOLT
4 - END FLAP JÐSTRAP
5 - SEAT CUSHION
6 - LUMBAR HANDLE
BR/BESEATS 23 - 135

(4) Remove seat dump handle.
(5) Pull shoulder belt out completely and clamp
shoulder belt to prevent shoulder belt from retracting
(Fig. 10).
(6) Remove shoulder belt anchor bolt.
(7) From the underside of the seat, remove the
inboard pivot bolt (Fig. 11).
WARNING: DO NOT REMOVE UPPER RECLINER
HANDLE, PULL ON UPPER RECLINER HANDLE OR
RECLINER CABLE END. THE RECLINER LEAD
SCREW IS SPRING LOADED AND WILL EJECT IF
EITHER THE HANDLE OR CABLE IS PULLED
BEFORE THE LEAD SCREW IS REMOVED.
(8) Remove clip attaching recliner cable (Fig. 12)
to seat track adjuster and separate the cable from
the seat track adjuster.
(9) Remove the inboard and outboard pivot bolts
attaching the frame to the seat track adjuster (Fig.
13).
(10) Remove recliner lower bolt.
(11) Separate seat back from seat track adjuster.
INSTALLATION
STANDARD CAB
(1) Align seat cushion with seat back and install
shoulder bolt through seat back into seat cushion
frame on inboard side. Tighten bolt to 49 N´m (36 ft.
lbs.) torque.
(2) Install bolts through seat back latch into seat
cushion frame. Tighten bolts to 25 N´m (18 ft. lbs.)
torque.
(3) Connect rear end flap J-Straps and pull rear
J-Strap up and secure to frame.(4) Install seat in vehicle.
(5) Connect power seat switch connector, if
equipped.

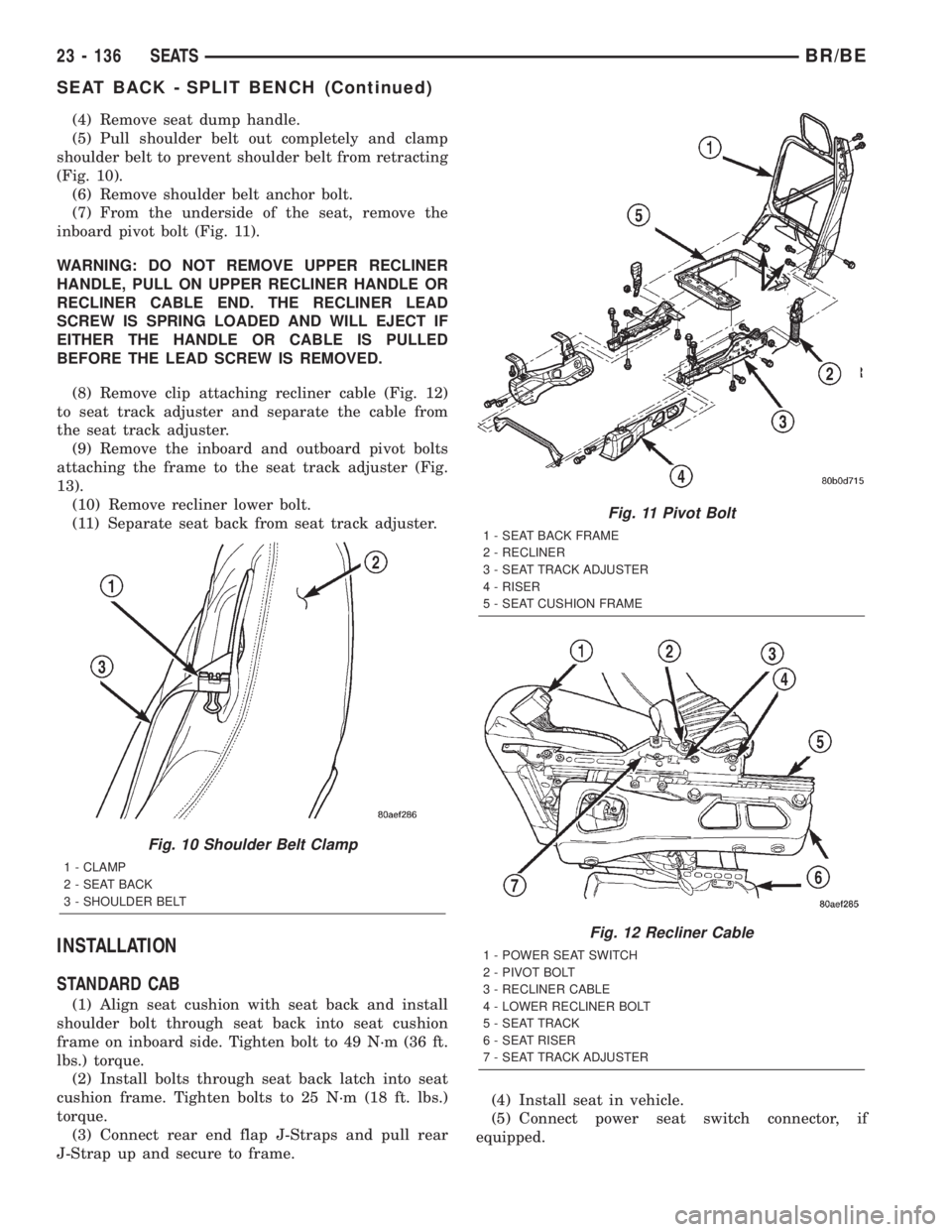

Fig. 10 Shoulder Belt Clamp
1 - CLAMP
2 - SEAT BACK
3 - SHOULDER BELT
Fig. 11 Pivot Bolt
1 - SEAT BACK FRAME
2 - RECLINER
3 - SEAT TRACK ADJUSTER
4 - RISER
5 - SEAT CUSHION FRAME
Fig. 12 Recliner Cable
1 - POWER SEAT SWITCH
2 - PIVOT BOLT
3 - RECLINER CABLE
4 - LOWER RECLINER BOLT
5 - SEAT TRACK
6 - SEAT RISER
7 - SEAT TRACK ADJUSTER
23 - 136 SEATSBR/BE
SEAT BACK - SPLIT BENCH (Continued)

QUAD CAB
(1) Position seat back on seat track adjuster.
(2)
Install the inboard and outboard pivot bolts
attaching the frame to the seat track adjuster (Fig. 11).
(3) Install the bolt attaching the lower recliner to
the seat track adjuster.
(4) Position the recliner cable on seat track
adjuster and installnewclip.
(5) Install shoulder belt anchor bolt. Tighten bolt
to 45 N´m (33 ft. lbs.) torque.
(6) Remove clamp (Fig. 10).
(7) Install side shield.
(8) Install recliner handle.
(9) Install seat dump handle, if removed.
SEAT BACK COVER
REMOVAL
(1) Remove seat back from vehicle.(Refer to 23 -
BODY/SEATS/SEAT BACK - BENCH SEAT -
REMOVAL)(2) Disengage J-Straps from base of seat back.
(3) Remove hogrings, if equipped.
(4) With seat back in a normal vertical position,
roll cover upwards and remove.
INSTALLATION
(1) With seat back in a normal vertical position,
roll cover downwards over seat back.
(2) Install hogrings, if equipped.
(3) Secure J-Straps at base of seat back.
(4) Install seat back. (Refer to 23 - BODY/SEATS/
SEAT BACK - BENCH SEAT - INSTALLATION)
SEAT BACK COVER - SPLIT
BENCH
REMOVAL
(1) Remove the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - SPLIT BENCH - REMOVAL)
(2) Using a trim stick or equivalent tool, pry off
lumbar handle, if equipped (Fig. 14). (Damage to
lumbar handle may occur during removal, verify
availability of replacement handle before removing.)
(3) Remove latch release knob (Fig. 14).
(4) Remove latch release bezel.
(5) Disengage J-Straps from base of seat back.
(6) Remove hog rings, if equipped.
(7) With seat back in a normal vertical position,
roll cover upwards and remove.
INSTALLATION
(1) With seat back in a normal vertical position,
roll cover downwards over seat back.
(2) Install hog rings, if equipped.
Fig. 13 Recliner
1 - SEAT BACK
2 - RECLINER
3 - SEAT TRACK

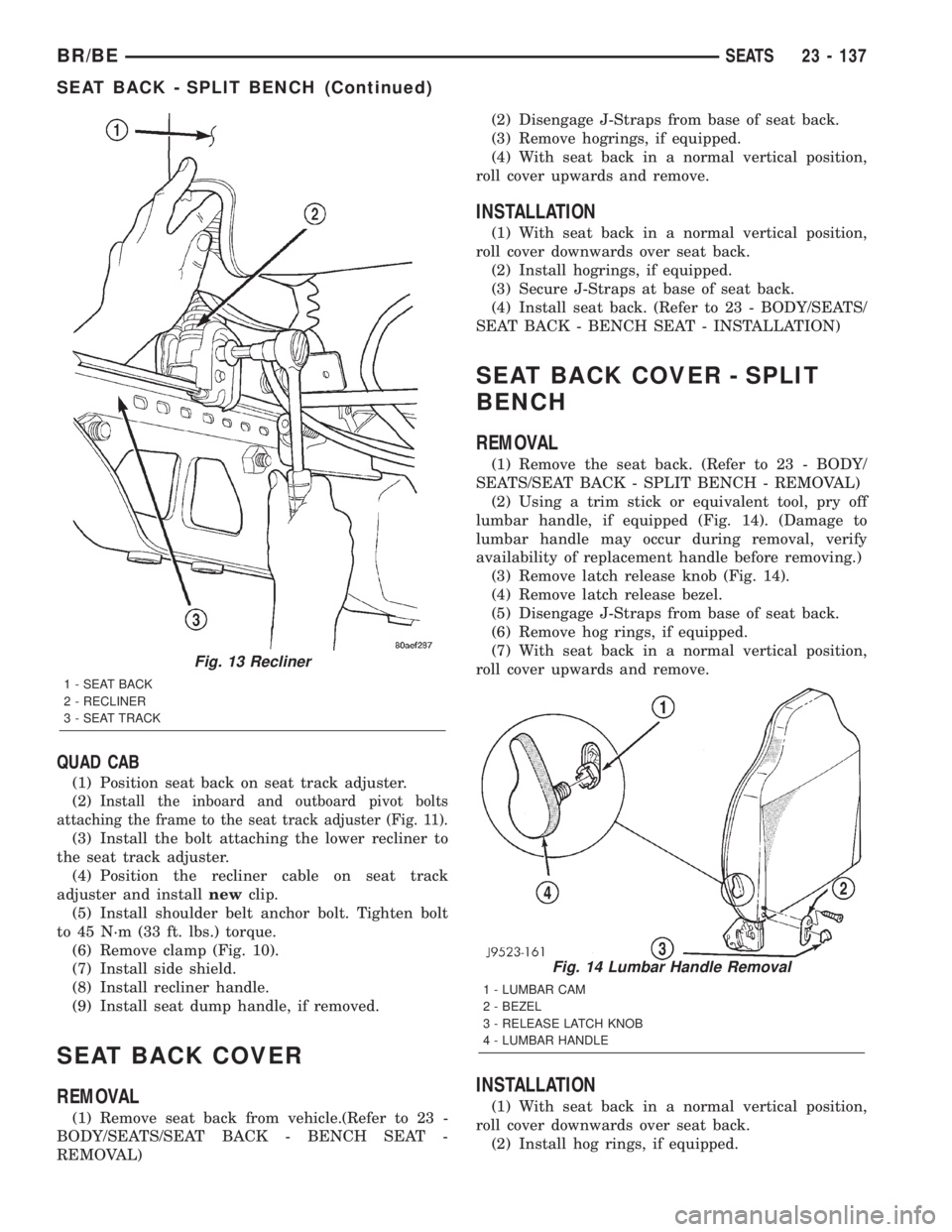

Fig. 14 Lumbar Handle Removal
1 - LUMBAR CAM
2 - BEZEL
3 - RELEASE LATCH KNOB
4 - LUMBAR HANDLE
BR/BESEATS 23 - 137
SEAT BACK - SPLIT BENCH (Continued)

(3) Engage J-Straps at base of seat back.
(4) Align lumbar handle with lumbar cam and tap
on with rubber mallet until seated.
(5) Install latch release bezel.
(6) Install latch release knob.
(7) Install seat back. (Refer to 23 - BODY/SEATS/
SEAT BACK - SPLIT BENCH - INSTALLATION)
SEAT BACK RECLINER
REMOVAL
(1) Remove seat back. (Refer to 23 - BODY/SEATS/
SEAT BACK - SPLIT BENCH - REMOVAL)
(2) Disengage J-straps at base of seat back and
roll seat back cover upward to access rubber bellows
push-in fasteners.
NOTE: Notice the routing of the recliner cable for
installation.
(3) Remove the push-in fasteners attaching upper
rubber bellows to the seat back frame.
(4) Remove rubber bellows.
(5) Remove seat dump handle, 2±door ªBEº vehi-
cles only.
WARNING: Do not pull on upper recliner handle or
recliner cable end. The recliner lead screw is spring
loaded and will eject if either the handle or cable is
pulled before the lead screw is removed.
(6) Remove the bolts attaching upper recliner to
seat back frame (Fig. 15).
(7)
Separate the recliner from the seat back.
INSTALLATION
(1) Install seat dump handle, if removed.
(2) Position the recliner in the seat back.
(3) Install the bolts attaching upper recliner to
seat back frame (Fig. 15).
(4) Install rubber bellows.
(5) Roll seat back cover upward and engage
J-straps at base of seat back.
(6) Ensure recliner cable is correctly routed.
(7) Install seat back. (Refer to 23 - BODY/SEATS/
SEAT BACK - SPLIT BENCH - INSTALLATION)
SEAT CUSHION
REMOVAL
(1) Remove the seat. (Refer to 23 - BODY/SEATS/
SEAT - BENCH SEAT - REMOVAL) or (Refer to 23 -
BODY/SEATS/SEAT - SPLIT BENCH - REMOVAL)(2) Remove the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - BENCH SEAT - REMOVAL) or
(Refer to 23 - BODY/SEATS/SEAT BACK - SPLIT
BENCH - REMOVAL)
(3) From the underside of the seat, remove the
bolts attaching the cushion frame to the mounting
brackets.
(4) Disengage wire harness connector, if equipped.
(5) Remove the cushion from the seat tracks.
INSTALLATION
(1) Position the cushion frame on the seat tracks.
(2) Ensure that the cushion frame is aligned with
the mounting brackets (Fig. 16).
(3) Engage wire harness connector, if equipped.
(4) Install the bolts attaching the seat cushion
frame to the mounting brackets. Tighten bolts to 25
N´m (18 ft. lbs.) torque.
(5) Install the seat back. (Refer to 23 - BODY/
SEATS/SEAT BACK - BENCH SEAT - INSTALLA-
TION) or (Refer to 23 - BODY/SEATS/SEAT BACK -
SPLIT BENCH - INSTALLATION)

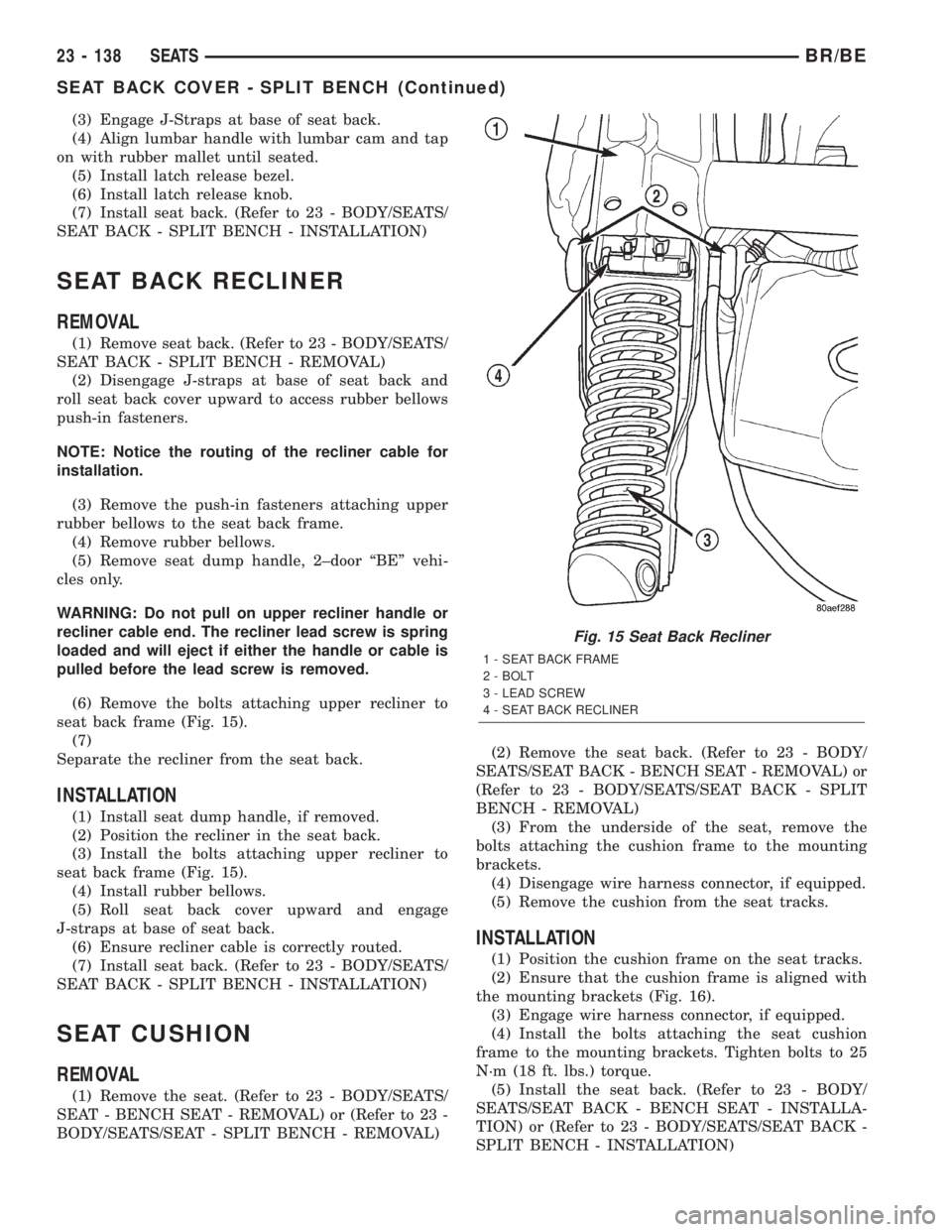

Fig. 15 Seat Back Recliner
1 - SEAT BACK FRAME
2 - BOLT
3 - LEAD SCREW
4 - SEAT BACK RECLINER
23 - 138 SEATSBR/BE
SEAT BACK COVER - SPLIT BENCH (Continued)

(6) Install the seat. (Refer to 23 - BODY/SEATS/
SEAT - BENCH SEAT - INSTALLATION) or (Refer
to 23 - BODY/SEATS/SEAT - SPLIT BENCH -
INSTALLATION)
SEAT CUSHION COVER
REMOVAL
(1) Remove seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - REMOVAL)
(2) Position seat cushion on a suitable work sur-
face with frame side up.
(3) Remove seat track. (Refer to 23 - BODY/
SEATS/SEAT TRACK - REMOVAL)
(4) Remove left and right side J-Straps.
(5) Remove rear J-Strap.
(6) Remove front J-Strap.
(7) Roll trim cover off of front and rear corners and
separate from foam cushion.
INSTALLATION
(1) Position cushion cover on cushion and roll
cover over front and rear corners.

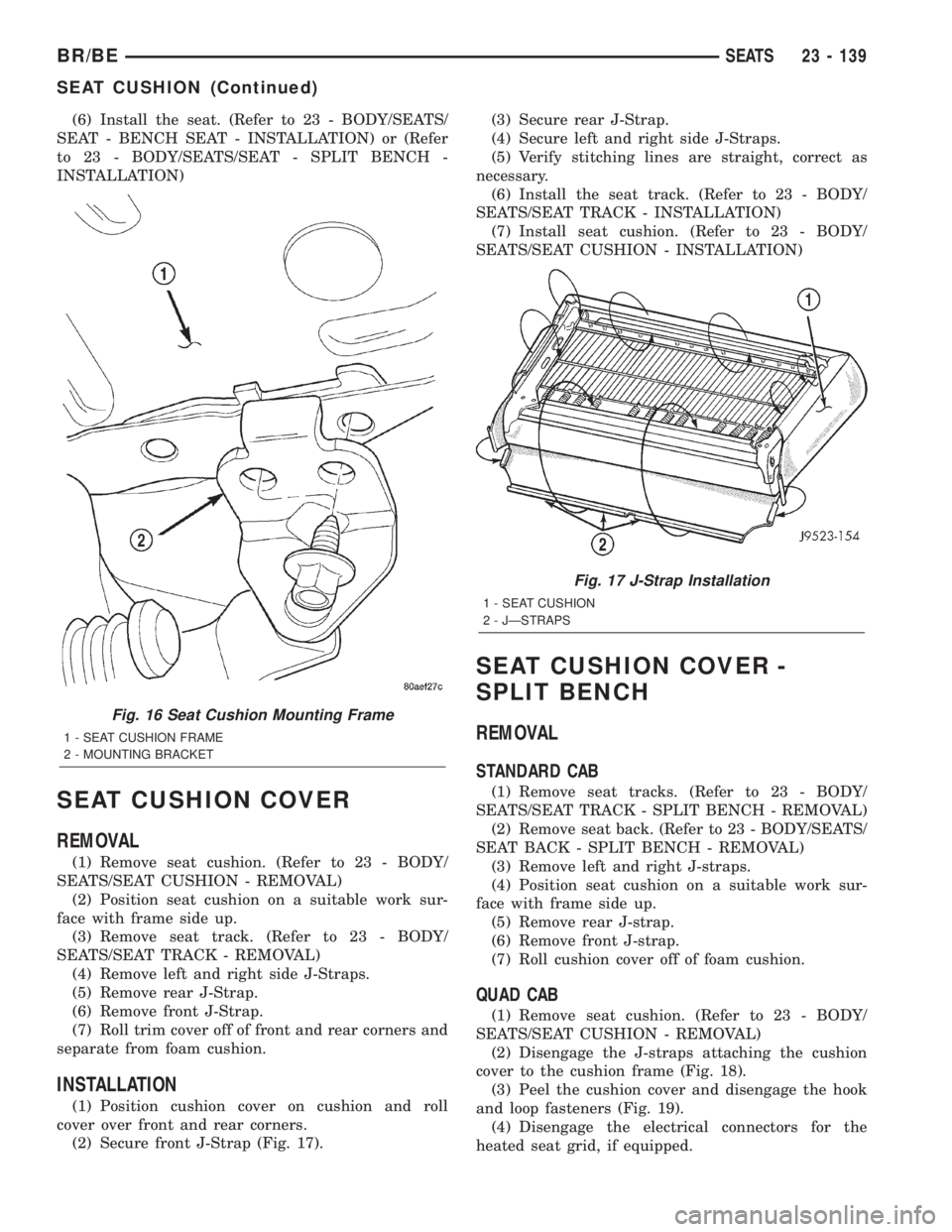

(2) Secure front J-Strap (Fig. 17).(3) Secure rear J-Strap.
(4) Secure left and right side J-Straps.
(5) Verify stitching lines are straight, correct as
necessary.
(6) Install the seat track. (Refer to 23 - BODY/
SEATS/SEAT TRACK - INSTALLATION)
(7) Install seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - INSTALLATION)
SEAT CUSHION COVER -
SPLIT BENCH
REMOVAL
STANDARD CAB
(1) Remove seat tracks. (Refer to 23 - BODY/
SEATS/SEAT TRACK - SPLIT BENCH - REMOVAL)
(2) Remove seat back. (Refer to 23 - BODY/SEATS/
SEAT BACK - SPLIT BENCH - REMOVAL)
(3) Remove left and right J-straps.
(4) Position seat cushion on a suitable work sur-
face with frame side up.
(5) Remove rear J-strap.
(6) Remove front J-strap.
(7) Roll cushion cover off of foam cushion.
QUAD CAB
(1) Remove seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - REMOVAL)
(2) Disengage the J-straps attaching the cushion
cover to the cushion frame (Fig. 18).
(3) Peel the cushion cover and disengage the hook
and loop fasteners (Fig. 19).
(4) Disengage the electrical connectors for the
heated seat grid, if equipped.
Fig. 16 Seat Cushion Mounting Frame
1 - SEAT CUSHION FRAME
2 - MOUNTING BRACKET
Fig. 17 J-Strap Installation
1 - SEAT CUSHION
2 - JÐSTRAPS
BR/BESEATS 23 - 139
SEAT CUSHION (Continued)

(5) Disengage the hog rings attaching the cushion
cover to the cushion frame (Fig. 20).
(6) Separate the cover from the cushion.
INSTALLATION
STANDARD CAB
(1) Position cushion cover on cushion and roll
cover over front and rear corners. Verify stitching
lines are straight, correct as necessary.
(2) Pull front J-strap up, align cover to foam
notches and secure front J-strap to frame (Fig. 21).
(3) Install seat backs. (Refer to 23 - BODY/SEATS/
SEAT BACK - SPLIT BENCH - INSTALLATION)
(4) Pull the left J-strap up and secure to frame.
Verify cover is straight.(5)
Pull the right side J-strap up and secure to
frame.
(6) Install seat tracks. (Refer to 23 - BODY/
SEATS/SEAT TRACK - SPLIT BENCH - INSTALLA-
TION)
QUAD CAB
(1) Position the cover on the cushion.
(2) Engage the hog rings attaching the cushion
cover to the cushion frame.
(3) Engage the hook and loop fasteners.
(4) Engage the electrical connectors for the heated
seat grid, if equipped.
(5) Engage the J-straps attaching the cushion
cover to the cushion frame.
(6) Install seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - INSTALLATION)
Fig. 18 Seat Cushion J-Straps
1 - SEAT CUSHION
2 - JÐSTRAPS
Fig. 19 Seat Cushion Cover Hook and Loop
1 - CUSHION COVER
2 - HOOK AND LOOP FASTENERS
3 - SEAT CUSHION
Fig. 20 Seat Cushion Cover Hog Rings
1 - CUSHION COVER
2 - HOG RINGS
3 - CUSHION
Fig. 21 J-Strap Installation
1 - JÐSTRAP
2 - FRAME
23 - 140 SEATSBR/BE
SEAT CUSHION COVER - SPLIT BENCH (Continued)

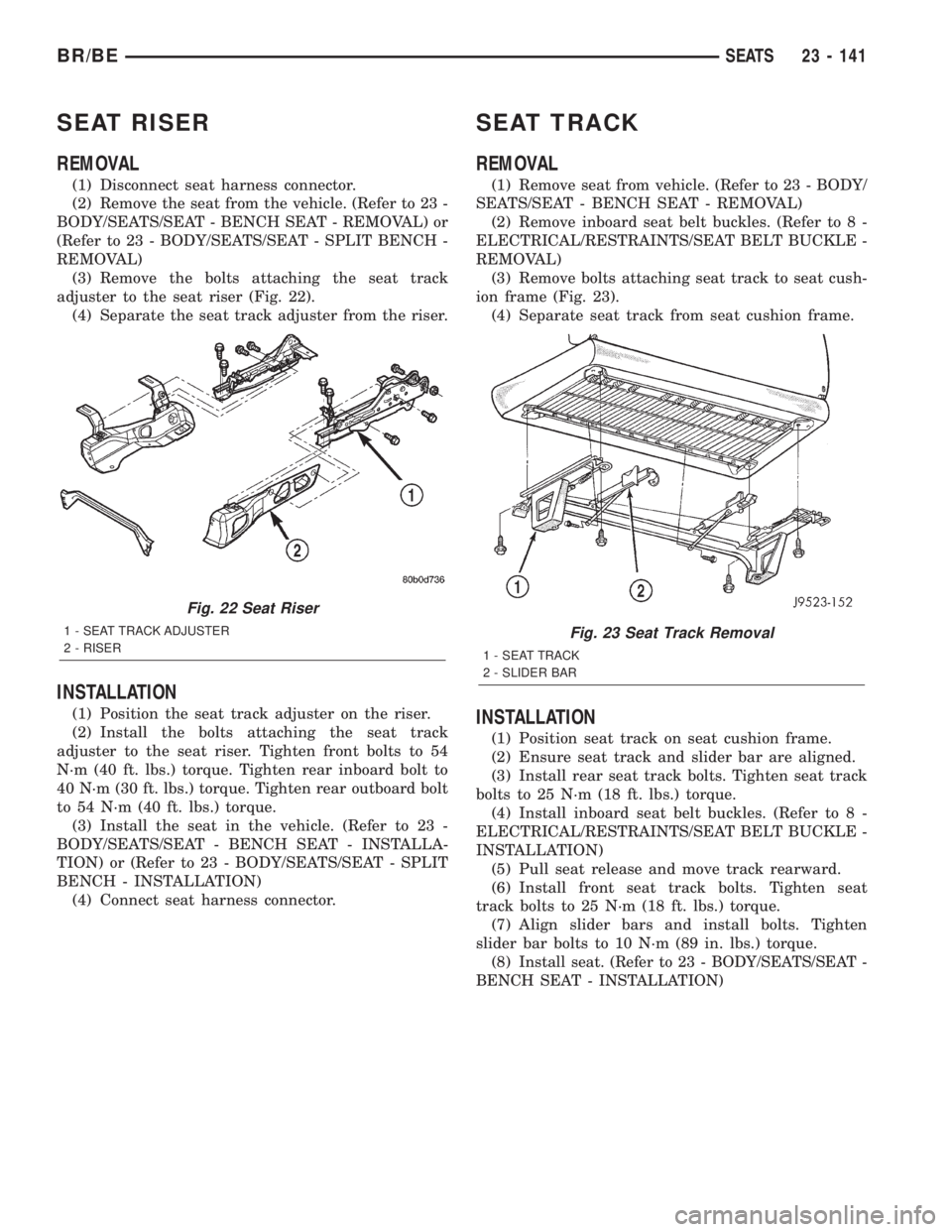

SEAT RISER
REMOVAL
(1) Disconnect seat harness connector.
(2) Remove the seat from the vehicle. (Refer to 23 -
BODY/SEATS/SEAT - BENCH SEAT - REMOVAL) or
(Refer to 23 - BODY/SEATS/SEAT - SPLIT BENCH -
REMOVAL)
(3) Remove the bolts attaching the seat track
adjuster to the seat riser (Fig. 22).
(4) Separate the seat track adjuster from the riser.
INSTALLATION
(1) Position the seat track adjuster on the riser.
(2) Install the bolts attaching the seat track
adjuster to the seat riser. Tighten front bolts to 54
N´m (40 ft. lbs.) torque. Tighten rear inboard bolt to
40 N´m (30 ft. lbs.) torque. Tighten rear outboard bolt
to 54 N´m (40 ft. lbs.) torque.
(3) Install the seat in the vehicle. (Refer to 23 -
BODY/SEATS/SEAT - BENCH SEAT - INSTALLA-
TION) or (Refer to 23 - BODY/SEATS/SEAT - SPLIT
BENCH - INSTALLATION)
(4) Connect seat harness connector.
SEAT TRACK
REMOVAL
(1) Remove seat from vehicle. (Refer to 23 - BODY/
SEATS/SEAT - BENCH SEAT - REMOVAL)
(2) Remove inboard seat belt buckles. (Refer to 8 -
ELECTRICAL/RESTRAINTS/SEAT BELT BUCKLE -
REMOVAL)
(3) Remove bolts attaching seat track to seat cush-
ion frame (Fig. 23).
(4) Separate seat track from seat cushion frame.
INSTALLATION
(1) Position seat track on seat cushion frame.
(2) Ensure seat track and slider bar are aligned.
(3) Install rear seat track bolts. Tighten seat track
bolts to 25 N´m (18 ft. lbs.) torque.
(4) Install inboard seat belt buckles. (Refer to 8 -
ELECTRICAL/RESTRAINTS/SEAT BELT BUCKLE -
INSTALLATION)
(5) Pull seat release and move track rearward.
(6) Install front seat track bolts. Tighten seat
track bolts to 25 N´m (18 ft. lbs.) torque.
(7) Align slider bars and install bolts. Tighten
slider bar bolts to 10 N´m (89 in. lbs.) torque.
(8)
Install seat. (Refer to 23 - BODY/SEATS/SEAT -
BENCH SEAT - INSTALLATION)
Fig. 22 Seat Riser
1 - SEAT TRACK ADJUSTER
2 - RISERFig. 23 Seat Track Removal
1 - SEAT TRACK
2 - SLIDER BAR
BR/BESEATS 23 - 141

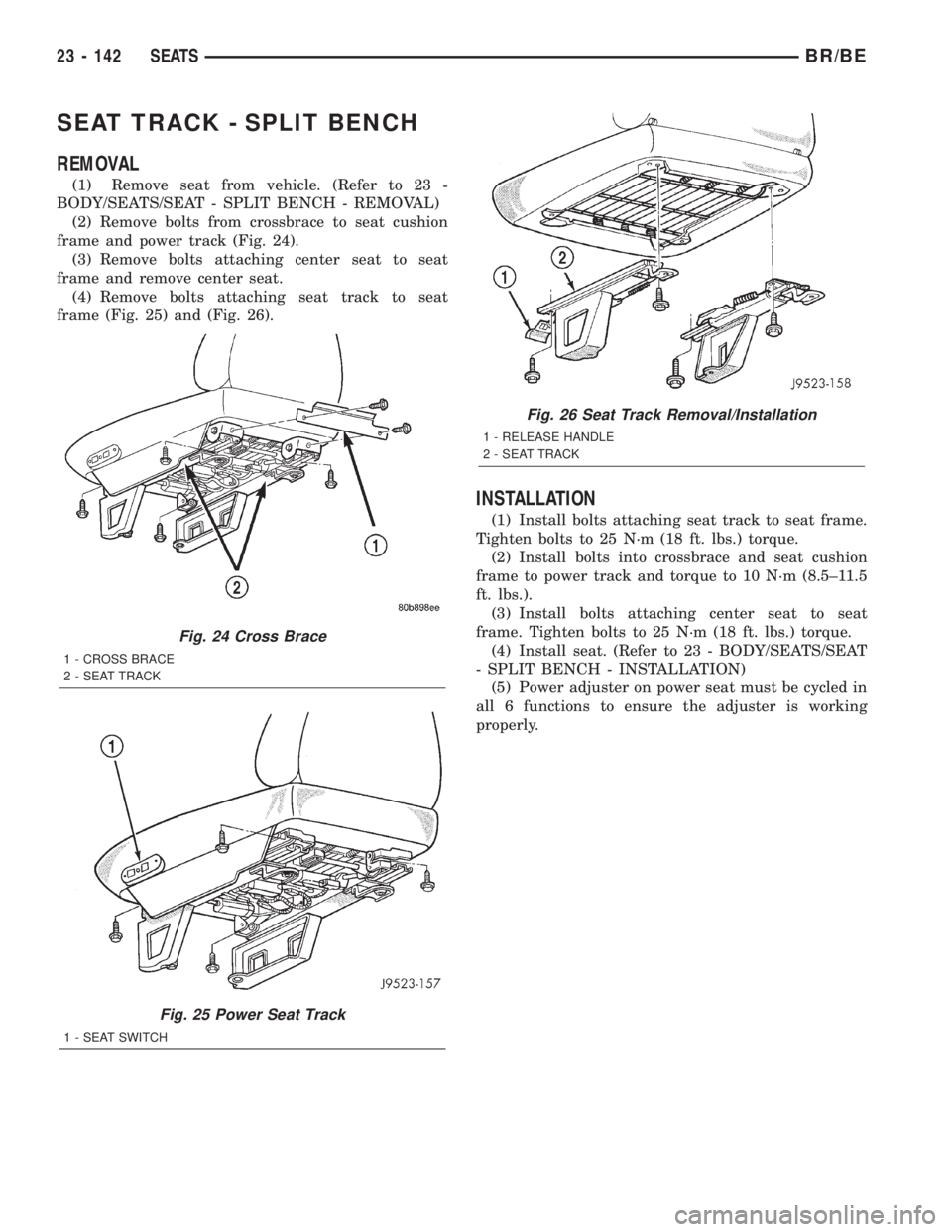

SEAT TRACK - SPLIT BENCH
REMOVAL
(1) Remove seat from vehicle. (Refer to 23 -
BODY/SEATS/SEAT - SPLIT BENCH - REMOVAL)
(2) Remove bolts from crossbrace to seat cushion
frame and power track (Fig. 24).
(3) Remove bolts attaching center seat to seat
frame and remove center seat.
(4) Remove bolts attaching seat track to seat
frame (Fig. 25) and (Fig. 26).
INSTALLATION
(1) Install bolts attaching seat track to seat frame.
Tighten bolts to 25 N´m (18 ft. lbs.) torque.
(2) Install bolts into crossbrace and seat cushion
frame to power track and torque to 10 N´m (8.5±11.5
ft. lbs.).
(3) Install bolts attaching center seat to seat
frame. Tighten bolts to 25 N´m (18 ft. lbs.) torque.
(4) Install seat. (Refer to 23 - BODY/SEATS/SEAT
- SPLIT BENCH - INSTALLATION)
(5) Power adjuster on power seat must be cycled in
all 6 functions to ensure the adjuster is working
properly.
Fig. 24 Cross Brace
1 - CROSS BRACE
2 - SEAT TRACK
Fig. 25 Power Seat Track
1 - SEAT SWITCH
Fig. 26 Seat Track Removal/Installation
1 - RELEASE HANDLE
2 - SEAT TRACK
23 - 142 SEATSBR/BE

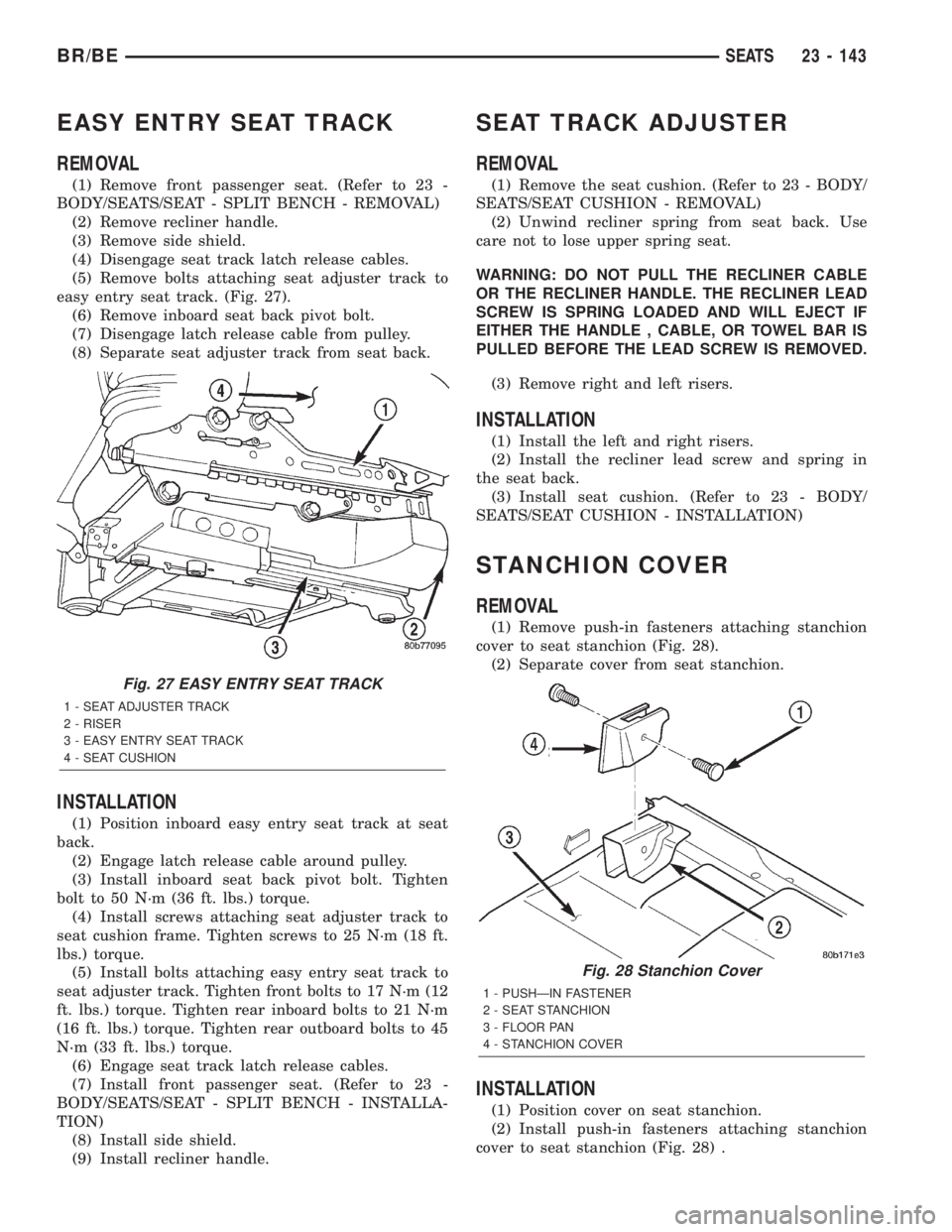

EASY ENTRY SEAT TRACK
REMOVAL
(1) Remove front passenger seat. (Refer to 23 -
BODY/SEATS/SEAT - SPLIT BENCH - REMOVAL)
(2) Remove recliner handle.
(3) Remove side shield.
(4) Disengage seat track latch release cables.
(5) Remove bolts attaching seat adjuster track to
easy entry seat track. (Fig. 27).
(6) Remove inboard seat back pivot bolt.
(7) Disengage latch release cable from pulley.
(8) Separate seat adjuster track from seat back.
INSTALLATION
(1) Position inboard easy entry seat track at seat
back.
(2) Engage latch release cable around pulley.
(3) Install inboard seat back pivot bolt. Tighten
bolt to 50 N´m (36 ft. lbs.) torque.
(4) Install screws attaching seat adjuster track to
seat cushion frame. Tighten screws to 25 N´m (18 ft.
lbs.) torque.
(5) Install bolts attaching easy entry seat track to
seat adjuster track. Tighten front bolts to 17 N´m (12
ft. lbs.) torque. Tighten rear inboard bolts to 21 N´m
(16 ft. lbs.) torque. Tighten rear outboard bolts to 45
N´m (33 ft. lbs.) torque.
(6) Engage seat track latch release cables.
(7) Install front passenger seat. (Refer to 23 -
BODY/SEATS/SEAT - SPLIT BENCH - INSTALLA-
TION)
(8) Install side shield.
(9) Install recliner handle.
SEAT TRACK ADJUSTER
REMOVAL
(1) Remove the seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - REMOVAL)
(2) Unwind recliner spring from seat back. Use
care not to lose upper spring seat.
WARNING: DO NOT PULL THE RECLINER CABLE
OR THE RECLINER HANDLE. THE RECLINER LEAD
SCREW IS SPRING LOADED AND WILL EJECT IF
EITHER THE HANDLE , CABLE, OR TOWEL BAR IS
PULLED BEFORE THE LEAD SCREW IS REMOVED.
(3) Remove right and left risers.
INSTALLATION
(1) Install the left and right risers.
(2) Install the recliner lead screw and spring in
the seat back.
(3) Install seat cushion. (Refer to 23 - BODY/
SEATS/SEAT CUSHION - INSTALLATION)
STANCHION COVER
REMOVAL
(1) Remove push-in fasteners attaching stanchion
cover to seat stanchion (Fig. 28).
(2) Separate cover from seat stanchion.
INSTALLATION
(1) Position cover on seat stanchion.
(2) Install push-in fasteners attaching stanchion
cover to seat stanchion (Fig. 28) .
Fig. 27 EASY ENTRY SEAT TRACK
1 - SEAT ADJUSTER TRACK
2 - RISER
3 - EASY ENTRY SEAT TRACK
4 - SEAT CUSHION
Fig. 28 Stanchion Cover
1 - PUSHÐIN FASTENER
2 - SEAT STANCHION
3 - FLOOR PAN
4 - STANCHION COVER
BR/BESEATS 23 - 143
