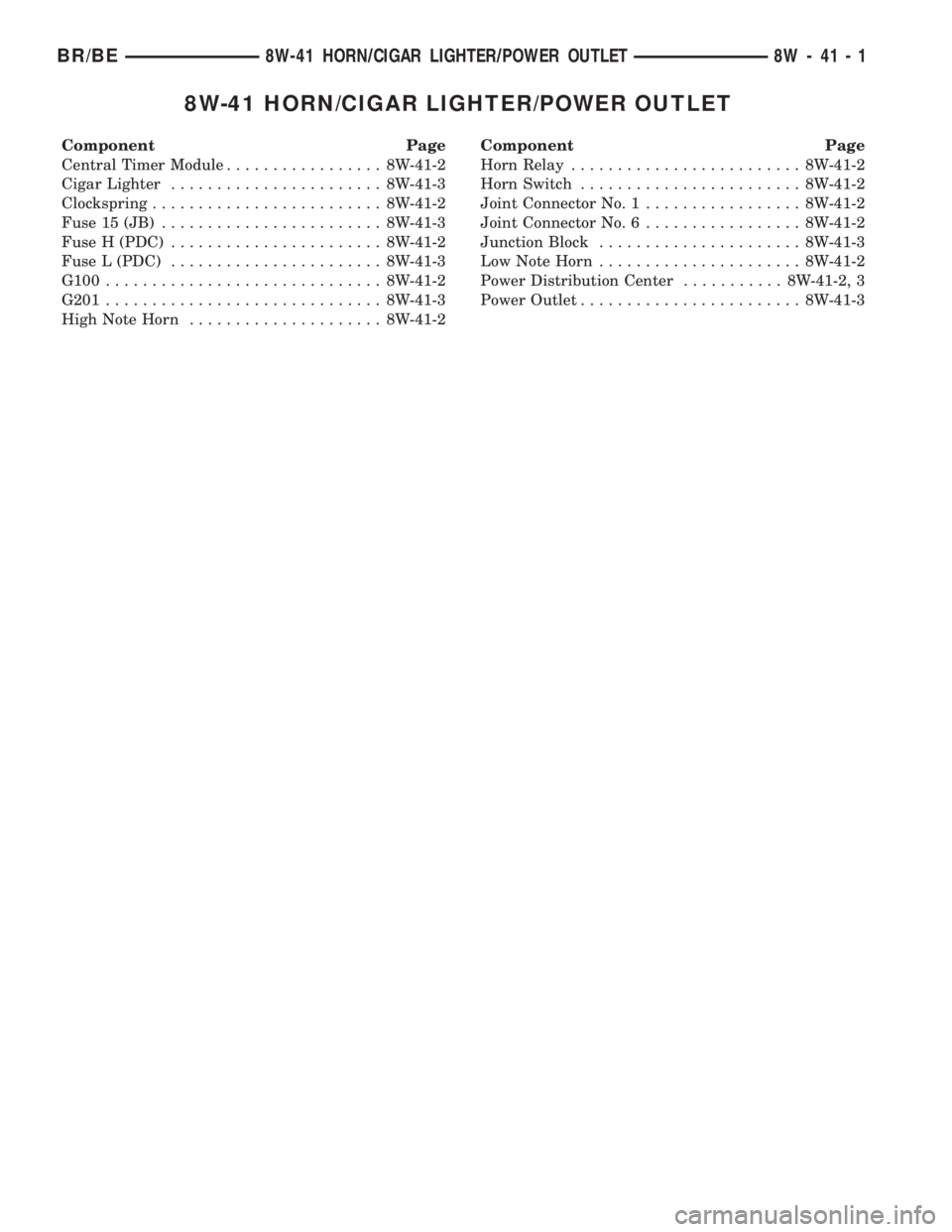

8W-41 HORN/CIGAR LIGHTER/POWER OUTLET
Component Page
Central Timer Module................. 8W-41-2
Cigar Lighter....................... 8W-41-3
Clockspring......................... 8W-41-2
Fuse 15 (JB)........................ 8W-41-3
Fuse H (PDC)....................... 8W-41-2
Fuse L (PDC)....................... 8W-41-3
G100.............................. 8W-41-2
G201.............................. 8W-41-3
High Note Horn..................... 8W-41-2Component Page
Horn Relay......................... 8W-41-2
Horn Switch........................ 8W-41-2
Joint Connector No. 1................. 8W-41-2
Joint Connector No. 6................. 8W-41-2
Junction Block...................... 8W-41-3
Low Note Horn...................... 8W-41-2
Power Distribution Center........... 8W-41-2, 3
Power Outlet........................ 8W-41-3
BR/BE8W-41 HORN/CIGAR LIGHTER/POWER OUTLET 8W - 41 - 1

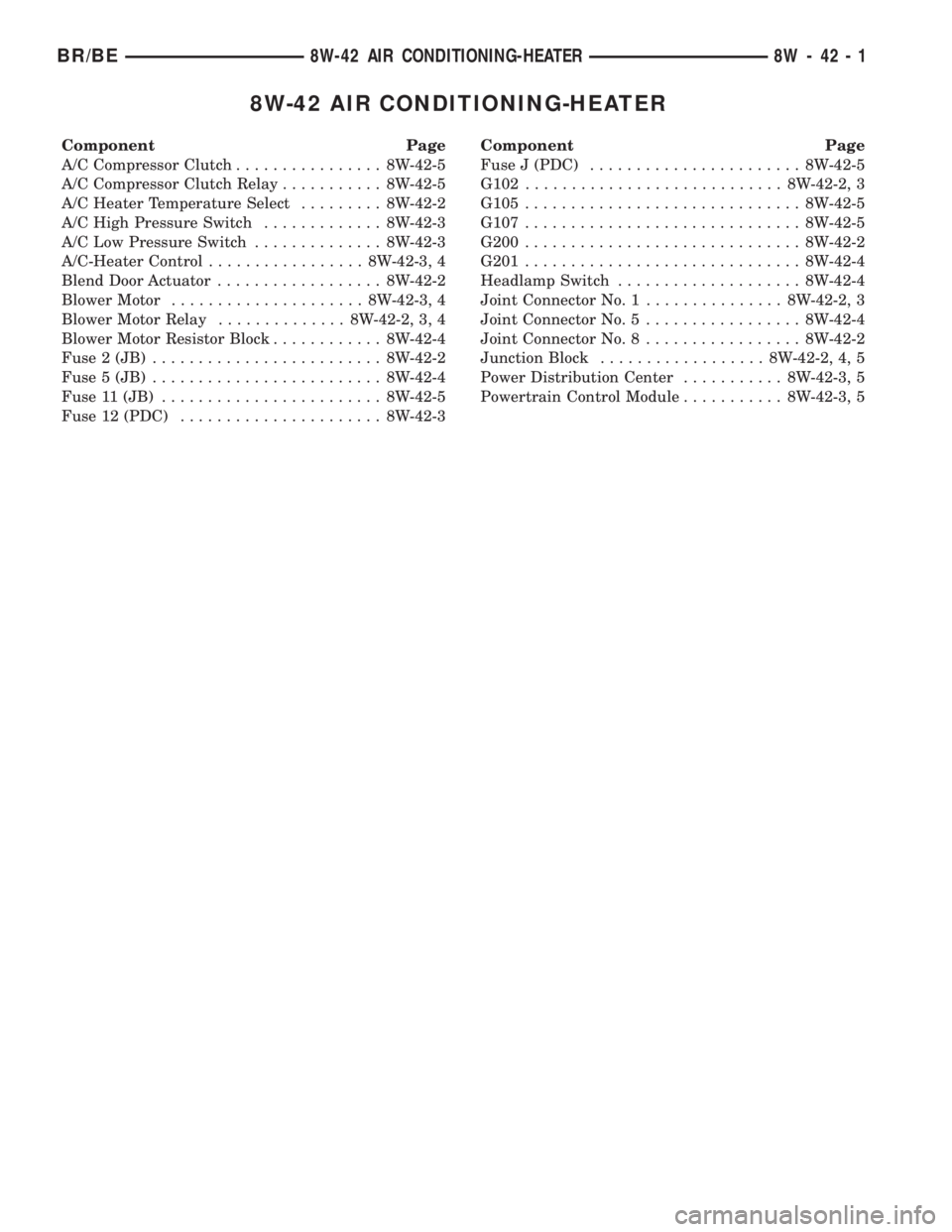

8W-42 AIR CONDITIONING-HEATER
Component Page
A/C Compressor Clutch................ 8W-42-5
A/C Compressor Clutch Relay........... 8W-42-5
A/C Heater Temperature Select......... 8W-42-2
A/C High Pressure Switch............. 8W-42-3
A/C Low Pressure Switch.............. 8W-42-3
A/C-Heater Control................. 8W-42-3, 4
Blend Door Actuator.................. 8W-42-2
Blower Motor..................... 8W-42-3, 4
Blower Motor Relay.............. 8W-42-2, 3, 4
Blower Motor Resistor Block............ 8W-42-4
Fuse 2 (JB)......................... 8W-42-2
Fuse 5 (JB)......................... 8W-42-4
Fuse 11 (JB)........................ 8W-42-5
Fuse 12 (PDC)...................... 8W-42-3Component Page
Fuse J (PDC)....................... 8W-42-5
G102............................ 8W-42-2, 3
G105.............................. 8W-42-5
G107.............................. 8W-42-5
G200.............................. 8W-42-2
G201.............................. 8W-42-4
Headlamp Switch.................... 8W-42-4
Joint Connector No. 1............... 8W-42-2, 3
Joint Connector No. 5................. 8W-42-4
Joint Connector No. 8................. 8W-42-2
Junction Block.................. 8W-42-2, 4, 5
Power Distribution Center........... 8W-42-3, 5
Powertrain Control Module........... 8W-42-3, 5
BR/BE8W-42 AIR CONDITIONING-HEATER 8W - 42 - 1
