DODGE RAM 2002 Service Repair Manual

8W-40 INSTRUMENT CLUSTER
Component Page
Central Timer Module................. 8W-40-3
Data Link Connector................. 8W-40-4
Daytime Running Lamp Module....... 8W-40-2, 7
Engine Control Module................ 8W-40-2
Fuse 5 (JB)......................... 8W-40-5
Fuse 14 (JB).................. 8W-40-2, 3, 4, 7
Fuse 17 (JB)........................ 8W-40-2
Fuse F (PDC)....................... 8W-40-5
G100............................ 8W-40-4, 6
G200............................ 8W-40-2, 6
G201.......................... 8W-40-2, 5, 7
G300.............................. 8W-40-3
G301.............................. 8W-40-3

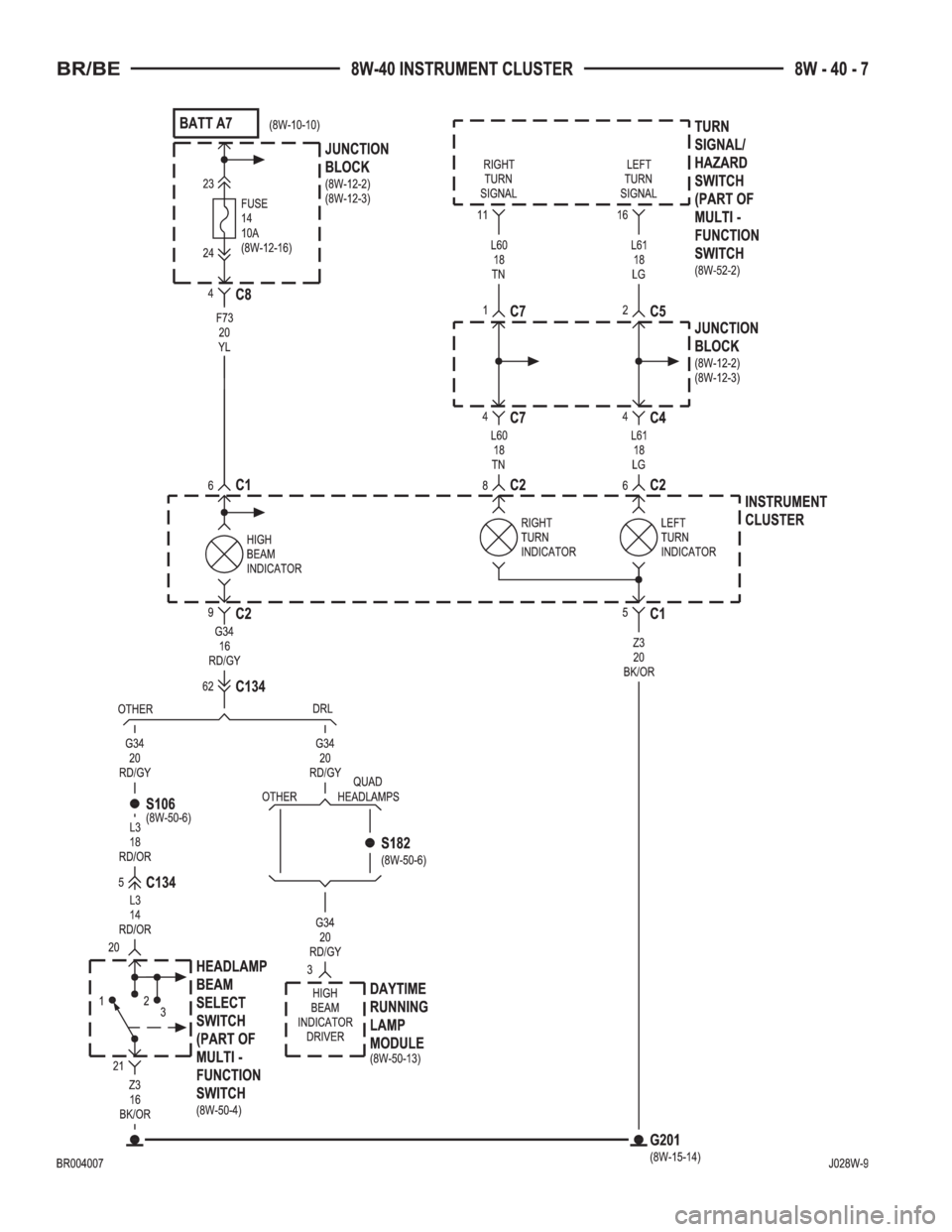

Headlamp Beam Select Switch.......... 8W-40-7Component Page

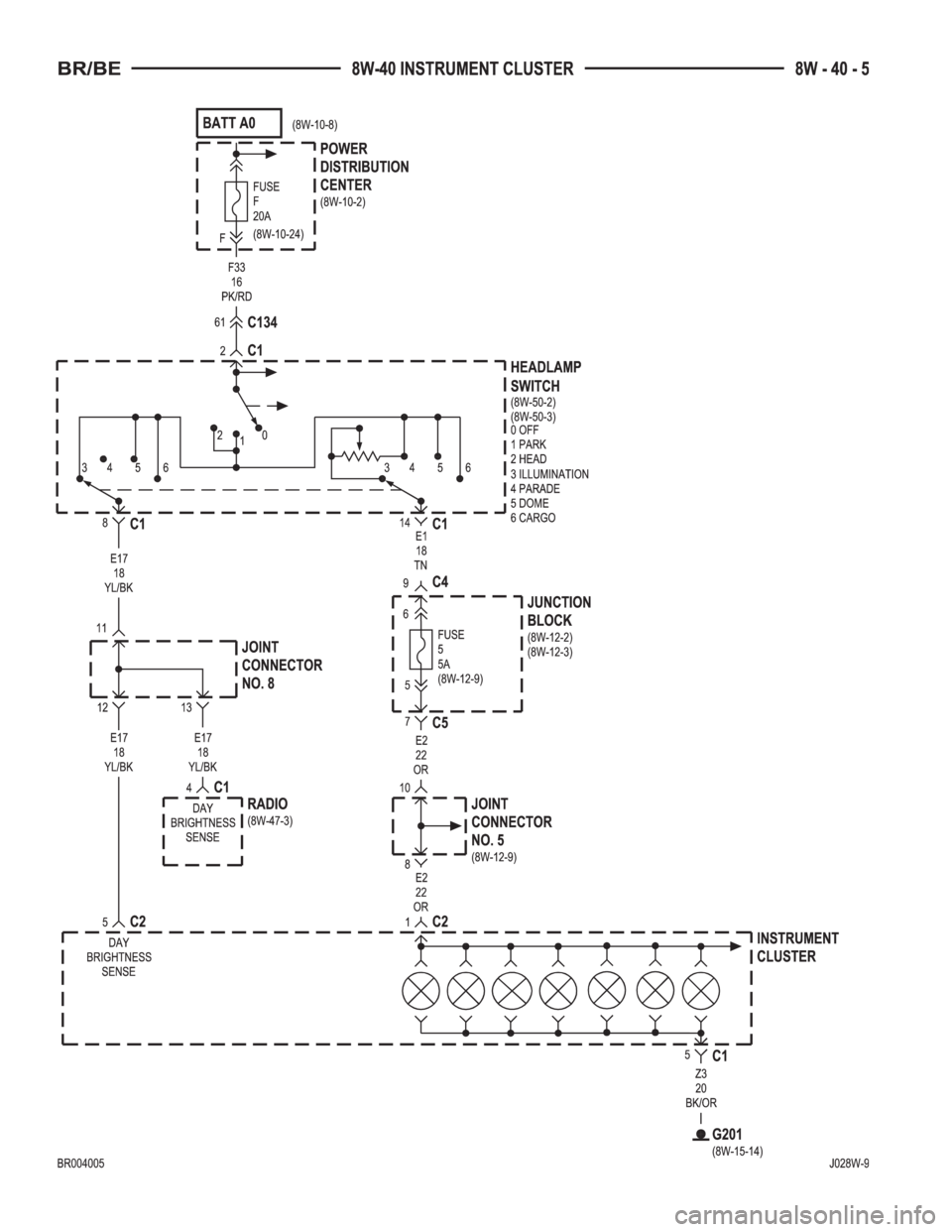

Headlamp Switch.................... 8W-40-5
Instrument Cluster......... 8W-40-2, 3, 4, 5, 6, 7
Joint Connector No. 5................. 8W-40-5
Joint Connector No. 7............... 8W-40-4, 6
Joint Connector No. 8................. 8W-40-5
Junction Block............... 8W-40-2, 3, 4, 5, 7

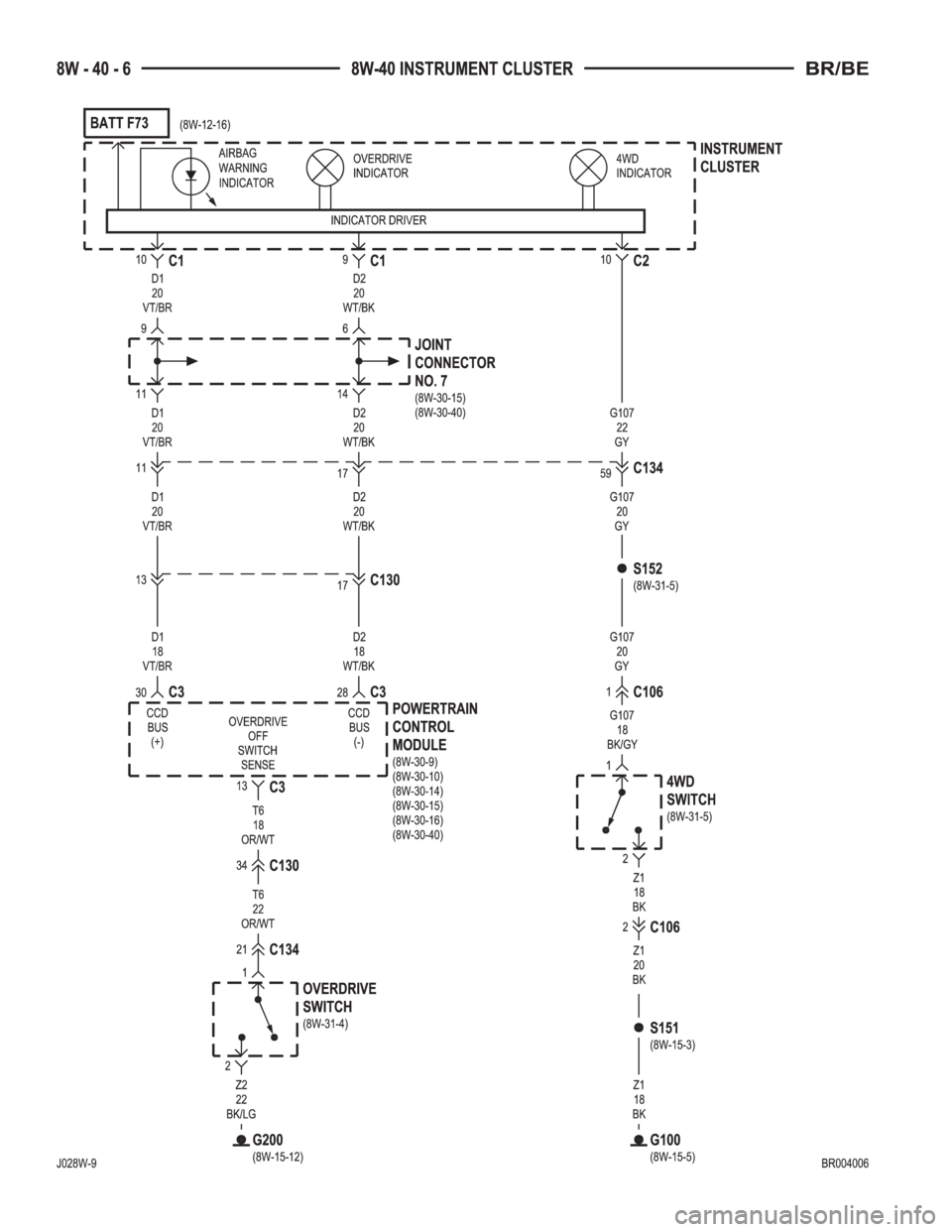

Overdrive Switch.................... 8W-40-6

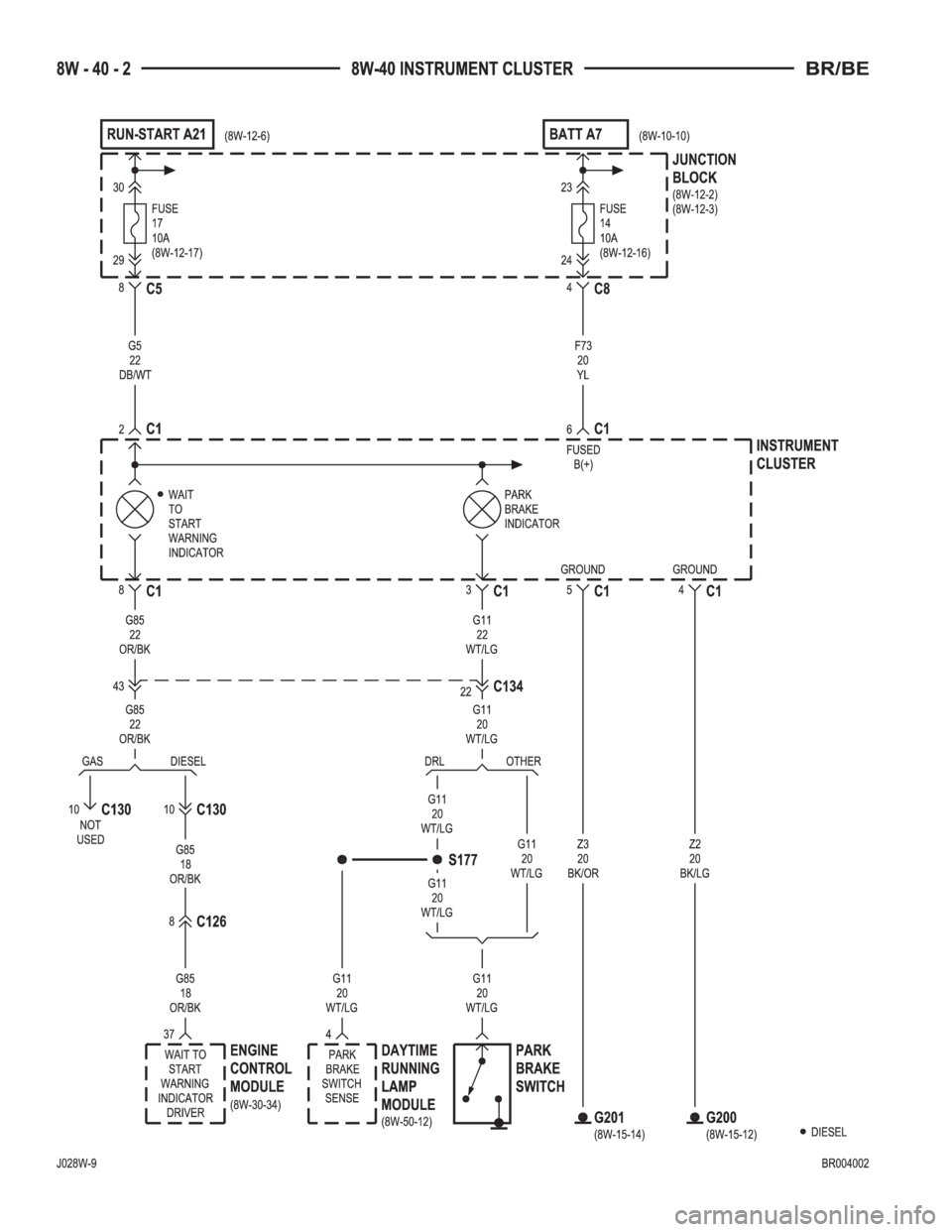

Park Brake Switch................... 8W-40-2
Power Distribution Center............. 8W-40-5
Powertrain Control Module............. 8W-40-6
Radio............................. 8W-40-5

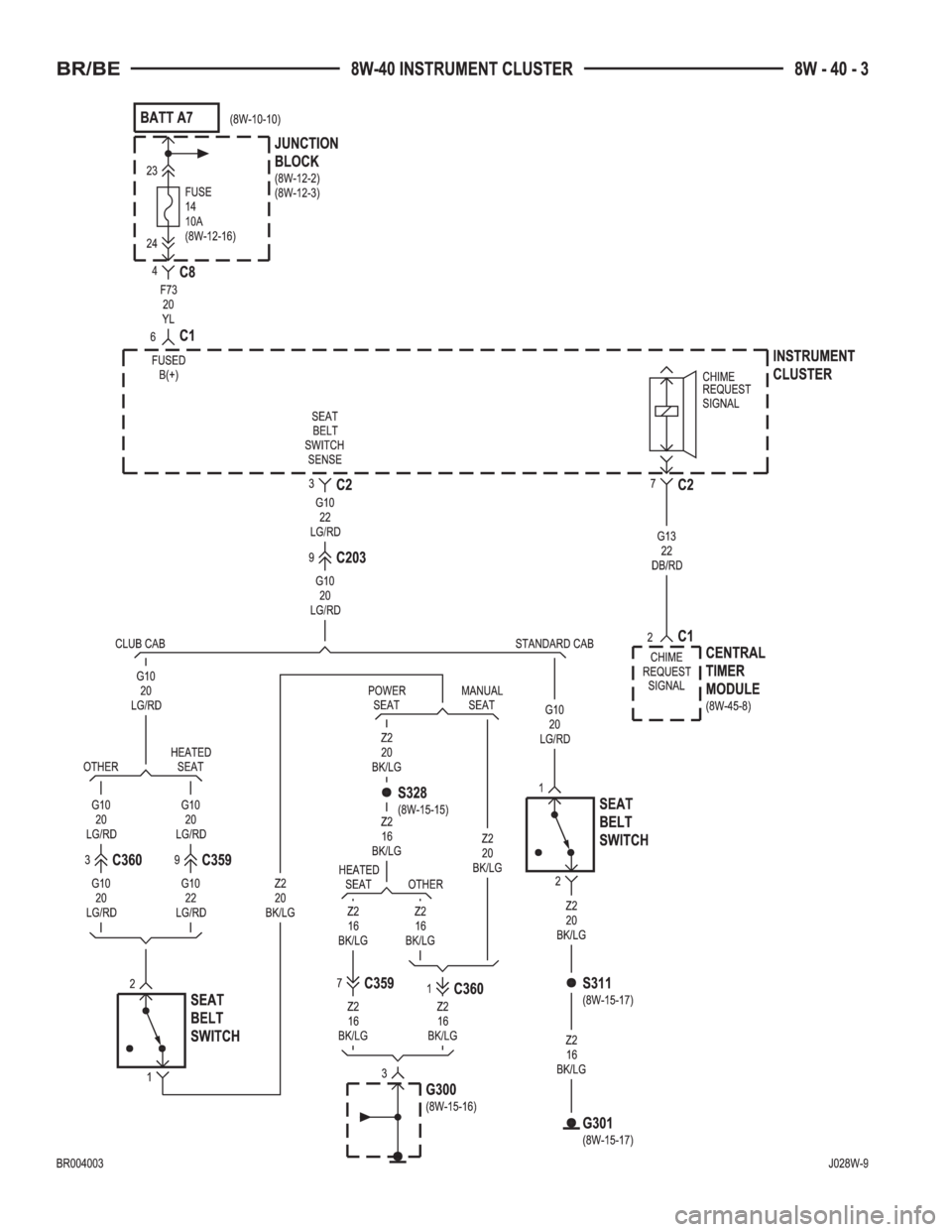

Seat Belt Switch..................... 8W-40-3
Turn Signal/Hazard Switch............. 8W-40-7

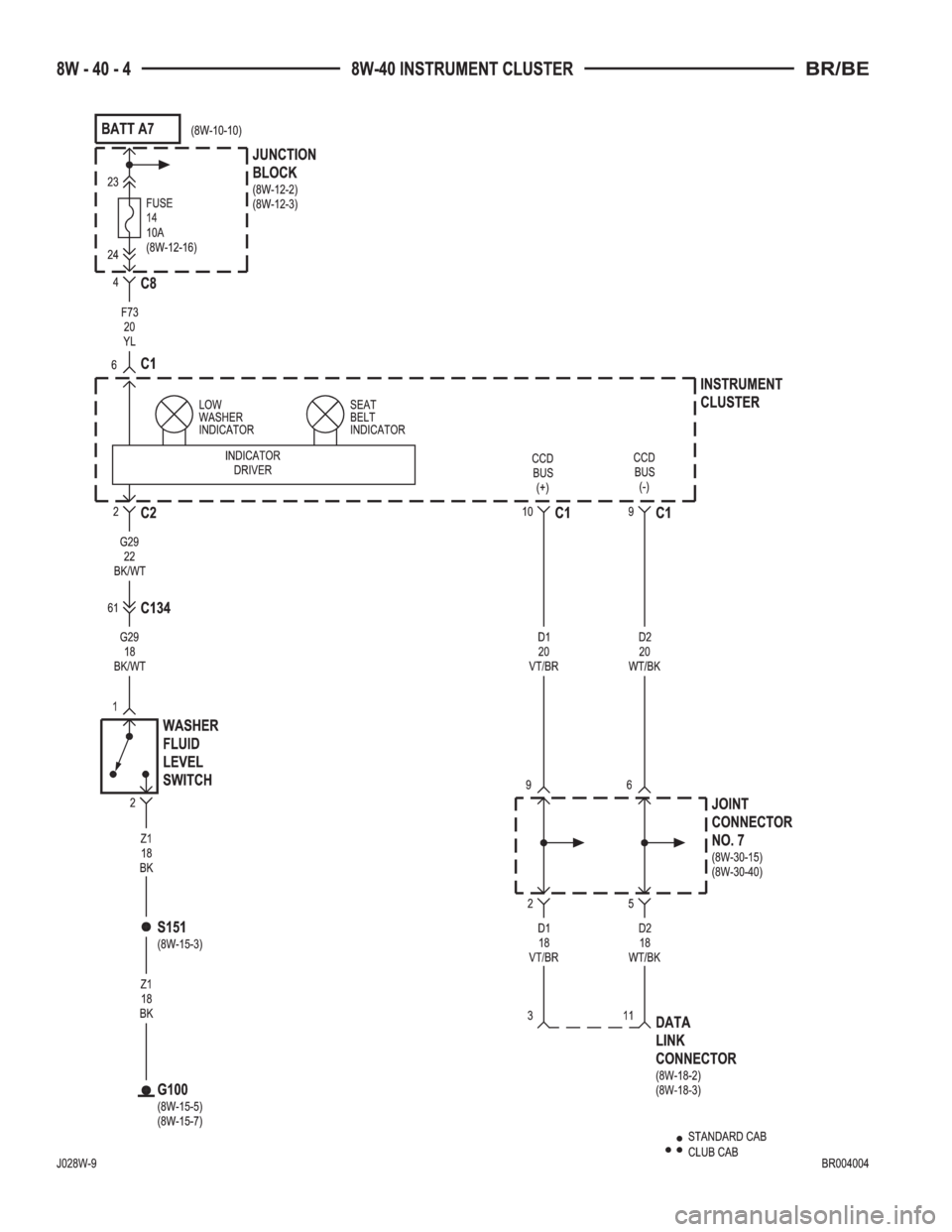

Washer Fluid Level Switch............. 8W-40-4
