Page 1581 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual 2. Remove the viscous fan (Refer to 7 - COOLING/ENGINE/FAN DRIVE VISCOUS CLUTCH - REMOVAL).
3. Raise the vehicle.
4. Removetheskidplate.
5. Remove the front crossmember.
6. Remove the engine oil filte

Page 1582 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual 16. Remove the engine mount brackets and (2).
INSTALLATION
2WD
NOTE: For mount to engine block and left engine bracket to front axle bolts,apply MoparLock and Seal
Adhesive, Medium Strength Threadlock

Page 1583 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual 4WD
NOTE: For mount to engine block and left engine bracket to front axle bolts,apply MoparLock and Seal
Adhesive, Medium Strength Threadlocker.
1. Install the right and left side engine mounts (4,8)t

Page 1584 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual MOUNT-REAR
REMOVAL
1. Raise the vehicle on a hoist.
2. Using a suitable jack, support transmission.
3. Remove the nuts from the transmission mount (1).
4. Remove the two bolts that attach the transmis

Page 1585 of 5267

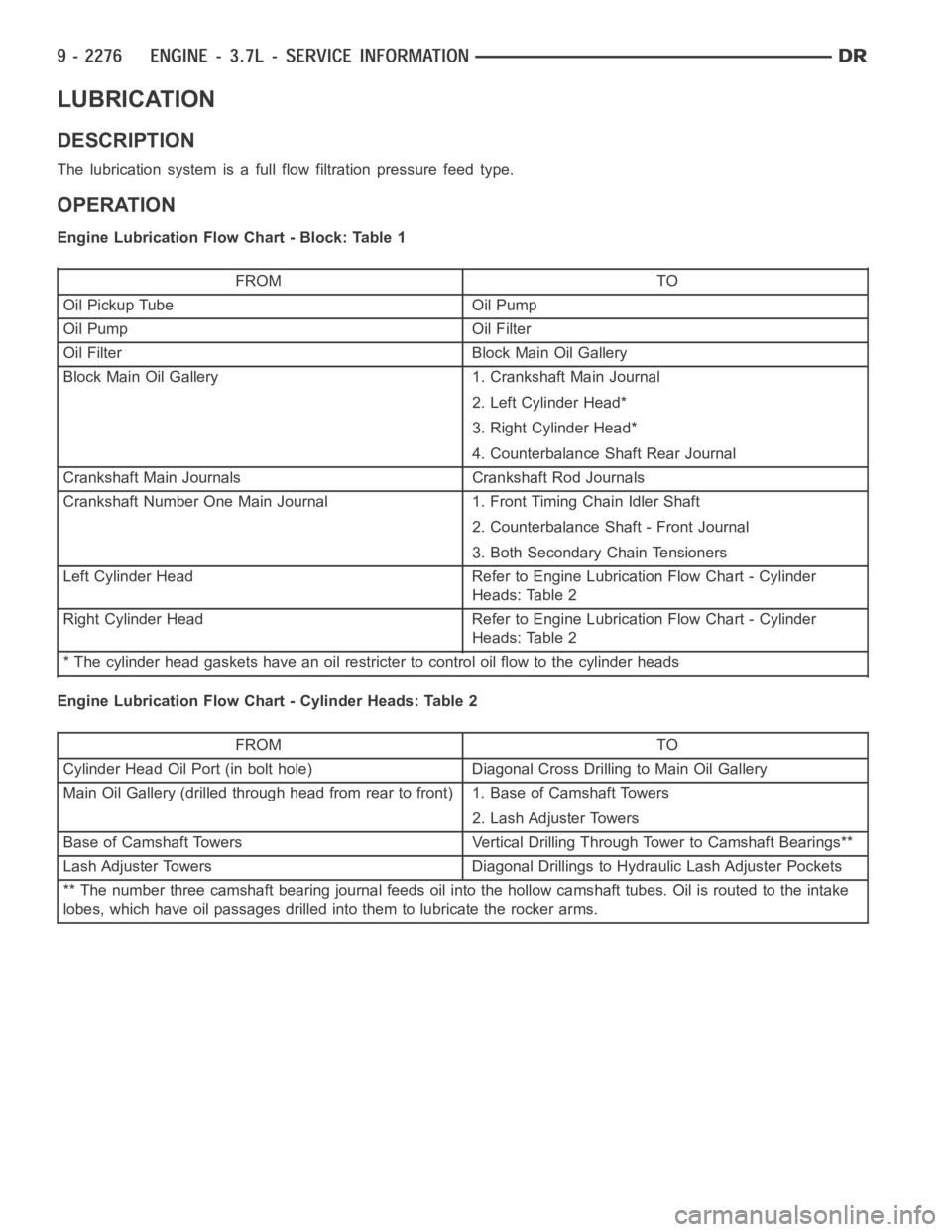

DODGE RAM SRT-10 2006  Service Repair Manual LUBRICATION
DESCRIPTION
The lubrication system is a full flow filtration pressure feed type.
OPERATION
Engine Lubrication Flow Chart - Block: Table 1
FROM TO
Oil Pickup Tube Oil Pump
Oil Pump Oil Filt

Page 1586 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual Oil from the oil pan is pumped by a gerotor type oil pump (9) directly mountedto the crankshaft nose. Oil pressure
is controlled by a relief valve mounted inside the oil pump housing.
The camshaft exh

Page 1587 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual DIAGNOSIS AND TESTING
DIAGNOSIS AND TESTING - ENGINE OIL LEAK
Begin with a thorough visual inspection of the engine, particularly at thearea of the suspected leak. If an oil leak
source is not readily

Page 1588 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual DIAGNOSIS AND TESTING - CHECKING ENGINE OIL PRESSURE
1. Remove oil pressure sending unit (2) and install
gauge assembly C-3292.
2. Run engine until thermostat opens.
3. Oil Pressure:
Curb Idle - 25 kP

Page 1589 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual PAN-ENGINE OIL
DESCRIPTION
The engine oil pan (1)is made of laminated steel and
has a single plane sealing surface. The sandwich style
oil pan gasket has an integrated windage tray (2) and
steel carri

Page 1590 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual REMOVAL
1. Disconnect the negative battery cable.
2. Install engine support fixture special tool # 8534.
Do not raise engine at this time.
3. Loosen both left and right side engine mount
through bolts
