DODGE RAM SRT-10 2006  Service Repair Manual 5. Disconnect vapor purge hose, brake booster hose, speed control servo hose, positive crankcase ventilation
(PCV) hose.
6. Disconnect generator electrical connections.
7. Disconnect air conditioning

Page 1602 of 5267

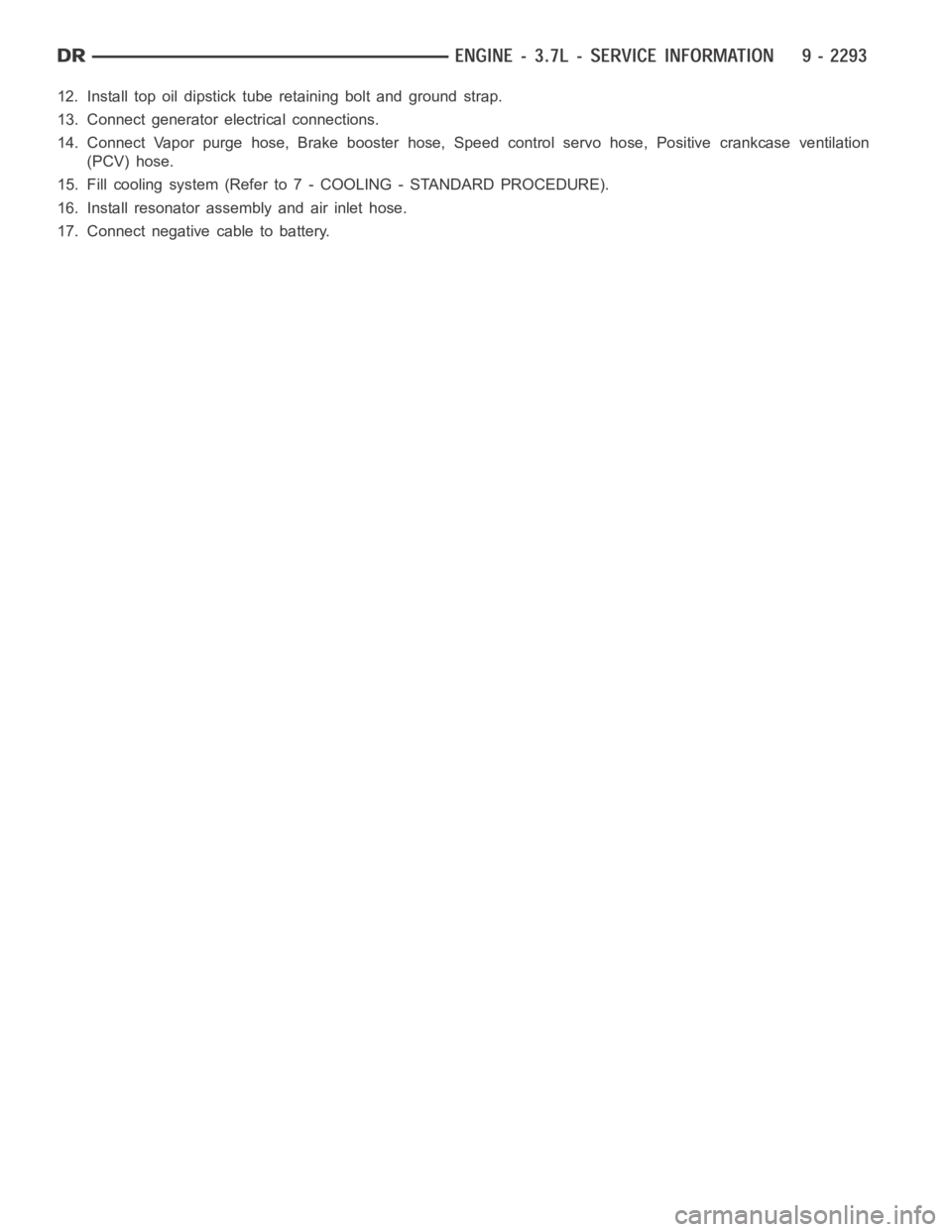

DODGE RAM SRT-10 2006  Service Repair Manual 12. Install top oil dipstick tube retaining bolt and ground strap.
13. Connect generator electrical connections.
14. Connect Vapor purge hose, Brake booster hose, Speed control servo hose, Positive cr

Page 1603 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual MANIFOLD-EXHAUST
DESCRIPTION
The exhaust manifolds (1,2) are log style with a pat-
ented flow enhancing design to maximize perfor-
mance. The exhaust manifolds are made of high
silicon molybdenum cast

Page 1604 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual RIGHT EXHAUST MANIFOLD
1. Disconnect the negative cable from the battery.
2. Raise and support the vehicle.
3. Remove the bolts and nuts attaching the exhaust
pipe to the engine exhaust manifold.
4. L

Page 1605 of 5267

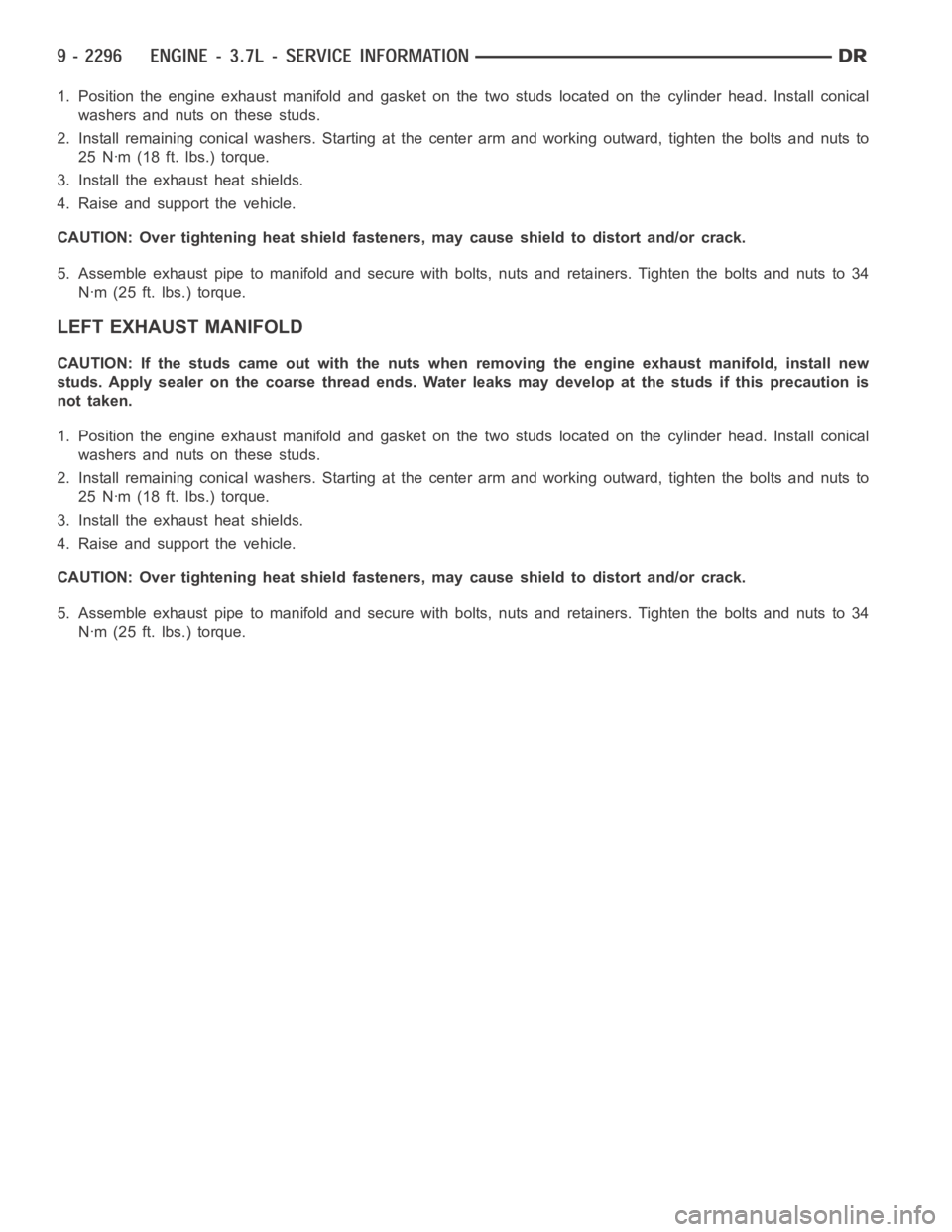

DODGE RAM SRT-10 2006  Service Repair Manual 1. Position the engine exhaust manifold and gasket on the two studs locatedon the cylinder head. Install conical
washers and nuts on these studs.
2. Install remaining conical washers. Starting at the

Page 1606 of 5267

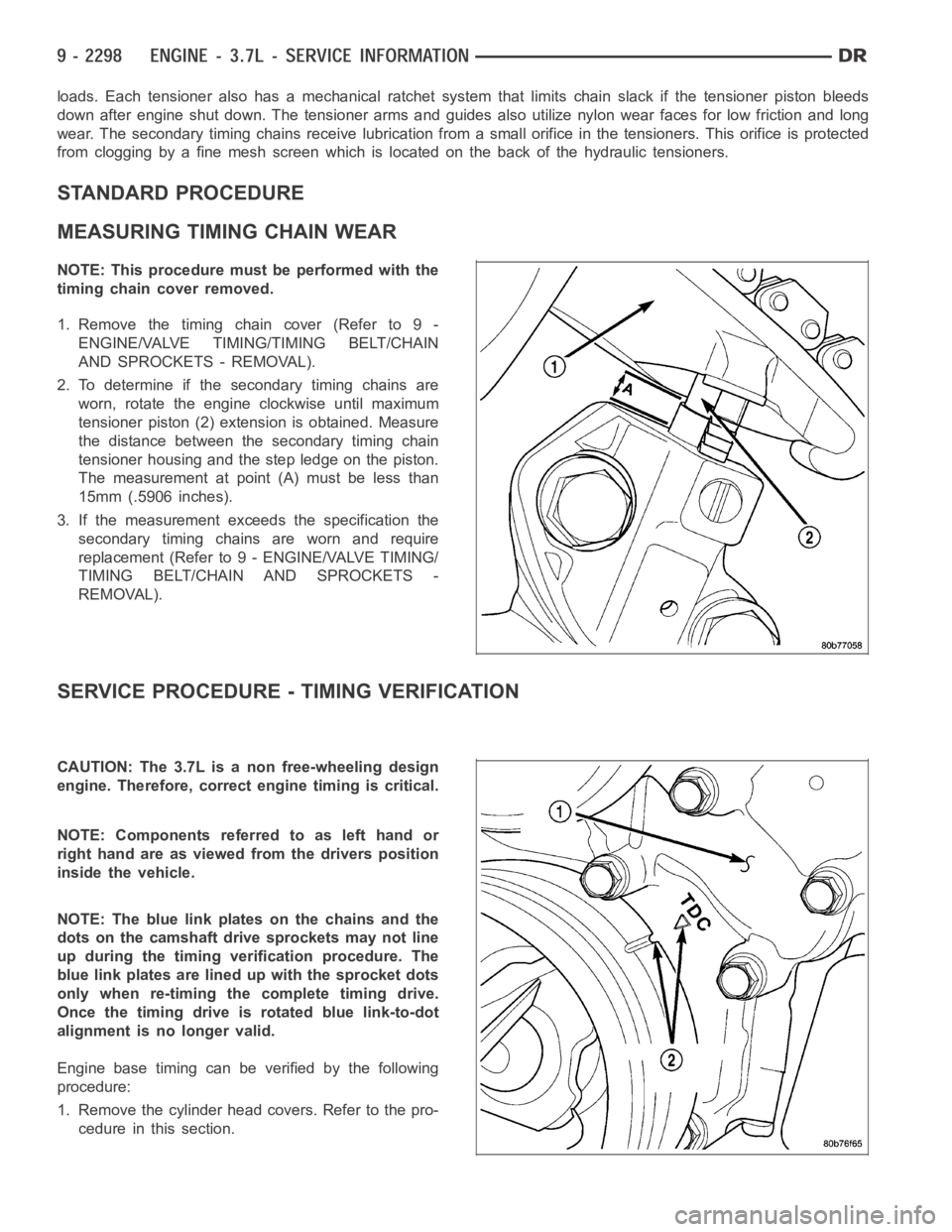

DODGE RAM SRT-10 2006  Service Repair Manual VALVE TIMING
DESCRIPTION
The timing drive system has been designed to provide quiet performance andreliability to support anon-free
wheelingengine. Specifically the intake valves are non-free wheeling

Page 1607 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual loads. Each tensioner also has a mechanical ratchet system that limits chain slack if the tensioner piston bleeds
down after engine shut down. The tensioner arms and guides also utilize nylon wear fac

Page 1608 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual 2. Using a mirror, locate the TDC arrow on the front cover. Rotate the crankshaft until the mark on the crankshaft
damper (2) is aligned with the TDC arrow on the front cover (2). The engine isnow at

Page 1609 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual TIMING - SINGLE CAMSHAFT
NOTE: to adjust the timing on one camshaft, pre-
form the following procedure.
1. Using Chain Tensioner Wedge, Special Tool 8379
(2), stabilize the secondary chain drive. For

Page 1610 of 5267

DODGE RAM SRT-10 2006  Service Repair Manual 4. Re-index the camshaft drive gear in the chain until the V6 mark is at the same position as the V6 mark on the
opposite camshaft drive gear (1,2).
5. Using Special Tool 8428 Camshaft Wrench, rotate
