Page 94 of 393
93 Controls in detail
Operating system with steering wheel buttons*
3
With Sound 5/Sound 20, the operating
system always shows the AUDIO and TEL
(telephone) menus in English.In the Operation menu, you can select the
following functions using the j or k
button:
Standard display
In its basic setting, you will see the odom-
eter and the trip meter in the upper part of
the display. This is referred to as the stan-
dard display.
\1If you see a different display, press the
è or ÿ button repeatedly until
the standard display appears.
Displaying the coolant temperature\1Press thej or k button repeat-
edly until you see the coolant tempera-ture in the display.
iThe tabluar overview of the menus con-
tains generic terms which are not al-
ways shown in the operating system.
The generic term concerned is intend-
ed simply to make it easier for you to
familiarize yourself with the menus.
The operating system displays the new
function range directly with the first
menu function.
Operation menuFunction
Page
Standard display with trip meter
and odometer
93
Display coolant temperature
93
Call up the service due date*
238
Tire pressure monitor
213
Check the engine oil level (only
on vehicles with a diesel engine)
189
Upper part of the display1
Trip meter
2
Odometer
Lower part of the display3
Outside temperature* or digital
speedometer
4
Time
5
Selector lever position or current
shift range
N54.32-2280-31
Page 103 of 393
102 Controls in detailOperating system with steering wheel buttons*
3
Setting the day
\1Select the
Clock/Date
submenu using
theæ or ç button.
\1Press thej or k button repeat-
edly until you see the Date Day
mes-
sage in the display.
\1Set the day by pressing theæ or
ç button.
Setting the day
\1Select the
Clock/Date
submenu using
theæ or ç button.
\1Press thej or k button repeat-
edly until you see the Date Month
mes-
sage in the display.\1Set the month by pressing theæ or
ç button.
Setting the year
\1Select the
Clock / Date
submenu using
theæ or ç button.
\1Press thej or k button repeat-
edly until you see the Date Year
mes-
sage in the display.
\1Set the year by pressing theæ or
ç button.Lighting submenu
*
You can reach the
Lighting
submenu via
the
Settings
menu (\2page 96).
Setting constant headlamp mode*
If you have set constant headlamp mode
and the light switch is at M, the follow-
ing light up automatically when the engine
is running:
\4The parking lamps and low-beam head-
lamps
\4The tail lamps
\4The license plate lamp
For safety reasons, it is only possible to
change this setting when the vehicle is sta-
tionary. The factory setting is
Constant
in
countries in which constant headlamp
mode is mandatory. N54.32-2265-31
N54.32-2266-31N54.32-2267-31
Function
Page
Set constant headlamp mode*
102
Switch the locator lighting on or
off*
103
Switch the exterior lighting
delayed switch-off on or off*
104
Page 105 of 393
104 Controls in detailOperating system with steering wheel buttons*
3
Setting the exterior lighting delayed
switch-off*
The
Headlamps
(headlamps delayed switch-
off) function enables you to set whether or
not the exterior lighting should remain on
in the dark after the doors have been
closed.
When you have set the delayed switch-off
and have switched off the engine, the fol-
lowing light up:
\4The parking lamps
\4The tail lamps
\4The license plate lamp
\4The front foglamps\1Press theæ or ç to select the
Lighting
submenu.
\1Press thej or k button repeat-
edly until you see the
Headlamps
mes-
sage in the display.
The current setting is highlighted.
\1Press the æ or ç button to se-
lect whether and for how long the lights
should remain on.Vehicle submenu
You can reach the
Vehicle
submenu via
the
Settings
menu (\2page 96).
Setting station selection
The
Search
function enables you to deter-
mine whether the radio (\2page 94)
should search for a new station or a previ-
ously stored station each time the radio is
switched on.
\1Press the è or ÿ button repeat-
edly until you see the
Vehicle
message
in the display.
\1Press thej or k button repeat-
edly until you see the
Search
message
in the display.
The current setting is highlighted.
iYou can reactivate this function by
opening a door within 10 minutes.
The lights are switched off after 60 sec-
onds if you do not open a door or if you
close an opened door after the engine
has been switched off.
N54.32-2270-31
Function
Page
Set station selection
104
Set the windshield wiper sensi-
tivity
105
\2\2
Page 111 of 393
110 Controls in detailDriving and parking
3
\3 Driving and parking
\1Before each journey, check the vehicle
lighting and the general condition of
the vehicle.
\1Observe the general driving tips at the
end of this section (\2page 116).
You will find information on:
\4regular checks (\2page 181)
\4driving in winter (\2page 235)
\4driving when towing a trailer
(\2page 175)
\4and other driving tips
in the “Operation” section (\2page 173).
Warning
G
T h e m o v e m e n t o f t h e p e d a l s m u s t n o t b e o b -
structed. The vehicle’s operating and road
safety are otherwise jeopardized.
Objects could fall and get caught between
the pedals if you accelerate or brake sud-
denly. You will no longer be able to brake or
accelerate. You could cause an accident,
which could result in injury to yourself and
others.
\4If floor mats and carpets are used, make
sure that these are secured correctly
and cannot slip and that there is suffi-
cient pedal clearance.
\4Do not place any objects in the driver’s
footwell.
\4Store and secure all loose objects so
they cannot get into the driver’s footwell
while the vehicle is in motion.
Warning
G
The doors could open of their own accord
while the vehicle is in motion if they are not
fully closed. For this reason, please make
sure that all the doors are properly closed
and locked before driving off (\2page 52).
Starting the engineWarning
G
Never run the engine in an enclosed space.
The exhaust fumes contain poisonous car-
bon monoxide. Breathing in exhaust fumes
constitutes a health hazard and can lead to
loss of consciousness and death.Warning
G
A seat belt that is worn incorrectly or not at
all, or that is not correctly engaged in the
seat belt buckle, cannot perform its intend-
ed protective function. In certain circum-
stances, you could then be seriously or even
fatally injured. Make sure, therefore, that all
occupants – in particular, expectant moth-
ers – wear their seat belt correctly at all
times.

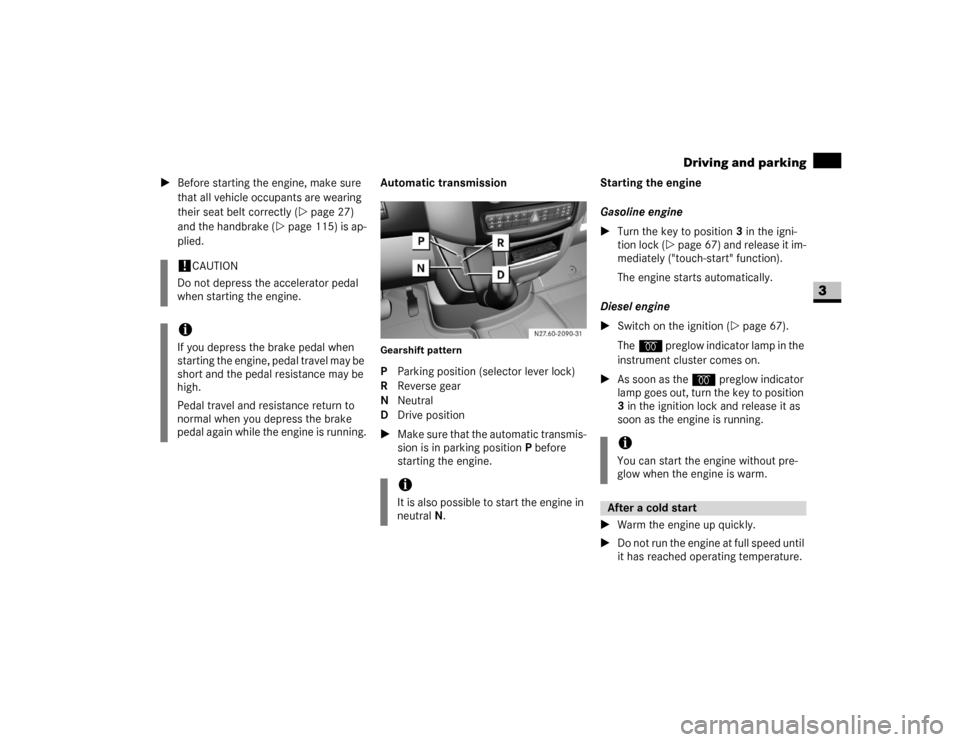

Page 112 of 393
111 Controls in detail
Driving and parking
3
\1Before starting the engine, make sure
that all vehicle occupants are wearing
their seat belt correctly (\2page 27)
and the handbrake (\2page 115) is ap-
plied.Automatic transmission
Gearshift patternP Parking position (selector lever lock)
R Reverse gear
N Neutral
D Drive position
\1Make sure that the automatic transmis-
sion is in parking position P before
starting the engine.Starting the engine
Gasoline engine
\1Turn the key to position3 in the igni-
tion lock (\2page 67) and release it im-
mediately ("touch-start" function).
The engine starts automatically.
Diesel engine
\1Switch on the ignition (\2page 67).
Theq preglow indicator lamp in the
instrument cluster comes on.
\1As soon as the q preglow indicator
lamp goes out, turn the key to position
3 in the ignition lock and release it as
soon as the engine is running.
\1Warm the engine up quickly.
\1Do not run the engine at full speed until
it has reached operating temperature.
!
CAUTION
Do not depress the accelerator pedal
when starting the engine.
iIf you depress the brake pedal when
starting the engine, pedal travel may be
short and the pedal resistance may be
high.
Pedal travel and resistance return to
normal when you depress the brake
pedal again while the engine is running.
iIt is also possible to start the engine in
neutral N.
iYou can start the engine without pre-
glow when the engine is warm.After a cold start
Page 113 of 393

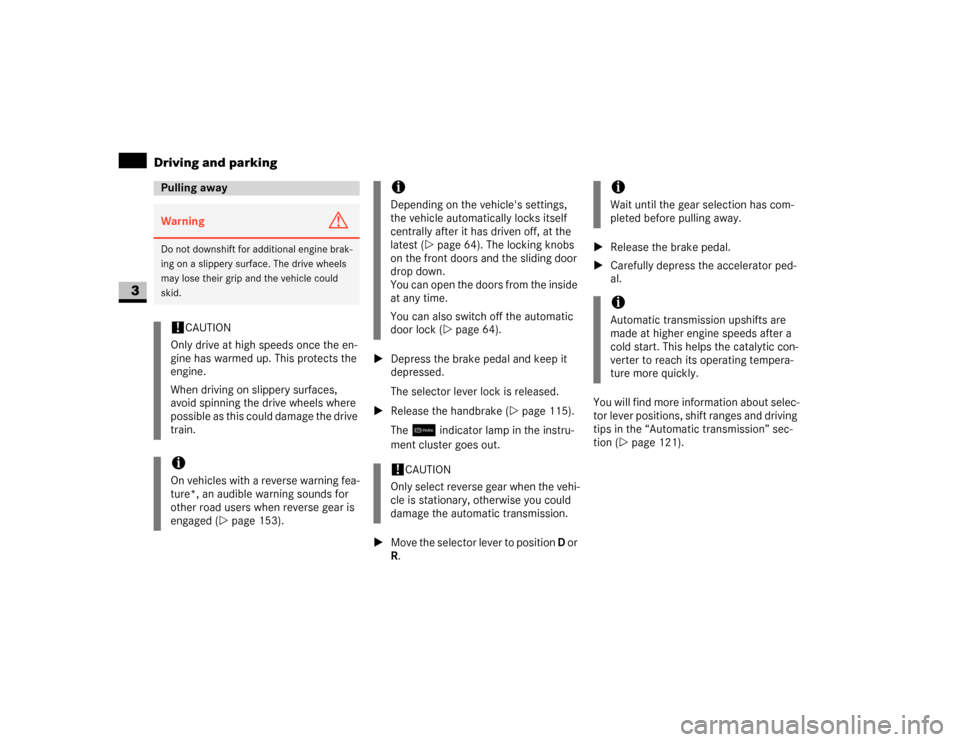

112 Controls in detailDriving and parking
3
\1Depress the brake pedal and keep it
depressed.
The selector lever lock is released.
\1Release the handbrake (\2page 115).
The7 indicator lamp in the instru-
ment cluster goes out.
\1Move the selector lever to position D or
R.\1Release the brake pedal.
\1Carefully depress the accelerator ped-
al.
You will find more information about selec-
tor lever positions, shift ranges and driving
tips in the “Automatic transmission” sec-
tion (\2page 121).
Pulling awayWarning
G
Do not downshift for additional engine brak-
ing on a slippery surface. The drive wheels
may lose their grip and the vehicle could
skid.!
CAUTION
Only drive at high speeds once the en-
gine has warmed up. This protects the
engine.
When driving on slippery surfaces,
avoid spinning the drive wheels where
possible as this could damage the drive
train.
iOn vehicles with a reverse warning fea-
ture*, an audible warning sounds for
other road users when reverse gear is
engaged (\2page 153).
iDepending on the vehicle's settings,
the vehicle automatically locks itself
centrally after it has driven off, at the
latest (\2page 64). The locking knobs
on the front doors and the sliding door
drop down.
You can open the doors from the inside
at any time.
You can also switch off the automatic
door lock (\2page 64). !
CAUTION
Only select reverse gear when the vehi-
cle is stationary, otherwise you could
damage the automatic transmission.
iWait until the gear selection has com-
pleted before pulling away.iAutomatic transmission upshifts are
made at higher engine speeds after a
cold start. This helps the catalytic con-
verter to reach its operating tempera-
ture more quickly.
Page 114 of 393
113 Controls in detail
Driving and parking
3
Do not accelerate to prevent your vehicle
from rolling backwards on an uphill gradi-
ent. Instead, you should either use the
handbrake or depress the brake pedal.
This prevents excessive wear on the
clutch.
Select a lower gear (shift range 3, 2 or 1)
(\2page 123) in good time on long and
steep downhill gradients, especially if tow-
ing a trailer. This prevents the brakes from
overheating and wearing too rapidly.
It is best not to stop the vehicle immediate-
ly after the brakes have been subjected to
an extreme load; continue driving for a
short time instead. The brakes are cooled
down more quickly in the airflow.The first time the brakes are applied after
a long period of driving in heavy rain with-
out braking, it is possible that:
\4there will be a delayed braking
response
\4you will need to depress the brake
pedal more firmly
You should therefore maintain a greater
distance from the vehicle in front.
Apply the brakes so that you can feel their
response after a journey on wet roads,
especially if the road has been salted. The
brake discs will be warmed, dry more
quickly and be protected against corro-
sion.
If you make only moderate use of the ser-
vice brake, check from time to time that it
is fully functional. To do this, brake more
sharply at a higher vehicle speed. The
brake will grip better as a result.For safety reasons, the manufacturer rec-
ommends that you only have brake pads /
linings installed on your vehicle that have
been approved for the Sprinter.
Brake pads /linings that have not been ap-
proved for the Sprinter could affect your
vehicle’s operating safety.BrakingWarning
G
There is no power assistance for the service
brake when the engine is not running.
You will need to use significantly more force
to brake and could therefore lose control of
the vehicle and cause an accident.
Never switch off the engine while driving.
Warning
G
Make sure that other road users are not put
at risk by your braking.
iIn exceptional cases, the handbrake
can be used for emergency braking if
the service brake fails (\2page 115).
Page 115 of 393
114 Controls in detailDriving and parking
3

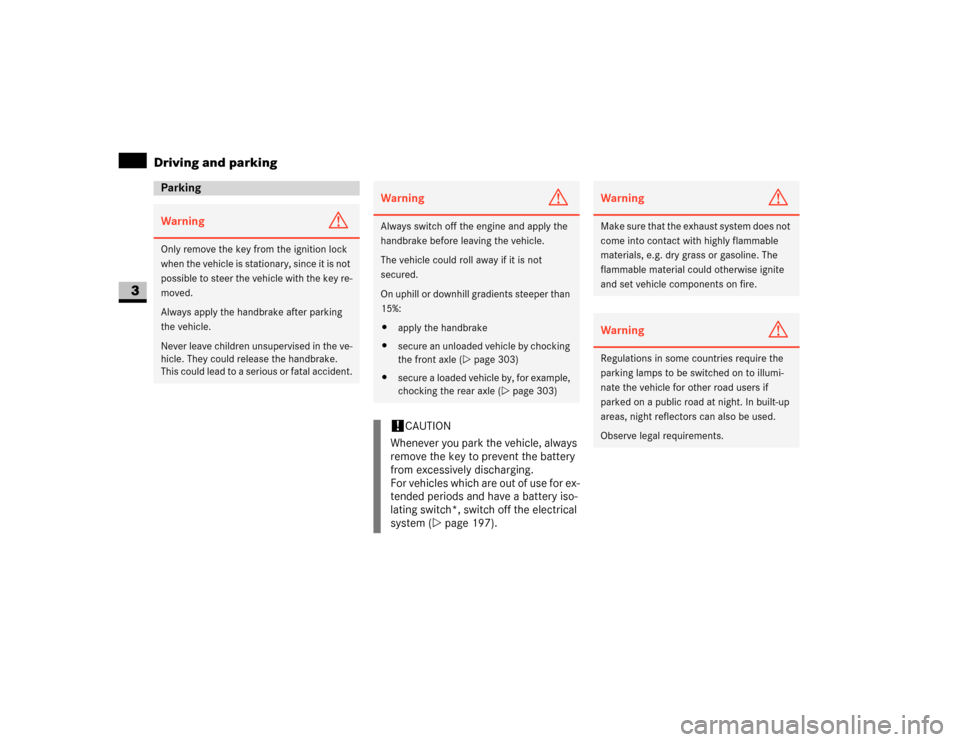

ParkingWarning
G
Only remove the key from the ignition lock
when the vehicle is stationary, since it is not
possible to steer the vehicle with the key re-
moved.
Always apply the handbrake after parking
the vehicle.
Never leave children unsupervised in the ve-
hicle. They could release the handbrake.
This could lead to a serious or fatal accident.
Warning
G
Always switch off the engine and apply the
handbrake before leaving the vehicle.
The vehicle could roll away if it is not
secured.
On uphill or downhill gradients steeper than
15%:
\4apply the handbrake
\4secure an unloaded vehicle by chocking
the front axle (\2page 303)
\4secure a loaded vehicle by, for example,
chocking the rear axle (\2page 303)!
CAUTION
Whenever you park the vehicle, always
remove the key to prevent the battery
from excessively discharging.
For vehicles which are out of use for ex-
tended periods and have a battery iso-
lating switch*, switch off the electrical
system (\2page 197).
Warning
G
Make sure that the exhaust system does not
come into contact with highly flammable
materials, e.g. dry grass or gasoline. The
flammable material could otherwise ignite
and set vehicle components on fire.Warning
G
Regulations in some countries require the
parking lamps to be switched on to illumi-
nate the vehicle for other road users if
parked on a public road at night. In built-up
areas, night reflectors can also be used.
Observe legal requirements.
Page 116 of 393
115 Controls in detail
Driving and parking
3
Handbrake
The handbrake is located between the driv-
er’s seat and the co-driver’s seat.
1Lever
2Release knobApplying the handbrake
\1Pull lever1 up as far as the last de-
tent.
The7 indicator lamp in the instru-
ment cluster lights up while the engine
is running.
Releasing the handbrake
\1Raise lever1 slightly and press re-
lease knob2.
\1Guide lever1 down to the stop.
The7 indicator lamp in the instru-
ment cluster goes out.Emergency braking
Normally, you are only permitted to apply
the handbrake when the vehicle is station-
ary.
In exceptional cases, the handbrake can
be used for emergency braking if the ser-
vice brake fails.
\1Keep release knob2 pressed and
carefully apply lever1.Warning
G
Never leave children unsupervised in the ve-
hicle. They could release the handbrake.
This could lead to a serious or fatal accident.!
CAUTION
You must only apply the handbrake
when the vehicle is stationary.
iOn vehicles with a folding handbrake
lever, you can then press lever1
down to the stop.iOn vehicles with a folding handbrake
lever, you must first pull lever1 up to
the stop.
Warning
G
The wheels on the rear axle could lock if the
handbrake lever is applied too abruptly. The
vehicle could then start to skid.
Make sure that you apply the handbrake le-
ver carefully to ensure that braking applica-
tion is moderated.
Page 117 of 393
116 Controls in detailDriving and parking
3

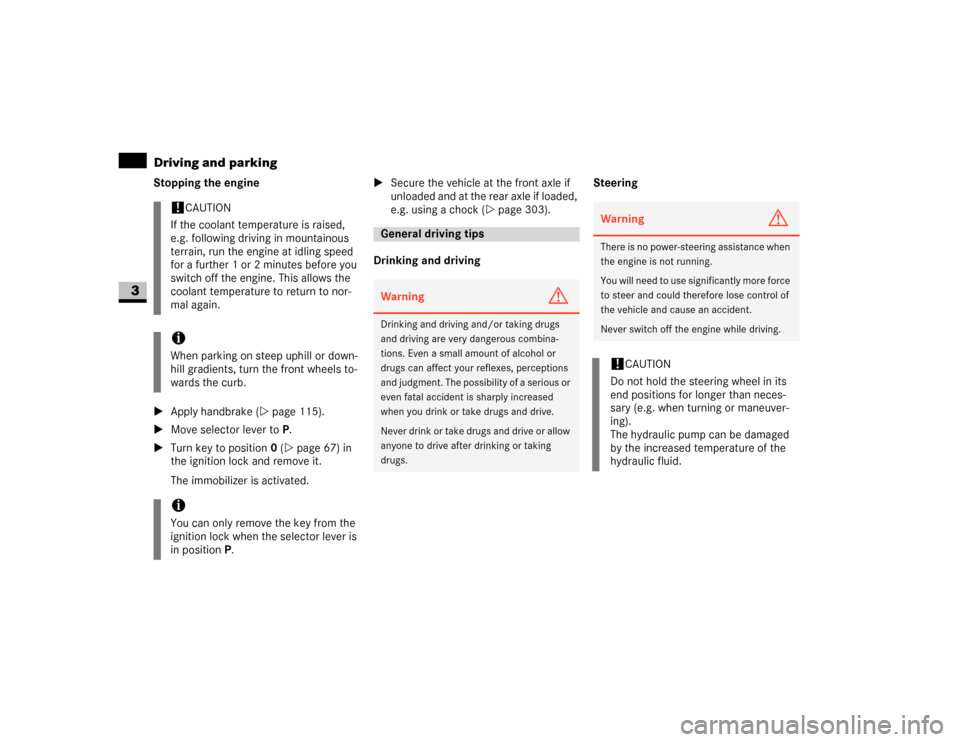

Stopping the engine
\1Apply handbrake (\2page 115).
\1Move selector lever to P.
\1Turn key to position 0 (\2page 67) in
the ignition lock and remove it.
The immobilizer is activated.\1Secure the vehicle at the front axle if
unloaded and at the rear axle if loaded,
e.g. using a chock (\2page 303).
Drinking and drivingSteering
!
CAUTION
If the coolant temperature is raised,
e.g. following driving in mountainous
terrain, run the engine at idling speed
for a further 1 or 2 minutes before you
switch off the engine. This allows the
coolant temperature to return to nor-
mal again.
iWhen parking on steep uphill or down-
hill gradients, turn the front wheels to-
wards the curb.iYou can only remove the key from the
ignition lock when the selector lever is
in positionP.
General driving tipsWarning
G
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
tions. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgment. The possibility of a serious or
even fatal accident is sharply increased
when you drink or take drugs and drive.
Never drink or take drugs and drive or allow
anyone to drive after drinking or taking
drugs.
Warning
G
There is no power-steering assistance when
the engine is not running.
You will need to use significantly more force
to steer and could therefore lose control of
the vehicle and cause an accident.
Never switch off the engine while driving.!
CAUTION
Do not hold the steering wheel in its
end positions for longer than neces-
sary (e.g. when turning or maneuver-
ing).
The hydraulic pump can be damaged
by the increased temperature of the
hydraulic fluid.
