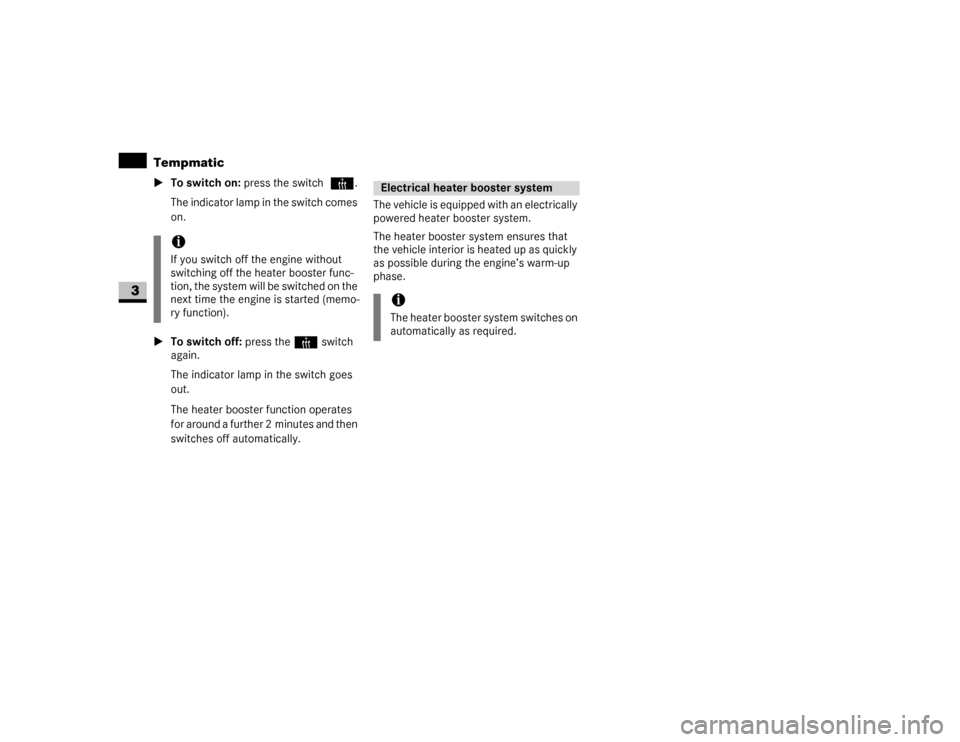

138 Controls in detailTempmatic
3
\1To switch on: press the switch³.
The indicator lamp in the switch comes
on.
\1To switch off: press the³ switch
again.
The indicator lamp in the switch goes
out.
The heater booster function operates
for around a further 2 minutes and then
switches off automatically.The vehicle is equipped with an electrically
powered heater booster system.
The heater booster system ensures that
the vehicle interior is heated up as quickly
as possible during the engine’s warm-up
phase.
iIf you switch off the engine without
switching off the heater booster func-
tion, the system will be switched on the
next time the engine is started (memo-
ry function).
Electrical heater booster systemiThe heater booster system switches on
automatically as required.
Page 140 of 393
139 Controls in detail

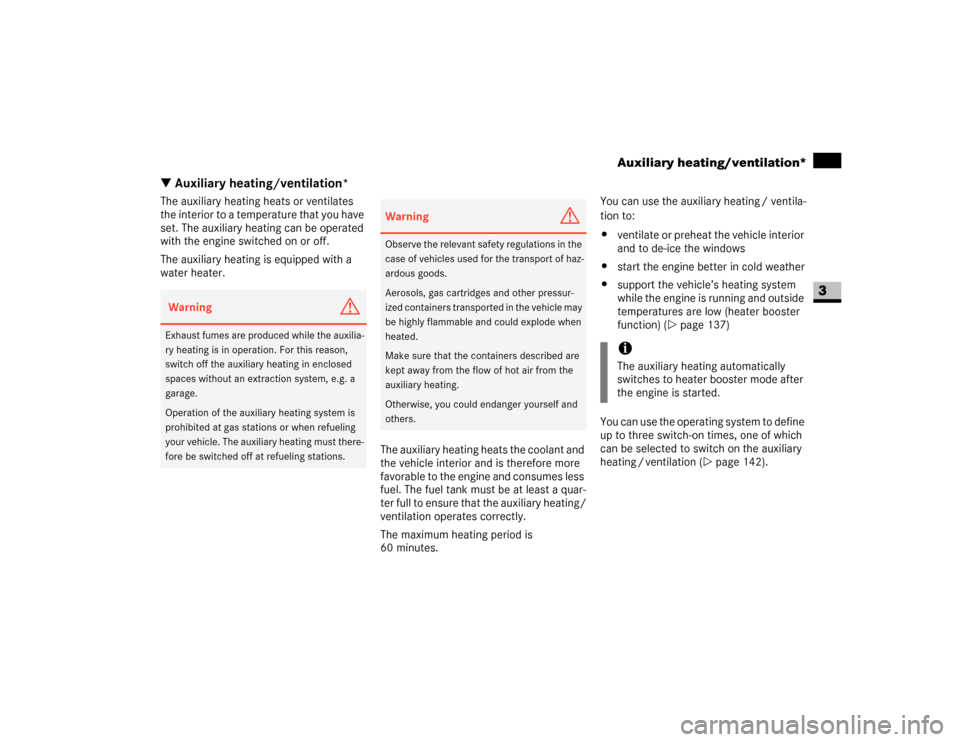

Auxiliary heating/ventilation*
3
\3 Auxiliary heating/ventilation*The auxiliary heating heats or ventilates
the interior to a temperature that you have
set. The auxiliary heating can be operated
with the engine switched on or off.
The auxiliary heating is equipped with a
water heater.
The auxiliary heating heats the coolant and
the vehicle interior and is therefore more
favorable to the engine and consumes less
fuel. The fuel tank must be at least a quar-
ter full to ensure that the auxiliary heating/
ventilation operates correctly.
The maximum heating period is
60 minutes.You can use the auxiliary heating / ventila-
tion to:
\4ventilate or preheat the vehicle interior
and to de-ice the windows
\4start the engine better in cold weather
\4support the vehicle’s heating system
while the engine is running and outside
temperatures are low (heater booster
function) (\2page 137)
You can use the operating system to define
up to three switch-on times, one of which
can be selected to switch on the auxiliary
heating / ventilation (\2page 142). Warning
G
Exhaust fumes are produced while the auxilia-
ry heating is in operation. For this reason,
switch off the auxiliary heating in enclosed
spaces without an extraction system, e.g. a
garage.
Operation of the auxiliary heating system is
prohibited at gas stations or when refueling
your vehicle. The auxiliary heating must there-
fore be switched off at refueling stations.
Warning
G
Observe the relevant safety regulations in the
case of vehicles used for the transport of haz-
ardous goods.
Aerosols, gas cartridges and other pressur-
ized containers transported in the vehicle may
be highly flammable and could explode when
heated.
Make sure that the containers described are
kept away from the flow of hot air from the
auxiliary heating.
Otherwise, you could endanger yourself and
others.
iThe auxiliary heating automatically
switches to heater booster mode after
the engine is started.
Page 149 of 393
148 Controls in detailDriving systems
3

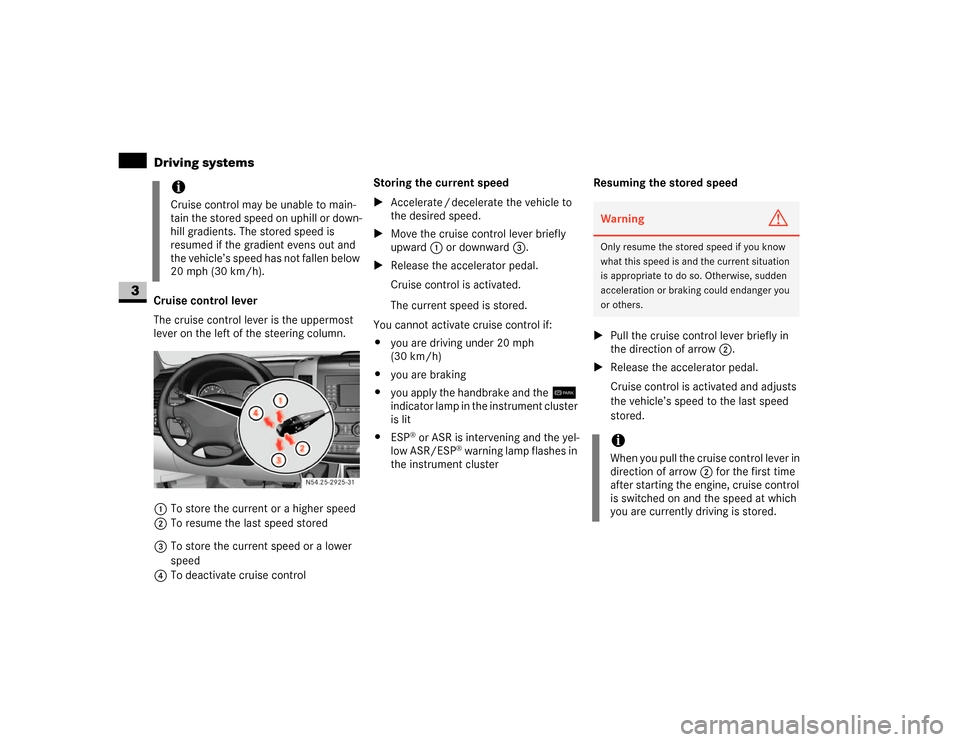

Cruise control lever
The cruise control lever is the uppermost
lever on the left of the steering column.
1To store the current or a higher speed
2To resume the last speed stored
3To store the current speed or a lower
speed
4To deactivate cruise controlStoring the current speed
\1Accelerate / decelerate the vehicle to
the desired speed.
\1Move the cruise control lever briefly
upward 1 or downward 3.
\1Release the accelerator pedal.
Cruise control is activated.
The current speed is stored.
You cannot activate cruise control if:
\4you are driving under 20 mph
(30 km/h)
\4you are braking
\4you apply the handbrake and the7
indicator lamp in the instrument cluster
is lit
\4ESP
® or ASR is intervening and the yel-
low ASR/ESP
® warning lamp flashes in
the instrument clusterResuming the stored speed
\1Pull the cruise control lever briefly in
the direction of arrow2.
\1Release the accelerator pedal.
Cruise control is activated and adjusts
the vehicle’s speed to the last speed
stored.
iCruise control may be unable to main-
tain the stored speed on uphill or down-
hill gradients. The stored speed is
resumed if the gradient evens out and
the vehicle’s speed has not fallen below
20 mph (30 km/h).
N54.25-2925-31
Warning
G
Only resume the stored speed if you know
what this speed is and the current situation
is appropriate to do so. Otherwise, sudden
acceleration or braking could endanger you
or others.iWhen you pull the cruise control lever in
direction of arrow 2 for the first time
after starting the engine, cruise control
is switched on and the speed at which
you are currently driving is stored.
Page 150 of 393
149 Controls in detail
Driving systems
3

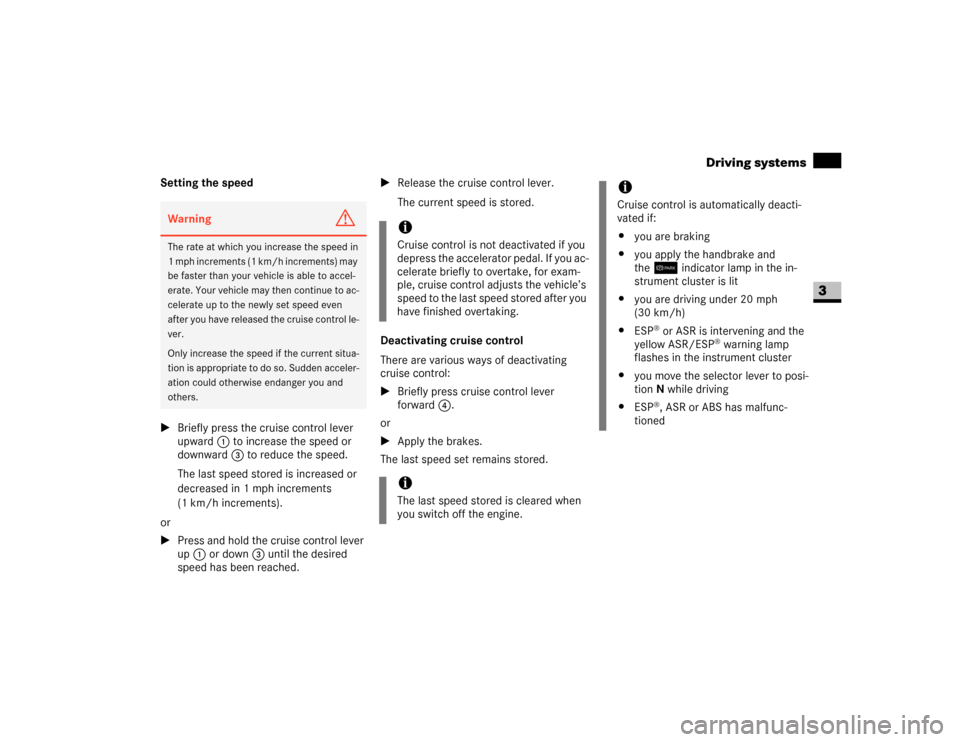

Setting the speed
\1Briefly press the cruise control lever
upward1 to increase the speed or
downward3 to reduce the speed.
The last speed stored is increased or
decreased in 1 mph increments
(1 km/h increments).
or
\1Press and hold the cruise control lever
up1 or down3 until the desired
speed has been reached.\1Release the cruise control lever.
The current speed is stored.
Deactivating cruise control
There are various ways of deactivating
cruise control:
\1Briefly press cruise control lever
forward4.
or
\1Apply the brakes.
The last speed set remains stored.Warning
G
The rate at which you increase the speed in
1 mph increments (1 km/h increments) may
be faster than your vehicle is able to accel-
erate. Your vehicle may then continue to ac-
celerate up to the newly set speed even
after you have released the cruise control le-
ver.
Only increase the speed if the current situa-
tion is appropriate to do so. Sudden acceler-
ation could otherwise endanger you and
others.
iCruise control is not deactivated if you
depress the accelerator pedal. If you ac-
celerate briefly to overtake, for exam-
ple, cruise control adjusts the vehicle’s
speed to the last speed stored after you
have finished overtaking.iThe last speed stored is cleared when
you switch off the engine.
iCruise control is automatically deacti-
vated if:
\4you are braking
\4you apply the handbrake and
the7 indicator lamp in the in-
strument cluster is lit
\4you are driving under 20 mph
(30 km/h)
\4ESP
® or ASR is intervening and the
yellow ASR/ESP
® warning lamp
flashes in the instrument cluster
\4you move the selector lever to posi-
tion N while driving
\4ESP
®, ASR or ABS has malfunc-
tioned
Page 155 of 393
154 Controls in detailOperating the vehicle
3

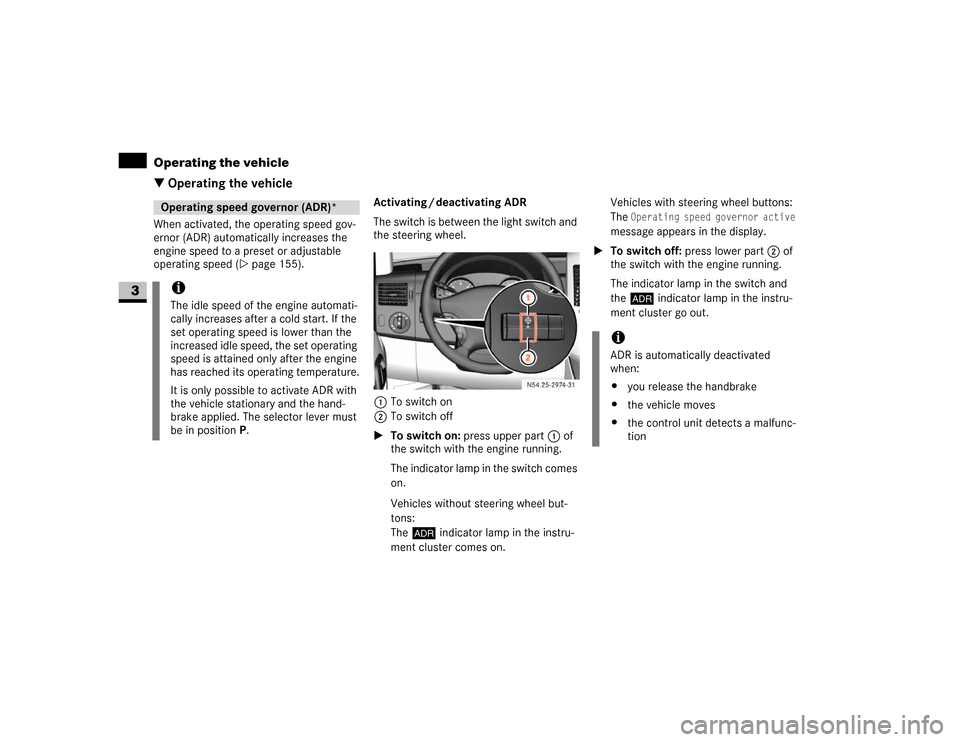

\3 Operating the vehicleWhen activated, the operating speed gov-
ernor (ADR) automatically increases the
engine speed to a preset or adjustable
operating speed (\2page 155).Activating / deactivating ADR
The switch is between the light switch and
the steering wheel.
1To switch on
2To switch off
\1To switch on: press upper part 1 of
the switch with the engine running.
The indicator lamp in the switch comes
on.
Vehicles without steering wheel but-
tons:
The™ indicator lamp in the instru-
ment cluster comes on.Vehicles with steering wheel buttons:
The
Operating speed governor active
message appears in the display.
\1To switch off: press lower part 2 of
the switch with the engine running.
The indicator lamp in the switch and
the™ indicator lamp in the instru-
ment cluster go out.
Operating speed governor (ADR)*iThe idle speed of the engine automati-
cally increases after a cold start. If the
set operating speed is lower than the
increased idle speed, the set operating
speed is attained only after the engine
has reached its operating temperature.
It is only possible to activate ADR with
the vehicle stationary and the hand-
brake applied. The selector lever must
be in position P.
N54.25-2932-31
iADR is automatically deactivated
when:
\4you release the handbrake
\4the vehicle moves
\4the control unit detects a malfunc-
tion
Page 156 of 393
155 Controls in detail
Operating the vehicle
3

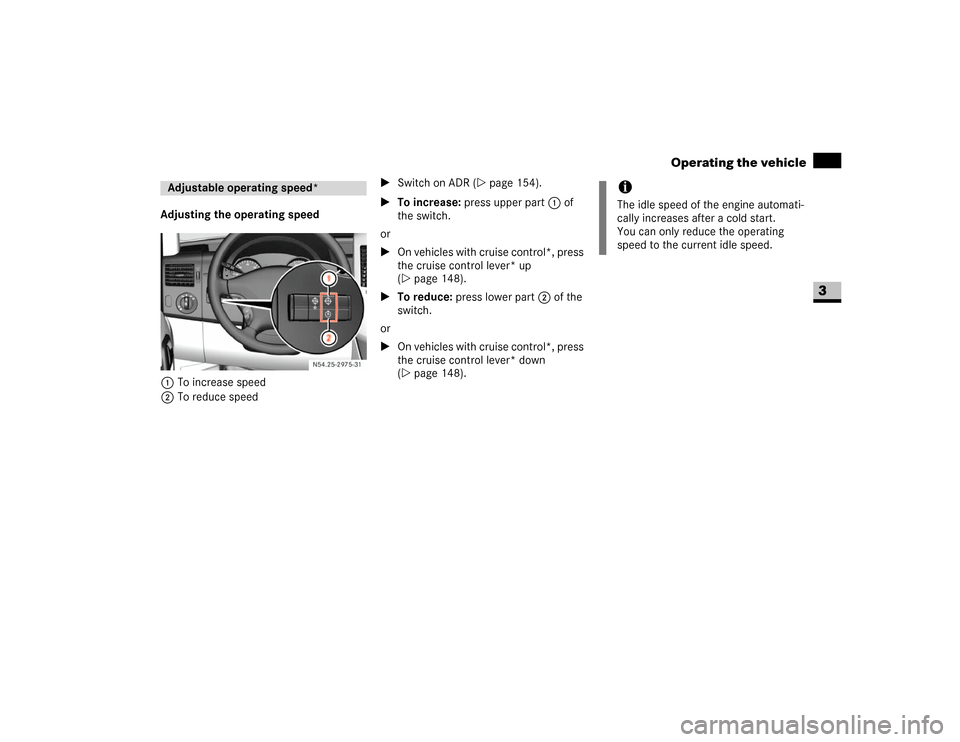

Adjusting the operating speed
1To increase speed
2To reduce speed\1Switch on ADR (\2page 154).
\1To increase: press upper part 1 of
the switch.
or
\1On vehicles with cruise control*, press
the cruise control lever* up
(\2page 148).
\1To reduce: press lower part 2 of the
switch.
or
\1On vehicles with cruise control*, press
the cruise control lever* down
(\2page 148).Adjustable operating speed*
N54.25-2933-31
iThe idle speed of the engine automati-
cally increases after a cold start.
You can only reduce the operating
speed to the current idle speed.
Page 158 of 393
157 Controls in detail
Transporting
3
Before loading
\1Check the tire pressures and correct
them if necessary (\2page 213).
\1Clean the load compartment floor.
The load compartment floor must be
dry, cleanly swept and free of oil and
dust to reduce the risk of the load slip-
ping.
\1If necessary, place anti-slip mats on the
load compartment floor.During loading
\1Observe the maximum permissible axle
loads and permissible gross weight for
the vehicle.
\1Observe the notes on load distribution
(\2page 158).
\1Secure the load (\2page 158). All
country-specific legal requirements
must be observed.Checks after loading
\1Securing a load: before each journey
and at regular intervals during longer
journeys, check whether the load is
properly secured and take additional
securing measures, if necessary.
\1Doors: close the sliding doors and rear
doors.
\1Tire pressure: adjust the tire pressure
in accordance with the vehicle's load
(\2page 213).
\1Driving characteristics: adapt your
driving style to the load.
!
CAUTION
As soon as the anti-slip mats start to
show signs of permanent deformation,
squashed areas or tears/holes, they
are unsuitable for securing loads and
must be replaced.
!
CAUTION
In passenger vans with the maximum
number of seats, the maximum payload
would cause the permissible rear axle
load to be exceeded.
iBear in mind that your vehicle's unlad-
en weight is increased by the installa-
tion of optional equipment and
accessories.
Warning
G
Make sure that the sliding doors and rear
doors are always closed when the engine is
running.
Otherwise, exhaust fumes could enter the
vehicle interior and poison you.
Page 169 of 393
168 Controls in detailFeatures
3

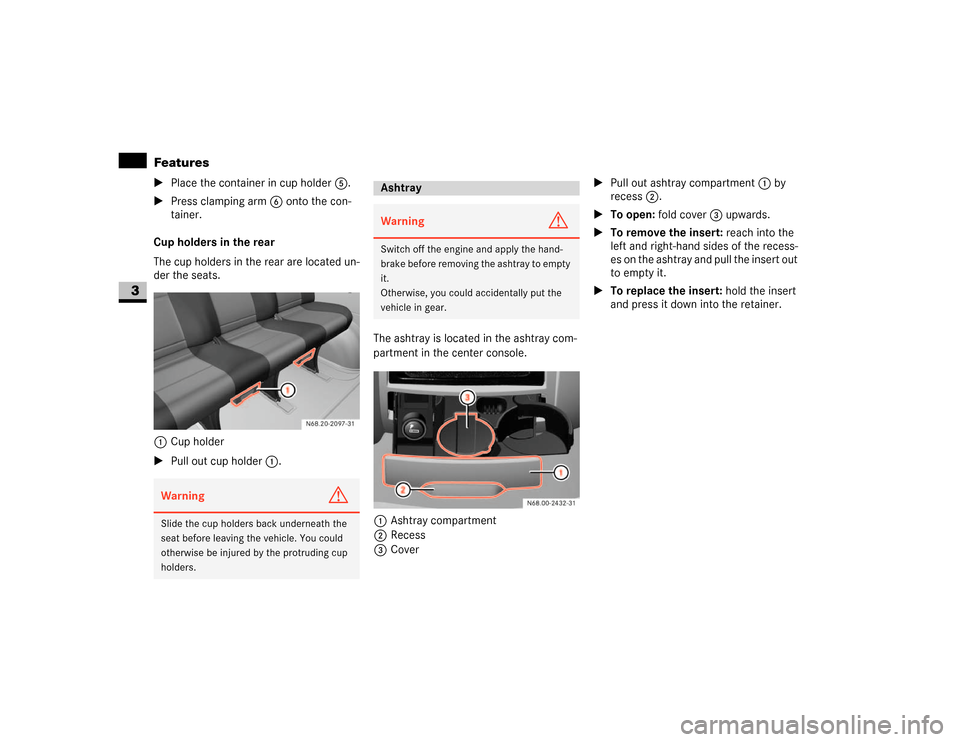

\1Place the container in cup holder5.
\1Press clamping arm6 onto the con-
tainer.
Cup holders in the rear
The cup holders in the rear are located un-
der the seats.
1Cup holder
\1Pull out cup holder1.The ashtray is located in the ashtray com-
partment in the center console.
1Ashtray compartment
2Recess
3Cover\1Pull out ashtray compartment1 by
recess2.
\1To open: fold cover3 upwards.
\1To remove the insert: reach into the
left and right-hand sides of the recess-
es on the ashtray and pull the insert out
to empty it.
\1To replace the insert: hold the insert
and press it down into the retainer.Warning
G
Slide the cup holders back underneath the
seat before leaving the vehicle. You could
otherwise be injured by the protruding cup
holders.
AshtrayWarning
G
Switch off the engine and apply the hand-
brake before removing the ashtray to empty
it.
Otherwise, you could accidentally put the
vehicle in gear.
Page 171 of 393
170 Controls in detailFeatures
3
The paper holder is on the control panel for
the air-conditioning system. 1Paper holder
\1Press top of paper holder1.The 12 V sockets for accessories are
\4on the bottom of the center console
(12 V, 25 A)
\4on the inside of the driver's seat base
(12 V, 15 A)
\4in the corner trim next to each rear
door in the passenger compartment
(12 V, 15 A)
\4in the load compartment next to the
rear door on the left-hand side (12 V,
15 A)*.
Socket at the bottom of the center console112 V, 25 A socketYou can use the 12 V sockets (15 A) for ac-
cessories with a maximum power con-
sumption of 180 watts. You can connect
accessories with a maximum power con-
sumption of 300 watts to the 12 V socket
(25 A) at the bottom of the center console.
For more information about the electric air
pump* and the Premium tire sealant*,
please refer to the "Practical hints" section
(\2page 303).
Paper holder
N68.00-2425-31
12 V socket
!
CAUTION
Only connect the electric air pump*
(Premium tire sealant*) to the 12 V
socket (25 A) on the bottom of the cen-
ter console. You could otherwise dam-
age the vehicle electrical system.
iThe sockets are supplied with power
even if the key is removed from the ig-
nition lock. Please note that the battery
may be discharged if you have connect-
ed an accessory, e.g. a coolbox, and
the engine is switched off.
Page 174 of 393

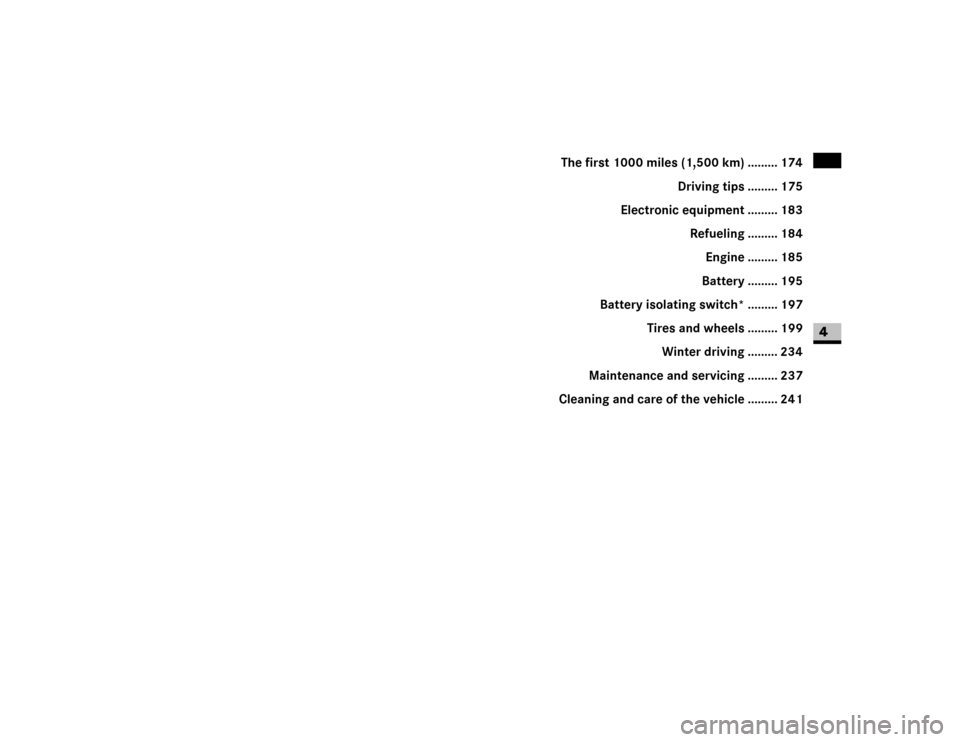

173
4 Operation
The first 1000 miles (1,500 km) ......... 174
Driving tips ......... 175
Electronic equipment ......... 183
Refueling ......... 184
Engine ......... 185
Battery ......... 195
Battery isolating switch* ......... 197
Tires and wheels ......... 199
Winter driving ......... 234
Maintenance and servicing ......... 237
Cleaning and care of the vehicle ......... 241
