DODGE SPRINTER 2008 2.G Owners Manual

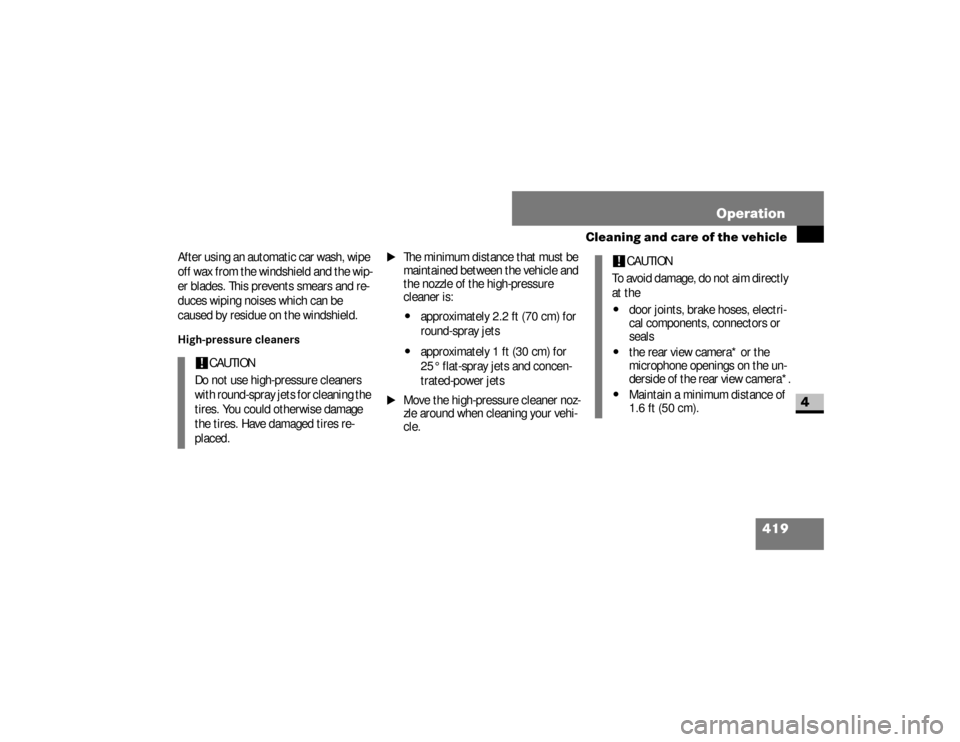

419 Operation
Cleaning and care of the vehicle
4
After using an automatic car wash, wipe
off wax from the windshield and the wip-
er blades. This prevents smears and re-
duces wiping noises which can be
caused by residue on the windshield.High-pressure cleaners\1
The minimum distance that must be
maintained between the vehicle and
the nozzle of the high-pressure
cleaner is:\4
approximately 2.2 ft (70 cm) for
round-spray jets
\4
approximately 1 ft (30 cm) for
25° flat-spray jets and concen-
trated-power jets
\1
Move the high-pressure cleaner noz-
zle around when cleaning your vehi-
cle.
!
CAUTION
Do not use high-pressure cleaners
with round-spray jets for cleaning the
tires. You could otherwise damage
the tires. Have damaged tires re-
placed.
!
CAUTION
To avoid damage, do not aim directly
at the
\4
door joints, brake hoses, electri-
cal components, connectors or
seals
\4
the rear view camera* or the
microphone openings on the un-
derside of the rear view camera*.
\4
Maintain a minimum distance of
1.6 ft (50 cm).
nf_BA.book Page 419 Friday, January 25, 2008 3:53 PM

420 OperationCleaning and care of the vehicle
4
Steps Engine cleaning Light-alloy wheels*
Clean light-alloy wheels on a regular ba-
sis.
Warning
G
Dirty or iced-up steps and entrances cre-
ate a risk of slipping or falling.
Keep steps, entrances and footwear free
from dirt (e.g. mud, clay, snow and ice).
!
CAUTION
Do not allow water to enter the in-
take and ventilation openings.
When cleaning with high-pressure
water or steam cleaners, the spray
must not be aimed directly at electri-
cal components or at the end of elec-
trical lines.
Treat the engine with preservative
agents after cleaning. Protect the
belt drive system from the preserva-
tive when you do so.
!
CAUTION
Do not use any acidic or alkaline
cleaning agents. They can cause cor-
rosion of the wheel bolts (wheel
nuts) or the balancing weight retain-
ers.
nf_BA.book Page 420 Friday, January 25, 2008 3:53 PM

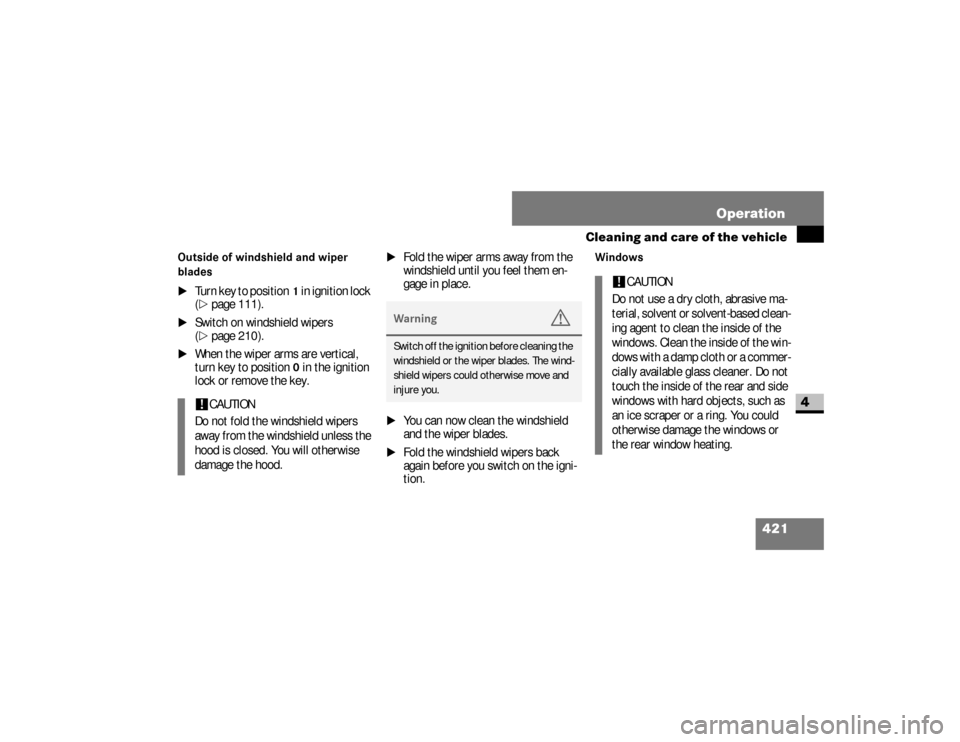

421 Operation
Cleaning and care of the vehicle
4
Outside of windshield and wiper
blades
\1
Turn key to position
1 in ignition lock
(
\2
page 111).
\1
Switch on windshield wipers
(\2
page 210).
\1
When the wiper arms are vertical,
turn key to position
0 in the ignition
lock or remove the key.
\1
Fold the wiper arms away from the
windshield until you feel them en-
gage in place.
\1
You can now clean the windshield
and the wiper blades.
\1
Fold the windshield wipers back
again before you switch on the igni-
tion.
Windows
!
CAUTION
Do not fold the windshield wipers
away from the windshield unless the
hood is closed. You will otherwise
damage the hood.
Warning
G
Switch off the ignition before cleaning the
windshield or the wiper blades. The wind-
shield wipers could otherwise move and
injure you.
!
CAUTION
Do not use a dry cloth, abrasive ma-
terial, solvent or solvent-based clean-
ing agent to clean the inside of the
windows. Clean the inside of the win-
dows with a damp cloth or a commer-
cially available glass cleaner. Do not
touch the inside of the rear and side
windows with hard objects, such as
an ice scraper or a ring. You could
otherwise damage the windows or
the rear window heating.
nf_BA.book Page 421 Friday, January 25, 2008 3:53 PM

422 OperationCleaning and care of the vehicle
4
Headlamps
\1
Wipe the headlamp lenses with a
damp sponge.
Parktronic sensors* The sensors are located in the front and
rear bumpers.\1
Clean the sensors in the bumpers us-
ing water, shampoo and a soft cloth.
Rear view camera lens* The rear view camera is located in the
center of the roof above the third brake
lamp.
!
CAUTION
Only use washer fluid which is suit-
able for plastic lamp lenses.
Unsuitable washer fluid may damage
the plastic headlamp lenses.
For this reason, do not use a dry
cloth, abrasive material, solvent or
solvent-based cleaning agent. You
could otherwise scratch or damage
the lens surface.
1 Parktronic sensors
!
CAUTION
D o n o t u s e d r y , c o a r s e o r h a r d c l o t h s
and do not scrub. You will otherwise
scratch or damage the sensors.
If you clean the sensors with a high-
pressure cleaner or steam cleaner,
observe the information provided by
the manufacturer regarding the dis-
tance to be maintained between the
vehicle and the nozzle of the high-
pressure cleaner.
nf_BA.book Page 422 Friday, January 25, 2008 3:53 PM

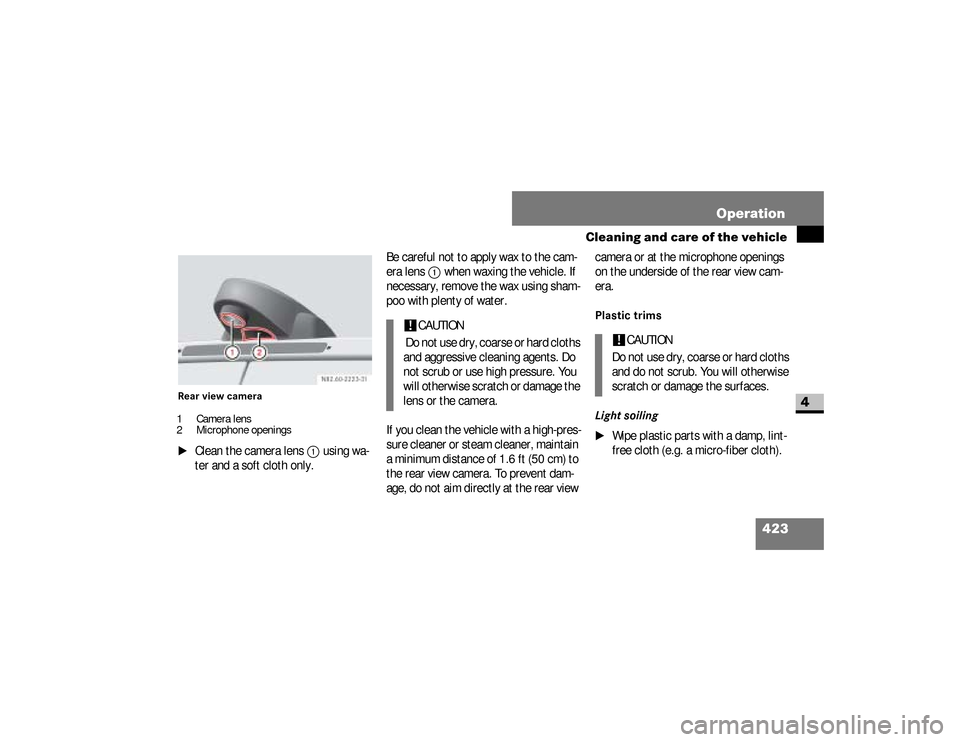

423 Operation
Cleaning and care of the vehicle
4
Rear view camera\1
Clean the camera lens
1
using wa-
ter and a soft cloth only.Be careful not to apply wax to the cam-
era lens
1
when waxing the vehicle. If
necessary, remove the wax using sham-
poo with plenty of water.
If you clean the vehicle with a high-pres-
sure cleaner or steam cleaner, maintain
a minimum distance of 1.6 ft (50 cm) to
the rear view camera. To prevent dam-
age, do not aim directly at the rear view camera or at the microphone openings
on the underside of the rear view cam-
era.
Plastic trims
Light soiling
\1
Wipe plastic parts with a damp, lint-
free cloth (e.g. a micro-fiber cloth).
1 Camera lens
2 Microphone openings
!
CAUTION
D o n o t u s e d r y , c o a r s e o r h a r d c l o t h s
and aggressive cleaning agents. Do
not scrub or use high pressure. You
will otherwise scratch or damage the
lens or the camera.
!
CAUTION
Do not use dry, coarse or hard cloths
and do not scrub. You will otherwise
scratch or damage the surfaces.
nf_BA.book Page 423 Friday, January 25, 2008 3:53 PM

424 OperationCleaning and care of the vehicle
4
Heavy soiling
\1
Wipe plastic parts with a damp, lint-
free cloth (e.g. a micro-fiber cloth).
Dashboard and padded boss of the
steering wheel
\1
Moisten a clean and lint-free cloth
with water and clean the plastic
parts and the dashboard.
\1
Use a mild soap solution for particu-
larly stubborn dirt.
Radio* display and rear view cam-
era* monitor
\1
Switch off the Radio* or the rear
view camera monitor* and allow it to
cool off.
!
CAUTION
Use a low-foaming grease solvent
(e.g. washing-up liquid) diluted in wa-
ter as a cleaning agent.
The surface color may temporarily
change shade during cleaning. Sim-
ply wait for the surface to dry.
!
CAUTION
Use a solvent-free and non-caustic
cleaning agent. The manufacturer
recommends that you use a
Mercedes-Benz product.
The surface color may temporarily
change shade during cleaning. Sim-
ply wait for the surface to dry.
Warning
G
Do not use cleaners or cockpit care
sprays containing solvents to clean the
dashboard or the padded boss of the
steering wheel. Cleaners containing sol-
vents can make the surface porous, which
could lead to serious injuries if plastic
parts were to come loose when an airbag
is triggered.
nf_BA.book Page 424 Friday, January 25, 2008 3:53 PM

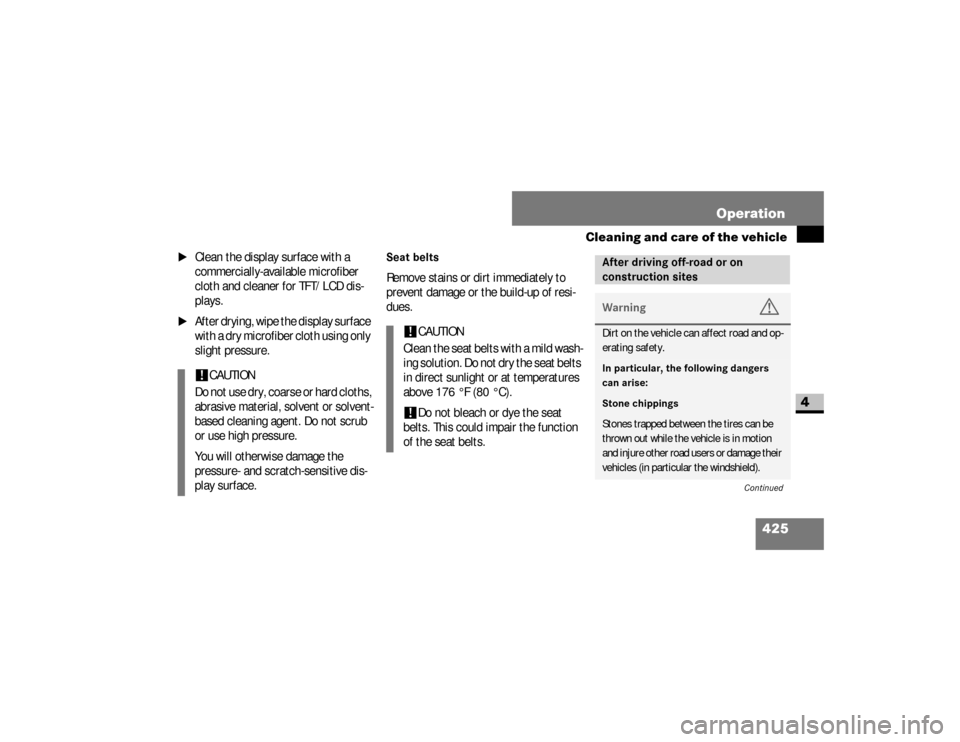

425 Operation
Cleaning and care of the vehicle
4
\1
Clean the display surface with a
commercially-available microfiber
cloth and cleaner for TFT/LCD dis-
plays.
\1
After drying, wipe the display surface
with a dry microfiber cloth using only
slight pressure.
Seat beltsRemove stains or dirt immediately to
prevent damage or the build-up of resi-
dues.
!
CAUTION
D o n o t u s e d r y , c o a r s e o r h a r d c l o t h s ,
abrasive material, solvent or solvent-
based cleaning agent. Do not scrub
or use high pressure.
You will otherwise damage the
pressure- and scratch-sensitive dis-
play surface.
!
CAUTION
Clean the seat belts with a mild wash-
ing solution. Do not dry the seat belts
in direct sunlight or at temperatures
above 176 °F (80 °C).
!
Do not bleach or dye the seat
belts. This could impair the function
of the seat belts.
After driving off-road or on
construction sitesWarning
G
Dirt on the vehicle can affect road and op-
erating safety.In particular, the following dangers
can arise:Stone chippingsStones trapped between the tires can be
thrown out while the vehicle is in motion
and injure other road users or damage their
vehicles (in particular the windshield).
Continued
nf_BA.book Page 425 Friday, January 25, 2008 3:53 PM

426 OperationCleaning and care of the vehicle
4
\1
Clean the vehicle, particularly the
lighting equipment, windows, exteri-
or mirrors, steps, entrances, grab
handles, wheels, tires, wheel hous-
ings and license plates. Observe the
notes in this section.
\1
Remove any trapped foreign objects,
e.g. stones.
Warning (Continued)
G
Risk of skiddingDirt and mud on the tires / road surface
reduce wheel grip. This is especially so if
the road surface is wet. The vehicle could
then start to skid.Risk of slippingDirt and mud on the steps and entrances
make the steps less safe. As a result you
could slip from the steps and injure yourself.For this reason, always clean your vehicle
carefully after driving off-road and on con-
struction sites before using public roads.
Continued
Warning (Continued)
G
If you use a high-pressure cleaner or auto-
matic car wash for this purpose, you must
follow the relevant safety instructions in
this section.
Warning
G
Dirty brake discs and brake pads / linings
can impair braking power (to the point of
total failure).You could thereby cause an accident.Check the brake system for operating
safety by testing the brakes before driving
the vehicle onto public roads.If braking power is impaired, stop the ve-
h i c l e a s s o o n a s i t i s s a f e t o d o s o a n d c o n -
sult an authorized Sprinter Dealer which
has the necessary specialist knowledge
and tools to carry out the work required.
Continued
nf_BA.book Page 426 Friday, January 25, 2008 3:53 PM

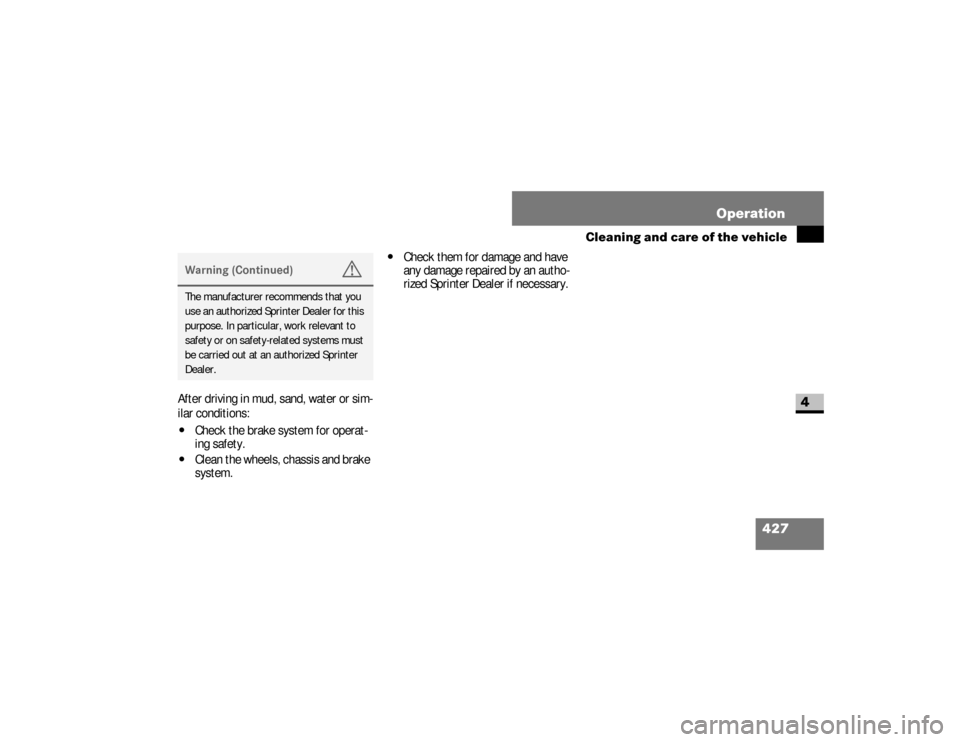

427 Operation
Cleaning and care of the vehicle
4
After driving in mud, sand, water or sim-
ilar conditions:\4
Check the brake system for operat-
ing safety.
\4
Clean the wheels, chassis and brake
system.
\4
Check them for damage and have
any damage repaired by an autho-
rized Sprinter Dealer if necessary.
Warning (Continued)
G
The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose. In particular, work relevant to
safety or on safety-related systems must
be carried out at an authorized Sprinter
Dealer.
nf_BA.book Page 427 Friday, January 25, 2008 3:53 PM
