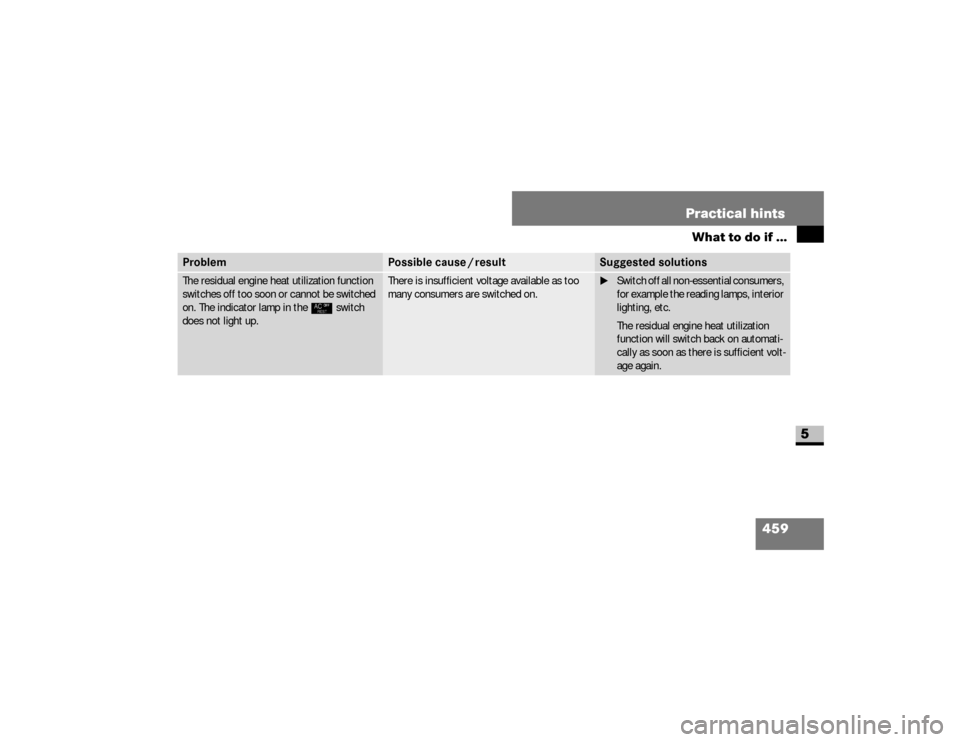

459 Practical hints
What to do if ...
5
The residual engine heat utilization function
switches off too soon or cannot be switched
on. The indicator lamp in the° switch
does not light up.
There is insufficient voltage available as too
many consumers are switched on.
\1Switch off all non-essential consumers,
for example the reading lamps, interior
lighting, etc.
The residual engine heat utilization
function will switch back on automati-
cally as soon as there is sufficient volt-
age again.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 459 Friday, January 25, 2008 3:53 PM

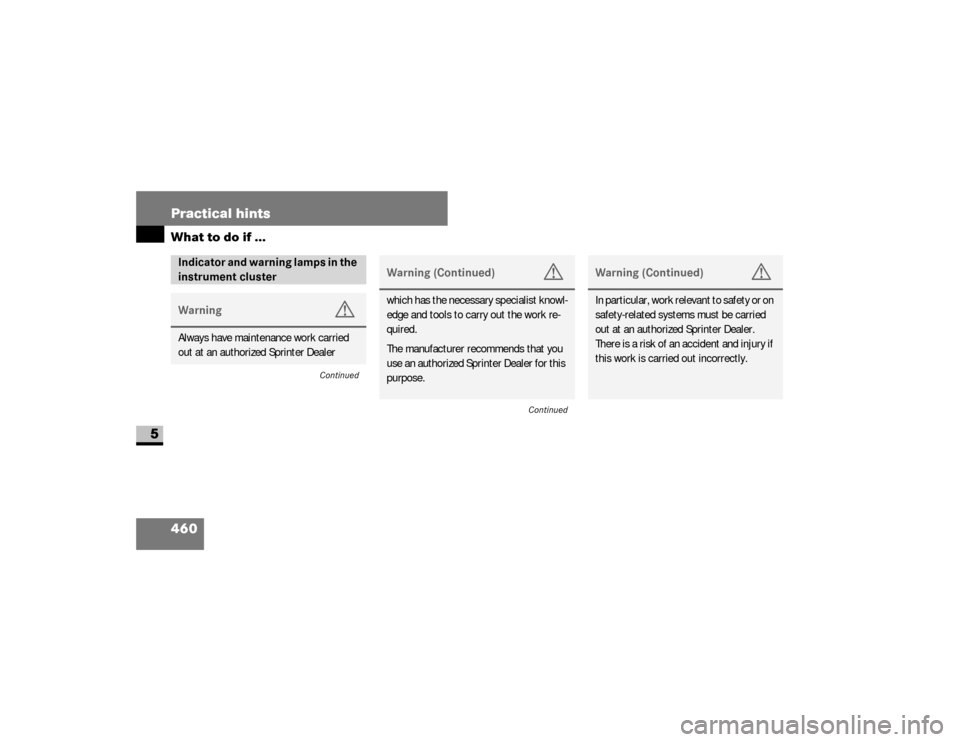

460 Practical hintsWhat to do if ...
5
Indicator and warning lamps in the
instrument clusterWarning
G
Always have maintenance work carried
out at an authorized Sprinter Dealer
Continued
Warning (Continued)
G
which has the necessary specialist knowl-
edge and tools to carry out the work re-
quired.
The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose.
Continued
Warning (Continued)
G
I n p a r t i c u l a r , w o r k r e l e v a n t t o s a f e t y o r o n
safety-related systems must be carried
out at an authorized Sprinter Dealer.
There is a risk of an accident and injury if
this work is carried out incorrectly.
nf_BA.book Page 460 Friday, January 25, 2008 3:53 PM

461 Practical hints
What to do if ...
5
Problem
Possible cause / result
Suggested solutions
v
The yellow ASR/ESP
® warning
lamp flashes while the vehicle is in
motion.
WARNING
G
ESP
® or ASR is intervening because at least one
of the wheels has reached its tire grip limit.
\1Adapt your driving style to suit the road
and traffic conditions. Do not use too
much throttle.
\1Drive slowly.
The yellow ASR / ESP
® warning
lamp is lit while the engine is run-
ning.
WARNING
G
ASR is deactivated.
\1Reactivate ASR. Exceptions .
nf_BA.book Page 461 Friday, January 25, 2008 3:53 PM

462 Practical hintsWhat to do if ...
5
#
-
k
6
The yellow ESP
®, ABS-, ASR/BAS
indicator lamps and the red brake
system indicator lamp are lit while
the engine is running.
WAR NING
G
EBV has malfunctioned.
The rear wheels could lock up sooner than ex-
pected when you apply the brakes.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
#
-
k
6
The yellow ESP
®, ABS, ASR/BAS
indicator lamps and the red brake
system indicator lamp are lit while
the engine is running.
WAR NING
G
EBV has been deactivated due to undervoltage.
The battery may not be being charged.
The rear wheels could lock up sooner than ex-
pected when you apply the brakes.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1S t o p y o u r v e h i c l e a s s o o n a s i t i s s a f e t o
do so.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 462 Friday, January 25, 2008 3:53 PM

463 Practical hints
What to do if ...
5
6
The red brake system indicator
lamp is lit while the engine is run-
ning.
A signal also sounds.
WARNING
G
There is insufficient brake fluid in the fluid res-
ervoir.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1Do not add brake fluid under any cir-
cumstances. This will not solve the
problem.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 463 Friday, January 25, 2008 3:53 PM

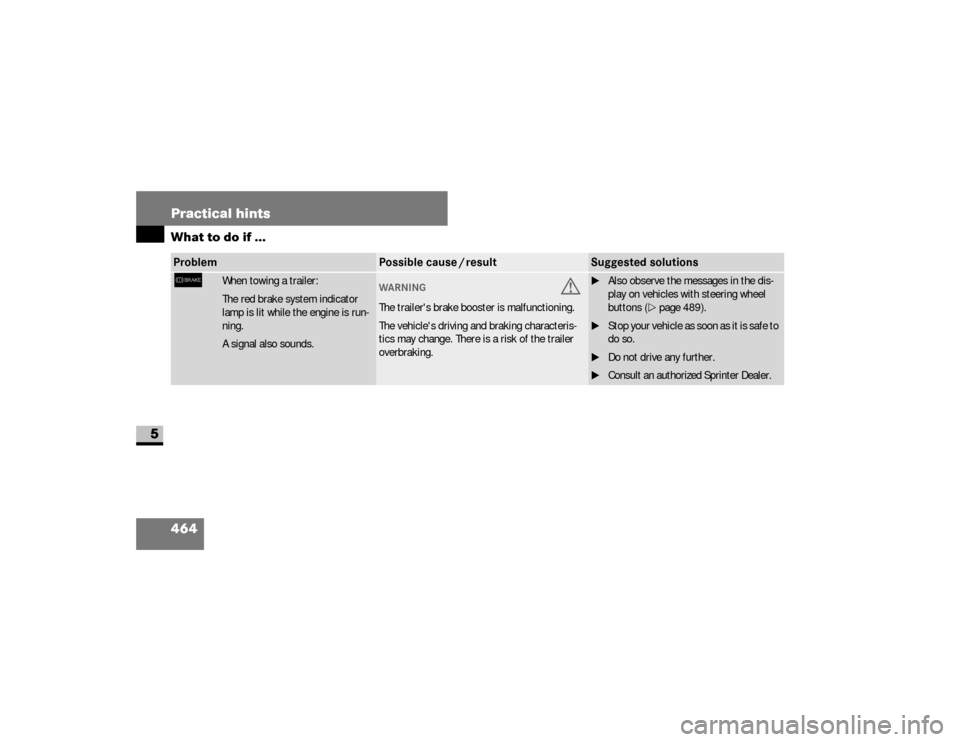

464 Practical hintsWhat to do if ...
5
6
When towing a trailer:
The red brake system indicator
lamp is lit while the engine is run-
ning.
A signal also sounds.
WAR NING
G
The trailer's brake booster is malfunctioning.
The vehicle's driving and braking characteris-
tics may change. There is a risk of the trailer
overbraking.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1S t o p y o u r v e h i c l e a s s o o n a s i t i s s a f e t o
do so.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 464 Friday, January 25, 2008 3:53 PM

465 Practical hints
What to do if ...
5
Problem
Possible cause / result
Suggested solutions
k The yellow ASR / BAS indica-
tor lamp is lit while the en-
gine is running.
WARNING
G
ASR has been deactivated due to a malfunction.
The engine power output may then be lower.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
WARNING
G
BAS has been deactivated due to a malfunction.
The brake system continues to function with the nor-
mal braking effect but with no electronic support.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
ASR and BAS have been switched off due to under-
voltage.
The battery may not be being charged.
The brake system is still available with the normal
braking effect.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
nf_BA.book Page 465 Friday, January 25, 2008 3:53 PM

466 Practical hintsWhat to do if ...
5
-
The yellow ABS indicator
lamp is lit while the engine is
running.
WA RNING
G
ABS has been deactivated due to a malfunction.
ESP
®, ASR and BAS as well as cruise control have
also been deactivated as a result.
The brake system continues to function with the nor-
mal braking effect but with no electronic support.
The wheels could therefore lock up, for example if
the brakes are applied with maximum force.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
WA RNING
G
ABS is temporarily unavailable.
Self diagnosis may not have been completed yet.
The brake system is still available with the normal
braking effect.
\1Drive on for a distance of more than
13 mph (20 km / h).
ABS is available again if the message
goes out.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 466 Friday, January 25, 2008 3:53 PM

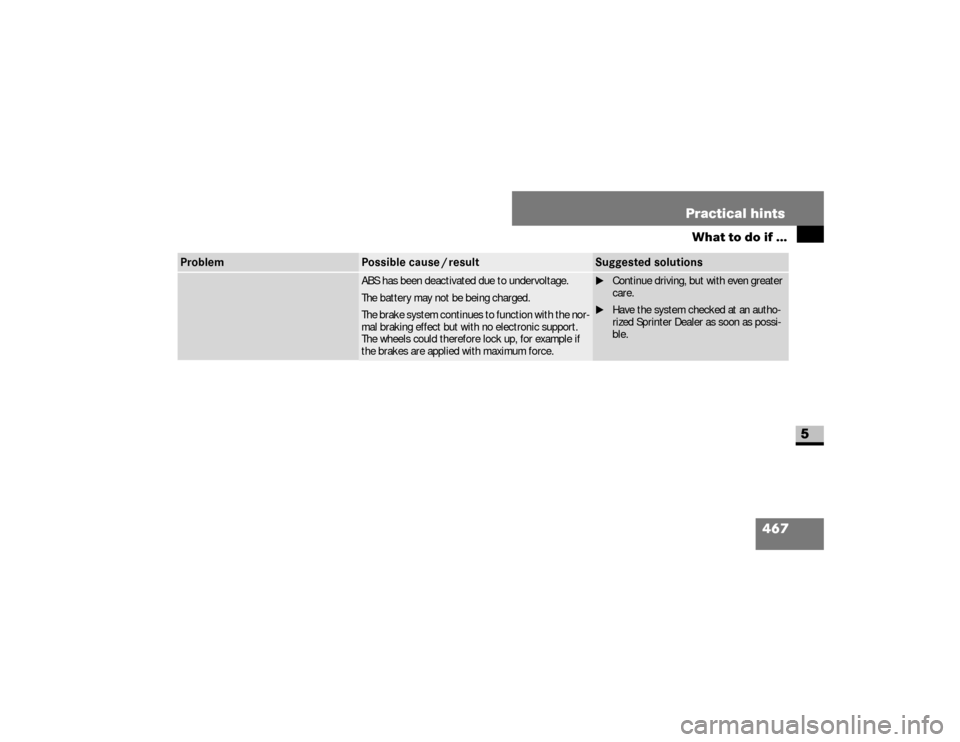

467 Practical hints
What to do if ...
5

ABS has been deactivated due to undervoltage.
The battery may not be being charged.
The brake system continues to function with the nor-
mal braking effect but with no electronic support.
The wheels could therefore lock up, for example if
the brakes are applied with maximum force.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 467 Friday, January 25, 2008 3:53 PM

468 Practical hintsWhat to do if ...
5
#
The yellow ESP
® indicator
lamp is lit while the engine is
running.
WA RNING
G
ESP
® has been deactivated due to a malfunction.
Cruise control is also switched off as a result.
Vehicle stability is no longer automatically controlled
in good time.
Engine power output may be reduced.
\1Also observe the messages in the dis-
play on vehicles with steering wheel
buttons (\2page 489).
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
ESP
® has been deactivated due to undervoltage.
The battery may not be being charged.
Vehicle stability is no longer automatically controlled
in good time.
Engine power output may be reduced.
\1Continue driving, but with even greater
care.
\1Have the system checked at an autho-
rized Sprinter Dealer as soon as possi-
ble.
Problem
Possible cause / result
Suggested solutions
