DODGE SPRINTER 2008 2.G Owners Manual

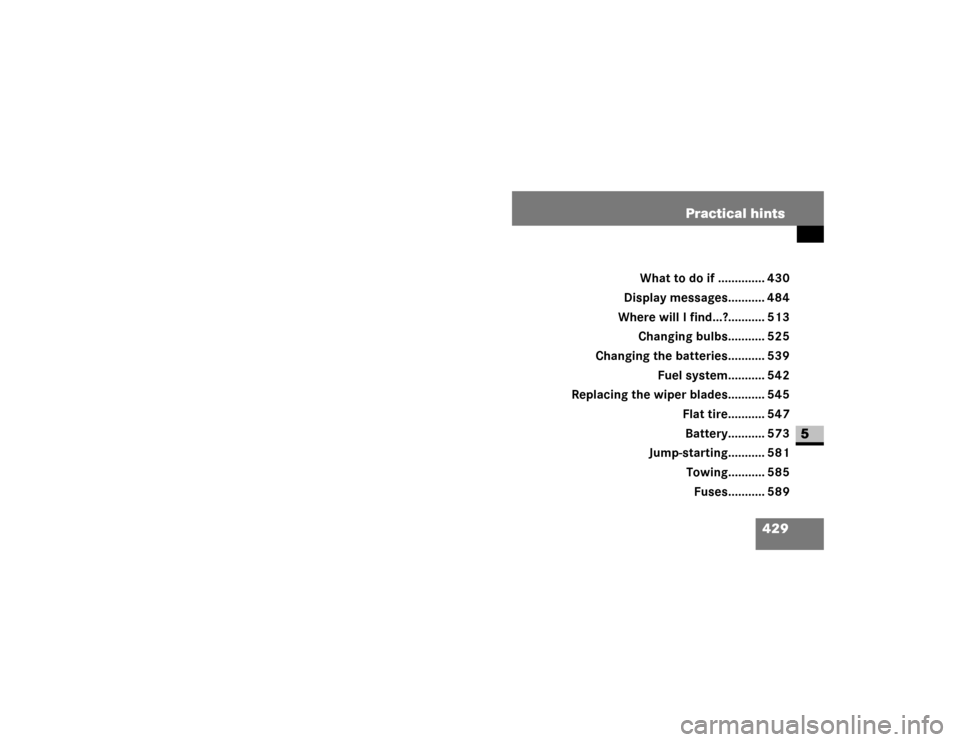

429 Practical hints
5 Practical hints
What to do if .............. 430
Display messages........... 484
Where will I find...?........... 513
Changing bulbs........... 525
Changing the batteries........... 539
Fuel system........... 542
Replacing the wiper blades........... 545
Flat tire........... 547
Battery........... 573
Jump-starting........... 581
Towing........... 585
Fuses........... 589
nf_BA.book Page 429 Friday, January 25, 2008 3:53 PM

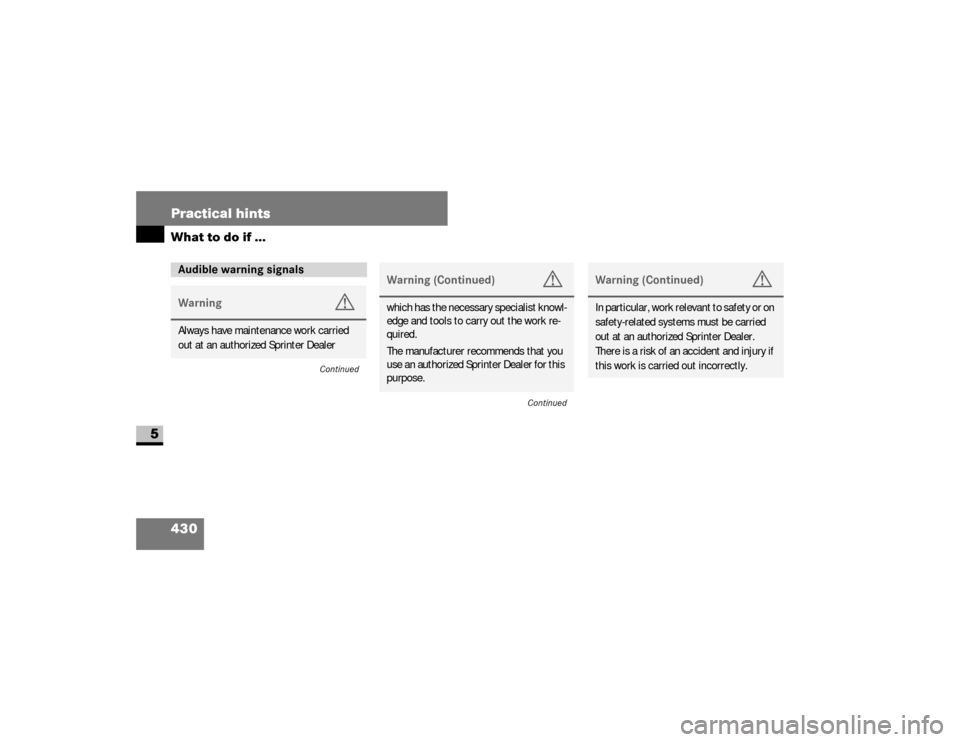

430 Practical hintsWhat to do if ...
5
Audible warning signalsWarning
G
Always have maintenance work carried
out at an authorized Sprinter Dealer
Continued
Warning (Continued)
G
which has the necessary specialist knowl-
edge and tools to carry out the work re-
quired.
The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose.
Continued
Warning (Continued)
G
I n p a r t i c u l a r , w o r k r e l e v a n t t o s a f e t y o r o n
safety-related systems must be carried
out at an authorized Sprinter Dealer.
There is a risk of an accident and injury if
this work is carried out incorrectly.
nf_BA.book Page 430 Friday, January 25, 2008 3:53 PM

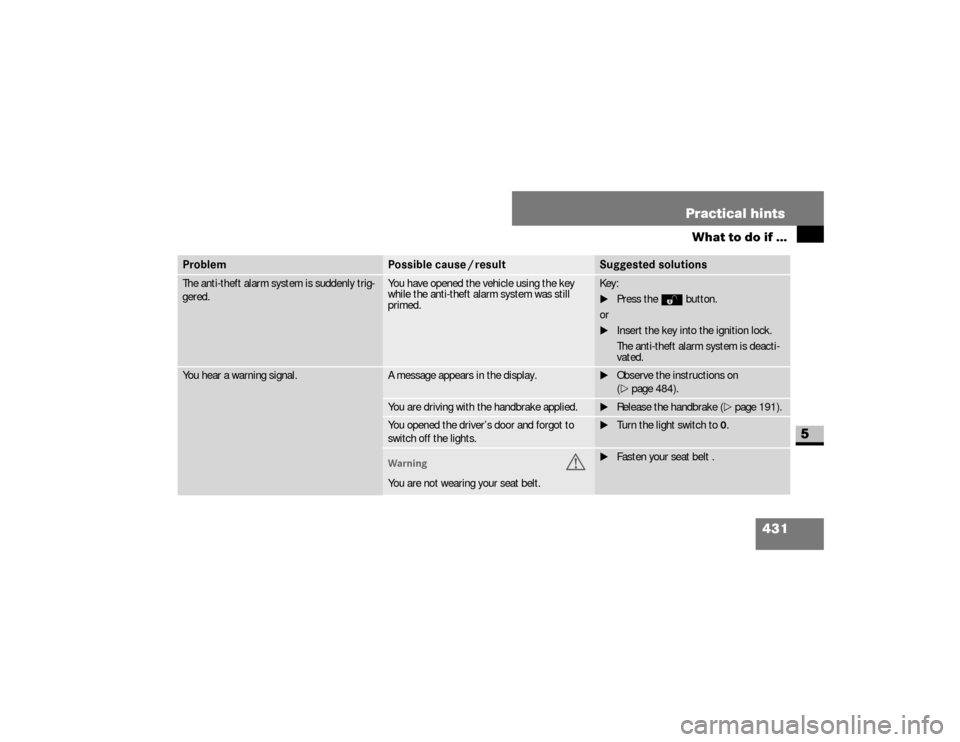

431 Practical hints
What to do if ...
5
Problem
Possible cause / result
Suggested solutions
The anti-theft alarm system is suddenly trig-
gered.
You have opened the vehicle using the key
while the anti-theft alarm system was still
primed.
Key:
\1Press theΠbutton.
or
\1Insert the key into the ignition lock.
The anti-theft alarm system is deacti-
vated.
You hear a warning signal.
A message appears in the display.
\1Observe the instructions on
(\2page 484).
You are driving with the handbrake applied.
\1Release the handbrake (\2page 191).
You opened the driver’s door and forgot to
switch off the lights.
\1Turn the light switch to0.
Warning
G
You are not wearing your seat belt.
\1Fasten your seat belt .
nf_BA.book Page 431 Friday, January 25, 2008 3:53 PM

432 Practical hintsWhat to do if ...
5
AccidentWarning
G
Always have maintenance work carried
out at an authorized Sprinter Dealer
Continued
Warning (Continued)
G
which has the necessary specialist knowl-
edge and tools to carry out the work re-
quired.
The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose.
Continued
Warning (Continued)
G
I n p a r t i c u l a r , w o r k r e l e v a n t t o s a f e t y o r o n
safety-related systems must be carried
out at an authorized Sprinter Dealer.
There is a risk of an accident and injury if
this work is carried out incorrectly.
nf_BA.book Page 432 Friday, January 25, 2008 3:53 PM

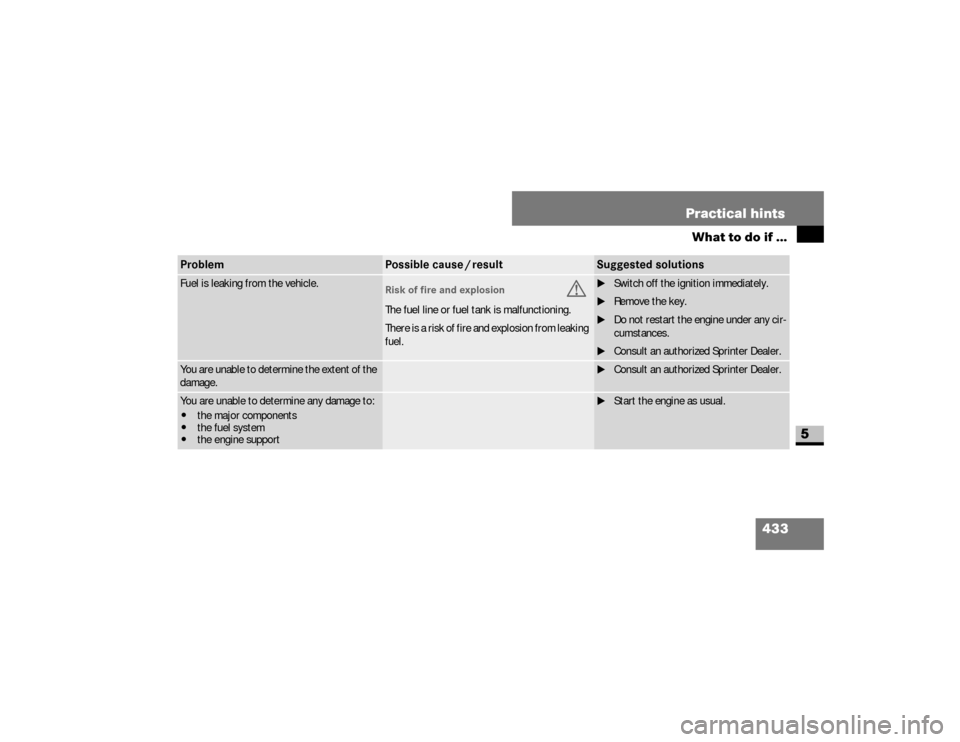

433 Practical hints
What to do if ...
5
Problem
Possible cause / result
Suggested solutions
Fuel is leaking from the vehicle.
Risk of fire and explosion
G
The fuel line or fuel tank is malfunctioning.
There is a risk of fire and explosion from leaking
fuel.
\1Switch off the ignition immediately.
\1Remove the key.
\1Do not restart the engine under any cir-
cumstances.
\1Consult an authorized Sprinter Dealer.
You are unable to determine the extent of the
damage.
\1Consult an authorized Sprinter Dealer.
You are unable to determine any damage to:
\4the major components
\4the fuel system
\4the engine support
\1Start the engine as usual.
nf_BA.book Page 433 Friday, January 25, 2008 3:53 PM

434 Practical hintsWhat to do if ...
5
Fuel and fuel tankWarning
G
Always have maintenance work carried
out at an authorized Sprinter Dealer
Continued
Warning (Continued)
G
which has the necessary specialist
knowledge and tools to carry out the
work required.
The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose.
Continued
Warning (Continued)
G
I n p a r t i c u l a r , w o r k r e l e v a n t t o s a f e t y o r o n
safety-related systems must be carried
out at an authorized Sprinter Dealer.
There is a risk of an accident and injury if
this work is carried out incorrectly.
nf_BA.book Page 434 Friday, January 25, 2008 3:53 PM

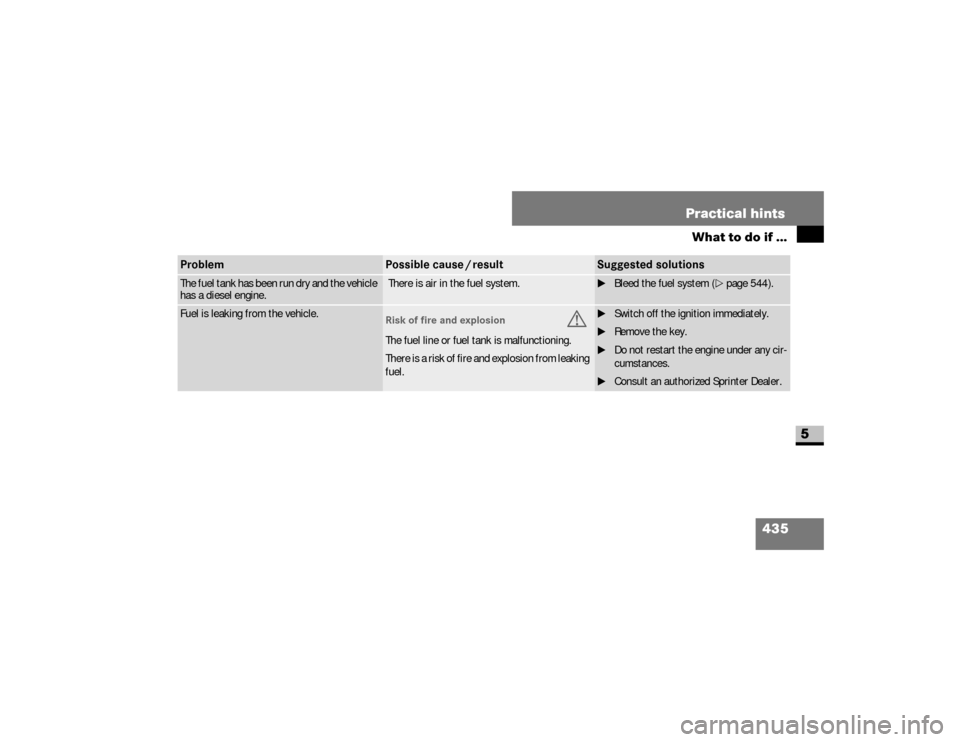

435 Practical hints
What to do if ...
5
Problem
Possible cause / result
Suggested solutions
The fuel tank has been run dry and the vehicle
has a diesel engine.
There is air in the fuel system.
\1Bleed the fuel system (\2page 544).
Fuel is leaking from the vehicle.
Risk of fire and explosion
G
The fuel line or fuel tank is malfunctioning.
There is a risk of fire and explosion from leaking
fuel.
\1Switch off the ignition immediately.
\1Remove the key.
\1Do not restart the engine under any cir-
cumstances.
\1Consult an authorized Sprinter Dealer.
nf_BA.book Page 435 Friday, January 25, 2008 3:53 PM

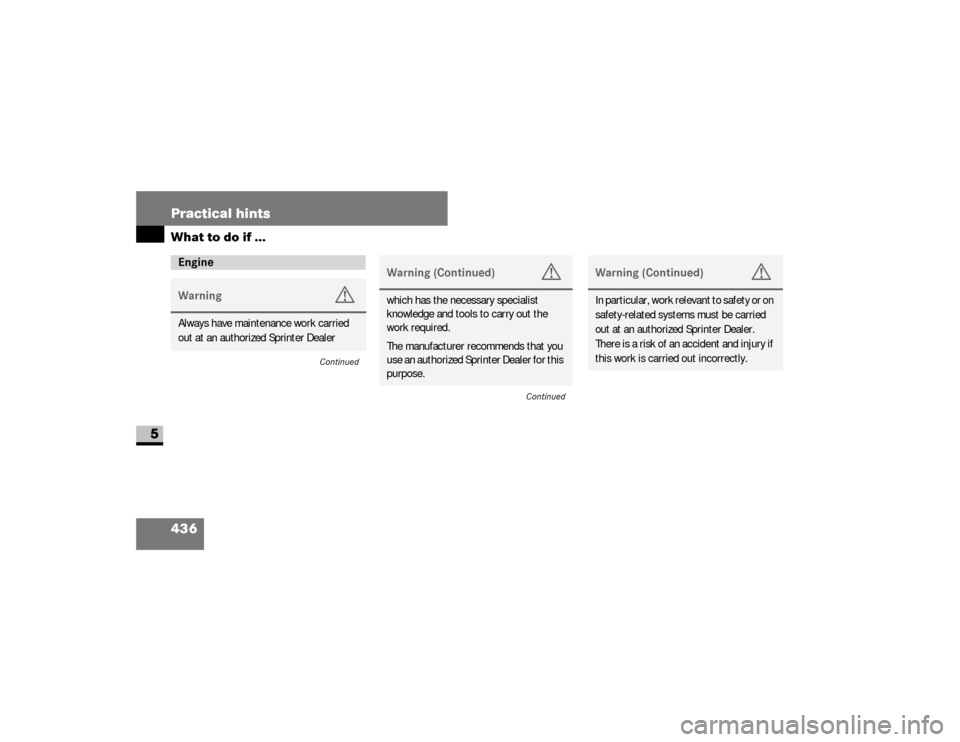

436 Practical hintsWhat to do if ...
5
EngineWarning
G
Always have maintenance work carried
out at an authorized Sprinter Dealer
Continued
Warning (Continued)
G
which has the necessary specialist
knowledge and tools to carry out the
work required.
The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose.
Continued
Warning (Continued)
G
I n p a r t i c u l a r , w o r k r e l e v a n t t o s a f e t y o r o n
safety-related systems must be carried
out at an authorized Sprinter Dealer.
There is a risk of an accident and injury if
this work is carried out incorrectly.
nf_BA.book Page 436 Friday, January 25, 2008 3:53 PM

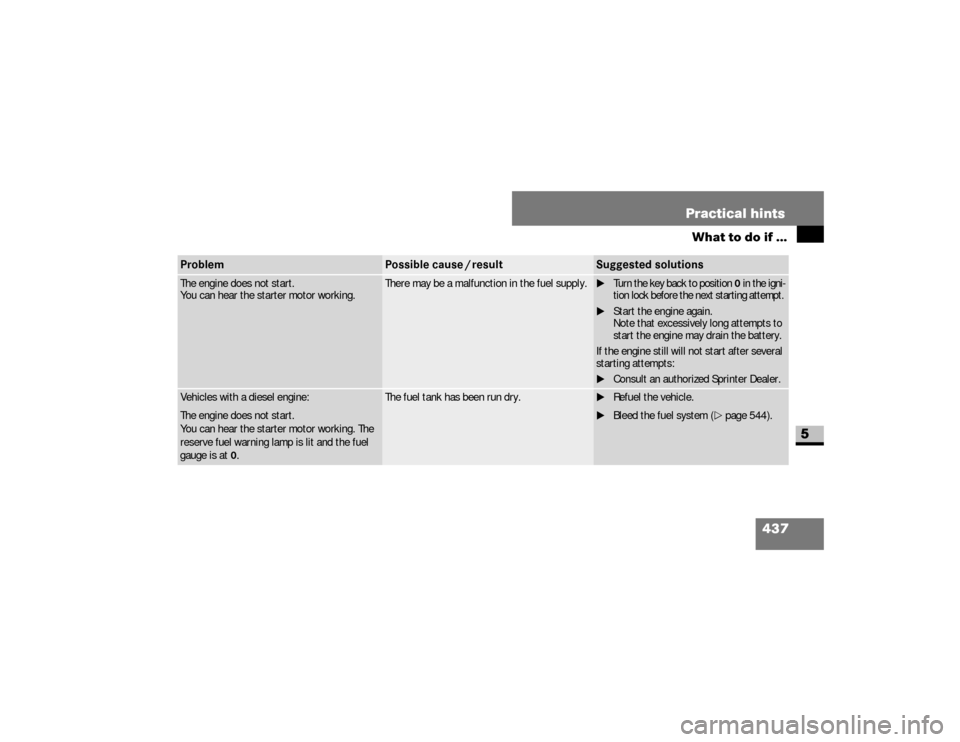

437 Practical hints
What to do if ...
5
Problem
Possible cause / result
Suggested solutions
The engine does not start.
You can hear the starter motor working.
There may be a malfunction in the fuel supply.
\1
Turn the key back to position
0 in the igni-
tion lock before the next starting attempt.
\1Start the engine again.
Note that excessively long attempts to
start the engine may drain the battery.
If the engine still will not start after several
starting attempts:
\1Consult an authorized Sprinter Dealer.
Vehicles with a diesel engine:
The engine does not start.
You can hear the starter motor working. The
reserve fuel warning lamp is lit and the fuel
gauge is at 0.
The fuel tank has been run dry.
\1Refuel the vehicle.
\1Bleed the fuel system (\2page 544).
nf_BA.book Page 437 Friday, January 25, 2008 3:53 PM

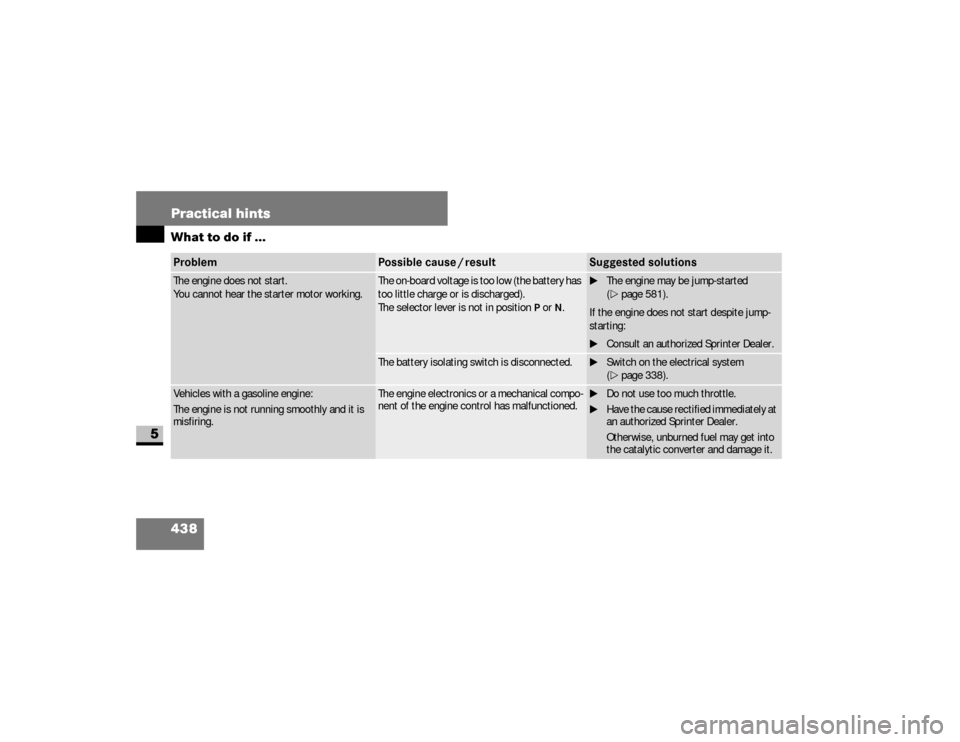

438 Practical hintsWhat to do if ...
5
The engine does not start.
You cannot hear the starter motor working.
The on-board voltage is too low (the battery has
too little charge or is discharged).
The selector lever is not in positionP orN.
\1The engine may be jump-started
(\2page 581).
If the engine does not start despite jump-
starting:
\1Consult an authorized Sprinter Dealer.
The battery isolating switch is disconnected.
\1Switch on the electrical system
(\2page 338).
Vehicles with a gasoline engine:
The engine is not running smoothly and it is
misfiring.
The engine electronics or a mechanical compo-
nent of the engine control has malfunctioned.
\1Do not use too much throttle.
\1Have the cause rectified immediately at
an authorized Sprinter Dealer.
Otherwise, unburned fuel may get into
the catalytic converter and damage it.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 438 Friday, January 25, 2008 3:53 PM
