DODGE SPRINTER 2008 2.G Owners Manual

469 Practical hints
What to do if ...
5
1
The red SRS warning lamp
does not go out after ap-
proximately 4 seconds after
the ignition system is
switched on or lights up
again.
WARNING
G
The restraint systems have malfunctioned. The air-
bags or emergency tensioning retractors could be
triggered unintentionally, or not at all in the event of
an accident.
\1Drive on with even greater care to an
authorized Sprinter Dealer.
#

The red battery charge
warning lamp lights up while
the engine is running.
WARNING
G
The battery is not being charged. Possible causes:
\4malfunctioning alternator
\4torn poly-V-belt
\1Stop immediately and check the poly-V-
belt.
If it is torn:
\1Do not drive any further. Consult
the nearest authorized Sprinter
Dealer.
If it is not damaged:
\1Have your vehicle checked at an au-
thorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 469 Friday, January 25, 2008 3:53 PM

470 Practical hintsWhat to do if ...
5

The battery is malfunctioning.
\1Stop your vehicle as soon as it is safe to
do so.
\1Do not drive any further.
\1Contact a breakdown service, an autho-
rized Sprinter Dealer.
2

The yellow brake pad wear
indicator lamp lights up after
the engine is started or
while the vehicle is in mo-
tion.
WA RNING
G
The brake pads / linings have reached their wear lim-
it.
\1Have the brake pads / linings replaced
as soon as possible at an authorized
Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 470 Friday, January 25, 2008 3:53 PM

471 Practical hints
What to do if ...
5
:

The yellow engine oil level
warning lamp flashes after
the engine is started or
while the vehicle is in mo-
tion.
The engine oil level has dropped to the minimum lev-
el. If the engine oil level falls any further, the indica-
tor lamp will light up continuously.
\1Check the engine oil level and add en-
gine oil at the nearest refueling station
(\2page 328).
\1If there is visible oil loss from the
engine, have the fault rectified immedi-
ately at an authorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 471 Friday, January 25, 2008 3:53 PM

472 Practical hintsWhat to do if ...
5
:

The yellow engine oil level
warning lamp lights up, the
-
2.0 l
engine oil level mes-
sage appears in the display
and the warning buzzer
sounds after the engine is
started or while the vehicle
is in motion.
There is insufficient or no oil in the engine.
There is a risk of engine damage.
\1Stop your vehicle as soon as it is safe to
do so.
\1Switch off the engine.
\1Check the engine oil level using the dip-
stick (\2page 328).
\1If the oil level is correct, have the mal-
function rectified immediately at an au-
thorized Sprinter Dealer.
\1If there is insufficient or no oil in the en-
gine, have the vehicle towed to an au-
thorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 472 Friday, January 25, 2008 3:53 PM

473 Practical hints
What to do if ...
5
:

The yellow engine oil level
warning lamp lights up, the HI
engine oil level message
appears in the display and
the warning buzzer sounds
after the engine is started or
while the vehicle is in mo-
tion.
The engine oil level has exceeded the maximum lev-
el.
\1Check the engine oil level and have any
excess oil siphoned off at the nearest
refueling station (\2page 328).
The engine or the catalytic converter could
be damaged.
\1If the oil level is correct, have the mal-
function rectified as soon as possible at
an authorized Sprinter Dealer.
:

The yellow engine oil level
warning lamp lights up re-
peatedly while the vehicle is
in motion.
The engine oil level indicator is malfunctioning.
\1Have the vehicle checked immediately
at an authorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 473 Friday, January 25, 2008 3:53 PM

474 Practical hintsWhat to do if ...
5
/

The yellow coolant level
warning lamp lights up while
the engine is running.
The coolant level is too low.
Never run the engine if the coolant level is too low.
The engine could overheat and be damaged.
\1Stop at the earliest opportunity.
\1Switch off the engine to cool down.
\1Check the coolant level and add coolant
as necessary (\2page 329).
\1If you are having to add coolant fre-
quently, have the cooling system
checked at an authorized Sprinter Deal-
er.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 474 Friday, January 25, 2008 3:53 PM

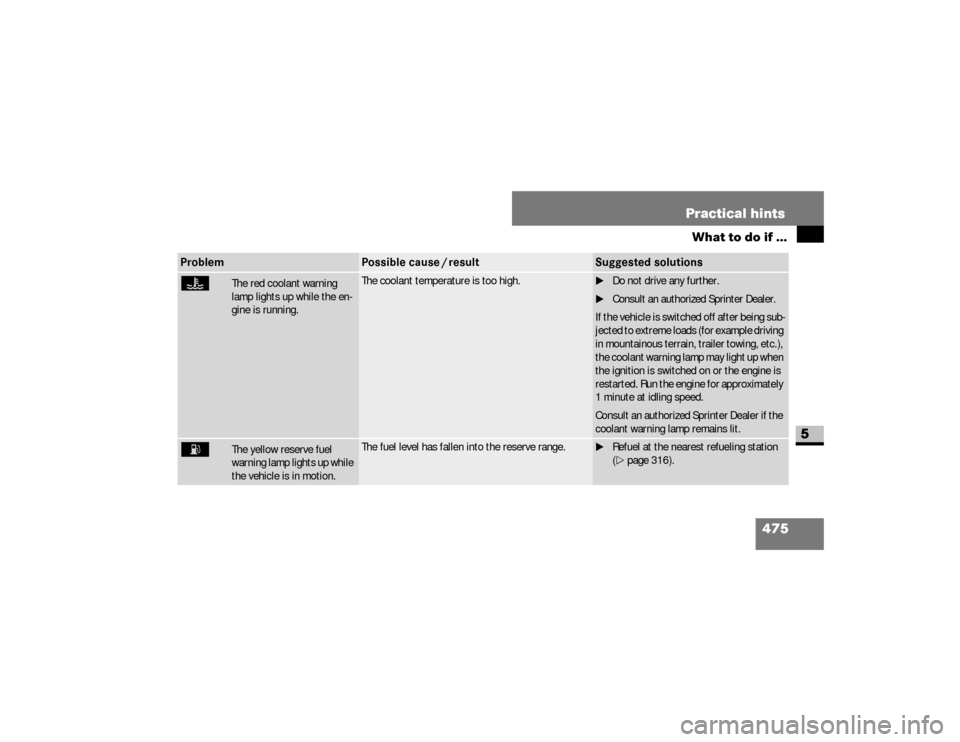

475 Practical hints
What to do if ...
5
•
The red coolant warning
lamp lights up while the en-
gine is running.
The coolant temperature is too high.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
If the vehicle is switched off after being sub-
jected to extreme loads (for example driving
in mountainous terrain, trailer towing, etc.),
the coolant warning lamp may light up when
the ignition is switched on or the engine is
restarted. Run the engine for approximately
1 minute at idling speed.
Consult an authorized Sprinter Dealer if the
coolant warning lamp remains lit.
A
The yellow reserve fuel
warning lamp lights up while
the vehicle is in motion.
The fuel level has fallen into the reserve range.
\1Refuel at the nearest refueling station
(\2page 316).
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 475 Friday, January 25, 2008 3:53 PM

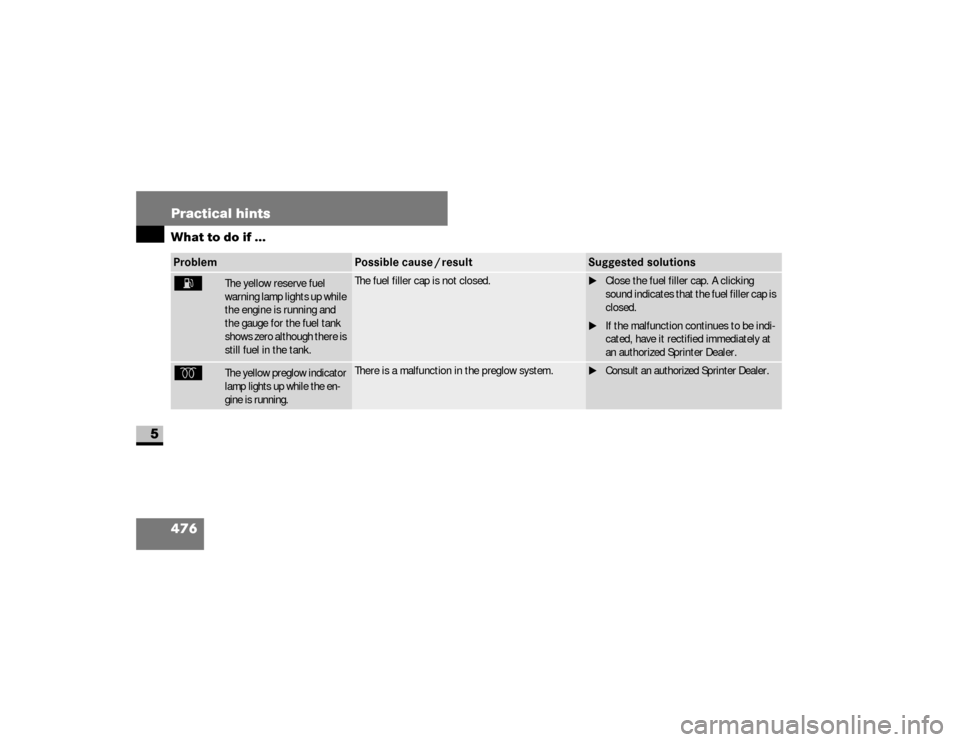

476 Practical hintsWhat to do if ...
5
A
The yellow reserve fuel
warning lamp lights up while
the engine is running and
the gauge for the fuel tank
shows zero although there is
still fuel in the tank.
The fuel filler cap is not closed.
\1Close the fuel filler cap. A clicking
sound indicates that the fuel filler cap is
closed.
\1If the malfunction continues to be indi-
cated, have it rectified immediately at
an authorized Sprinter Dealer.
q
The yellow preglow indicator
lamp lights up while the en-
gine is running.
There is a malfunction in the preglow system.
\1Consult an authorized Sprinter Dealer.
Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 476 Friday, January 25, 2008 3:53 PM

477 Practical hints
What to do if ...
5
Problem
Possible cause / result
Suggested solutions
±
The yellow engine diagnostic
indicator lamp lights up or
flashes while the engine is
running.
The fuel tank has run dry.
The engine may be running in emergency mode.
\1Refuel at the nearest refueling station.
\1On vehicles with a diesel engine:
Bleed the fuel system (\2page 544).
\1
Start the engine three to four times after refu-
eling. Emergency mode will be canceled. You
do not need to have your vehicle checked.
There is a malfunction:
\4in the fuel injection system
\4in the ignition system
1
\4in the exhaust system.
The emission limit values may be exceeded and
the engine may be running in emergency mode.
Engine power output may be reduced.
\1Have the vehicle checked immediately at
an authorized Sprinter Dealer.
‰
The yellow air cleaner indica-
tor lamp
2 lights up while the
ignition is on.
The service limit for the air cleaner has been
reached. The air cleaner is dirty.
\1Have the filter cartridge replaced at an au-
thorized Sprinter Dealer.
1 Only vehicles with a gasoline engine.
2 Only vehicles with a diesel engine.
nf_BA.book Page 477 Friday, January 25, 2008 3:53 PM

478 Practical hintsWhat to do if ...
5
Problem
Possible cause / result
Suggested solutions
X
USA only:
Combination low tire pressure/
TPMS malfunction telltale for
TPMS lights up continuously.
Canada only:
Low tire pressure telltale for
TPMS lights up continuously.
WARNING
G
The TPMS detects a loss of pressure in at least
one tire.
\1Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking
maneuvers. Observe the traffic situa-
tion around you.
\1Read and observe messages in the mul-
tifunction display.
If the tire inflation pressure in the respec-
tive tire(s) has (have) been corrected, the
combination low tire pressure/TPMS mal-
function telltale goes out after a few min-
utes of driving.
nf_BA.book Page 478 Friday, January 25, 2008 3:53 PM
