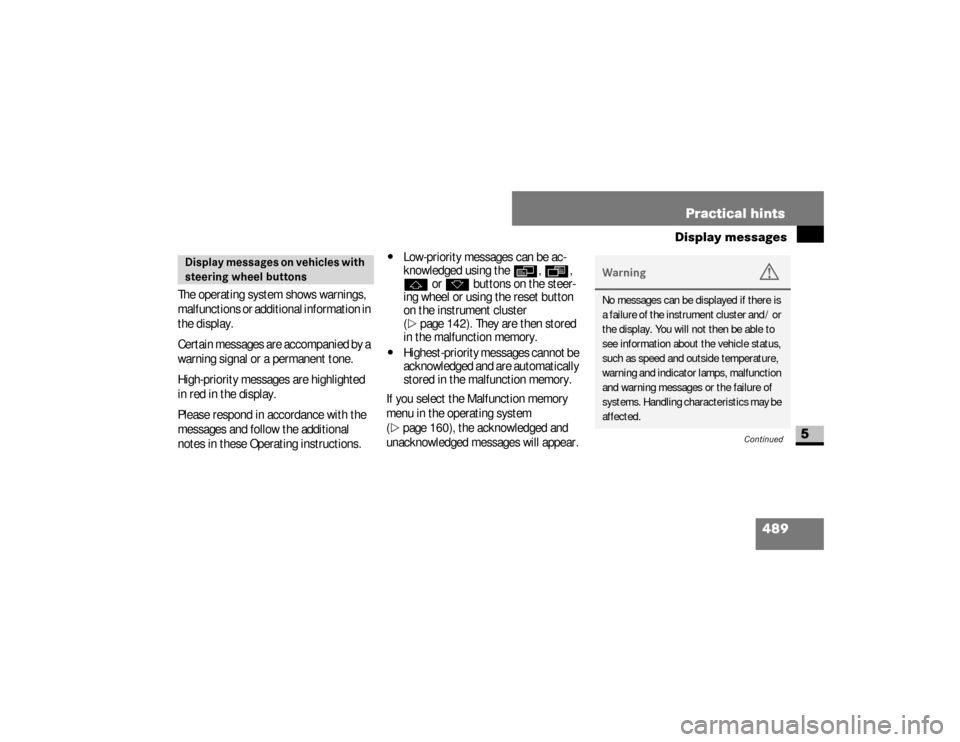

489 Practical hints
Display messages
5
The operating system shows warnings,
malfunctions or additional information in
the display.
Certain messages are accompanied by a
warning signal or a permanent tone.
High-priority messages are highlighted
in red in the display.
Please respond in accordance with the
messages and follow the additional
notes in these Operating instructions.
\4
Low-priority messages can be ac-
knowledged using the
è
, ·
,
j
or
k
buttons on the steer-
ing wheel or using the reset button
on the instrument cluster
(
\2
page 142). They are then stored
in the malfunction memory.
\4
Highest-priority messages cannot be
acknowledged and are automatically
stored in the malfunction memory.
If you select the Malfunction memory
menu in the operating system
(
\2
page 160), the acknowledged and
unacknowledged messages will appear.
Display messages on vehicles with
steering wheel buttons
Warning
G
No messages can be displayed if there is
a failure of the instrument cluster and / or
the display. You will not then be able to
see information about the vehicle status,
such as speed and outside temperature,
warning and indicator lamps, malfunction
and warning messages or the failure of
systems. Handling characteristics may be
affected.
Continued
nf_BA.book Page 489 Friday, January 25, 2008 3:53 PM

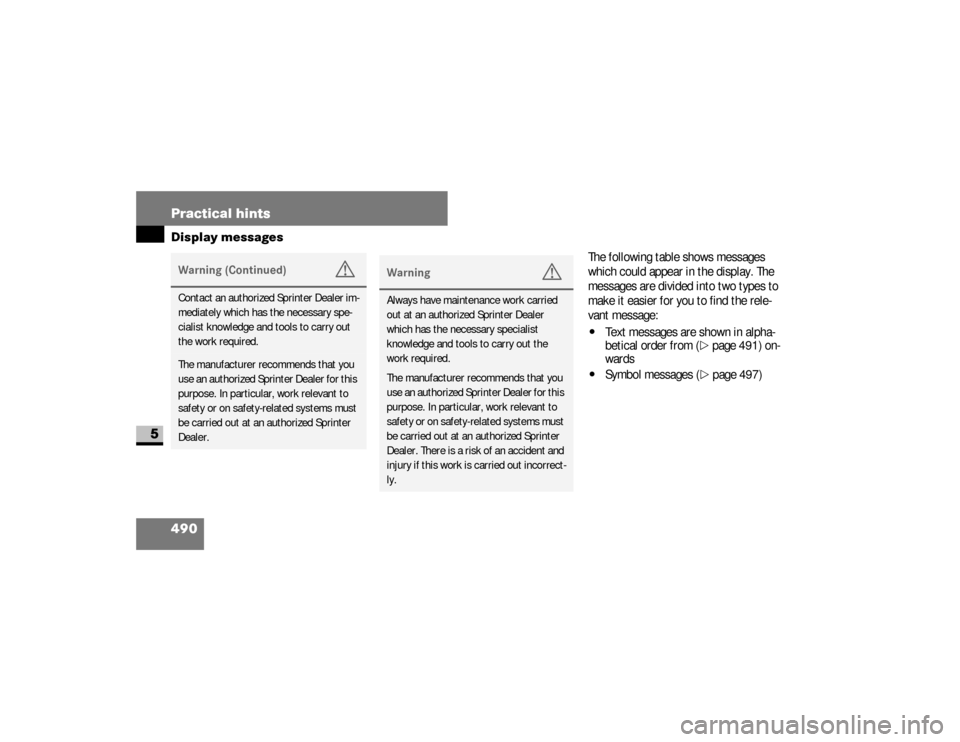

490 Practical hintsDisplay messages
5
The following table shows messages
which could appear in the display. The
messages are divided into two types to
make it easier for you to find the rele-
vant message:\4
Text messages are shown in alpha-
betical order from (
\2
page 491) on-
wards
\4
Symbol messages (
\2
page 497)
Warning (Continued)
G
Contact an authorized Sprinter Dealer im-
mediately which has the necessary spe-
cialist knowledge and tools to carry out
the work required.The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose. In particular, work relevant to
safety or on safety-related systems must
be carried out at an authorized Sprinter
Dealer.
Warning
G
Always have maintenance work carried
out at an authorized Sprinter Dealer
which has the necessary specialist
knowledge and tools to carry out the
work required.
The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose. In particular, work relevant to
safety or on safety-related systems must
be carried out at an authorized Sprinter
Dealer. There is a risk of an accident and
injury if this work is carried out incorrect-
ly.
nf_BA.book Page 490 Friday, January 25, 2008 3:53 PM

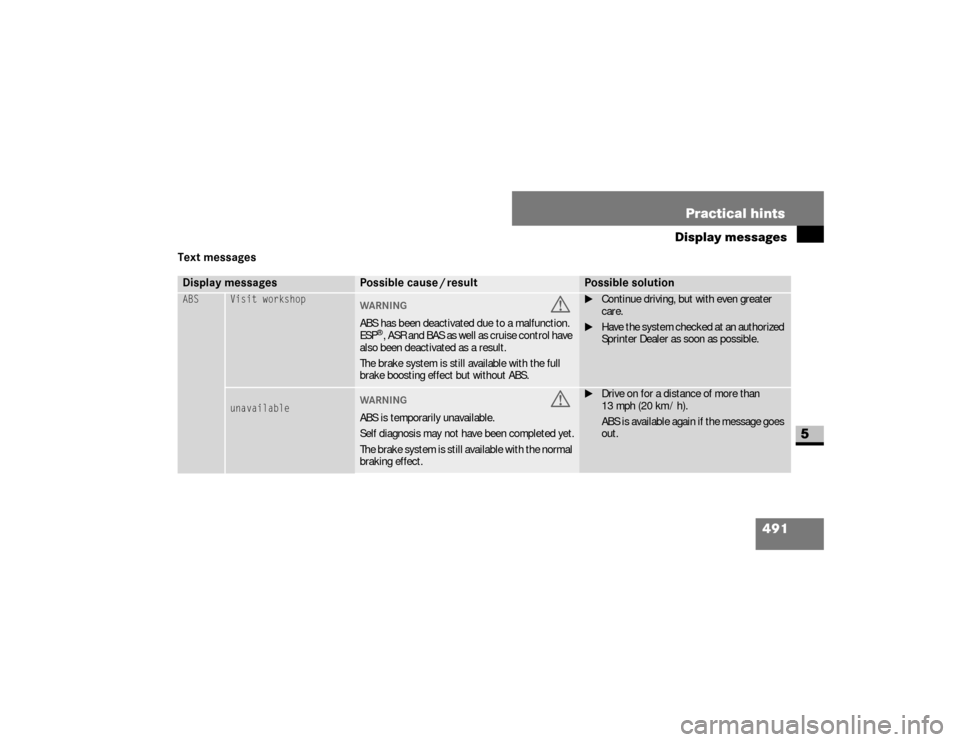

491 Practical hints
Display messages
5
Text messagesDisplay messages
Possible cause / result
Possible solution
ABS
Visit workshop
WARNING
G
ABS has been deactivated due to a malfunction.
ESP
®, ASR and BAS as well as cruise control have
also been deactivated as a result.
The brake system is still available with the full
brake boosting effect but without ABS.
\1Continue driving, but with even greater
care.
\1Have the system checked at an authorized
Sprinter Dealer as soon as possible.
unavailable
WARNING
G
ABS is temporarily unavailable.
Self diagnosis may not have been completed yet.
The brake system is still available with the normal
braking effect.
\1Drive on for a distance of more than
13 mph (20 km / h).
ABS is available again if the message goes
out.
nf_BA.book Page 491 Friday, January 25, 2008 3:53 PM

492 Practical hintsDisplay messages
5
ABS has been deactivated due to undervoltage.
The battery may not be being charged.
The brake system is still available with the normal
braking effect.
\1Continue driving, but with even greater
care.
\1Visit an authorized Sprinter Dealer imme-
diately.
Display messages
Possible cause / result
Possible solution
nf_BA.book Page 492 Friday, January 25, 2008 3:53 PM

493 Practical hints
Display messages
5
ESP
Visit workshop
WARNING
G
ESP
® has been deactivated due to a malfunction.
Cruise control is also switched off as a result.
Vehicle stability is no longer automatically con-
trolled in good time.
Engine power output may be reduced.
\1Continue driving, but with even greater
care.
\1Have the system checked at an authorized
Sprinter Dealer as soon as possible.
unavailable
ESP
® has been deactivated due to undervoltage.
Cruise control is also switched off as a result.
The battery may not be being charged.
Vehicle stability is no longer automatically con-
trolled in good time.
Engine power output may be reduced.
\1Continue driving, but with even greater
care.
\1Have the system checked at an authorized
Sprinter Dealer as soon as possible.
Display messages
Possible cause / result
Possible solution
nf_BA.book Page 493 Friday, January 25, 2008 3:53 PM

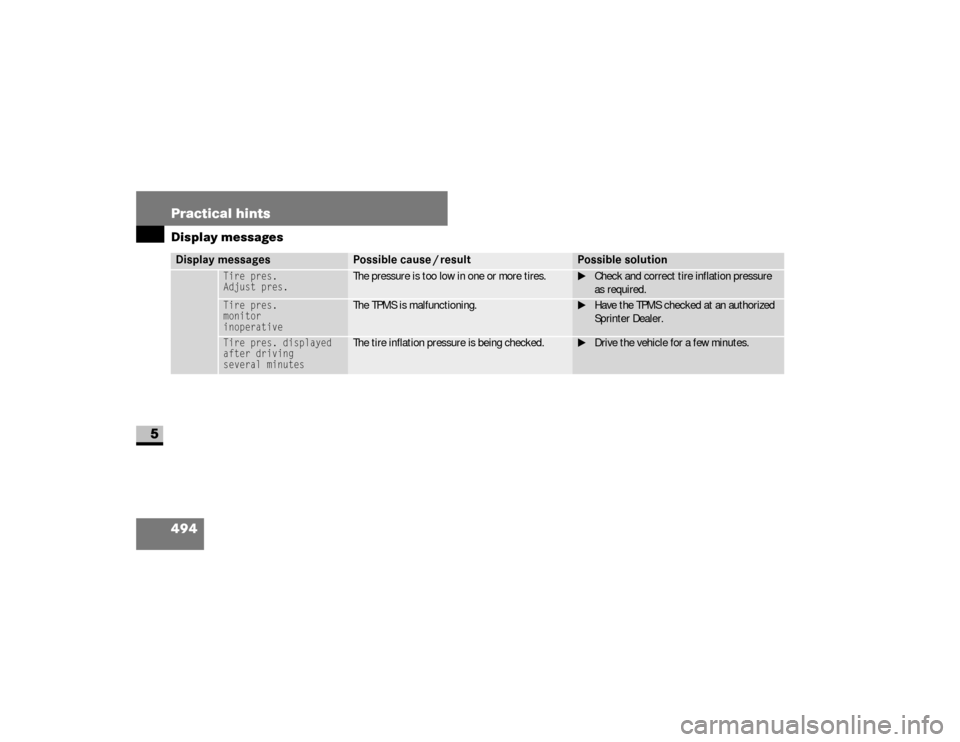

494 Practical hintsDisplay messages
5
Tire pres.
Adjust pres.
The pressure is too low in one or more tires.
\1Check and correct tire inflation pressure
as required.
Tire pres.
monitor
inoperative
The TPMS is malfunctioning.
\1Have the TPMS checked at an authorized
Sprinter Dealer.
Tire pres. displayed
after driving
several minutes
The tire inflation pressure is being checked.
\1Drive the vehicle for a few minutes.
Display messages
Possible cause / result
Possible solution
nf_BA.book Page 494 Friday, January 25, 2008 3:53 PM

495 Practical hints
Display messages
5
Tire pres.
monitor
currently
unavailable
The TPMS or Advanced TPMS* is unable to moni-
tor the tire pressure due to
\4a nearby radio interference source.
\4excessive wheel sensor temperatures.
\1As soon as the causes of the malfunction
have been removed, the TPMS automati-
cally becomes active again after a few min-
utes of driving.
Tire pres.
monitor
inoperative
No wheel
sensors
There are wheels without appropriate wheel sen-
sors mounted (for example winter tires).
\1Have the TPMS checked at an authorized
Sprinter Dealer.
\1Have the wheel sensors installed by an au-
thorized Sprinter Dealer.
Wheel sens.
missing
One ore more sensors are malfunctioning (for ex-
ample battery discharged).
One or more wheels without appropriate wheel
sensors mounted (for example spare tire)
\1Have the TPMS checked by an authorized
Sprinter Dealer.
\1Have the wheel sensors installed by an au-
thorized Sprinter Dealer.
The tire pressure for the respective tire is
shown in the multifunction display.
Display messages
Possible cause / result
Possible solution
nf_BA.book Page 495 Friday, January 25, 2008 3:53 PM

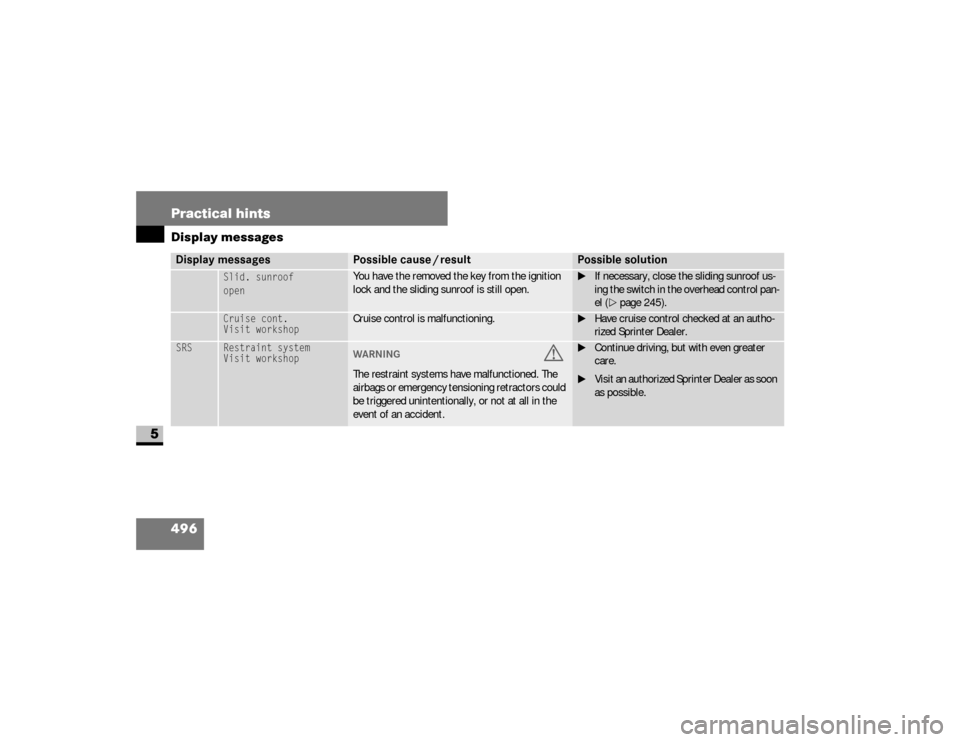

496 Practical hintsDisplay messages
5
Slid. sunroof
open
You have the removed the key from the ignition
lock and the sliding sunroof is still open.
\1If necessary, close the sliding sunroof us-
ing the switch in the overhead control pan-
el (\2page 245).
Cruise cont.
Visit workshop
Cruise control is malfunctioning.
\1Have cruise control checked at an autho-
rized Sprinter Dealer.
SRS
Restraint system
Visit workshop
WARNING
G
The restraint systems have malfunctioned. The
airbags or emergency tensioning retractors could
be triggered unintentionally, or not at all in the
event of an accident.
\1Continue driving, but with even greater
care.
\1Visit an authorized Sprinter Dealer as soon
as possible.
Display messages
Possible cause / result
Possible solution
nf_BA.book Page 496 Friday, January 25, 2008 3:53 PM

497 Practical hints
Display messages
5
Symbol messagesDisplay symbol
Display message
Possible cause / result
Possible solution
#

Battery/
Alternator
Visit workshop
The battery is not being charged. Possible
causes:
\4malfunctioning alternator
\4torn poly-V-belt
\1Stop immediately and check the poly-V-
belt.
If it is torn:
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
If it is not damaged:
\1Drive to the nearest authorized Sprinter
Dealer immediately.
2

Brake wear
Visit workshop
WARNING
G
The brake pads / linings have reached their
wear limit.
\1Have the brake pads / linings replaced as
soon as possible at an authorized Sprinter
Dealer.
nf_BA.book Page 497 Friday, January 25, 2008 3:53 PM

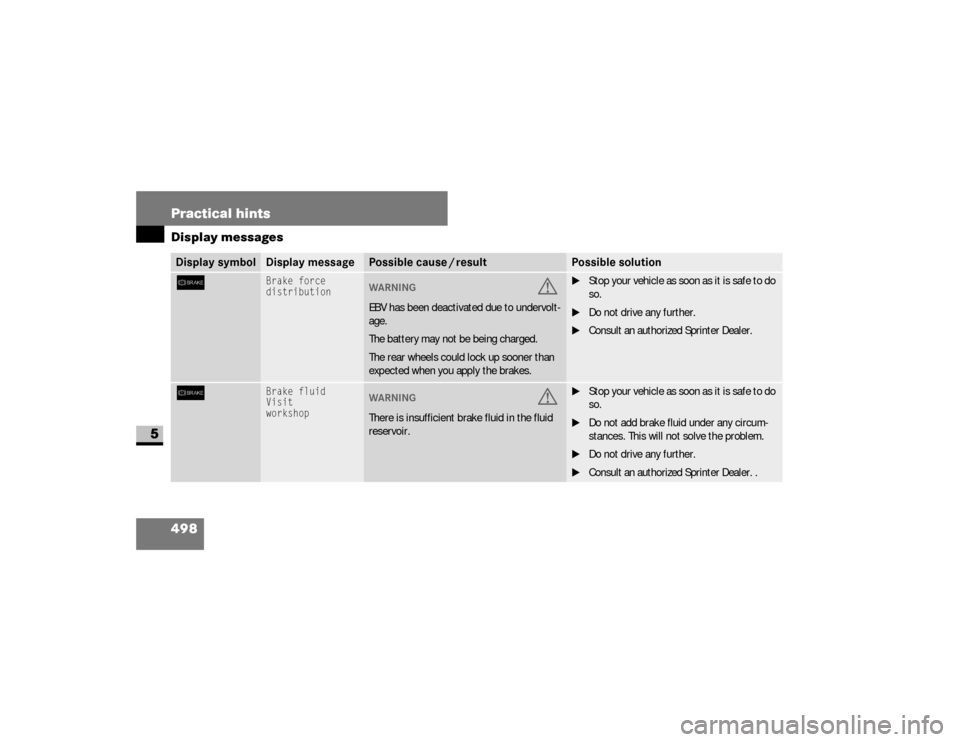

498 Practical hintsDisplay messages
5
6
Brake force
distribution
WARNING
G
EBV has been deactivated due to undervolt-
age.
The battery may not be being charged.
The rear wheels could lock up sooner than
expected when you apply the brakes.
\1Stop your vehicle as soon as it is safe to do
so.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
6
Brake fluid
Visit
workshop
WARNING
G
There is insufficient brake fluid in the fluid
reservoir.
\1Stop your vehicle as soon as it is safe to do
so.
\1Do not add brake fluid under any circum-
stances. This will not solve the problem.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer. .
Display symbol
Display message
Possible cause / result
Possible solution
