DODGE TOWN AND COUNTRY 2001 Service Manual

C303 (LHD) - BLACK (RIGHT DOOR SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z822 20BK/BR (POWER LOCKS)
2 Z74 20BK/WT (EXCEPT POWER
LOCKS)
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG (POWER LOCKS)
6 P2 20TN/GY (POWER LOCKS)
7 P4 20TN/BR (POWER LOCKS)
8 F304 12WT/PK (POWER WINDOWS)
8 F304 16WT/PK (EXCEPT POWER WIN-
DOWS)
9-
10 -
C303 (LHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z822 20BK/BR
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG
6 P2 20TN/GY
7 P4 20TN/BR
8 F304 12WT/PK (POWER WINDOWS)
8 F304 18GY/PK (EXCEPT POWER WIN-
DOWS)
9-
10 -
C303 (RHD) - BLACK (RIGHT DOOR SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z821 12BK/BR
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG
6 P2 20TN/GY
7 P4 20TN/BR
8 F304 12WT/PK
9-
10 -
11 Q13 16OR/DB
12 Q23 16OR/LB
13 Q14 16OR/GY
14 Q24 16OR/DG
8Wa - 80 - 28 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

C303 (RHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z821 12BK/BR
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG
6 P2 20TN/GY
7 P4 20TN/BR
8 F304 12WT/PK
9-
10 -
11 Q13 16OR/DB
12 Q23 16OR/LB
13 Q14 16OR/GY
14 Q24 16OR/DG
C304 - YELLOW (BODY SIDE)
CAV CIRCUIT
1 R53 18LG/YL (LHD)
1 R54 18LB/YL (RHD)
2 R56 18LB/DG (RHD)
2 R55 18LG/DG (LHD)
3 R31 18LG/OR
4 R33 18LG/WT
C304 - YELLOW (SEAT SIDE)
CAV CIRCUIT
1 R53 18LG/YL (LHD)
1 R54 18LB/YL (RHD)
2 R56 18LB/DG (RHD)
2 R55 18LG/DG (LHD)
3 R31 18LG/OR
4 R33 18LG/WT
C305 - GRAY (BODY SIDE)
CAV CIRCUIT
1 Z849 12BK/OR
2 R57 18LG/GY
3 R59 18LG/TN
4 P7 20LG/DG
5 A210 14OR/RD
6 F503 20WT/PK
7 A110 12OR/RD
8-
9-
10 -
11 -
12 -
13 -
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-29
ProCarManuals.com

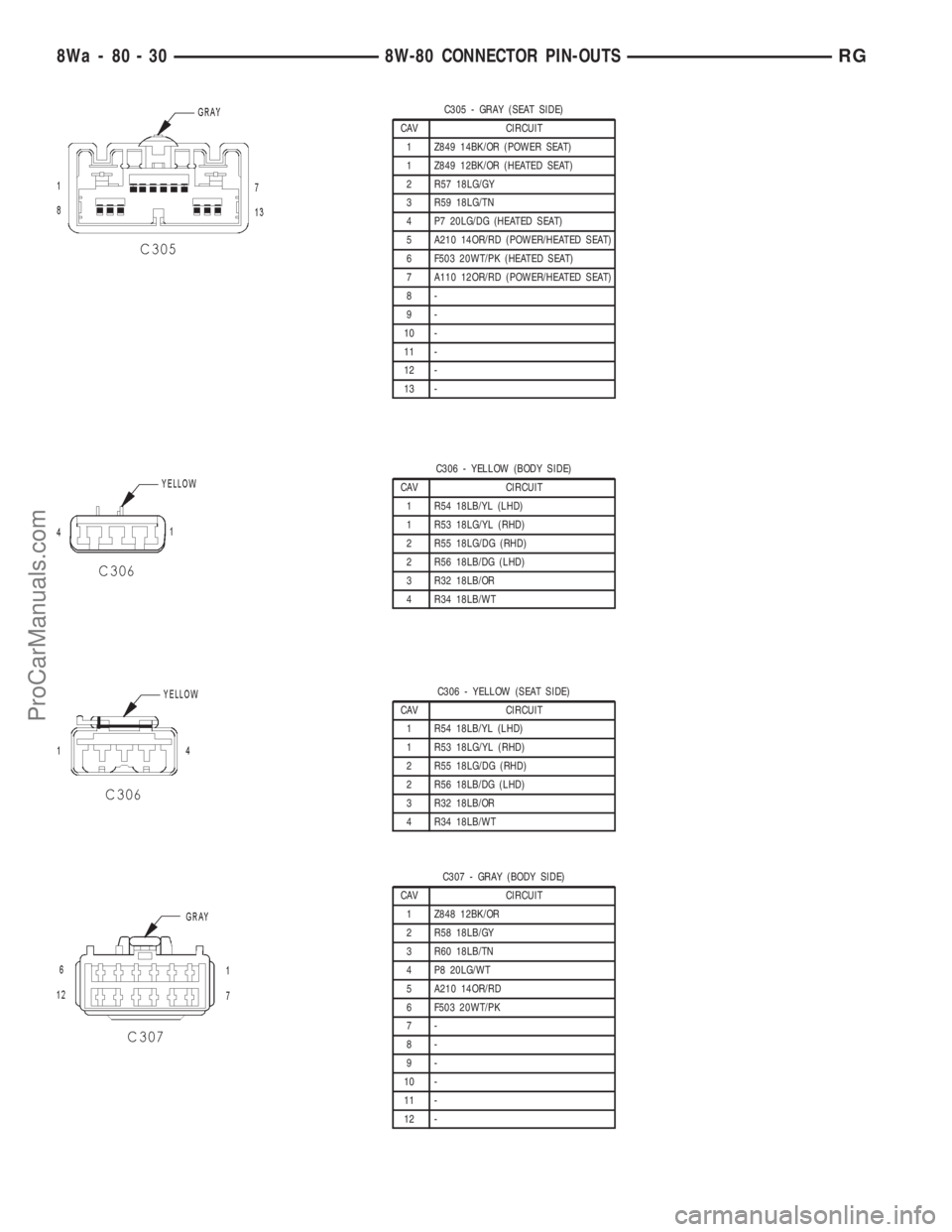

C305 - GRAY (SEAT SIDE)
CAV CIRCUIT
1 Z849 14BK/OR (POWER SEAT)
1 Z849 12BK/OR (HEATED SEAT)
2 R57 18LG/GY
3 R59 18LG/TN
4 P7 20LG/DG (HEATED SEAT)
5 A210 14OR/RD (POWER/HEATED SEAT)
6 F503 20WT/PK (HEATED SEAT)
7 A110 12OR/RD (POWER/HEATED SEAT)
8-
9-
10 -
11 -
12 -
13 -
C306 - YELLOW (BODY SIDE)
CAV CIRCUIT
1 R54 18LB/YL (LHD)
1 R53 18LG/YL (RHD)
2 R55 18LG/DG (RHD)
2 R56 18LB/DG (LHD)
3 R32 18LB/OR
4 R34 18LB/WT
C306 - YELLOW (SEAT SIDE)
CAV CIRCUIT
1 R54 18LB/YL (LHD)
1 R53 18LG/YL (RHD)
2 R55 18LG/DG (RHD)
2 R56 18LB/DG (LHD)
3 R32 18LB/OR
4 R34 18LB/WT
C307 - GRAY (BODY SIDE)
CAV CIRCUIT
1 Z848 12BK/OR
2 R58 18LB/GY
3 R60 18LB/TN
4 P8 20LG/WT
5 A210 14OR/RD
6 F503 20WT/PK
7-
8-
9-
10 -
11 -
12 -
8Wa - 80 - 30 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

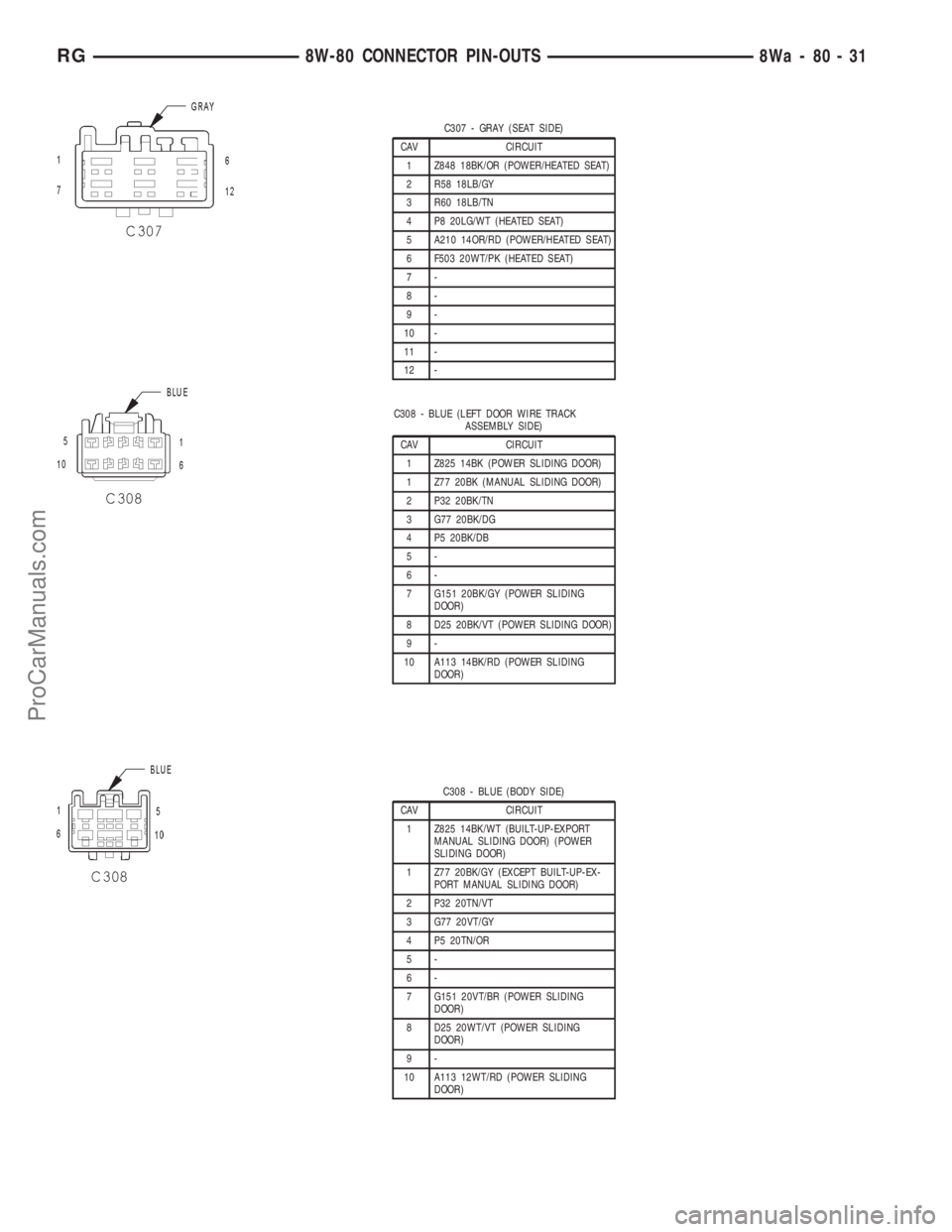

C307 - GRAY (SEAT SIDE)
CAV CIRCUIT
1 Z848 18BK/OR (POWER/HEATED SEAT)
2 R58 18LB/GY
3 R60 18LB/TN
4 P8 20LG/WT (HEATED SEAT)
5 A210 14OR/RD (POWER/HEATED SEAT)
6 F503 20WT/PK (HEATED SEAT)
7-
8-
9-
10 -
11 -
12 -
C308 - BLUE (LEFT DOOR WIRE TRACK
ASSEMBLY SIDE)
CAV CIRCUIT
1 Z825 14BK (POWER SLIDING DOOR)
1 Z77 20BK (MANUAL SLIDING DOOR)
2 P32 20BK/TN
3 G77 20BK/DG
4 P5 20BK/DB
5-
6-
7 G151 20BK/GY (POWER SLIDING
DOOR)
8 D25 20BK/VT (POWER SLIDING DOOR)
9-
10 A113 14BK/RD (POWER SLIDING
DOOR)
C308 - BLUE (BODY SIDE)
CAV CIRCUIT
1 Z825 14BK/WT (BUILT-UP-EXPORT
MANUAL SLIDING DOOR) (POWER
SLIDING DOOR)
1 Z77 20BK/GY (EXCEPT BUILT-UP-EX-
PORT MANUAL SLIDING DOOR)
2 P32 20TN/VT
3 G77 20VT/GY
4 P5 20TN/OR
5-
6-
7 G151 20VT/BR (POWER SLIDING
DOOR)
8 D25 20WT/VT (POWER SLIDING
DOOR)
9-
10 A113 12WT/RD (POWER SLIDING
DOOR)
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-31
ProCarManuals.com

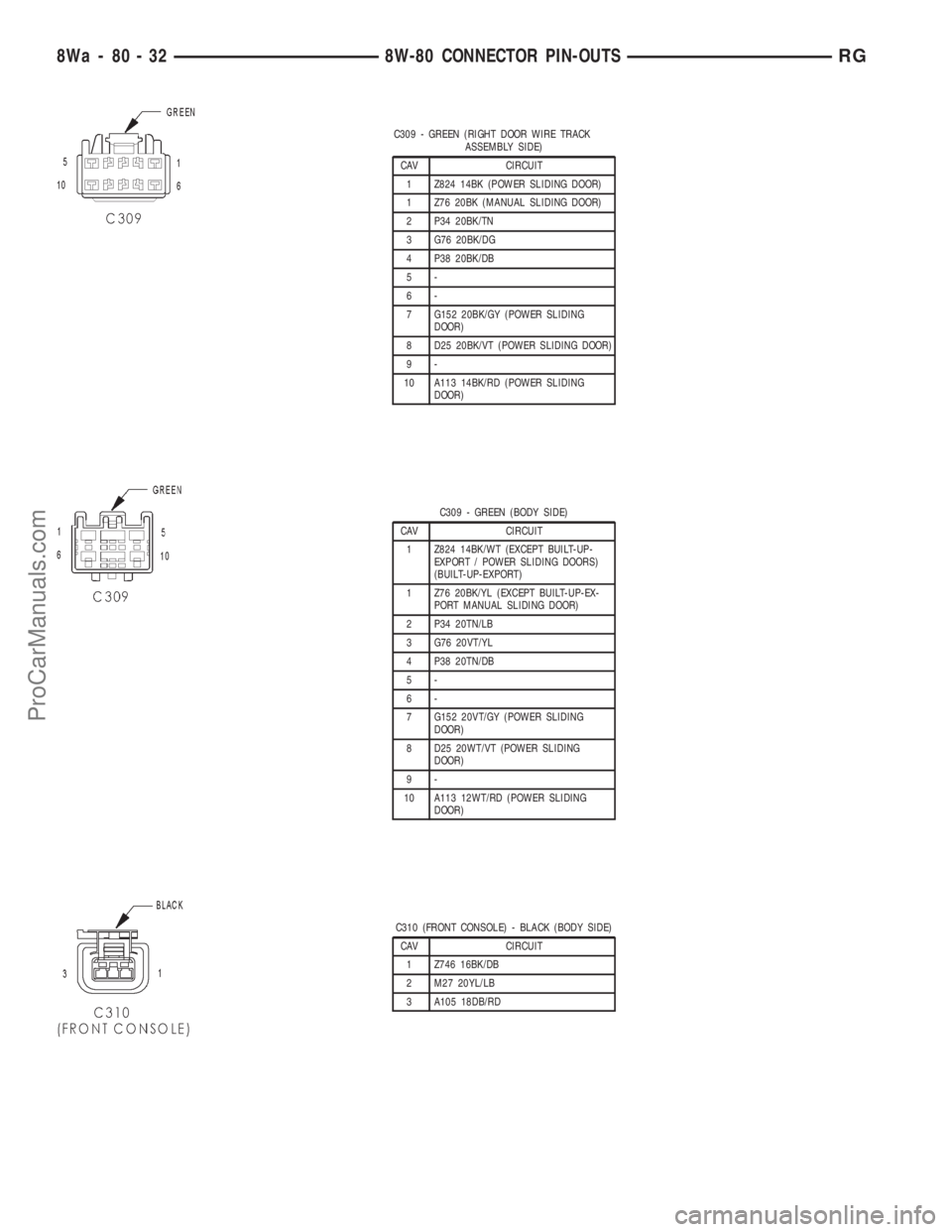

C309 - GREEN (RIGHT DOOR WIRE TRACK
ASSEMBLY SIDE)
CAV CIRCUIT
1 Z824 14BK (POWER SLIDING DOOR)
1 Z76 20BK (MANUAL SLIDING DOOR)
2 P34 20BK/TN
3 G76 20BK/DG
4 P38 20BK/DB
5-
6-
7 G152 20BK/GY (POWER SLIDING
DOOR)
8 D25 20BK/VT (POWER SLIDING DOOR)
9-
10 A113 14BK/RD (POWER SLIDING
DOOR)
C309 - GREEN (BODY SIDE)
CAV CIRCUIT
1 Z824 14BK/WT (EXCEPT BUILT-UP-
EXPORT / POWER SLIDING DOORS)
(BUILT-UP-EXPORT)
1 Z76 20BK/YL (EXCEPT BUILT-UP-EX-
PORT MANUAL SLIDING DOOR)
2 P34 20TN/LB
3 G76 20VT/YL
4 P38 20TN/DB
5-
6-
7 G152 20VT/GY (POWER SLIDING
DOOR)
8 D25 20WT/VT (POWER SLIDING
DOOR)
9-
10 A113 12WT/RD (POWER SLIDING
DOOR)
C310 (FRONT CONSOLE) - BLACK (BODY SIDE)
CAV CIRCUIT
1 Z746 16BK/DB
2 M27 20YL/LB
3 A105 18DB/RD
8Wa - 80 - 32 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

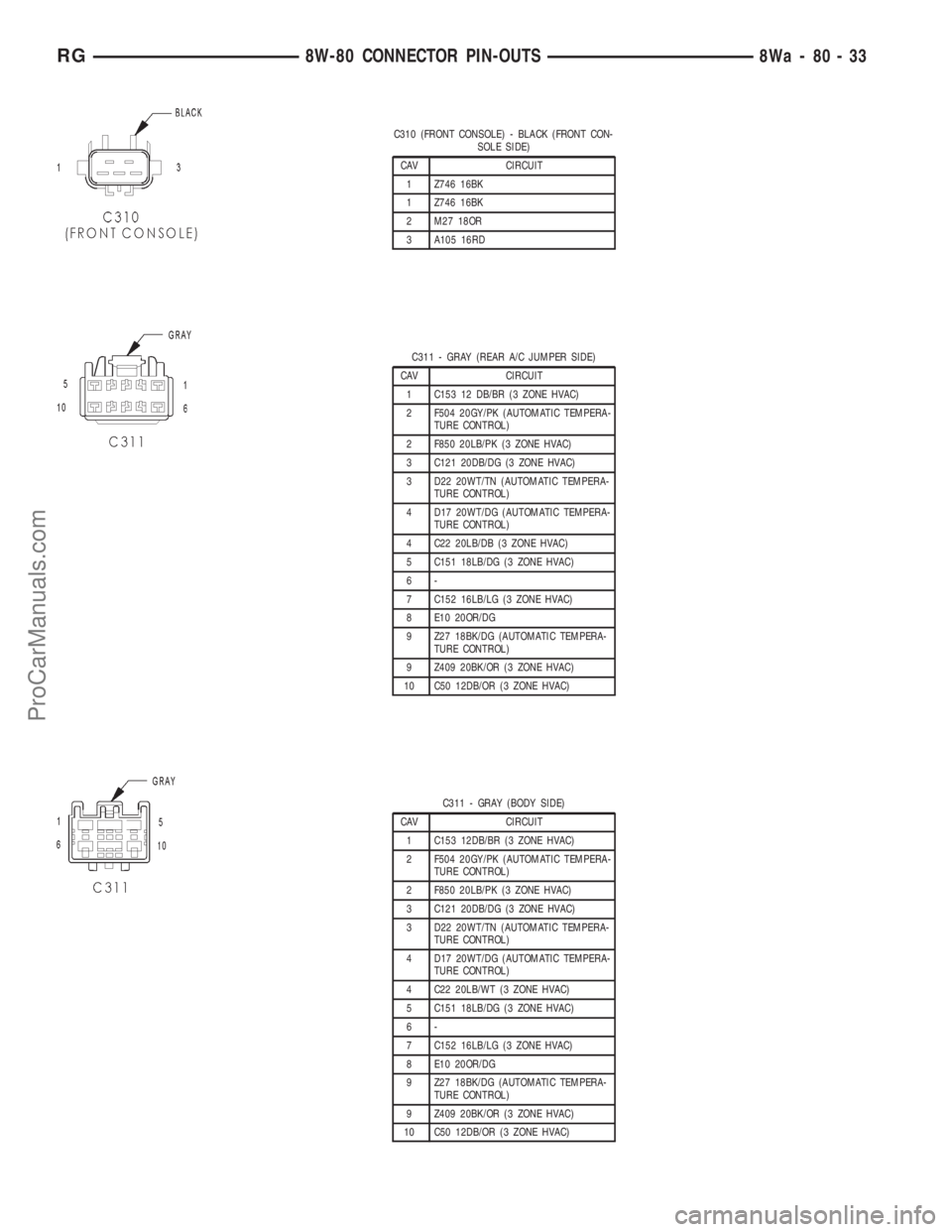

C310 (FRONT CONSOLE) - BLACK (FRONT CON-
SOLE SIDE)
CAV CIRCUIT
1 Z746 16BK
1 Z746 16BK
2 M27 18OR
3 A105 16RD
C311 - GRAY (REAR A/C JUMPER SIDE)
CAV CIRCUIT
1 C153 12 DB/BR (3 ZONE HVAC)
2 F504 20GY/PK (AUTOMATIC TEMPERA-
TURE CONTROL)
2 F850 20LB/PK (3 ZONE HVAC)
3 C121 20DB/DG (3 ZONE HVAC)
3 D22 20WT/TN (AUTOMATIC TEMPERA-
TURE CONTROL)
4 D17 20WT/DG (AUTOMATIC TEMPERA-
TURE CONTROL)
4 C22 20LB/DB (3 ZONE HVAC)
5 C151 18LB/DG (3 ZONE HVAC)
6-
7 C152 16LB/LG (3 ZONE HVAC)
8 E10 20OR/DG
9 Z27 18BK/DG (AUTOMATIC TEMPERA-
TURE CONTROL)
9 Z409 20BK/OR (3 ZONE HVAC)
10 C50 12DB/OR (3 ZONE HVAC)
C311 - GRAY (BODY SIDE)
CAV CIRCUIT
1 C153 12DB/BR (3 ZONE HVAC)
2 F504 20GY/PK (AUTOMATIC TEMPERA-
TURE CONTROL)
2 F850 20LB/PK (3 ZONE HVAC)
3 C121 20DB/DG (3 ZONE HVAC)
3 D22 20WT/TN (AUTOMATIC TEMPERA-
TURE CONTROL)
4 D17 20WT/DG (AUTOMATIC TEMPERA-
TURE CONTROL)
4 C22 20LB/WT (3 ZONE HVAC)
5 C151 18LB/DG (3 ZONE HVAC)
6-
7 C152 16LB/LG (3 ZONE HVAC)
8 E10 20OR/DG
9 Z27 18BK/DG (AUTOMATIC TEMPERA-
TURE CONTROL)
9 Z409 20BK/OR (3 ZONE HVAC)
10 C50 12DB/OR (3 ZONE HVAC)
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-33
ProCarManuals.com

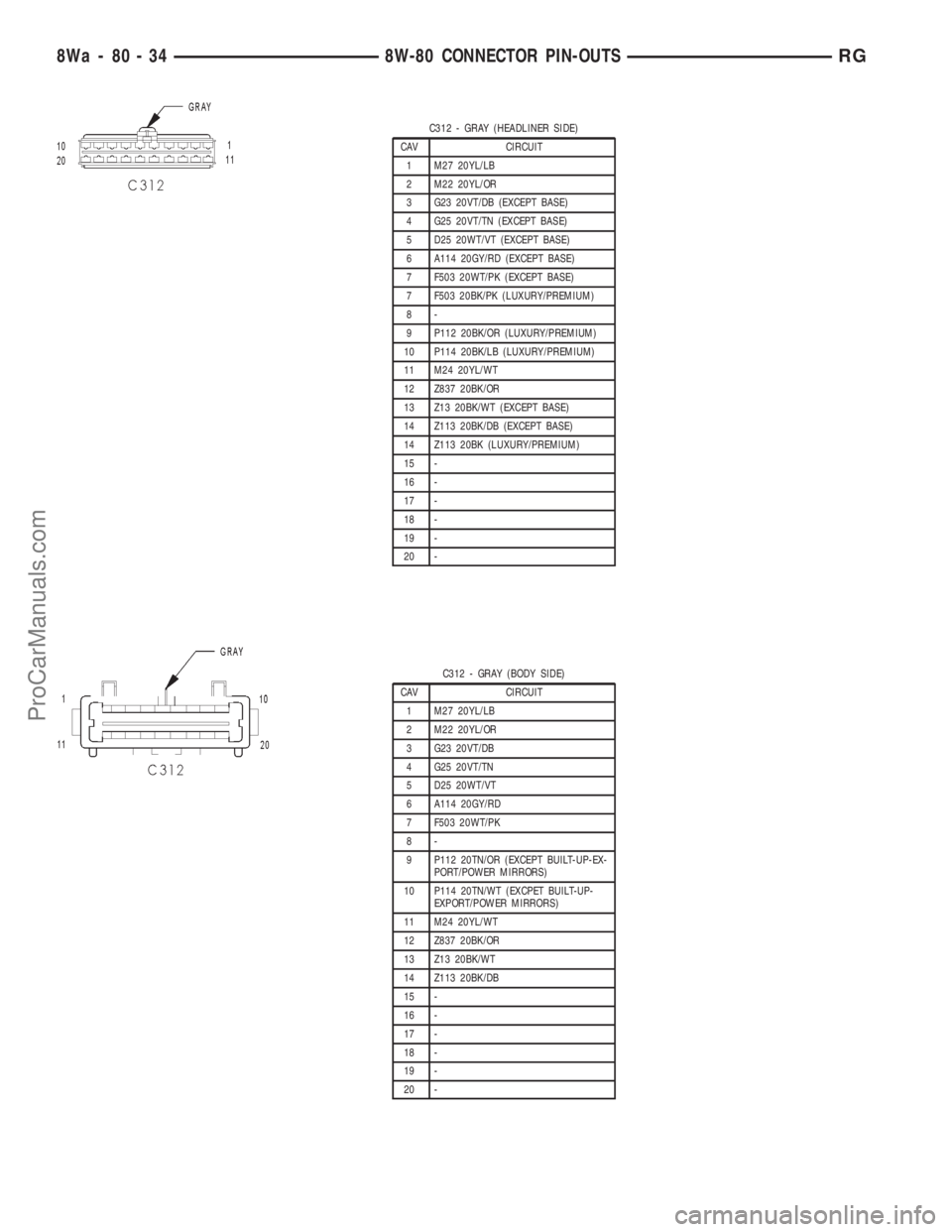

C312 - GRAY (HEADLINER SIDE)
CAV CIRCUIT
1 M27 20YL/LB
2 M22 20YL/OR
3 G23 20VT/DB (EXCEPT BASE)
4 G25 20VT/TN (EXCEPT BASE)
5 D25 20WT/VT (EXCEPT BASE)
6 A114 20GY/RD (EXCEPT BASE)
7 F503 20WT/PK (EXCEPT BASE)
7 F503 20BK/PK (LUXURY/PREMIUM)
8-
9 P112 20BK/OR (LUXURY/PREMIUM)
10 P114 20BK/LB (LUXURY/PREMIUM)
11 M24 20YL/WT
12 Z837 20BK/OR
13 Z13 20BK/WT (EXCEPT BASE)
14 Z113 20BK/DB (EXCEPT BASE)
14 Z113 20BK (LUXURY/PREMIUM)
15 -
16 -
17 -
18 -
19 -
20 -
C312 - GRAY (BODY SIDE)
CAV CIRCUIT
1 M27 20YL/LB
2 M22 20YL/OR
3 G23 20VT/DB
4 G25 20VT/TN
5 D25 20WT/VT
6 A114 20GY/RD
7 F503 20WT/PK
8-
9 P112 20TN/OR (EXCEPT BUILT-UP-EX-
PORT/POWER MIRRORS)
10 P114 20TN/WT (EXCPET BUILT-UP-
EXPORT/POWER MIRRORS)
11 M24 20YL/WT
12 Z837 20BK/OR
13 Z13 20BK/WT
14 Z113 20BK/DB
15 -
16 -
17 -
18 -
19 -
20 -
8Wa - 80 - 34 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

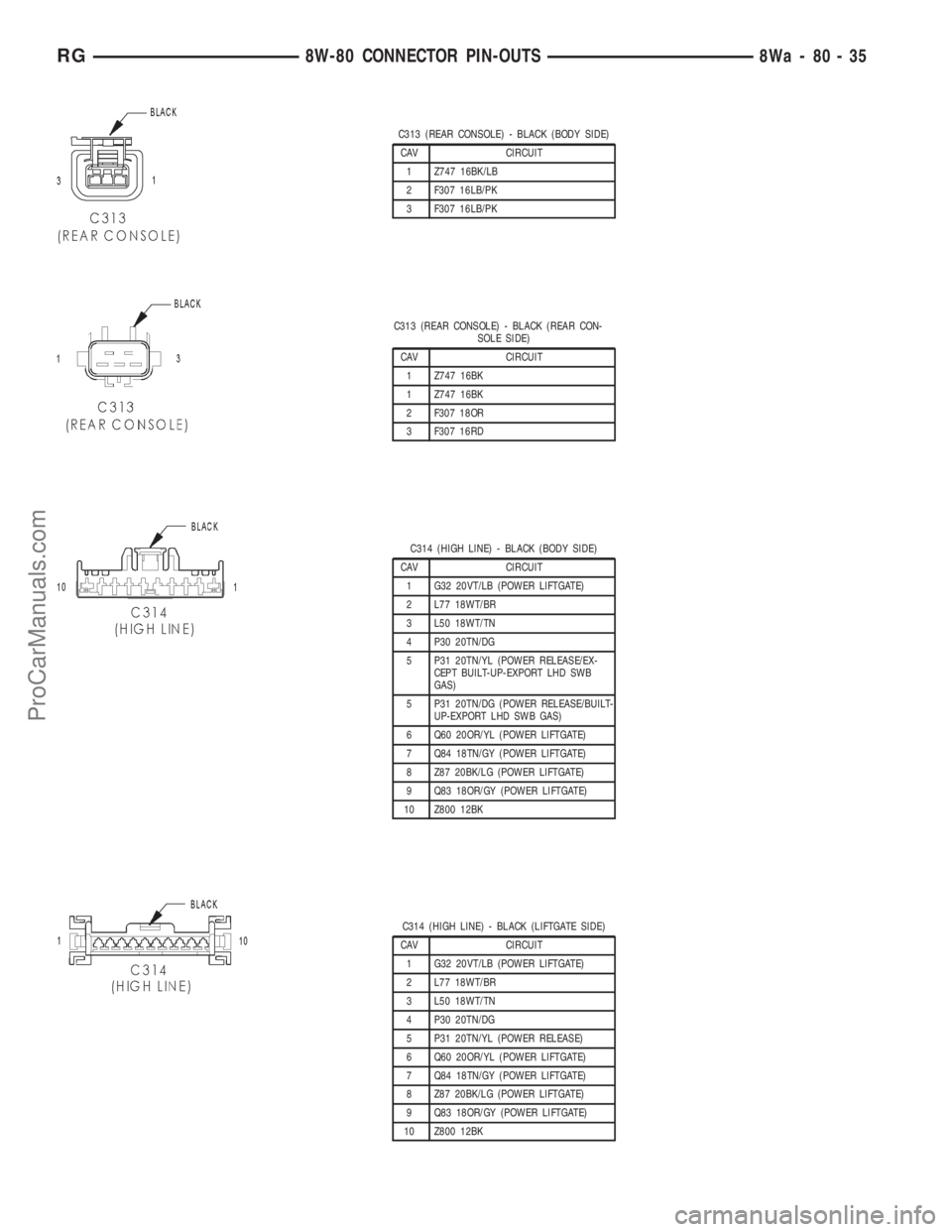

C313 (REAR CONSOLE) - BLACK (BODY SIDE)
CAV CIRCUIT
1 Z747 16BK/LB
2 F307 16LB/PK
3 F307 16LB/PK
C313 (REAR CONSOLE) - BLACK (REAR CON-
SOLE SIDE)
CAV CIRCUIT
1 Z747 16BK
1 Z747 16BK
2 F307 18OR
3 F307 16RD
C314 (HIGH LINE) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G32 20VT/LB (POWER LIFTGATE)
2 L77 18WT/BR
3 L50 18WT/TN
4 P30 20TN/DG
5 P31 20TN/YL (POWER RELEASE/EX-
CEPT BUILT-UP-EXPORT LHD SWB
GAS)
5 P31 20TN/DG (POWER RELEASE/BUILT-
UP-EXPORT LHD SWB GAS)
6 Q60 20OR/YL (POWER LIFTGATE)
7 Q84 18TN/GY (POWER LIFTGATE)
8 Z87 20BK/LG (POWER LIFTGATE)
9 Q83 18OR/GY (POWER LIFTGATE)
10 Z800 12BK
C314 (HIGH LINE) - BLACK (LIFTGATE SIDE)
CAV CIRCUIT
1 G32 20VT/LB (POWER LIFTGATE)
2 L77 18WT/BR
3 L50 18WT/TN
4 P30 20TN/DG
5 P31 20TN/YL (POWER RELEASE)
6 Q60 20OR/YL (POWER LIFTGATE)
7 Q84 18TN/GY (POWER LIFTGATE)
8 Z87 20BK/LG (POWER LIFTGATE)
9 Q83 18OR/GY (POWER LIFTGATE)
10 Z800 12BK
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-35
ProCarManuals.com

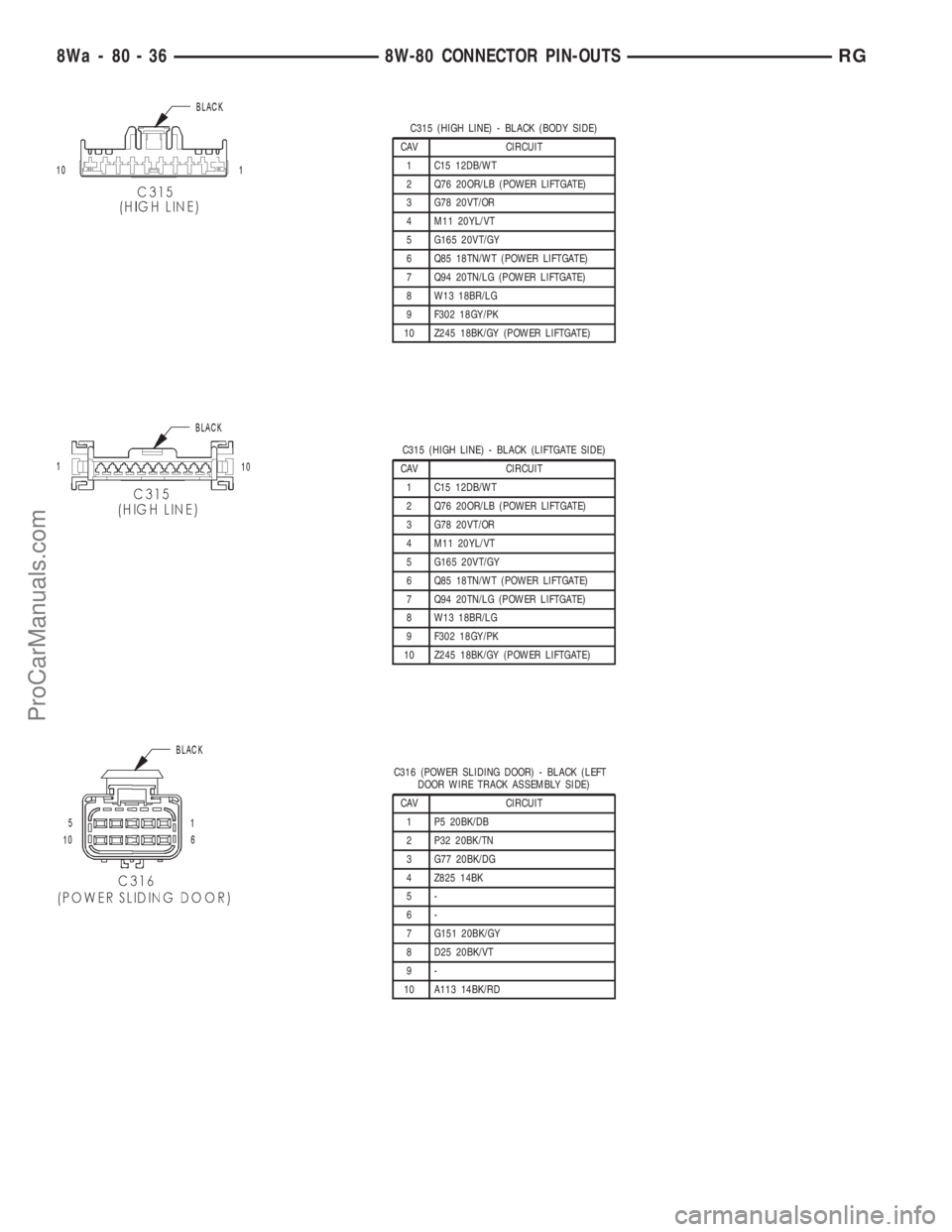

C315 (HIGH LINE) - BLACK (BODY SIDE)
CAV CIRCUIT
1 C15 12DB/WT
2 Q76 20OR/LB (POWER LIFTGATE)
3 G78 20VT/OR
4 M11 20YL/VT
5 G165 20VT/GY
6 Q85 18TN/WT (POWER LIFTGATE)
7 Q94 20TN/LG (POWER LIFTGATE)
8 W13 18BR/LG
9 F302 18GY/PK
10 Z245 18BK/GY (POWER LIFTGATE)
C315 (HIGH LINE) - BLACK (LIFTGATE SIDE)
CAV CIRCUIT
1 C15 12DB/WT
2 Q76 20OR/LB (POWER LIFTGATE)
3 G78 20VT/OR
4 M11 20YL/VT
5 G165 20VT/GY
6 Q85 18TN/WT (POWER LIFTGATE)
7 Q94 20TN/LG (POWER LIFTGATE)
8 W13 18BR/LG
9 F302 18GY/PK
10 Z245 18BK/GY (POWER LIFTGATE)
C316 (POWER SLIDING DOOR) - BLACK (LEFT
DOOR WIRE TRACK ASSEMBLY SIDE)
CAV CIRCUIT
1 P5 20BK/DB
2 P32 20BK/TN
3 G77 20BK/DG
4 Z825 14BK
5-
6-
7 G151 20BK/GY
8 D25 20BK/VT
9-
10 A113 14BK/RD
8Wa - 80 - 36 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

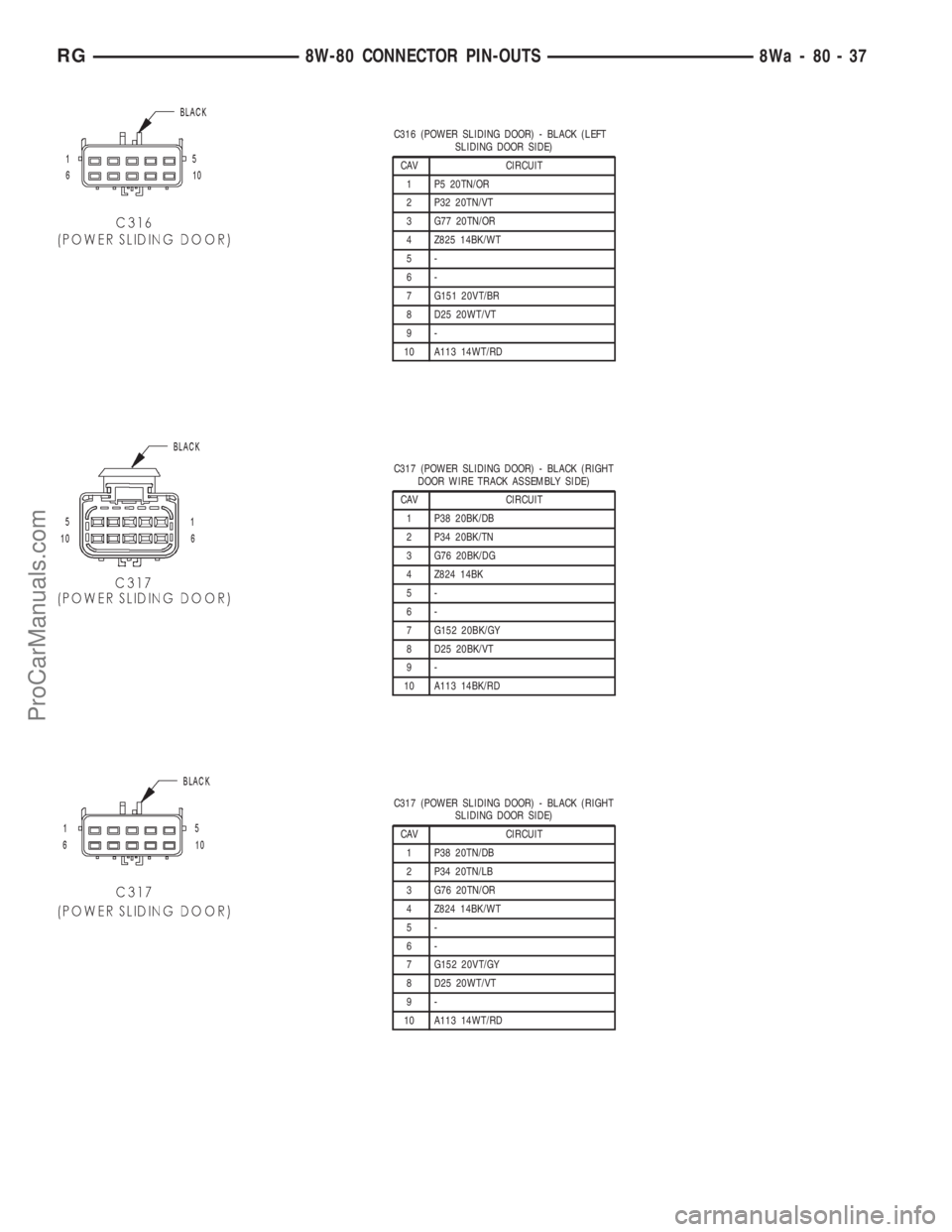

C316 (POWER SLIDING DOOR) - BLACK (LEFT
SLIDING DOOR SIDE)
CAV CIRCUIT
1 P5 20TN/OR
2 P32 20TN/VT
3 G77 20TN/OR
4 Z825 14BK/WT
5-
6-
7 G151 20VT/BR
8 D25 20WT/VT
9-
10 A113 14WT/RD
C317 (POWER SLIDING DOOR) - BLACK (RIGHT
DOOR WIRE TRACK ASSEMBLY SIDE)
CAV CIRCUIT
1 P38 20BK/DB
2 P34 20BK/TN
3 G76 20BK/DG
4 Z824 14BK
5-
6-
7 G152 20BK/GY
8 D25 20BK/VT
9-
10 A113 14BK/RD
C317 (POWER SLIDING DOOR) - BLACK (RIGHT
SLIDING DOOR SIDE)
CAV CIRCUIT
1 P38 20TN/DB
2 P34 20TN/LB
3 G76 20TN/OR
4 Z824 14BK/WT
5-
6-
7 G152 20VT/GY
8 D25 20WT/VT
9-
10 A113 14WT/RD
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-37
