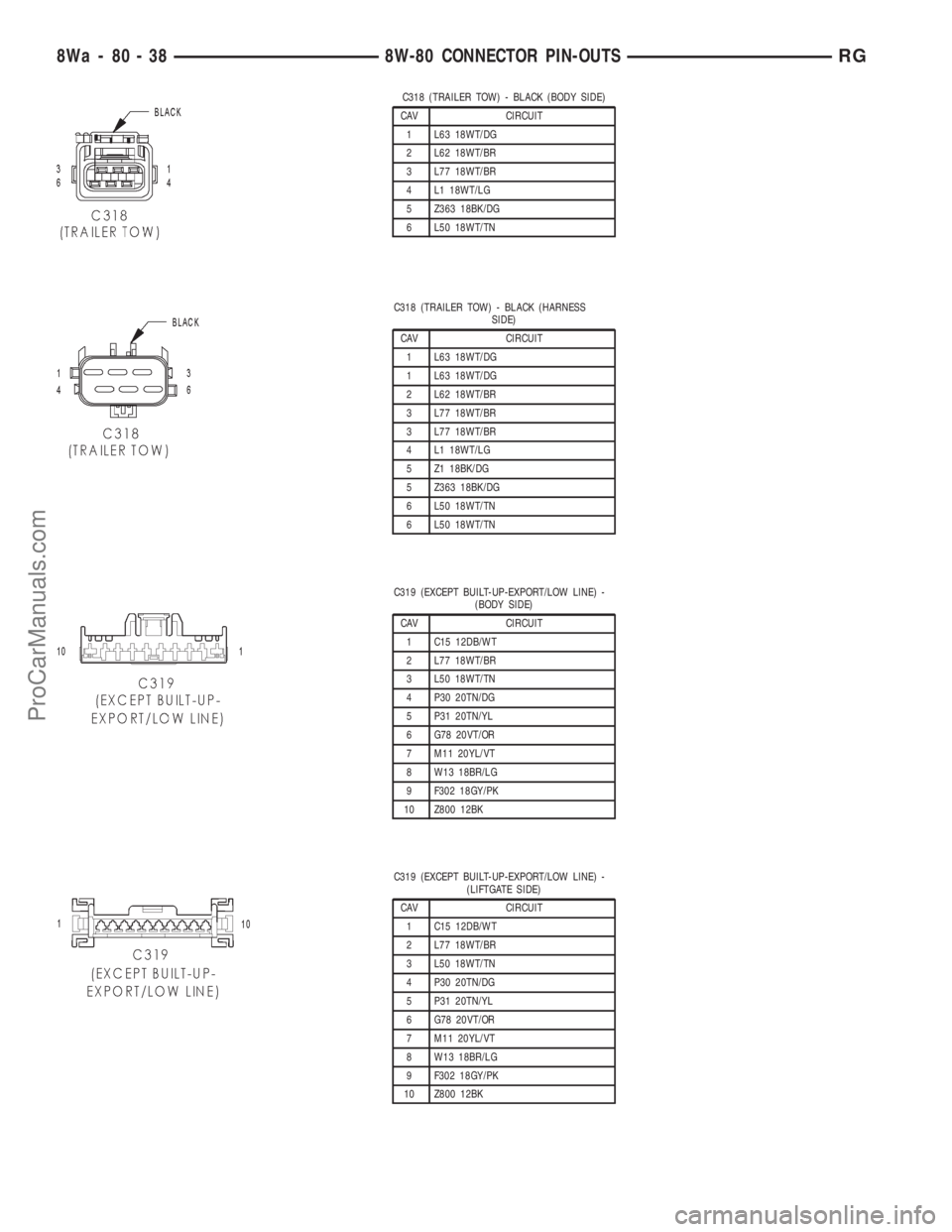

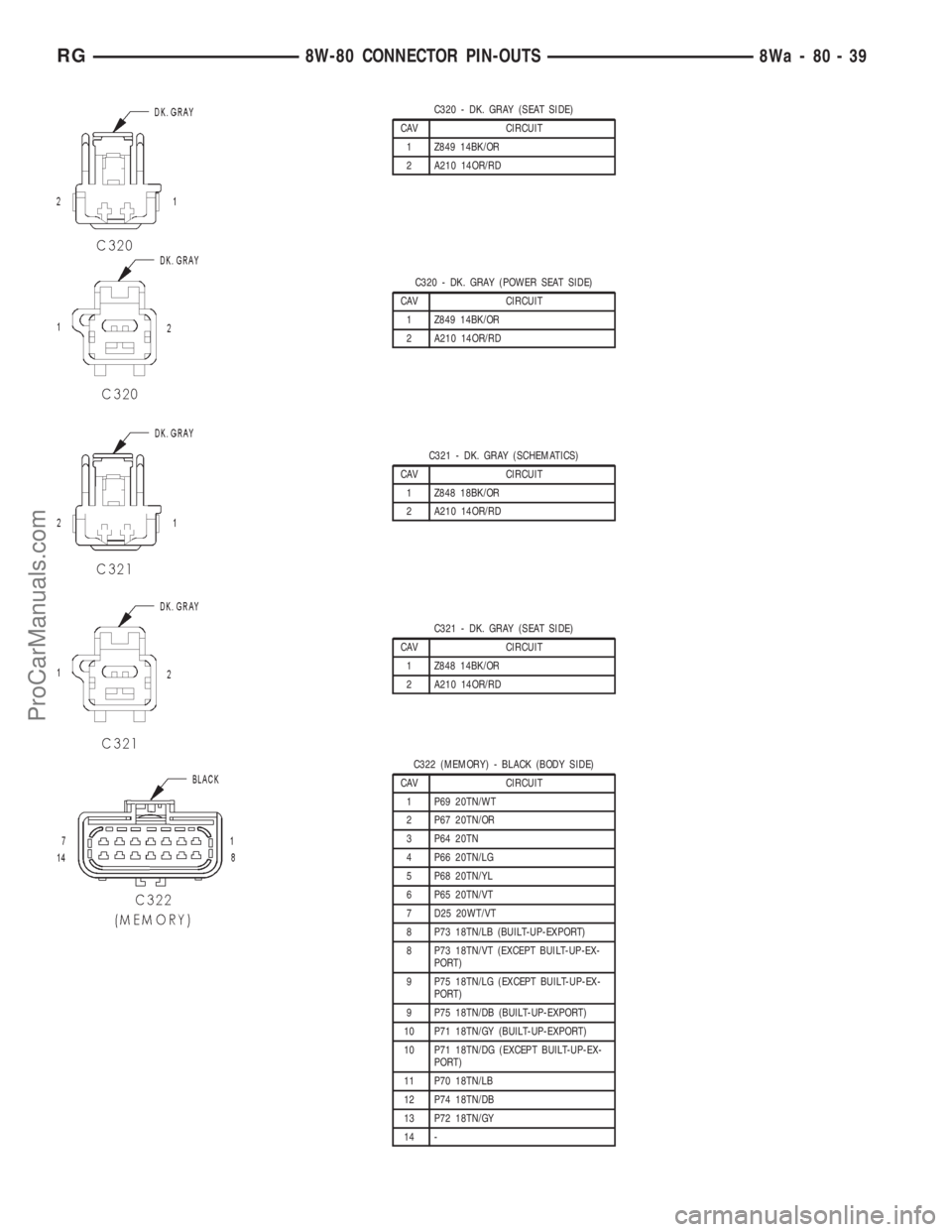

DODGE TOWN AND COUNTRY 2001 Service Manual C318 (TRAILER TOW) - BLACK (BODY SIDE) CAV CIRCUIT 1 L63 18WT/DG 2 L62 18WT/BR 3 L77 18WT/BR 4 L1 18WT/LG 5 Z363 18BK/DG 6 L50 18WT/TN C318 (TRAILER TOW) - BLACK (HARNESS SIDE) CAV CIRCUIT 1 L63 18WT/

Page 1012 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual C320 - DK. GRAY (SEAT SIDE) CAV CIRCUIT 1 Z849 14BK/OR 2 A210 14OR/RD C320 - DK. GRAY (POWER SEAT SIDE) CAV CIRCUIT 1 Z849 14BK/OR 2 A210 14OR/RD C321 - DK. GRAY (SCHEMATICS) CAV CIRCUIT 1 Z848 18BK/O

Page 1013 of 2321

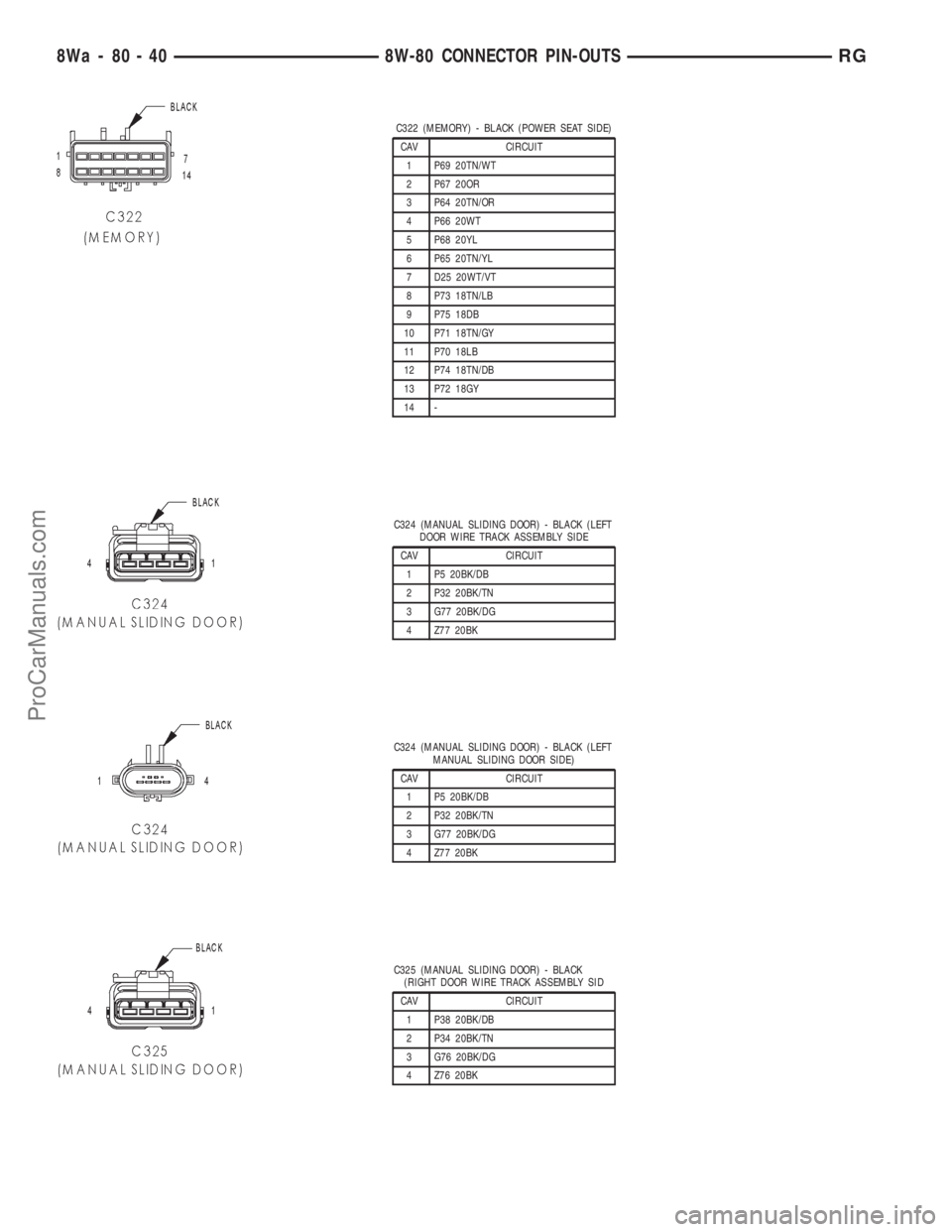

DODGE TOWN AND COUNTRY 2001 Service Manual C322 (MEMORY) - BLACK (POWER SEAT SIDE) CAV CIRCUIT 1 P69 20TN/WT 2 P67 20OR 3 P64 20TN/OR 4 P66 20WT 5 P68 20YL 6 P65 20TN/YL 7 D25 20WT/VT 8 P73 18TN/LB 9 P75 18DB 10 P71 18TN/GY 11 P70 18LB 12 P74

Page 1014 of 2321

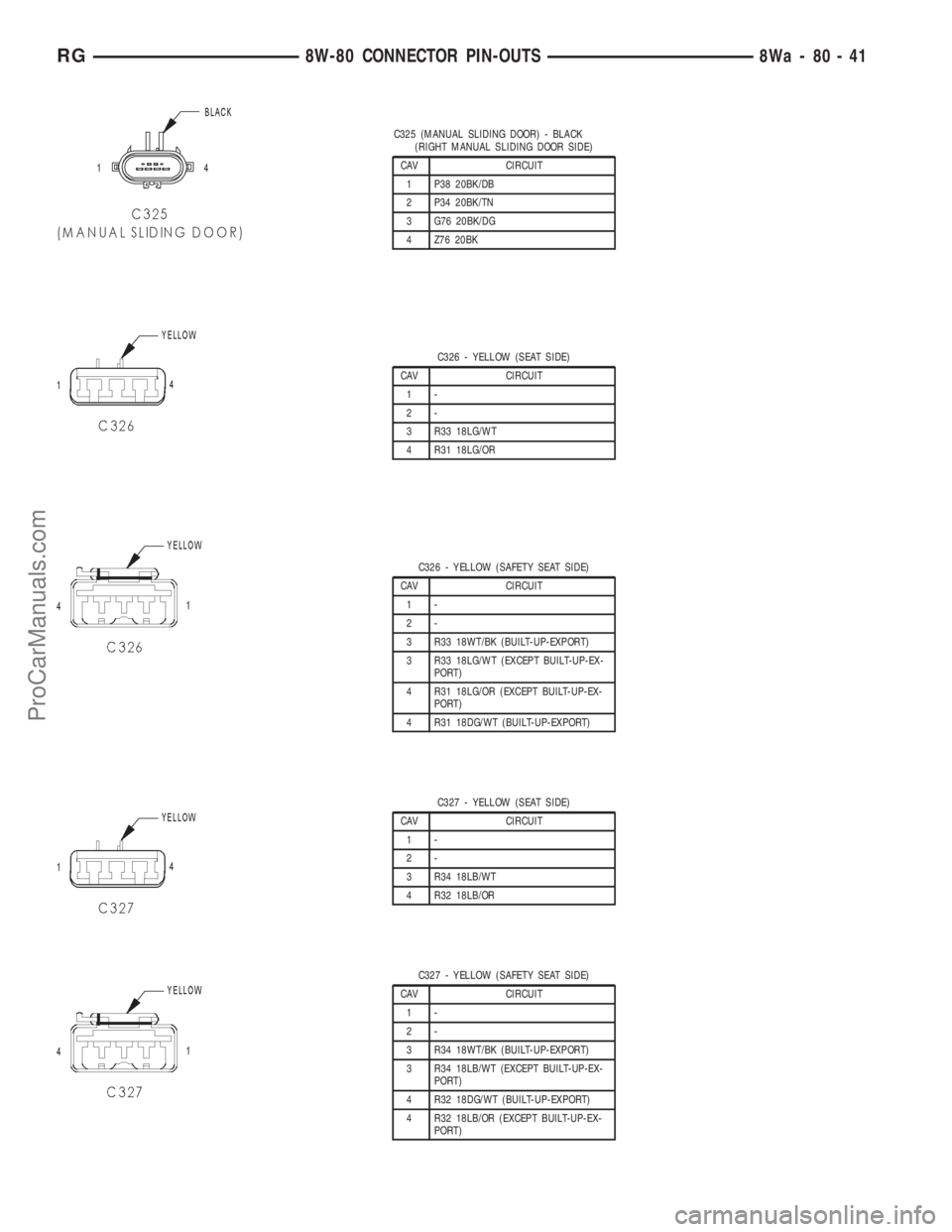

DODGE TOWN AND COUNTRY 2001 Service Manual C325 (MANUAL SLIDING DOOR) - BLACK (RIGHT MANUAL SLIDING DOOR SIDE) CAV CIRCUIT 1 P38 20BK/DB 2 P34 20BK/TN 3 G76 20BK/DG 4 Z76 20BK C326 - YELLOW (SEAT SIDE) CAV CIRCUIT 1- 2- 3 R33 18LG/WT 4 R31 18L

Page 1015 of 2321

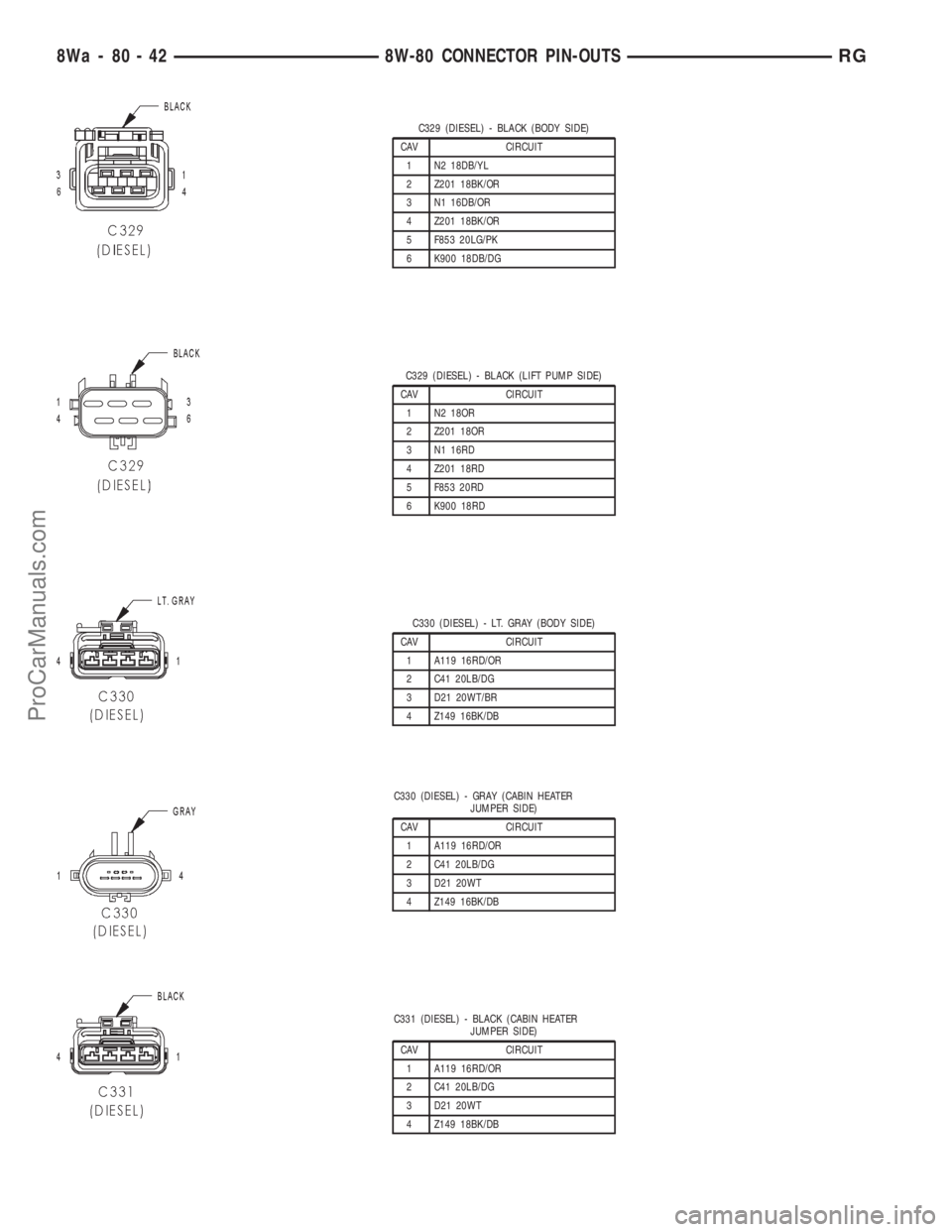

DODGE TOWN AND COUNTRY 2001 Service Manual C329 (DIESEL) - BLACK (BODY SIDE) CAV CIRCUIT 1 N2 18DB/YL 2 Z201 18BK/OR 3 N1 16DB/OR 4 Z201 18BK/OR 5 F853 20LG/PK 6 K900 18DB/DG C329 (DIESEL) - BLACK (LIFT PUMP SIDE) CAV CIRCUIT 1 N2 18OR 2 Z201

Page 1016 of 2321

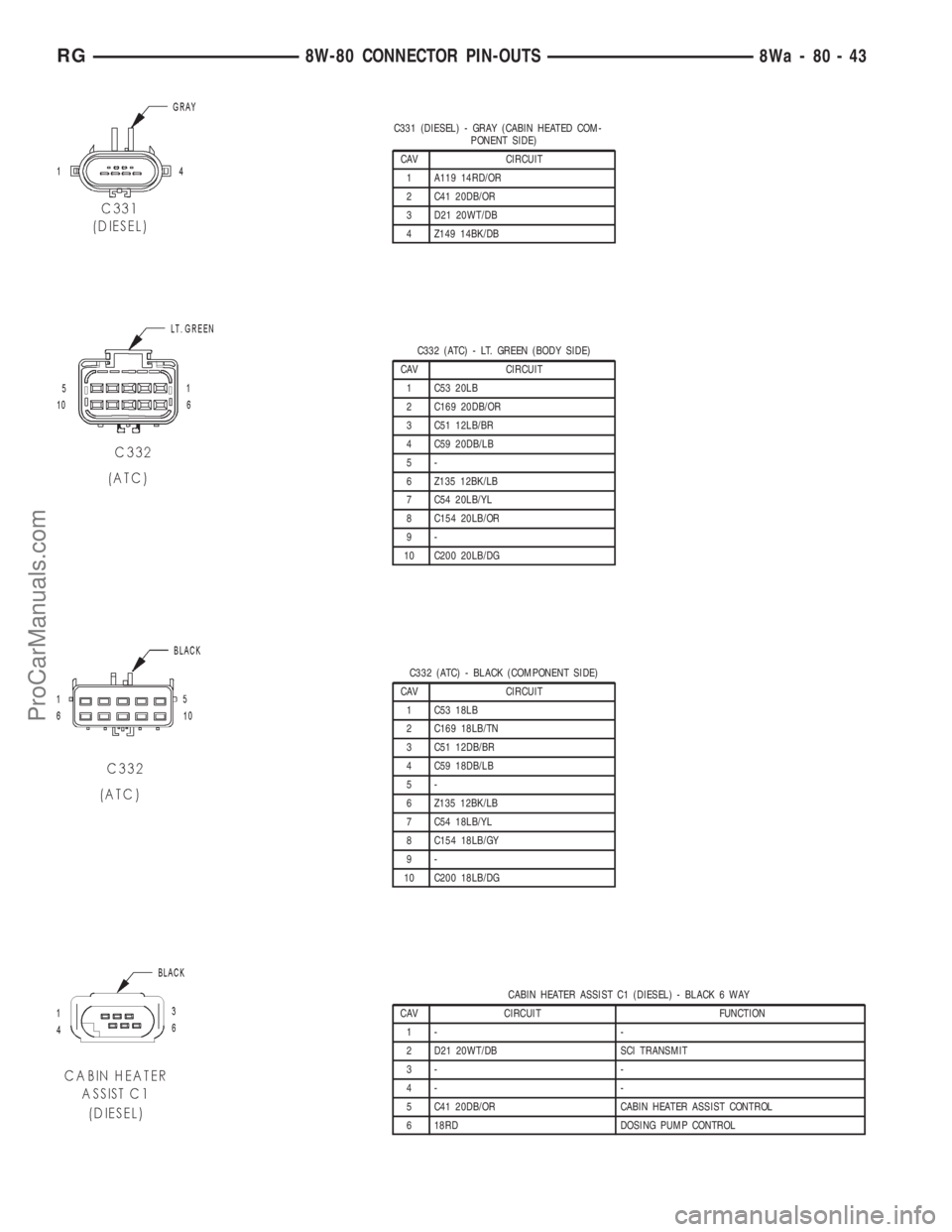

DODGE TOWN AND COUNTRY 2001 Service Manual C331 (DIESEL) - GRAY (CABIN HEATED COM- PONENT SIDE) CAV CIRCUIT 1 A119 14RD/OR 2 C41 20DB/OR 3 D21 20WT/DB 4 Z149 14BK/DB C332 (ATC) - LT. GREEN (BODY SIDE) CAV CIRCUIT 1 C53 20LB 2 C169 20DB/OR 3 C5

Page 1017 of 2321

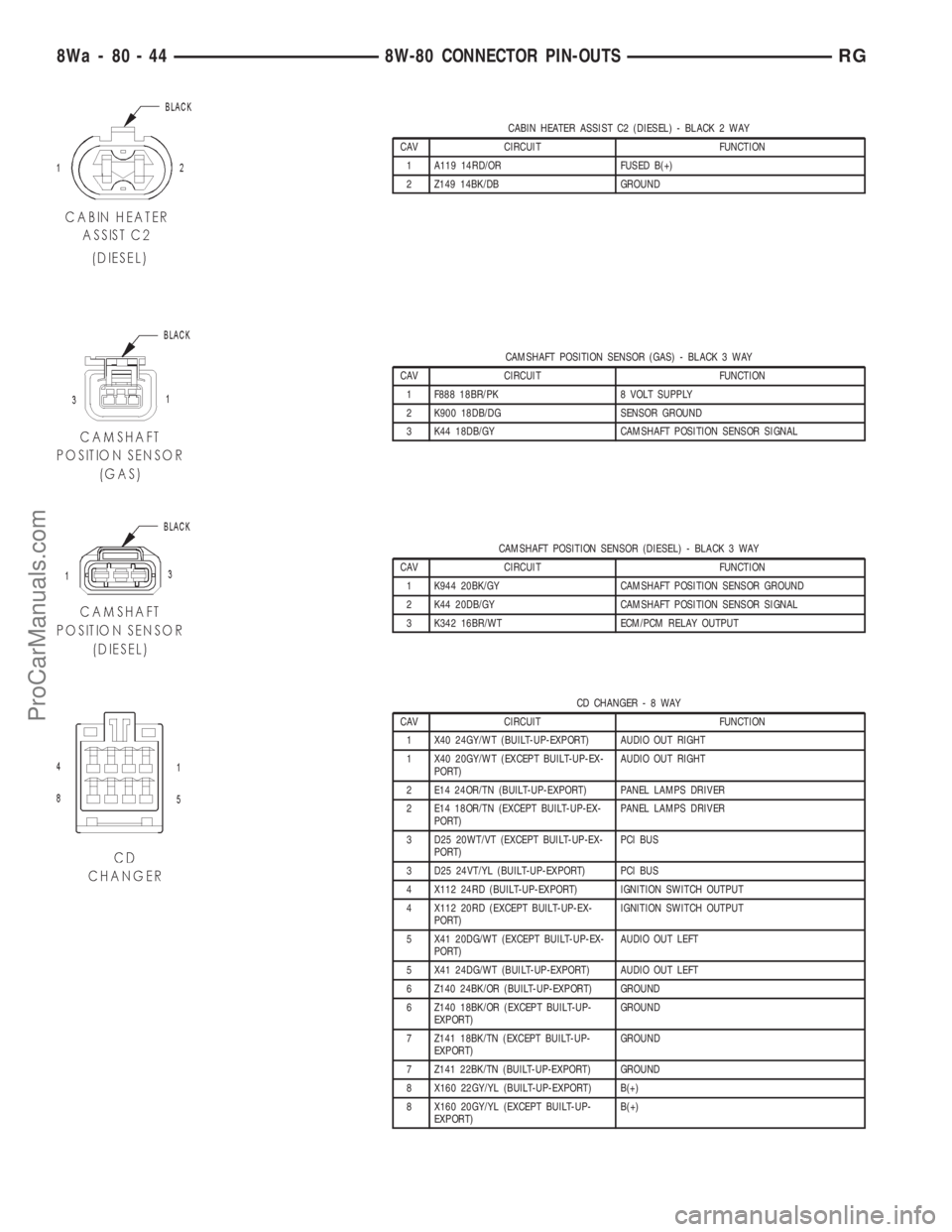

DODGE TOWN AND COUNTRY 2001 Service Manual CABIN HEATER ASSIST C2 (DIESEL) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 A119 14RD/OR FUSED B(+) 2 Z149 14BK/DB GROUND CAMSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY CAV CIRCUIT FUNCTION 1 F888 18BR/PK 8 VO

Page 1018 of 2321

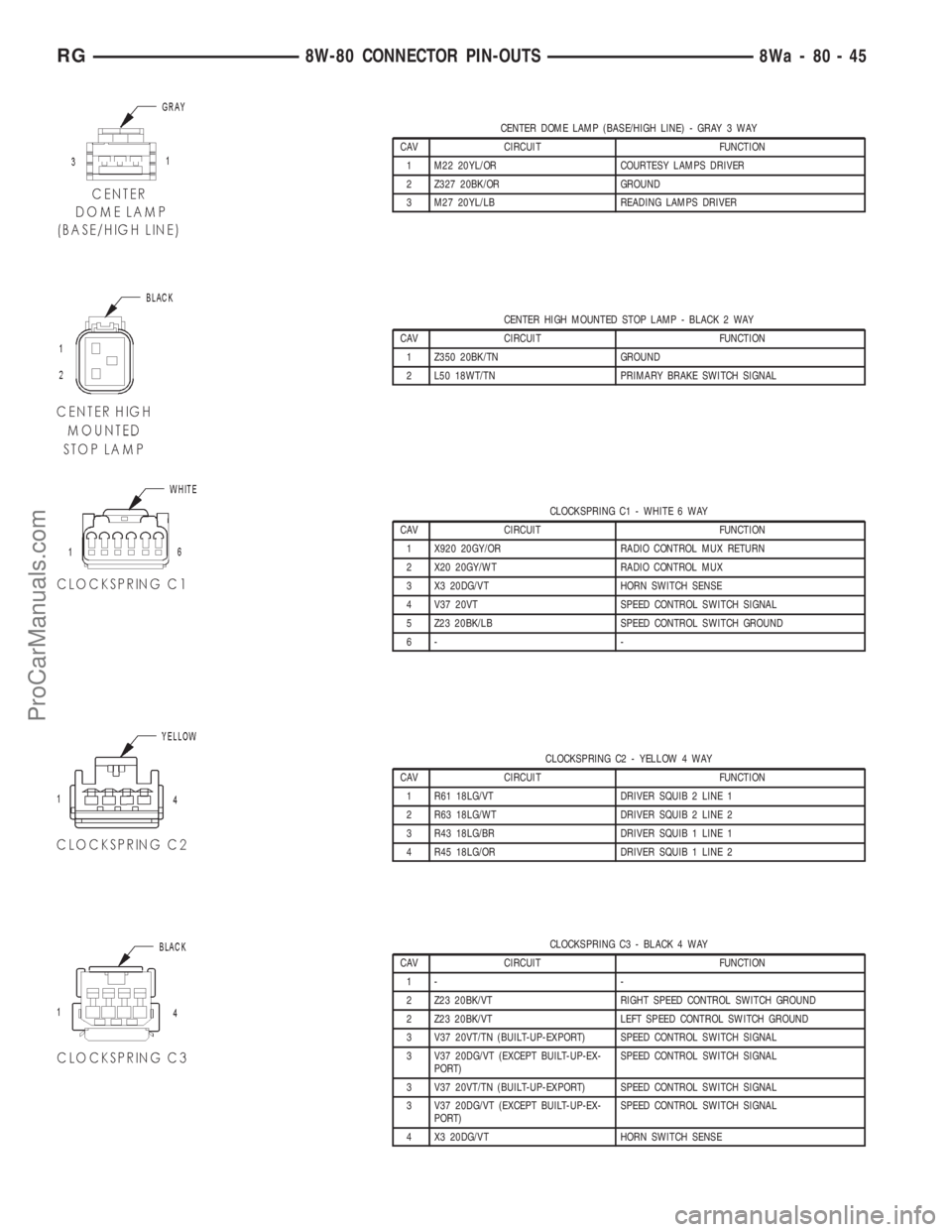

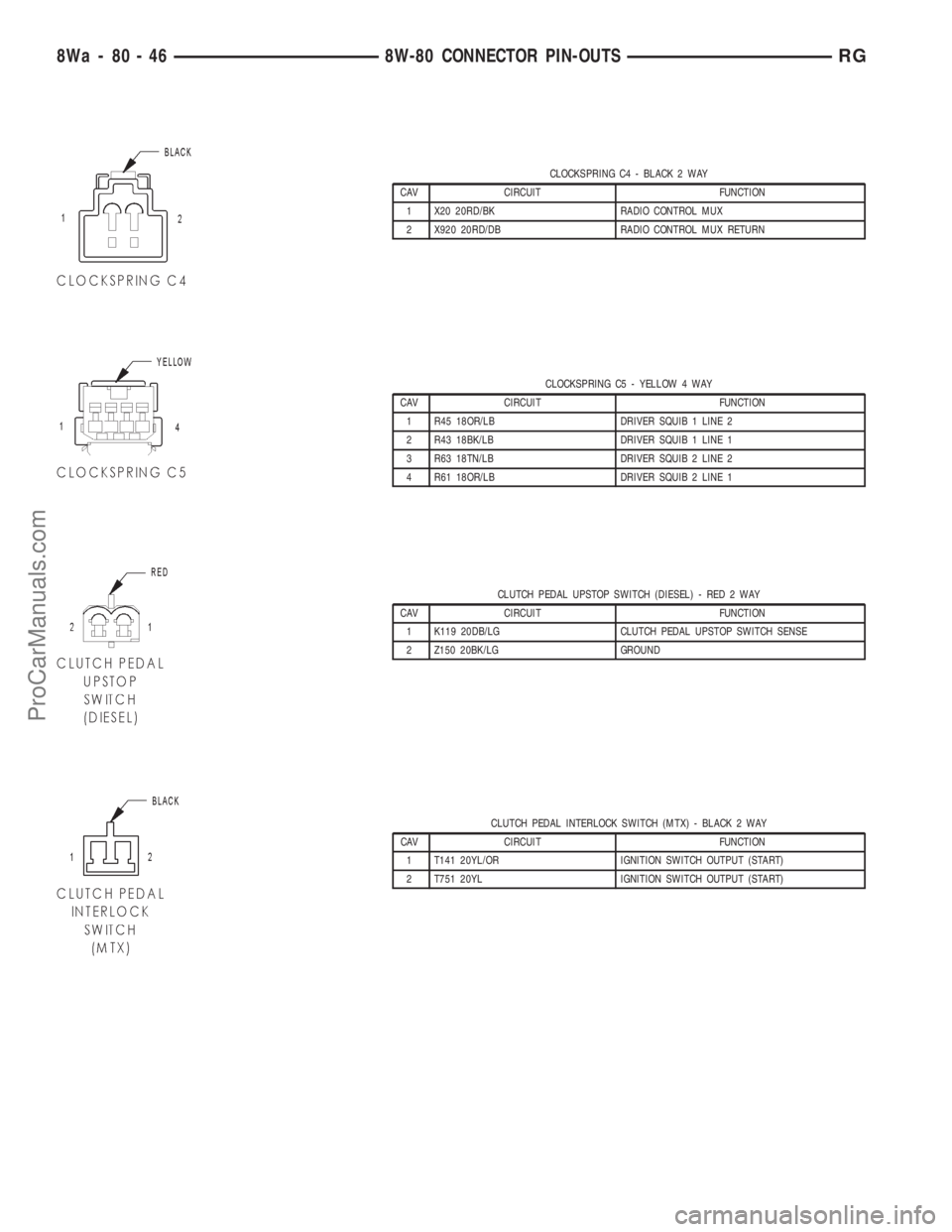

DODGE TOWN AND COUNTRY 2001 Service Manual CENTER DOME LAMP (BASE/HIGH LINE) - GRAY 3 WAY CAV CIRCUIT FUNCTION 1 M22 20YL/OR COURTESY LAMPS DRIVER 2 Z327 20BK/OR GROUND 3 M27 20YL/LB READING LAMPS DRIVER CENTER HIGH MOUNTED STOP LAMP - BLACK 2

Page 1019 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual CLOCKSPRING C4 - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 X20 20RD/BK RADIO CONTROL MUX 2 X920 20RD/DB RADIO CONTROL MUX RETURN CLOCKSPRING C5 - YELLOW 4 WAY CAV CIRCUIT FUNCTION 1 R45 18OR/LB DRIVER SQUIB

Page 1020 of 2321

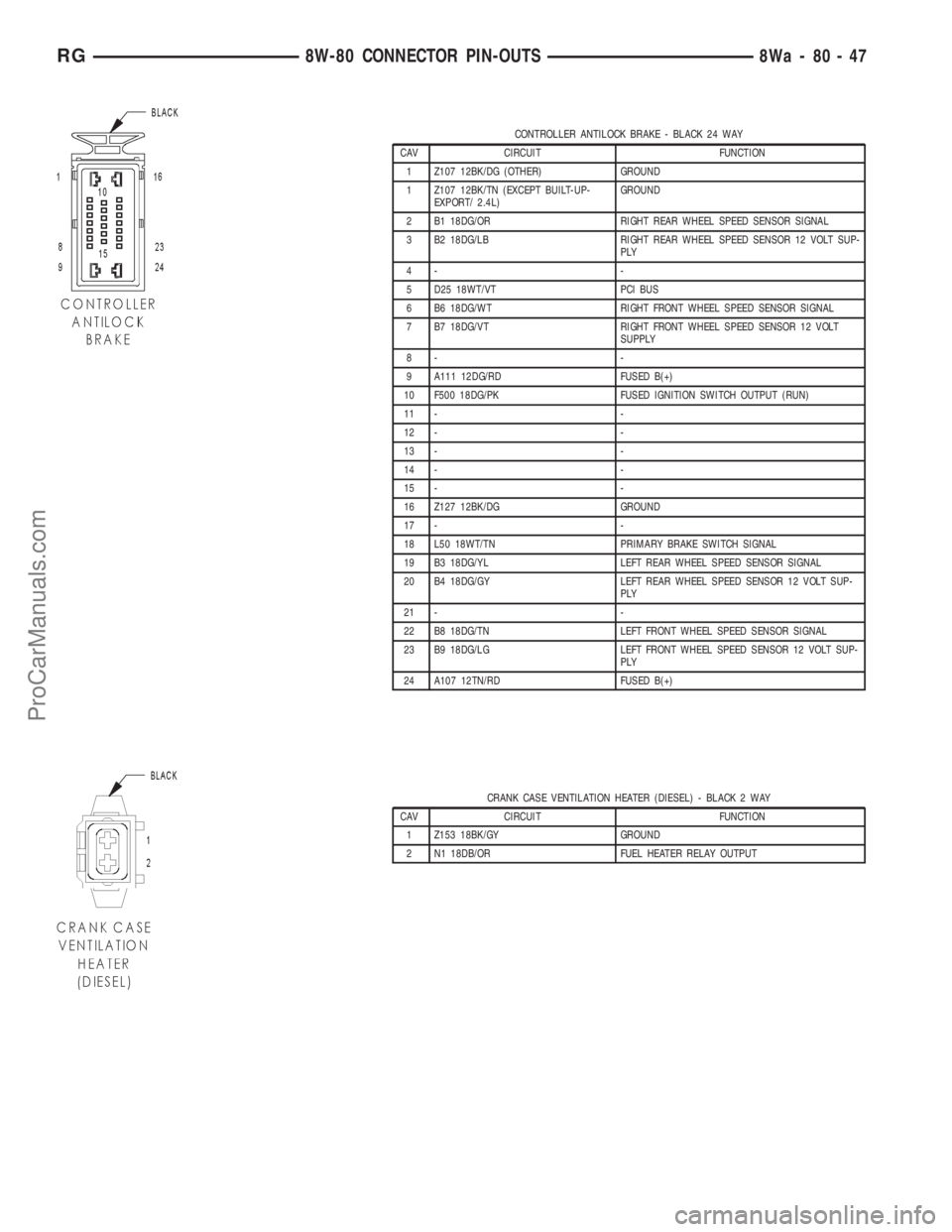

DODGE TOWN AND COUNTRY 2001 Service Manual CONTROLLER ANTILOCK BRAKE - BLACK 24 WAY CAV CIRCUIT FUNCTION 1 Z107 12BK/DG (OTHER) GROUND 1 Z107 12BK/TN (EXCEPT BUILT-UP- EXPORT/ 2.4L)GROUND 2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL 3 B2
