DODGE TOWN AND COUNTRY 2001 Service Manual

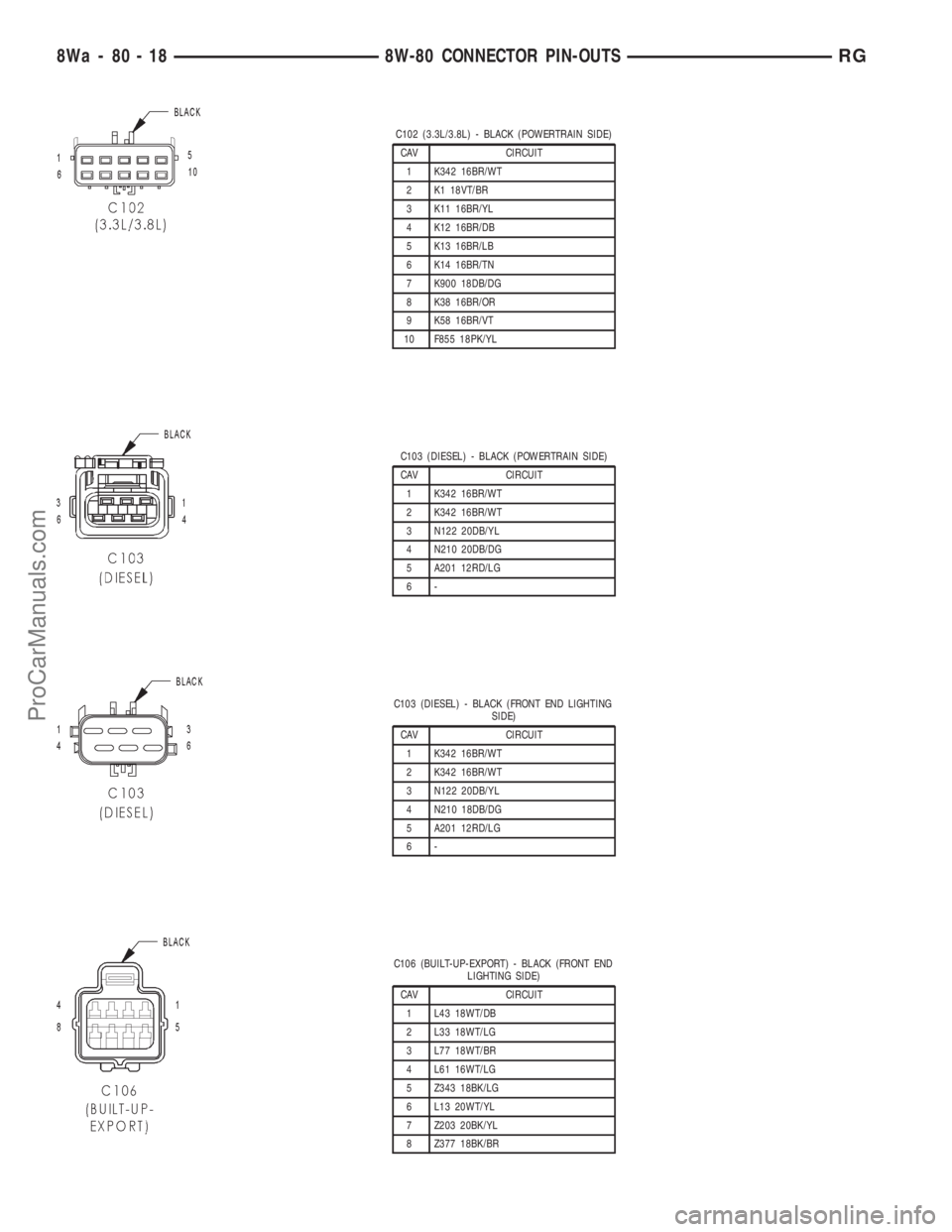

C102 (3.3L/3.8L) - BLACK (POWERTRAIN SIDE)
CAV CIRCUIT
1 K342 16BR/WT
2 K1 18VT/BR
3 K11 16BR/YL
4 K12 16BR/DB
5 K13 16BR/LB
6 K14 16BR/TN
7 K900 18DB/DG
8 K38 16BR/OR
9 K58 16BR/VT
10 F855 18PK/YL
C103 (DIESEL) - BLACK (POWERTRAIN SIDE)
CAV CIRCUIT
1 K342 16BR/WT
2 K342 16BR/WT
3 N122 20DB/YL
4 N210 20DB/DG
5 A201 12RD/LG
6-
C103 (DIESEL) - BLACK (FRONT END LIGHTING
SIDE)
CAV CIRCUIT
1 K342 16BR/WT
2 K342 16BR/WT
3 N122 20DB/YL
4 N210 18DB/DG
5 A201 12RD/LG
6-
C106 (BUILT-UP-EXPORT) - BLACK (FRONT END
LIGHTING SIDE)
CAV CIRCUIT
1 L43 18WT/DB
2 L33 18WT/LG
3 L77 18WT/BR
4 L61 16WT/LG
5 Z343 18BK/LG
6 L13 20WT/YL
7 Z203 20BK/YL
8 Z377 18BK/BR
8Wa - 80 - 18 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

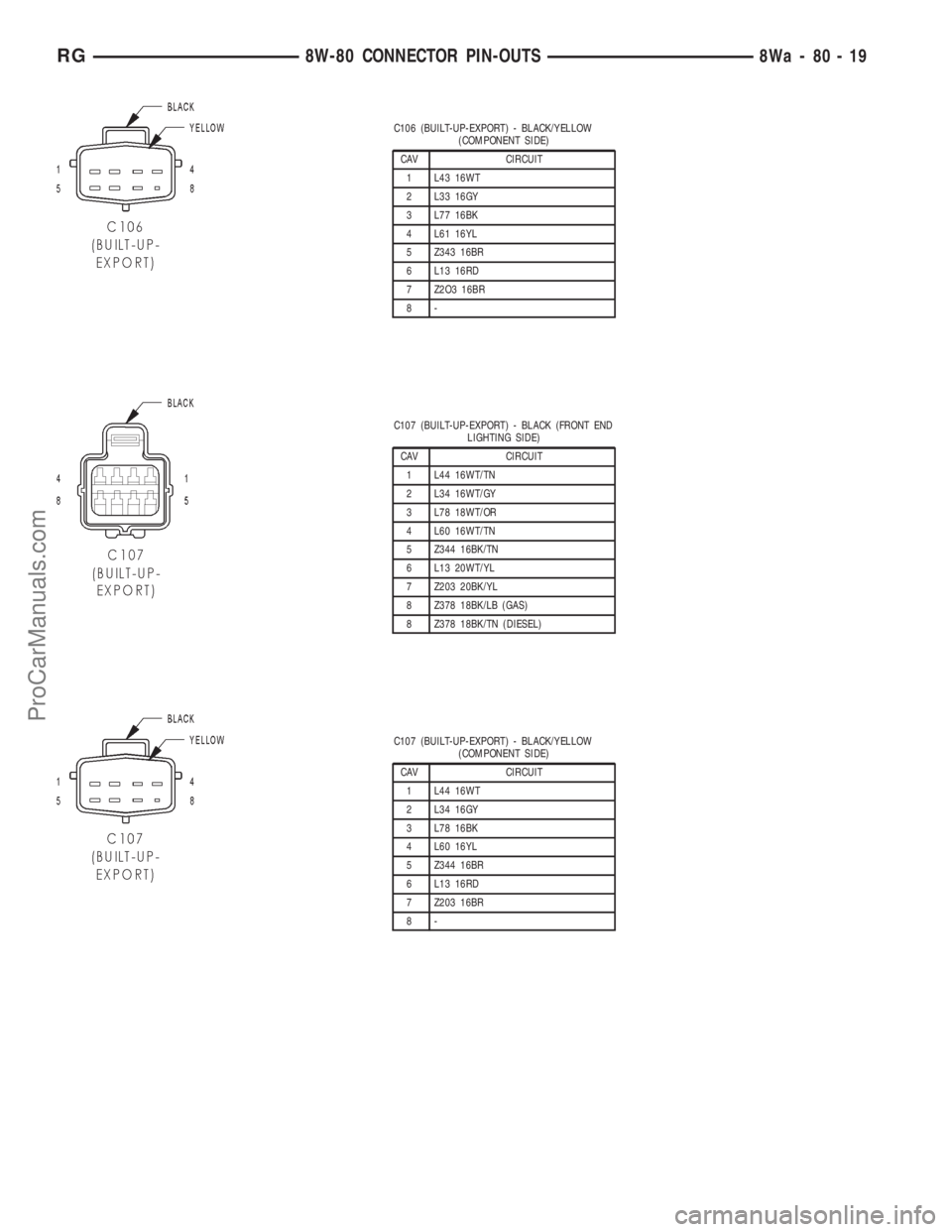

C106 (BUILT-UP-EXPORT) - BLACK/YELLOW
(COMPONENT SIDE)
CAV CIRCUIT
1 L43 16WT
2 L33 16GY
3 L77 16BK
4 L61 16YL
5 Z343 16BR
6 L13 16RD
7 Z2O3 16BR
8-
C107 (BUILT-UP-EXPORT) - BLACK (FRONT END
LIGHTING SIDE)
CAV CIRCUIT
1 L44 16WT/TN
2 L34 16WT/GY
3 L78 18WT/OR
4 L60 16WT/TN
5 Z344 16BK/TN
6 L13 20WT/YL
7 Z203 20BK/YL
8 Z378 18BK/LB (GAS)
8 Z378 18BK/TN (DIESEL)
C107 (BUILT-UP-EXPORT) - BLACK/YELLOW
(COMPONENT SIDE)
CAV CIRCUIT
1 L44 16WT
2 L34 16GY
3 L78 16BK
4 L60 16YL
5 Z344 16BR
6 L13 16RD
7 Z203 16BR
8-
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-19
ProCarManuals.com

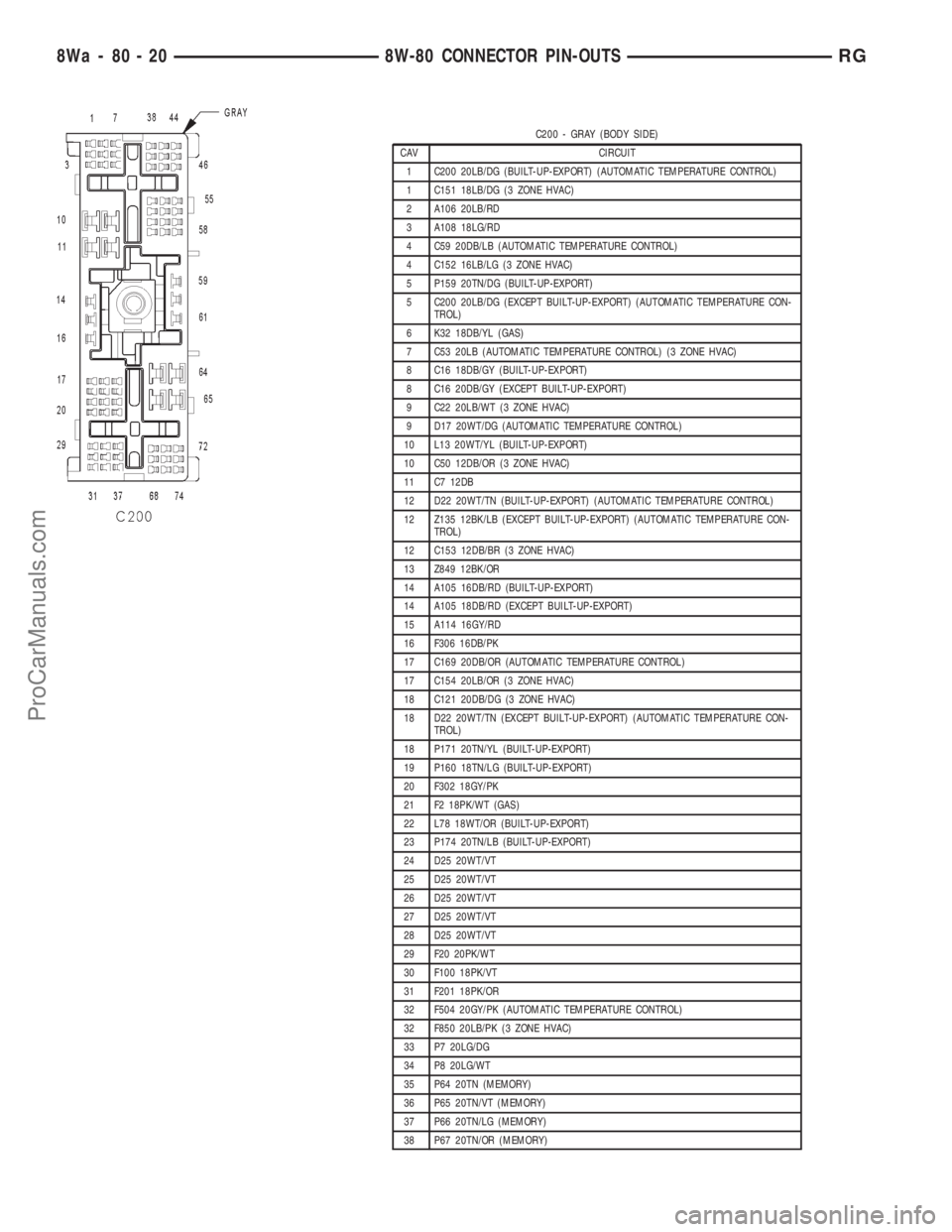

C200 - GRAY (BODY SIDE)
CAV CIRCUIT
1 C200 20LB/DG (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL)
1 C151 18LB/DG (3 ZONE HVAC)
2 A106 20LB/RD
3 A108 18LG/RD
4 C59 20DB/LB (AUTOMATIC TEMPERATURE CONTROL)
4 C152 16LB/LG (3 ZONE HVAC)
5 P159 20TN/DG (BUILT-UP-EXPORT)
5 C200 20LB/DG (EXCEPT BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CON-
TROL)
6 K32 18DB/YL (GAS)
7 C53 20LB (AUTOMATIC TEMPERATURE CONTROL) (3 ZONE HVAC)
8 C16 18DB/GY (BUILT-UP-EXPORT)
8 C16 20DB/GY (EXCEPT BUILT-UP-EXPORT)
9 C22 20LB/WT (3 ZONE HVAC)
9 D17 20WT/DG (AUTOMATIC TEMPERATURE CONTROL)
10 L13 20WT/YL (BUILT-UP-EXPORT)
10 C50 12DB/OR (3 ZONE HVAC)
11 C7 12DB
12 D22 20WT/TN (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL)
12 Z135 12BK/LB (EXCEPT BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CON-
TROL)
12 C153 12DB/BR (3 ZONE HVAC)
13 Z849 12BK/OR
14 A105 16DB/RD (BUILT-UP-EXPORT)
14 A105 18DB/RD (EXCEPT BUILT-UP-EXPORT)
15 A114 16GY/RD
16 F306 16DB/PK
17 C169 20DB/OR (AUTOMATIC TEMPERATURE CONTROL)
17 C154 20LB/OR (3 ZONE HVAC)
18 C121 20DB/DG (3 ZONE HVAC)
18 D22 20WT/TN (EXCEPT BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CON-
TROL)
18 P171 20TN/YL (BUILT-UP-EXPORT)
19 P160 18TN/LG (BUILT-UP-EXPORT)
20 F302 18GY/PK
21 F2 18PK/WT (GAS)
22 L78 18WT/OR (BUILT-UP-EXPORT)
23 P174 20TN/LB (BUILT-UP-EXPORT)
24 D25 20WT/VT
25 D25 20WT/VT
26 D25 20WT/VT
27 D25 20WT/VT
28 D25 20WT/VT
29 F20 20PK/WT
30 F100 18PK/VT
31 F201 18PK/OR
32 F504 20GY/PK (AUTOMATIC TEMPERATURE CONTROL)
32 F850 20LB/PK (3 ZONE HVAC)
33 P7 20LG/DG
34 P8 20LG/WT
35 P64 20TN (MEMORY)
36 P65 20TN/VT (MEMORY)
37 P66 20TN/LG (MEMORY)
38 P67 20TN/OR (MEMORY)
8Wa - 80 - 20 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

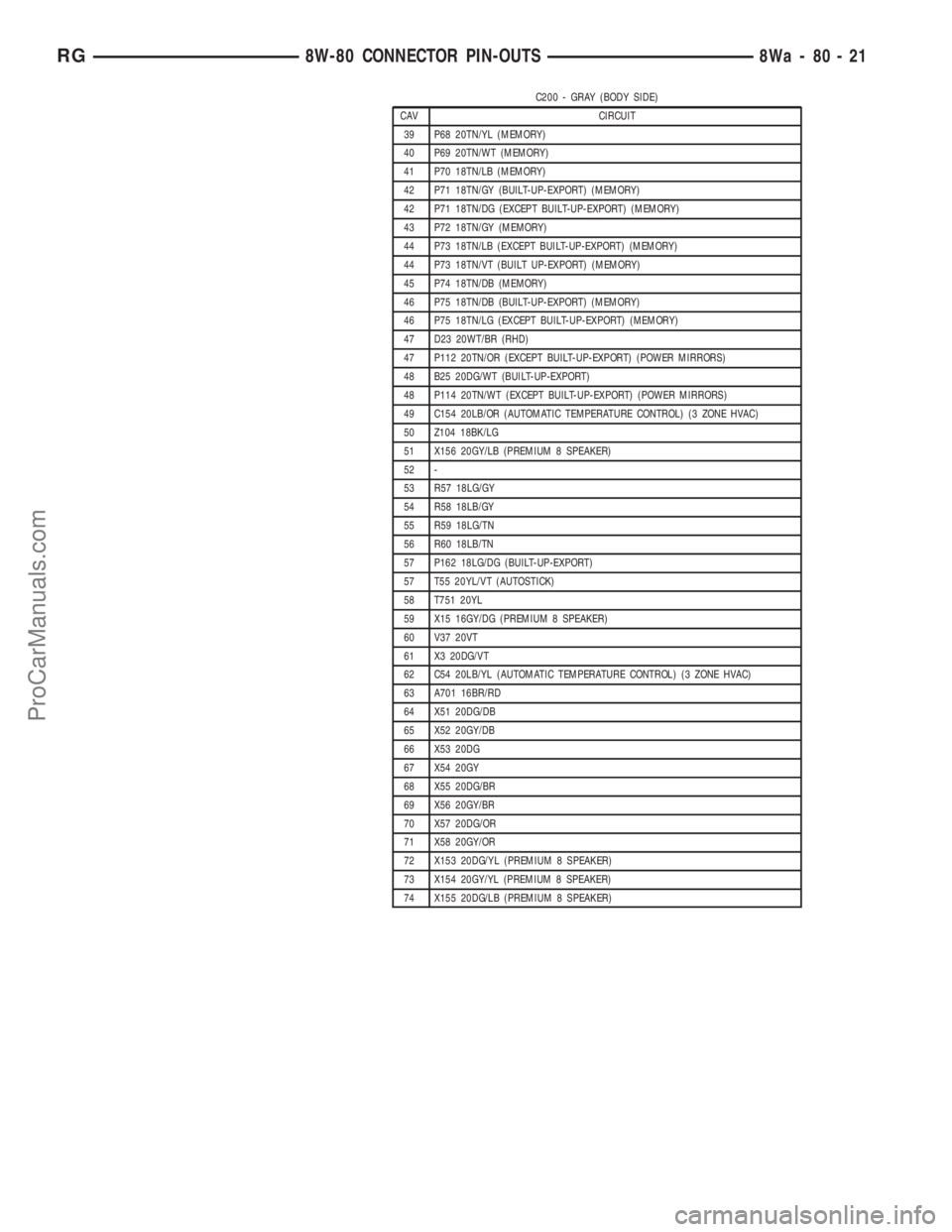

C200 - GRAY (BODY SIDE)
CAV CIRCUIT
39 P68 20TN/YL (MEMORY)
40 P69 20TN/WT (MEMORY)
41 P70 18TN/LB (MEMORY)
42 P71 18TN/GY (BUILT-UP-EXPORT) (MEMORY)
42 P71 18TN/DG (EXCEPT BUILT-UP-EXPORT) (MEMORY)
43 P72 18TN/GY (MEMORY)
44 P73 18TN/LB (EXCEPT BUILT-UP-EXPORT) (MEMORY)
44 P73 18TN/VT (BUILT UP-EXPORT) (MEMORY)
45 P74 18TN/DB (MEMORY)
46 P75 18TN/DB (BUILT-UP-EXPORT) (MEMORY)
46 P75 18TN/LG (EXCEPT BUILT-UP-EXPORT) (MEMORY)
47 D23 20WT/BR (RHD)
47 P112 20TN/OR (EXCEPT BUILT-UP-EXPORT) (POWER MIRRORS)
48 B25 20DG/WT (BUILT-UP-EXPORT)
48 P114 20TN/WT (EXCEPT BUILT-UP-EXPORT) (POWER MIRRORS)
49 C154 20LB/OR (AUTOMATIC TEMPERATURE CONTROL) (3 ZONE HVAC)
50 Z104 18BK/LG
51 X156 20GY/LB (PREMIUM 8 SPEAKER)
52 -
53 R57 18LG/GY
54 R58 18LB/GY
55 R59 18LG/TN
56 R60 18LB/TN
57 P162 18LG/DG (BUILT-UP-EXPORT)
57 T55 20YL/VT (AUTOSTICK)
58 T751 20YL
59 X15 16GY/DG (PREMIUM 8 SPEAKER)
60 V37 20VT
61 X3 20DG/VT
62 C54 20LB/YL (AUTOMATIC TEMPERATURE CONTROL) (3 ZONE HVAC)
63 A701 16BR/RD
64 X51 20DG/DB
65 X52 20GY/DB
66 X53 20DG
67 X54 20GY
68 X55 20DG/BR
69 X56 20GY/BR
70 X57 20DG/OR
71 X58 20GY/OR
72 X153 20DG/YL (PREMIUM 8 SPEAKER)
73 X154 20GY/YL (PREMIUM 8 SPEAKER)
74 X155 20DG/LB (PREMIUM 8 SPEAKER)
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-21
ProCarManuals.com

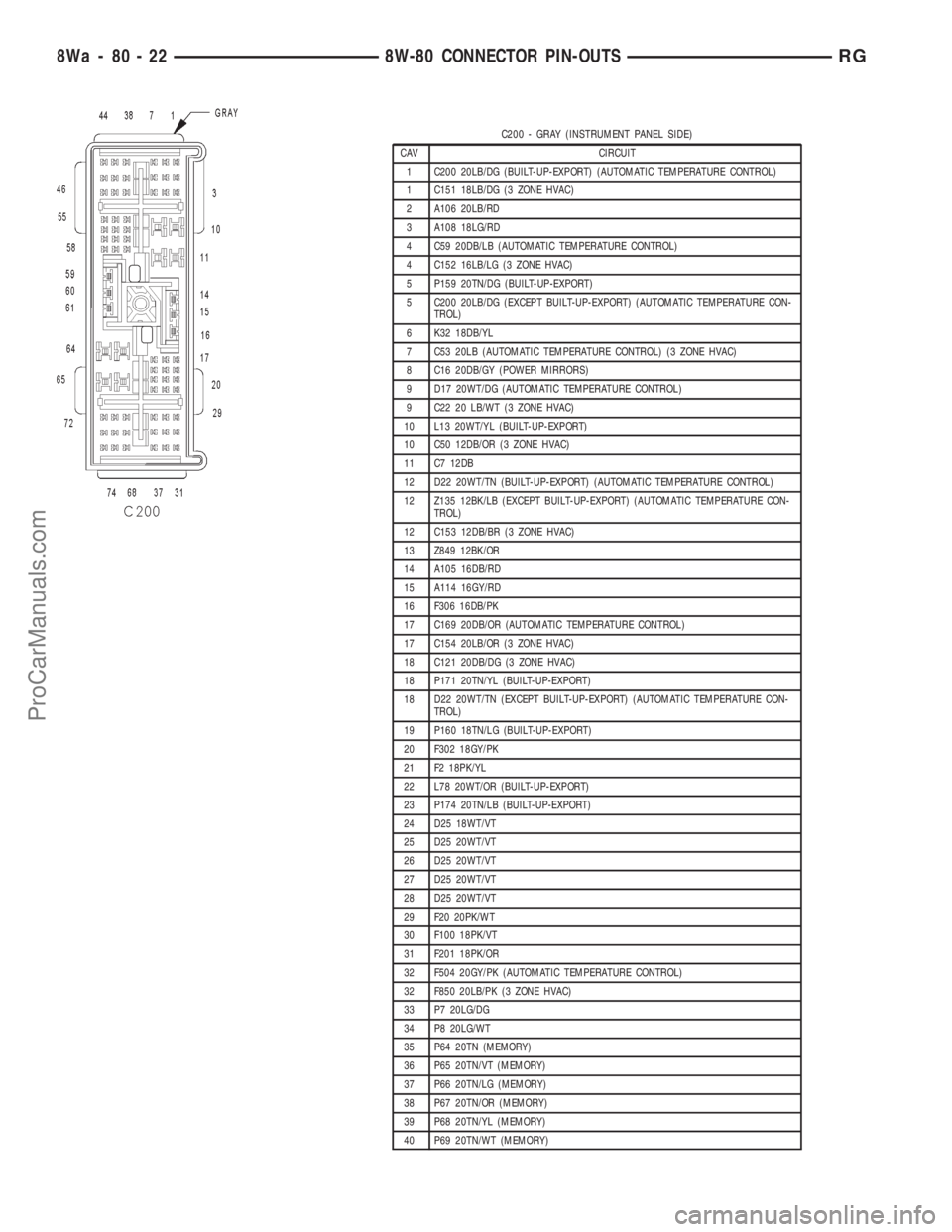

C200 - GRAY (INSTRUMENT PANEL SIDE)
CAV CIRCUIT
1 C200 20LB/DG (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL)
1 C151 18LB/DG (3 ZONE HVAC)
2 A106 20LB/RD
3 A108 18LG/RD
4 C59 20DB/LB (AUTOMATIC TEMPERATURE CONTROL)
4 C152 16LB/LG (3 ZONE HVAC)
5 P159 20TN/DG (BUILT-UP-EXPORT)
5 C200 20LB/DG (EXCEPT BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CON-
TROL)
6 K32 18DB/YL
7 C53 20LB (AUTOMATIC TEMPERATURE CONTROL) (3 ZONE HVAC)
8 C16 20DB/GY (POWER MIRRORS)
9 D17 20WT/DG (AUTOMATIC TEMPERATURE CONTROL)
9 C22 20 LB/WT (3 ZONE HVAC)
10 L13 20WT/YL (BUILT-UP-EXPORT)
10 C50 12DB/OR (3 ZONE HVAC)
11 C7 12DB
12 D22 20WT/TN (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL)
12 Z135 12BK/LB (EXCEPT BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CON-
TROL)
12 C153 12DB/BR (3 ZONE HVAC)
13 Z849 12BK/OR
14 A105 16DB/RD
15 A114 16GY/RD
16 F306 16DB/PK
17 C169 20DB/OR (AUTOMATIC TEMPERATURE CONTROL)
17 C154 20LB/OR (3 ZONE HVAC)
18 C121 20DB/DG (3 ZONE HVAC)
18 P171 20TN/YL (BUILT-UP-EXPORT)
18 D22 20WT/TN (EXCEPT BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CON-
TROL)
19 P160 18TN/LG (BUILT-UP-EXPORT)
20 F302 18GY/PK
21 F2 18PK/YL
22 L78 20WT/OR (BUILT-UP-EXPORT)
23 P174 20TN/LB (BUILT-UP-EXPORT)
24 D25 18WT/VT
25 D25 20WT/VT
26 D25 20WT/VT
27 D25 20WT/VT
28 D25 20WT/VT
29 F20 20PK/WT
30 F100 18PK/VT
31 F201 18PK/OR
32 F504 20GY/PK (AUTOMATIC TEMPERATURE CONTROL)
32 F850 20LB/PK (3 ZONE HVAC)
33 P7 20LG/DG
34 P8 20LG/WT
35 P64 20TN (MEMORY)
36 P65 20TN/VT (MEMORY)
37 P66 20TN/LG (MEMORY)
38 P67 20TN/OR (MEMORY)
39 P68 20TN/YL (MEMORY)
40 P69 20TN/WT (MEMORY)
8Wa - 80 - 22 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

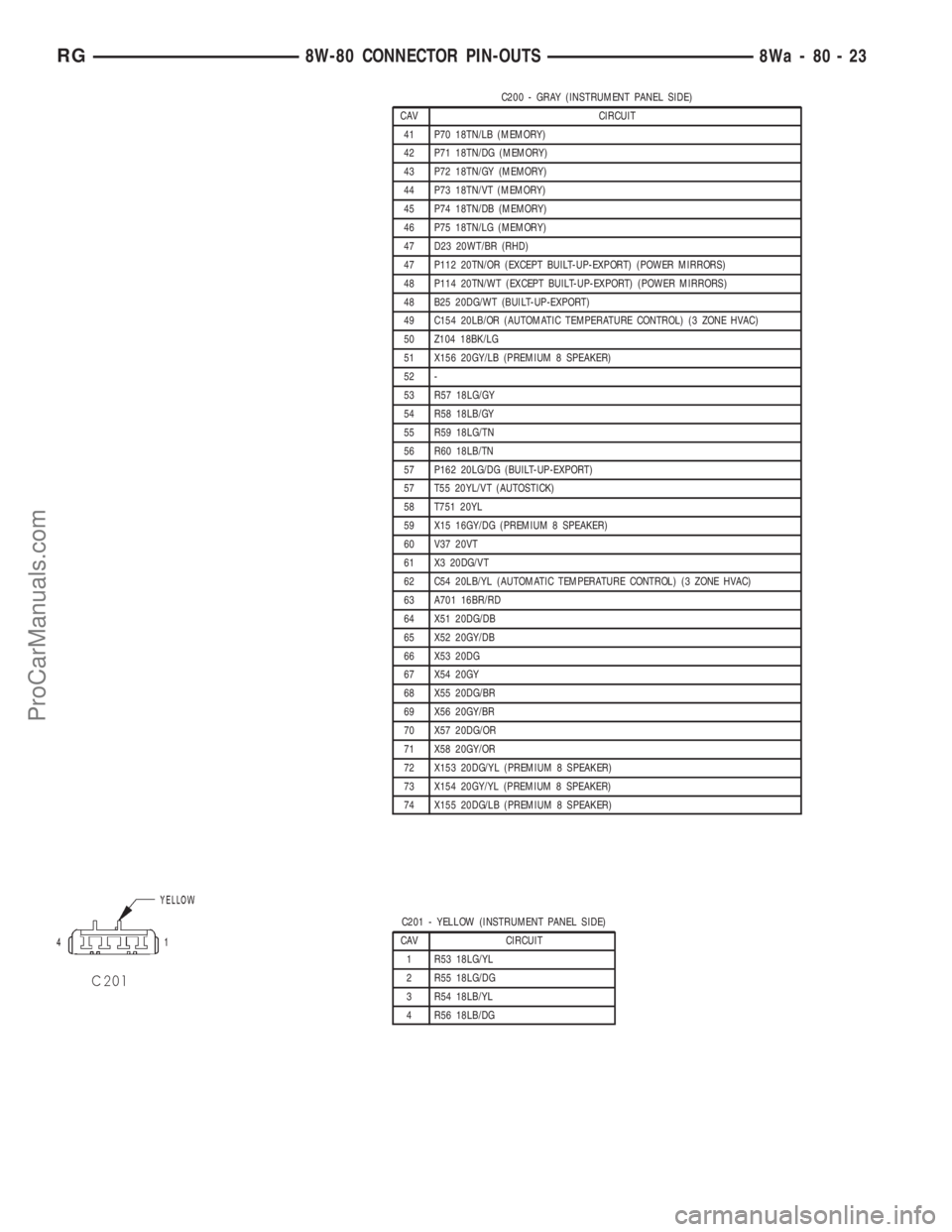

C200 - GRAY (INSTRUMENT PANEL SIDE)
CAV CIRCUIT
41 P70 18TN/LB (MEMORY)
42 P71 18TN/DG (MEMORY)
43 P72 18TN/GY (MEMORY)
44 P73 18TN/VT (MEMORY)
45 P74 18TN/DB (MEMORY)
46 P75 18TN/LG (MEMORY)
47 D23 20WT/BR (RHD)
47 P112 20TN/OR (EXCEPT BUILT-UP-EXPORT) (POWER MIRRORS)
48 P114 20TN/WT (EXCEPT BUILT-UP-EXPORT) (POWER MIRRORS)
48 B25 20DG/WT (BUILT-UP-EXPORT)
49 C154 20LB/OR (AUTOMATIC TEMPERATURE CONTROL) (3 ZONE HVAC)
50 Z104 18BK/LG
51 X156 20GY/LB (PREMIUM 8 SPEAKER)
52 -
53 R57 18LG/GY
54 R58 18LB/GY
55 R59 18LG/TN
56 R60 18LB/TN
57 P162 20LG/DG (BUILT-UP-EXPORT)
57 T55 20YL/VT (AUTOSTICK)
58 T751 20YL
59 X15 16GY/DG (PREMIUM 8 SPEAKER)
60 V37 20VT
61 X3 20DG/VT
62 C54 20LB/YL (AUTOMATIC TEMPERATURE CONTROL) (3 ZONE HVAC)
63 A701 16BR/RD
64 X51 20DG/DB
65 X52 20GY/DB
66 X53 20DG
67 X54 20GY
68 X55 20DG/BR
69 X56 20GY/BR
70 X57 20DG/OR
71 X58 20GY/OR
72 X153 20DG/YL (PREMIUM 8 SPEAKER)
73 X154 20GY/YL (PREMIUM 8 SPEAKER)
74 X155 20DG/LB (PREMIUM 8 SPEAKER)
C201 - YELLOW (INSTRUMENT PANEL SIDE)
CAV CIRCUIT
1 R53 18LG/YL
2 R55 18LG/DG
3 R54 18LB/YL
4 R56 18LB/DG
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-23
ProCarManuals.com

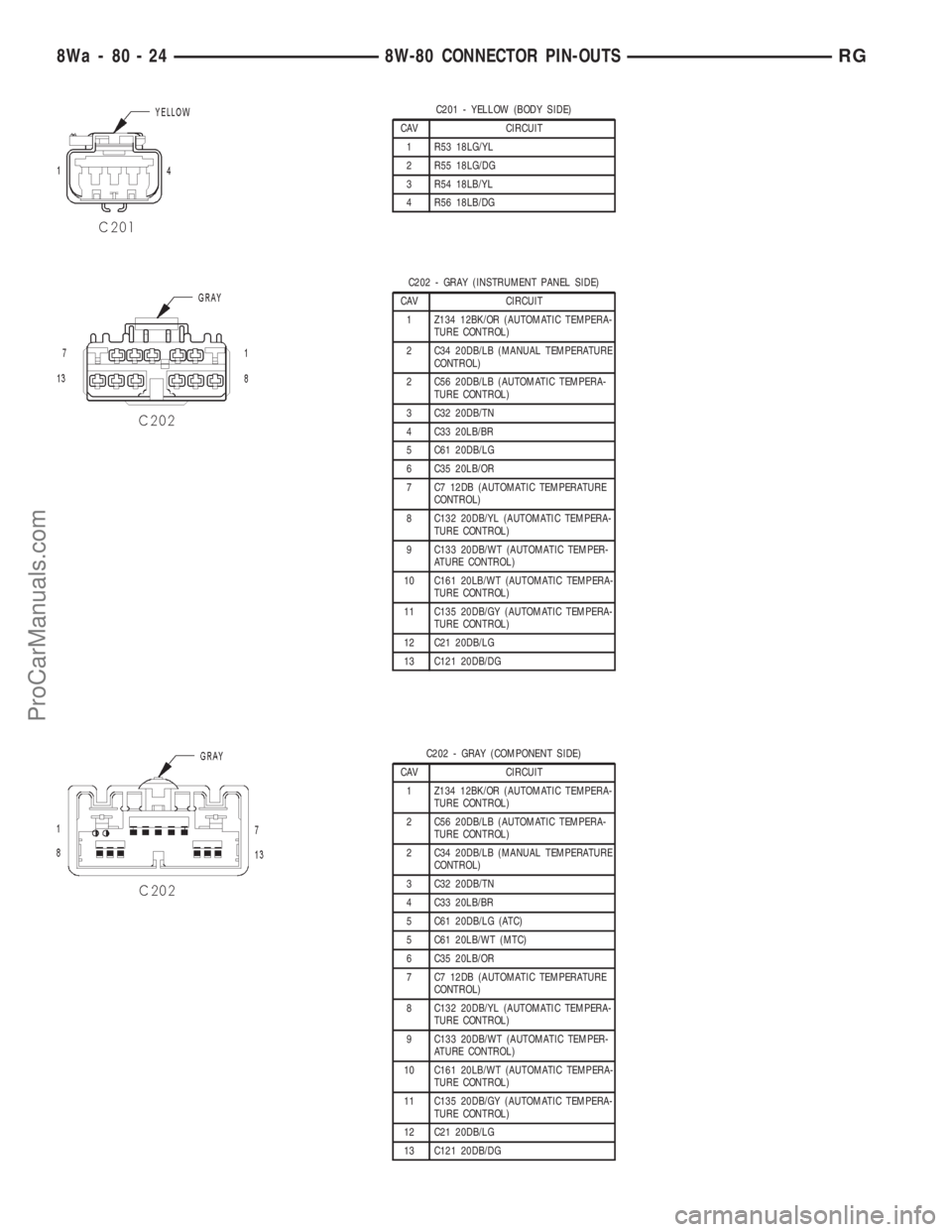

C201 - YELLOW (BODY SIDE)
CAV CIRCUIT
1 R53 18LG/YL
2 R55 18LG/DG
3 R54 18LB/YL
4 R56 18LB/DG
C202 - GRAY (INSTRUMENT PANEL SIDE)
CAV CIRCUIT
1 Z134 12BK/OR (AUTOMATIC TEMPERA-
TURE CONTROL)
2 C34 20DB/LB (MANUAL TEMPERATURE
CONTROL)
2 C56 20DB/LB (AUTOMATIC TEMPERA-
TURE CONTROL)
3 C32 20DB/TN
4 C33 20LB/BR
5 C61 20DB/LG
6 C35 20LB/OR
7 C7 12DB (AUTOMATIC TEMPERATURE
CONTROL)
8 C132 20DB/YL (AUTOMATIC TEMPERA-
TURE CONTROL)
9 C133 20DB/WT (AUTOMATIC TEMPER-
ATURE CONTROL)
10 C161 20LB/WT (AUTOMATIC TEMPERA-
TURE CONTROL)
11 C135 20DB/GY (AUTOMATIC TEMPERA-
TURE CONTROL)
12 C21 20DB/LG
13 C121 20DB/DG
C202 - GRAY (COMPONENT SIDE)
CAV CIRCUIT
1 Z134 12BK/OR (AUTOMATIC TEMPERA-
TURE CONTROL)
2 C56 20DB/LB (AUTOMATIC TEMPERA-
TURE CONTROL)
2 C34 20DB/LB (MANUAL TEMPERATURE
CONTROL)
3 C32 20DB/TN
4 C33 20LB/BR
5 C61 20DB/LG (ATC)
5 C61 20LB/WT (MTC)
6 C35 20LB/OR
7 C7 12DB (AUTOMATIC TEMPERATURE
CONTROL)
8 C132 20DB/YL (AUTOMATIC TEMPERA-
TURE CONTROL)
9 C133 20DB/WT (AUTOMATIC TEMPER-
ATURE CONTROL)
10 C161 20LB/WT (AUTOMATIC TEMPERA-
TURE CONTROL)
11 C135 20DB/GY (AUTOMATIC TEMPERA-
TURE CONTROL)
12 C21 20DB/LG
13 C121 20DB/DG
8Wa - 80 - 24 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

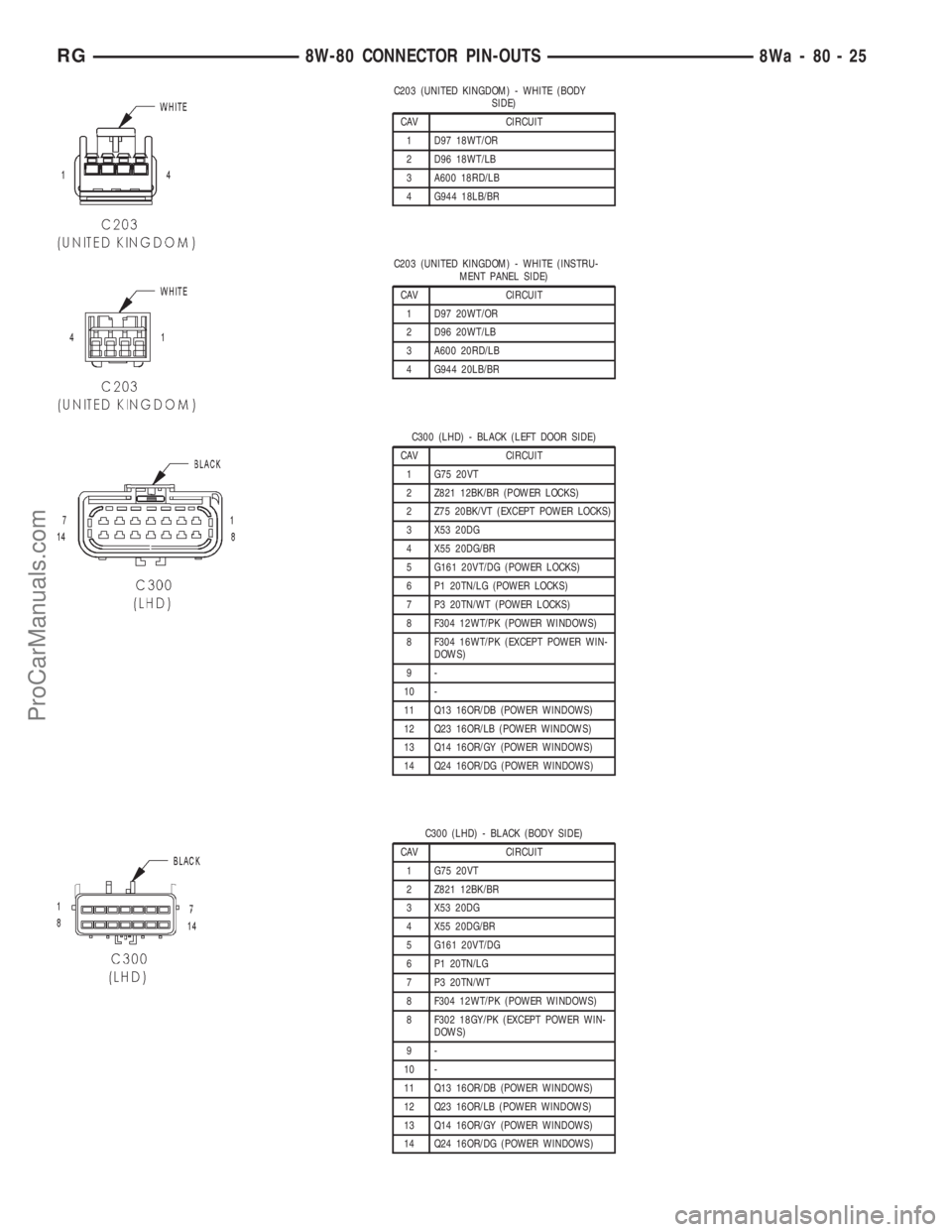

C203 (UNITED KINGDOM) - WHITE (BODY
SIDE)
CAV CIRCUIT
1 D97 18WT/OR
2 D96 18WT/LB
3 A600 18RD/LB
4 G944 18LB/BR
C203 (UNITED KINGDOM) - WHITE (INSTRU-
MENT PANEL SIDE)
CAV CIRCUIT
1 D97 20WT/OR
2 D96 20WT/LB
3 A600 20RD/LB
4 G944 20LB/BR
C300 (LHD) - BLACK (LEFT DOOR SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z821 12BK/BR (POWER LOCKS)
2 Z75 20BK/VT (EXCEPT POWER LOCKS)
3 X53 20DG
4 X55 20DG/BR
5 G161 20VT/DG (POWER LOCKS)
6 P1 20TN/LG (POWER LOCKS)
7 P3 20TN/WT (POWER LOCKS)
8 F304 12WT/PK (POWER WINDOWS)
8 F304 16WT/PK (EXCEPT POWER WIN-
DOWS)
9-
10 -
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/GY (POWER WINDOWS)
14 Q24 16OR/DG (POWER WINDOWS)
C300 (LHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z821 12BK/BR
3 X53 20DG
4 X55 20DG/BR
5 G161 20VT/DG
6 P1 20TN/LG
7 P3 20TN/WT
8 F304 12WT/PK (POWER WINDOWS)
8 F302 18GY/PK (EXCEPT POWER WIN-
DOWS)
9-
10 -
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/GY (POWER WINDOWS)
14 Q24 16OR/DG (POWER WINDOWS)
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-25
ProCarManuals.com

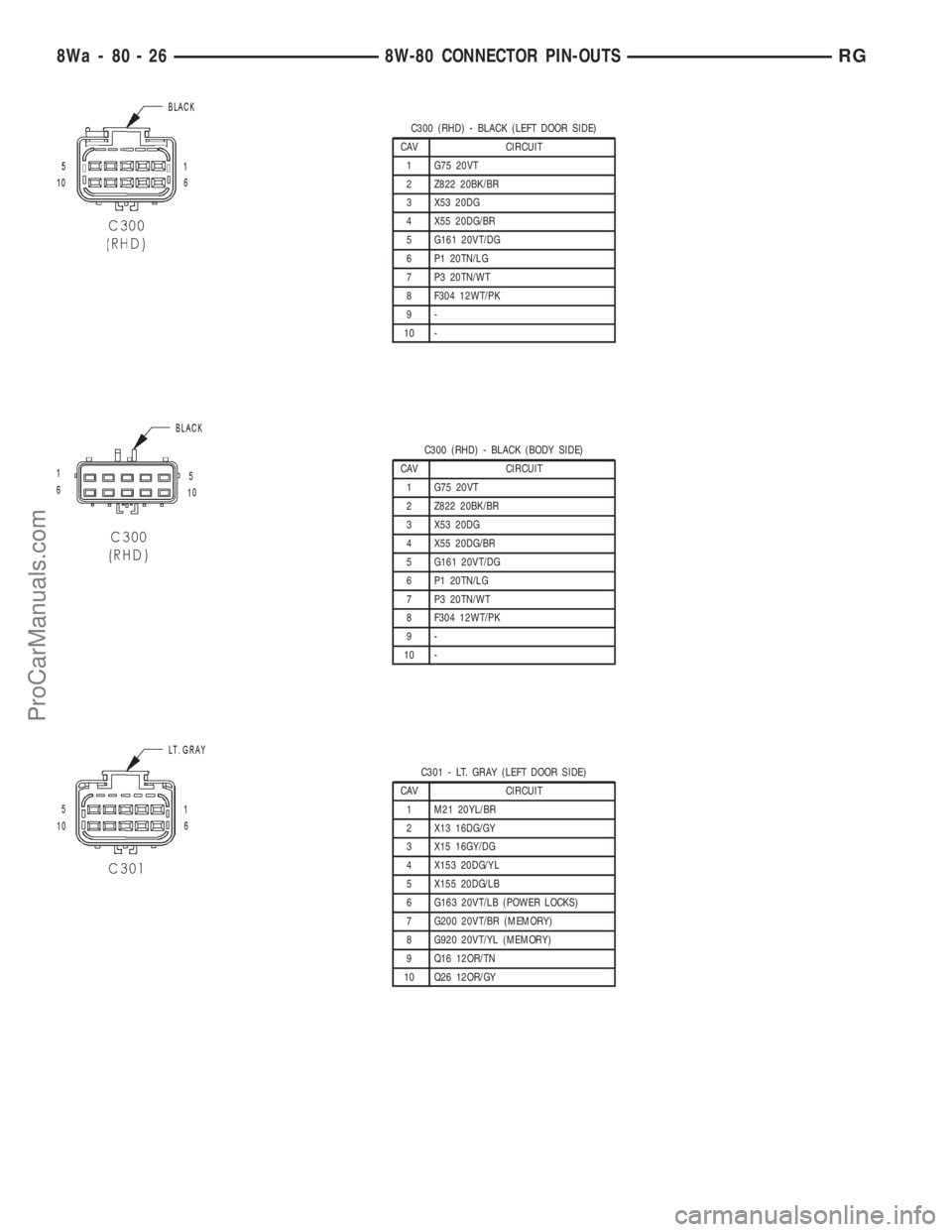

C300 (RHD) - BLACK (LEFT DOOR SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z822 20BK/BR
3 X53 20DG
4 X55 20DG/BR
5 G161 20VT/DG
6 P1 20TN/LG
7 P3 20TN/WT
8 F304 12WT/PK
9-
10 -
C300 (RHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z822 20BK/BR
3 X53 20DG
4 X55 20DG/BR
5 G161 20VT/DG
6 P1 20TN/LG
7 P3 20TN/WT
8 F304 12WT/PK
9-
10 -
C301 - LT. GRAY (LEFT DOOR SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2 X13 16DG/GY
3 X15 16GY/DG
4 X153 20DG/YL
5 X155 20DG/LB
6 G163 20VT/LB (POWER LOCKS)
7 G200 20VT/BR (MEMORY)
8 G920 20VT/YL (MEMORY)
9 Q16 12OR/TN
10 Q26 12OR/GY
8Wa - 80 - 26 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

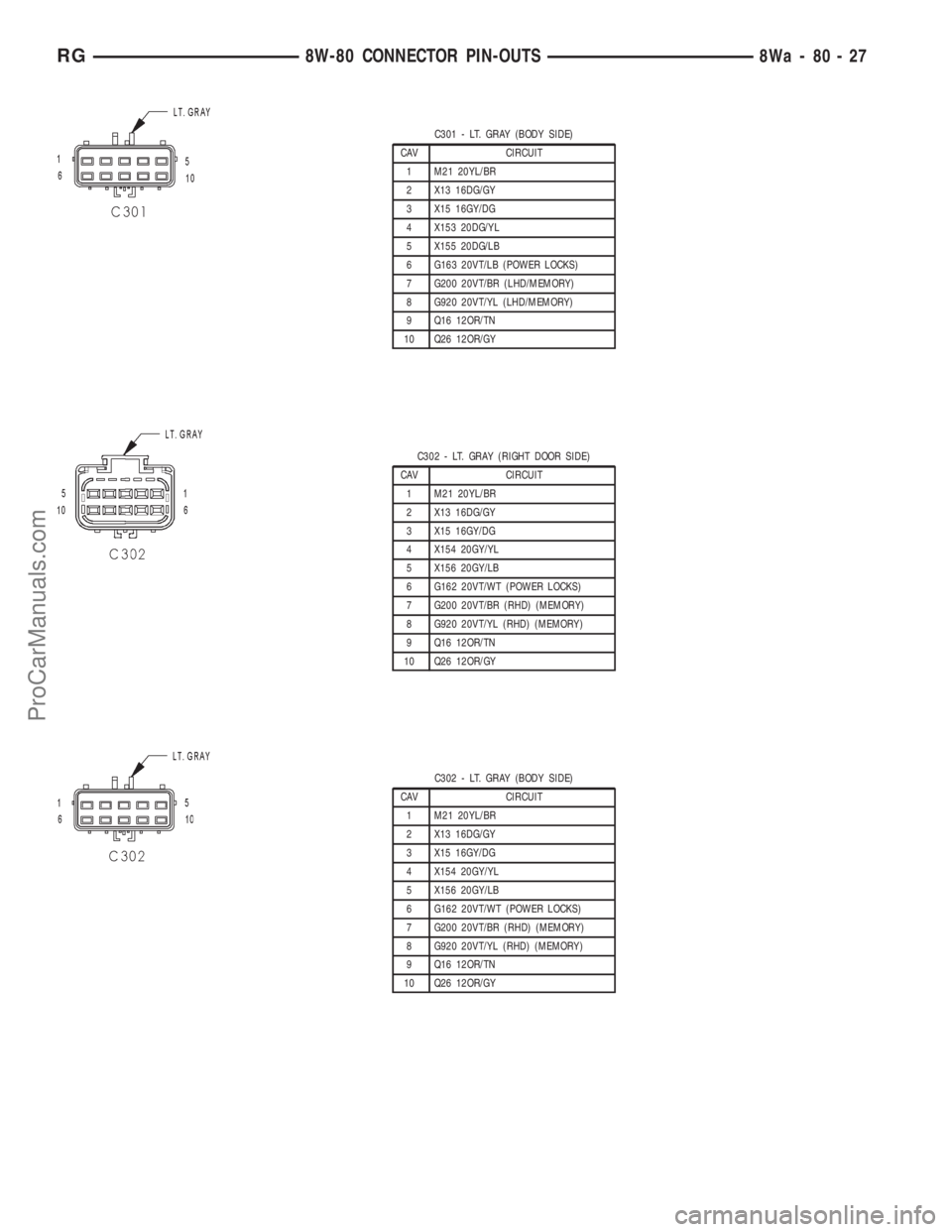

C301 - LT. GRAY (BODY SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2 X13 16DG/GY
3 X15 16GY/DG
4 X153 20DG/YL
5 X155 20DG/LB
6 G163 20VT/LB (POWER LOCKS)
7 G200 20VT/BR (LHD/MEMORY)
8 G920 20VT/YL (LHD/MEMORY)
9 Q16 12OR/TN
10 Q26 12OR/GY
C302 - LT. GRAY (RIGHT DOOR SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2 X13 16DG/GY
3 X15 16GY/DG
4 X154 20GY/YL
5 X156 20GY/LB
6 G162 20VT/WT (POWER LOCKS)
7 G200 20VT/BR (RHD) (MEMORY)
8 G920 20VT/YL (RHD) (MEMORY)
9 Q16 12OR/TN
10 Q26 12OR/GY
C302 - LT. GRAY (BODY SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2 X13 16DG/GY
3 X15 16GY/DG
4 X154 20GY/YL
5 X156 20GY/LB
6 G162 20VT/WT (POWER LOCKS)
7 G200 20VT/BR (RHD) (MEMORY)
8 G920 20VT/YL (RHD) (MEMORY)
9 Q16 12OR/TN
10 Q26 12OR/GY
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-27
ProCarManuals.com
