DODGE TRUCK 1993 Service Workshop Manual

0
- 32
LUBRICATION
AND
MAINTENANCE

•

Fig.
5 Parking Brake Ratio Lever Lubrication (2) Note any indication of brake overheating,
wheel dragging or the vehicle pulling to one side.
(3) Evaluate any performance complaints received
from the owner/operator. (4) Repair the brake system as necessary (refer to
Group 5—Brakes for additional information and ser­
vice procedures).

BODY
COMPONENT
MECHANISMS
LUBRICATION REQUIREMENTS
All operating mechanisms and linkages should be
lubricated when necessary. This will maintain ease of operation and provide protection against rust and
excessive wear. The door weatherstrip seals should
be lubricated to prolong their life as well as to im­ prove door sealing.

LUBRICANT SPECIFICATIONS
All applicable exterior and interior vehicle operat­
ing mechanisms should be:
• Inspected • Cleaned
• All the pivoting/sliding contact areas on the mech­ anisms should then be lubricated.
MOPAR®Multi-Mileage Lubricant or an equiva­
lent, should be used to lubricate the mechanisms.
The door weatherstrip seals should be lubricated
with silicone lubricant spray. Refer to the Body Lu­
bricant Specifications chart below for additional lu­
bricant applications.

LUBRICATION
(1) When necessary, lubricate the cab and cargo
box operating mechanisms with the specified lubri­
cants.

(2) Apply silicone lubricant to a cloth and wipe it
on door seals to avoid over-spray that can soil pas­
senger clothing. (3) Before applying lubricant, the component
should be wiped clean. After lubrication, any excess
lubricant should be removed.
(4) The hood latch, latch release mechanism, latch
striker and safety latch should be lubricated periodi­
cally.
(5) The door lock cylinders should be lubricated 2
times each year (preferably autumn and spring): • Spray a small amount of lock cylinder lubricant di­
rectly into the lock cylinder
• Apply a small amount to the key and insert it into
the lock cylinder • Rotate it to the locked position and then back to
the unlocked position several times
• Remove the key. Wipe the lubricant from it with a
clean cloth to avoid soiling of clothing.

TIRES
RECOMMENDED MAINTENANCE
The condition of the tires should be inspected. The
inflation pressures tested/corrected at the same time as the engine oil is changed and the oil filter is re­
placed.
The tires/wheels should be rotated periodically to
ensure even tread wear. The tires/wheels should be
rotated at the first 12 000 km (7,500-miles) interval.
Thereafter, at each 24 000 km (15,000-miles) inter­
val.
INSPECTION
Inspect the tires for excessive wear, damage. Test
the tires for the recommended inflation pressure and adjust the pressure accordingly. Refer to the tire in­
flation pressure decal located on the left door face. Also to Group 22—Tires And Wheels for tire pres­sure charts, tire replacement, and treadwear indica­

tors.

ROTATION
Tires/wheels should be rotated according to the rec­
ommended interval. The first tire/wheel rotation is
the most important for establishing the prevention of uneven tread wear. After rotation, adjust the tire in­
flation pressure to the air pressure recommended on
the decal located on the left door face.
Refer to Group 22—Tires And Wheels for the rec­
ommended method of tire/wheel rotation.

HEADLAMPS

MAINTENANCE SCHEDULE
Every six months check the headlamp beams to en­
sure that the headlamp beams are correctly posi­
tioned.

AIM
ADJUSTMENT
Refer to Group 8L—Lamps for headlamp aim ad­
justment procedures.

•

LUBRICATION
AND
MAINTENANCE

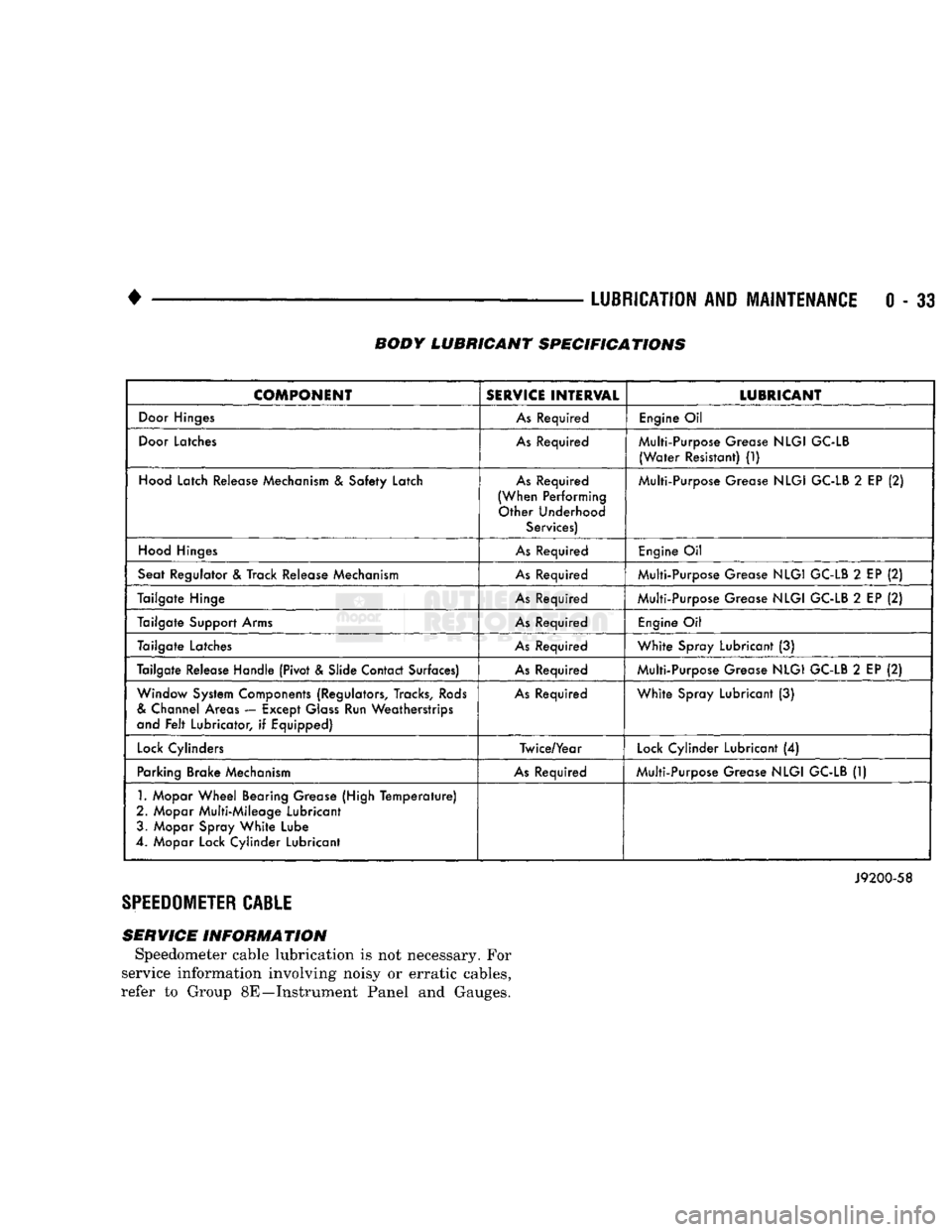

0 - 33 BODY LUBRICANT SPECIFICATIONS

COMPONENT
SERVICE
INTERVAL
LUBRICANT

Door
Hinges
As
Required
Engine
Oil

Door
Latches
As
Required Multi-Purpose Grease
NLGI
GC-LB

(Water
Resistant)
(1)

Hood
Latch Release Mechanism
&
Safety Latch
As
Required
(When Performing Other Underhood Services) Multi-Purpose Grease
NLGI
GC-LB
2
EP
(2)

Hood
Hinges
As
Required
Engine
Oil

Seat Regulator
&
Track Release Mechanism
As
Required Multi-Purpose Grease
NLGI
GC-LB
2
EP
(2)

Tailgate Hinge
As
Required Multi-Purpose Grease
NLGI
GC-LB
2
EP
(2)

Tailgate Support Arms
As
Required

Engine
Oil

Tailgate Latches
As
Required
White
Spray Lubricant
(3)

Tailgate Release Handle (Pivot & Slide Contact Surfaces)
As
Required Multi-Purpose Grease
NLGI
GC-LB
2
EP
(2)

Window System Components (Regulators, Tracks,
Rods

&
Channel Areas — Except
Glass
Run Weatherstrips
and
Felt
Lubricator,
if
Equipped)
As
Required

White
Spray Lubricant
(3)

Lock
Cylinders Twice/Year
Lock
Cylinder Lubricant
(4)

Parking Brake Mechanism
As
Required Multi-Purpose Grease
NLGI
GC-LB
(1)

1.
Mopar
Wheel
Bearing Grease (High
Temperature)

2. Mopar Multi-Mileage Lubricant 3. Mopar Spray
White
Lube
4. Mopar Lock Cylinder Lubricant

J9200-58

SPEEDOMETER
CABLE

SERVICE INFORMATION Speedometer cable lubrication is not necessary. For
service information involving noisy or erratic cables,
refer to Group 8E—Instrument Panel and Gauges.

/

•

FRONT SUSPENSION
AND
AXLE
2 - 1
CONTENTS

page

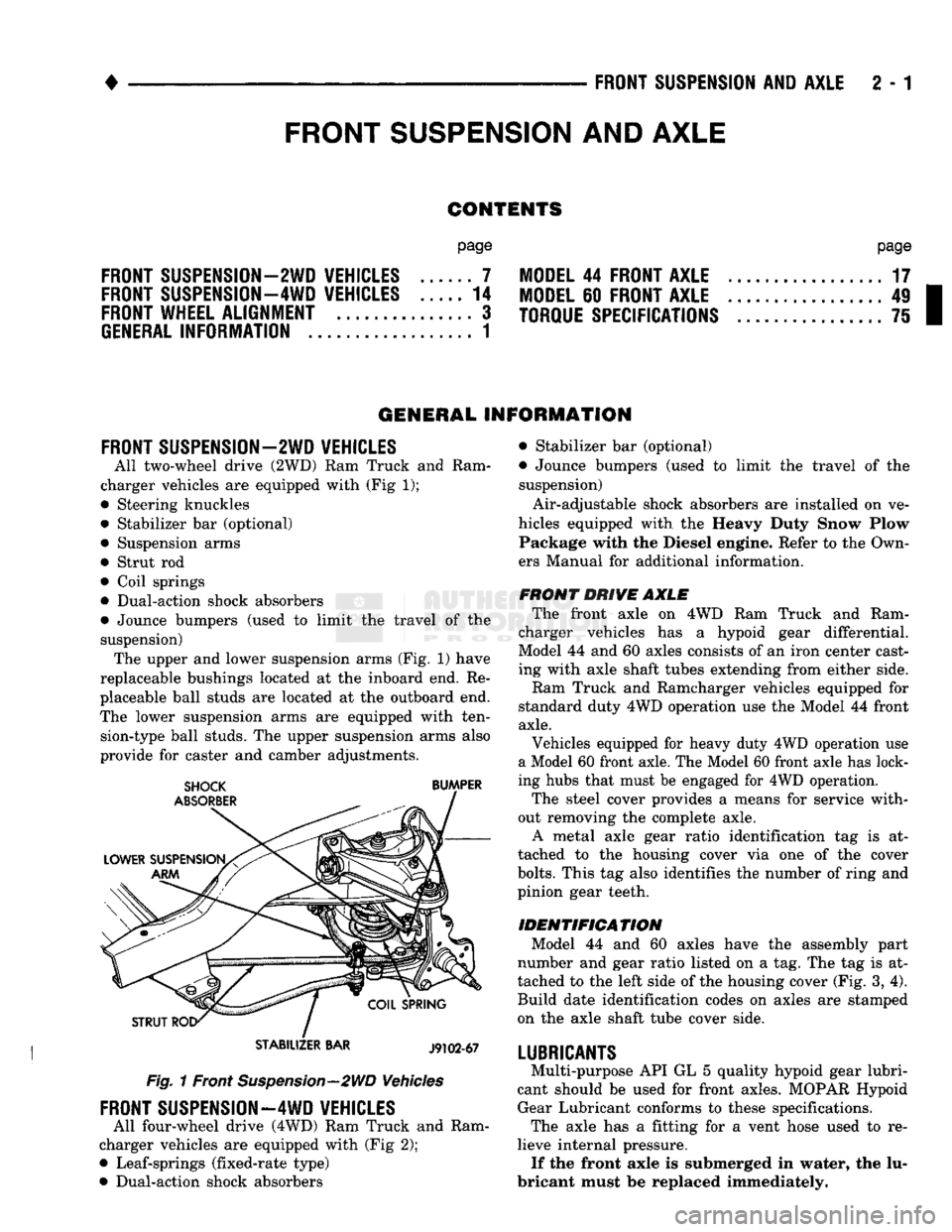

FRONT SUSPENSION—2WD VEHICLES
......
7

FRONT SUSPENSION—4WD VEHICLES
14

FRONT WHEEL
ALIGNMENT
...............
3

GENERAL INFORMATION
1
page

MODEL
44
FRONT AXLE
17

MODEL
80
FRONT AXLE
49

TORQUE SPECIFICATIONS
75

GENERAL
INFORMATION

FRONT SUSPENSION—2WD VEHICLES
All two-wheel drive (2WD)
Ram
Truck
and
Ram­
charger vehicles
are
equipped with (Fig
1);

• Steering knuckles
• Stabilizer
bar
(optional) • Suspension arms
• Strut
rod

• Coil springs
• Dual-action shock absorbers
• Jounce bumpers (used
to
limit
the
travel
of the

suspension) The upper and lower suspension arms (Fig.
1)
have
replaceable bushings located
at the
inboard end.
Re­

placeable ball studs
are
located
at
the
outboard end.
The lower suspension arms
are
equipped with ten­ sion-type ball studs. The upper suspension arms also
provide
for
caster
and
camber adjustments.
STABILIZER
BAR
J9102-67

Fig. 1 Front Suspension—2WD Vehicles

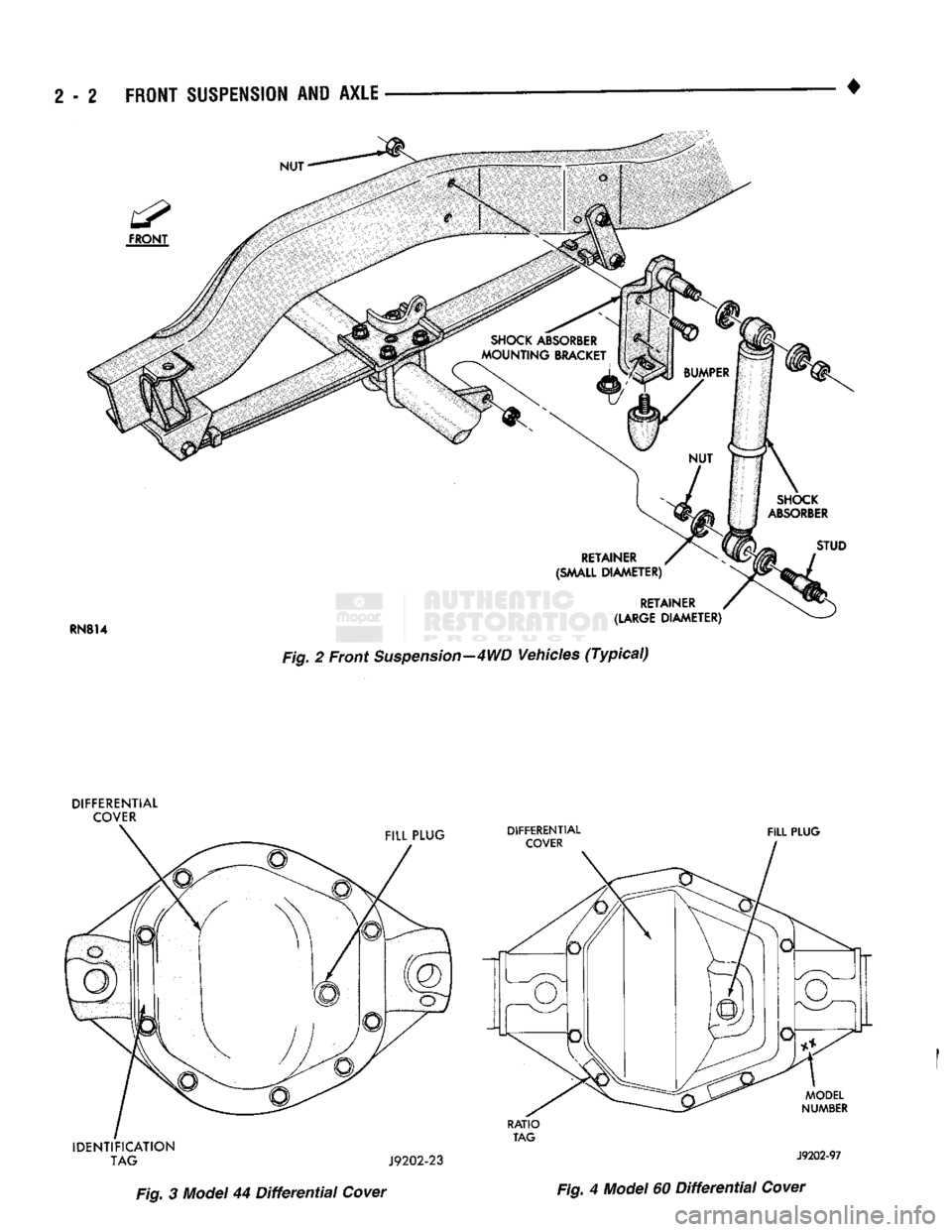

FRONT SUSPENSION—4WD VEHICLES
All four-wheel drive (4WD) Ram Truck
and
Ram­
charger vehicles
are
equipped with (Fig
2);
• Leaf-springs (fixed-rate type)
• Dual-action shock absorbers • Stabilizer
bar
(optional)
• Jounce bumpers (used
to
limit
the
travel
of the

suspension)
Air-adjustable shock absorbers
are
installed
on
ve­

hicles equipped with
the
Heavy Duty Snow Plow Package with
the
Diesel engine. Refer
to
the Own­
ers Manual
for
additional information.
FRONT DRIVE AXLE The front axle
on 4WD Ram
Truck
and
Ram­
charger vehicles
has a
hypoid gear differential.
Model
44
and
60
axles consists
of
an iron center cast­
ing with axle shaft tubes extending from either side.
Ram Truck
and
Ramcharger vehicles equipped
for

standard duty 4WD operation use
the
Model
44
front
axle.
Vehicles equipped
for
heavy duty 4WD operation
use

a Model 60 front axle. The Model 60 front axle has lock­
ing hubs that must
be
engaged
for
4WD operation.
The steel cover provides
a
means
for
service with­
out removing
the
complete axle. A metal axle gear ratio identification
tag is at­

tached
to the
housing cover
via one of the
cover

bolts.
This
tag
also identifies
the
number
of
ring and
pinion gear teeth.
IDENTIFICATION Model
44 and 60
axles have
the
assembly part
number
and
gear ratio listed
on a
tag. The
tag
is at­

tached
to
the
left side
of
the housing cover (Fig.
3,
4).
Build date identification codes
on
axles
are
stamped
on
the
axle shaft tube cover side.

LUBRICANTS
Multi-purpose API
GL
5
quality hypoid gear lubri­
cant should
be
used
for
front axles. MOPAR Hypoid Gear Lubricant conforms
to
these specifications. The axle
has a
fitting
for a
vent hose used
to re­

lieve internal pressure. If the front axle
is
submerged
in
water,
the
lu­

bricant must
be
replaced immediately.

FRONT
SUSPENSION
AND
AXLE

2 - 2
FRONT
SUSPENSION AND
AXLE

•

FRONT SUSPENSION
AND
AXLE
2 - 3

FRONT
WHEEL
ALIGNMENT

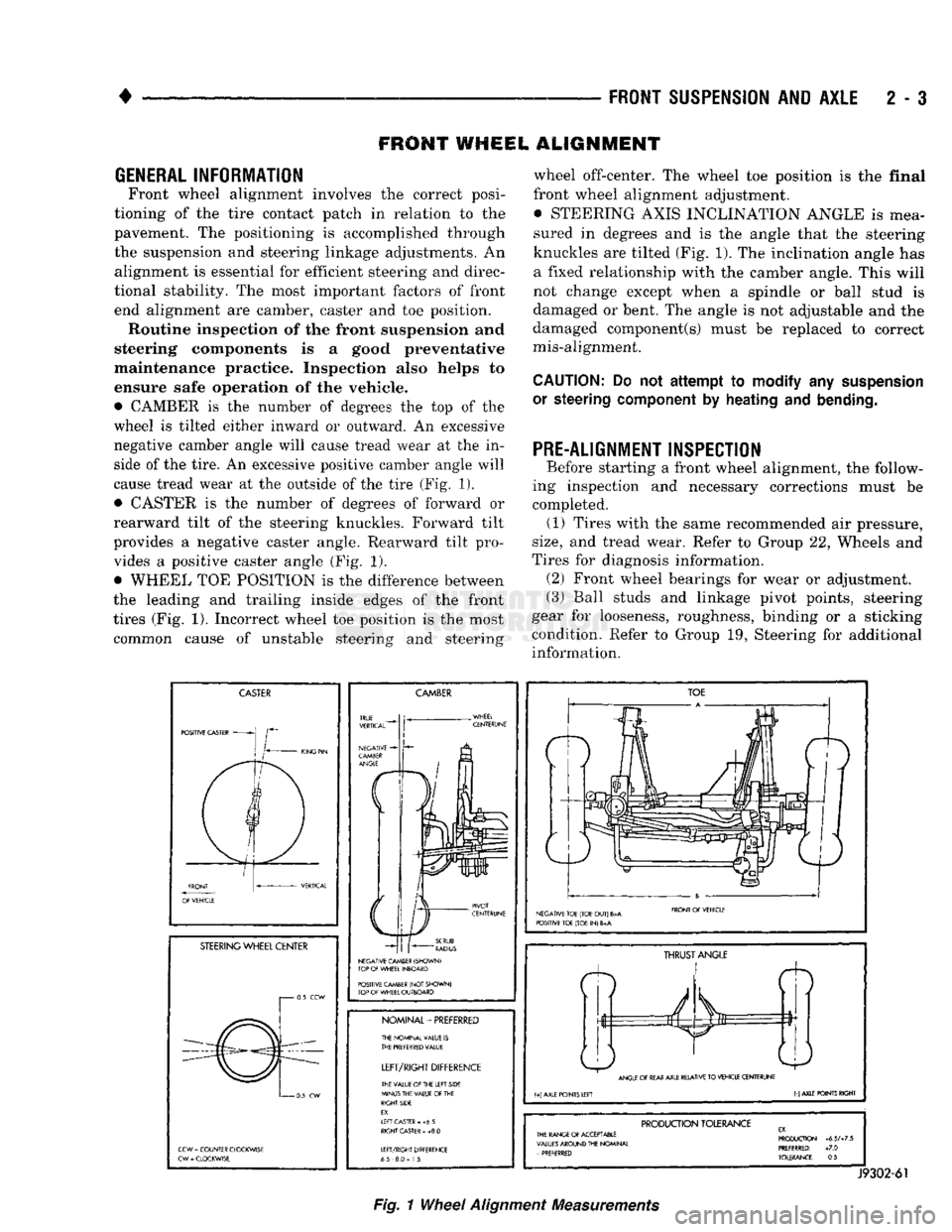

GENERAL
INFORMATION
Front wheel alignment involves
the
correct posi­
tioning
of the
tire contact patch
in
relation
to the

pavement.
The
positioning
is
accomplished through
the suspension
and
steering linkage adjustments.
An
alignment
is
essential
for
efficient steering
and
direc­
tional stability.
The
most important factors
of
front
end alignment
are
camber, caster
and toe
position. Routine inspection
of
the front
suspension
and
steering components
is a
good
preventative

maintenance practice.
Inspection
also
helps
to
ensure
safe operation
of the
vehicle.

• CAMBER
is the
number
of
degrees
the top of the

wheel
is
tilted either inward
or
outward.
An
excessive
negative camber angle will cause tread wear
at the in­
side
of
the tire.
An
excessive positive camber angle will
cause tread wear
at the
outside
of
the tire (Fig.
1),
• CASTER
is the
number
of
degrees
of
forward
or

rearward tilt
of the
steering knuckles. Forward tilt
provides
a
negative caster angle. Rearward tilt pro­ vides
a
positive caster angle
(Fig. 1).

• WHEEL
TOE
POSITION
is the
difference between
the leading
and
trailing inside edges
of the
front
tires (Fig.
1).
Incorrect wheel
toe
position
is the
most common cause
of
unstable steering
and
steering wheel off-center.
The
wheel
toe
position
is the
final
front wheel alignment adjustment. • STEERING AXIS INCLINATION ANGLE
is
mea­
sured
in
degrees
and is the
angle that
the
steering
knuckles
are
tilted (Fig. 1).
The
inclination angle
has

a fixed relationship with
the
camber angle. This will
not change except when
a
spindle
or
ball stud
is

damaged
or
bent.
The
angle
is not
adjustable
and the

damaged component(s) must
be
replaced
to
correct
mis-alignment.

CAUTION:
Do not
attempt to modify
any
suspension

or steering
component
by
heating
and
bending.

PRE-ALIGNMENT INSPECTION
Before starting
a
front wheel alignment,
the
follow­
ing inspection
and
necessary corrections must
be
completed.
(1)
Tires with
the
same recommended
air
pressure,

size,
and
tread wear. Refer
to
Group
22,
Wheels
and

Tires
for
diagnosis information. (2) Front wheel bearings
for
wear
or
adjustment.
(3) Ball studs
and
linkage pivot points, steering
gear
for
looseness, roughness, binding
or a
sticking
condition. Refer
to
Group
19,
Steering
for
additional information.
CASTER

POSITIVE CASTER
STEERING
WHEEL CENTER

i 0.5
CCW
0
5
CW

CCW
=
COUNTER CLOCKWISE
CW
-
CLOCKWISE
CAMBER

NEGATIVE CAMBER (SHOWN)
TOP
OF
WHEEL INBOARD
POSITIVE CAMBER
(NOT
SHOWN)
TOP
OF
WHEEL OUTBOARD
NOMINAL-PREFERRED

THE NOMINAL VALUE
IS

THE
PREFERRED
VALUE

LEFT/RIGHT
DIFFERENCE

THE VALUE
Of
THE LEFT SIDE
MINUS THE VALUE
OF
THE
RIGHT SIDE

EX.

If
FT CASTER
- +6 5

RIGHT
CASTER
»
+8.0

LEFT/RIGHT DIFFERENCE

65 8.0
=
1
5
TOE

NEGATIVE TOE (TOE
OUT)
B>A
POSITIVE TOE (TOE
IN) 6 FRONT
Of
VEHICLE
ft
THRUST
ANGLE

ANGLE
OF
REAR
AXLE RELATIVE
TO
VEHICLE CENTERUNE

(+)
AXLE POINTS LEFT
(-)
AXLE POINTS RIGHT

PRODUCTION
TOLERANCE
THE RANGE
Of
ACCEPTABLE

VALUES
AROUND THE NOMINAL

-
PREFERRED PRODUCTION
+6.5A7.5

PREFERRED:
+7.0

TOLERANCE:
0.5
J9302-61

Fig.
1
Wheel
Alignment
Measurements

2 - 4 FRONT SUSPENSION AND AXLE
•

I
FRONT END
|
|*?£E;
LOOSE
OR WORN
FRONT WHEEL
BEARINGS

LOOSE
C

SHOCKS

MOUNTir
WAR

SHOCK
A )RWORN

JSORBER

nIG
HARD-

E
OR
BSORBER
EXCiSSIVE
PLAY

STEERING

LINKAGE
LOOSE
OR WORN
FRONT WHEEL
BEARINGS

LOOSE
C

STEERINC
SHAFT
C
)RWORN

7
COLUMN
OUPLING
DIFFICULT

STEERING
LOOSE
OR WORN
WHEEL BEARINGS
TIRE/V
OUT OF
f
VHEEL
JA
LANCE
LOW OR UNEVEN
TIRE
AIR
PRESSURE

LO(
WHEEL B
DSE

EARINGS
LOW OR UNEVEN
TIRE AIR
PRESSURE
1vsnciEi

I
1
PULLS
TO I

I
|
ONE SIDE
j
LOOSE,
WORN
OR

GLAZED
P/S PUMP BELT LOW OR UNEVEN
TIRE PRESSURE
WHILE BR
REFE

BRAKES
AKING—

R
TO

SERVICE

LOOSE
STEERING
GEAR-TO-FRAME
RAIL BOLTS
LOOSE
STEERING

GEAR-TO-FRAME
RAIL BOLTS UNEVEN TIRE TREAD
WEAR,
OR
EX­

CESSIVELY
WORN TIRE TREAD
BROKEN
OR WEAK

REAR
SPRING LOW
POWER STEERING
FLUID
LEVEL
BROKEN
OR WEAK

REAR
SPRING
WORN

UPPER
SUSPENSION ARM BUSHINGS WORN TIE-

ROD
END

BALL
STUDS WORN TIE-

ROD
END

BALL
STUDS
SHOCK
ABSORBER

NOT FUNCTIONING
CORRECTLY
LACK
OF ASSIST
FROM POWER

STEERING
PUMP
LOOSE
OR WORN

SUSPENSION
BUSHINGS

WORN LOWER

SUSPENSION
ARM
PIVOT
BUSHINGS INCORRECT

STEERING
GEAR ADJUSTMENT
LOOSE
OR WORN

SUSPENSION
ARM
BUSHINGS
INCORRECT

STEERING
GEAR ADJUSTMENT
BALL
STUDS

REQUIRE

LUBRICATION INCORRECT FRONT
WHEEL ALIGNMENT (EITHER CASTER OR CAMBER)

LOOSE
LOWER

SUSPENSION
ARM
LOOSE
OR WORN

UPPER
SUSPENSION ARM BALL STUDS
LOOSE
OR WORN

SUSPENSION
ARM
BUSHINGS
STEERING
GEAR
LUBRICANT LEVEL LOW
WORN ISOLATOR

PAD
BETWEEN COIL
SPRING
AND

FRAME
BRACKET INCORRECT FRONT-
WHEEL ALIGNMENT (PARTICULARLY
CASTER)
INCORRECT FRONT
WHEEL ALIGNMENT INCORRECT

STEERING
GEAR ADJUSTMENT

STEERING
GEAR

MALFUNCTION
INCORRECT FRONT
WHEEL ALIGNMENT (PARTICULARLY
CASTER)

J9002-97
SUSPENSION AND STEERING
SYSTEM
DIAGNOSIS

•

FRONT
SUSPENSION
AND
AXLE
2 - 5 (4) Front wheels for excessive radial, lateral
runout and unbalance. Refer to Group 22, Wheels and Tires for diagnosis information.
(5) Suspension components for wear and noise. Check
components for correct torque. Refer to Groups 2 and 3, Suspension and Axle for additional information.

WHEEL
ALIGNMENT
MEASUREMENTS/ADJUSTMENTS
The front wheel alignment positions must be set to
the specified limits. This will prevent abnormal tire
tread wear. The equipment manufacturer's recommenda­
tions for use of their
equipment
should always
be followed. All
damaged
front suspension sys­
tem components
should
be replaced. Do not at­ tempt to straighten any
bent
component.

CAMBER AND CASTER-2WD VEHICLES Camber and caster angle adjustments involve repo­
sitioning the upper suspension arm cam adjustment
bolts (Fig. 2). Alignment adjustments are accom­
plished by loosening the nuts and changing the posi­
tion of the cam bolt.
(1) Remove all foreign material from the adjust­
ment bolt threads.
(2) Record the camber and caster measurements
before loosening the adjustment bolt nuts.
(3) The camber angle should be adjusted as near as
possible to the preferred angle. The caster should be
the same at both sides of the vehicle. Refer to the Specifications chart.
CAMBER AND CASTER—4WD VEHICLES For 4WD vehicles, the correct wheel camber (verti­
cal tilt) angle is factory preset at zero degree (0°).
Camber cannot be altered by adjustment.
CAUTION: Do not attempt to
adjust
the
camber
an­
gle by
heating
or bending the axle or any
suspen­

sion
component. If camber angle is
incorrect,
the
component(s)
causing
an
incorrect
angle must be replaced.
(1) It is important that the camber (vertical tilt)
angle be the same for both front wheels.
(2) The camber angle should be measured with ac­
curate wheel alignment equipment. The acceptable
range is -1° to +1°. Refer to the Specifications chart.
Road test the vehicle and observe the steering
wheel return-to-center position. Before road testing,
check
and
correct
the tire
inflation pressures. Inflate
both
of the front tires
with exactly the
same
pressure.
During the road test, make vehicle turns to both
the left and right. If the steering wheel returns to­
ward the center position unassisted, the caster angle is correct. However, if the steering wheel does not re­ turn toward the center position unassisted, an incor­
rect caster angle is probable.
(1) The caster angle is factory preset at positive
two degrees
(
+
2°).
The acceptable range is +1/2° to +
3
1/2°.
(2) The caster angle should be measured with ac­
curate wheel alignment equipment.
(3) Caster angle can be adjusted by installing ta­
pered shims between the front axle pads and the spring brackets. The caster angle should be adjusted
as near as possible to the preferred angle.
(4) Record the caster measurement before remov­
ing the original shims from the spring pads.
(5) The caster should be the same at both sides of
the vehicle. Refer to the Specifications chart.
RN1030

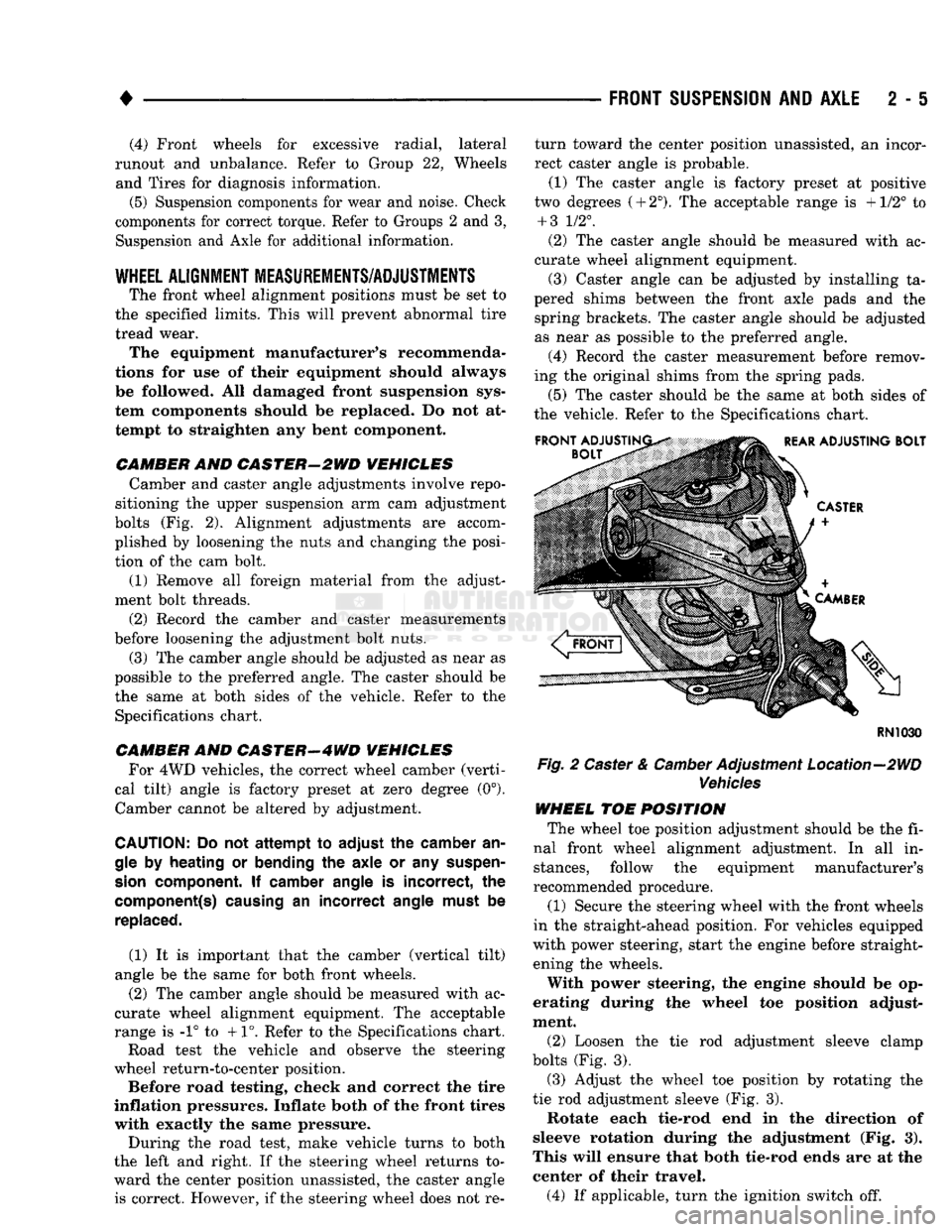

Fig.
2 Caster &
Camber
Adjustment Location—2WD
Vehicles

WHEEL TOE POSITION The wheel toe position adjustment should be the fi­
nal front wheel alignment adjustment. In all in­ stances, follow the equipment manufacturer's
recommended procedure.
(1) Secure the steering wheel with the front wheels
in the straight-ahead position. For vehicles equipped
with power steering, start the engine before straight­ ening the wheels.
With power steering, the engine should be op­
erating during the wheel toe position adjust­
ment.
(2) Loosen the tie rod adjustment sleeve clamp
bolts (Fig. 3).
(3) Adjust the wheel toe position by rotating the
tie rod adjustment sleeve (Fig. 3). Rotate each tie-rod end in the direction of
sleeve rotation during the adjustment (Fig. 3).
This will ensure that both tie-rod ends are at the center of their travel.
(4) If applicable, turn the ignition switch off.

2
- 6
FRONT
SUSPENSION
AND
AXLE

•
(5) Position the adjustment sleeve clamps so the
ends are not located at the sleeve slot. Tighten the
clamp bolt nuts to 26 N*m (225 in. lbs.) torque.
Tighten Model D350 and all 4WD vehicle (heavy
duty tie rods) nuts to 34 N*m (25 ft. lbs.) torque. En­
sure clamp bolts are located at the underside of the
sleeve.

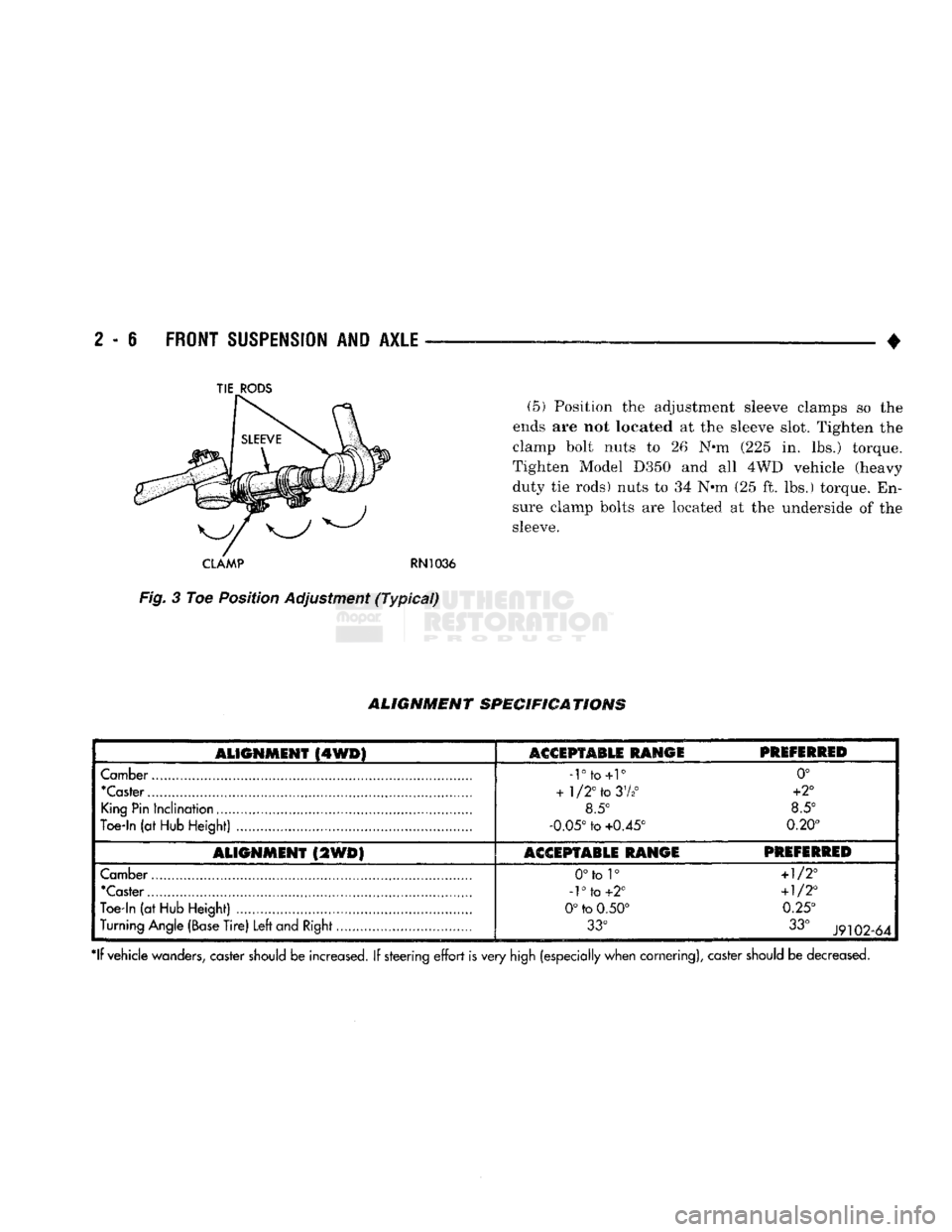

CLAMP
RN1036

Fig.
3 Toe Position Adjustment
(Typical)

ALIGNMENT
SPECIFICATIONS

ALIGNMENT
(4WD)
ASGSPTABLE RANGE
PREFERRED

Camber
-rto+r
0°

"Caster
+
1/2°
to
37*°
+2°

King
Pin
Inclination
8.5° 8.5°

Toe-In
(at
Hub
Height)
-0.05°
to
+0.45° 0.20°

ALIGNMENT
(2WD)
ACCEPTABLE RANGE PREFERRED

Camber
0°to 1°
+1/2°

'Caster
-1°
to
+2°
+1/2°

Toe-in
(at
Hub
Height)
0°
to
0.50° 0.25°

Turning
Angle
(Base
Tire)
Left
and
Right
33°

33°
J9102-64

*lf vehicle
wanders,
caster
should
be increased. If steering
effort
is very
high
(especially when cornering), caster
should
be decreased.
TIE
RODS

•

FRONT
SUSPENSION
AND
AXLE
2 • 7
FRONT SUSPENSION
—2WD
VEHICLES

INDEX

page

Coil Springs
9
Lower Ball Stud
. 10

Lower Suspension
Arm 10

Lower Suspension
Arm
Bushing
11

Lower Suspension
Arm
Strut
8

Service
Information
7

Shock
Absorber
9
page

Stabilizer
Bar 8

Steering Knuckle
13
Upper Ball Stud
11

Upper Suspension
Arm 11

Upper Suspension
Arm
Bushing Replacement
. . . 12

Wheel
Hub and
Bearings
7

SERVICE
INFORMATION
Periodic lubrication of the front suspension (steer­
ing) system components is required. Refer to Group 0, Lubrication And Maintenance for the service in­
terval.
Rubber bushings must never be lubricated.
All front suspension components that are
cushioned by rubber should be tightened with
the suspension system at the normal height.

WHEEL
HUB
AND
BEARINGS

REMOVAL (1) Block the brake pedal in the up (non-depressed)
position.
(2) Raise and support the vehicle.
(3) Remove the wheel.
(4) Remove bolts from the disc brake caliper.
(5) Separate the disc brake caliper from the rotor.
Position and support the caliper away from the im­
mediate work area. Do not allow the caliper to
hang from the brake fluid hose.
(6) Remove the dust cap, cotter pin, and remaining
hub components from the spindle (Fig. 1).

CAUTION:
Use care
to
prevent
the
inner wheel bear­
ing
and
bearing seal from contacting
the
steering
knuckle spindle threads during removal
(Fig. 1).

Otherwise,
the
threads, bearing,
and
seal could
all
be damaged.

(7) Carefully slide the wheel hub/rotor from steer­
ing knuckle spindle (Fig. 1).
(8) For bearing cleaning or replacement, remove
the seal and inner wheel bearing from the wheel
hub/rotor bore (Fig. 1).
CLEANING AND INSPECTION (1) Thoroughly clean both wheel bearings and in­
terior of the hub/rotor (Fig. 1). Remove all of the residual lubricant.
(2) To clean the bearings:
• Soak them in an appropriate cleaning solvent
BRAKE
INNER

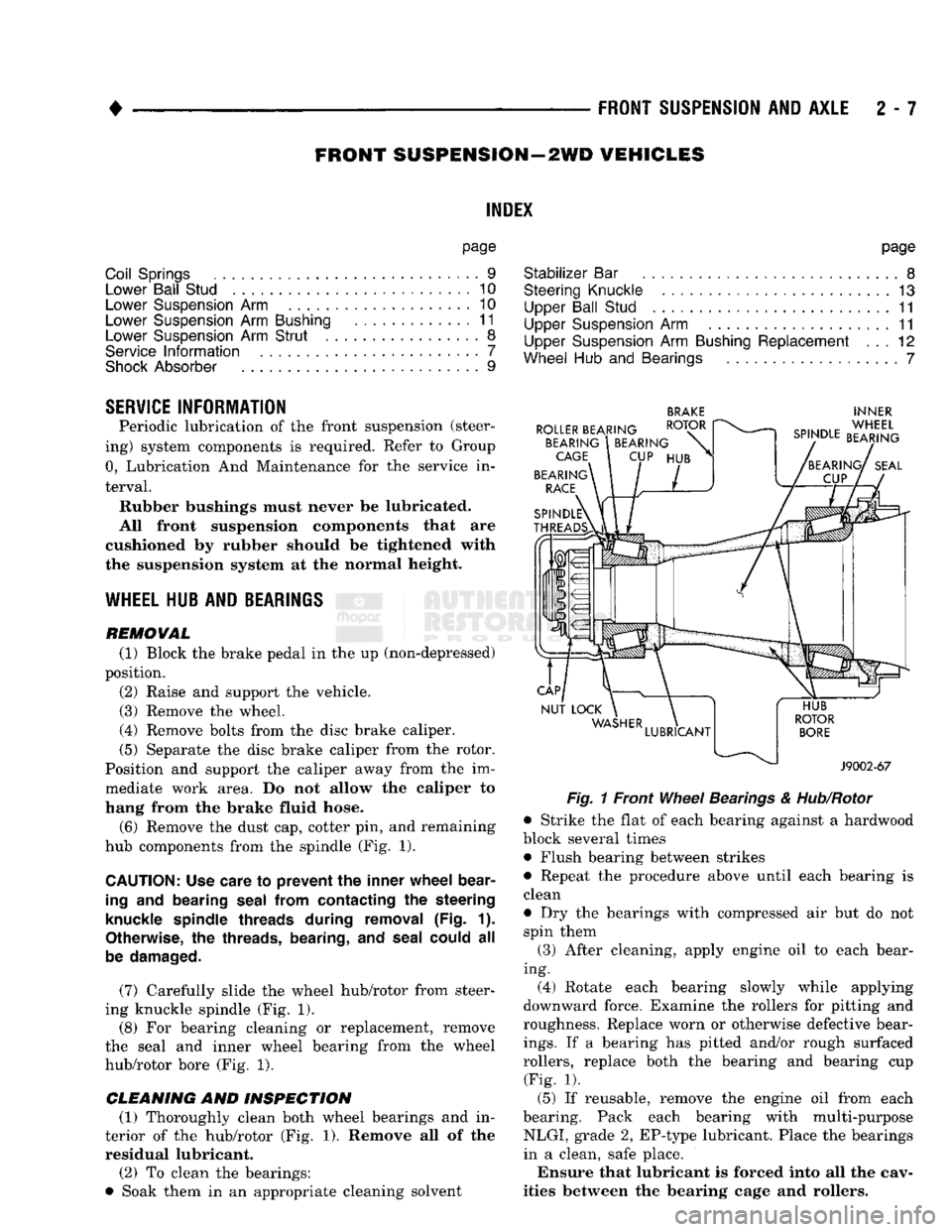

Fig.
1 Front
Wheel
Bearings
&
Hub/Rotor

• Strike the flat of each bearing against a hardwood
block several times • Flush bearing between strikes
• Repeat the procedure above until each bearing is
clean
• Dry the bearings with compressed air but do not spin them
(3) After cleaning, apply engine oil to each bear­
ing. (4) Rotate each bearing slowly while applying
downward force. Examine the rollers for pitting and
roughness. Replace worn or otherwise defective bear­
ings.
If a bearing has pitted and/or rough surfaced
rollers, replace both the bearing and bearing cup (Fig. 1).
(5) If reusable, remove the engine oil from each
bearing. Pack each bearing with multi-purpose NLGI, grade 2, EP-type lubricant. Place the bearings
in a clean, safe place.
Ensure that lubricant is forced into all the cav­
ities between the bearing cage and rollers.
