FIAT 500L LIVING 2014 2.G Owners Manual

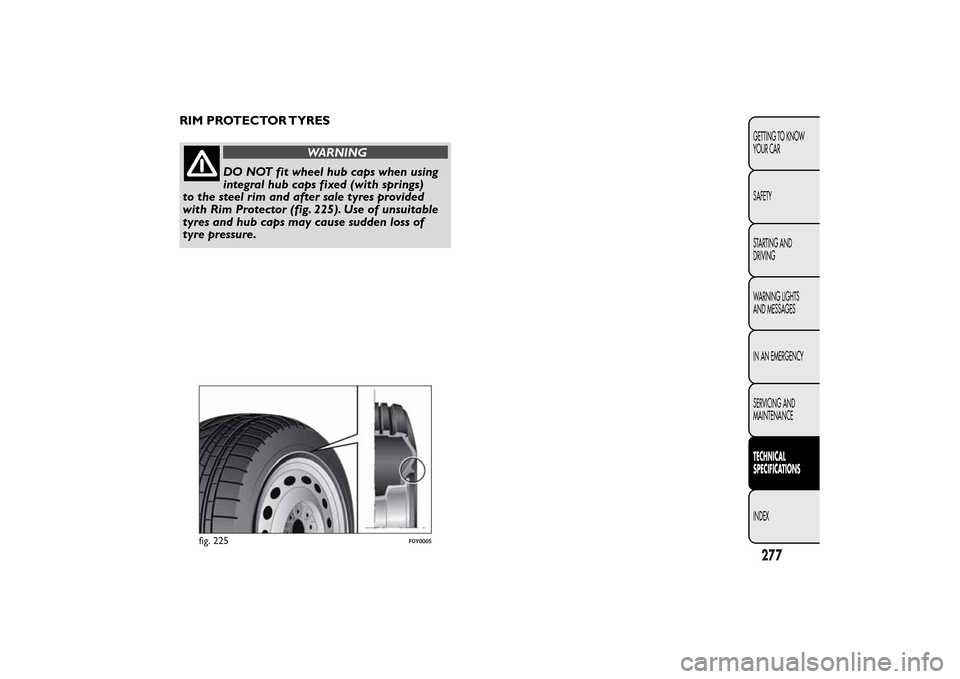

RIM PROTECTOR TYRES
WARNING
DO NOT fit wheel hub caps when using
integral hub caps fixed (with springs)
to the steel rim and after sale tyres provided
with Rim Protector (fig. 225). Use of unsuitable
tyres and hub caps may cause sudden loss of
tyre pressure.
fig. 225
F0Y0005
277GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

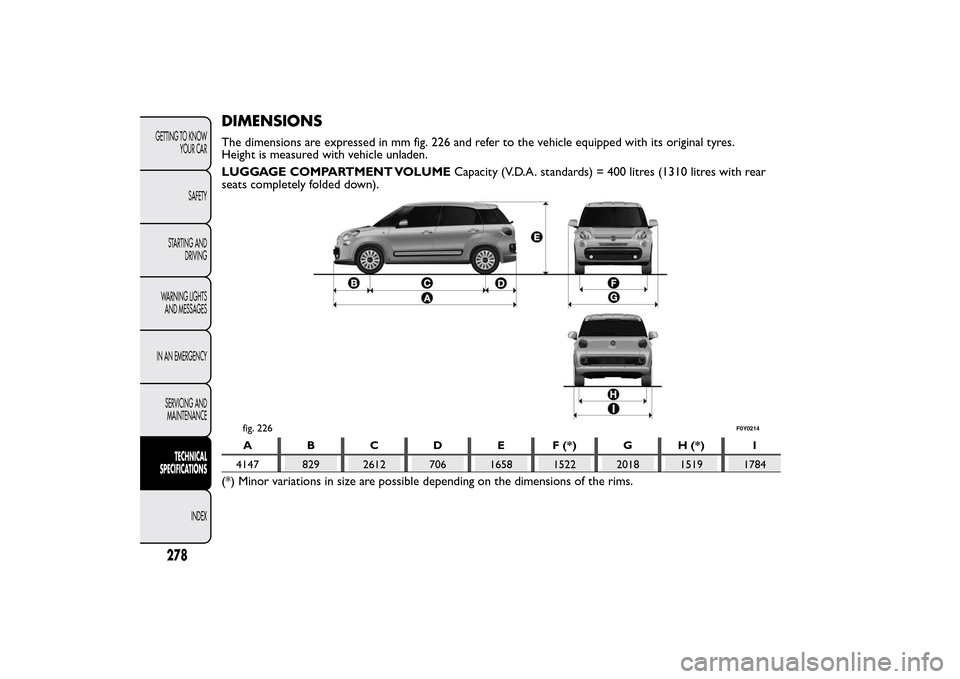

DIMENSIONSThe dimensions are expressed in mm fig. 226 and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen.
LUGGAGE COMPARTMENT VOLUMECapacity (V.D.A. standards) = 400 litres (1310 litres with rear
seats completely folded down).
A B C D E F (*) G H (*) I
4147 829 2612 706 1658 1522 2018 1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
fig. 226
F0Y0214
278GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

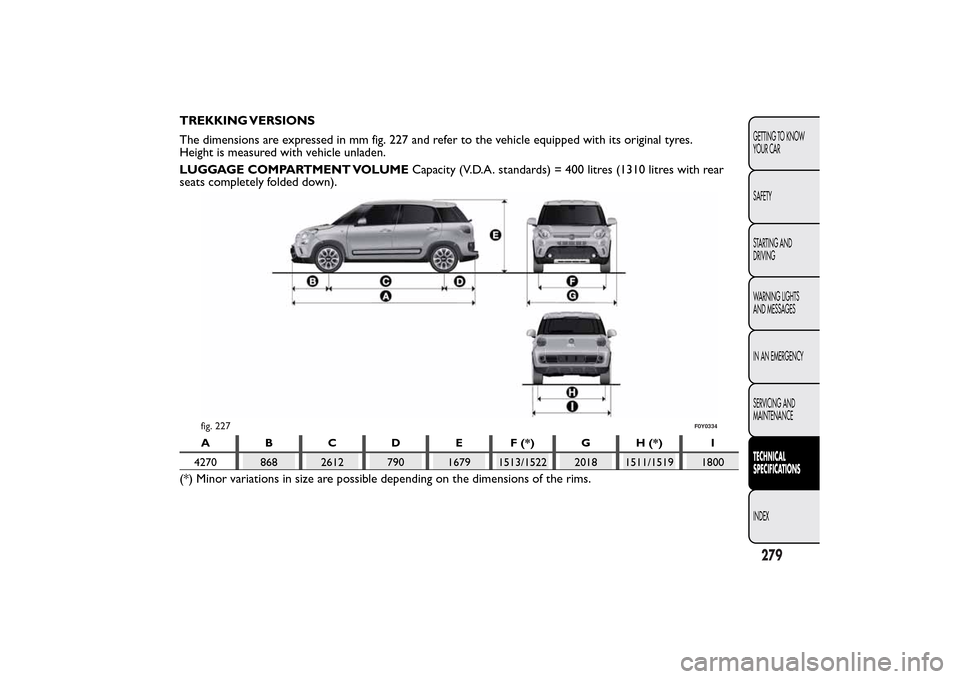

TREKKING VERSIONS
The dimensions are expressed in mm fig. 227 and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen.
LUGGAGE COMPARTMENT VOLUMECapacity (V.D.A. standards) = 400 litres (1310 litres with rear
seats completely folded down).
A B C D E F (*) G H (*) I
4270 868 2612 790 1679 1513/1522 2018 1511/1519 1800
(*) Minor variations in size are possible depending on the dimensions of the rims.
fig. 227
F0Y0334
279GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

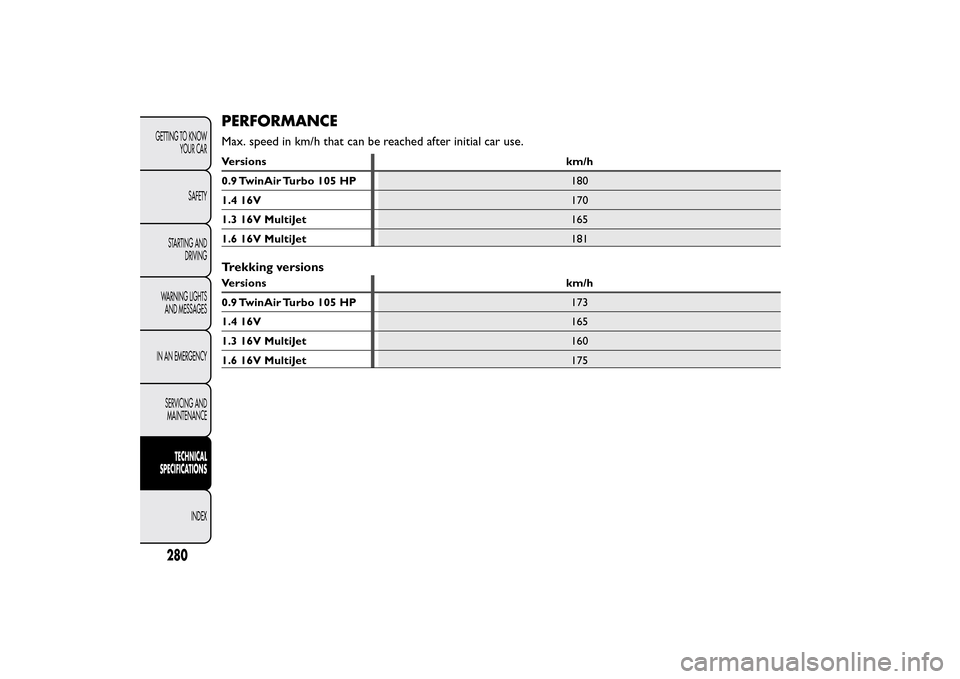

PERFORMANCEMax. speed in km/h that can be reached after initial car use.Versions km/h
0.9 TwinAir Turbo 105 HP180
1.4 16V170
1.3 16V MultiJet165
1.6 16V MultiJet181Trekking versionsVersions km/h
0.9 TwinAir Turbo 105 HP173
1.4 16V165
1.3 16V MultiJet160
1.6 16V MultiJet175
280GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

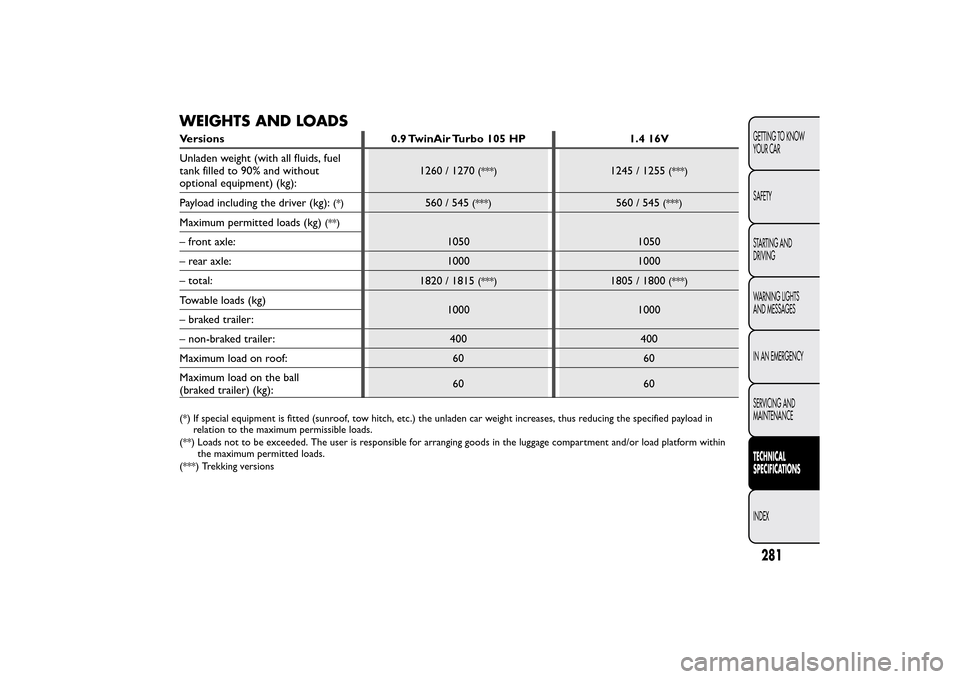

WEIGHTS AND LOADSVersions 0.9 TwinAir Turbo 105 HP 1.4 16V
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment) (kg):1260 / 1270
(***)
1245 / 1255
(***)
Payload including the driver (kg):
(*)
560 / 545
(***)
560 / 545
(***)
Maximum permitted loads (kg)
(**)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1820 / 1815
(***)
1805 / 1800
(***)
Towable loads (kg)
1000 1000
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on the ball
(braked trailer) (kg):60 60(***) Trekking versions (*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permissible loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
281GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

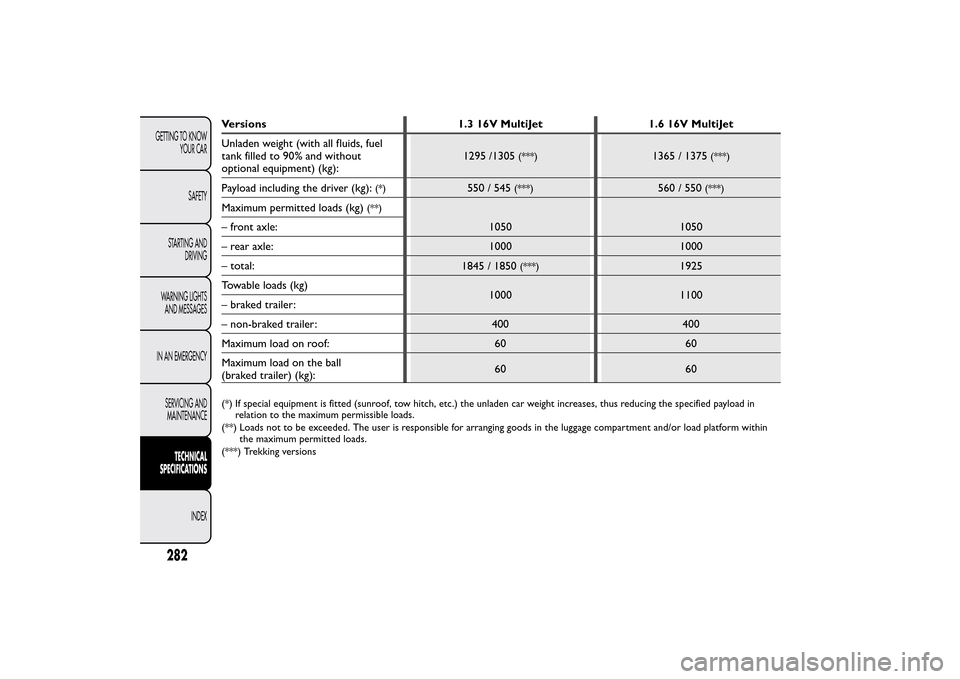

Versions 1.3 16V MultiJet 1.6 16V MultiJet
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment) (kg):1295 /1305
(***)
1365 / 1375
(***)
Payload including the driver (kg):
(*)
550 / 545
(***)
560 / 550
(***)
Maximum permitted loads (kg)
(**)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1845 / 1850
(***)
1925
Towable loads (kg)
1000 1100
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on the ball
(braked trailer) (kg):60 60
(***) Trekking versions (*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permissible loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
282GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

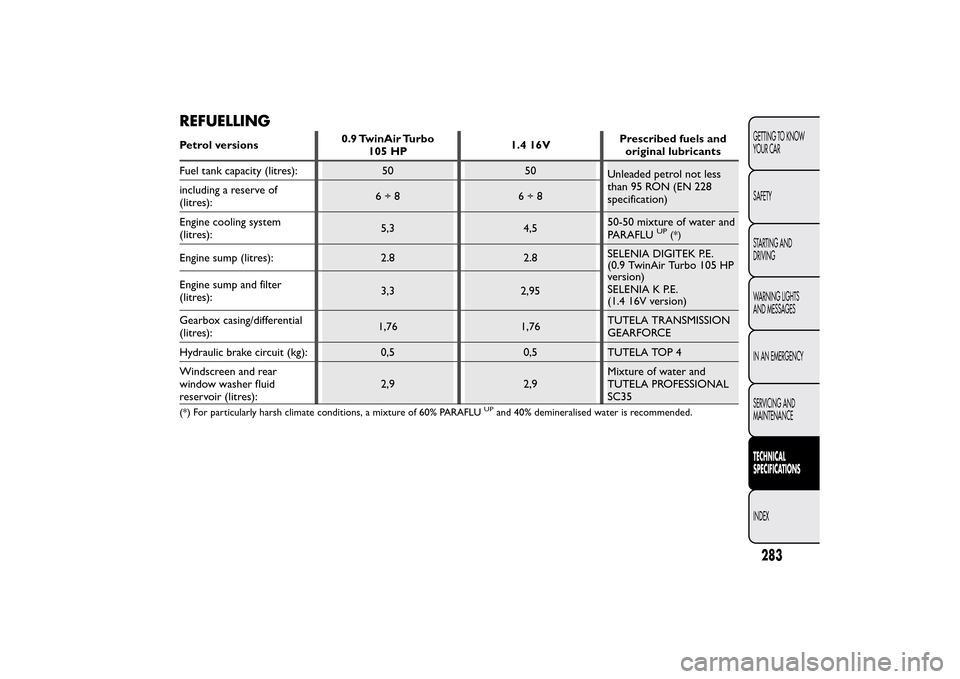

REFUELLINGPetrol versions0.9 TwinAir Turbo
105 HP1.4 16VPrescribed fuels and
original lubricants
Fuel tank capacity (litres): 50 50
Unleaded petrol not less
than 95 RON (EN 228
specification) including a reserve of
(litres):6÷8 6÷8
Engine cooling system
(litres):5,3 4,550-50 mixture of water and
PARAFLU
UP
(*)
Engine sump (litres): 2.8 2.8SELENIA DIGITEK P.E.
(0.9 TwinAir Turbo 105 HP
version)
SELENIA K P.E.
(1.4 16V version) Engine sump and filter
(litres):3,3 2,95
Gearbox casing/differential
(litres):1,76 1,76TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit (kg): 0,5 0,5 TUTELA TOP 4
Windscreen and rear
window washer fluid
reservoir (litres):2,9 2,9Mixture of water and
TUTELA PROFESSIONAL
SC35(*) For particularly harsh climate conditions, a mixture of 60% PARAFLU
UP
and 40% demineralised water is recommended.
283GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

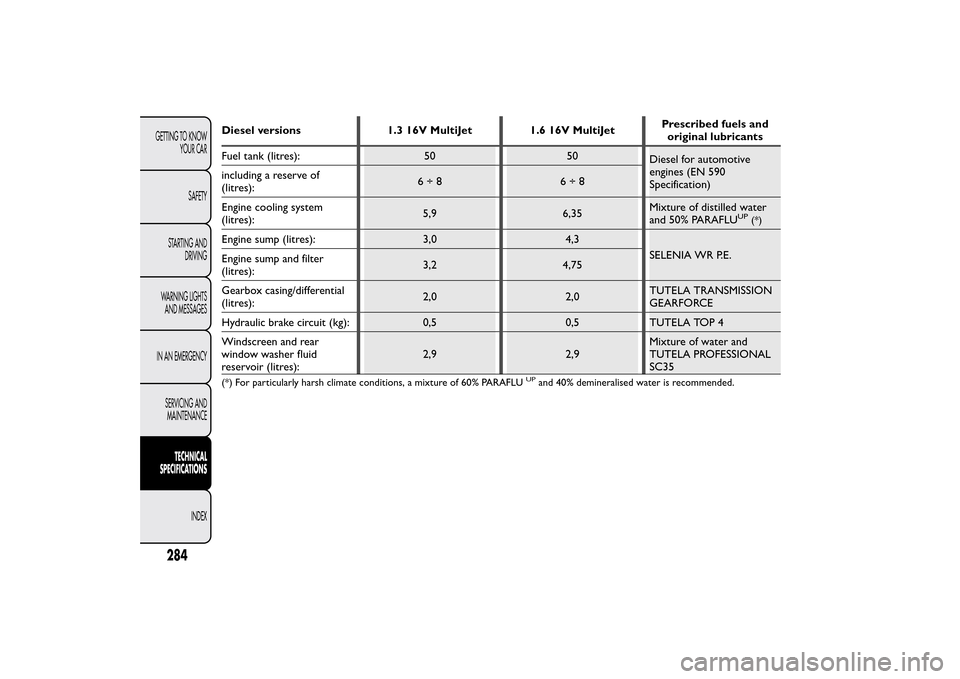

Diesel versions 1.3 16V MultiJet 1.6 16V MultiJetPrescribed fuels and
original lubricants
Fuel tank (litres): 50 50
Diesel for automotive
engines (EN 590
Specification) including a reserve of
(litres):6÷8 6÷8
Engine cooling system
(litres):5,9 6,35Mixture of distilled water
and 50% PARAFLU
UP
(*)
Engine sump (litres): 3,0 4,3
SELENIA WR P.E.
Engine sump and filter
(litres):3,2 4,75
Gearbox casing/differential
(litres):2,0TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit (kg): 0,5 0,5 TUTELA TOP 4
Windscreen and rear
window washer fluid
reservoir (litres):2,9 2,9Mixture of water and
TUTELA PROFESSIONAL
SC35(*) For particularly harsh climate conditions, a mixture of 60% PARAFLU
UP
and 40% demineralised water is recommended.
284GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
2,0

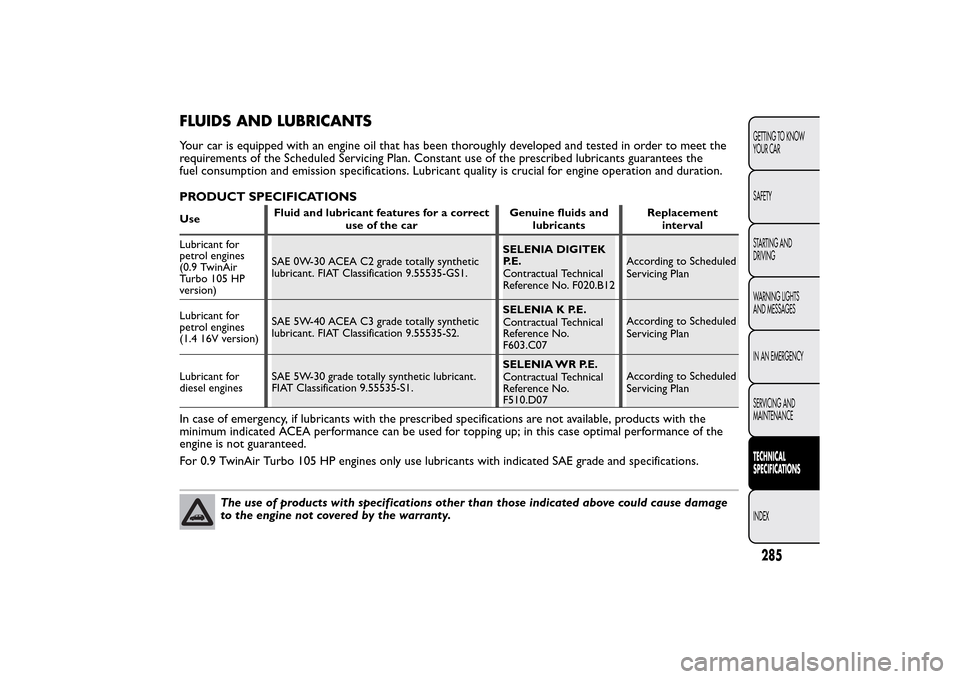

FLUIDS AND LUBRICANTSYour car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the
fuel consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONSUseFluid and lubricant features for a correct
use of the carGenuine fluids and
lubricantsReplacement
interval
Lubricant for
petrol engines
(0.9 TwinAir
Turbo 105 HP
version)SAE 0W-30 ACEA C2 grade totally synthetic
lubricant. FIAT Classification 9.55535-GS1.SELENIA DIGITEK
P.E.
Contractual Technical
Reference No. F020.B12According to Scheduled
Servicing Plan
Lubricant for
petrol engines
(1.4 16V version)SAE 5W-40 ACEA C3 grade totally synthetic
lubricant. FIAT Classification 9.55535-S2.SELENIA K P.E.
Contractual Technical
Reference No.
F603.C07According to Scheduled
Servicing Plan
Lubricant for
diesel enginesSAE 5W-30 grade totally synthetic lubricant.
FIAT Classification 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No.
F510.D07According to Scheduled
Servicing PlanIn case of emergency, if lubricants with the prescribed specifications are not available, products with the
minimum indicated ACEA performance can be used for topping up; in this case optimal performance of the
engine is not guaranteed.
For 0.9 TwinAir Turbo 105 HP engines only use lubricants with indicated SAE grade and specifications.
The use of products with specifications other than those indicated above could cause damage
to the engine not covered by the warranty.
285GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

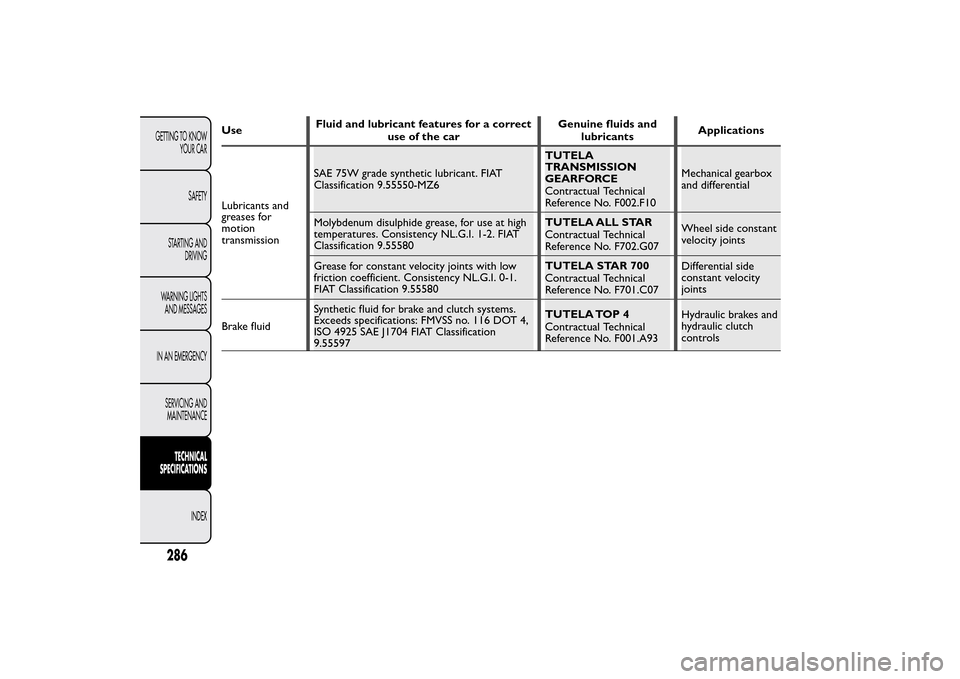

UseFluid and lubricant features for a correct
use of the carGenuine fluids and
lubricantsApplications
Lubricants and
greases for
motion
transmissionSAE 75W grade synthetic lubricant. FIAT
Classification 9.55550-MZ6TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Mechanical gearbox
and differential
Molybdenum disulphide grease, for use at high
temperatures. Consistency NL.G.I. 1-2. FIAT
Classification 9.55580TUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Grease for constant velocity joints with low
friction coefficient. Consistency NL.G.I. 0-1.
FIAT Classification 9.55580TUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side
constant velocity
joints
Brake fluidSynthetic fluid for brake and clutch systems.
Exceeds specifications: FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704 FIAT Classification
9.55597TUTELA TOP 4
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch
controls
