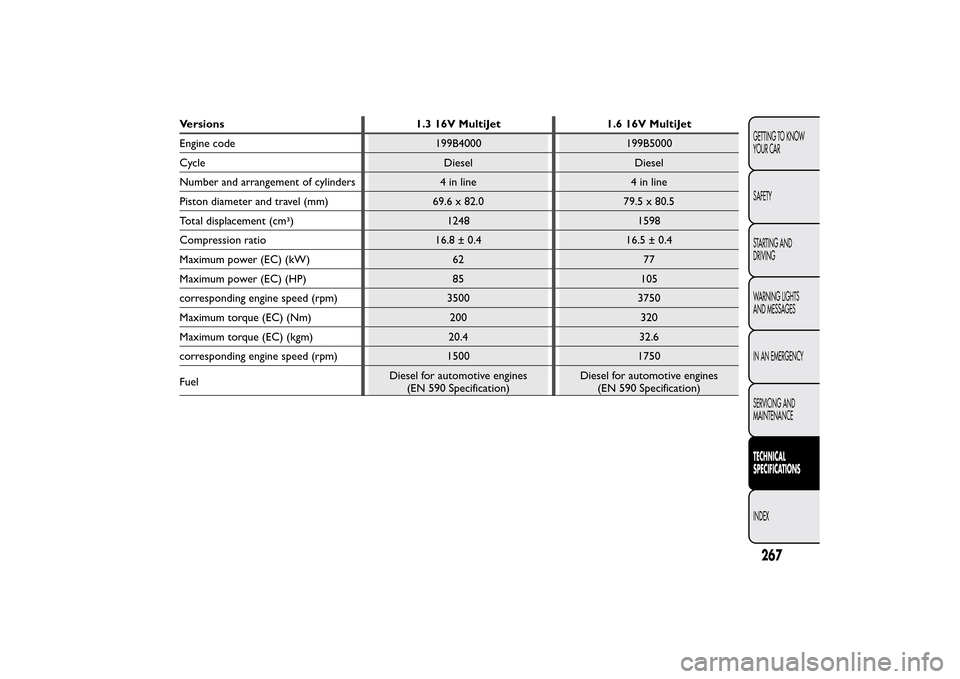

FIAT 500L LIVING 2014 2.G Owners Manual

Versions 1.3 16V MultiJet 1.6 16V MultiJet
Engine code 199B4000 199B5000
Cycle Diesel Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston diameter and travel (mm) 69.6 x 82.0 79.5 x 80.5
Total displacement (cm3) 1248 1598
Compression ratio 16.8 ± 0.4 16.5 ± 0.4
Maximum power (EC) (kW) 62 77
Maximum power (EC) (HP) 85 105
corresponding engine speed (rpm) 3500 3750
Maximum torque (EC) (Nm) 200 320
Maximum torque (EC) (kgm) 20.4 32.6
corresponding engine speed (rpm) 1500 1750
FuelDiesel for automotive engines
(EN 590 Specification)Diesel for automotive engines
(EN 590 Specification)
267GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

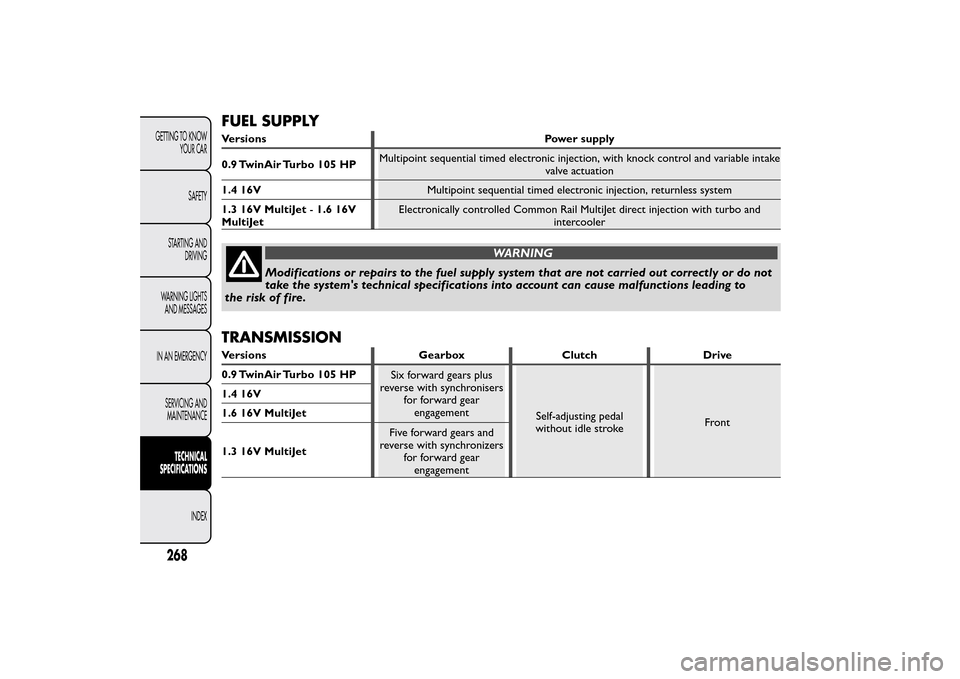

FUEL SUPPLYVersions Power supply
0.9 TwinAir Turbo 105 HPMultipoint sequential timed electronic injection, with knock control and variable intake
valve actuation
1.4 16VMultipoint sequential timed electronic injection, returnless system
1.3 16V MultiJet-1.6 16V
MultiJetElectronically controlled Common Rail MultiJet direct injection with turbo and
intercooler
WARNING
Modifications or repairs to the fuel supply system that are not carried out correctly or do not
take the system's technical specifications into account can cause malfunctions leading to
the risk of fire.
TRANSMISSIONVersions Gearbox Clutch Drive
0.9 TwinAir Turbo 105 HP
Six forward gears plus
reverse with synchronisers
for forward gear
engagement
Self-adjusting pedal
without idle strokeFront 1.4 16V
1.6 16V MultiJet
1.3 16V MultiJetFive forward gears and
reverse with synchronizers
for forward gear
engagement
268GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

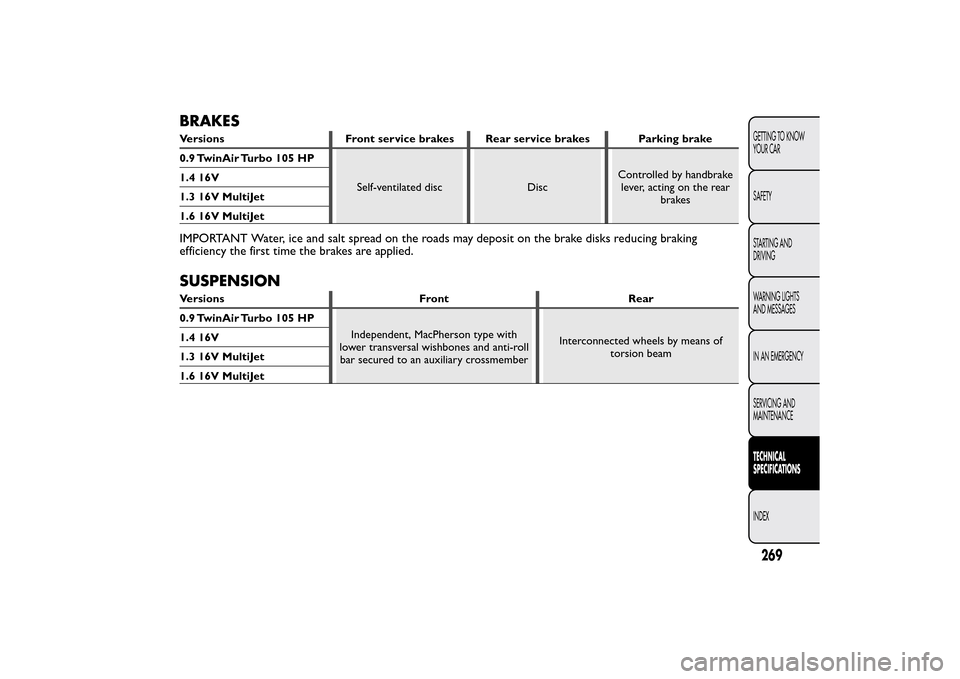

BRAKESVersions Front service brakes Rear service brakes Parking brake
0.9 TwinAir Turbo 105 HP
Self-ventilated disc DiscControlled by handbrake
lever, acting on the rear
brakes 1.4 16V
1.3 16V MultiJet
1.6 16V MultiJetIMPORTANT Water, ice and salt spread on the roads may deposit on the brake disks reducing braking
efficiency the first time the brakes are applied.SUSPENSIONVersions Front Rear
0.9 TwinAir Turbo 105 HP
Independent, MacPherson type with
lower transversal wishbones and anti-roll
bar secured to an auxiliary crossmemberInterconnected wheels by means of
torsion beam 1.4 16V
1.3 16V MultiJet
1.6 16V MultiJet
269GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

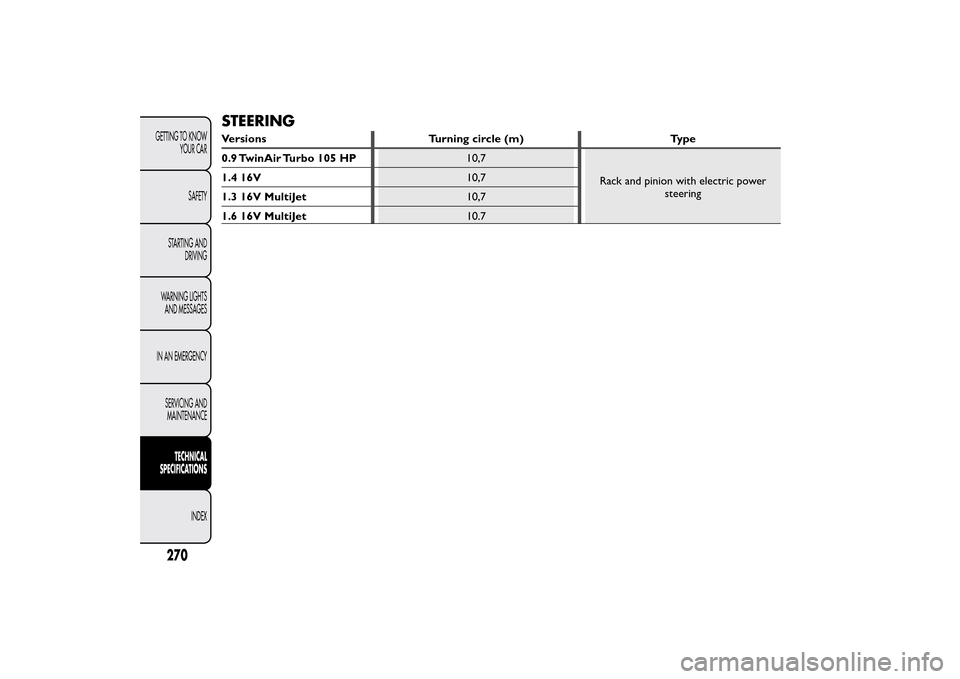

STEERINGVersions Turning circle (m) Type
0.9 TwinAir Turbo 105 HP10,7
Rack and pinion with electric power
steering 1.4 16V10,7
1.3 16V MultiJet10,7
1.6 16V MultiJet10.7
270GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

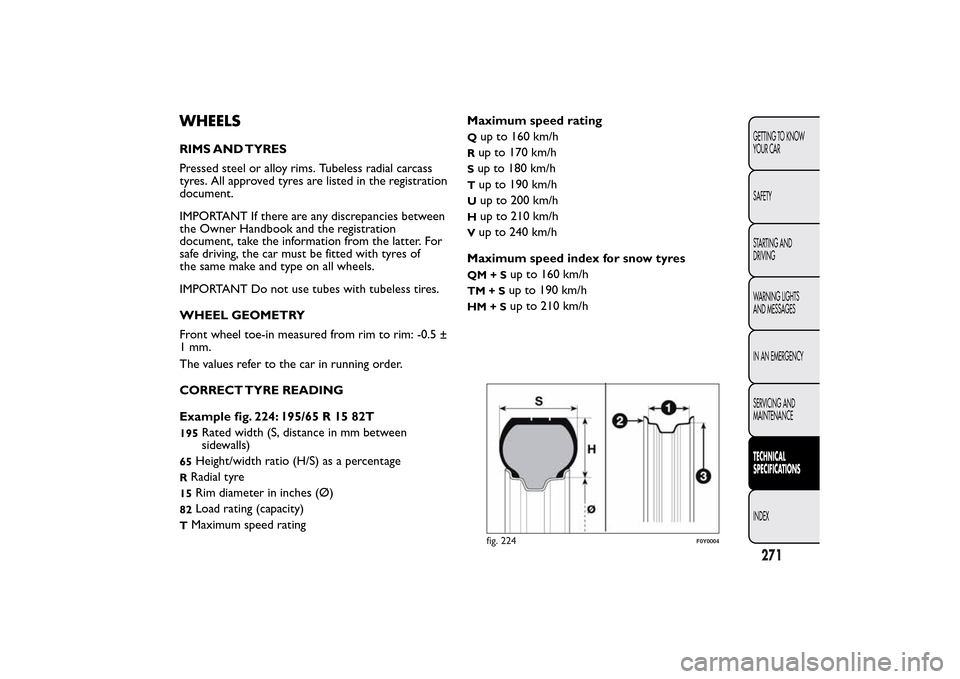

WHEELSRIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass
tyres. All approved tyres are listed in the registration
document.
IMPORTANT If there are any discrepancies between
the Owner Handbook and the registration
document, take the information from the latter. For
safe driving, the car must be fitted with tyres of
the same make and type on all wheels.
IMPORTANT Do not use tubes with tubeless tires.
WHEEL GEOMETRY
Front wheel toe-in measured from rim to rim: -0.5 ±
1 mm.
The values refer to the car in running order.
CORRECT TYRE READING
Example fig. 224: 195/65 R 15 82T195
Rated width (S, distance in mm between
sidewalls)
65
Height/width ratio (H/S) as a percentage
RRadial tyre15
Rim diameter in inches (Ø)
82
Load rating (capacity)
T
Maximum speed ratingMaximum speed rating
Q
up to 160 km/h
Rup to 170 km/hSup to 180 km/hT
up to 190 km/h
U
up to 200 km/h
H
up to 210 km/h
V
up to 240 km/h
Maximum speed index for snow tyres
QM+S
up to 160 km/h
TM+S
up to 190 km/h
HM+S
up to 210 km/h
fig. 224
F0Y0004
271GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

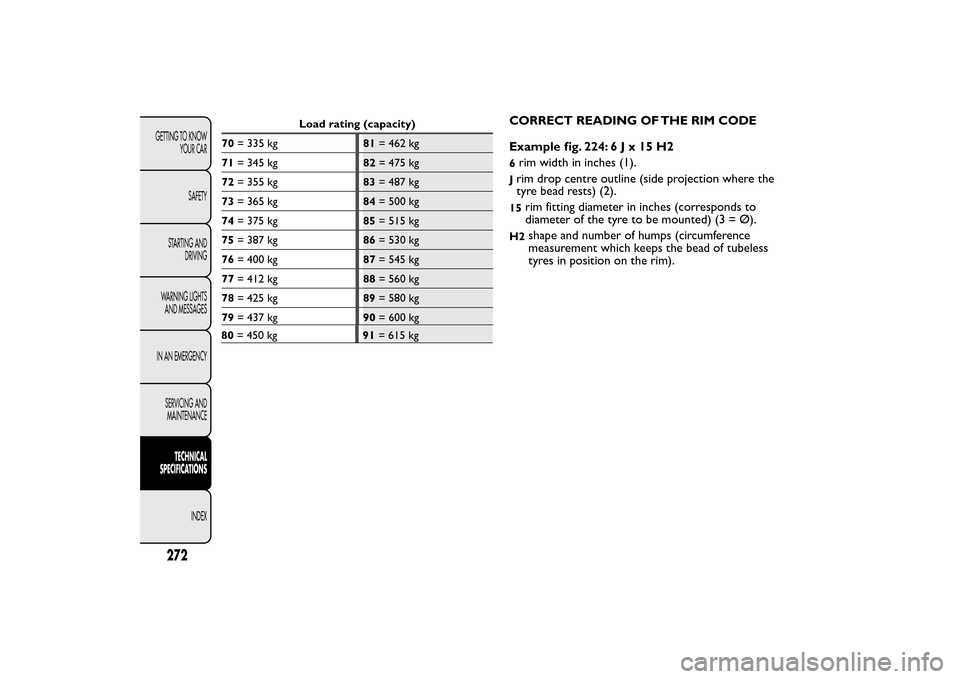

Load rating (capacity)
70= 335 kg81= 462 kg
71= 345 kg82= 475 kg
72= 355 kg83= 487 kg
73= 365 kg84= 500 kg
74= 375 kg85= 515 kg
75= 387 kg86= 530 kg
76= 400 kg87= 545 kg
77= 412 kg88= 560 kg
78= 425 kg89= 580 kg
79= 437 kg90= 600 kg
80= 450 kg91= 615 kg
CORRECT READING OF THE RIM CODE
Example fig. 224:6Jx15H26rim width in inches (1).Jrim drop centre outline (side projection where the
tyre bead rests) (2).15
rim fitting diameter in inches (corresponds to
diameter of the tyre to be mounted) (3 = Ø).
H2
shape and number of humps (circumference
measurement which keeps the bead of tubeless
tyres in position on the rim).
272GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

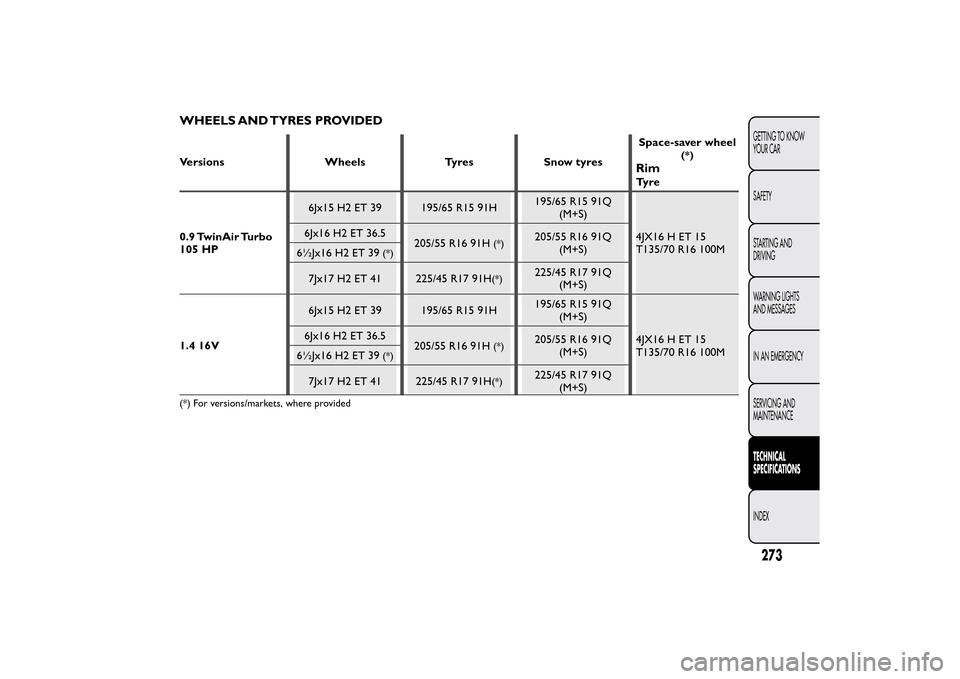

WHEELS AND TYRES PROVIDEDVersions Wheels Tyres Snow tyresSpace-saver wheel
(*)
RimTy r e
0.9 TwinAir Turbo
105 HP6Jx15 H2 ET 39 195/65 R15 91H195/65 R15 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q
(M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
1.4 16V6Jx15 H2 ET 39 195/65 R15 91H195/65 R15 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q
(M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
(*) For versions/markets, where provided
273GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

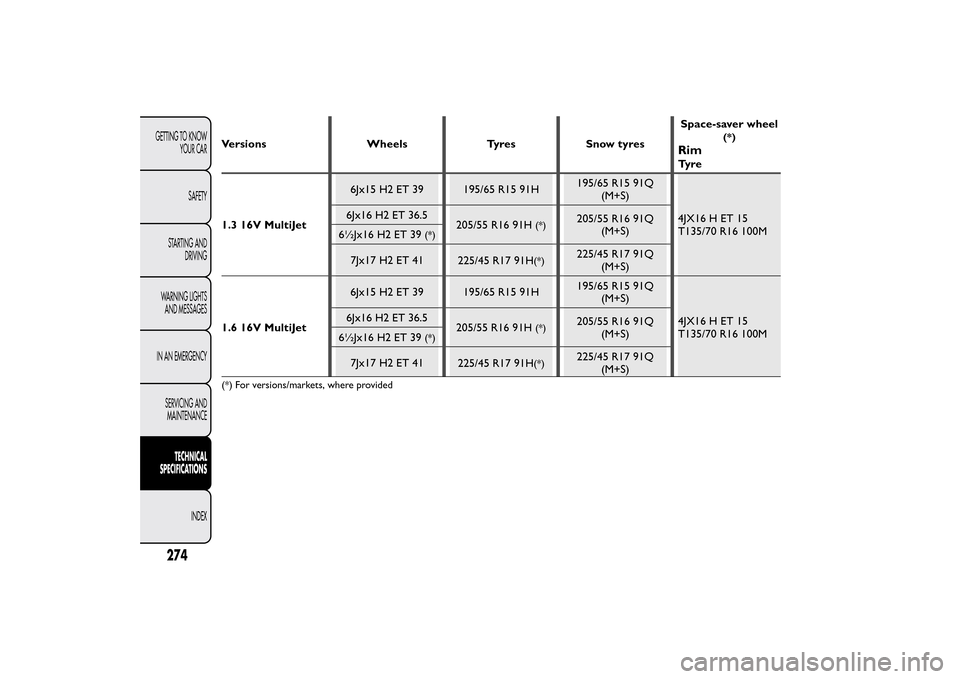

Versions Wheels Tyres Snow tyresSpace-saver wheel
(*)
RimTy r e
1.3 16V MultiJet6Jx15 H2 ET 39 195/65 R15 91H195/65 R15 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q
(M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
1.6 16V MultiJet6Jx15 H2 ET 39 195/65 R15 91H195/65 R15 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q
(M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
(*) For versions/markets, where provided
274GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Trekking versionsVersions Wheels Tyres Snow tyresSpace-saver wheel
(*)
RimTy r e
0.9 TwinAir Turbo
105 HP–1.4 16V–
1.3 16V MultiJet–
1.6 16V MultiJet6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
(*) For versions/markets, where providedNoteReduced-width snow chains with a maximum
projection of 9 mm beyond the tyre profile can be
fitted on 195/65 R15 91H and 205/55 R16 91H tyres.
225/45 R17 91H tyre cannot be fitted with snow
chains.
275GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

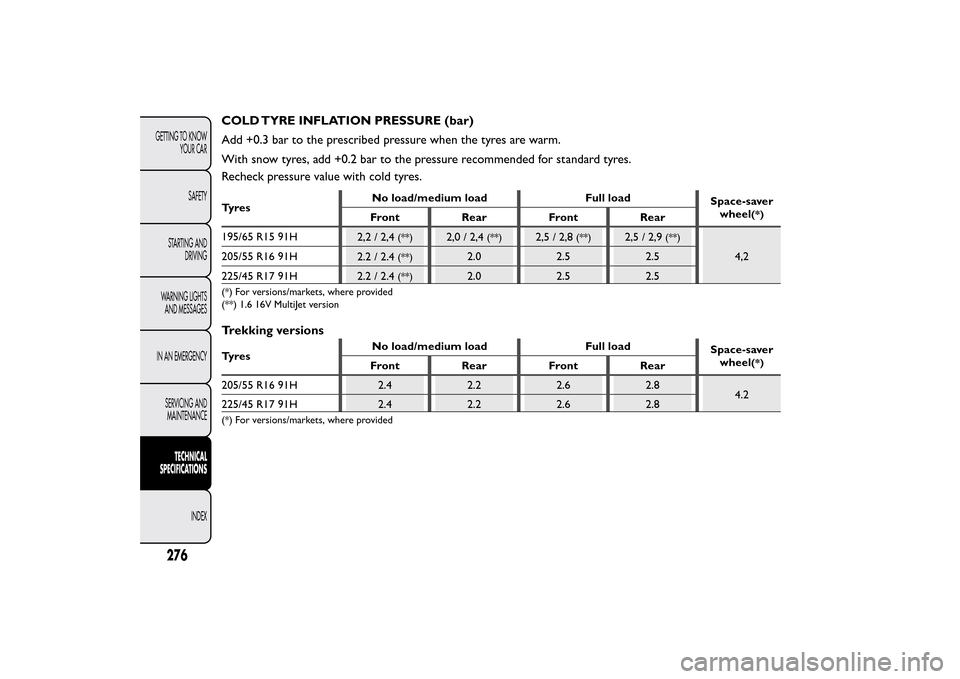

COLD TYRE INFLATION PRESSURE (bar)
Add +0.3 bar to the prescribed pressure when the tyres are warm.
With snow tyres, add +0.2 bar to the pressure recommended for standard tyres.
Recheck pressure value with cold tyres.Ty r e sNo load/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/65 R15 91H
2,2 / 2,4
(**)
2,0 / 2,4
(**)
2,5 / 2,8
(**)
2,5 / 2,9
(**)
4,2 205/55 R16 91H
2.2 / 2.4
(**)
2.0 2.5 2.5
225/45 R17 91H
2.2 / 2.4
(**)
2.0 2.5 2.5
(*) For versions/markets, where provided
(**) 1.6 16V MultiJet versionTrekking versionsTy r e sNo load/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
205/55 R16 91H 2.4 2.2 2.6 2.8
4.2
225/45 R17 91H 2.4 2.2 2.6 2.8
(*) For versions/markets, where provided
276GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
