FIAT 500L LIVING 2014 2.G Owners Manual

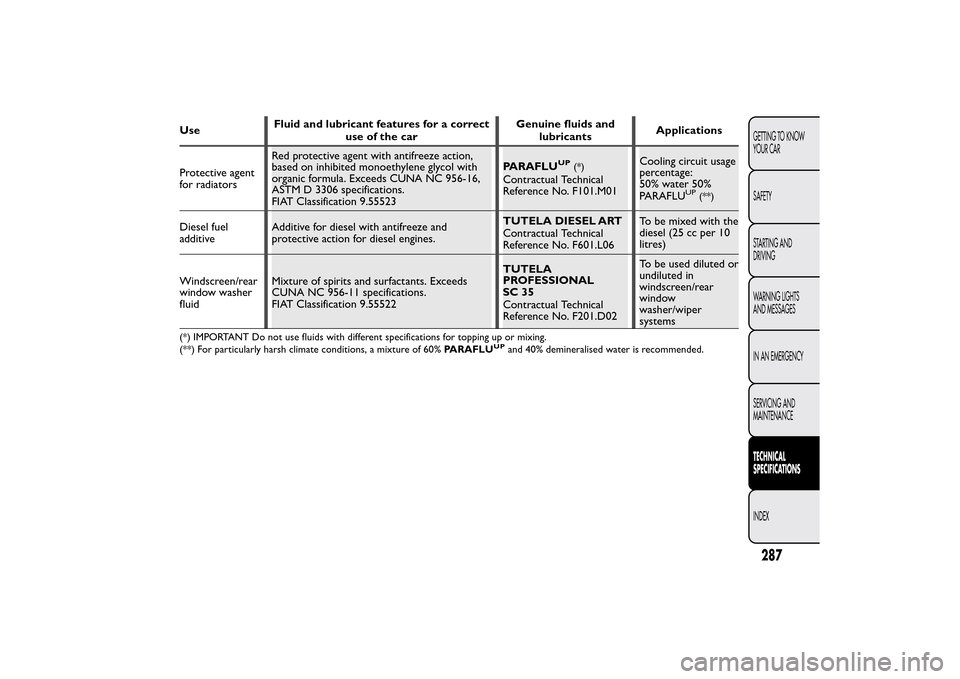

UseFluid and lubricant features for a correct
use of the carGenuine fluids and
lubricantsApplications
Protective agent
for radiatorsRed protective agent with antifreeze action,
based on inhibited monoethylene glycol with
organic formula. Exceeds CUNA NC 956-16,
ASTM D 3306 specifications.
FIAT Classification 9.55523PARAFLU
UP
(*)
Contractual Technical
Reference No. F101.M01Cooling circuit usage
percentage:
50% water 50%
PARAFLU
UP
(**)
Diesel fuel
additiveAdditive for diesel with antifreeze and
protective action for diesel engines.TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with the
diesel (25 cc per 10
litres)
Windscreen/rear
window washer
fluidMixture of spirits and surfactants. Exceeds
CUNA NC 956-11 specifications.
FIAT Classification 9.55522TUTELA
PROFESSIONAL
SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in
windscreen/rear
window
washer/wiper
systems(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**) For particularly harsh climate conditions, a mixture of 60%PARAFLU
UP
and 40% demineralised water is recommended.
287GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

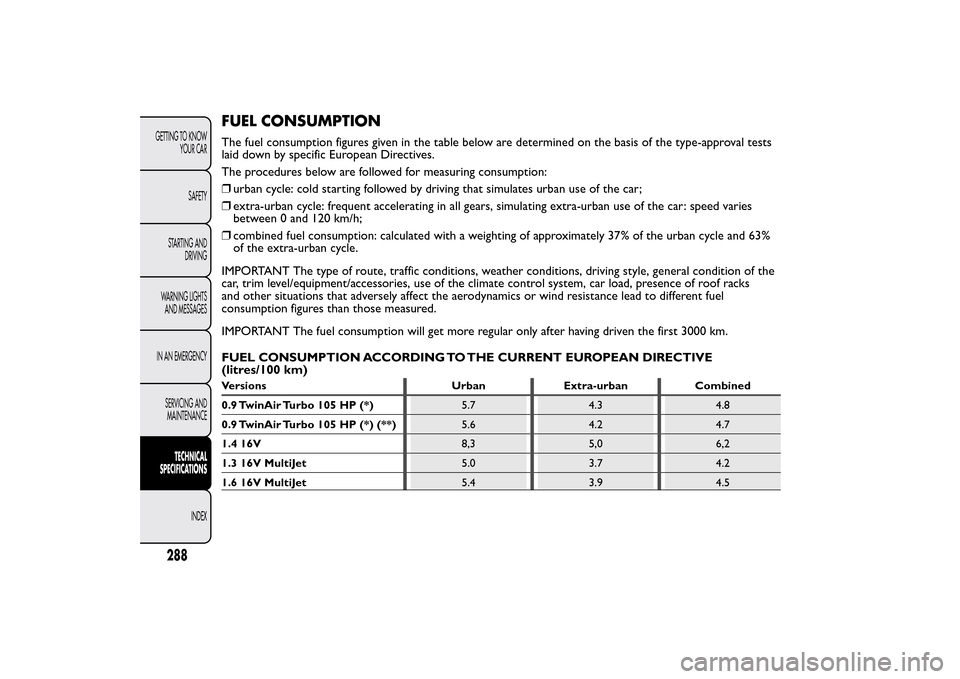

FUEL CONSUMPTIONThe fuel consumption figures given in the table below are determined on the basis of the type-approval tests
laid down by specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies
between 0 and 120 km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63%
of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the
car, trim level/equipment/accessories, use of the climate control system, car load, presence of roof racks
and other situations that adversely affect the aerodynamics or wind resistance lead to different fuel
consumption figures than those measured.
IMPORTANT The fuel consumption will get more regular only after having driven the first 3000 km.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)Versions Urban Extra-urban Combined
0.9 TwinAir Turbo 105 HP (*)5.7 4.3 4.8
0.9 TwinAir Turbo 105 HP (*) (**)5.6 4.2 4.7
1.4 16V8,3 5,0 6,2
1.3 16V MultiJet5.0 3.7 4.2
1.6 16V MultiJet5.4 3.9 4.5
288GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

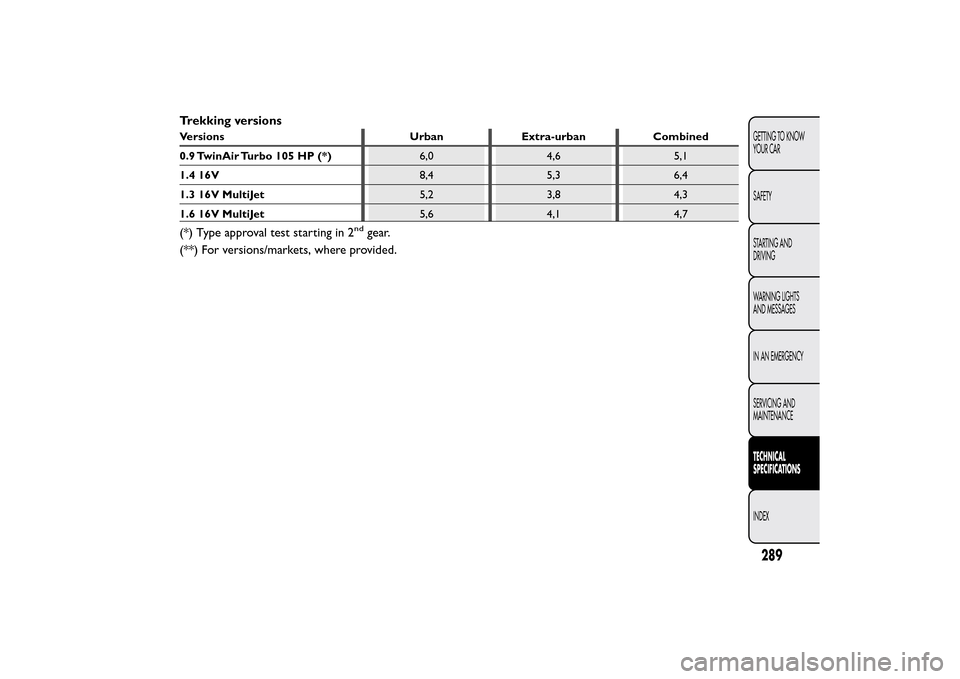

Trekking versionsVersions Urban Extra-urban Combined
0.9 TwinAir Turbo 105 HP (*)6,0 4,6 5,1
1.4 16V8,4 5,3 6,4
1.3 16V MultiJet5,2 3,8 4,3
1.6 16V MultiJet5,6 4,1 4,7(*) Type approval test starting in 2
nd
gear.
(**) For versions/markets, where provided.
289GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

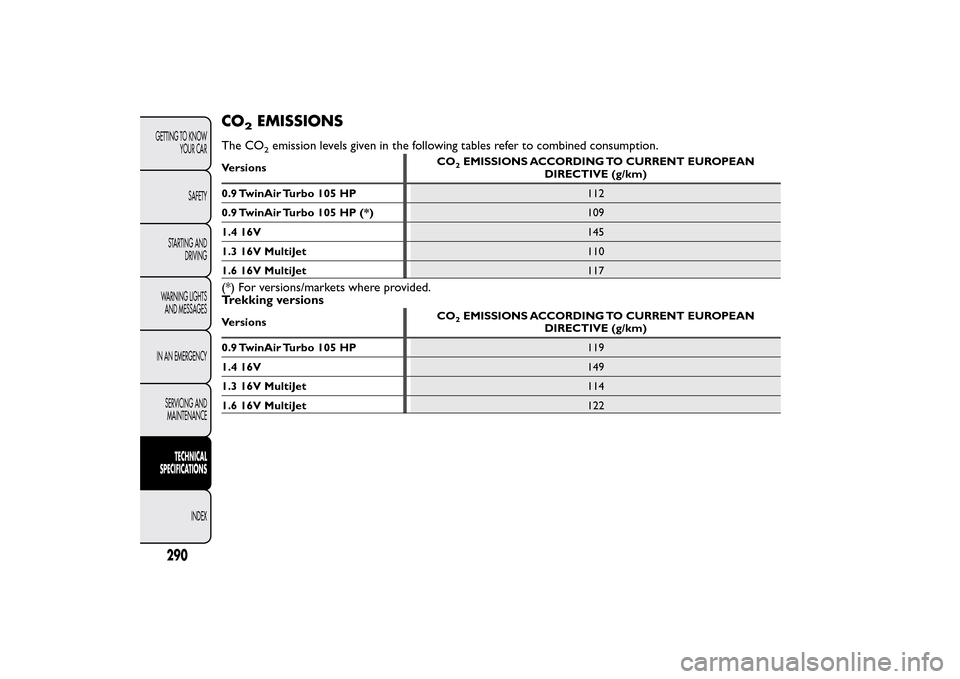

CO
2
EMISSIONS
The CO
2emission levels given in the following tables refer to combined consumption.
VersionsCO
2EMISSIONS ACCORDING TO CURRENT EUROPEAN
DIRECTIVE (g/km)
0.9 TwinAir Turbo 105 HP112
0.9 TwinAir Turbo 105 HP (*)109
1.4 16V145
1.3 16V MultiJet110
1.6 16V MultiJet117
(*) For versions/markets where provided.
Trekking versionsVersionsCO
2EMISSIONS ACCORDING TO CURRENT EUROPEAN
DIRECTIVE (g/km)
0.9 TwinAir Turbo 105 HP119
1.4 16V149
1.3 16V MultiJet114
1.6 16V MultiJet122
290GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

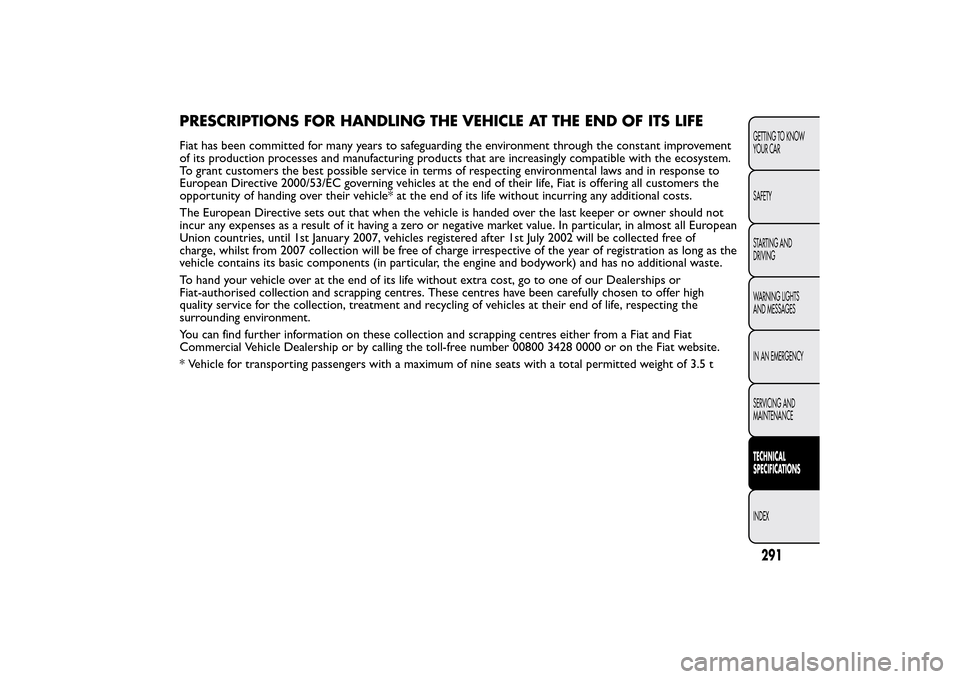

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFEFiat has been committed for many years to safeguarding the environment through the constant improvement
of its production processes and manufacturing products that are increasingly compatible with the ecosystem.
To grant customers the best possible service in terms of respecting environmental laws and in response to
European Directive 2000/53/EC governing vehicles at the end of their life, Fiat is offering all customers the
opportunity of handing over their vehicle* at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not
incur any expenses as a result of it having a zero or negative market value. In particular, in almost all European
Union countries, until 1st January 2007, vehicles registered after 1st July 2002 will be collected free of
charge, whilst from 2007 collection will be free of charge irrespective of the year of registration as long as the
vehicle contains its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Dealerships or
Fiat-authorised collection and scrapping centres. These centres have been carefully chosen to offer high
quality service for the collection, treatment and recycling of vehicles at their end of life, respecting the
surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat and Fiat
Commercial Vehicle Dealership or by calling the toll-free number 00800 3428 0000 or on the Fiat website.
* Vehicle for transporting passengers with a maximum of nine seats with a total permitted weight of 3.5 t
291GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

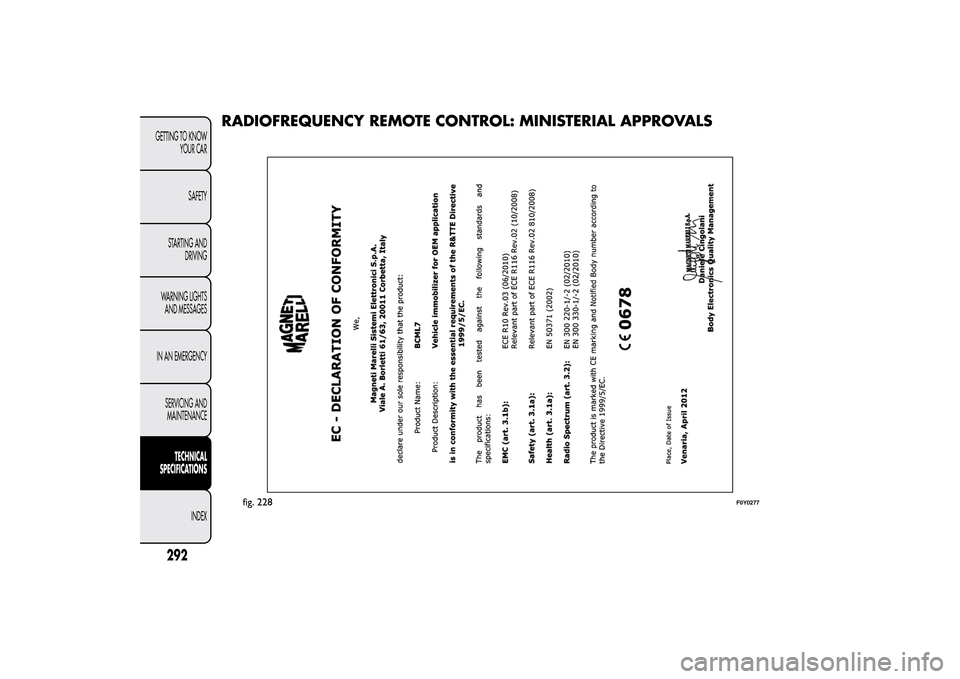

RADIOFREQUENCY REMOTE CONTROL: MINISTERIAL APPROVALS
fig. 228
F0Y0277
292GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

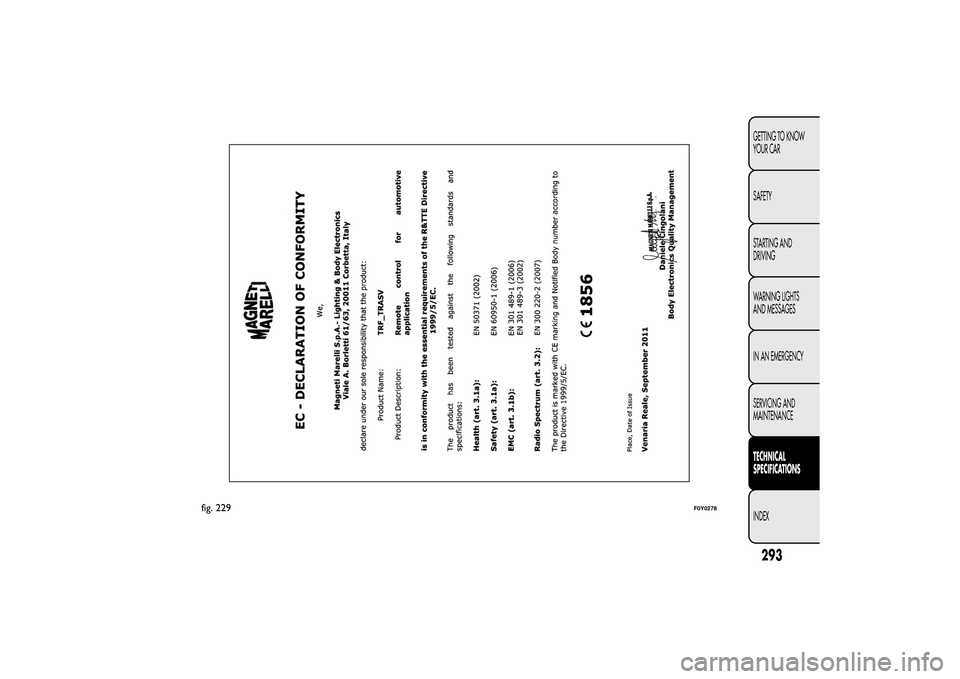

fig. 229
F0Y0278
293GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

Morocco



!
"

#$%


&'

!
"

#(#)
Mexico RLVMABC11-0959 RLVMABC12-0020
Serbia
TRF198= 34540-164/12-3
BCML7= 34540-83/12-4
SyriaMarking
Marking
South Africa
TA-2011/505
APPROVED
TA-2011/1915
APPROVED
TunisiaMarking
Marking
294GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

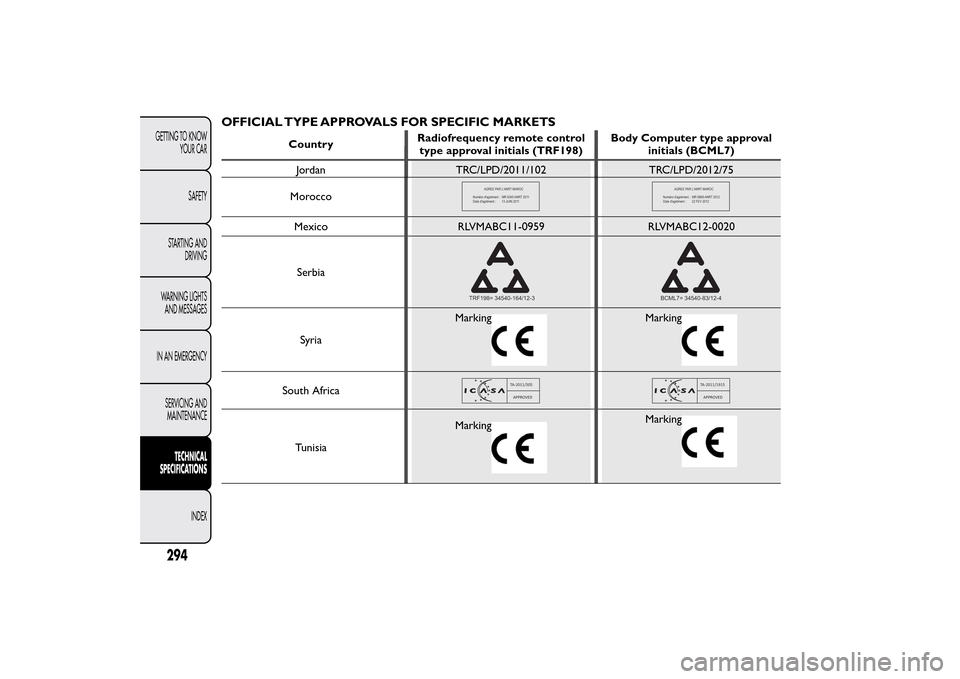

OFFICIAL TYPE APPROVALS FOR SPECIFIC MARKETS
CountryRadiofrequency remote control
type approval initials (TRF198)Body Computer type approval
initials (BCML7)
Jordan TRC/LPD/2011/102 TRC/LPD/2012/75

DASHBOARDThe presence and position of the controls, instruments and indicators may vary according to the different
versions.1. Adjustable air diffusers 2. Upper glove compartment (for versions/markets, where provided the compartment may be
conditioned) 3. Passenger front airbag 4. Adjustable and directable centre air diffusers 5. Fixed upper air vent 6. Radio
controls on the steering wheel (for versions/markets, where provided) 7. Exterior light control lever 8. Instrument panel
9. Windscreen wiper/rear window wiper/trip computer control lever 10. Ignition switch 11. Driver front airbag 12. Cruise
Control/Speed Limiter lever (for versions/markets, where provided) 13.UConnect™ (for versions/markets, where
provided) or radio system setup 14. USB port/AUX socket (for versions/markets, where provided)
15. Heating/ventilation system or manual climate control (for versions/markets, where provided) or automatic dual zone
climate control (for versions/markets, where provided) 16. Control buttons 17. Lower glove compartment 18. Oddment
compartment
fig. 1
F0Y0185
295
RIGHT HAND DRIVE VERSIONS

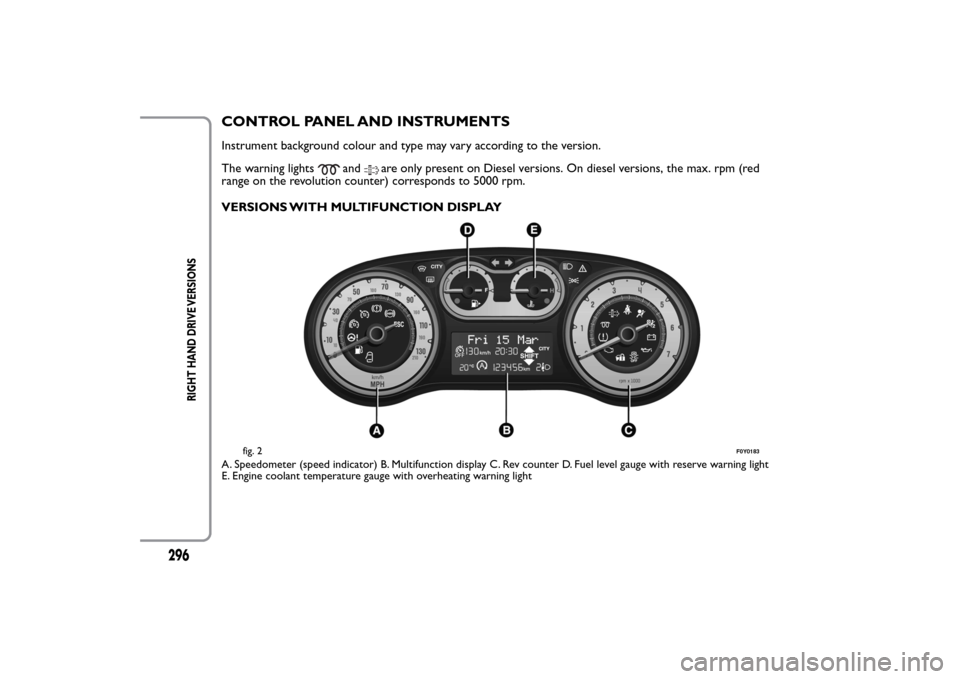

CONTROL PANEL AND INSTRUMENTSInstrument background colour and type may vary according to the version.
The warning lights
and
are only present on Diesel versions. On diesel versions, the max. rpm (red
range on the revolution counter) corresponds to 5000 rpm.
VERSIONS WITH MULTIFUNCTION DISPLAY
A. Speedometer (speed indicator) B. Multifunction display C. Rev counter D. Fuel level gauge with reserve warning light
E. Engine coolant temperature gauge with overheating warning light
fig. 2
F0Y0183
