FIAT 500L LIVING 2014 2.G Owners Manual

VERSIONS WITH RECONFIGURABLE MULTIFUNCTION DISPLAYA. Speedometer (speed indicator) B. Reconfigurable multifunction display C. Rev counter D. Fuel level gauge with reserve
warning light E. Engine coolant temperature gauge with overheating warning light
fig. 3
F0Y0184
297
RIGHT HAND DRIVE VERSIONS

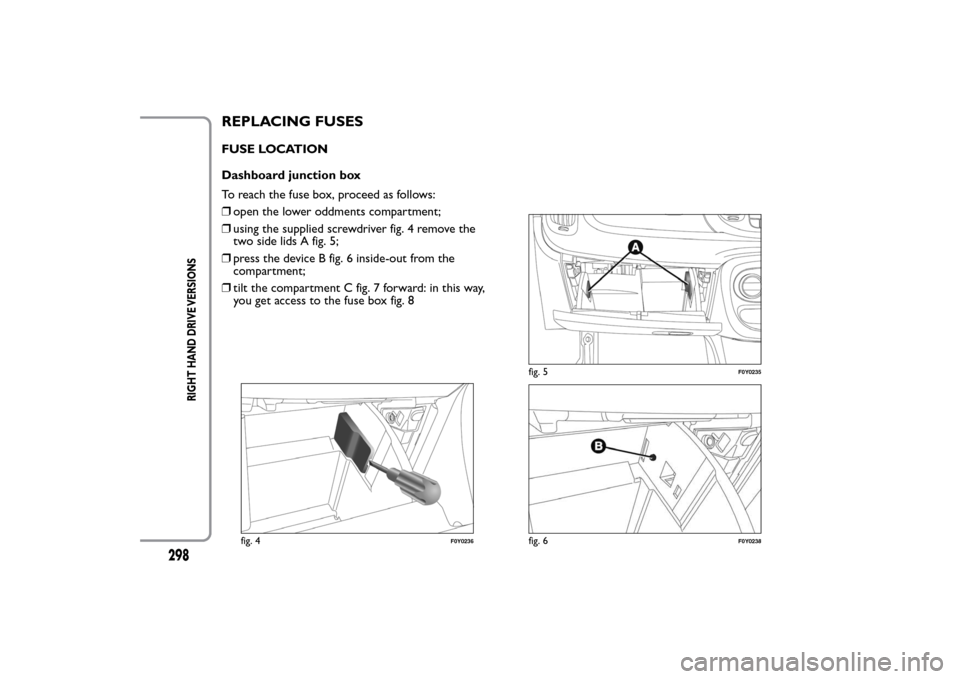

REPLACING FUSESFUSE LOCATION
Dashboard junction box
To reach the fuse box, proceed as follows:
❒open the lower oddments compartment;
❒using the supplied screwdriver fig. 4 remove the
two side lids A fig. 5;
❒press the device B fig. 6 inside-out from the
compartment;
❒tilt the compartment C fig. 7 forward: in this way,
you get access to the fuse box fig. 8
fig. 4
F0Y0236
fig. 5
F0Y0235
fig. 6
F0Y0238
298
RIGHT HAND DRIVE VERSIONS

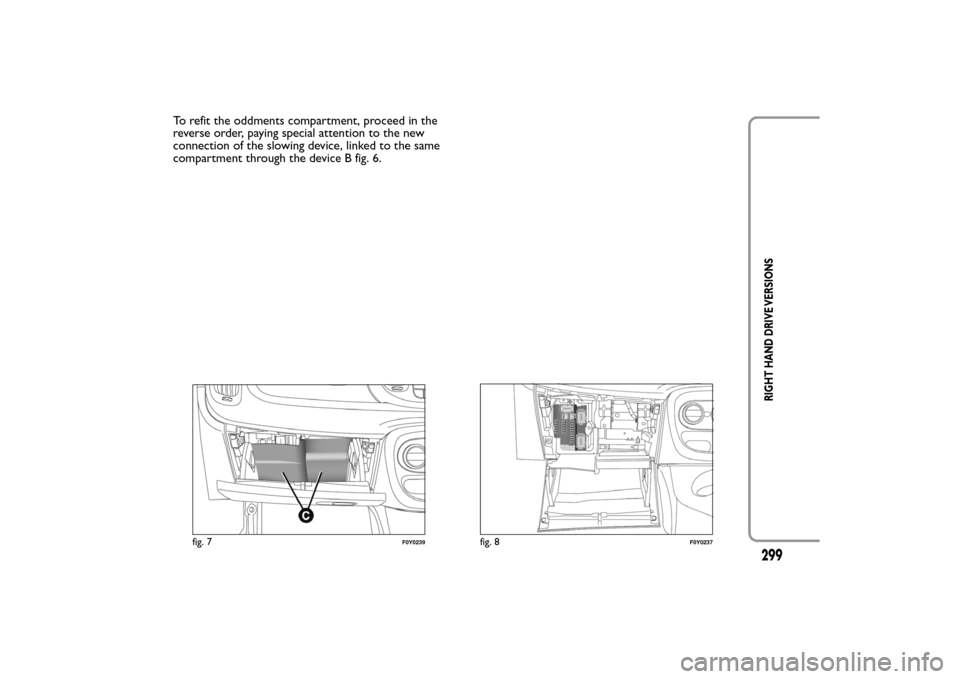

To refit the oddments compartment, proceed in the
reverse order, paying special attention to the new
connection of the slowing device, linked to the same
compartment through the device B fig. 6.
fig. 7
F0Y0239
fig. 8
F0Y0237
299
RIGHT HAND DRIVE VERSIONS

page intentionally left blank

500L MPW

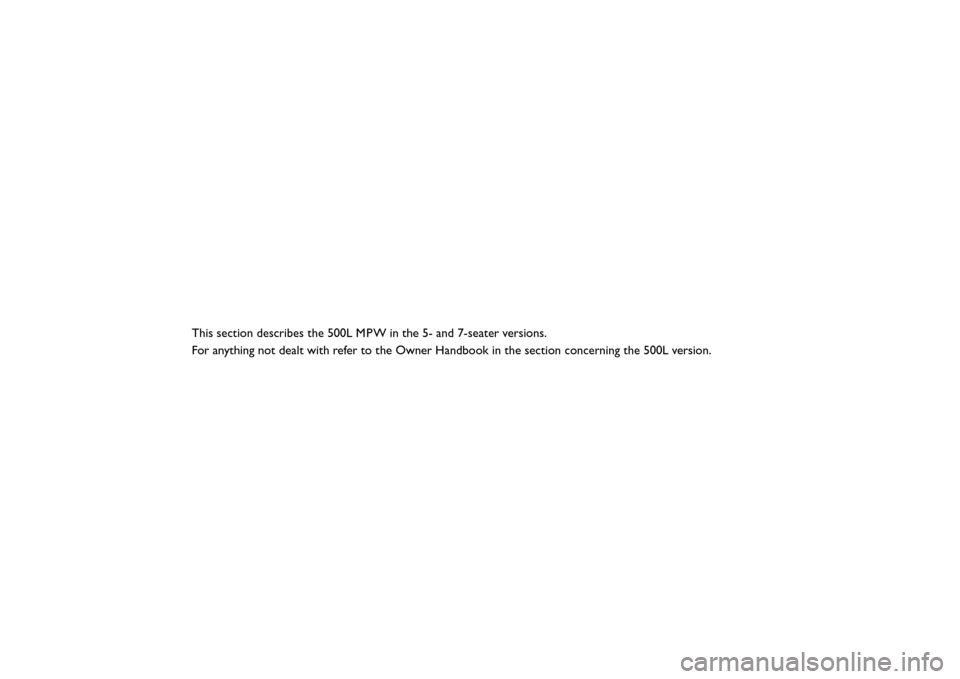

This section describes the 500L in the 5- and 7-seater versions.
For anything not dealt with refer to the Owner Handbook in the section concerning the 500L version.MPW

INDSEATS ............................................................................................................................................................................ 305
INTERIOR FITTINGS ............................................................................................................................................... 310
LUGGAGE COMPARTMENT................................................................................................................................. 310
SEAT BELTS ................................................................................................................................................................. 312
FITTING "UNIVERSAL" CHILD RESTRAINT SYSTEMS (WITH SAFETY BELTS) ................................... 313
"FIX&GO AUTOMATIC" KIT ................................................................................................................................. 316
REPLACING A WHEEL ........................................................................................................................................... 317
REPLACING INTERIOR BULBS ............................................................................................................................ 326
ENGINE CODES - BODY VERSIONS ................................................................................................................. 328
WHEELS ...................................................................................................................................................................... 329
DIMENSIONS ............................................................................................................................................................. 336
PERFORMANCE ........................................................................................................................................................ 338
WEIGHTS AND LOADS ......................................................................................................................................... 339
FUEL CONSUMPTION ........................................................................................................................................... 341
CO2 EMISSIONS ....................................................................................................................................................... 343
304
EX

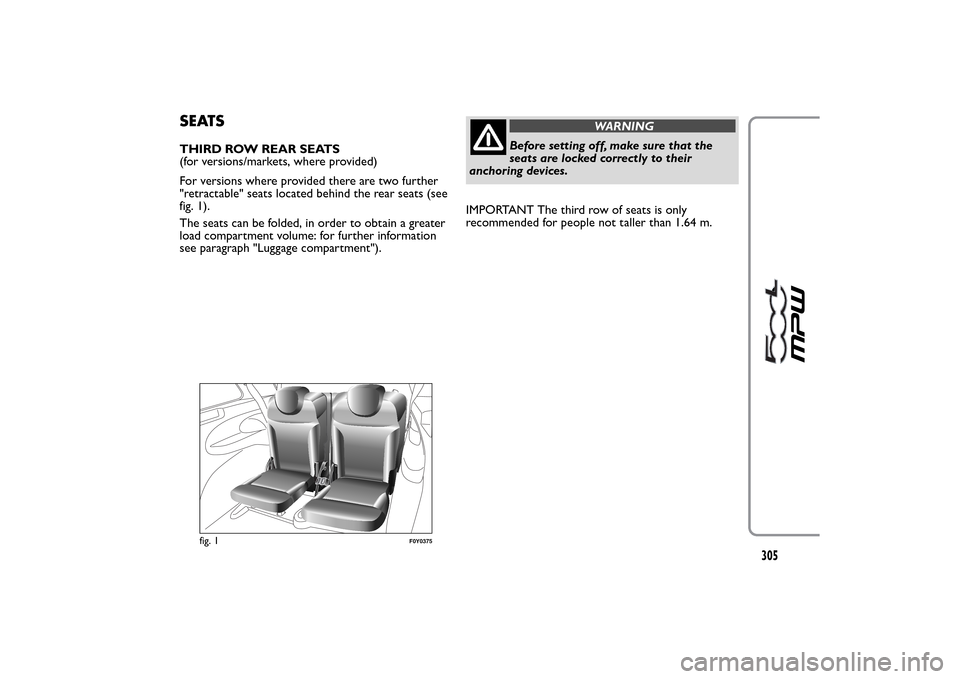

SEATSTHIRD ROW REAR SEATS
(for versions/markets, where provided)
For versions where provided there are two further
"retractable" seats located behind the rear seats (see
fig. 1).
The seats can be folded, in order to obtain a greater
load compartment volume: for further information
see paragraph "Luggage compartment").
WARNING
Before setting off, make sure that the
seats are locked correctly to their
anchoring devices.
IMPORTANT The third row of seats is only
recommended for people not taller than 1.64 m.
fig. 1
F0Y0375
305

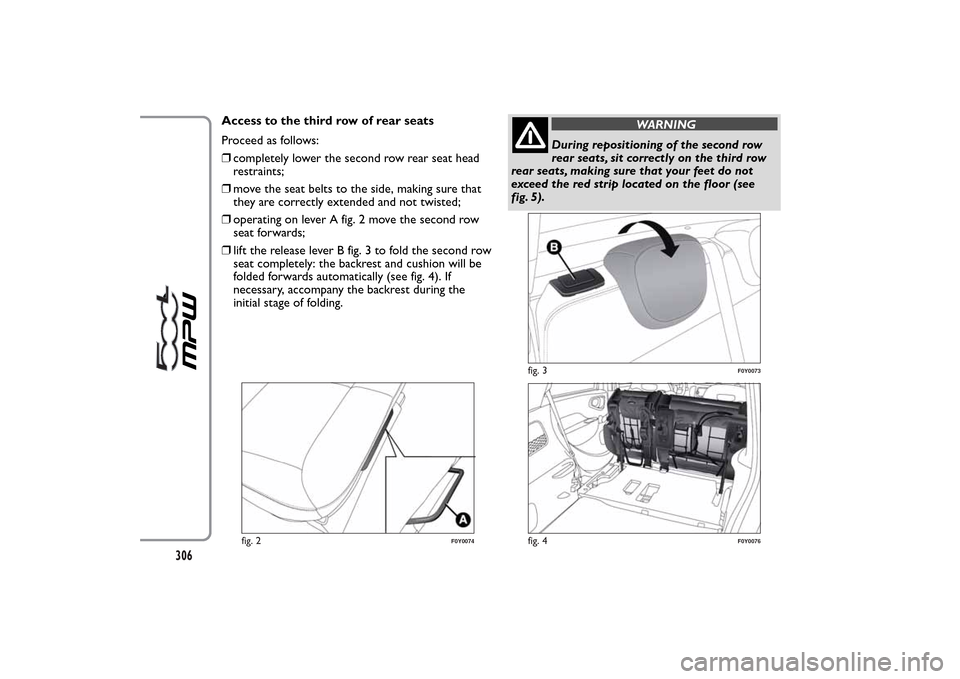

Access to the third row of rear seats
Proceed as follows:
❒completely lower the second row rear seat head
restraints;
❒move the seat belts to the side, making sure that
they are correctly extended and not twisted;
❒operating on lever A fig. 2 move the second row
seat forwards;
❒lift the release lever B fig. 3 to fold the second row
seat completely: the backrest and cushion will be
folded forwards automatically (see fig. 4). If
necessary, accompany the backrest during the
initial stage of folding.
WARNING
During repositioning of the second row
rear seats, sit correctly on the third row
rear seats, making sure that your feet do not
exceed the red strip located on the floor (see
fig. 5).
fig. 2
F0Y0074
fig. 3
F0Y0073
fig. 4
F0Y0076
306
