FIAT 500L LIVING 2014 2.G Owners Manual

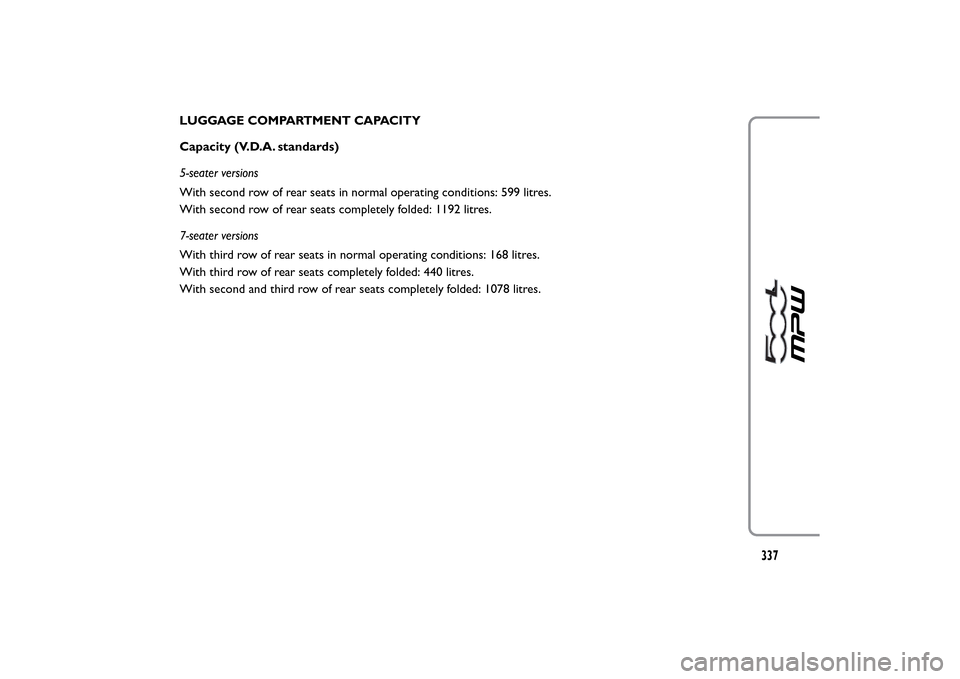

LUGGAGE COMPARTMENT CAPACITY
Capacity (V.D.A. standards)
5-seater versions
With second row of rear seats in normal operating conditions: 599 litres.
With second row of rear seats completely folded: 1192 litres.
7-seater versions
With third row of rear seats in normal operating conditions: 168 litres.
With third row of rear seats completely folded: 440 litres.
With second and third row of rear seats completely folded: 1078 litres.
337

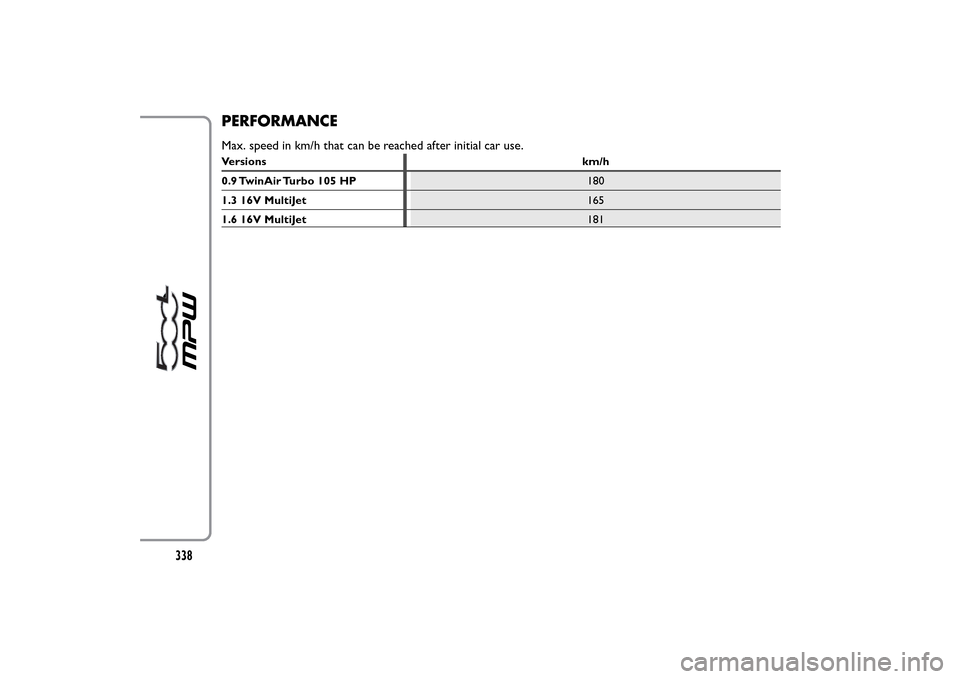

PERFORMANCEMax. speed in km/h that can be reached after initial car use.Versions km/h
0.9 TwinAir Turbo 105 HP180
1.3 16V MultiJet165
1.6 16V MultiJet181
338

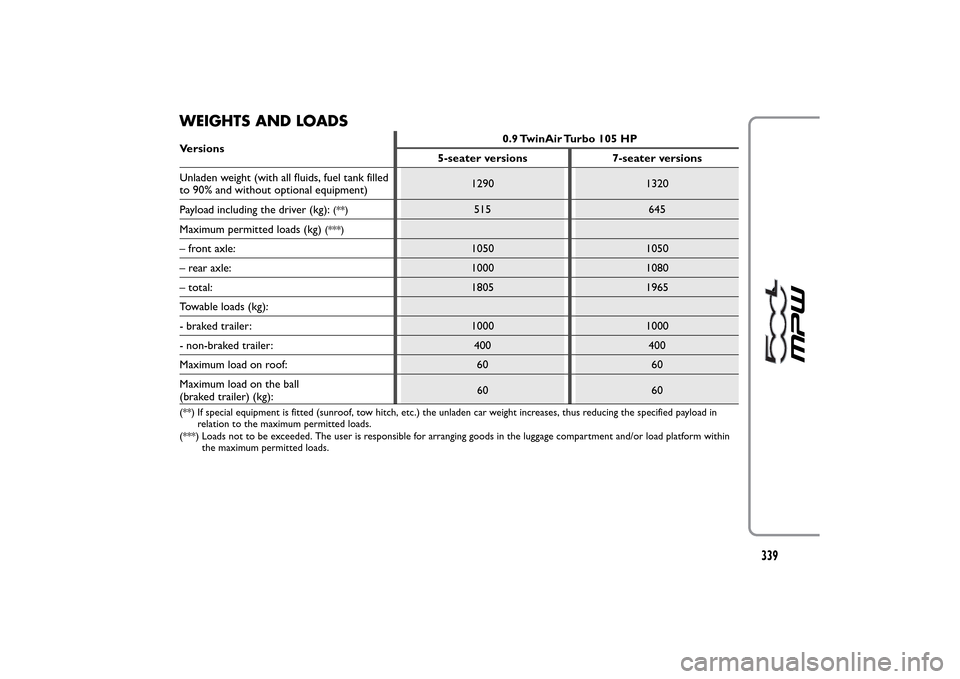

WEIGHTS AND LOADSVersions0.9 TwinAir Turbo 105 HP
5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1290 1320
Payload including the driver (kg):
(**)
515 645
Maximum permitted loads (kg)
(***)
– front axle: 1050 1050
– rear axle: 1000 1080
– total: 1805 1965
Towable loads (kg):
- braked trailer: 1000 1000
- non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on the ball
(braked trailer) (kg):60 60(**) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
339

Versions1.3 16V MultiJet 1.6 16V MultiJet
5-seater
versions7-seater
versions5-seater
versions7-seater
versions
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1315 1305 1395 1425
Payload including the driver (kg):
(*)
550 715 520 650
Maximum permitted loads (kg)
(**)
– front axle: 1050 1050 1050 1050
– rear axle: 1000 1080 1000 1080
– total: 1865 2020 1915 2075
Towable loads (kg):
- braked trailer: 1000 1000 1100 1100
- non-braked trailer: 400 400 400 400
Maximum load on roof: 60 60 60 60
Maximum load on the ball
(braked trailer) (kg):60 60 60 60(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
340

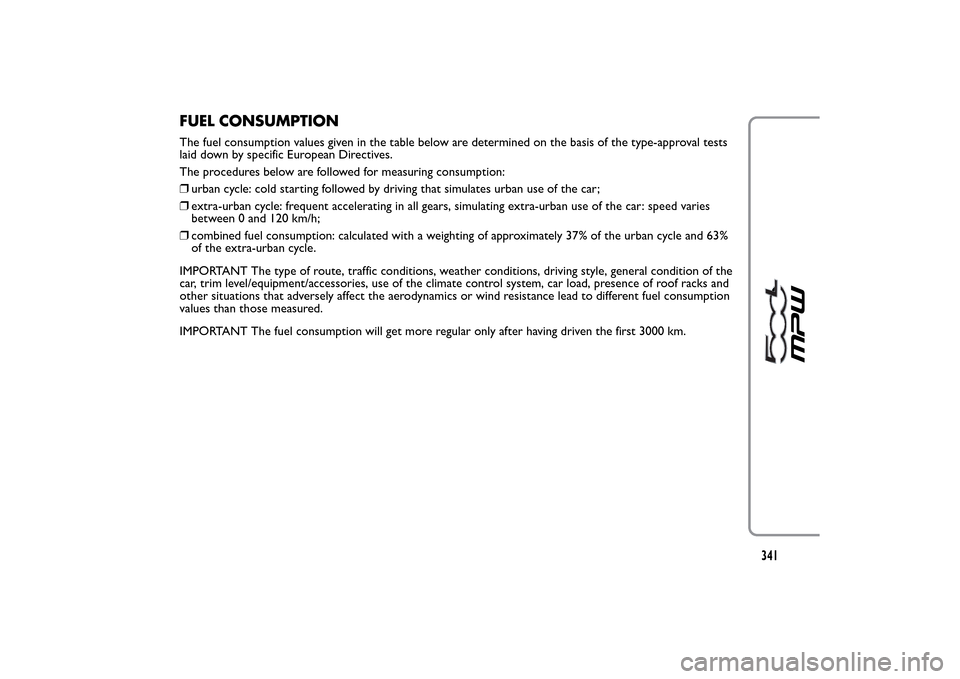

FUEL CONSUMPTIONThe fuel consumption values given in the table below are determined on the basis of the type-approval tests
laid down by specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies
between 0 and 120 km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63%
of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the
car, trim level/equipment/accessories, use of the climate control system, car load, presence of roof racks and
other situations that adversely affect the aerodynamics or wind resistance lead to different fuel consumption
values than those measured.
IMPORTANT The fuel consumption will get more regular only after having driven the first 3000 km.
341

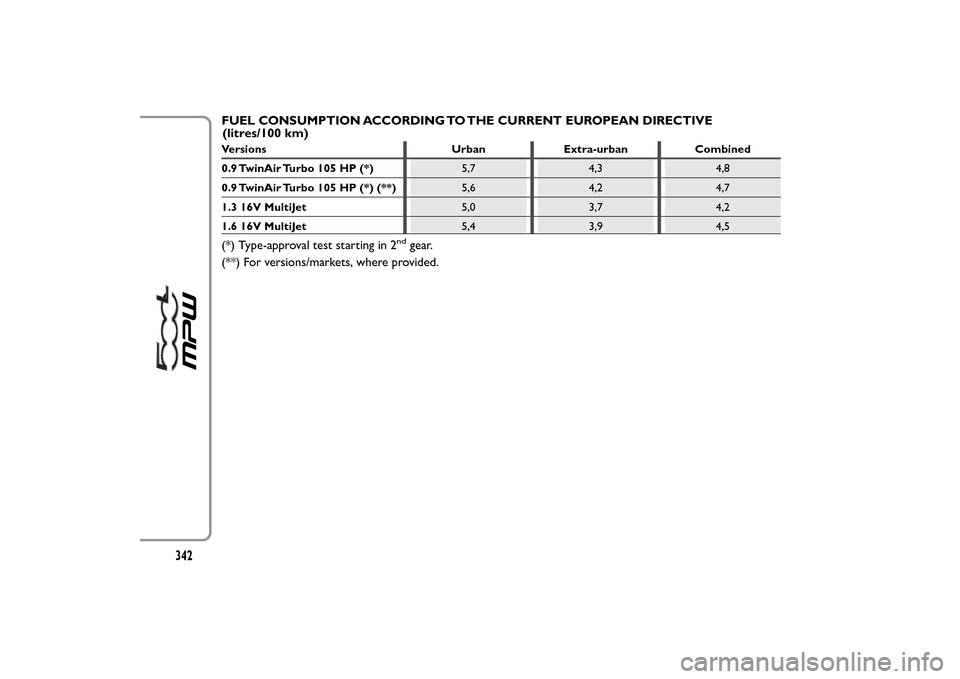

FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVEVersions Urban Extra-urban Combined
0.9 TwinAir Turbo 105 HP (*)5,7 4,3 4,8
0.9 TwinAir Turbo 105 HP (*) (**)5,6 4,2 4,7
1.3 16V MultiJet5,0 3,7 4,2
1.6 16V MultiJet5,4 3,9 4,5(*) Type-approval test starting in 2
nd
gear.
(**) For versions/markets, where provided.
342
(litres/100 km)

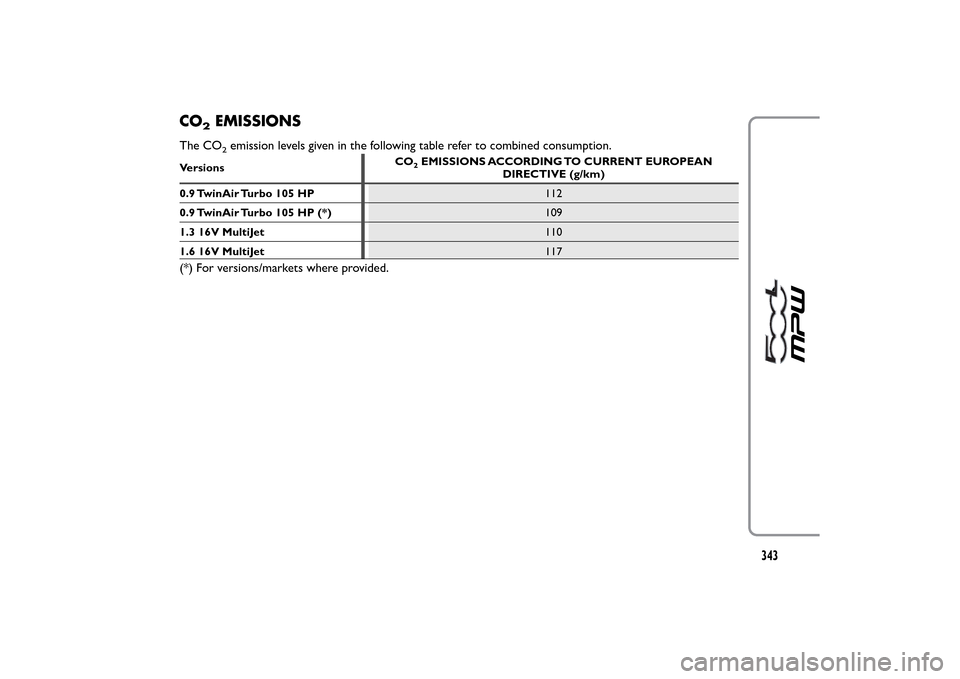

CO
2
EMISSIONS
The CO
2emission levels given in the following table refer to combined consumption.
VersionsCO
2EMISSIONS ACCORDING TO CURRENT EUROPEAN
DIRECTIVE (g/km)
0.9 TwinAir Turbo 105 HP112
0.9 TwinAir Turbo 105 HP (*)109
1.3 16V MultiJet110
1.6 16V MultiJet117
(*) For versions/markets where provided.
343
