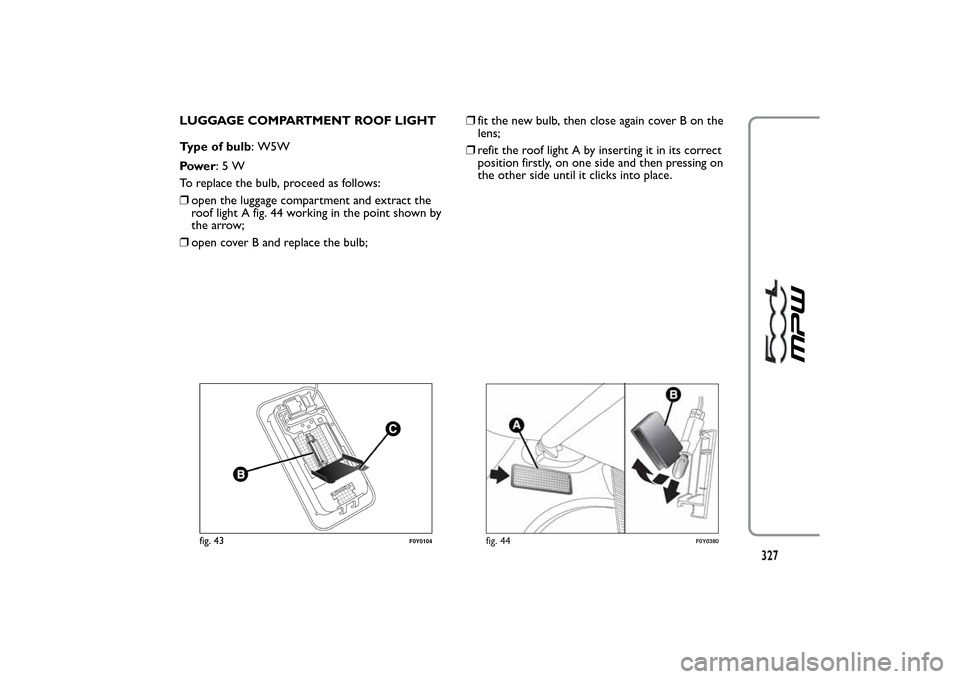

LUGGAGE COMPARTMENT ROOF LIGHT
Type of bulb: W5W
Power:5W
To replace the bulb, proceed as follows:
❒open the luggage compartment and extract the
roof light A fig. 44 working in the point shown by
the arrow;
❒open cover B and replace the bulb;❒fit the new bulb, then close again cover B on the
lens;
❒refit the roof light A by inserting it in its correct
position firstly, on one side and then pressing on
the other side until it clicks into place.
fig. 43
F0Y0104
fig. 44
F0Y0380
327

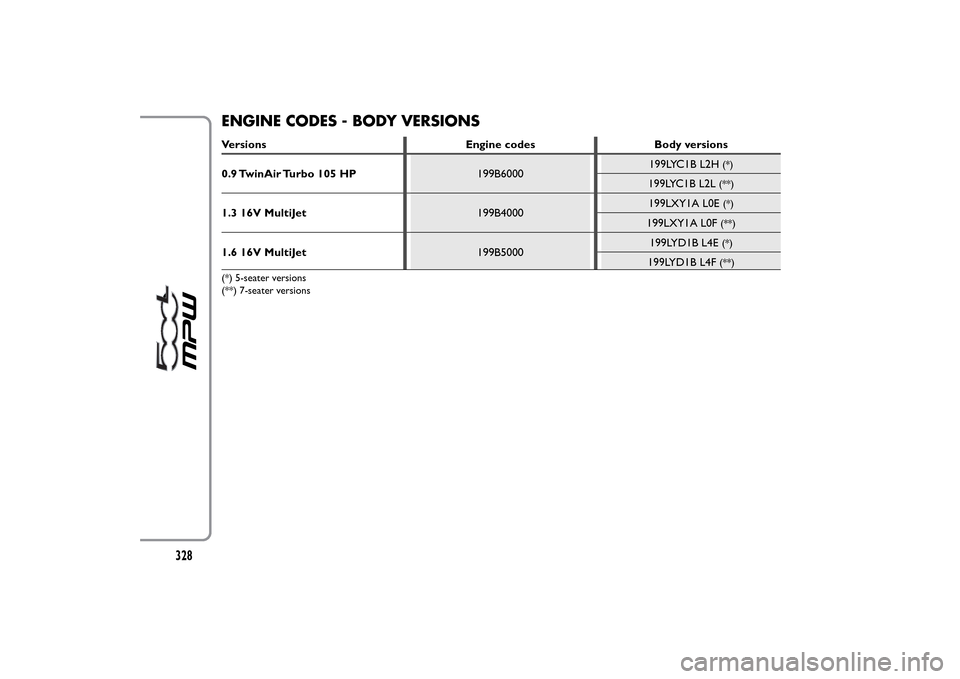

ENGINE CODES - BODY VERSIONSVersions Engine codes Body versions
0.9 TwinAir Turbo 105 HP199B6000199LYC1B L2H
(*)
199LYC1B L2L
(**)
1.3 16V MultiJet199B4000199LXY1A L0E
(*)
199LXY1A L0F
(**)
1.6 16V MultiJet199B5000199LYD1B L4E
(*)
199LYD1B L4F
(**)
(*) 5-seater versions
(**) 7-seater versions
328

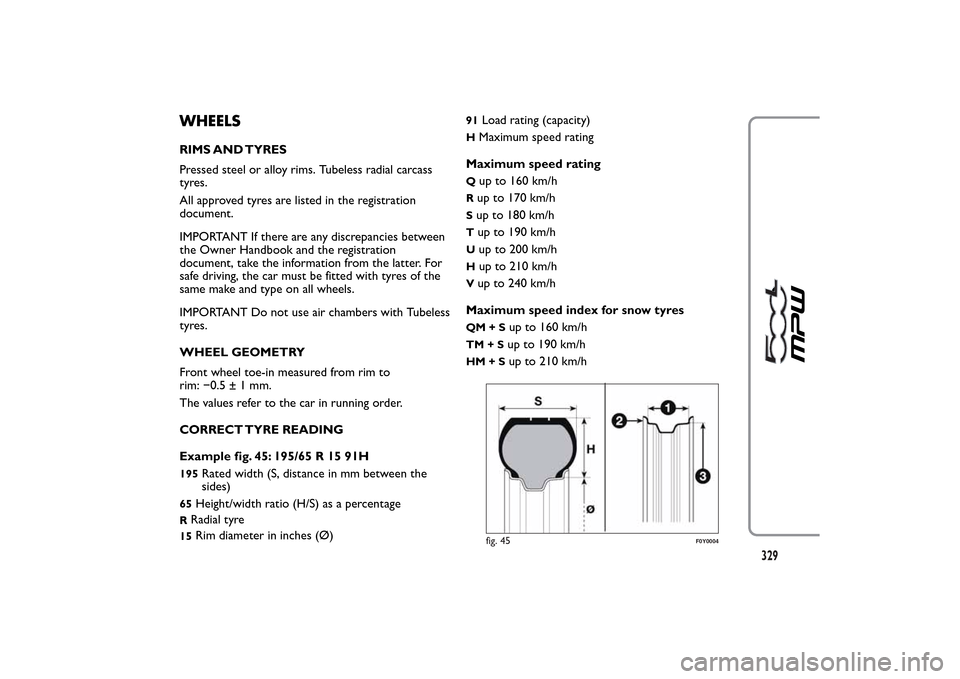

WHEELSRIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass
tyres.
All approved tyres are listed in the registration
document.
IMPORTANT If there are any discrepancies between
the Owner Handbook and the registration
document, take the information from the latter. For
safe driving, the car must be fitted with tyres of the
same make and type on all wheels.
IMPORTANT Do not use air chambers with Tubeless
tyres.
WHEEL GEOMETRY
Front wheel toe-in measured from rim to
rim: −0.5±1mm.
The values refer to the car in running order.
CORRECT TYRE READING
Example fig. 45: 195/65 R 15 91H195
Rated width (S, distance in mm between the
sides)
65
Height/width ratio (H/S) as a percentage
RRadial tyre15
Rim diameter in inches (Ø)
91
Load rating (capacity)
H
Maximum speed rating
Maximum speed rating
Q
up to 160 km/h
Rup to 170 km/hSup to 180 km/hT
up to 190 km/h
U
up to 200 km/h
H
up to 210 km/h
V
up to 240 km/h
Maximum speed index for snow tyres
QM+S
up to 160 km/h
TM+S
up to 190 km/h
HM+S
up to 210 km/h
fig. 45
F0Y0004
329

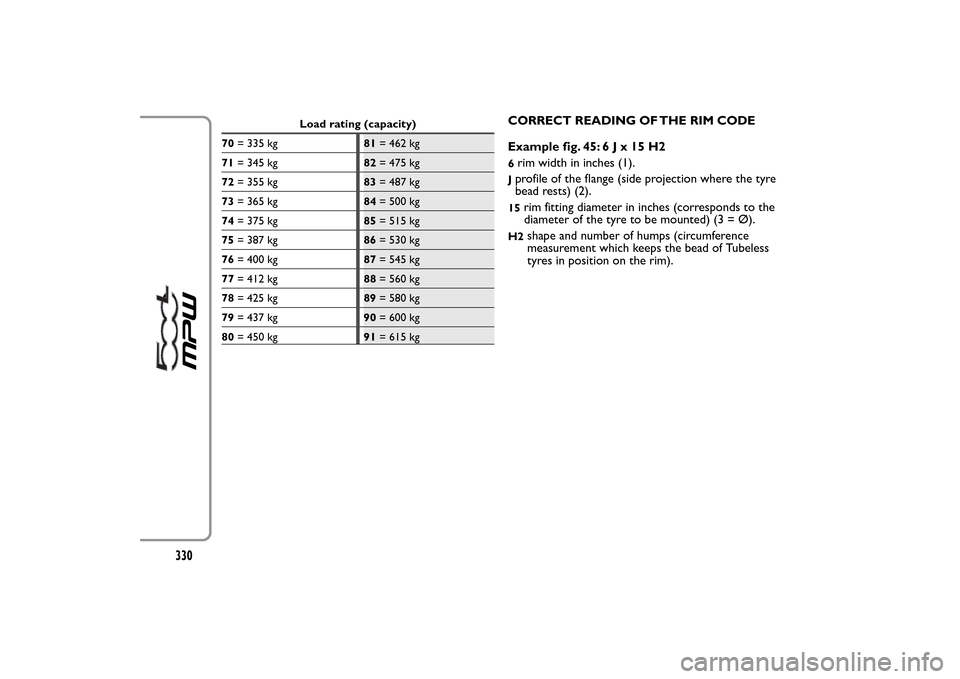

Load rating (capacity)
70= 335 kg81= 462 kg
71= 345 kg82= 475 kg
72= 355 kg83= 487 kg
73= 365 kg84= 500 kg
74= 375 kg85= 515 kg
75= 387 kg86= 530 kg
76= 400 kg87= 545 kg
77= 412 kg88= 560 kg
78= 425 kg89= 580 kg
79= 437 kg90= 600 kg
80= 450 kg91= 615 kg
CORRECT READING OF THE RIM CODE
Example fig. 45:6Jx15H26rim width in inches (1).Jprofile of the flange (side projection where the tyre
bead rests) (2).15
rim fitting diameter in inches (corresponds to the
diameter of the tyre to be mounted) (3 = Ø).
H2
shape and number of humps (circumference
measurement which keeps the bead of Tubeless
tyres in position on the rim).
330

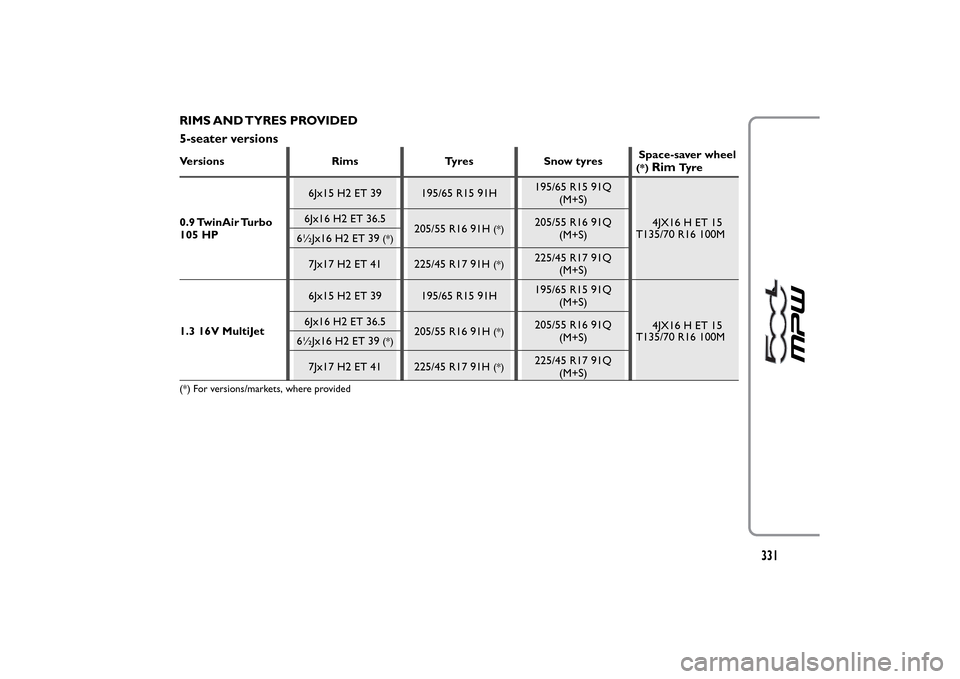

RIMS AND TYRES PROVIDED
5-seater versionsVersions Rims Tyres Snow tyresSpace-saver wheel
(*)
Rim
Ty r e
0.9 TwinAir Turbo
105 HP6Jx15 H2 ET 39 195/65 R15 91H195/65 R15 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q
(M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
1.3 16V MultiJet6Jx15 H2 ET 39 195/65 R15 91H195/65 R15 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q
(M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
(*) For versions/markets, where provided
331

Versions Rims Tyres Snow tyresSpace-saver wheel
(*)
Rim
Ty r e
1.6 16V MultiJet6Jx15 H2 ET 39 195/65 R15 91H195/65 R15 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q
(M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
(*) For versions/markets, where providedNoteReduced size snow chains with a maximum
projection of 9 mm beyond the tyre profile can be
fitted on 195/65 R15 91H and 205/55 R16 91V tyres.
225/45 R17 91V tyres cannot be fitted with snow
chains.
332

7-seater versionsVersions Rims Tyres Snow tyresSpace-saver wheel
(*)
Rim
Ty r e
0.9 TwinAir Turbo
105 HP6Jx16 H2 ET 36.5
205/55 R16 91H205/55 R16 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
(*)
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
1.3 16V MultiJet6Jx16 H2 ET 36.5
205/55 R16 91V
(*)
205/55 R16 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
(*)
225/45 R17 91V
(*)
225/45 R17 91Q
(M+S)
1.6 16V MultiJet6Jx16 H2 ET 36.5
205/55 R16 91V
(*)
205/55 R16 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
(*)
225/45 R17 91V
(*)
225/45 R17 91Q
(M+S)
(*) For versions/markets, where providedNoteReduced size snow chains with a maximum
projection of 9 mm beyond the tyre profile can be
fitted on 205/55 R16 91V tyres. 225/45 R17 91V
tyres cannot be fitted with snow chains.
333

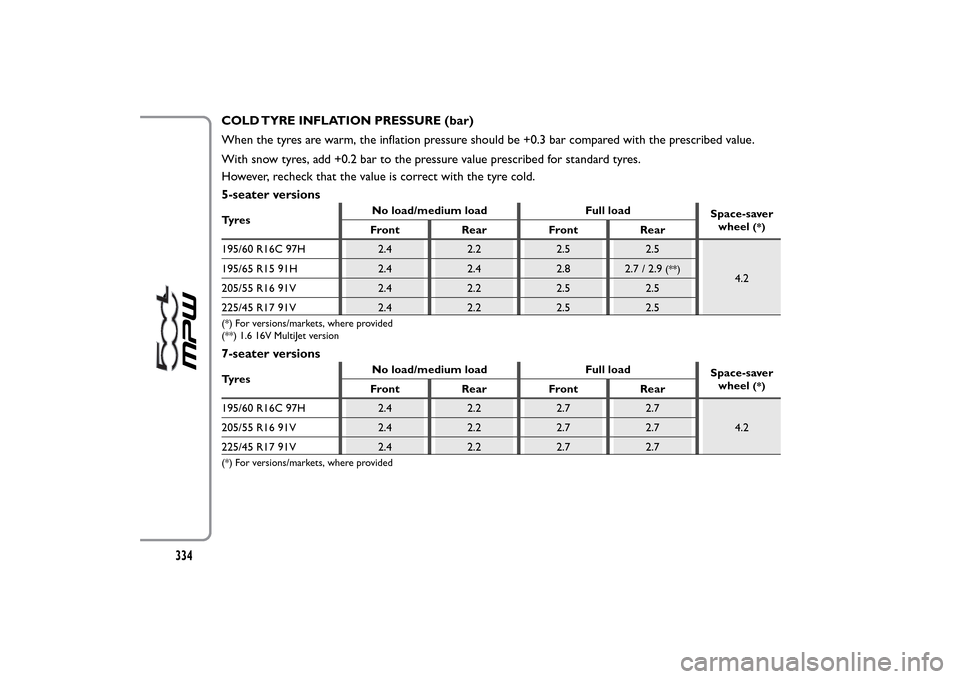

COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, the inflation pressure should be +0.3 bar compared with the prescribed value.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
However, recheck that the value is correct with the tyre cold.
5-seater versionsTy r e sNo load/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/60 R16C 97H 2.4 2.2 2.5 2.5
4.2 195/65 R15 91H 2.4 2.4 2.8
2.7 / 2.9
(**)
205/55 R16 91V 2.4 2.2 2.5 2.5
225/45 R17 91V 2.4 2.2 2.5 2.5(*) For versions/markets, where provided
(**) 1.6 16V MultiJet version7-seater versionsTy r e sNo load/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/60 R16C 97H 2.4 2.2 2.7 2.7
4.2 205/55 R16 91V 2.4 2.2 2.7 2.7
225/45 R17 91V 2.4 2.2 2.7 2.7
(*) For versions/markets, where provided
334

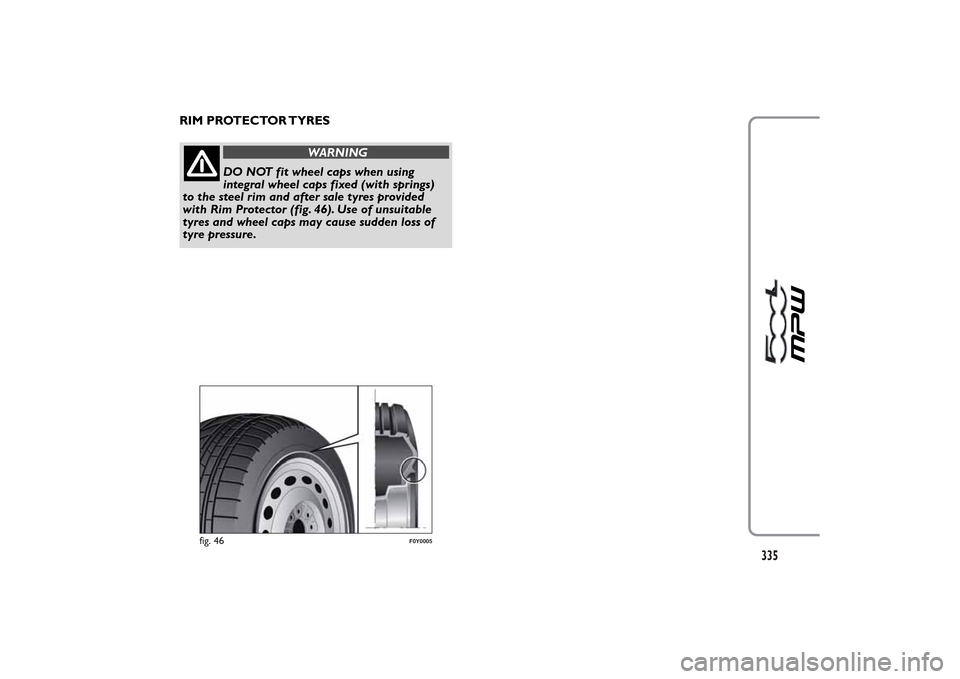

RIM PROTECTOR TYRES
WARNING
DO NOT fit wheel caps when using
integral wheel caps fixed (with springs)
to the steel rim and after sale tyres provided
with Rim Protector (fig. 46). Use of unsuitable
tyres and wheel caps may cause sudden loss of
tyre pressure.
fig. 46
F0Y0005
335

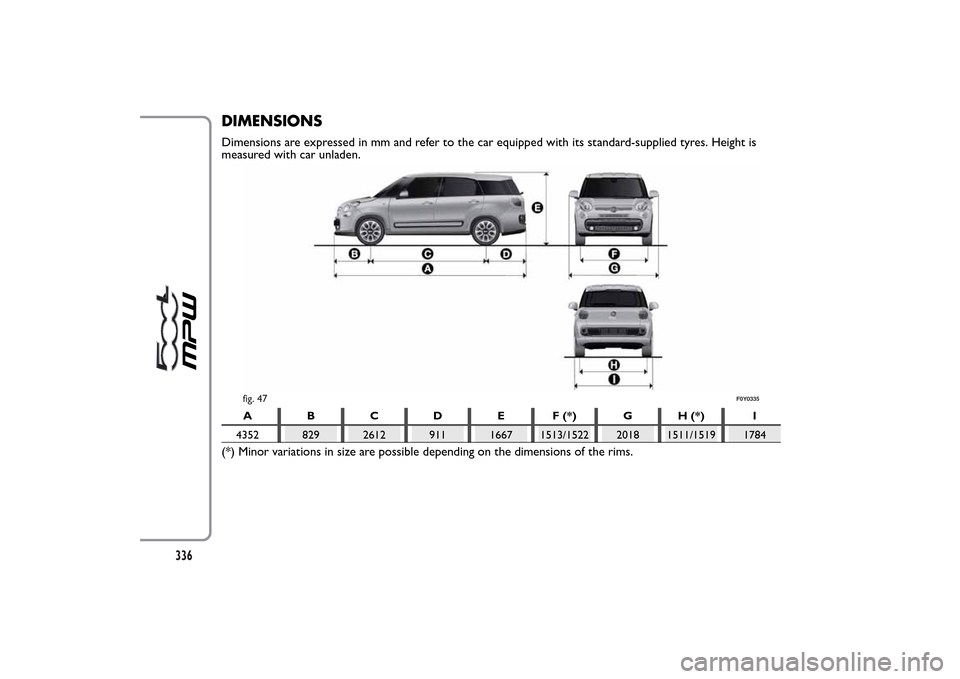

DIMENSIONSDimensions are expressed in mm and refer to the car equipped with its standard-supplied tyres. Height is
measured with car unladen.
A B C D E F (*) G H (*) I
4352 829 2612 911 1667 1513/1522 2018 1511/1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
fig. 47
F0Y0335
