167)The brake servo and the
electromechanical power steering will not
work while the vehicle is being towed. You
will therefore need to apply more force on
the brake pedal and steering wheel. Do not
use flexible ropes when towing, and avoid
jerky movements. During towing, make
sure that the trailer hitch does not damage
any components it is touching. When
towing the car, you must comply with all
specific traffic regulations and adopt an
appropriate driving behaviour. Do not start
the engine while towing the car. Before
tightening the ring, clean the threaded
housing thoroughly. Make sure that the ring
is fully screwed into the housing before
towing the car.
168)The front and rear tow hooks should
be used only for emergencies on the road.
You are allowed to tow the vehicle for short
distances using an appropriate device in
accordance with the highway code (a rigid
bar), to move the vehicle on the road in
readiness for towing or transport via a
breakdown vehicle. Tow hooks MUST NOT
be used to tow vehicles off the road or
where there are obstacles and/or for
towing operations using cables or other
non-rigid devices. In compliance with the
above conditions, towing must take place
with the two vehicles (one towing, the other
towed) aligned as much as possible along
the same centre line.
169

SERVICING AND MAINTENANCE
Correct maintenance permits the
performance of the vehicle to be
maintained over time, as well as limited
running costs and safeguarding the
efficiency of the safety systems.
This chapter explains how.SCHEDULED SERVICING.......171
ENGINE COMPARTMENT......181
BATTERY RECHARGING.......190
SERVICING PROCEDURES.....191
LIFTING THE VEHICLE.........194
WHEELS AND TYRES.........194
BODYWORK...............196
INTERIORS................197
170
SERVICING AND MAINTENANCE

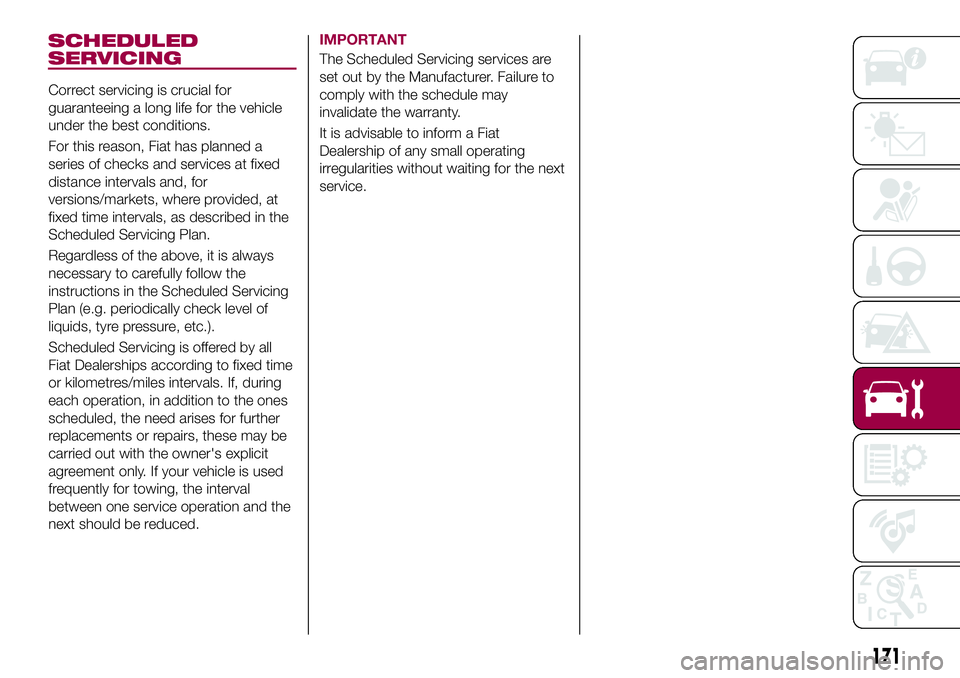

SCHEDULED
SERVICING
Correct servicing is crucial for
guaranteeing a long life for the vehicle
under the best conditions.
For this reason, Fiat has planned a
series of checks and services at fixed
distance intervals and, for
versions/markets, where provided, at
fixed time intervals, as described in the
Scheduled Servicing Plan.
Regardless of the above, it is always
necessary to carefully follow the
instructions in the Scheduled Servicing
Plan (e.g. periodically check level of
liquids, tyre pressure, etc.).
Scheduled Servicing is offered by all
Fiat Dealerships according to fixed time
or kilometres/miles intervals. If, during
each operation, in addition to the ones
scheduled, the need arises for further
replacements or repairs, these may be
carried out with the owner's explicit
agreement only. If your vehicle is used
frequently for towing, the interval
between one service operation and the
next should be reduced.IMPORTANT
The Scheduled Servicing services are
set out by the Manufacturer. Failure to
comply with the schedule may
invalidate the warranty.
It is advisable to inform a Fiat
Dealership of any small operating
irregularities without waiting for the next
service.
171

SERVICE SCHEDULE (1.4 Turbo Multi Air and 2.4 Tigershark versions)
The checks listed in the Service Schedule, after reaching 120,000 km/8 years, must be cyclically repeated starting from the first
interval, thus following the same intervals as before.
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Check tyre condition/wear and adjust pressure, if
necessary. Check quick tyre repair kit recharge
conditions/expiry date (if provided)
●●●●●●●●●●
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, boot, passenger
compartment, glove compartment, instrument panel
warning lights, etc.)
●●●●●●●●●●
Check and, if necessary, top up fluid levels (1)●●●●●●●●●●
Check exhaust emissions●●●●●●●●●●
Use the diagnosis socket to check the operation of the
engine management systems, emissions and, for
versions/markets where provided, engine oil degradation
●●●●●●●●●●
Visually inspect condition of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel
system, brakes), rubber elements (gaiters, sleeves,
bushes, etc.)
●●●●●
Check windscreen and rear window wiper blade
position/wear●●●●●
Check operation of the windscreen washer system and
adjust the jets, if necessary●●●●●
(1) Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.
172
SERVICING AND MAINTENANCE
Thousands of miles9 182736455463728190

Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Check the cleanliness of the bonnet and luggage
compartment locks, cleanliness and lubrication of linkages●●●●●
Visually inspect conditions and wear of front and rear disc
brake pads and operation of pad wear indicator●●●●●●●●●●
Visually inspect conditions of the accessory drive belt(s)●
Check tension of accessory drive belt (versions without
automatic tensioner)●●
Visually inspect conditions of toothed timing drive belt
(1.4 Turbo Multi Air versions only)●
Check drive transmission idler unit (PTU) oil level
(4x4 versions)●●
Check rear differential fluid level (4x4 versions)●●
Check oil level of electro-hydraulic actuator and top up, if
necessary (1.4 Turbo Multi Air versions with dual-clutch
automatic transmission)(2)
●
Change engine oil and replace oil filter (1.4 Turbo Multi Air
versions)(3) (O) (●)●●●●●
Change engine oil and oil filter (2.4 Tigershark versions)(4)●●●●●●●●●●
(2) Check to be carried out every year for cars on the road in countries with particularly severe climates (cold countries).
(3) If the car's annual mileage is less than 10,000 km, the engine oil and filter must be replaced every year.
(O) Recommended operations
(●) Mandatory operations
(4) The engine oil and oil filter must be replaced when the warning light on the instrument panel switches on or, in any case, every year.
173
Thousands of miles 9 18 27 36 45 54 63 72 81 90

Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Replace spark plugs (1.4 Turbo MultiAir versions) (5)●●●●●
Replace spark plugs (2.4 Tigershark versions)●●●
Replace the accessory drive belt(s)(6)
Replace toothed timing drive belt (1.4 Turbo Multi Air
versions only)(6)
Change the brake fluid(7)
Replace the air filter cartridge (8)
●●●●●
Replace the passenger compartment filter (8) (O) (●)●●●●●
(5) For 1.4 Turbo MultiAir versions, to guarantee correct operation and prevent serious damage to the engine, it is essential to proceed as
follows: only use spark plugs specifically certified for these engines; all spark plugs should be of the same type and brand (see the "Engine"
paragraph in the "Technical specifications" chapter); strictly comply with the spark plugs replacement intervals in the Scheduled Servicing
Plan. It is advisable to contact a FIAT Dealership for plug replacement.
(6) Areas that are not dusty: recommended maximum distance 120,000 km. The belt must be replaced every 6 years, regardless of distance
travelled. Dusty areas and/or heavy conditions (cold climates, urban driving, long periods of idling): the recommended maximum distance is
60,000 km. The belt must be replaced every 4 years, regardless of distance travelled.
(7) The brake fluid replacement has to be done every 2 years, irrespective of the mileage.
(8) If the vehicle is used in dusty areas, this cleaner must be replaced every 15,000 km.
(O) Recommended operations
(●) Mandatory operations
NOTE change automatic transmission oil and replace oil filter every 240,000 km.
174
SERVICING AND MAINTENANCE
Thousands of miles 9 18 27 36 45 54 63 72 81 90

SERVICE SCHEDULE (1.6 E.Torq versions)
175
Thousands of miles 9 18 27 36 45 54 63 72 81 90
The checks listed in the Service Schedule, after reaching 150,000 km/10 years, must be cyclically repeated starting from the
first interval, thus following the same intervals as before.
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Check tyre condition/wear and adjust pressure, if
necessary. Check quick tyre repair kit recharge
conditions/expiry date (if provided)
●●●●●●●●●●
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, boot, passenger
compartment, glove compartment, instrument panel
warning lights, etc.)
●●●●●●●●●●
Check and, if necessary, top up fluid levels (1)●●●●●●●●●●
Check exhaust emissions●●●●●●●●●●
Use the diagnosis socket to check the operation of the
engine management systems, emissions and, for
versions/markets where provided, engine oil degradation
●●●●●●●●●●
Visually inspect condition of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel
system, brakes), rubber elements (gaiters, sleeves,
bushes, etc.)
●●●●●
Check windscreen and rear window wiper blade
position/wear●●●●●
Check operation of the windscreen washer system and
adjust the jets, if necessary●●●●●
(1) Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.

176
SERVICING AND MAINTENANCE
Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Check the cleanliness of the bonnet and luggage
compartment locks, cleanliness and lubrication of linkages●●●●●
Visually inspect conditions and wear of front and rear disc
brake pads and operation of pad wear indicator●●●●●●●●●●
Visually inspect conditions of the accessory drive belt(s)●●●●●●●●●●
Check tension of accessory drive belt (versions without
automatic tensioner)●●●●●●●●●●
Change the engine oil and replace the oil filter●●●●●●●●●●
Replace the spark plugs●●●●●
Replace the accessory drive belt(s)●
Replace the air filter cartridge (2)●●●●●
Change the brake fluid(3)
Replace the passenger compartment cleaner (2) (O) (●)
●●●●●
(2) If the vehicle is used in dusty areas, this cleaner should be replaced every 15,000 km.
(3) The brake fluid replacement has to be done every 2 years, irrespective of the mileage.
(O) Recommended operations
(●) Obligatory operations

SERVICE SCHEDULE (Diesel versions)
The checks listed in the Service Schedule, after reaching 120,000 km/6 years, must be cyclically repeated starting from the first
interval, thus following the same intervals as before.
Thousands of kilometres20 40 60 80 100 120 140 160 180 200
Years12345678910
Check tyre condition/wear and adjust pressure, if
necessary. Check quick tyre repair kit recharge
conditions/expiry date (if provided)
●●●●●●●●●●
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, boot, passenger
compartment, glove compartment, instrument panel
warning lights, etc.)
●●●●●●●●●●
Check and, if necessary, top up fluid levels (1)●●●●●●●●●●
Check exhaust emissions●●●●●●●●●●
Use the diagnosis socket to check supply/engine
management systems operation, emissions and, for
versions/markets, where provided, engine oil degradation
●●●●●●●●●●
Visually inspect condition of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel
system, brakes), rubber elements (gaiters, sleeves,
bushes, etc.)
●●●●●
Check windscreen and rear window wiper blade
position/wear●●●●●
Check operation of the windscreen washer system and
adjust the jets, if necessary●●●●●
(1) Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.177
Thousands of miles 12 24 36 48 60 72 84 96 108 120

Thousands of kilometres20 40 60 80 100 120 140 160 180 200
Years12345678910
Check the cleanliness of the bonnet and luggage
compartment locks, cleanliness and lubrication of linkages●●●●●
Visually inspect conditions and wear of front and rear disc
brake pads and operation of pad wear indicator●●●●●●●●●●
Visually inspect conditions of the accessory drive belt(s)●●
Check tension of accessory drive belt (versions without
automatic tensioner)●●
Visually inspect condition of toothed timing drive belt
(excluding 1.3 Multijet 16V version)●●
Check drive transmission idler unit (PTU) oil level (except
2.0 Multijet 4x4 versions)●●
Check oil level of electro-hydraulic actuator and top up, if
necessary (1.6 Multijet versions with dual-clutch automatic
transmission)(2)
●
Check rear differential fluid level (2.0 Multijet 4x4 versions)●●
Change the engine oil and replace the oil filter(3)
Replace the accessory drive belt(s)(4)
(2) Check to be carried out every year for cars on the road in countries with particularly severe climates (cold countries).
(3) The actual interval for changing engine oil and replacing the engine oil filter depends on the car usage conditions and is signalled by the
warning light or message on the instrument panel. In any case, it must never exceed 2 years. If the car is mainly used in towns and cities,
change the engine oil and filter every year.
(4) Areas that are not dusty: recommended maximum distance 120,000 km. The belt must be replaced every 6 years, regardless of distance
travelled. Dusty areas and/or heavy conditions (cold climates, urban driving, long periods of idling): the recommended maximum distance is
60,000 km. The belt must be replaced every 4 years, regardless of distance travelled.
178
SERVICING AND MAINTENANCE
Thousands of miles 12 24 36 48 60 72 84 96 108 120
