FIAT BARCHETTA 2001 1.G Radio Tape Player And External CD Manual

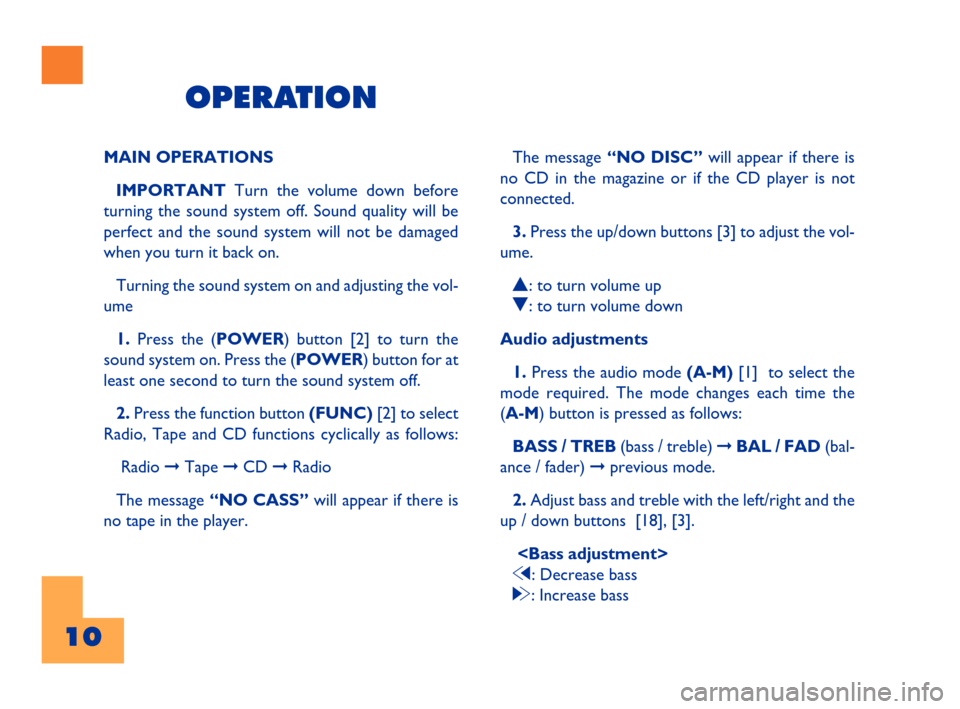

10Cyan GialloMagenta Nero603.47.453
10
OPERATION
MAIN OPERATIONS
IMPORTANTTurn the volume down before
turning the sound system off. Sound quality will be
perfect and the sound system will not be damaged
when you turn it back on.
Turning the sound system on and adjusting the vol-
ume
1.Press the (POWER) button [2] to turn the
sound system on. Press the (POWER) button for at
least one second to turn the sound system off.
2. Press the function button (FUNC)[2] to select
Radio, Tape and CD functions cyclically as follows:
Radio➞Tape ➞CD ➞Radio
The message “NO CASS”will appear if there is
no tape in the player.The message “NO DISC”will appear if there is
no CD in the magazine or if the CD player is not
connected.
3.Press the up/down buttons [3] to adjust the vol-
ume.
N: to turn volume up
O: to turn volume down
Audio adjustments
1. Press the audio mode (A-M) [1] to select the
mode required. The mode changes each time the
(A-M) button is pressed as follows:
BASS / TREB(bass / treble) ➞BAL / FAD(bal-
ance / fader) ➞previous mode.
2. Adjust bass and treble with the left/right and the
up / down buttons [18], [3].

G: Decrease bass
H: Increase bass

11Cyan GialloMagenta Nero603.47.453
11
Mute
This function will automatically turn the volume
down to zero.
Press the MUTE[14]. The sound will disappear
and the message “MUTE” will appear on the dis-
play. Press the MUTEbutton again to turn the func-
tion off.
This function is operating in “cassette” or “com-
pact disc” modes only.
RADIO FUNCTIONS
Listening to the radio
1. Press the function button (FUNC) [2] to select
radio mode.
Press the BANDbutton [17] to select the recep-
tion band FM (FM1, FM2, FM3) ot AM (MW /
LW). The band will change each time the button is
pressed as follows:
N: Increase treble
O: Decrease treble
3.Adjust balance and fader with the left/right and
up / down buttons [18], [3].

G: Increase left speaker sound
H: Increase right speaker sound

N: Increase front speaker sound
O: Increase rear speaker sound
Loudness
Keep the loudness button (LOUD)[1] pressed
for longer than 2 seconds to activate/deactivate this
function. The message“LD”will appear on the dis-
play when the function is on.

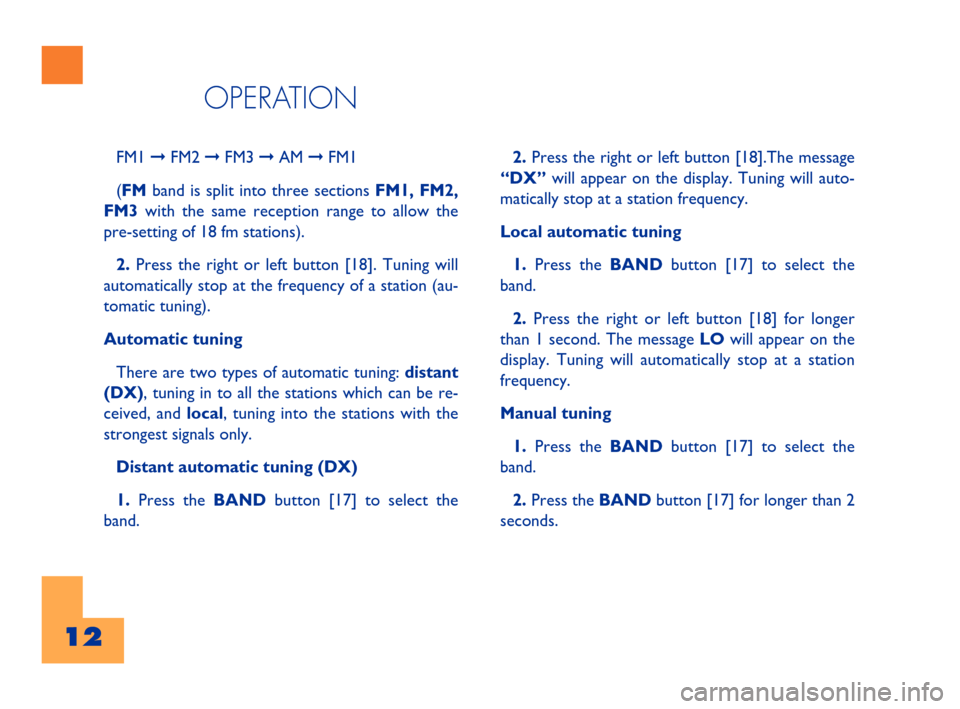

12Cyan GialloMagenta Nero603.47.453
OPERATION
12
FM1 ➞FM2 ➞FM3 ➞AM ➞FM1
(FM band is split into three sections FM1, FM2,
FM3 with the same reception range to allow the
pre-setting of 18 fm stations).
2.Press the right or left button [18]. Tuning will
automatically stop at the frequency of a station (au-
tomatic tuning).
Automatic tuning
There are two types of automatic tuning: distant
(DX), tuning in to all the stations which can be re-
ceived, and local, tuning into the stations with the
strongest signals only.
Distant automatic tuning (DX)
1.Press the BANDbutton [17] to select the
band.2.Press the right or left button [18].The message
“DX”will appear on the display. Tuning will auto-
matically stop at a station frequency.
Local automatic tuning
1.Press the BANDbutton [17] to select the
band.
2.Press the right or left button [18] for longer
than 1 second. The messageLOwill appear on the
display. Tuning will automatically stop at a station
frequency.
Manual tuning
1.Press the BANDbutton [17] to select the
band.
2.Press the BANDbutton [17] for longer than 2
seconds.

13Cyan GialloMagenta Nero603.47.453
13
Automatic storage
1.Press theBANDbutton [17] to select the
band.
2.Press theASbutton [10]. for 2 seconds or
more. Strong signals will be automatically stored in
pre-set memory. If less than 6 strong stations are
available, the previously stored stations will be kept
for the pre-set buttons where no new stations can
be stored.
Recalling pre-set stations
1.Press the BANDbutton [17] to select the
band.
2.Press the pre-set buttons [12] to select the re-
quired station. 3. The messageMANwill appear on the display
and manual tuning is possible.
4.Press the left /right buttons [18] to tune to the
stations
The system will return automatically to automatic
tuning after 7 seconds.
Manual station storage
24 stations (6 each in the FM1, FM2, FM3, AM
bands) can be stored as follows:
1. Press the BANDbutton [17] to select the
band.
2. Press the left/right buttons [18] to tune to the
station to be stored.
3. Press the pre-setting button [12] where to
store the station for 2 seconds or more.
Note: When storing a station, the station previ-
ously stored for that button will be deleted.

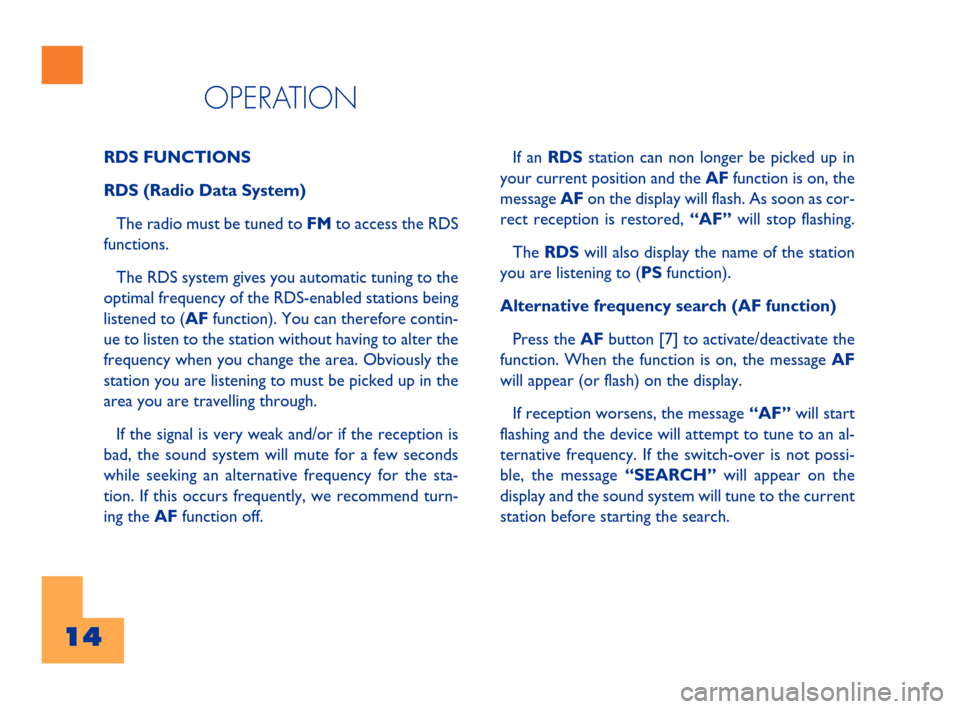

14Cyan GialloMagenta Nero603.47.453
OPERATION
14
RDS FUNCTIONS
RDS (Radio Data System)
The radio must be tuned toFMto access the RDS
functions.
The RDS system gives you automatic tuning to the
optimal frequency of the RDS-enabled stations being
listened to (AFfunction). You can therefore contin-
ue to listen to the station without having to alter the
frequency when you change the area. Obviously the
station you are listening to must be picked up in the
area you are travelling through.
If the signal is very weak and/or if the reception is
bad, the sound system will mute for a few seconds
while seeking an alternative frequency for the sta-
tion. If this occurs frequently, we recommend turn-
ing the AFfunction off.If an RDSstation can non longer be picked up in
your current position and the AFfunction is on, the
message AFon the display will flash. As soon as cor-
rect reception is restored, “AF”will stop flashing.
The RDS will also display the name of the station
you are listening to (PSfunction).
Alternative frequency search (AF function)
Press the AFbutton [7] to activate/deactivate the
function. When the function is on, the message AF
will appear (or flash) on the display.
If reception worsens, the message “AF”will start
flashing and the device will attempt to tune to an al-
ternative frequency. If the switch-over is not possi-
ble, the message “SEARCH”will appear on the
display and the sound system will tune to the current
station before starting the search.

15Cyan GialloMagenta Nero603.47.453
15
1.Press one of the pre-set buttons [12] to recall a
regional station.
2. If the station reception is not optimal, press the
same pre-set button [12] and the radio will tune to
a regional station.
TA (Traffic Announcement) function
With this function, you can:
– Automatically search only the FM-RDS stations
enabled to broadcast traffic announcements. The
message “TP”will appear on the display when you
are tuned to one of these stations.
– Receive traffic announcements while you are lis-
tening to a tape or CD. REG function (regional programmes)
The REGfunction can only be used when the AF
function is on.
The REGfunction (regional programmes) tunes to
local (regional) stations only. Press the AF button [7]
for longer than 2 seconds to turn the function on/off.
The message “REG”will appear on the display
when the function is on.
If you are listening to a regional station and the
function is off, the regional station of the new area
will be picked up as you change area.
The REGfunction is not active when receiving a
national station.
Manual tuning to regional stations
This function is available only when regional sta-
tions are received, with AFfunction on and RDS
function off. Follow this procedure:

16Cyan GialloMagenta Nero603.47.453
OPERATION
16
To start the function, press theTAbutton [9]. If
the initial station is not enabled to provide traffic an-
nouncements (the message “TP”will not appear on
the display), the radio will automatically tune to the
closest station broadcasting traffic announcements
and the message “TA” will appear on the display.
Note: If no RDS TA stations can be received, the
system will continue the search indeterminately. To
stop the search, press the TAbutton [9] again.
If, on the other hand, a station has been found, the
system will turn to TAstand-by until the traffic an-
nouncement starts. In this case, the message TRA
INFOfollowed by PS(Programme Service name)
will appear on the display.
The playback of a CD or tape will be interrupted
to allow to listen to traffic announcements broadcast
by an RDS TA station.Press the TAbutton [9] during traffic announce-
ment broadcasting to stop listening to the an-
nouncement and the system will return to TA
stand-by mode.
To memorise stations with the TPfunction on,
follow the storage procedure described in the para-
graph “Manual station storage”.
Alternatively to manual storage, press the AS but-
ton [10] for 2 seconds or more to automatically
store the stations with the TP function on (see “Au-
tomatic storage”).
To turn the function off, press the TAbutton [9]
again.
EON (Enhanced Other Network) function
Circuits grouping stations enabled to broadcast
traffic announcements (NEWS) are available in
some countries.

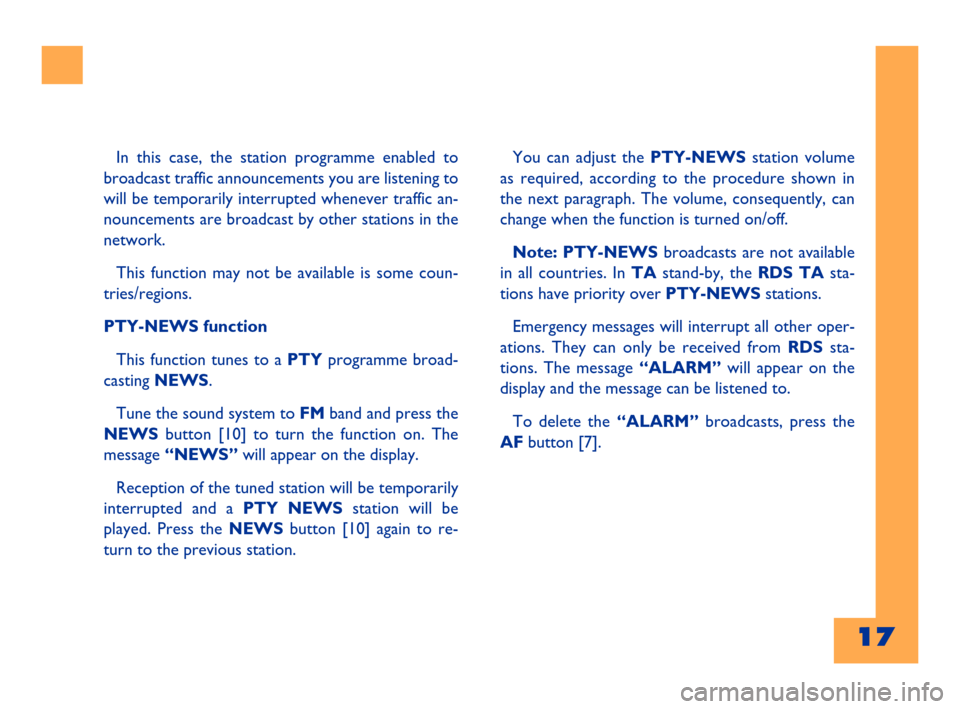

17Cyan GialloMagenta Nero603.47.453
17
You can adjust the PTY-NEWSstation volume
as required, according to the procedure shown in
the next paragraph. The volume, consequently, can
change when the function is turned on/off.
Note: PTY-NEWS broadcasts are not available
in all countries. In TAstand-by, the RDS TA sta-
tions have priority over PTY-NEWSstations.
Emergency messages will interrupt all other oper-
ations. They can only be received from RDS sta-
tions. The message “ALARM”will appear on the
display and the message can be listened to.
To delete the“ALARM”broadcasts, press the
AF button [7]. In this case, the station programme enabled to
broadcast traffic announcements you are listening to
will be temporarily interrupted whenever traffic an-
nouncements are broadcast by other stations in the
network.
This function may not be available is some coun-
tries/regions.
PTY-NEWS function
This function tunes to a PTYprogramme broad-
casting NEWS.
Tune the sound system toFMband and press the
NEWSbutton [10] to turn the function on. The
message “NEWS”will appear on the display.
Reception of the tuned station will be temporarily
interrupted and a PTY NEWSstation will be
played. Press the NEWSbutton [10] again to re-
turn to the previous station.

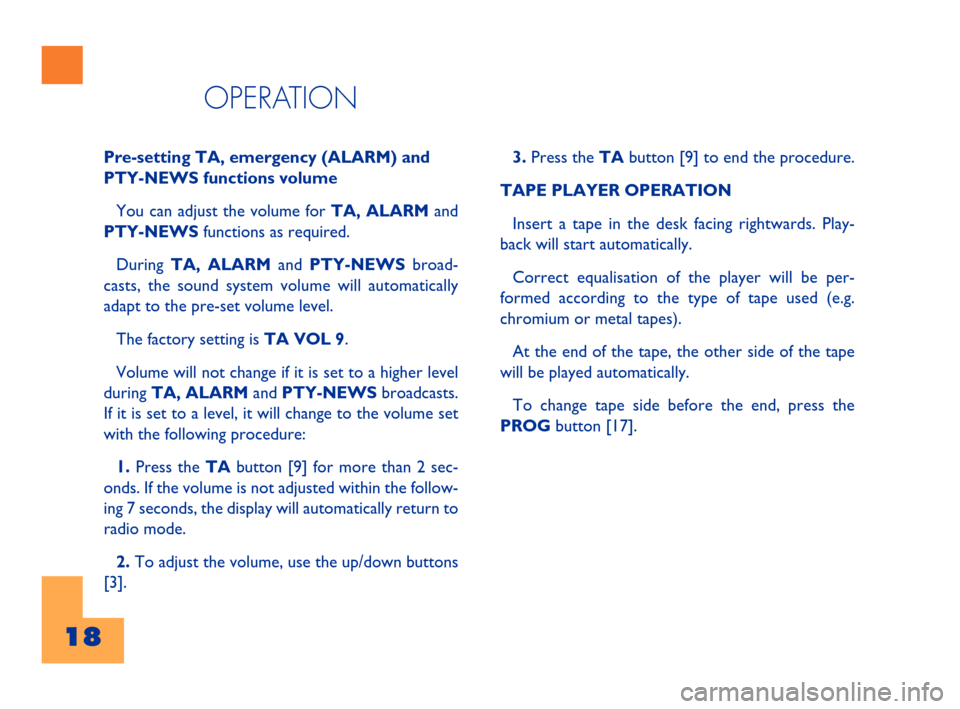

18Cyan GialloMagenta Nero603.47.453
OPERATION
18
Pre-setting TA, emergency (ALARM) and
PTY-NEWS functions volume
You can adjust the volume for TA, ALARMand
PTY-NEWSfunctions as required.
During TA, ALARMand PTY-NEWS broad-
casts, the sound system volume will automatically
adapt to the pre-set volume level.
The factory setting is TA VOL 9.
Volume will not change if it is set to a higher level
duringTA, ALARM and PTY-NEWSbroadcasts.
If it is set to a level, it will change to the volume set
with the following procedure:
1. Press theTA button [9] for more than 2 sec-
onds. If the volume is not adjusted within the follow-
ing 7 seconds, the display will automatically return to
radio mode.
2.To adjust the volume, use the up/down buttons
[3].3. Press the TAbutton [9] to end the procedure.
TAPE PLAYER OPERATION
Insert a tape in the desk facing rightwards. Play-
back will start automatically.
Correct equalisation of the player will be per-
formed according to the type of tape used (e.g.
chromium or metal tapes).
At the end of the tape, the other side of the tape
will be played automatically.
To change tape side before the end, press the
PROG button [17].

19Cyan GialloMagenta Nero603.47.453
19
H: Press this button to fast forward the tape
G:Press this button to rewind the tape.
The radio will be turned on while the tape is being
fast forwarded/rewound.
Last/next track search (Auto Program
Control function)
Press the left/right button [18] twice.
H: Press this button twice to go to the beginning
of the next track
G: Press this button twice to return to the begin-
ning of the track being played. Press the button again
to go to the beginning of the last track.

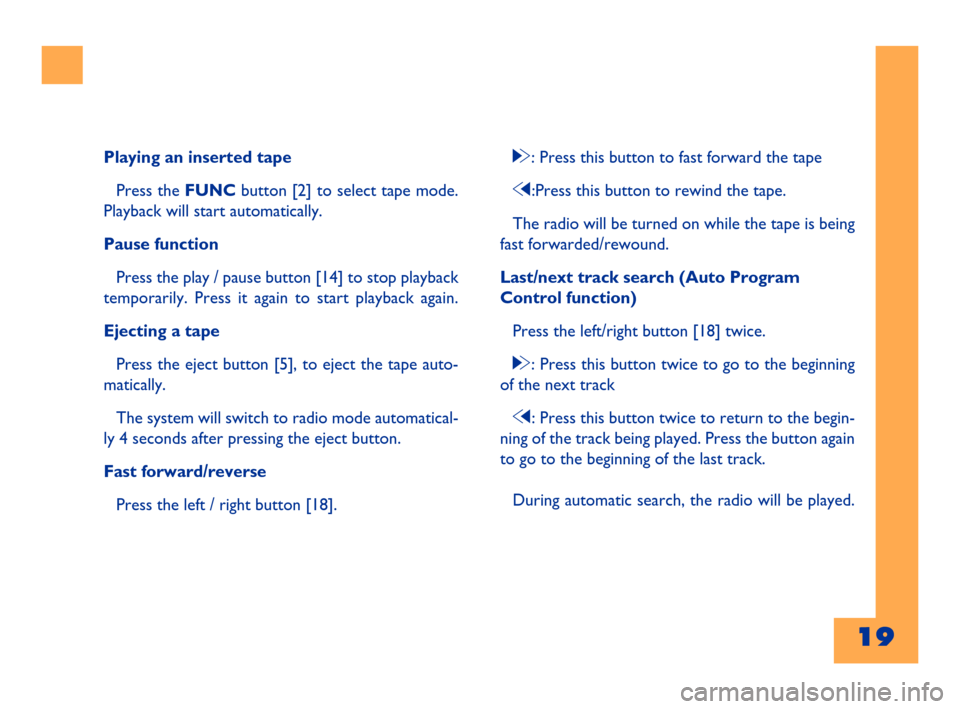

During automatic search, the radio will be played. Playing an inserted tape
Press the FUNCbutton [2] to select tape mode.
Playback will start automatically.
Pause function
Press the play / pause button [14] to stop playback
temporarily. Press it again to start playback again.
Ejecting a tape
Press the eject button [5], to eject the tape auto-
matically.
The system will switch to radio mode automatical-
ly 4 seconds after pressing the eject button.
Fast forward/reverse
Press the left / right button [18].
