FIAT CROMA 2006 2.G Owners Manual

211
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
ENGINE
1.8 2.2 2.2 a.t.
GENERAL FEATURES
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Spark plugs
Fuel
939A4000
Otto
4 in line
80.5 x 88.2
1796
10.5 : 1
103
140
6300
175
17.8
3800
BOSCH FQR 8 LEU2
Unleaded
petrol 95 RON
(Specification EN228)194A1000
Otto
4 in line
86 x 94.6
2198
10.0 : 1
108
147
5800
203
20.7
4000
AC DELCO HLR8STEX
Unleaded
petrol 95 RON
(Specification EN228)194A1000
Otto
4 in line
86 x 94.6
2198
10.0 : 1
108
147
5800
203
20.7
4000
AC DELCO HLR8STEX
Unleaded
petrol 95 RON
(Specification EN228)
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 211

212
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
GENERAL FEATURES
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Fuel
1.9 Multijet 8V
939A1000
Diesel
4 in line
82 x 90.4
1910
18.0 : 1
88
120
4000
280
28.6
2000
Diesel fuel for
motor vehicles
(Specification EN590)1.9 Multijet
16V
939A2000
Diesel
4 in line
82 x 90.4
1910
17.5 : 1
110
150
4000
320
32.6
2000
Diesel fuel for
motor vehicles
(Specification EN590)1.9 Multijet
16Va.t.
939A2000
Diesel
4 in line
82 x 90.4
1910
17.5 : 1
110
150
4000
320
32.6
2000
Diesel fuel for
motor vehicles
(Specification EN590)2.4 Multijet 20Va.t.
939A3000
Diesel
5 in line
82 x 90.4
2387
17.0 : 1
147
200
4000
400
40.8
2000
Diesel fuel for
motor vehicles
(Specification EN590)
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 212

213
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Multipoint electronic injectionDirect injection with electronically controlled
Multijet “Common Rail”,
turbosupercharger and intercooler
Modifications or repairs to the fuel system that are not carried out properly or do not take the system’s tech-
nical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
TRANSMISSION
1.8 - 2.2 2.2 a.t. 1.9 Multijet1.9 Multijet 16Va.t.2.4 Multijet 20Va.t.
Gearbox
Drive5 forward gears
+ Reverse
frontautomatic 5 forward
gears +
Reverse and tip
front6 forward gears
+ Reverse
frontautomatic
6 forward gears
+ Reverse and tip
front
FUEL FEED/IGNITION
1.8 - 2.2 Multijet
Fuel feed
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 213

214
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Disc, self-ventilating
Disc, self-ventilating
Controlled by hand lever,
it works on rear brakes
Electro-hydraulic power steering
11.3
BRAKES
1.8 - 2.2 - 1.9 Multijet 8V1.9 Multijet 16V2.4 Multijet 20Va.t.
Service brakes:
– front
– rear
Parking brake
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency at first brak-
ing.
SUSPENSIONS
1.8 - 2.2 - Multijet
Front
RearMcPherson independent wheels
Multilink independent wheels Disc, self-ventilating
Disc
Controlled by hand lever,
it works on rear brakes
Electro-hydraulic power steering
10.9
STEERING
1.8 - 2.2 - Multijet 2.4 Multijet 20Va.t.
Type
Minimum steering
cycle m
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 214

SPACE-SAVER SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from rim to
rim: – 1 ±1 mm.
Rear wheel toe-in measured from rim to
rim: + 1,3 (+1,4 –1) mm.
The values refer to the car in running or-
der.

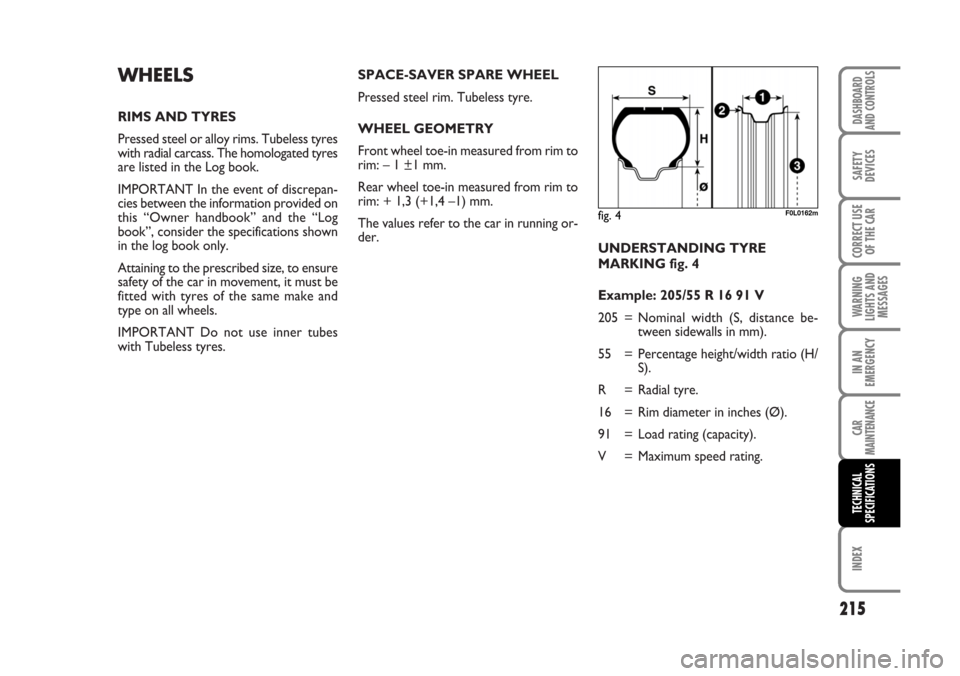

UNDERSTANDING TYRE
MARKING fig. 4
Example: 205/55 R 16 91 V
205 = Nominal width (S, distance be-
tween sidewalls in mm).
55 = Percentage height/width ratio (H/
S).
R = Radial tyre.
16 = Rim diameter in inches (Ø).
91 = Load rating (capacity).
V = Maximum speed rating.WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated tyres
are listed in the Log book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Attaining to the prescribed size, to ensure
safety of the car in movement, it must be
fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
215
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
fig. 4F0L0162m
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 215

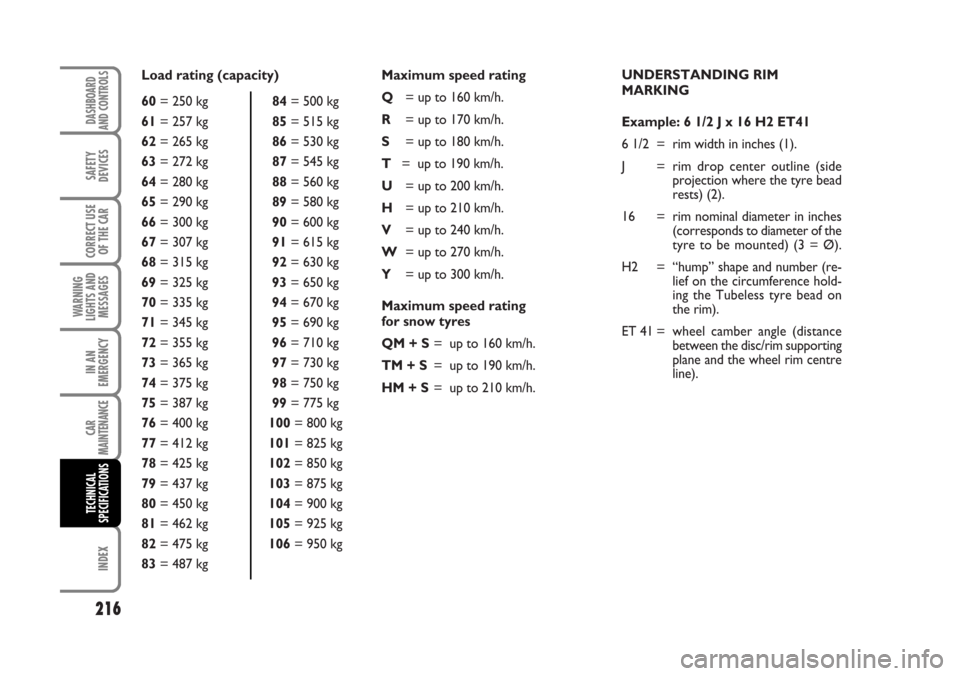

Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.UNDERSTANDING RIM
MARKING
Example: 6 1/2 J x 16 H2 ET41
6 1/2 = rim width in inches (1).
J = rim drop center outline (side
projection where the tyre bead
rests) (2).
16 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) (3 = Ø).
H2 = “hump” shape and number (re-
lief on the circumference hold-
ing the Tubeless tyre bead on
the rim).
ET 41 = wheel camber angle (distance
between the disc/rim supporting
plane and the wheel rim centre
line). Load rating (capacity)
60= 250 kg 84= 500 kg
61= 257 kg 85= 515 kg
62= 265 kg 86 = 530 kg
63= 272 kg 87= 545 kg
64= 280 kg 88= 560 kg
65= 290 kg 89= 580 kg
66= 300 kg 90= 600 kg
67 = 307 kg 91= 615 kg
68= 315 kg 92= 630 kg
69 = 325 kg 93 = 650 kg
70 = 335 kg 94= 670 kg
71 = 345 kg 95= 690 kg
72= 355 kg 96 = 710 kg
73= 365 kg 97= 730 kg
74 = 375 kg 98= 750 kg
75= 387 kg
99= 775 kg
76 = 400 kg 100= 800 kg
77= 412 kg 101= 825 kg
78= 425 kg 102= 850 kg
79= 437 kg 103= 875 kg
80= 450 kg 104= 900 kg
81= 462 kg 105= 925 kg
82= 475 kg 106 = 950 kg
83= 487 kg
216
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 216

217
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
VERSIONS RIMS TYRES Space-saver spare wheel
Standard tyres Snow tyres Rim Tyre
1.86.5J x 16” - ET 41 205/55 R16 91V 205/55 R16 91 H (M+S)
6.5J x 16” - ET 41 215/55 R16 93W 215/55 R16 93 H (M+S)
7J x 17” - ET 41 215/50 R17 91W 215/50 R17 91 H (M+S)4J R16 - ET 41115/70 R16 92 M
7.5J x 18” - ET 41 225/45 R18 95Y (*) (Ô) 225/45 R18 95 H (M+S) (*)
2.26.5J x 16” - ET 41 205/55 R16 91V 205/55 R16 91 H (M+S)
6.5J x 16” - ET 41 215/55 R16 93W 215/55 R16 93 H (M+S)
7J x 17” - ET 41 215/50 R17 91W 215/50 R17 91 H (M+S)4J R16 - ET 41115/70 R16 92 M
7.5J x 18” - ET 41 225/45 R18 95Y (*) (Ô) 225/45 R18 95 H (M+S) (*)
2.2 a.t.6.5J x 16” - ET 41 205/55 R16 91V 205/55 R16 91 H (M+S)
6.5J x 16” - ET 41 215/55 R16 93W 215/55 R16 93 H (M+S)
7J x 17” - ET 41 215/50 R17 91W 215/50 R17 91 H (M+S)4J R16 - ET 41115/70 R16 92 M
7.5J x 18” - ET 41 225/45 R18 95Y (*) (Ô) 225/45 R18 95 H (M+S) (*)
1.9 Multijet
8V6.5J x 16” - ET 41 205/55 R16 91V 205/55 R16 91 H (M+S)
6.5J x 16” - ET 41 215/55 R16 93W 215/55 R16 93 H (M+S)
7J x 17” - ET 41 215/50 R17 91W 215/50 R17 91 H (M+S)4J R16 - ET 41115/70 R16 92 M
7.5J x 18” - ET 41 225/45 R18 95Y (*) (Ô) 225/45 R18 95 H (M+S) (*)
1.9 Multijet
16V6.5J x 16” - ET 41 205/55 R16 91V 205/55 R16 91 H (M+S)
6.5J x 16” - ET 41 215/55 R16 93W 215/55 R16 93 H (M+S)
7J x 17” - ET 41 215/50 R17 91W 215/50 R17 91 H (M+S)4J R16 - ET 41115/70 R16 92 M
7.5J x 18” - ET 41 225/45 R18 95Y (*) (Ô) 225/45 R18 95 H (M+S) (*)
1.9 Multijet 16Va.t.6.5J x 16” - ET 41 205/55 R16 91V 205/55 R16 91 H (M+S)
6.5J x 16” - ET 41 215/55 R16 93W 215/55 R16 93 H (M+S)
7J x 17” - ET 41 215/50 R17 91W 215/50 R17 91 H (M+S)4J R16 - ET 41115/70 R16 92 M
7.5J x 18” - ET 41 225/45 R18 95Y (*) (Ô) 225/45 R18 95 H (M+S) (*)
2.4 Multijet 20Va.t.7J x 17” - ET 41 215/50 R17 95W 215/50 R17 91 H (M+S)
4J R16 - ET 41115/70 R16 92 M7.5J x 18” - ET 41 225/45 R18 95Y (Ô) 225/45 R18 95 H (M+S)
(*) Only for versions with ESP
(Ô) Tyres that cannot be fitted with snow chains
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 217

218
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
COLD TYRE INFLATION PRESSURE (bar)
Petrol versions
STANDARD TYRES Space-aver
Size Medium load Full load spare wheel
Front Rear Front Rear
205/55 R16 91V 2.4 2.4 2.7 2.6
1.8215/55 R16 93W 2.4 2.4 2.5 2.5
4,2
215/50 R17 91W 2.4 2.4 2.6 2.6
225/45 R18 95Y 2.4 2.4 2.6 2.5
205/55 R16 91V 2.4 2.4 2.8 2.7
215/55 R16 93W 2.4 2.4 2.5 2.5
2.2
215/50 R17 91W 2.4 2.4 2.7 2.64.2
225/45 R18 95Y 2.4 2.4 2.7 2.6
205/55 R16 91V 2.4 2.4 2.7 2.6
215/55 R16 93W 2.4 2.4 2.5 2.5
2.2 a.t.
215/50 R17 91W 2.4 2.4 2.6 2.54.2
225/45 R18 95Y 2.4 2.4 2.6 2.5
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
If travelling at a speed higher than 160 km/h, inflate tyres at the values specified for fully laden conditions.
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 218

219
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Multijet versions
STANDARD TYRES Space-saver
Size Medium load Full load spare wheel
Front Rear Front Rear
205/55 R16 91V 2.4 2.4 2.7 2.6
215/55 R16 93W 2.4 2.4 2.5 2.5
1.9 Multijet 8V215/50 R17 91W 2.4 2.4 2.6 2.54.2
225/45 R18 95Y 2.4 2.4 2.6 2.5
205/55 R16 91V 2.4 2.4 2.8 2.7
215/55 R16 93W 2.4 2.4 2.5 2.5
1.9 Multijet 16V215/50 R17 91W 2.4 2.4 2.7 2.64.2
225/45 R18 95Y 2.4 2.4 2.6 2.5
205/55 R16 91V 2.4 2.4 2.7 2.6
1.9 Multijet215/55 R16 93W 2.4 2.4 2.5 2.5
16Va.t.
215/50 R17 91W 2.4 2.4 2.7 2.64.2
225/45 R18 95Y 2.4 2.4 2.6 2.5
2.4 Multijet215/50 R17 95W 2.6 2.5 2.9 2.7
4.2
20Va.t.
225/45 R18 95Y 2.6 2.5 2.8 2.6
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
If travelling at a speed higher than 160 km/h, inflate tyres at the values specified for fully laden conditions.
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 219

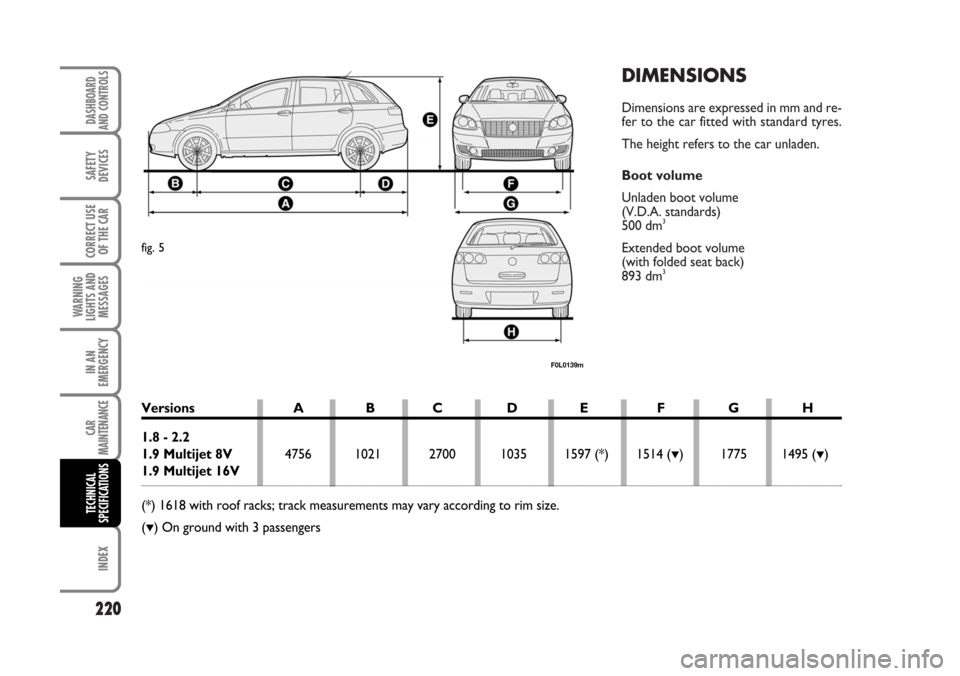

DIMENSIONS
Dimensions are expressed in mm and re-
fer to the car fitted with standard tyres.
The height refers to the car unladen.
Boot volume
Unladen boot volume
(V.D.A. standards)
500 dm
3
Extended boot volume
(with folded seat back)
893 dm
3
220
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
F0L0139m
fig. 5
Versions A B C D E F G H
1.8 - 2.2
1.9 Multijet 8V4756 1021 2700 1035 1597 (*) 1514 (
▼) 1775 1495 (▼)
1.9 Multijet 16V
(*) 1618 with roof racks; track measurements may vary according to rim size.
(
▼) On ground with 3 passengers
207-231 Croma TRW GB 20-11-2006 15:04 Pagina 220
