Front sun curtain opening/closing
Press button B-fig. 86to open the sun
curtain fully. Press the button again to stop
it.
To close the sun curtain press button C-
fig. 86. Press the button again to stop it.
Caution: opening the sunroof with the sun
curtain closed will make the sun curtain
open automatically.
Rear sun curtain opening/closing
Rear sun curtain opening/closing is man-
ual.ANTI-CRUSHING SAFETY
SYSTEM
Sunroof is fitted with anti-crushing safety
system that detects the presence of an ob-
stacle during sunroof closing stroke and
that cuts in by stopping and reversing the
sunroof stroke.
The anti-crushing safety system fitted on
the front curtain outline is active along the
whole closing range of the curtain and cuts
into operation when an obstacle is met.
This safety device guarantees the rever-
sal for a short section.
INITIALISATION PROCEDURE
Sunroof and powered sun curtain shall be
re-initialised after disconnecting the bat-
tery or if the relevant protection fuse is
blown.Sunroof initialisation
Proceed as follows:
❒turn the ignition key to ON;
❒turn knob A-fig. 86fully counter-
clockwise;
❒press and keep knob A-fig. 86
pressed until the sunroof locks, then
release it;
❒within 5 seconds, press and keep knob
A pressed; the sunroof will move au-
tomatically, during this stage keep on
pressing the knob;
❒initialisation will end when the sunroof
stops.
When leaving the car, the ig-
nition key should be removed
to prevent the sunroof from being op-
erated inadvertently and harming any-
one remaining in the car. Improper use
of the sunroof can be dangerous. Be-
fore and during its operation ensure
that any passengers are not at risk
from the moving roof either by per-
sonal objects getting caught in the
mechanism or by being injured by it di-
rectly.
WARNING
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 71

72
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Sun curtain initialisation
Proceed as follows:
❒Close the sunroof completely;
❒turn the ignition key to OFFfor 10
seconds;
❒turn the ignition key to ON;
❒turn the knob to closing position and
keep it pressed until hearing the me-
chanical lock;
❒initialisation ended.ANTI-CRUSHING SYSTEM
INHIBITION
Ice or other foreign matters in the sun-
roof rails could cause anti-crushing re-
peated operation. Therefore make sure
there is no obstacle.
In this case it is possible to inhibit the an-
ti-crushing system by closing the roof
(within 5 seconds from system activation),
turning knob A-fig. 86to 0 and keeping
it pressed upwards until closing.EMERGENCY OPERATION
fig. 87-88
If the electrical control device does not
work, the sunroof can be operated man-
ually as follows:
❒remove the rear ceiling light and take
out the emergency operation wrench,
provided as standard, from the rele-
vant seat;
❒fit the wrench into slot A-fig. 88and
turn it clockwise to open the sunroof
and counter-clockwise to close it.
fig. 87F0L0215mfig. 88F0L0216m
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 72

73
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DOORS
CENTRAL DOOR LOCKING
SYSTEM
From the outside fig. 89
With the doors closed, press remote con-
trol button
Áor, if the remote control
is malfunctioning, fit and turn the emer-
gency metal insert into the lock of one of
the front doors.
From the inside fig. 90
With the doors closed, press buttons A
or B, set on the central panel to lock or
unlock the doors.
IMPORTANT If one door is not perfect-
ly closed or there is a system failure, cen-
tral door locking will not work and after
a few seconds the device will be exclud-
ed for about 2 minutes. During this time
it is however possible to lock/unlock the
doors manually. The device will be reac-
tivated after 2 minutes.If the cause of malfunctioning has been re-
moved the device will operate regularly
again.CHILD LOCK fig. 91
To prevent opening the rear doors from
the inside.
This device can be engaged only with
doors open:
❒position 1 - engaged (door locked);
❒position 2 - disengaged (door open-
able from inside).
The device stays on even if the doors are
unlocked by the centralised system.
IMPORTANT Always use this device
when transporting children.
IMPORTANT After engaging the lock,
check by trying to open a rear door with
the internal handle.
fig. 89F0L0100m
fig. 90F0L0003m
fig. 91F0L0112m
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 73

74
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
POWER WINDOWS
All versions are fitted with power win-
dows with anti-crushing safety device to
detect the presence of an obstacle in the
window closing stroke. If an obstacle is de-
tected, the safety system will stop window
closing and, according to window position,
will also reverse window stroke.
IMPORTANT In the event that the anti-
crushing function is activated 5 times in
only 1 minute, the system will automati-
cally enter the “recovery” mode (self-pro-
tection). This conditions is pointed out by
the fact that, in the closing phase, the win-
dow goes up in jerks.
So, it is necessary to carry out the sys-
tem restore procedure, acting as follows:
❒open the windows;
or
❒turn the ignition key to OFFand then
to ON.
The logic is restored if no malfunction is
present, the window returns to its normal
operation automatically; otherwise con-
tact a Fiat Dealership.IMPORTANT With the ignition key to
OFFor removed, the power windows re-
main activated for about 2 minutes and are
deactivated immediately the moment a
door is opened.WINDOW SAFETY SYSTEM
INITIALISATION
Safety system shall be re-initialised after
disconnecting the battery or if the rele-
vant protection fuse is blown.
Initialisation procedure:
❒open completely manually or auto-
matically the window to initialise ;
❒fully close the window manually (with-
out stops);
❒after window stopping, keep on press-
ing the closing control for at least 1
second.

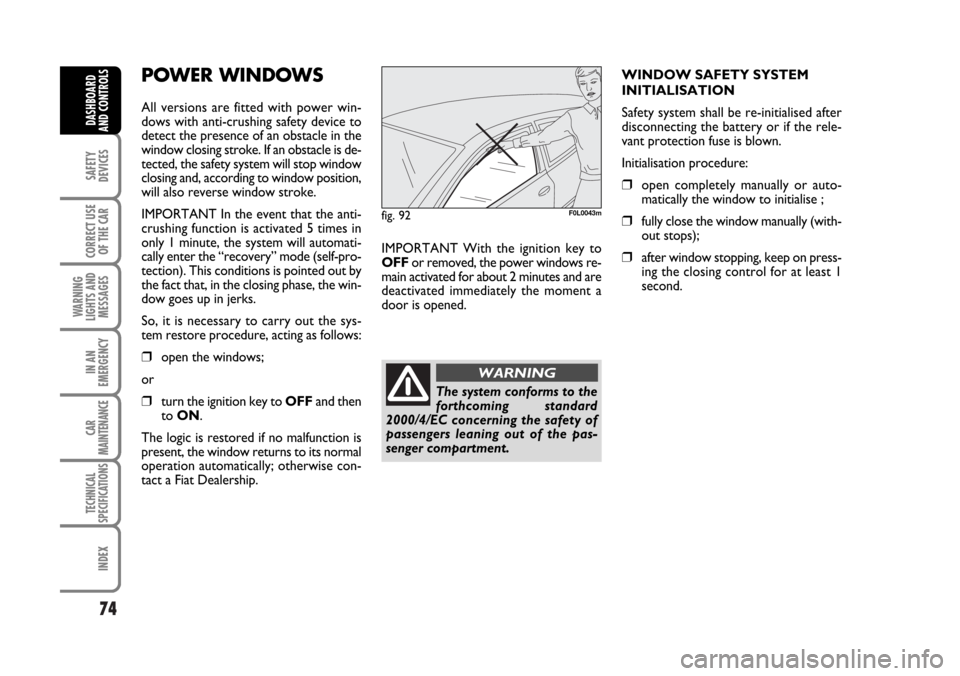

fig. 92F0L0043m
The system conforms to the
forthcoming standard
2000/4/EC concerning the safety of
passengers leaning out of the pas-
senger compartment.
WARNING
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 74

75
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CONTROLS

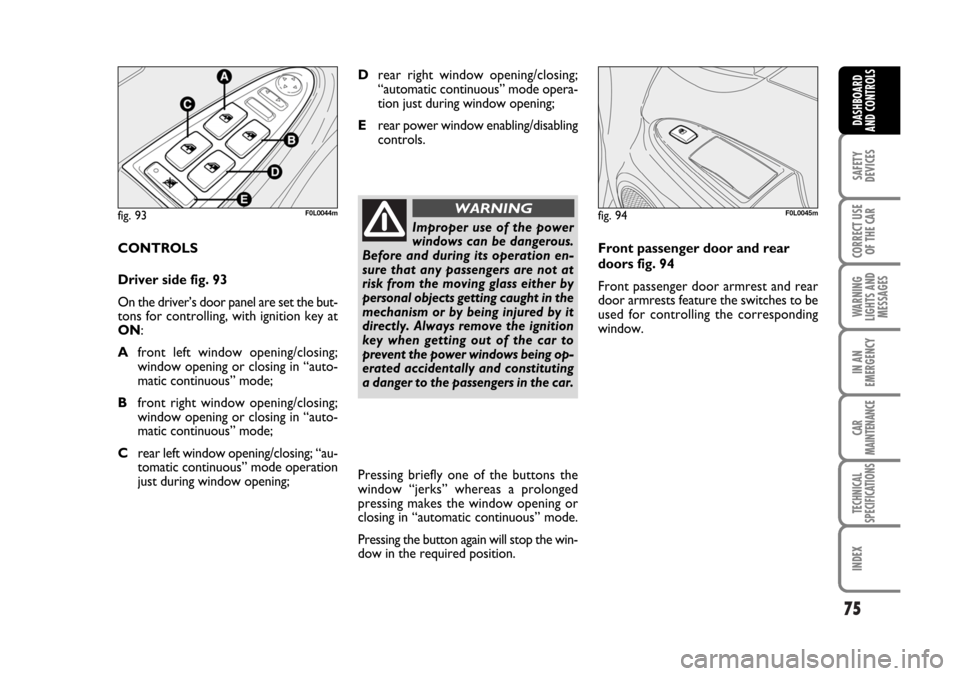

Driver side fig. 93
On the driver’s door panel are set the but-
tons for controlling, with ignition key at
ON:
Afront left window opening/closing;
window opening or closing in “auto-
matic continuous” mode;
Bfront right window opening/closing;
window opening or closing in “auto-
matic continuous” mode;
Crear left window opening/closing; “au-
tomatic continuous” mode operation
just during window opening;Pressing briefly one of the buttons the
window “jerks” whereas a prolonged
pressing makes the window opening or
closing in “automatic continuous” mode.
Pressing the button again will stop the win-
dow in the required position.Front passenger door and rear
doors fig. 94
Front passenger door armrest and rear
door armrests feature the switches to be
used for controlling the corresponding
window.
fig. 93F0L0044m
Improper use of the power
windows can be dangerous.
Before and during its operation en-
sure that any passengers are not at
risk from the moving glass either by
personal objects getting caught in the
mechanism or by being injured by it
directly. Always remove the ignition
key when getting out of the car to
prevent the power windows being op-
erated accidentally and constituting
a danger to the passengers in the car.
WARNINGfig. 94F0L0045m
Drear right window opening/closing;
“automatic continuous” mode opera-
tion just during window opening;
Erear power window enabling/disabling
controls.
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 75

76
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

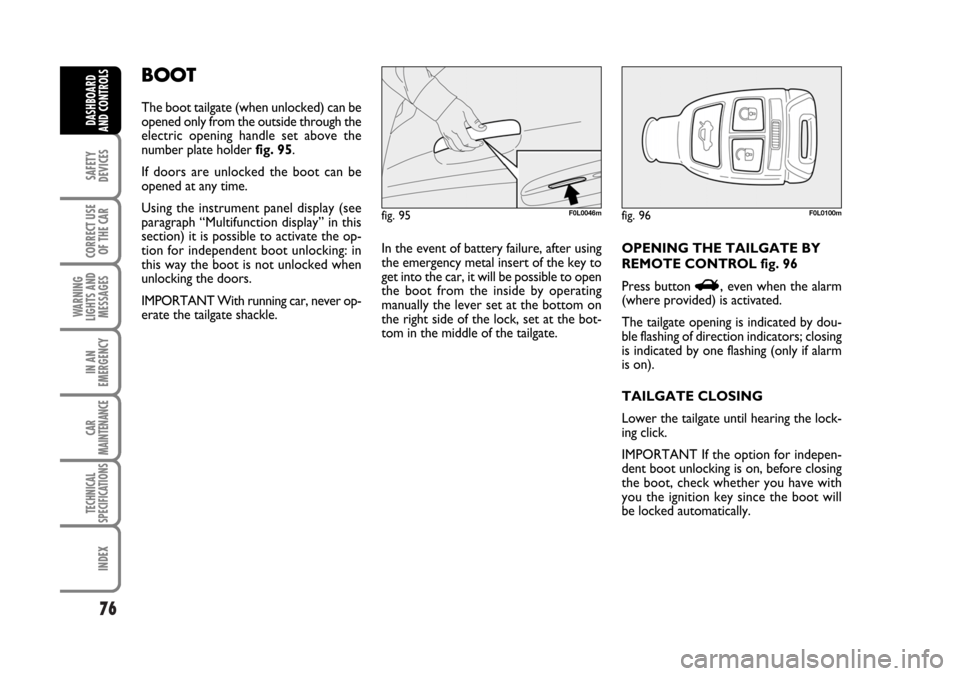

BOOT
The boot tailgate (when unlocked) can be
opened only from the outside through the
electric opening handle set above the
number plate holder fig. 95.
If doors are unlocked the boot can be
opened at any time.
Using the instrument panel display (see
paragraph “Multifunction display” in this
section) it is possible to activate the op-
tion for independent boot unlocking: in
this way the boot is not unlocked when
unlocking the doors.
IMPORTANT With running car, never op-
erate the tailgate shackle.In the event of battery failure, after using
the emergency metal insert of the key to
get into the car, it will be possible to open
the boot from the inside by operating
manually the lever set at the bottom on
the right side of the lock, set at the bot-
tom in the middle of the tailgate. OPENING THE TAILGATE BY
REMOTE CONTROL fig. 96
Press button
R, even when the alarm
(where provided) is activated.
The tailgate opening is indicated by dou-
ble flashing of direction indicators; closing
is indicated by one flashing (only if alarm
is on).
TAILGATE CLOSING
Lower the tailgate until hearing the lock-
ing click.
IMPORTANT If the option for indepen-
dent boot unlocking is on, before closing
the boot, check whether you have with
you the ignition key since the boot will
be locked automatically.
fig. 95F0L0046mfig. 96F0L0100m
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 76

77
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

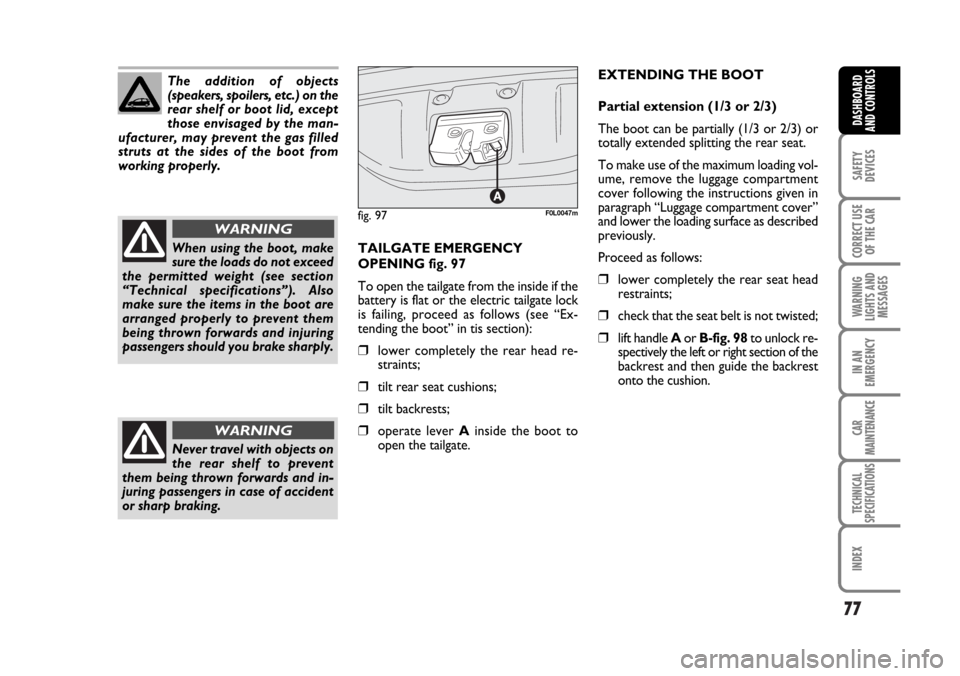

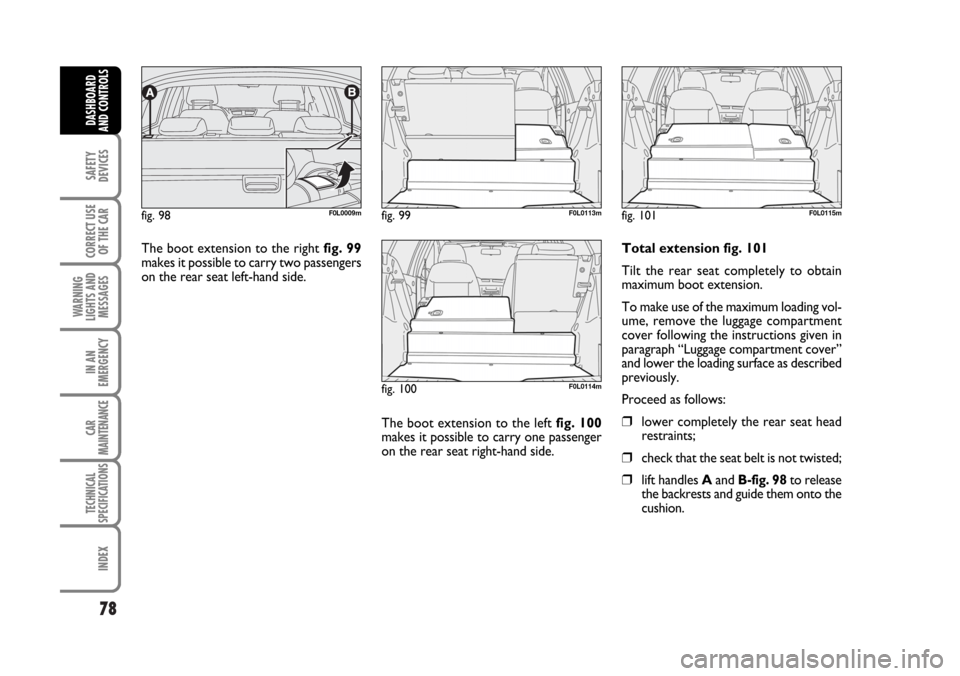

EXTENDING THE BOOT
Partial extension (1/3 or 2/3)
The boot can be partially (1/3 or 2/3) or
totally extended splitting the rear seat.
To make use of the maximum loading vol-
ume, remove the luggage compartment
cover following the instructions given in
paragraph “Luggage compartment cover”
and lower the loading surface as described
previously.
Proceed as follows:
❒lower completely the rear seat head
restraints;
❒check that the seat belt is not twisted;
❒lift handle Aor B-fig. 98to unlock re-
spectively the left or right section of the
backrest and then guide the backrest
onto the cushion. The addition of objects
(speakers, spoilers, etc.) on the
rear shelf or boot lid, except
those envisaged by the man-
ufacturer, may prevent the gas filled
struts at the sides of the boot from
working properly.
Never travel with objects on
the rear shelf to prevent
them being thrown forwards and in-
juring passengers in case of accident
or sharp braking.
WARNING
When using the boot, make
sure the loads do not exceed
the permitted weight (see section
“Technical specifications”). Also
make sure the items in the boot are
arranged properly to prevent them
being thrown forwards and injuring
passengers should you brake sharply.
WARNING
TAILGATE EMERGENCY
OPENING fig. 97
To open the tailgate from the inside if the
battery is flat or the electric tailgate lock
is failing, proceed as follows (see “Ex-
tending the boot” in tis section):
❒lower completely the rear head re-
straints;
❒tilt rear seat cushions;
❒tilt backrests;
❒operate lever Ainside the boot to
open the tailgate.
fig. 97F0L0047m
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 77

78
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
The boot extension to the right fig. 99
makes it possible to carry two passengers
on the rear seat left-hand side.
The boot extension to the left fig. 100
makes it possible to carry one passenger
on the rear seat right-hand side.Total extension fig. 101
Tilt the rear seat completely to obtain
maximum boot extension.
To make use of the maximum loading vol-
ume, remove the luggage compartment
cover following the instructions given in
paragraph “Luggage compartment cover”
and lower the loading surface as described
previously.
Proceed as follows:
❒lower completely the rear seat head
restraints;
❒check that the seat belt is not twisted;
❒lift handles Aand B-fig. 98to release
the backrests and guide them onto the
cushion.
fig. 98F0L0009mfig. 99F0L0113m
fig. 100F0L0114m
fig. 101F0L0115m
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 78

79
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

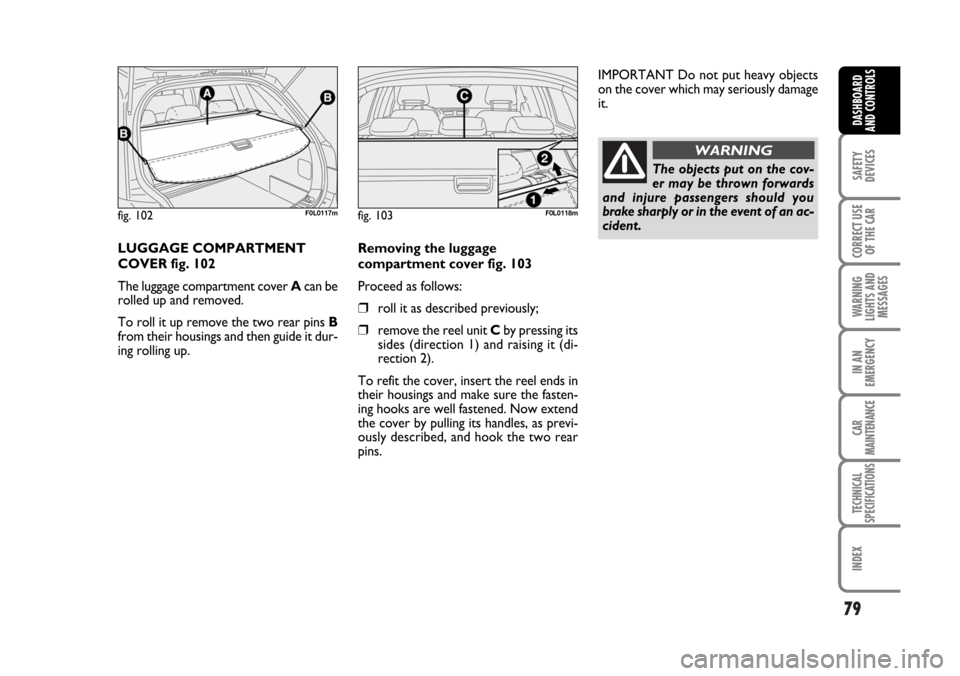

LUGGAGE COMPARTMENT
COVER fig. 102
The luggage compartment cover Acan be
rolled up and removed.
To roll it up remove the two rear pins B
from their housings and then guide it dur-
ing rolling up.Removing the luggage
compartment cover fig. 103
Proceed as follows:
❒roll it as described previously;
❒remove the reel unit Cby pressing its
sides (direction 1) and raising it (di-
rection 2).
To refit the cover, insert the reel ends in
their housings and make sure the fasten-
ing hooks are well fastened. Now extend
the cover by pulling its handles, as previ-
ously described, and hook the two rear
pins.IMPORTANT Do not put heavy objects
on the cover which may seriously damage
it.
fig. 102F0L0117mfig. 103F0L0118m
The objects put on the cov-
er may be thrown forwards
and injure passengers should you
brake sharply or in the event of an ac-
cident.
WARNING
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 79

80
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

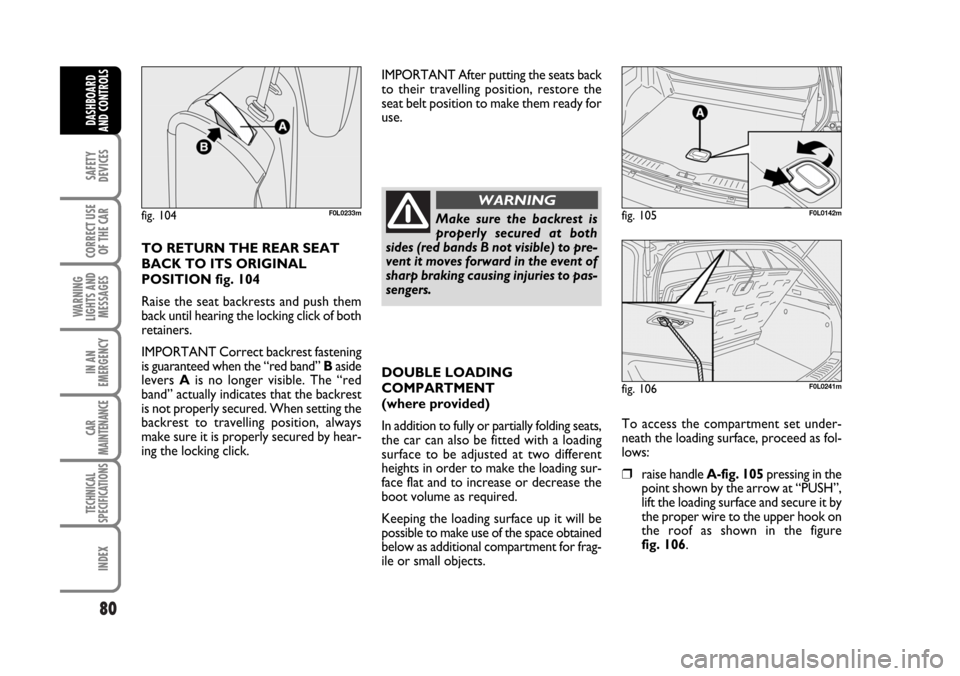

TO RETURN THE REAR SEAT
BACK TO ITS ORIGINAL
POSITION fig. 104
Raise the seat backrests and push them
back until hearing the locking click of both
retainers.
IMPORTANT Correct backrest fastening
is guaranteed when the “red band” Baside
levers Ais no longer visible. The “red
band” actually indicates that the backrest
is not properly secured. When setting the
backrest to travelling position, always
make sure it is properly secured by hear-
ing the locking click.IMPORTANT After putting the seats back
to their travelling position, restore the
seat belt position to make them ready for
use.
DOUBLE LOADING
COMPARTMENT
(where provided)
In addition to fully or partially folding seats,
the car can also be fitted with a loading
surface to be adjusted at two different
heights in order to make the loading sur-
face flat and to increase or decrease the
boot volume as required.
Keeping the loading surface up it will be
possible to make use of the space obtained
below as additional compartment for frag-
ile or small objects.
fig. 104F0L0233mMake sure the backrest is
properly secured at both
sides (red bands B not visible) to pre-
vent it moves forward in the event of
sharp braking causing injuries to pas-
sengers.
WARNING
fig. 105F0L0142m
fig. 106F0L0241m
To access the compartment set under-
neath the loading surface, proceed as fol-
lows:
❒raise handle A-fig. 105pressing in the
point shown by the arrow at “PUSH”,
lift the loading surface and secure it by
the proper wire to the upper hook on
the roof as shown in the figure
fig. 106.
062-098 Croma TRW GB 20-11-2006 15:01 Pagina 80
