❒If “16:9” is selected for 4:3 images, the
image appears slightly altered: this is due
to the width conversion process.
❒Even when “4:3 PANORAM. E
SCANN” is selected, the screen size
may switch to “4:3 LETTERBOX” when
playing some DVDs. This depends on

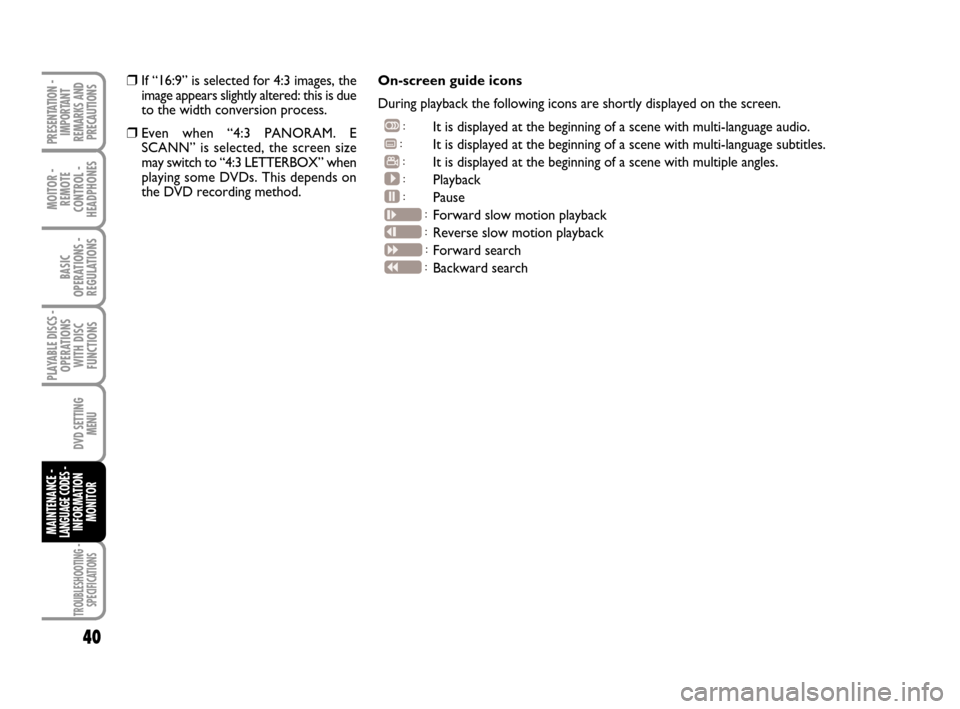

the DVD recording method.On-screen guide icons
During playback the following icons are shortly displayed on the screen.
It is displayed at the beginning of a scene with multi-language audio.
It is displayed at the beginning of a scene with multi-language subtitles.
It is displayed at the beginning of a scene with multiple angles.
Playback
Pause
Forward slow motion playback
Reverse slow motion playback
Forward search
Backward search
604_39_712 DVD Croma GB 3-06-2008 16:27 Pagina 40
Page 42 of 46
41
MOITOR -
REMOTE
CONTROL -
HEADPHONES
BASIC
OPERATIONS -
REGULATIONS
PLAYABLE DISCS -
OPERATIONS
WITH DISC
FUNCTIONS
DVD SETTING
MENU
MAINTENANCE - LANGUAGE CODES - INFORMATION
MONITOR
TROUBLESHOOTING -
SPECIFICATIONS
PRESENTATION
-IMPORTANT
REMARKS AND
PRECAUTIONSOperating problems are not always serious. Check the following items before referring the unit to technical servicing.
T T T T
R R R R
O O O O
U U U U
B B B B
L L L L
E E E E
S S S S
H H H H
O O O O
O O O O
T T T T
I I I I
N N N N
G G G G
F F F F
O O O O
R R R R
O O O O
P P P P
E E E E
R R R R
A A A A
TT T T
I I I I
N N N N
G G G G
P P P P
R R R R
O O O O
B B B B
L L L L
E E E E
M M M M
S S S S
General
Disc playing
Problem
• Coloured dots (red, blue and
green) appear on the screen.
• No images on the screen nor
sound.
• The unit will not work.
• The remote control does not
work.
• The wireless headphones do not
work.
• The speakers or headphones
make a sharp noise.
• The message “NON-PLAYABLE
DISC” appears on the screen, and
the disc is ejected.
• The recordable/rewritable disc
cannot be played.
• Tracks on recordable/rewritable
discs cannot be skipped.
• The right and left sides of the im-
ages are not visible on the screen.Cause
This is a specific feature of LCD
panels. It does not necessarily
indicate a malfunction.
Connections with external
components are not correct.
The correct input mode is not
selected.
The built-in microcomputer has
worked incorrectly due to
interferences or other causes.
The battery is flat.
The remote control sensor was
exposed to a strong light source.
This may be due to a camcorder
connected to the monitor.
The disc was loaded upside down
or cannot be played.
The disc was not finalized.
“4:3 PANORAM. AND SCANN”
was selected during playback
(size 4:3).Solution
See “Note” on page 7.
Connect the cable correctly.
Select the correct input mode.
Go to a dealer.
Install a new battery.
Do not expose the sensor of the
remote control to a strong light
source.
The camcoder is in “record” mode.
Disable “record” mode.
• Load the disc correctly.
• Replace the disc.
• Load a finalized disc.
• Finalize the disc using the same
unit utilised for recording.
Select “4:3 LETTERBOX”.
(See page 33).
604_39_712 DVD Croma GB 3-06-2008 16:27 Pagina 41
Page 43 of 46
MOITOR -
REMOTE
CONTROL -
HEADPHONES
42
BASIC
OPERATIONS -
REGULATIONS
PLAYABLE DISCS -
OPERATIONS
WITH DISC
FUNCTIONS
DVD SETTING
MENU
MAINTENANCE - LANGUAGE CODES - INFORMATION
MONITOR
TROUBLESHOOTING -
SPECIFICATIONS
PRESENTATION -
IMPORTANT
REMARKS AND
PRECAUTIONS

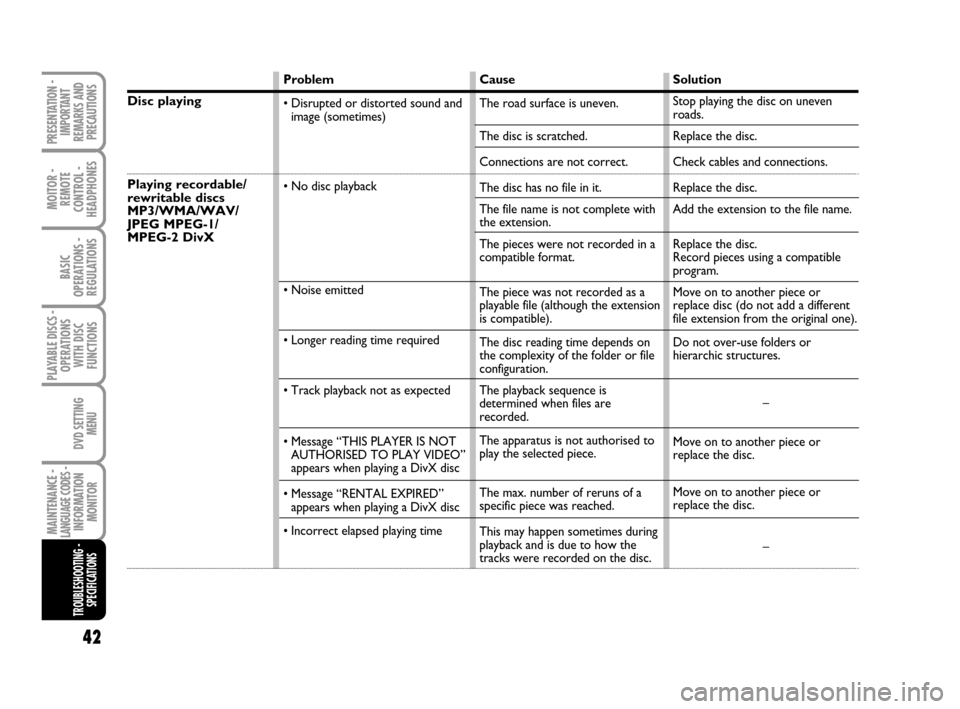

Disc playing
Playing recordable/
rewritable discs
MP3/WMA/WAV/
JPEG MPEG-1/
MPEG-2 DivX
Problem
• Disrupted or distorted sound and
image (sometimes)
• No disc playback
• Noise emitted
• Longer reading time required
• Track playback not as expected
• Message “THIS PLAYER IS NOT
AUTHORISED TO PLAY VIDEO”
appears when playing a DivX disc
• Message “RENTAL EXPIRED”
appears when playing a DivX disc
• Incorrect elapsed playing timeCause
The road surface is uneven.
The disc is scratched.
Connections are not correct.
The disc has no file in it.
The file name is not complete with
the extension.
The pieces were not recorded in a
compatible format.
The piece was not recorded as a
playable file (although the extension
is compatible).
The disc reading time depends on
the complexity of the folder or file
configuration.
The playback sequence is
determined when files are
recorded.
The apparatus is not authorised to
play the selected piece.
The max. number of reruns of a
specific piece was reached.
This may happen sometimes during
playback and is due to how the
tracks were recorded on the disc.Solution
Stop playing the disc on uneven
roads.
Replace the disc.
Check cables and connections.
Replace the disc.
Add the extension to the file name.
Replace the disc.
Record pieces using a compatible
program.
Move on to another piece or
replace disc (do not add a different
file extension from the original one).
Do not over-use folders or
hierarchic structures.
–
Move on to another piece or
replace the disc.
Move on to another piece or
replace the disc.
–
604_39_712 DVD Croma GB 3-06-2008 16:27 Pagina 42
Page 44 of 46
43
MOITOR -
REMOTE
CONTROL -
HEADPHONES
BASIC
OPERATIONS -
REGULATIONS
PLAYABLE DISCS -
OPERATIONS
WITH DISC
FUNCTIONS
DVD SETTING
MENU
MAINTENANCE - LANGUAGE CODES - INFORMATION
MONITOR
TROUBLESHOOTING -
SPECIFICATIONS
PRESENTATION
-IMPORTANT
REMARKS AND
PRECAUTIONS
W W W W
I I I I
D D D D
E E E E
S S S S
C C C C
R R R R
E E E E
E E E E
N N N N
M M M M
O O O O
N N N N
I I I I
T T T T
O O O O
R R R R

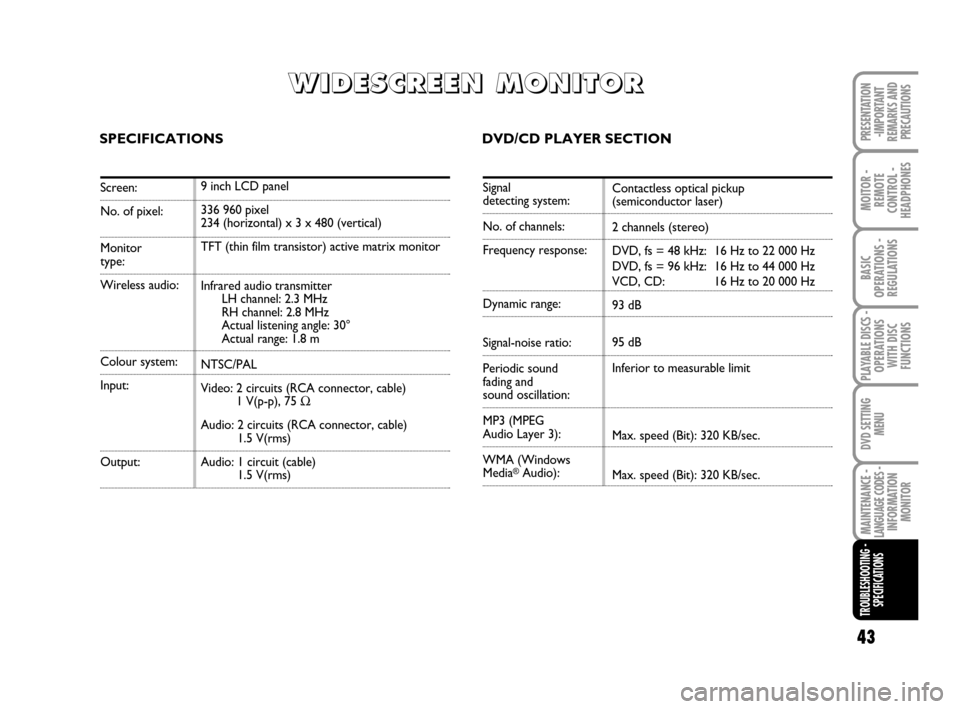

SPECIFICATIONS
