Page 11 of 90

10
BLUE&ME
™
in conjunction with Instant Nav

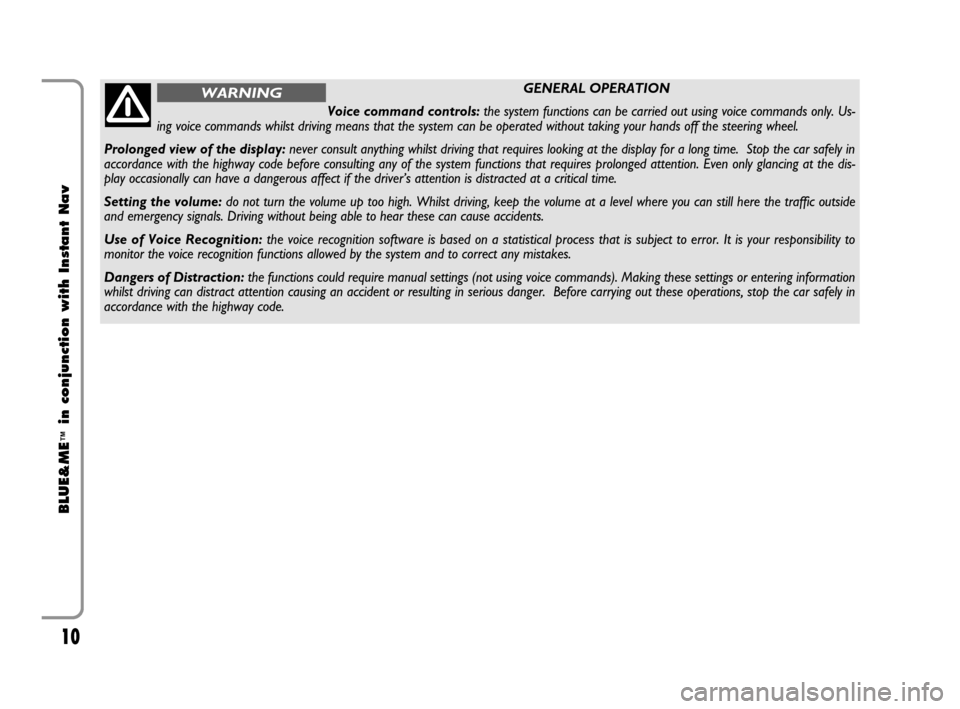

GENERAL OPERATION
Voice command controls:the system functions can be carried out using voice commands only. Us-
ing voice commands whilst driving means that the system can be operated without taking your hands off the steering wheel.
Prolonged view of the display:never consult anything whilst driving that requires looking at the display for a long time. Stop the car safely in
accordance with the highway code before consulting any of the system functions that requires prolonged attention. Even only glancing at the dis-
play occasionally can have a dangerous affect if the driver’s attention is distracted at a critical time.
Setting the volume:do not turn the volume up too high. Whilst driving, keep the volume at a level where you can still here the traffic outside
and emergency signals. Driving without being able to hear these can cause accidents.
Use of Voice Recognition:the voice recognition software is based on a statistical process that is subject to error. It is your responsibility to
monitor the voice recognition functions allowed by the system and to correct any mistakes.
Dangers of Distraction:the functions could require manual settings (not using voice commands). Making these settings or entering information
whilst driving can distract attention causing an accident or resulting in serious danger. Before carrying out these operations, stop the car safely in
accordance with the highway code.WARNING
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 10
Page 12 of 90

11
BLUE&ME
™
in conjunction with Instant Nav

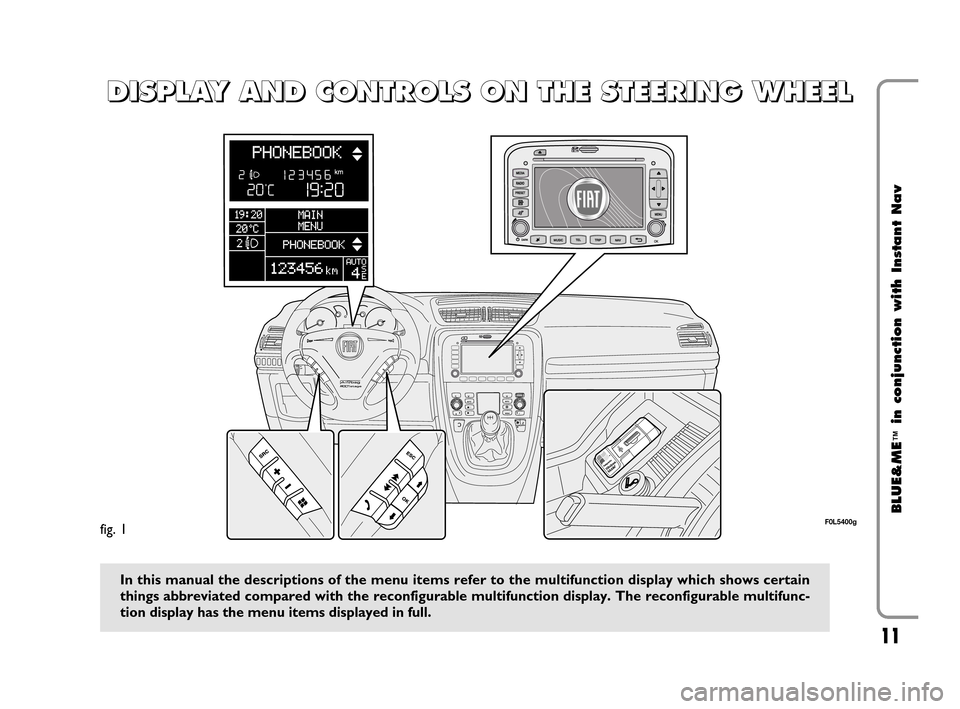

fig. 1F0L5400g
D D
I I
S S
P P
L L
A A
Y Y
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S
O O
N N
T T
H H
E E
S S
T T
E E
E E
R R
I I
N N
G G
W W
H H
E E
E E
L L
In this manual the descriptions of the menu items refer to the multifunction display which shows certain
things abbreviated compared with the reconfigurable multifunction display. The reconfigurable multifunc-
tion display has the menu items displayed in full.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 11
Page 13 of 90

12
BLUE&ME
™
in conjunction with Instant Nav

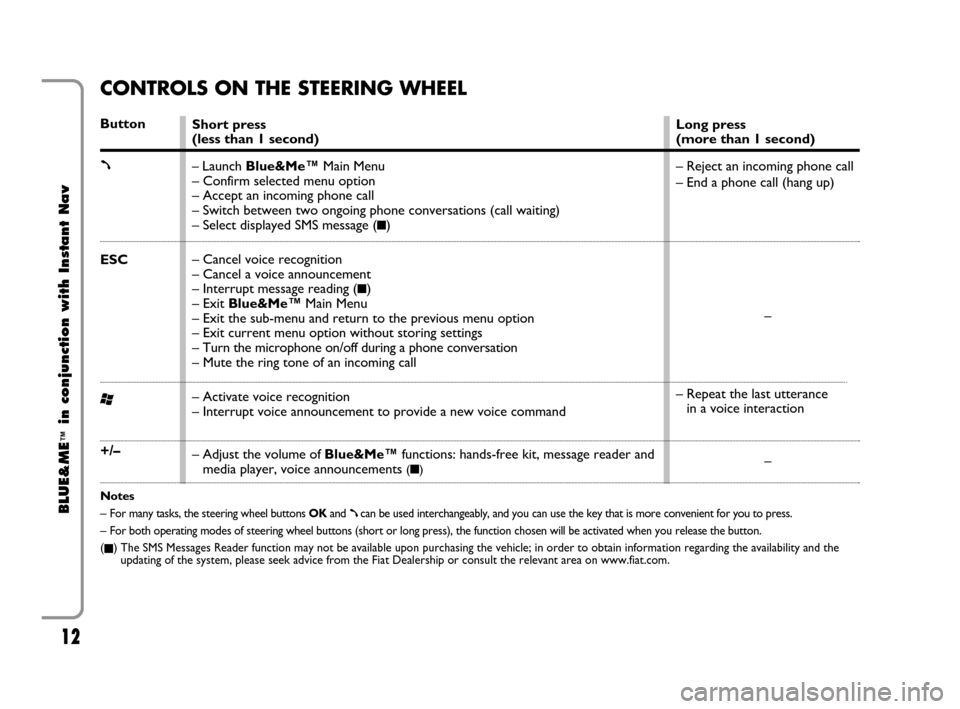

CONTROLS ON THE STEERING WHEEL
Button
ß
ESC
‘
+/–
Notes
–
For many tasks, the steering wheel buttons OKand ßcan be used interchangeably, and you can use the key that is more convenient for you to press.
– For both operating modes of steering wheel buttons (short or long press), the function chosen will be activated when you release the button.
(
■) The SMS Messages Reader function may not be available upon purchasing the vehicle; in order to obtain information regarding the availability and the
updating of the system, please seek advice from the Fiat Dealership or consult the relevant area on www.fiat.com.
Long press
(more than 1 second)
– Reject an incoming phone call
– End a phone call (hang up)
–
– Repeat the last utterance
in a voice interaction
– Short press
(less than 1 second)
– Launch Blue&Me™Main Menu
– Confirm selected menu option
– Accept an incoming phone call
– Switch between two ongoing phone conversations (call waiting)
– Select displayed SMS message (
■)
– Cancel voice recognition
– Cancel a voice announcement
– Interrupt message reading (
■)
– Exit Blue&Me™Main Menu
– Exit the sub-menu and return to the previous menu option
– Exit current menu option without storing settings
– Turn the microphone on/off during a phone conversation
– Mute the ring tone of an incoming call
– Activate voice recognition
– Interrupt voice announcement to provide a new voice command
– Adjust the volume of Blue&Me™functions: hands-free kit, message reader and
media player, voice announcements
(■)
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 12
Page 14 of 90

13
BLUE&ME
™
in conjunction with Instant Nav

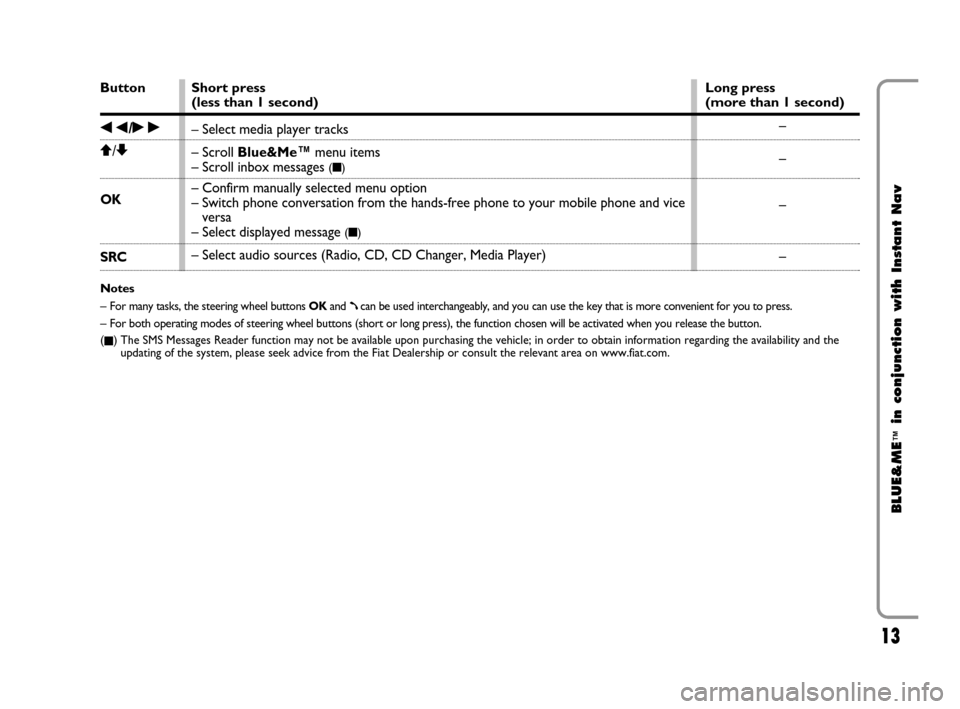

Button
÷/˜
Q
/Z
OK
SRC
Notes
–
For many tasks, the steering wheel buttons OKand ßcan be used interchangeably, and you can use the key that is more convenient for you to press.
– For both operating modes of steering wheel buttons (short or long press), the function chosen will be activated when you release the button.
(
■) The SMS Messages Reader function may not be available upon purchasing the vehicle; in order to obtain information regarding the availability and the
updating of the system, please seek advice from the Fiat Dealership or consult the relevant area on www.fiat.com.
Short press
(less than 1 second)
–
Select media player tracks
– Scroll Blue&Me™ menu items
– Scroll inbox messages
(■)
– Confirm manually selected menu option
– Switch phone conversation from the hands-free phone to your mobile phone and vice
versa
– Select displayed message
(■)
– Select audio sources (Radio, CD, CD Changer, Media Player)
Long press
(more than 1 second)
–
–
–
–
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 13
Page 15 of 90

14
BLUE&ME
™
in conjunction with Instant Nav
Button
NO
¯˙
&
TEL
MEDIA

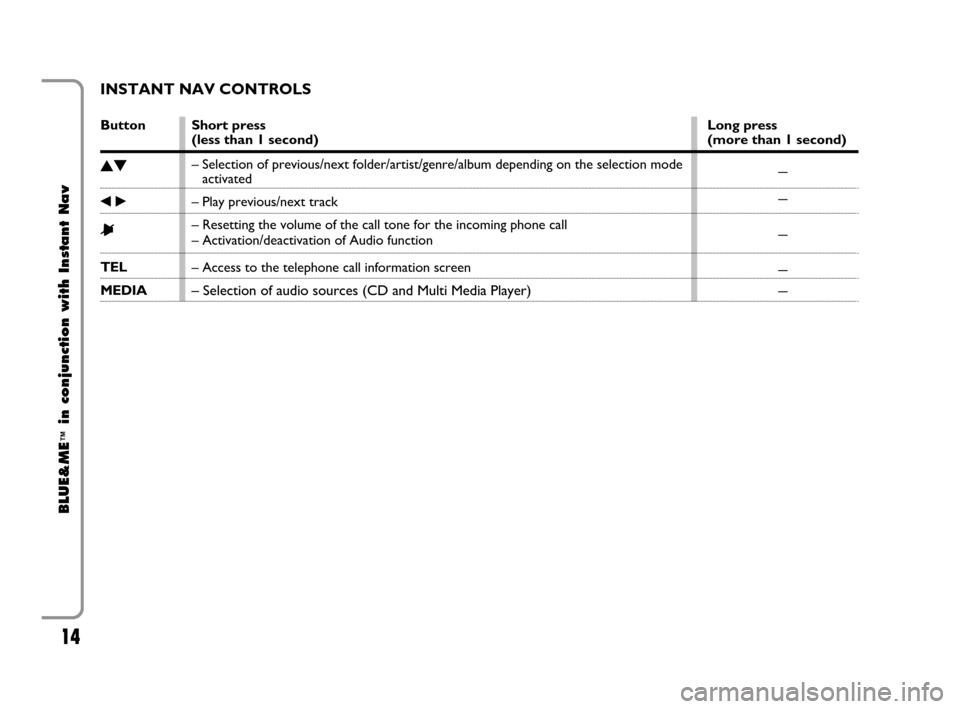

INSTANT NAV CONTROLS
Short press
(less than 1 second)
– Selection of previous/next folder/artist/genre/album depending on the selection mode
activated
– Play previous/next track
– Resetting the volume of the call tone for the incoming phone call
– Activation/deactivation of Audio function
– Access to the telephone call information screen
– Selection of audio sources (CD and Multi Media Player)
Long press
(more than 1 second)
–
–
–
–
–
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 14
Page 16 of 90

15
BLUE&ME
™
in conjunction with Instant Nav
To start using the system hands free
function with voice recognition and Blue-
tooth
®techonolgy:
– Prepare the phone directory in your
mobile phone
– Make sure that the ignition key is in
the MAR position
– Practise the voice commands
– Register your mobile phone
– Make a call.
The instructions for each of these
functions are given in the paragraphs that
follow.
H H
A A
N N
D D
S S
F F
R R
E E
E E
Q Q
U U
I I
C C
K K
G G
U U
I I
D D
E E
PREPARE THE DIRECTORY IN
YOUR MOBILE PHONE
Before registering your mobile phone on
the system, you must make sure you have
stored your contact names in the phone
directory in your mobile so that you can
call them using the car hands free system.
If your phone book does not contain
any names, enter the new names for the
phone numbers that you call the most of-
ten. For further information on this op-
eration, consult your mobile phone man-
ual.
For the best use of the car hands free
system, refer to the suggestions for how
to store the names in your mobile phone
directory in the chapter mobile TELE-
PHONE SETTING - REGISTRATION
FUNCTIONS. IMPORTANT NOTES
– Access to the directory copied onto
the system is only possible when the mo-
bile phone from which it has been copied
is connected.
– The names stored on the SIM card or
in your mobile phone memory can be
transferred onto the system in a different
way depending on the model of mobile
phone.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 15
Page 17 of 90

16
BLUE&ME
™
in conjunction with Instant Nav

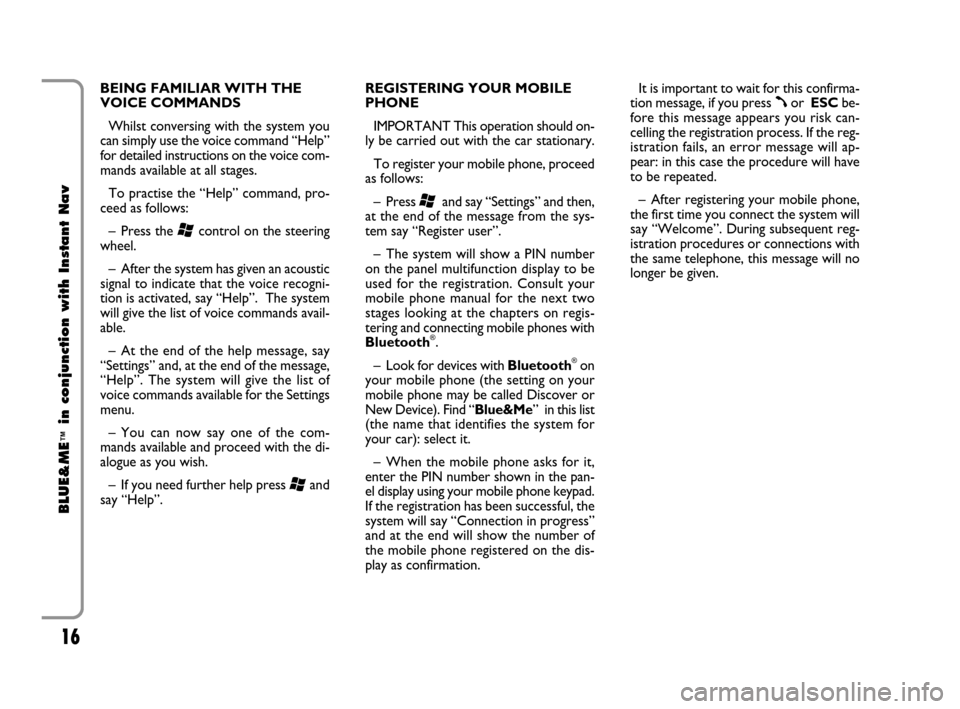

BEING FAMILIAR WITH THE
VOICE COMMANDS
Whilst conversing with the system you
can simply use the voice command “Help”
for detailed instructions on the voice com-
mands available at all stages.
To practise the “Help” command, pro-
ceed as follows:
– Press the
‘control on the steering
wheel.
– After the system has given an acoustic
signal to indicate that the voice recogni-
tion is activated, say “Help”. The system
will give the list of voice commands avail-
able.
– At the end of the help message, say
“Settings” and, at the end of the message,
“Help”. The system will give the list of
voice commands available for the Settings
menu.
– You can now say one of the com-
mands available and proceed with the di-
alogue as you wish.
– If you need further help press
‘and
say “Help”.REGISTERING YOUR MOBILE
PHONE
IMPORTANT This operation should on-
ly be carried out with the car stationary.
To register your mobile phone, proceed
as follows:
– Press
‘and say “Settings” and then,
at the end of the message from the sys-
tem say “Register user”.
– The system will show a PIN number
on the panel multifunction display to be
used for the registration. Consult your
mobile phone manual for the next two
stages looking at the chapters on regis-
tering and connecting mobile phones with
Bluetooth
®.
– Look for devices with Bluetooth
®on
your mobile phone (the setting on your
mobile phone may be called Discover or
New Device). Find “Blue&Me” in this list
(the name that identifies the system for
your car): select it.
– When the mobile phone asks for it,
enter the PIN number shown in the pan-
el display using your mobile phone keypad.
If the registration has been successful, the
system will say “Connection in progress”
and at the end will show the number of
the mobile phone registered on the dis-
play as confirmation.It is important to wait for this confirma-
tion message, if you press
ßor ESCbe-
fore this message appears you risk can-
celling the registration process. If the reg-
istration fails, an error message will ap-
pear: in this case the procedure will have
to be repeated.
– After registering your mobile phone,
the first time you connect the system will
say “Welcome”. During subsequent reg-
istration procedures or connections with
the same telephone, this message will no
longer be given.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 16
Page 18 of 90

17
BLUE&ME
™
in conjunction with Instant Nav

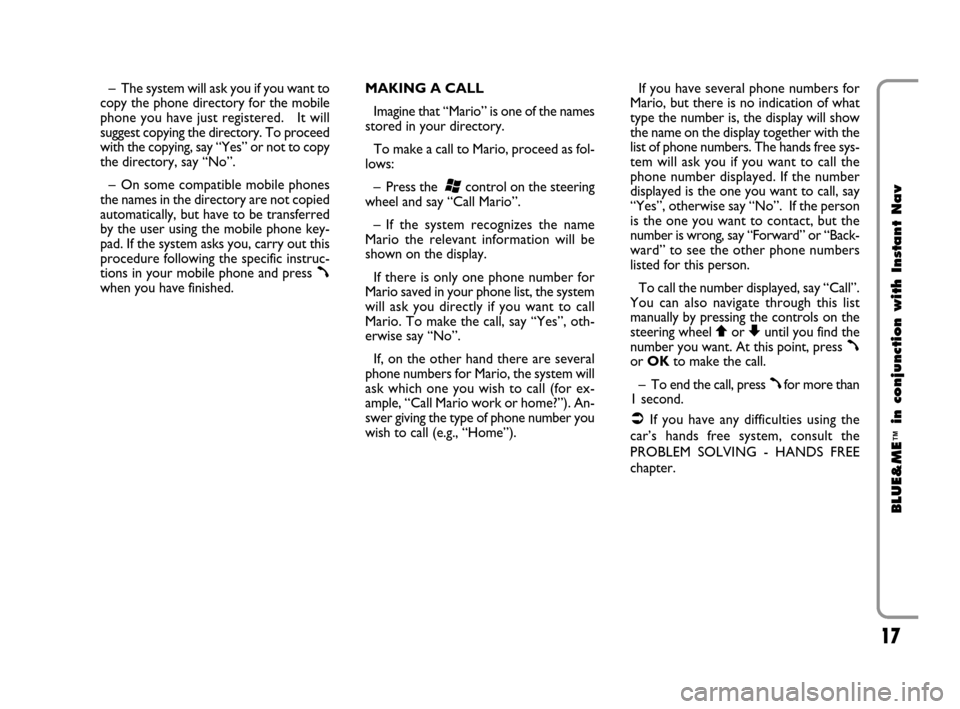

If you have several phone numbers for
Mario, but there is no indication of what
type the number is, the display will show
the name on the display together with the
list of phone numbers. The hands free sys-
tem will ask you if you want to call the
phone number displayed. If the number
displayed is the one you want to call, say
“Yes”, otherwise say “No”. If the person
is the one you want to contact, but the
number is wrong, say “Forward” or “Back-
ward” to see the other phone numbers
listed for this person.
To call the number displayed, say “Call”.
You can also navigate through this list
manually by pressing the controls on the
steering wheel
QorZuntil you find the
number you want. At this point, press
ßor OKto make the call.
– To end the call, press
ßfor more than
1 second.
If you have any difficulties using the
car’s hands free system, consult the
PROBLEM SOLVING - HANDS FREE
chapter. – The system will ask you if you want to
copy the phone directory for the mobile
phone you have just registered. It will
suggest copying the directory. To proceed
with the copying, say “Yes” or not to copy
the directory, say “No”.
– On some compatible mobile phones
the names in the directory are not copied
automatically, but have to be transferred
by the user using the mobile phone key-
pad. If the system asks you, carry out this
procedure following the specific instruc-
tions in your mobile phone and press
ßwhen you have finished. MAKING A CALL
Imagine that “Mario” is one of the names
stored in your directory.
To make a call to Mario, proceed as fol-
lows:
– Press the
‘control on the steering
wheel and say “Call Mario”.
– If the system recognizes the name
Mario the relevant information will be
shown on the display.
If there is only one phone number for
Mario saved in your phone list, the system
will ask you directly if you want to call
Mario. To make the call, say “Yes”, oth-
erwise say “No”.
If, on the other hand there are several
phone numbers for Mario, the system will
ask which one you wish to call (for ex-
ample, “Call Mario work or home?”). An-
swer giving the type of phone number you
wish to call (e.g., “Home”).
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 17
Page 19 of 90

18
BLUE&ME
™
in conjunction with Instant Nav
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 18

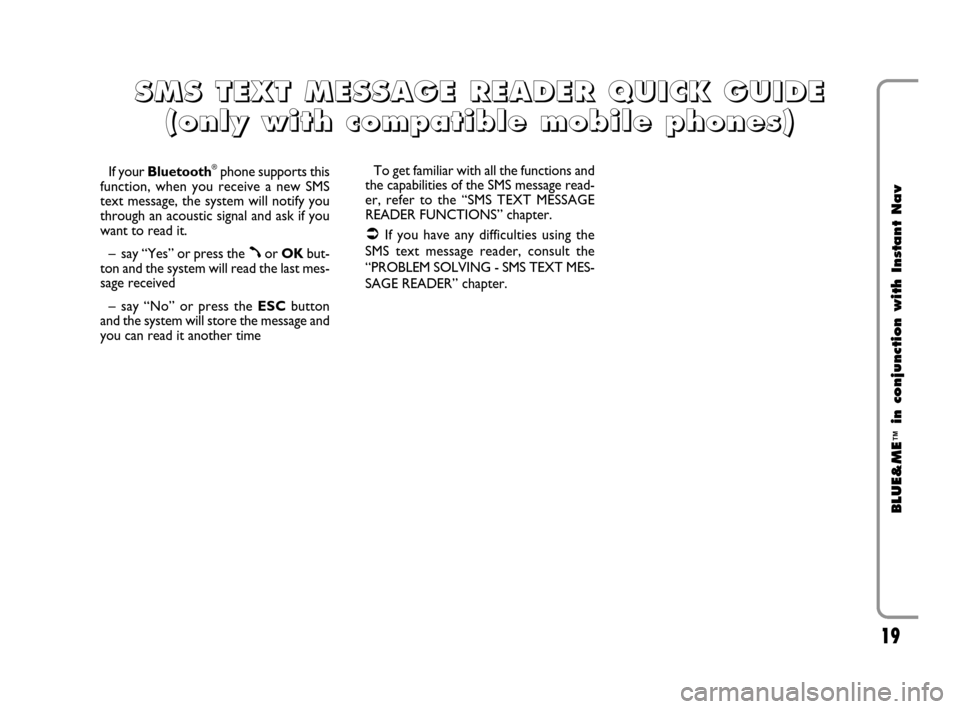

Page 20 of 90

19
BLUE&ME
™
in conjunction with Instant Nav
If your Bluetooth®phone supports this
function, when you receive a new SMS
text message, the system will notify you
through an acoustic signal and ask if you
want to read it.
– say “Yes” or press the
ßor OKbut-
ton and the system will read the last mes-
sage received
– say “No” or press the ESCbutton
and the system will store the message and
you can read it another time
S S
M M
S S
T T
E E
X X
T T
M M
E E
S S
S S
A A
G G
E E
R R
E E
A A
D D
E E
R R
Q Q
U U
I I
C C
K K
G G
U U
I I
D D
E E
( (
o o
n n
l l
y y
w w
i i
t t
h h
c c
o o
m m
p p
a
a
t t
i i
b b
l l
e e
m m
o o
b b
i i
l l
e e
p p
h h
o o
n n
e e
s s
) )
To get familiar with all the functions and
the capabilities of the SMS message read-
er, refer to the “SMS TEXT MESSAGE
READER FUNCTIONS” chapter.
If you have any difficulties using the
SMS text message reader, consult the
“PROBLEM SOLVING - SMS TEXT MES-
SAGE READER” chapter.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 19
