display FIAT CROMA 2009 2.G Blue And Me Instant Navigation Manual

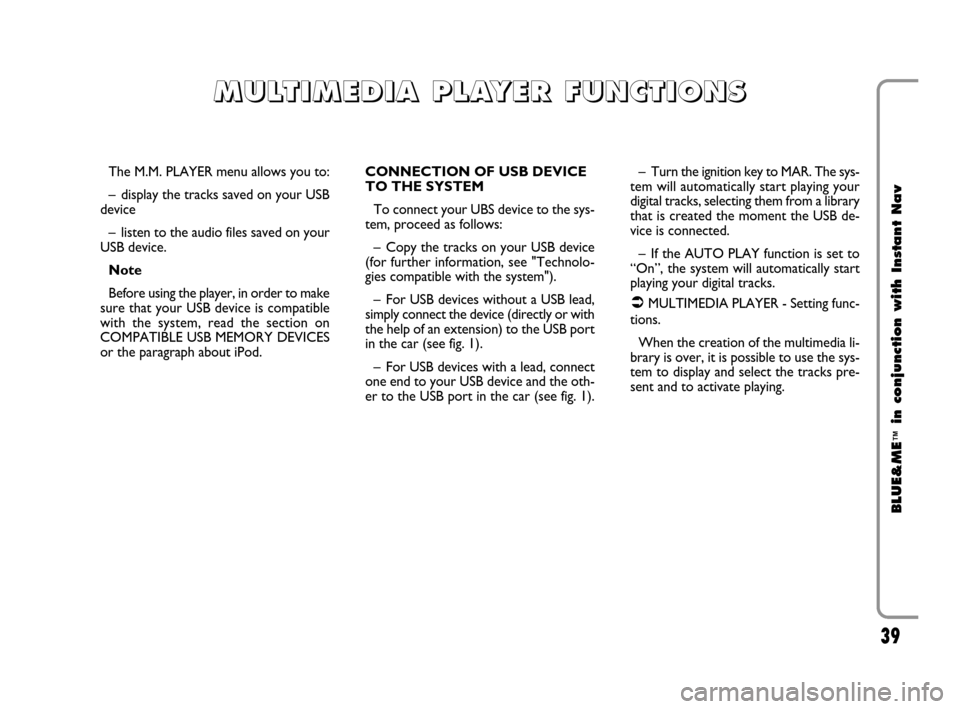

39
BLUE&ME
™
in conjunction with Instant Nav
The M.M. PLAYER menu allows you to:
– display the tracks saved on your USB
device
– listen to the audio files saved on your
USB device.
Note
Before using the player, in order to make
sure that your USB device is compatible
with the system, read the section on
COMPATIBLE USB MEMORY DEVICES
or the paragraph about iPod.CONNECTION OF USB DEVICE
TO THE SYSTEM
To connect your UBS device to the sys-
tem, proceed as follows:
– Copy the tracks on your USB device
(for further information, see "Technolo-
gies compatible with the system").
– For USB devices without a USB lead,
simply connect the device (directly or with
the help of an extension) to the USB port
in the car (see fig. 1).
– For USB devices with a lead, connect
one end to your USB device and the oth-
er to the USB port in the car (see fig. 1).– Turn the ignition key to MAR. The sys-
tem will automatically start playing your
digital tracks, selecting them from a library
that is created the moment the USB de-
vice is connected.
– If the AUTO PLAY function is set to
“On”, the system will automatically start
playing your digital tracks.
MULTIMEDIA PLAYER - Setting func-
tions.
When the creation of the multimedia li-
brary is over, it is possible to use the sys-
tem to display and select the tracks pre-
sent and to activate playing.
M M
U U
L L
T T
I I
M M
E E
D D
I I
A A

P P
L L
A A
Y Y
E E
R R

F F
U U
N N
C C
T T
I I
O O
N N
S S
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 39

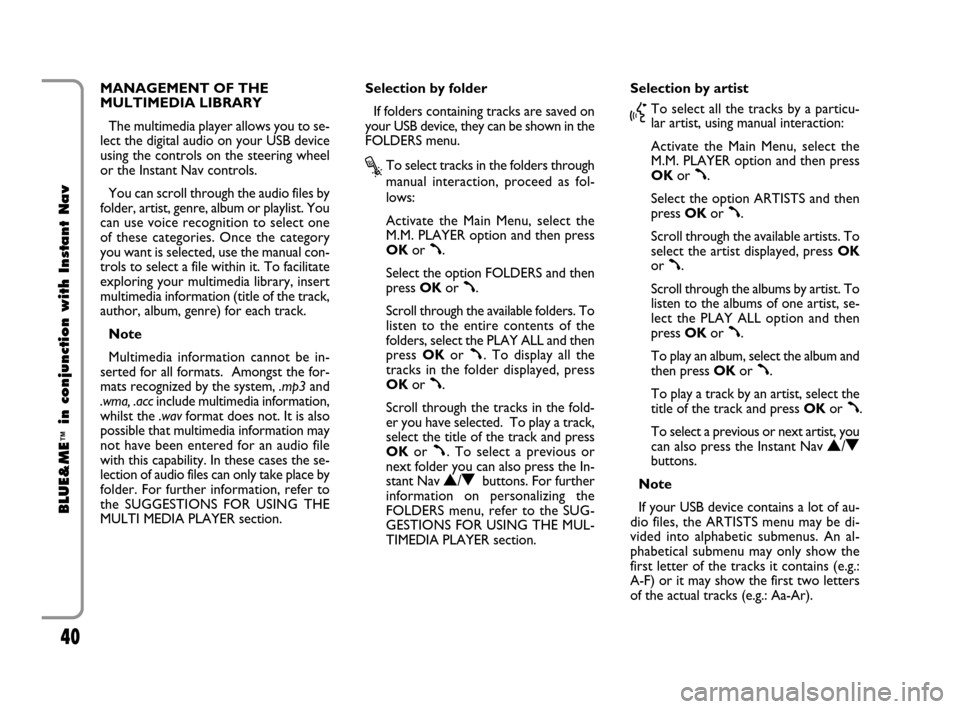

40
BLUE&ME
™
in conjunction with Instant Nav
MANAGEMENT OF THE
MULTIMEDIA LIBRARY
The multimedia player allows you to se-
lect the digital audio on your USB device
using the controls on the steering wheel
or the Instant Nav controls.
You can scroll through the audio files by
folder, artist, genre, album or playlist. You
can use voice recognition to select one
of these categories. Once the category
you want is selected, use the manual con-
trols to select a file within it. To facilitate
exploring your multimedia library, insert
multimedia information (title of the track,
author, album, genre) for each track.
Note
Multimedia information cannot be in-
serted for all formats. Amongst the for-
mats recognized by the system, .mp3 and
.wma, .accinclude multimedia information,
whilst the .wavformat does not. It is also
possible that multimedia information may
not have been entered for an audio file
with this capability. In these cases the se-
lection of audio files can only take place by
folder. For further information, refer to
the SUGGESTIONS FOR USING THE
MULTI MEDIA PLAYER section.Selection by folder
If folders containing tracks are saved on
your USB device, they can be shown in the
FOLDERS menu.
?To select tracks in the folders through
manual interaction, proceed as fol-
lows:
Activate the Main Menu, select the
M.M. PLAYER option and then press
OKor
ß.
Select the option FOLDERS and then
press OKor
ß.
Scroll through the available folders. To
listen to the entire contents of the
folders, select the PLAY ALL and then
press OKor
ß. To display all the
tracks in the folder displayed, press
OKor
ß.
Scroll through the tracks in the fold-
er you have selected. To play a track,
select the title of the track and press
OKor
ß. To select a previous or
next folder you can also press the In-
stant Nav
N/Obuttons. For further
information on personalizing the
FOLDERS menu, refer to the SUG-
GESTIONS FOR USING THE MUL-
TIMEDIA PLAYER section.Selection by artist
}To select all the tracks by a particu-
lar artist, using manual interaction:
Activate the Main Menu, select the
M.M. PLAYER option and then press
OKor
ß.
Select the option ARTISTS and then
press OKor
ß.
Scroll through the available artists. To
select the artist displayed, press OK
or
ß.
Scroll through the albums by artist. To
listen to the albums of one artist, se-
lect the PLAY ALL option and then
press OKor
ß.
To play an album, select the album and
then press OKor
ß.
To play a track by an artist, select the
title of the track and press OKor
ß.
To select a previous or next artist, you
can also press the Instant Nav
N/Obuttons.
Note
If your USB device contains a lot of au-
dio files, the ARTISTS menu may be di-
vided into alphabetic submenus. An al-
phabetical submenu may only show the
first letter of the tracks it contains (e.g.:
A-F) or it may show the first two letters
of the actual tracks (e.g.: Aa-Ar).
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 40

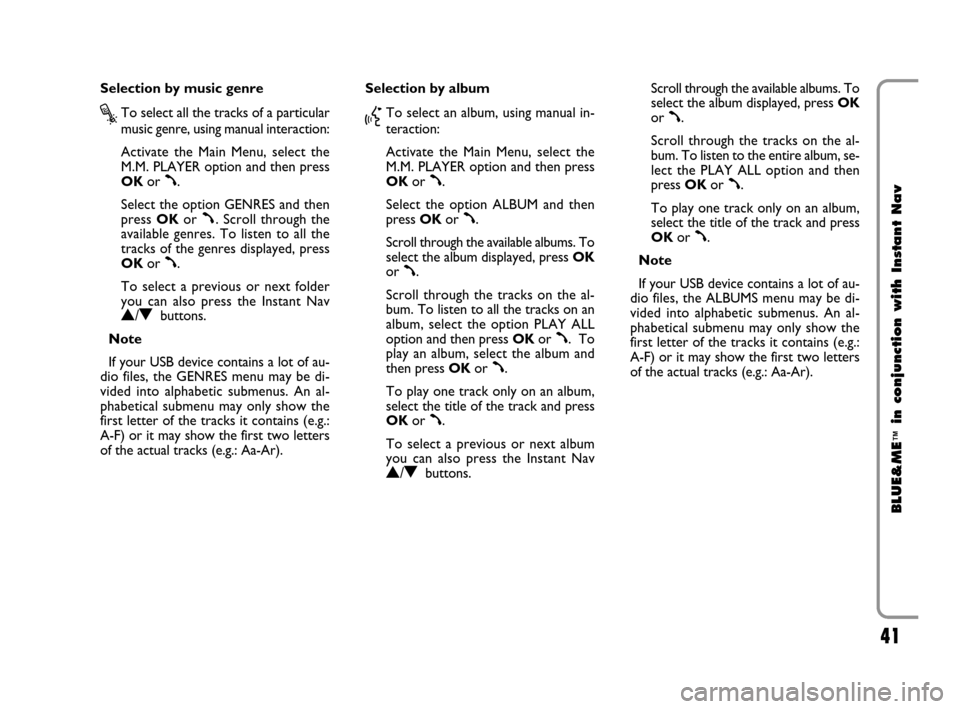

41
BLUE&ME
™
in conjunction with Instant Nav
Selection by music genre
?To select all the tracks of a particular
music genre, using manual interaction:
Activate the Main Menu, select the
M.M. PLAYER option and then press
OKor
ß.
Select the option GENRES and then
press OKor
ß. Scroll through the
available genres. To listen to all the
tracks of the genres displayed, press
OKor
ß.
To select a previous or next folder
you can also press the Instant Nav
N/Obuttons.
Note
If your USB device contains a lot of au-
dio files, the GENRES menu may be di-
vided into alphabetic submenus. An al-
phabetical submenu may only show the
first letter of the tracks it contains (e.g.:
A-F) or it may show the first two letters
of the actual tracks (e.g.: Aa-Ar).Selection by album
}To select an album, using manual in-
teraction:
Activate the Main Menu, select the
M.M. PLAYER option and then press
OKor
ß.
Select the option ALBUM and then
press OKor
ß.
Scroll through the available albums. To
select the album displayed, press OK
or
ß.
Scroll through the tracks on the al-
bum. To listen to all the tracks on an
album, select the option PLAY ALL
option and then press OKor
ß. To
play an album, select the album and
then press OKor
ß.
To play one track only on an album,
select the title of the track and press
OKor
ß.
To select a previous or next album
you can also press the Instant Nav
N/Obuttons. Scroll through the available albums. To
select the album displayed, press OK
or
ß.
Scroll through the tracks on the al-
bum. To listen to the entire album, se-
lect the PLAY ALL option and then
press OKor
ß.
To play one track only on an album,
select the title of the track and press
OKor
ß.
Note
If your USB device contains a lot of au-
dio files, the ALBUMS menu may be di-
vided into alphabetic submenus. An al-
phabetical submenu may only show the
first letter of the tracks it contains (e.g.:
A-F) or it may show the first two letters
of the actual tracks (e.g.: Aa-Ar).
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 41

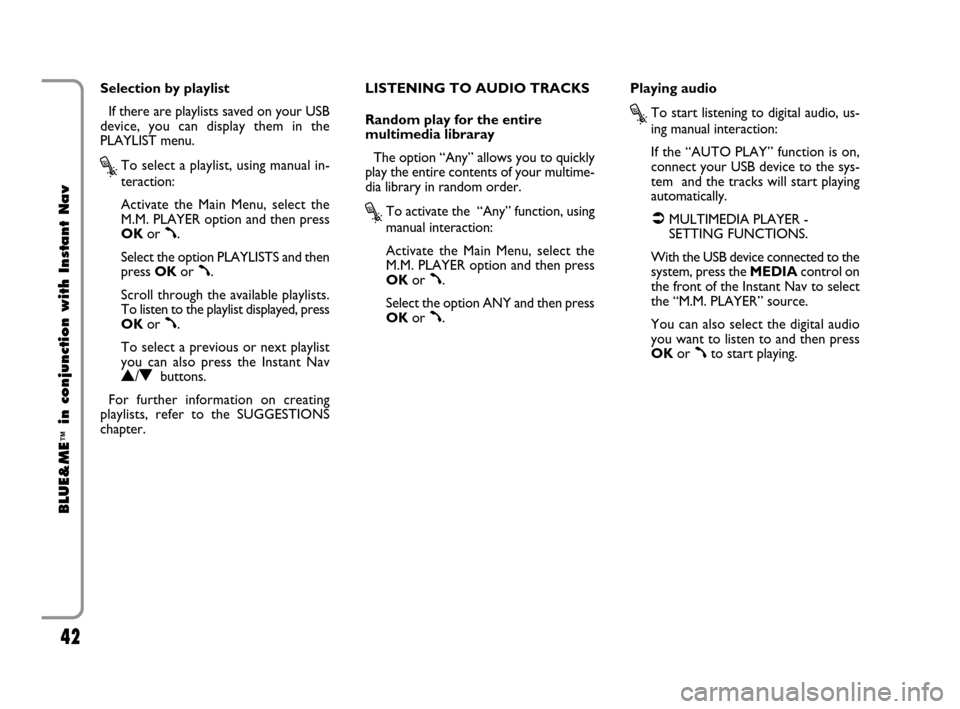

42
BLUE&ME
™
in conjunction with Instant Nav
Selection by playlist
If there are playlists saved on your USB
device, you can display them in the
PLAYLIST menu.
?To select a playlist, using manual in-
teraction:
Activate the Main Menu, select the
M.M. PLAYER option and then press
OKor
ß.
Select the option PLAYLISTS and then
press OKor
ß.
Scroll through the available playlists.
To listen to the playlist displayed, press
OKor
ß.
To select a previous or next playlist
you can also press the Instant Nav
N/Obuttons.
For further information on creating
playlists, refer to the SUGGESTIONS
chapter.LISTENING TO AUDIO TRACKS
Random play for the entire
multimedia libraray
The option “Any” allows you to quickly
play the entire contents of your multime-
dia library in random order.
?To activate the “Any” function, using
manual interaction:
Activate the Main Menu, select the
M.M. PLAYER option and then press
OKor
ß.
Select the option ANY and then press
OKor
ß.Playing audio
?To start listening to digital audio, us-
ing manual interaction:
If the “AUTO PLAY” function is on,
connect your USB device to the sys-
tem and the tracks will start playing
automatically.
MULTIMEDIA PLAYER -
SETTING FUNCTIONS.
With the USB device connected to the
system, press the MEDIAcontrol on
the front of the Instant Nav to select
the “M.M. PLAYER” source.
You can also select the digital audio
you want to listen to and then press
OKor
ßto start playing.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 42

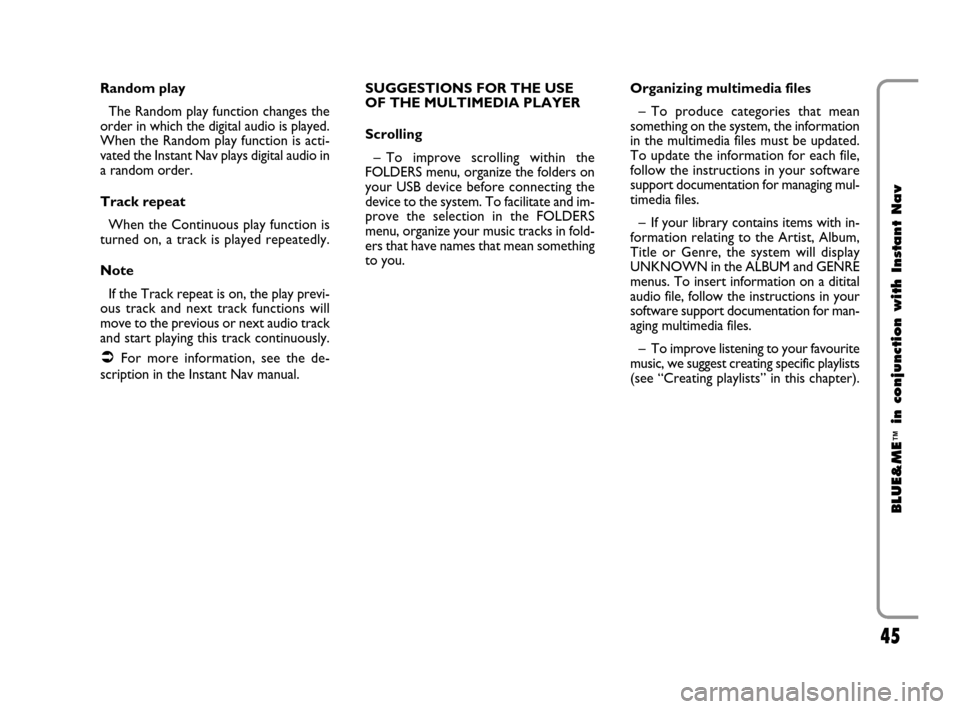

45
BLUE&ME
™
in conjunction with Instant Nav
Random play
The Random play function changes the
order in which the digital audio is played.
When the Random play function is acti-
vated the Instant Nav plays digital audio in
a random order.
Track repeat
When the Continuous play function is
turned on, a track is played repeatedly.
Note
If the Track repeat is on, the play previ-
ous track and next track functions will
move to the previous or next audio track
and start playing this track continuously.
For more information, see the de-
scription in the Instant Nav manual.SUGGESTIONS FOR THE USE
OF THE MULTIMEDIA PLAYER
Scrolling
– To improve scrolling within the
FOLDERS menu, organize the folders on
your USB device before connecting the
device to the system. To facilitate and im-
prove the selection in the FOLDERS
menu, organize your music tracks in fold-
ers that have names that mean something
to you.Organizing multimedia files
– To produce categories that mean
something on the system, the information
in the multimedia files must be updated.
To update the information for each file,
follow the instructions in your software
support documentation for managing mul-
timedia files.
– If your library contains items with in-
formation relating to the Artist, Album,
Title or Genre, the system will display
UNKNOWN in the ALBUM and GENRE
menus. To insert information on a ditital
audio file, follow the instructions in your
software support documentation for man-
aging multimedia files.
– To improve listening to your favourite
music, we suggest creating specific playlists
(see “Creating playlists” in this chapter).
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 45

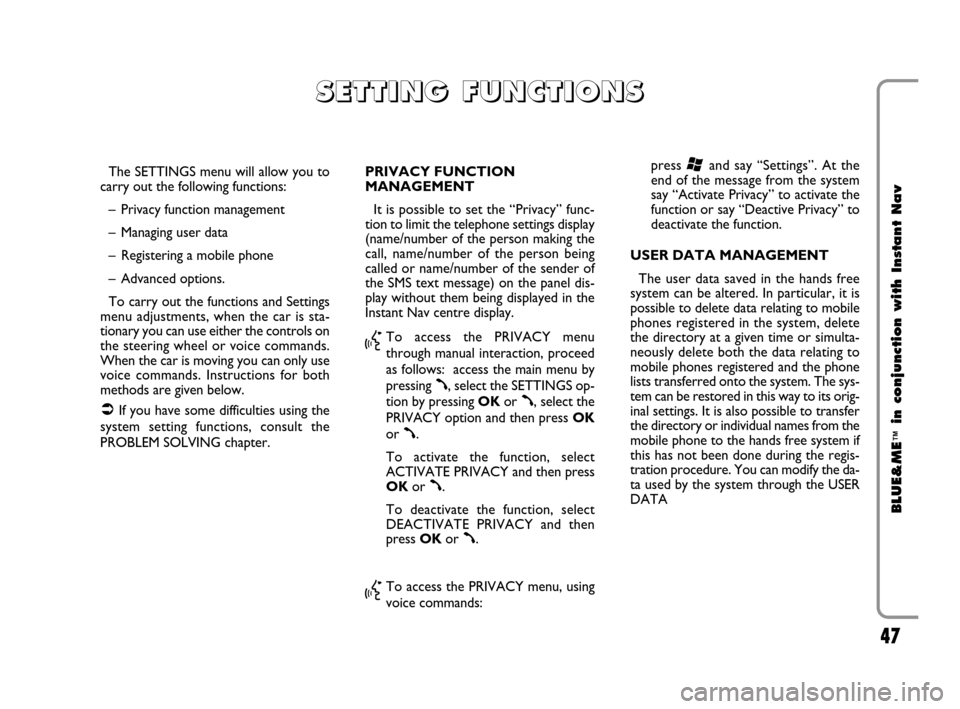

47
BLUE&ME
™
in conjunction with Instant Nav
The SETTINGS menu will allow you to
carry out the following functions:
– Privacy function management
– Managing user data
– Registering a mobile phone
– Advanced options.
To carry out the functions and Settings
menu adjustments, when the car is sta-
tionary you can use either the controls on
the steering wheel or voice commands.
When the car is moving you can only use
voice commands. Instructions for both
methods are given below.
If you have some difficulties using the
system setting functions, consult the
PROBLEM SOLVING chapter.PRIVACY FUNCTION
MANAGEMENT
It is possible to set the “Privacy” func-
tion to limit the telephone settings display
(name/number of the person making the
call, name/number of the person being
called or name/number of the sender of
the SMS text message) on the panel dis-
play without them being displayed in the
Instant Nav centre display.
}To access the PRIVACY menu
through manual interaction, proceed
as follows: access the main menu by
pressing
ß, select the SETTINGS op-
tion by pressing OKor
ß, select the
PRIVACY option and then press OK
or
ß.
To activate the function, select
ACTIVATE PRIVACY and then press
OKor
ß.
To deactivate the function, select
DEACTIVATE PRIVACY and then
press OKor
ß.
}To access the PRIVACY menu, using
voice commands: press
‘and say “Settings”. At the
end of the message from the system
say “Activate Privacy” to activate the
function or say “Deactive Privacy” to
deactivate the function.
USER DATA MANAGEMENT
The user data saved in the hands free
system can be altered. In particular, it is
possible to delete data relating to mobile
phones registered in the system, delete
the directory at a given time or simulta-
neously delete both the data relating to
mobile phones registered and the phone
lists transferred onto the system. The sys-
tem can be restored in this way to its orig-
inal settings. It is also possible to transfer
the directory or individual names from the
mobile phone to the hands free system if
this has not been done during the regis-
tration procedure. You can modify the da-
ta used by the system through the USER
DATA
S S
E E
T T
T T
I I
N N
G G

F F
U U
N N
C C
T T
I I
O O
N N
S S
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 47

48
BLUE&ME
™
in conjunction with Instant Nav
?To access the USER DATA menu
through manual interaction, proceed
as follows: Activate the Main Menu by
pressing
ßand select the Settings op-
tion by pressing OKor
ß.
Select the option USER DATA and
then press OKor
ß.
}Or, through voice commands:
Press
‘and say “Settings” and then,
at the end of the message from the
system say “User Data”. You can car-
ry out the functions described below
in the USER DATA menu.
Delete the registered users
You can delete registrations made in the
USER DATA menu. Following this oper-
ation, you can no longer use the hands
free system with a mobile phone that is
not registered and you also cannot use
your phone directory until you register
your mobiel phone again.
It is important to know that this opera-
tion will delete all registrations created on
the system.
?To delete the registration data for all
users, using manual interaction, pro-
ceed as follows:
Select the option DELETE USERS and
then press OKor
ß.
The system will display the message
DELETE USERS? To delete the user
data, confirm by pressing OKor
ß.
}Or, through voice commands:
Press
‘and say “Settings” and then,
at the end of the message from the
system say “Delete Users”.
The system will ask “Delete all regis-
tered users?” To confirm, say “Yes”.
Notes
– Always remember that if a mobile
phone is registered on the system whilst
another phone is connected, the connec-
tion with the telephone connected at that
time will be interrupted and the new tele-
phone will be connected.
– It is not always possible to delete user
data for a single mobile phone unless it is
the only one registered.
– After deleting all the user data a new
mobile phone must be registered.Delete the phone list
It it also possible to delete the phone list
copied onto the system in the USER DA-
TA menu.
?To delete the current phone list,
through manual interaction, proceed
as follows:
Select the option DELETE DIREC-
TORY and then press OKor
ß. The
system will display the question Delete
directory? To delete the directory,
confirm by pressing OKor
ß.
}Or, through voice commands:
Press
‘, say “Settings” and then, at
the end of the message from the sys-
tem say “Delete directory”.
The system will ask “Delete the copy
of the directory from the car?” To con-
firm, say “Yes”.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 48

49
BLUE&ME
™
in conjunction with Instant Nav

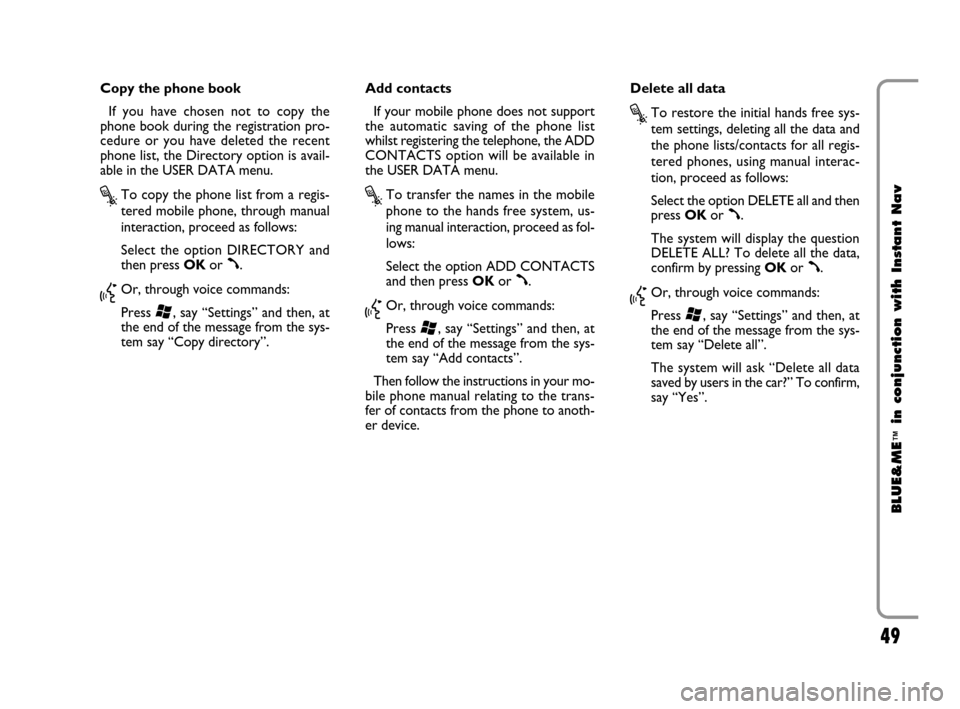

Copy the phone book
If you have chosen not to copy the
phone book during the registration pro-
cedure or you have deleted the recent
phone list, the Directory option is avail-
able in the USER DATA menu.
?To copy the phone list from a regis-
tered mobile phone, through manual
interaction, proceed as follows:
Select the option DIRECTORY and
then press OKor
ß.
}Or, through voice commands:
Press
‘, say “Settings” and then, at
the end of the message from the sys-
tem say “Copy directory”.Add contacts
If your mobile phone does not support
the automatic saving of the phone list
whilst registering the telephone, the ADD
CONTACTS option will be available in
the USER DATA menu.
?To transfer the names in the mobile
phone to the hands free system, us-
ing manual interaction, proceed as fol-
lows:
Select the option ADD CONTACTS
and then press OKor
ß.
}Or, through voice commands:
Press
‘, say “Settings” and then, at
the end of the message from the sys-
tem say “Add contacts”.
Then follow the instructions in your mo-
bile phone manual relating to the trans-
fer of contacts from the phone to anoth-
er device. Delete all data
?To restore the initial hands free sys-
tem settings, deleting all the data and
the phone lists/contacts for all regis-
tered phones, using manual interac-
tion, proceed as follows:
Select the option DELETE all and then
press OKor
ß.
The system will display the question
DELETE ALL? To delete all the data,
confirm by pressing OKor
ß.
}Or, through voice commands:
Press
‘, say “Settings” and then, at
the end of the message from the sys-
tem say “Delete all”.
The system will ask “Delete all data
saved by users in the car?” To confirm,
say “Yes”.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 49

50
BLUE&ME
™
in conjunction with Instant Nav
REGISTERING A MOBILE
PHONE
In order to use your mobile phone with
the car’s hands free function it must be
registered. During the registration proce-
dure the hands free system will search for
a telephone with Bluetooth
®in its re-
ception range. If it finds it, it will establish
the connection using a PIN (Personal Iden-
tification Number). After having registered
your mobile phone in the system it can be
used through the hands free system.
IMPORTANT The PIN code used for
registering a mobile phone is produced
randomly by the system each time a new
phone is registered, therefore it does not
have to be memorized and if it is mislaid
it will not affect the use of the hands free
system.
The procedure for registering your mo-
bile phone only has to be carried out once;
afterwards the system will automatically
connect your phone each time you get in-
to the car and turn the ignition key to the
MAR position.You can register your mobile phone us-
ing the Registration option in the Settings
menu.
?To register through manual interac-
tion, proceed as follows:
Activate the Main Menu by pressing
ßand select the Settings option by
pressing OKor
ß.
Select the option Registration and
then press OKor
ß. The system will
launch the registration procedure.
The system will show the PIN code re-
quired for registering the mobile
phone on the panel display and it will
repeat it vocally. It is important to
know that this PIN is only used once
for registering the mobile phone and
it is not the PIN for the your SIM card.
For the two subsequent stages, con-
sult your mobile phone manual for
how to register and connect with
Bluetooth
®devices.Look, on your mobile phone, for the
option that allows you to display de-
vices with Bluetooth
®in the oper-
ating range (this option may be called
Search, New Device, etc. on your mo-
bile phone). Select “Blue&Me” from
the devices enabled for Bluetooth
®
present (the name identifies the sys-
tem on your car).
When the mobile requests it, enter
the PIN number on the panel display.
If the registration has been success-
ful, the system will say “Connection in
progress” and at the end will show the
number of the mobile phone regis-
tered on the display as confirmation.
It is important to wait for this confir-
mation message, if you press
ßor
ESCbefore this message appears you
risk cancelling the registration process.
If the registration fails, an error mes-
sage will appear; the procedure will
have to be repeated in this case.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 50

51
BLUE&ME
™
in conjunction with Instant Nav
The first time you register a mobile
phone the system will say “Welcome”
straight after connection. The system
will no longer give this welcome dur-
ing subsequent registration proce-
dures or when the same mobile phone
is connected.
The system will ask you if you want to
copy the phone list as soon as the
phone is registered. It is advisable to
copy the directory. To copy the di-
rectory, press OKor
ß. If you don’t
want to copy the directory, ESC. If
you do not copy the directory at this
point, you can copy it later on using
the SETTINGS, USER DATA, DIREC-
TORY MENU.
On some mobile phones the names in
the directory are not copied auto-
matically, but have to be transferred
by the user using the mobile phone
keypad. If the system asks you, carry
out this procedure following the spe-
cific instructions in your mobile phone
and press
ßwhen you have finished.
}Or, through voice commands:
Press
‘and say “Settings” and then,
at the end of the message from the
system say “Register user”.
The system will show the PIN code re-
quired for registering the mobile
phone on the panel display and it will
repeat it vocally.
For the next two stages, consult your
mobile phone manual for how to reg-
ister and connect devices with Blue-
tooth
®.
Search, on your mobile phone, for the
option that allows you to display de-
vices with Bluetooth
®in the operat-
ing range (this option may be called
Search, New Device, etc. on your mo-
bile phone). Select “Blue&Me” from
the devices enabled for Bluetooth
®
(the name that identifies the hands free
system for your car).When the mobile phone asks you, en-
ter the PIN shown in the display us-
ing your mobile phone keypad. If the
registration has been successful, the
system will say “Connection in
progress” and at the end will show the
number of the mobile phone regis-
tered on the display as confirmation.
It is important to wait for this confir-
mation message, if you press
ßor
ESCbefore this message appears you
risk cancelling the registration process.
If the registration fails, an error mes-
sage will appear; the procedure will
have to be repeated in this case.
The first time you register a mobile
phone the system will say “Welcome”
straight after connection. In subse-
quent registration procedures or
when connecting the same mobile
phone, the system will give this wel-
come message.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 51
