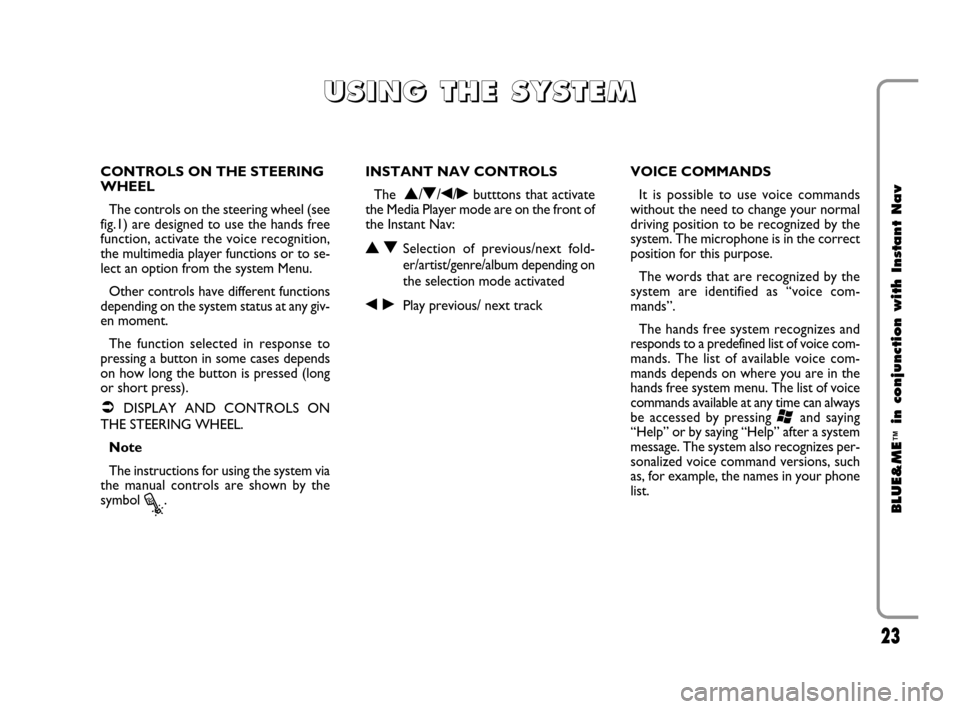

23
BLUE&ME
™
in conjunction with Instant Nav
CONTROLS ON THE STEERING
WHEEL
The controls on the steering wheel (see
fig.1) are designed to use the hands free
function, activate the voice recognition,
the multimedia player functions or to se-
lect an option from the system Menu.
Other controls have different functions
depending on the system status at any giv-
en moment.
The function selected in response to
pressing a button in some cases depends
on how long the button is pressed (long
or short press).
DISPLAY AND CONTROLS ON
THE STEERING WHEEL.
Note
The instructions for using the system via
the manual controls are shown by the
symbol
?.INSTANT NAV CONTROLS
The
N/O/¯/˙butttons that activate
the Media Player mode are on the front of
the Instant Nav:
NOSelection of previous/next fold-
er/artist/genre/album depending on
the selection mode activated
¯˙Play previous/ next trackVOICE COMMANDS
It is possible to use voice commands
without the need to change your normal
driving position to be recognized by the
system. The microphone is in the correct
position for this purpose.
The words that are recognized by the
system are identified as “voice com-
mands”.
The hands free system recognizes and
responds to a predefined list of voice com-
mands. The list of available voice com-
mands depends on where you are in the
hands free system menu. The list of voice
commands available at any time can always
be accessed by pressing
‘and saying
“Help” or by saying “Help” after a system
message. The system also recognizes per-
sonalized voice command versions, such
as, for example, the names in your phone
list.
U U
S S
I I
N N
G G

T T
H H
E E

S S
Y Y
S S
T T
E E
M M
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 23

26
BLUE&ME
™
in conjunction with Instant Nav

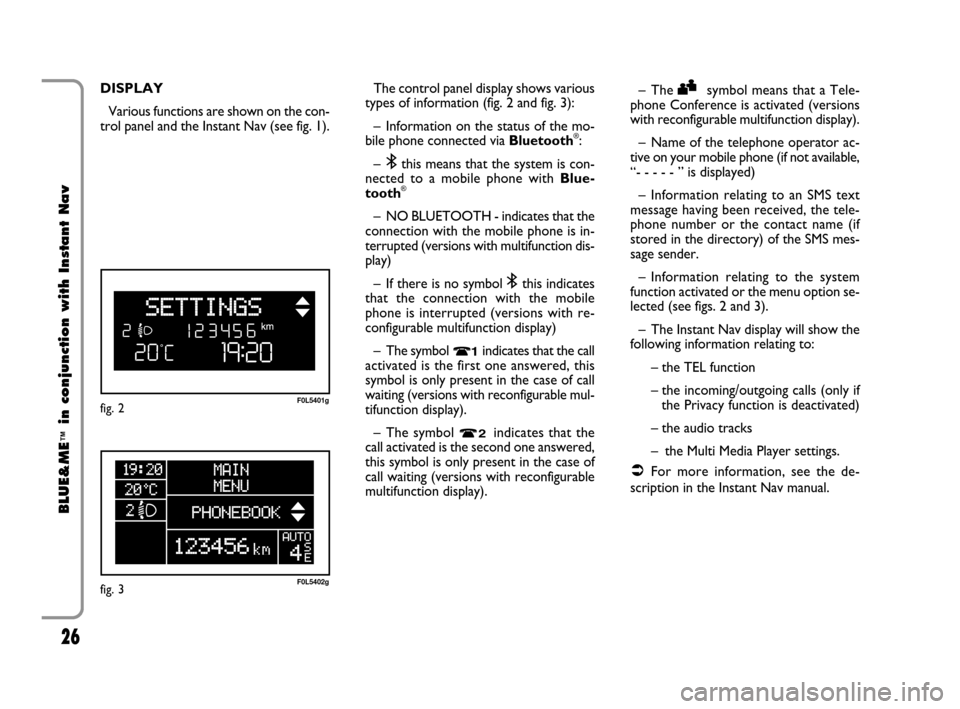

DISPLAY
Various functions are shown on the con-
trol panel and the Instant Nav (see fig. 1).The control panel display shows various
types of information (fig. 2 and fig. 3):
– Information on the status of the mo-
bile phone connected via Bluetooth
®:
–
;this means that the system is con-
nected to a mobile phone with Blue-
tooth
®
– NO BLUETOOTH - indicates that the
connection with the mobile phone is in-
terrupted (versions with multifunction dis-
play)
– If there is no symbol
;this indicates
that the connection with the mobile
phone is interrupted (versions with re-
configurable multifunction display)
– The symbol
Ãindicates that the call
activated is the first one answered, this
symbol is only present in the case of call
waiting (versions with reconfigurable mul-
tifunction display).
– The symbol
Àindicates that the
call activated is the second one answered,
this symbol is only present in the case of
call waiting (versions with reconfigurable
multifunction display).–The
‰symbol means that a Tele-
phone Conference is activated (versions
with reconfigurable multifunction display).
– Name of the telephone operator ac-
tive on your mobile phone (if not available,
“- - - - - ” is displayed)
– Information relating to an SMS text
message having been received, the tele-
phone number or the contact name (if
stored in the directory) of the SMS mes-
sage sender.
– Information relating to the system
function activated or the menu option se-
lected (see figs. 2 and 3).
– The Instant Nav display will show the
following information relating to:
– the TEL function
– the incoming/outgoing calls (only if
the Privacy function is deactivated)
– the audio tracks
– the Multi Media Player settings.
For more information, see the de-
scription in the Instant Nav manual.
fig. 3F0L5402g
fig. 2F0L5401g
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 26

27
BLUE&ME
™
in conjunction with Instant Nav

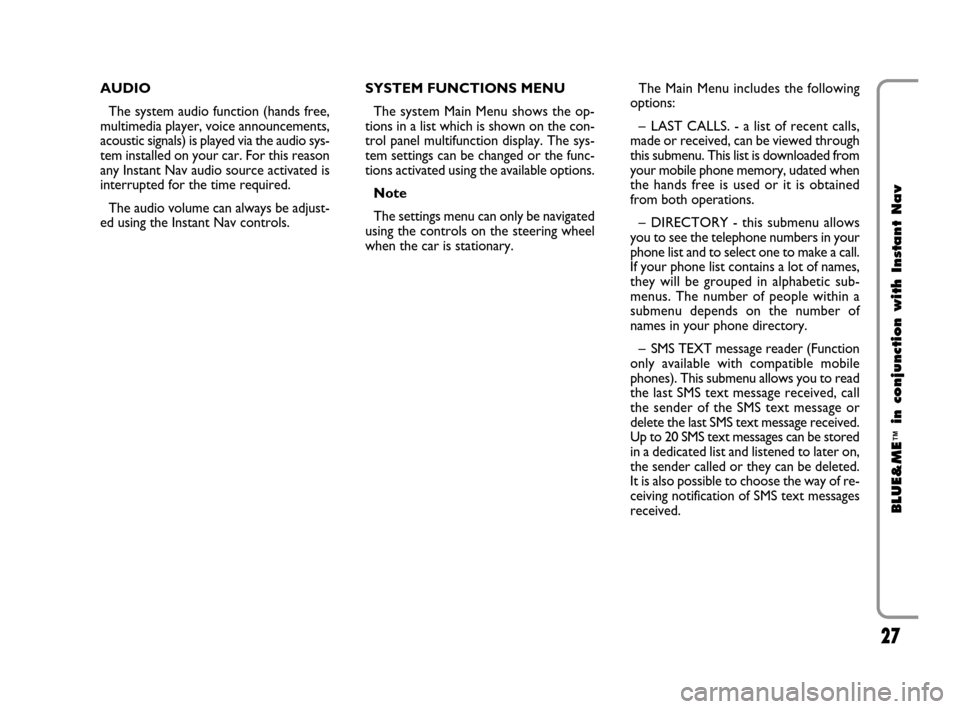

AUDIO
The system audio function (hands free,
multimedia player, voice announcements,
acoustic signals) is played via the audio sys-
tem installed on your car. For this reason
any Instant Nav audio source activated is
interrupted for the time required.
The audio volume can always be adjust-
ed using the Instant Nav controls. SYSTEM FUNCTIONS MENU
The system Main Menu shows the op-
tions in a list which is shown on the con-
trol panel multifunction display. The sys-
tem settings can be changed or the func-
tions activated using the available options.
Note
The settings menu can only be navigated
using the controls on the steering wheel
when the car is stationary.The Main Menu includes the following
options:
– LAST CALLS. - a list of recent calls,
made or received, can be viewed through
this submenu. This list is downloaded from
your mobile phone memory, udated when
the hands free is used or it is obtained
from both operations.
– DIRECTORY - this submenu allows
you to see the telephone numbers in your
phone list and to select one to make a call.
If your phone list contains a lot of names,
they will be grouped in alphabetic sub-
menus. The number of people within a
submenu depends on the number of
names in your phone directory.
– SMS TEXT message reader (Function
only available with compatible mobile
phones). This submenu allows you to read
the last SMS text message received, call
the sender of the SMS text message or
delete the last SMS text message received.
Up to 20 SMS text messages can be stored
in a dedicated list and listened to later on,
the sender called or they can be deleted.
It is also possible to choose the way of re-
ceiving notification of SMS text messages
received.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 27

28
BLUE&ME
™
in conjunction with Instant Nav

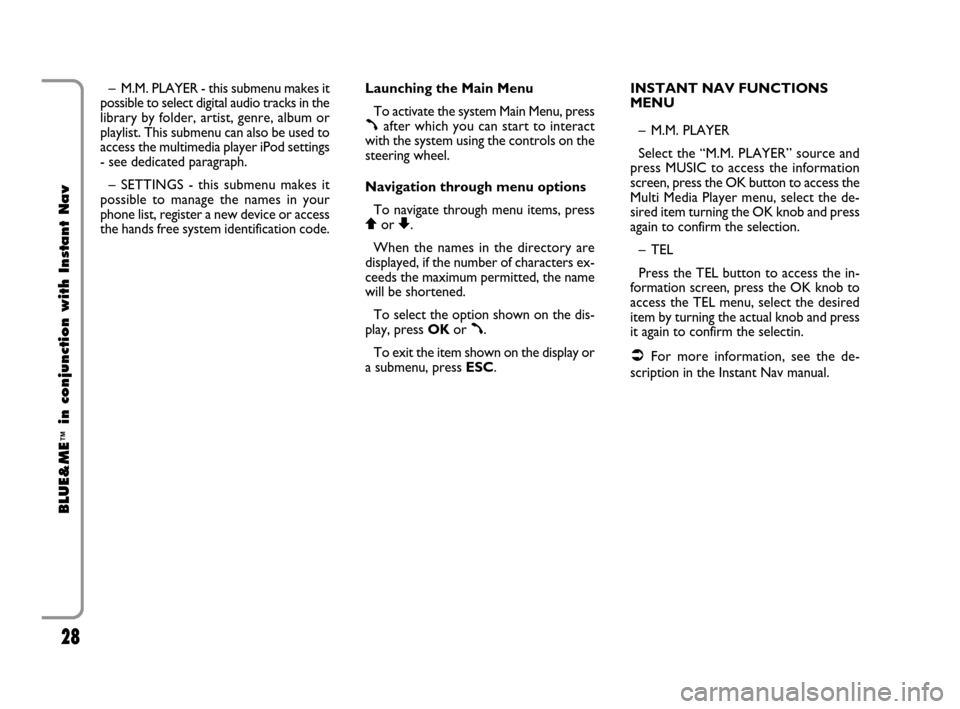

– M.M. PLAYER - this submenu makes it
possible to select digital audio tracks in the
library by folder, artist, genre, album or
playlist. This submenu can also be used to
access the multimedia player iPod settings
- see dedicated paragraph.
– SETTINGS - this submenu makes it
possible to manage the names in your
phone list, register a new device or access
the hands free system identification code.Launching the Main Menu
To activate the system Main Menu, press
ßafter which you can start to interact
with the system using the controls on the
steering wheel.
Navigation through menu options
To navigate through menu items, press
Qor Z.
When the names in the directory are
displayed, if the number of characters ex-
ceeds the maximum permitted, the name
will be shortened.
To select the option shown on the dis-
play, press OKor
ß.
To exit the item shown on the display or
a submenu, press ESC.INSTANT NAV FUNCTIONS
MENU
– M.M. PLAYER
Select the “M.M. PLAYER” source and
press MUSIC to access the information
screen, press the OK button to access the
Multi Media Player menu, select the de-
sired item turning the OK knob and press
again to confirm the selection.
–TEL
Press the TEL button to access the in-
formation screen, press the OK knob to
access the TEL menu, select the desired
item by turning the actual knob and press
it again to confirm the selectin.
For more information, see the de-
scription in the Instant Nav manual.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 28

30
BLUE&ME
™
in conjunction with Instant Nav

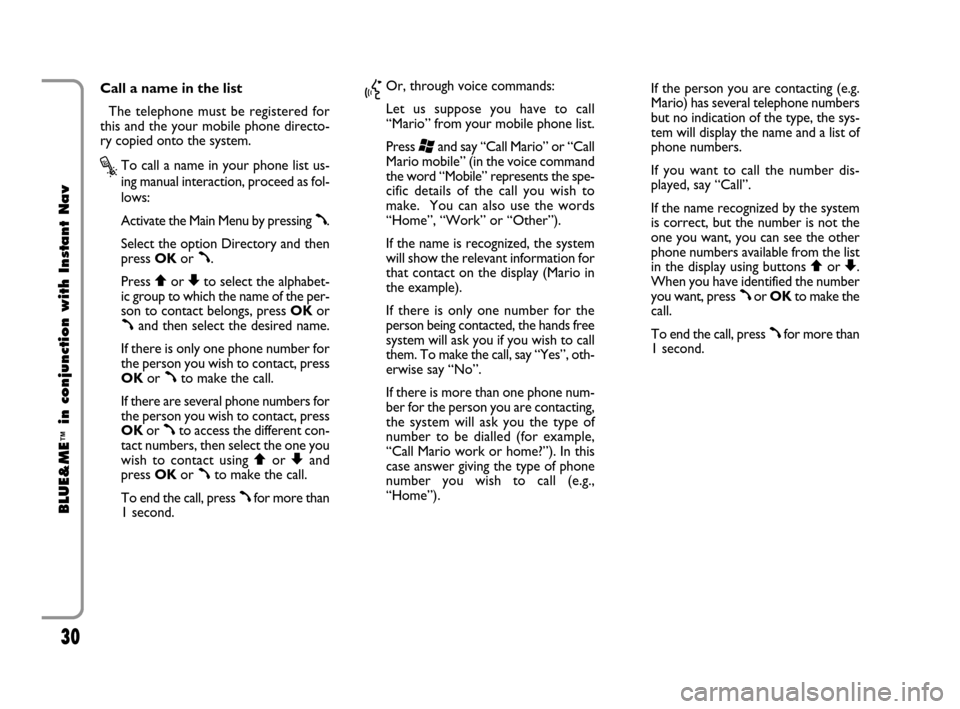

Call a name in the list
The telephone must be registered for
this and the your mobile phone directo-
ry copied onto the system.
?To call a name in your phone list us-
ing manual interaction, proceed as fol-
lows:
Activate the Main Menu by pressing
ß.
Select the option Directory and then
press OKor
ß.
Press
QorZto select the alphabet-
ic group to which the name of the per-
son to contact belongs, press OKor
ßand then select the desired name.
If there is only one phone number for
the person you wish to contact, press
OKor
ßto make the call.
If there are several phone numbers for
the person you wish to contact, press
OKor
ßto access the different con-
tact numbers, then select the one you
wish to contact using
QorZand
press OKor
ßto make the call.
To end the call, press
ßfor more than
1 second.
}Or, through voice commands:
Let us suppose you have to call
“Mario” from your mobile phone list.
Press
‘and say “Call Mario” or “Call
Mario mobile” (in the voice command
the word “Mobile” represents the spe-
cific details of the call you wish to
make. You can also use the words
“Home”, “Work” or “Other”).
If the name is recognized, the system
will show the relevant information for
that contact on the display (Mario in
the example).
If there is only one number for the
person being contacted, the hands free
system will ask you if you wish to call
them. To make the call, say “Yes”, oth-
erwise say “No”.
If there is more than one phone num-
ber for the person you are contacting,
the system will ask you the type of
number to be dialled (for example,
“Call Mario work or home?”). In this
case answer giving the type of phone
number you wish to call (e.g.,
“Home”). If the person you are contacting (e.g.
Mario) has several telephone numbers
but no indication of the type, the sys-
tem will display the name and a list of
phone numbers.
If you want to call the number dis-
played, say “Call”.
If the name recognized by the system
is correct, but the number is not the
one you want, you can see the other
phone numbers available from the list
in the display using buttons
Qor Z.
When you have identified the number
you want, press
ßor OKto make the
call.
To end the call, press
ßfor more than
1 second.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 30

31
BLUE&ME
™
in conjunction with Instant Nav

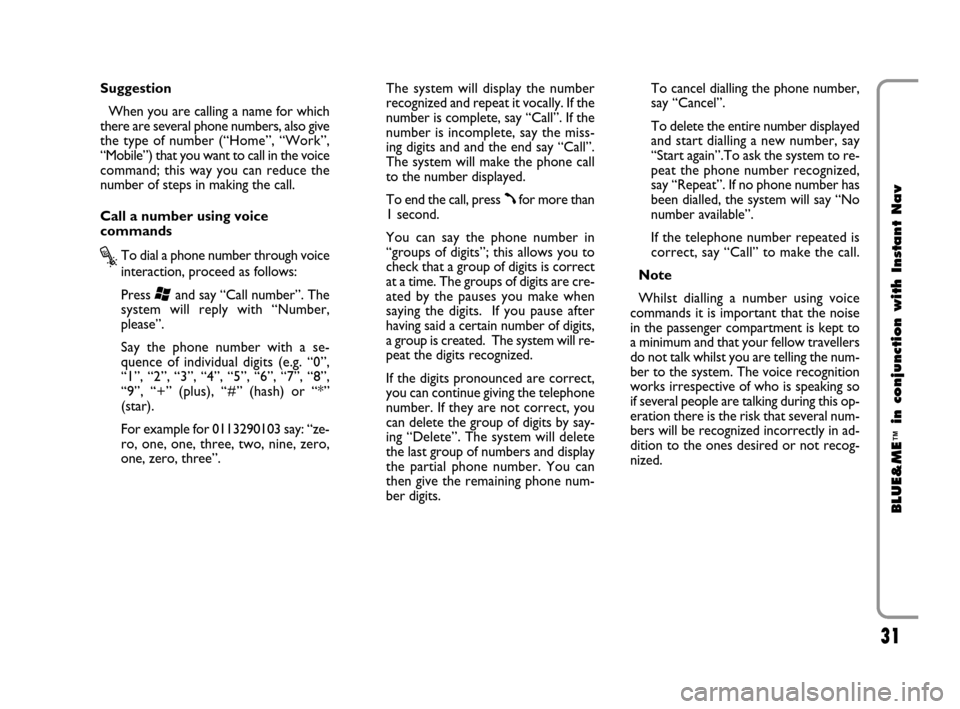

Suggestion
When you are calling a name for which
there are several phone numbers, also give
the type of number (“Home”, “Work”,
“Mobile”) that you want to call in the voice
command; this way you can reduce the
number of steps in making the call.
Call a number using voice
commands
?To dial a phone number through voice
interaction, proceed as follows:
Press
‘and say “Call number”. The
system will reply with “Number,
please”.
Say the phone number with a se-
quence of individual digits (e.g. “0”,
“1”, “2”, “3”, “4”, “5”, “6”, “7”, “8”,
“9”, “+” (plus), “#” (hash) or “*”
(star).
For example for 0113290103 say: “ze-
ro, one, one, three, two, nine, zero,
one, zero, three”.The system will display the number
recognized and repeat it vocally. If the
number is complete, say “Call”. If the
number is incomplete, say the miss-
ing digits and and the end say “Call”.
The system will make the phone call
to the number displayed.
To end the call, press
ßfor more than
1 second.
You can say the phone number in
“groups of digits”; this allows you to
check that a group of digits is correct
at a time. The groups of digits are cre-
ated by the pauses you make when
saying the digits. If you pause after
having said a certain number of digits,
a group is created. The system will re-
peat the digits recognized.
If the digits pronounced are correct,
you can continue giving the telephone
number. If they are not correct, you
can delete the group of digits by say-
ing “Delete”. The system will delete
the last group of numbers and display
the partial phone number. You can
then give the remaining phone num-
ber digits. To cancel dialling the phone number,
say “Cancel”.
To delete the entire number displayed
and start dialling a new number, say
“Start again”.To ask the system to re-
peat the phone number recognized,
say “Repeat”. If no phone number has
been dialled, the system will say “No
number available”.
If the telephone number repeated is
correct, say “Call” to make the call.
Note
Whilst dialling a number using voice
commands it is important that the noise
in the passenger compartment is kept to
a minimum and that your fellow travellers
do not talk whilst you are telling the num-
ber to the system. The voice recognition
works irrespective of who is speaking so
if several people are talking during this op-
eration there is the risk that several num-
bers will be recognized incorrectly in ad-
dition to the ones desired or not recog-
nized.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:51 Pagina 31

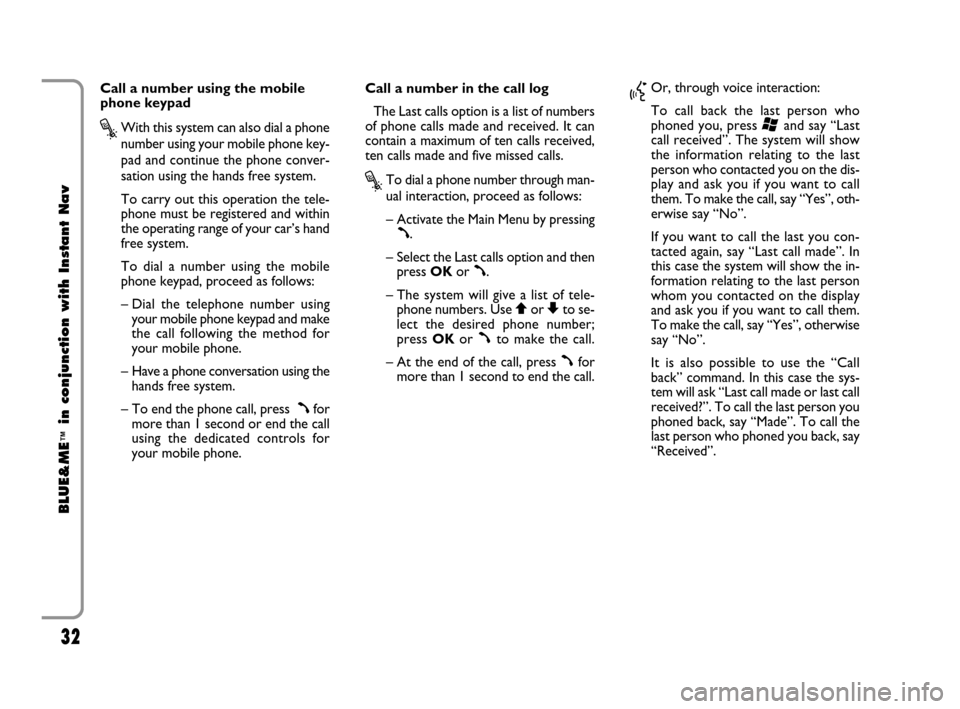

32
BLUE&ME
™
in conjunction with Instant Nav
Call a number using the mobile
phone keypad
?With this system can also dial a phone
number using your mobile phone key-
pad and continue the phone conver-
sation using the hands free system.
To carry out this operation the tele-
phone must be registered and within
the operating range of your car’s hand
free system.
To dial a number using the mobile
phone keypad, proceed as follows:
– Dial the telephone number using
your mobile phone keypad and make
the call following the method for
your mobile phone.
– Have a phone conversation using the
hands free system.
– To end the phone call, press
ßfor
more than 1 second or end the call
using the dedicated controls for
your mobile phone. Call a number in the call log
The Last calls option is a list of numbers
of phone calls made and received. It can
contain a maximum of ten calls received,
ten calls made and five missed calls.
?To dial a phone number through man-
ual interaction, proceed as follows:
– Activate the Main Menu by pressing
ß.
– Select the Last calls option and then
press OKor
ß.
– The system will give a list of tele-
phone numbers. Use
QorZto se-
lect the desired phone number;
press OKor
ßto make the call.
– At the end of the call, press
ßfor
more than 1 second to end the call.
}Or, through voice interaction:
To call back the last person who
phoned you, press
‘and say “Last
call received”. The system will show
the information relating to the last
person who contacted you on the dis-
play and ask you if you want to call
them. To make the call, say “Yes”, oth-
erwise say “No”.
If you want to call the last you con-
tacted again, say “Last call made”. In
this case the system will show the in-
formation relating to the last person
whom you contacted on the display
and ask you if you want to call them.
To make the call, say “Yes”, otherwise
say “No”.
It is also possible to use the “Call
back” command. In this case the sys-
tem will ask “Last call made or last call
received?”. To call the last person you
phoned back, say “Made”. To call the
last person who phoned you back, say
“Received”.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 32

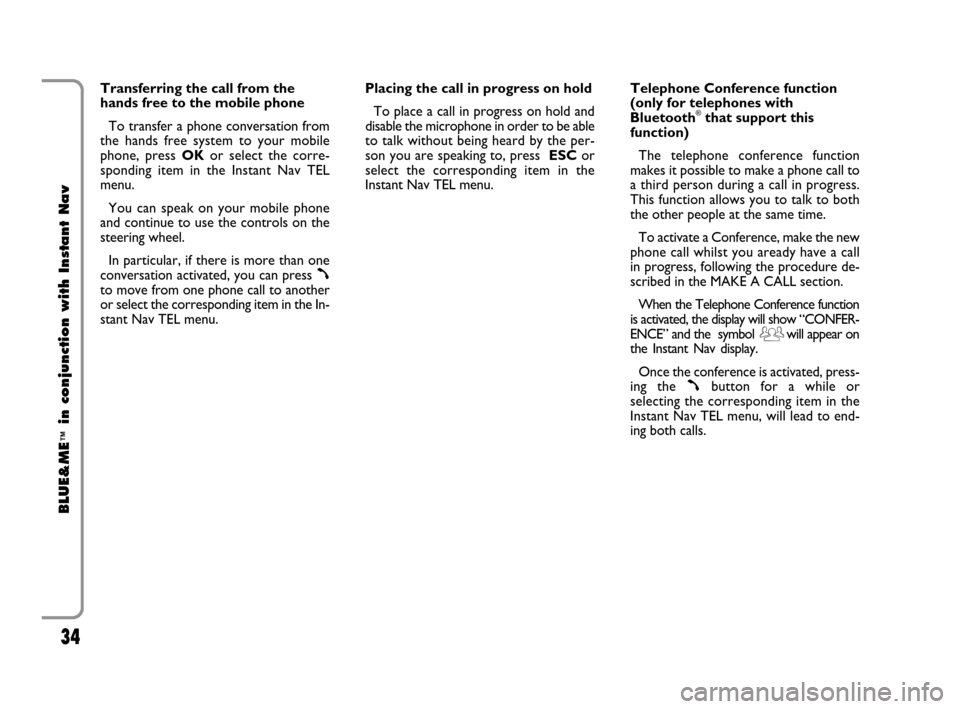

34
BLUE&ME
™
in conjunction with Instant Nav
Transferring the call from the
hands free to the mobile phone
To transfer a phone conversation from
the hands free system to your mobile
phone, press OKor select the corre-
sponding item in the Instant Nav TEL
menu.
You can speak on your mobile phone
and continue to use the controls on the
steering wheel.
In particular, if there is more than one
conversation activated, you can press
ßto move from one phone call to another
or select the corresponding item in the In-
stant Nav TEL menu.Placing the call in progress on hold
To place a call in progress on hold and
disable the microphone in order to be able
to talk without being heard by the per-
son you are speaking to, press ESCor
select the corresponding item in the
Instant Nav TEL menu. Telephone Conference function
(only for telephones with
Bluetooth
®that support this
function)
The telephone conference function
makes it possible to make a phone call to
a third person during a call in progress.
This function allows you to talk to both
the other people at the same time.
To activate a Conference, make the new
phone call whilst you aready have a call
in progress, following the procedure de-
scribed in the MAKE A CALL section.
When the Telephone Conference function
is activated, the display will show “CONFER-
ENCE” and the symbol will appear on
the Instant Nav display.
Once the conference is activated, press-
ing the
ßbutton for a while or
selecting the corresponding item in the
Instant Nav TEL menu, will lead to end-
ing both calls.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 34

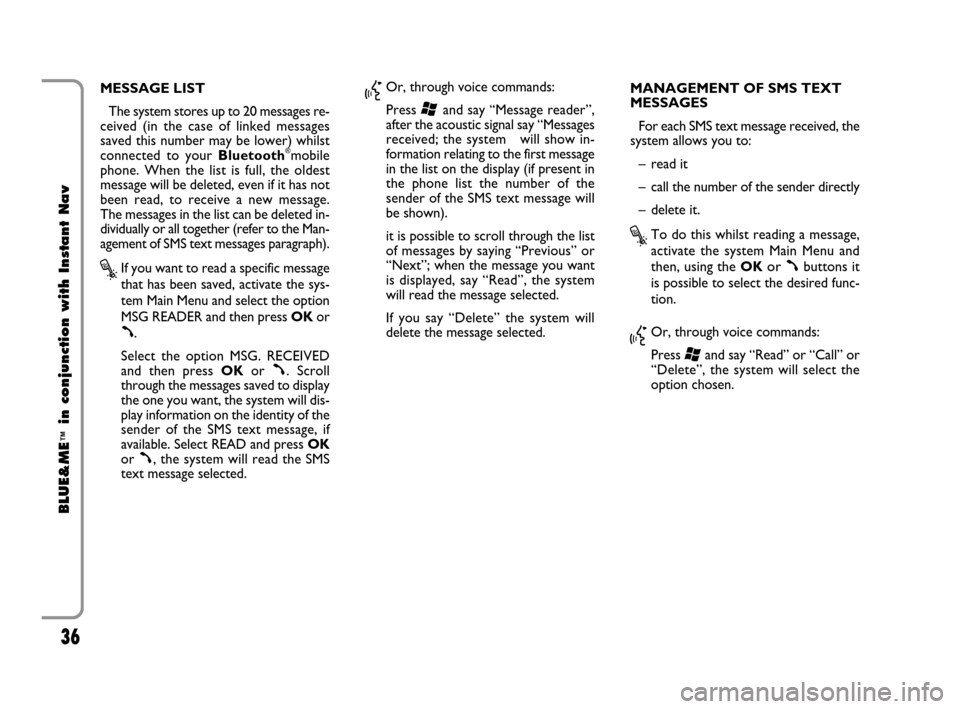

36
BLUE&ME
™
in conjunction with Instant Nav
MESSAGE LIST
The system stores up to 20 messages re-
ceived (in the case of linked messages
saved this number may be lower) whilst
connected to your Bluetooth
®mobile
phone. When the list is full, the oldest
message will be deleted, even if it has not
been read, to receive a new message.
The messages in the list can be deleted in-
dividually or all together (refer to the Man-
agement of SMS text messages paragraph).
?If you want to read a specific message
that has been saved, activate the sys-
tem Main Menu and select the option
MSG READER and then press OKor
ß.
Select the option MSG. RECEIVED
and then press OKor
ß. Scroll
through the messages saved to display
the one you want, the system will dis-
play information on the identity of the
sender of the SMS text message, if
available. Select READ and press OK
or
ß, the system will read the SMS
text message selected.
}Or, through voice commands:
Press
‘and say “Message reader”,
after the acoustic signal say “Messages
received; the system will show in-
formation relating to the first message
in the list on the display (if present in
the phone list the number of the
sender of the SMS text message will
be shown).
it is possible to scroll through the list
of messages by saying “Previous” or
“Next”; when the message you want
is displayed, say “Read”, the system
will read the message selected.
If you say “Delete” the system will
delete the message selected. MANAGEMENT OF SMS TEXT
MESSAGES
For each SMS text message received, the
system allows you to:
– read it
– call the number of the sender directly
– delete it.
?To do this whilst reading a message,
activate the system Main Menu and
then, using the OK
orßbuttons it
is possible to select the desired func-
tion.
}Or, through voice commands:
Press
‘and say “Read” or “Call” or
“Delete”, the system will select the
option chosen.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 36

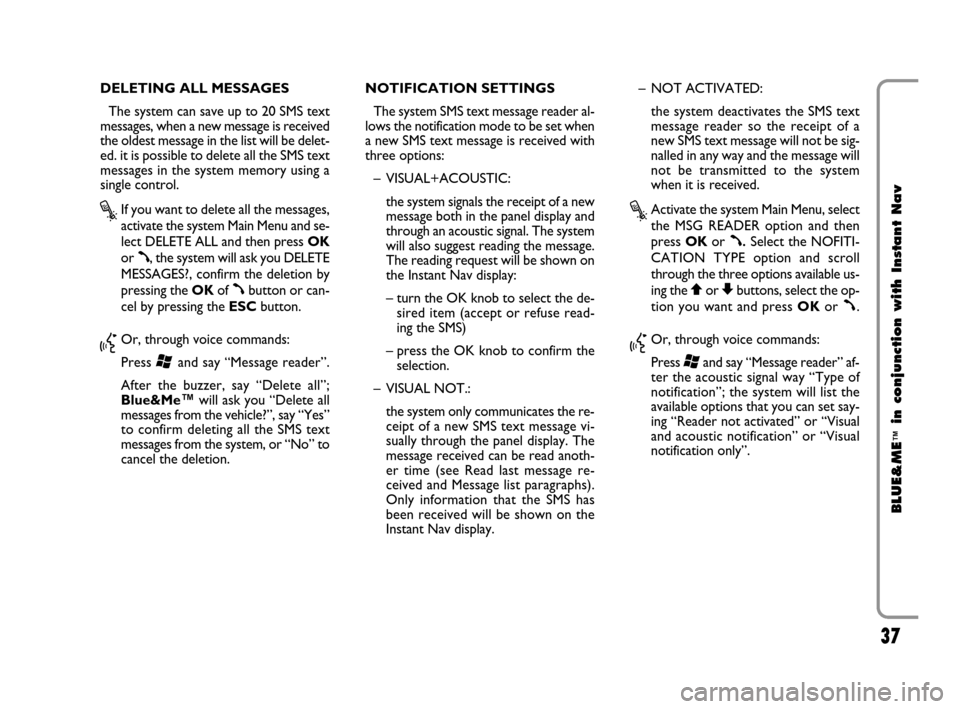

37
BLUE&ME
™
in conjunction with Instant Nav
DELETING ALL MESSAGES
The system can save up to 20 SMS text
messages, when a new message is received
the oldest message in the list will be delet-
ed. it is possible to delete all the SMS text
messages in the system memory using a
single control.
?If you want to delete all the messages,
activate the system Main Menu and se-
lect DELETE ALL and then press OK
or
ß, the system will ask you DELETE
MESSAGES?, confirm the deletion by
pressing the OKof
ßbutton or can-
cel by pressing the ESCbutton.
}Or, through voice commands:
Press
‘and say “Message reader”.
After the buzzer, say “Delete all”;
Blue&Me™will ask you “Delete all
messages from the vehicle?”, say “Yes”
to confirm deleting all the SMS text
messages from the system, or “No” to
cancel the deletion.NOTIFICATION SETTINGS
The system SMS text message reader al-
lows the notification mode to be set when
a new SMS text message is received with
three options:
– VISUAL+ACOUSTIC:
the system signals the receipt of a new
message both in the panel display and
through an acoustic signal. The system
will also suggest reading the message.
The reading request will be shown on
the Instant Nav display:
– turn the OK knob to select the de-
sired item (accept or refuse read-
ing the SMS)
– press the OK knob to confirm the
selection.
– VISUAL NOT.:
the system only communicates the re-
ceipt of a new SMS text message vi-
sually through the panel display. The
message received can be read anoth-
er time (see Read last message re-
ceived and Message list paragraphs).
Only information that the SMS has
been received will be shown on the
Instant Nav display.– NOT ACTIVATED:
the system deactivates the SMS text
message reader so the receipt of a
new SMS text message will not be sig-
nalled in any way and the message will
not be transmitted to the system
when it is received.
?Activate the system Main Menu, select
the MSG READER option and then
press OKor
ß.Select the NOFITI-
CATION TYPE option and scroll
through the three options available us-
ing the
QorZbuttons, select the op-
tion you want and press OKor
ß.
}Or, through voice commands:
Press
‘and say “Message reader” af-
ter the acoustic signal way “Type of
notification”; the system will list the
available options that you can set say-
ing “Reader not activated” or “Visual
and acoustic notification” or “Visual
notification only”.
603_97_160 CROMA_BLUE INSTANT NAV_GB_1ed 5-05-2009 15:52 Pagina 37
