30
INSTANT NAV
The Navigator makes it possible to reach
a desired destination through visual and
acoustic directions. The Navigation sys-
tem is quick to use, easy and, above all,
very flexible because you can recall pre-
ferred destinations and reference points
such as hotels, monuments, public build-
ings (e.g. hospitals, airports, etc.) and fill-
ing stations.IMPORTANT NOTES
The Navigation system provides assis-
tance whilst driving and is designed to give
advice, via voice and graphic information,
on the best route for reaching a desired
destination. The instructions given by the
Instant Nav do not mean that the driver
should abdicate responsibility for the ma-
noeuvres they make whilst driving the car
in traffic and they must still follow the high-
way code and other traffic laws. The dri-
ver is always responsible for road safety.
GPS reception may be poor under trees,
between tall buildings, in multi-storey car
parks, tunnels and anywhere where the
satellite area may have difficulty picking up
a signal.
If the battery is replaced or disconnect-
ed or if the car is moved with the engine
and the Instant Nav off (e.g. whilst travel-
ling on a ferry), the GPS system needs a
few minutes to determine the new posi-
tion of the car.The GPS satellite aerial should not be
covered by metal or damp objects.
In conditions where wheel grip is con-
tinuously bad (e.g. when sliding on ice), the
Navigation system may temporarily show
an inaccurate position for the car.
When the system is turned on, when the
first navigation function selection is made,
the display will show a message with warn-
ings for using the system. This message will
not be displayed until the next time it is
started up.
N N
A A
V V
I I
G G
A A
T T
I I
O O
N N
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 30
Page 32 of 62
31
INSTANT NAV
MAP DISPLAY
With the Navigation system activated it
is possible to choose to display the map of
the area with the following features:
– zoom with resolution up to 50 metres
(adjustable using OK button/knob);
– possibility of North up direction or in
direction of travel (for zoom below 20
km);
– BIRD VIEW function (bird’s eye view
of maps in 3D);
– Points of Interest (POI) symbol for the
following categories: restaurants, hotels,
service stations, car parks.INFORMATION DURING
NAVIGATION
The following information always ap-
pears on the left side of the display dur-
ing navigation:
Car location information: name of
road and area;
The map can be displayed on the right
side of the display (by pressing the NAV
button) showing:
“Pictograms and intersection zoom”: a
pictogram explaining the next manoeuvre
is displayed and then an enlargement of
the junction with directions for the route
to be followed.Navigation information: the follow-
ing traffic information is provided during
navigation:
– Symbol on the map: the Instant Nav
can be configured to display symbols on
the map corresponding to the traffic con-
ditions. The display only shows certain
conditions.
– Explanatory text: there is an explana-
tory text for each event. The list of types
of events is accessed from the menu and
choosing the type gives access to the list
of all corresponding events.
– Voice messages: voice messages giv-
ing instructions about the manoeuvre that
has to be carried out are given during nav-
igation.
– “Explore map” function: this makes it
possible to use digital maps like a regular
road map (in this case the pictograms are
not displayed).
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 31
Page 33 of 62
32
INSTANT NAV
MAIN MENU NAVIGATION
The following information is displayed
(fig. 14):
– “Insert destination”;
– “Stops management”;
– “Insert diversion”;
– “Map options”;
– “Navigation options”;
– “Resume (or stop) navigation”.INSERT DESTINATION
The destination can be entered in dif-
ferent ways:
– Address of destination: consists of
entering the following information: Coun-
try, Town, Road, House number or In-
tersection.
– Points of Interest (POI): the navi-
gation system makes it possible to set a
point of interest as a destination allowing
it to then search for it:
– In the locality of where you are
– In the locality of the destination
– Near a general address
A list of points found can be given by dis-
tance or in alphabetical order.
After the destination has been entered,
the Navigator calculates the best route for
reaching it. There are three possible se-
lection criteria: “shortest time”, “shortest
distance” or “best distance/time ratio”.A further choice can also be set from the
following options:
– Toll roads (See Note);
– Ferries;
– RDS TMC/TMC Premium (Traffic In-
fo).
The location can be memorized in an or-
ganizer in order to be easily recalled lat-
er on. The Instant Nav also allows you to
link a name with the destination.
It is also possible to set a Point of Inter-
est as a destination allowing the user to
search for it successfully.
NOTE When you are travelling on a toll
road, the option "Toll roads" must be ac-
tivated to calculate or recalculate your
route.
fig. 14F0L5000g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 32
Page 34 of 62
33
INSTANT NAV

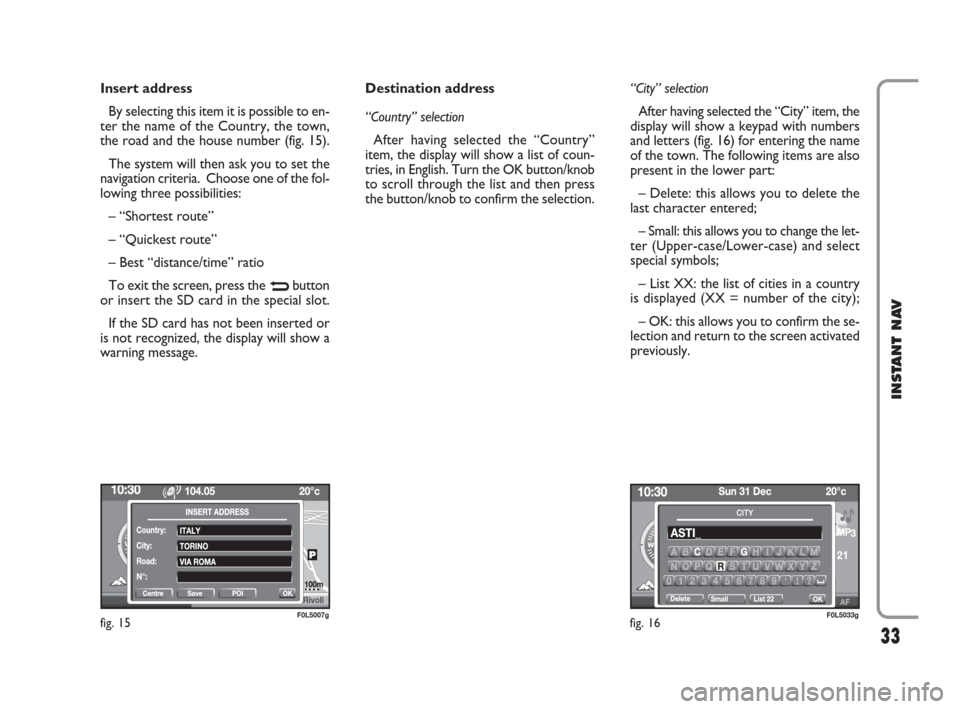

Insert address
By selecting this item it is possible to en-
ter the name of the Country, the town,
the road and the house number (fig. 15).
The system will then ask you to set the
navigation criteria. Choose one of the fol-
lowing three possibilities:
– “Shortest route”
– “Quickest route”
– Best “distance/time” ratio
To exit the screen, press the
Nbutton
or insert the SD card in the special slot.
If the SD card has not been inserted or
is not recognized, the display will show a
warning message.Destination address
“Country” selection
After having selected the “Country”
item, the display will show a list of coun-
tries, in English. Turn the OK button/knob
to scroll through the list and then press
the button/knob to confirm the selection.“City” selection
After having selected the “City” item, the
display will show a keypad with numbers
and letters (fig. 16) for entering the name
of the town. The following items are also
present in the lower part:
– Delete: this allows you to delete the
last character entered;
– Small: this allows you to change the let-
ter (Upper-case/Lower-case) and select
special symbols;
– List XX: the list of cities in a country
is displayed (XX = number of the city);
– OK: this allows you to confirm the se-
lection and return to the screen activated
previously.
fig. 15F0L5007gfig. 16F0L5033g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 33
Page 35 of 62
34
INSTANT NAV

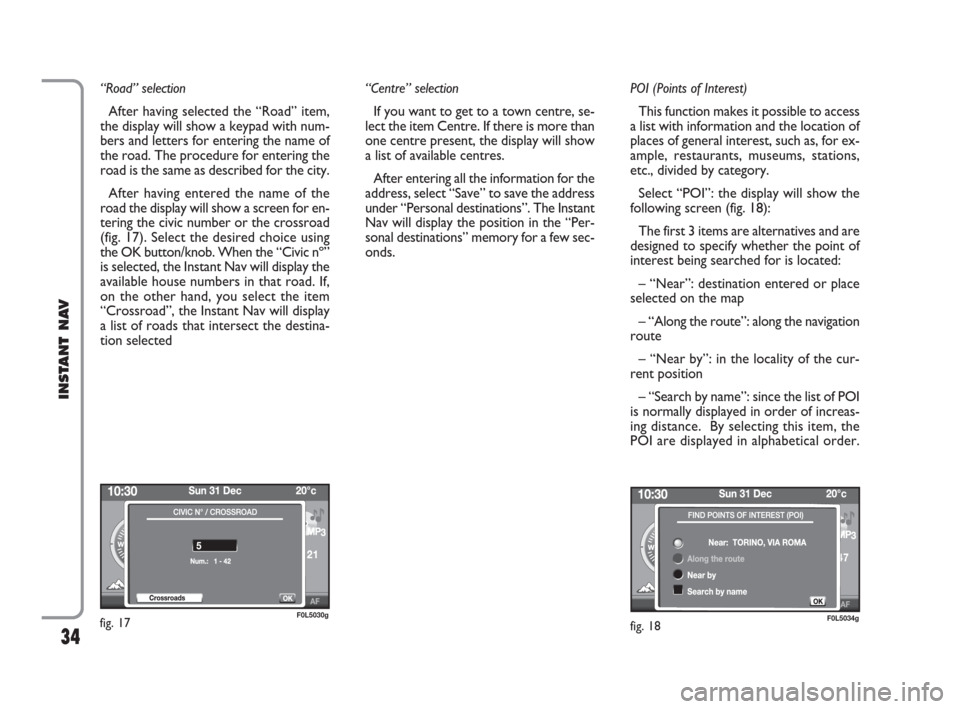

“Road” selection
After having selected the “Road” item,
the display will show a keypad with num-
bers and letters for entering the name of
the road. The procedure for entering the
road is the same as described for the city.
After having entered the name of the
road the display will show a screen for en-
tering the civic number or the crossroad
(fig. 17). Select the desired choice using
the OK button/knob. When the “Civic nº”
is selected, the Instant Nav will display the
available house numbers in that road. If,
on the other hand, you select the item
“Crossroad”, the Instant Nav will display
a list of roads that intersect the destina-
tion selected“Centre” selection
If you want to get to a town centre, se-
lect the item Centre. If there is more than
one centre present, the display will show
a list of available centres.
After entering all the information for the
address, select “Save” to save the address
under “Personal destinations”. The Instant
Nav will display the position in the “Per-
sonal destinations” memory for a few sec-
onds.POI (Points of Interest)
This function makes it possible to access
a list with information and the location of
places of general interest, such as, for ex-
ample, restaurants, museums, stations,
etc., divided by category.
Select “POI”: the display will show the
following screen (fig. 18):
The first 3 items are alternatives and are
designed to specify whether the point of
interest being searched for is located:
– “Near”: destination entered or place
selected on the map
– “Along the route”: along the navigation
route
– “Near by”: in the locality of the cur-
rent position
– “Search by name”: since the list of POI
is normally displayed in order of increas-
ing distance. By selecting this item, the
POI are displayed in alphabetical order.
fig. 17F0L5030gfig. 18F0L5034g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 34
Page 36 of 62
35
INSTANT NAV
When the choice has been made, the
Instant Nav will display the list of main cat-
egories (fig. 19).
Turn the OK button/knob to select the
desired item and then press the but-
ton/knob to confirm the selection. There
is a corresponding submenu for each item.
Select the desired item until the list of
POI corresponding to the selection cri-
teria appears on the display.GPS coordinates
This makes it possible to enter the co-
ordinates (Longitude and Latitude) (fig.
20).
It is also possible to show the co-ordi-
nates on the display by selecting “Actual
pos.” Personal destinations
This makes it possible to display the list
of “Personal destinations” saved previ-
ously and, if necessary, choose the desired
destination and select it.
Last destinations
This makes it possible to show the list of
the last 20 destinations set and, if neces-
sary, choose the desired destination and
select it.
fig. 19F0L5025gfig. 20F0L5045g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 35
Page 37 of 62
36
INSTANT NAV
STOPS MANAGEMENT
This makes it possible to change the
route during navigation inserting stop-
overs.
The following items can be selected:
– “Add stop”
– “Organize stops”
– “Show destination”
Add stop
This makes it possible to add a stop-over
by selecting one of the following items:
– “Insert address”
– “Personal destinations”
– “Last destinations”
Organize stops
This makes it possible to organize the
stop-overs for the route: the order of
stop-overs entered can be changed and/or
removed.Show destination
This makes it possible to show details of
the destination set in the display. By se-
lecting “Modify” you return to the “En-
ter destination” menu.
By selecting “Map” the display will show
the map surrounding the current desti-
nation, full screen, which can be moved by
pressing the
N/O//buttons.INSERT DIVERSION
This allows a detour to be inserted into
the route set (fig. 21). In this case the sys-
tem will select an alternative way. The In-
stant Nav will search for the closest al-
ternative way and will calculate a new
route so that you rejoin the previous
route after X km (X is the value that you
can set on the screen).
A message will be displayed if no alter-
native roads are available.
If, on the other hand, alternative roads
are available, the display will show the new
distance from the destination. Select “Yes”
or “No” to confirm or cancel the new
route.
fig. 21F0L5046g
RIVOLI
TORINO
5km
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 36
Page 38 of 62
37
INSTANT NAV

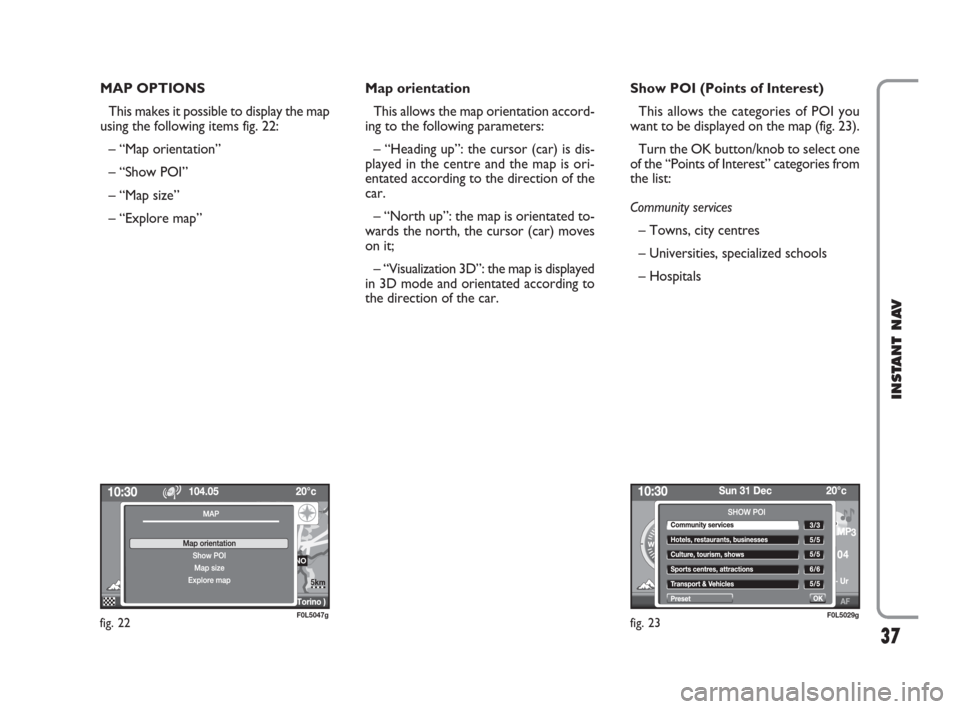

MAP OPTIONS
This makes it possible to display the map
using the following items fig. 22:
– “Map orientation”
– “Show POI”
– “Map size”
– “Explore map”Map orientation
This allows the map orientation accord-
ing to the following parameters:
– “Heading up”: the cursor (car) is dis-
played in the centre and the map is ori-
entated according to the direction of the
car.
– “North up”: the map is orientated to-
wards the north, the cursor (car) moves
on it;
– “Visualization 3D”: the map is displayed
in 3D mode and orientated according to
the direction of the car. Show POI (Points of Interest)
This allows the categories of POI you
want to be displayed on the map (fig. 23).
Turn the OK button/knob to select one
of the “Points of Interest” categories from
the list:
Community services
– Towns, city centres
– Universities, specialized schools
– Hospitals
fig. 22F0L5047g
RIVOLI
TORINO
5km
fig. 23F0L5029g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 37
Page 39 of 62
38
INSTANT NAV
Hotels, restaurants, businesses
– Hotels
– Restaurants
– Wine producers, wineries
– Big companies
– Shopping, supermarkets
Culture, tourism, shows
– Tourism, historical monuments
– Culture, museums
– Casinos, night life
– Cinemas, theatres
– Shows, exhibitionsSports centres, attractions
– Sports centres
– Golf courses
– Skating, bowling
– Winter sport resorts
– Parks, gardens
– Theme parks
Transport & vehicles
– Airports, ports
– Train stations, bus stations
– Car hire
– Car parking, parking areas
– Mechanics, assistanceMap size
This makes it possible to change the map
display mode. It is possible to choose be-
tween “Full screen map” (full screen map
display) and “Navigation with info”.
Explore map
By selecting “Explore map” the full
screen map is displayed. When this screen
is activated, press the
N/O//but-
tons to scroll through the map.
NOTE Pressing the OK button/knob in
this mode displays the specific menu for
the map (fig. 24).
fig. 24F0L5020g
TORINO
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 38
Page 40 of 62
39
INSTANT NAV

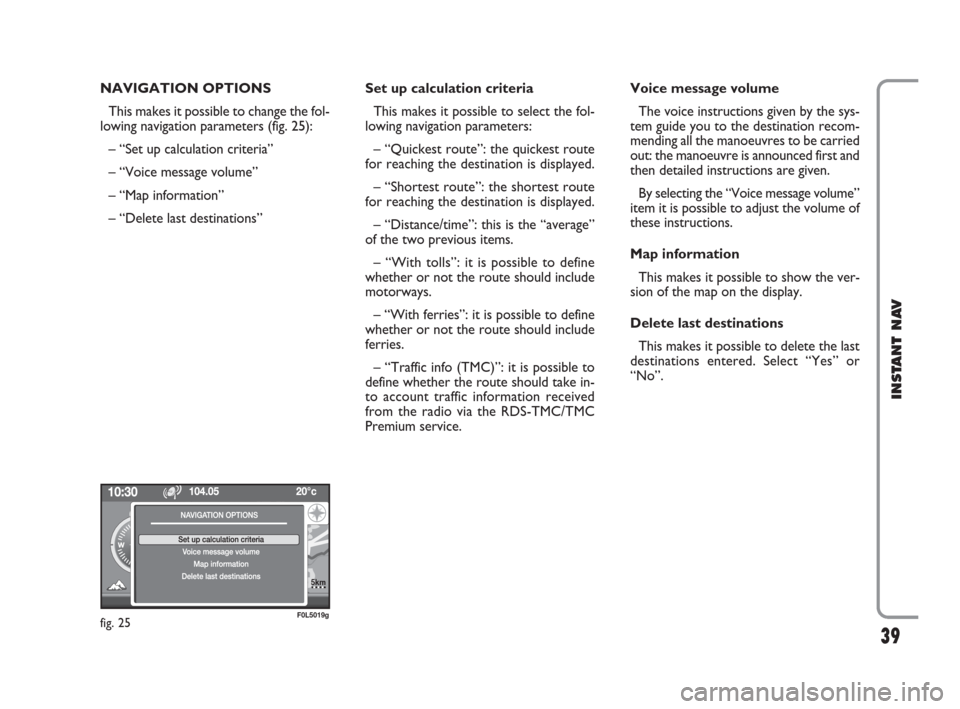

NAVIGATION OPTIONS
This makes it possible to change the fol-
lowing navigation parameters (fig. 25):
– “Set up calculation criteria”
– “Voice message volume”
– “Map information”
– “Delete last destinations” Set up calculation criteria
This makes it possible to select the fol-
lowing navigation parameters:
– “Quickest route”: the quickest route
for reaching the destination is displayed.
– “Shortest route”: the shortest route
for reaching the destination is displayed.
– “Distance/time”: this is the “average”
of the two previous items.
– “With tolls”: it is possible to define
whether or not the route should include
motorways.
– “With ferries”: it is possible to define
whether or not the route should include
ferries.
– “Traffic info (TMC)”: it is possible to
define whether the route should take in-
to account traffic information received
from the radio via the RDS-TMC/TMC
Premium service.Voice message volume
The voice instructions given by the sys-
tem guide you to the destination recom-
mending all the manoeuvres to be carried
out: the manoeuvre is announced first and
then detailed instructions are given.
By selecting the “Voice message volume”
item it is possible to adjust the volume of
these instructions.
Map information
This makes it possible to show the ver-
sion of the map on the display.
Delete last destinations
This makes it possible to delete the last
destinations entered. Select “Yes” or
“No”.
fig. 25F0L5019g
RIVOLI
TORINO
5km
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 39
