FIAT CROMA 2009 2.G Instant Navigation Manual

10
INSTANT NAV

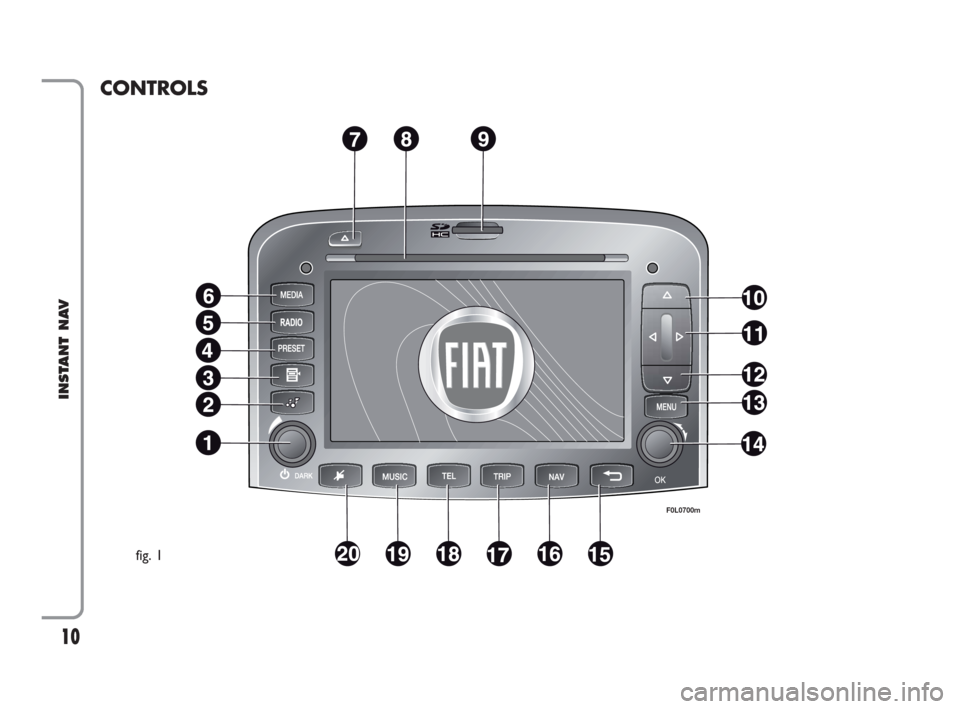

CONTROLS
fig. 1
F0L0700m
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 10

11
INSTANT NAV

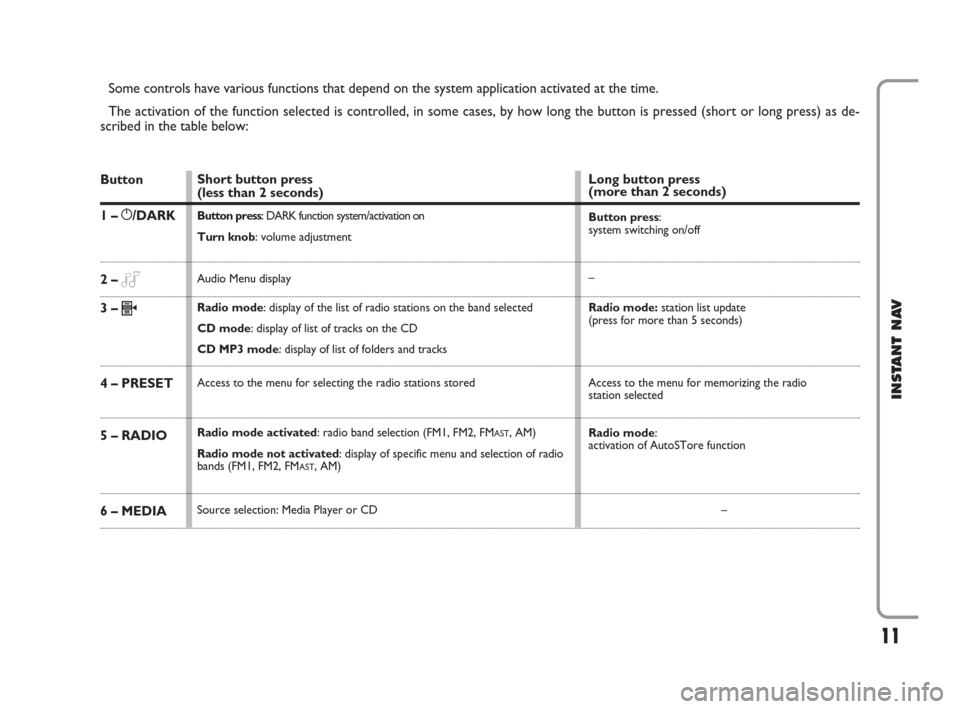

Some controls have various functions that depend on the system application activated at the time.
The activation of the function selected is controlled, in some cases, by how long the button is pressed (short or long press) as de-
scribed in the table below:
Button
1 – g/DARK
2 – O
3 – h
4 – PRESET
5 – RADIO
6 – MEDIALong button press
(more than 2 seconds)
Button press:
system switching on/off
–
Radio mode:station list update
(press for more than 5 seconds)
Access to the menu for memorizing the radio
station selected
Radio mode:
activation of AutoSTore function
–
Short button press
(less than 2 seconds)
Button press: DARK function system/activation on
Turn knob: volume adjustment
Audio Menu display
Radio mode: display of the list of radio stations on the band selected
CD mode: display of list of tracks on the CD
CD MP3 mode: display of list of folders and tracks
Access to the menu for selecting the radio stations stored
Radio mode activated: radio band selection (FM1, FM2, FM
AST, AM)
Radio mode not activated: display of specific menu and selection of radio
bands (FM1, FM2, FM
AST, AM)
Source selection: Media Player or CD
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 11

12
INSTANT NAV

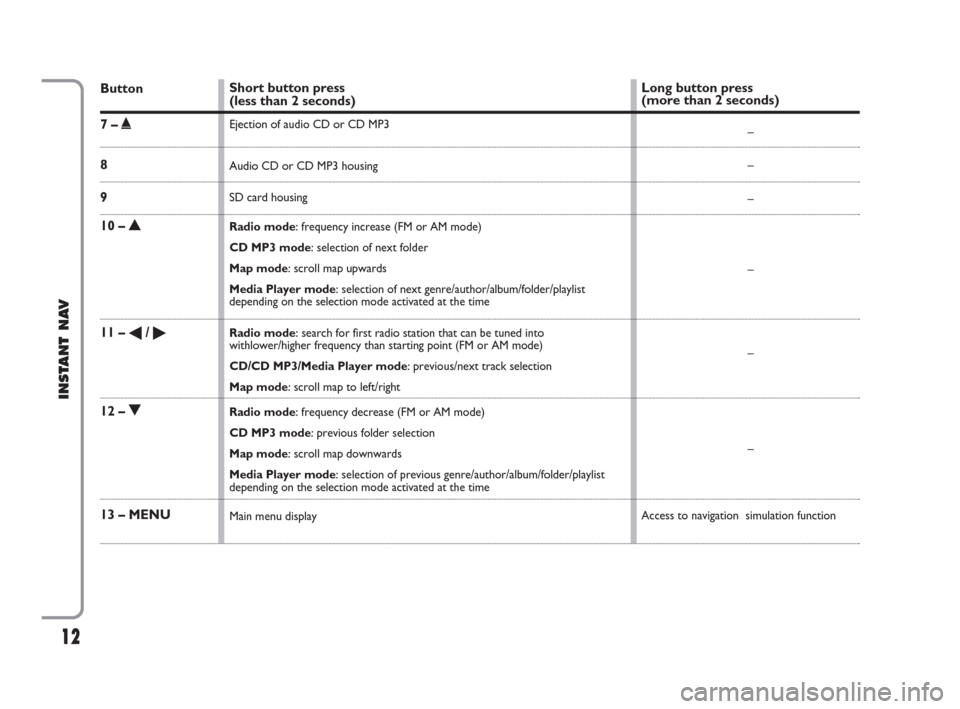

Button
7 – ˚
8
9
10 – N
11 –
/
12 – O
13 – MENU
Short button press
(less than 2 seconds)
Ejection of audio CD or CD MP3
Audio CD or CD MP3 housing
SD card housing
Radio mode: frequency increase (FM or AM mode)
CD MP3 mode: selection of next folder
Map mode: scroll map upwards
Media Player mode: selection of next genre/author/album/folder/playlist
depending on the selection mode activated at the time
Radio mode: search for first radio station that can be tuned into
withlower/higher frequency than starting point (FM or AM mode)
CD/CD MP3/Media Player mode: previous/next track selection
Map mode: scroll map to left/right
Radio mode: frequency decrease (FM or AM mode)
CD MP3 mode: previous folder selection
Map mode: scroll map downwards
Media Player mode: selection of previous genre/author/album/folder/playlist
depending on the selection mode activated at the time
Main menu display
Long button press
(more than 2 seconds)
–
–
–
–
–
–
Access to navigation simulation function
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 12

13
INSTANT NAV

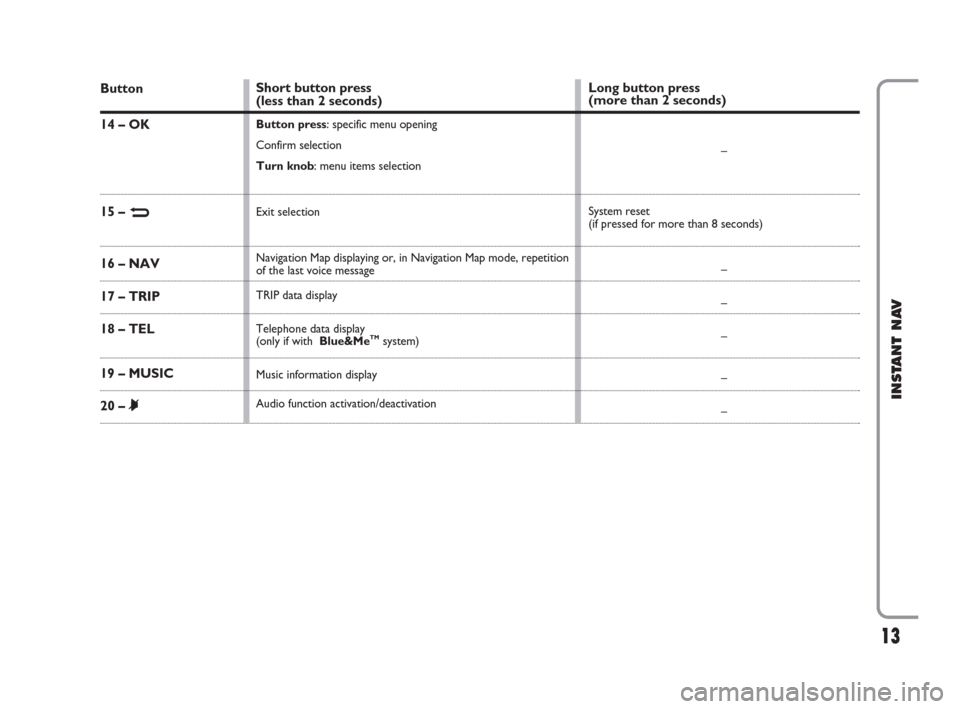

Button
14 – OK
15 – N
16 – NAV
17 – TRIP
18 – TEL
19 – MUSIC
20 – &
Short button press
(less than 2 seconds)
Button press: specific menu opening
Confirm selection
Turn knob: menu items selection
Exit selection
Navigation Map displaying or, in Navigation Map mode, repetition
of the last voice message
TRIP data display
Telephone data display
(only if with Blue&Me
TMsystem)
Music information display
Audio function activation/deactivation
Long button press
(more than 2 seconds)
–
System reset
(if pressed for more than 8 seconds)
–
–
–
–
–
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 13

14
INSTANT NAV

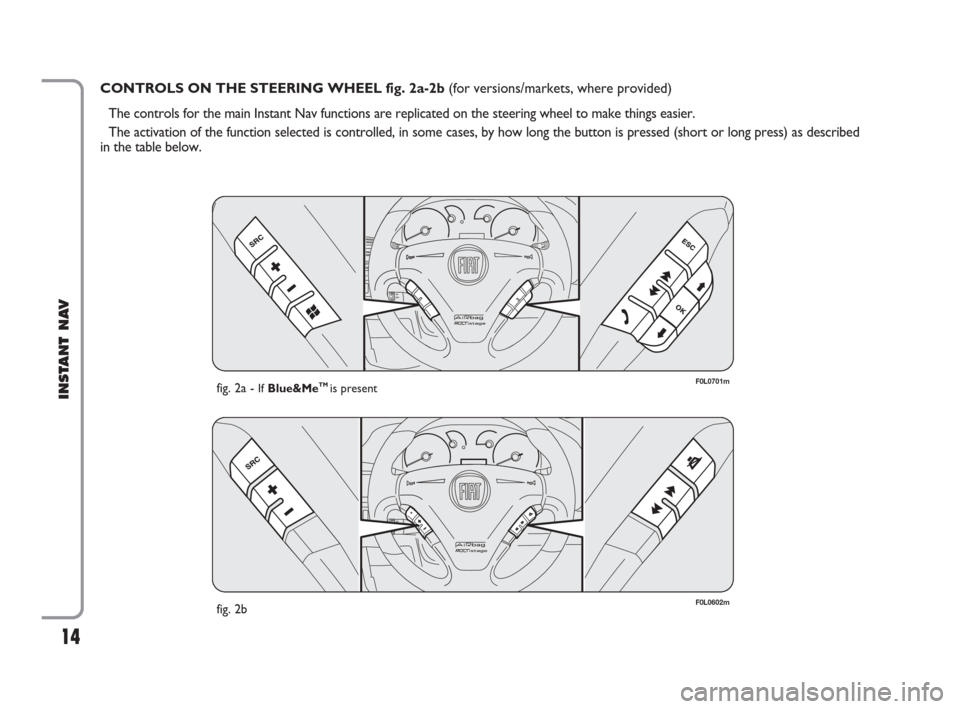

CONTROLS ON THE STEERING WHEEL fig. 2a-2b (for versions/markets, where provided)
The controls for the main Instant Nav functions are replicated on the steering wheel to make things easier.
The activation of the function selected is controlled, in some cases, by how long the button is pressed (short or long press) as described
in the table below.
fig. 2a - If Blue&MeTM is presentF0L0701m
fig. 2bF0L0602m
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 14

15
INSTANT NAV

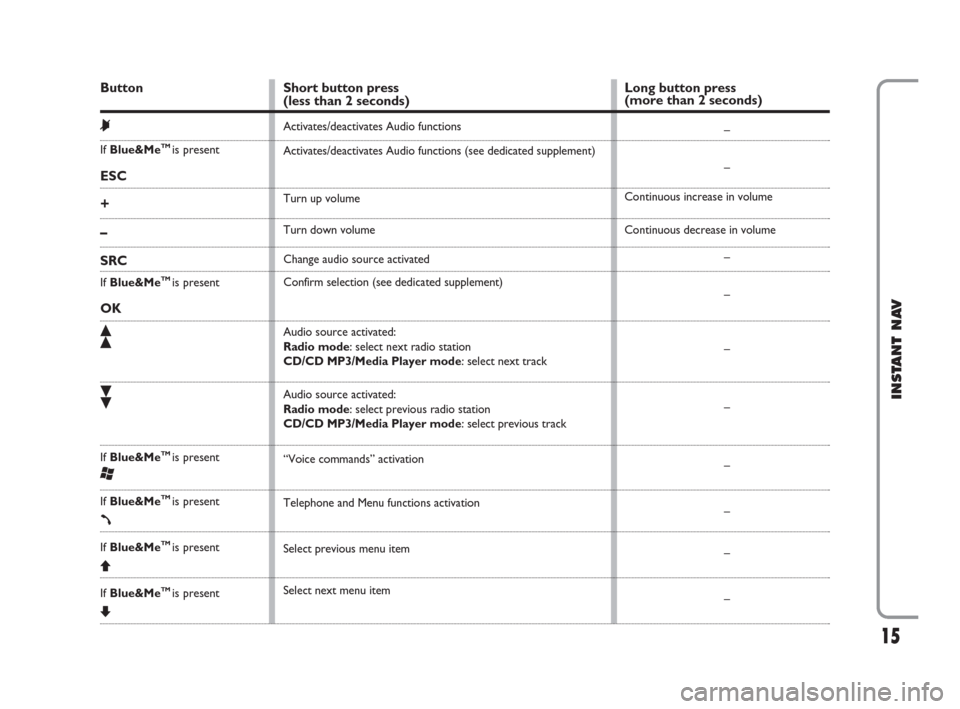

Button
&
IfBlue&MeTM is present
ESC
+
–
SRC
IfBlue&MeTM is present
OK
ô
ó
If Blue&MeTM is present
‘
IfBlue&MeTM is present
ß
IfBlue&MeTM is present
Q
IfBlue&MeTM is present
ZShort button press
(less than 2 seconds)
Activates/deactivates Audio functions
Activates/deactivates Audio functions (see dedicated supplement)
Turn up volume
Turn down volume
Change audio source activated
Confirm selection (see dedicated supplement)
Audio source activated:
Radio mode: select next radio station
CD/CD MP3/Media Player mode: select next track
Audio source activated:
Radio mode: select previous radio station
CD/CD MP3/Media Player mode: select previous track
“Voice commands” activation
Telephone and Menu functions activation
Select previous menu item
Select next menu item
Long button press
(more than 2 seconds)
–
–
Continuous increase in volume
Continuous decrease in volume
–
–
–
–
–
–
–
–
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 15

16
INSTANT NAV
SWITCHING THE SYSTEM
ON/OFF
The system is switched on by turning the
ignition key to the MAR position and
switches off when the ignition key is
turned to the STOP position.
The system can always be turned on/off
by pressing the (ON/OFF) button 1- fig. 1.
If the system is turned on with the en-
gine switched off, it will automatically
switch off after about 20 minutes.
Dark mode (display dark)
With the system on, if the (ON/OFF)
button 1 - fig. 1 is pressed briefly, the
DARK mode is activated: the display will
go out, but the system remains on and
working.MAIN FUNCTIONS
The Instant Nav features four applica-
tions (Audio, Telephone, Trip Computer
and Navigation) and a general menu. The
four applications are activated by pressing
the MUSIC, TEL, TRIP, NAV buttons.
Press the MENU button to activate the
Menu.
NOTE The Telephone application is only
present with the Blue&Me
TMsystem.
All the applications have a specific Menu
that can be activated by pressing the OK
button/knob.The system also signals the following by
means of messages in the display:
– the presence of any problems/faults;
– information on the application activat-
ed/information on the status of the car.
To interact with the messages displayed,
use the OK button/knob or press button
Nto remove the message from the dis-
play.
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 16

17
INSTANT NAV
TRAFFIC INFO
(TMC/TMC Premium)
This displays traffic information received
in real time via the TMC/TMC Premium
service provided by several radio stations.
This Menu makes it possible to en-
able/disable the service and to set filters.
The filters are designed to define the area
of interest which the system will take in-
to consideration for traffic messages, fil-
tering those not considered important.
Note
The TMC Premium Service is available in
Italy, France, Germany and the UK. Only
the radio navigators sold in one of these
countries are enabled to receive the ser-
vice.

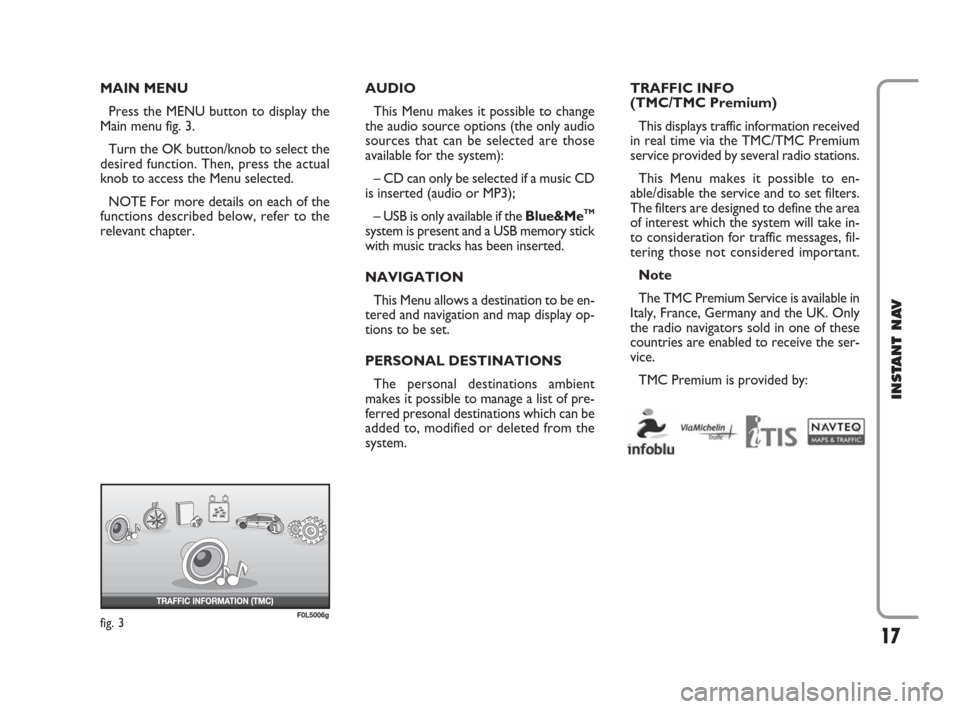

TMC Premium is provided by: MAIN MENU
Press the MENU button to display the
Main menu fig. 3.
Turn the OK button/knob to select the
desired function. Then, press the actual
knob to access the Menu selected.
NOTE For more details on each of the
functions described below, refer to the
relevant chapter.AUDIO
This Menu makes it possible to change
the audio source options (the only audio
sources that can be selected are those
available for the system):
– CD can only be selected if a music CD
is inserted (audio or MP3);
– USB is only available if the Blue&Me
TM
system is present and a USB memory stick
with music tracks has been inserted.
NAVIGATION
This Menu allows a destination to be en-
tered and navigation and map display op-
tions to be set.
PERSONAL DESTINATIONS
The personal destinations ambient
makes it possible to manage a list of pre-
ferred presonal destinations which can be
added to, modified or deleted from the
system.
fig. 3F0L5006g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 17

18
INSTANT NAV
AUDIO
Press the MENU button to display the
Audio menu (fig. 4).
The Audio menu makes it possible to
manage:
– the RDS radio with FM/AM reception;
– the Compact Disc player;
– the MP3 Media Player;

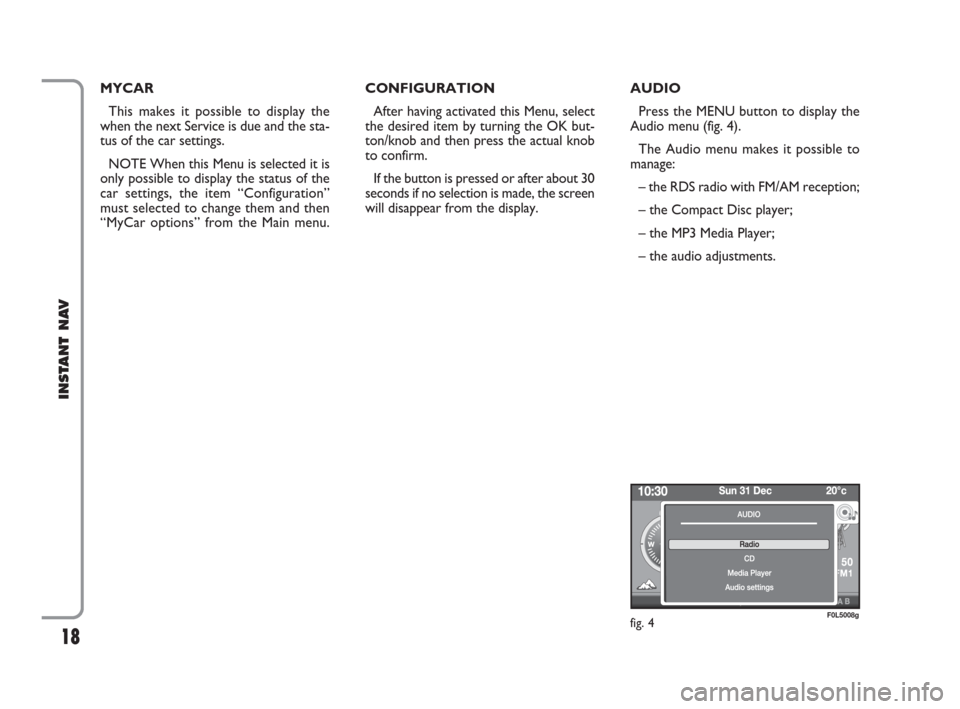

– the audio adjustments. MYCAR
This makes it possible to display the
when the next Service is due and the sta-
tus of the car settings.
NOTE When this Menu is selected it is
only possible to display the status of the
car settings, the item “Configuration”
must selected to change them and then
“MyCar options” from the Main menu.CONFIGURATION
After having activated this Menu, select
the desired item by turning the OK but-
ton/knob and then press the actual knob
to confirm.
If the button is pressed or after about 30
seconds if no selection is made, the screen
will disappear from the display.
fig. 4F0L5008g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 18

19
INSTANT NAV
– by activating the PTY function;
– by selecting a radio station or music
track from a list;
– by selecting the SCM, RDM or RPT
function (the latter is only available in CD
MP3 mode);
– by selecting the PRG function (in CD
mode only). This Menu makes it possible to adjust the
audio settings for the radio, the CD, the
Media Player (if connected) and the au-
dio adjustments for the speakers.
Pressing the MUSIC button activates the
display of information for the audio source
being listened to. Pressing the OK but-
ton/knob gives access to the specific au-
dio source menu being listened to. Press-
ing the
&button briefly activates the
“Mute” function.
VOLUME ADJUSTMENT
To adjust the volume, turn the knob
1-fig.1. The volume can be adjusted to a
maximum level of 40. When the system is
turned off and then turned back on, the
volume will be set at a level of 20.
With the MUTE function, when the knob
1- fig. 1 is turned, the MUTE function is
deactivated.MUTE/PAUSE FUNCTION
To activate the Mute/Pause function,
press the
&button or the &/ESCbut-
ton on the steering wheel briefly.
The Mute/Pause function is deactivated
in the following cases:
– by pressing the MEDIA button;
– by pressing the RADIO button;
– by pressing the PRESET button (in ra-
dio mode only);
– by pressing the
Obutton;
– by pressing the
N/O/
/buttons;
– by pressing the SRC or
N/Obutton
on the steering wheel;
– by opening the Audio adjustments
Menu in the main menu;
– by searching manually for a radio sta-
tion frequency;
A A
U U
D D
I I
O O
