Page 38 of 258
37
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Values displayed
Range
Estimated distance which can be travelled
with the fuel currently in the tank, keep-
ing the same driving style. The display will
show “----” in the following cases:
– value lower than 50 km (or 30 mi)
– car left parked with engine running for
long.
IMPORTANT The variation of the auton-
omy value can be influenced by different
factors: driving style (see what is described
in paragraph “Driving style” in the chap-
ter “Start-up and driving”), type of route
(highways, urban, mountain, etc…), use
conditions of the car (load transported,
tire pressure, etc…). What was described
previously must be taken in consideration
when planning a trip.
Trip distance
This value shows estimated distance cov-
ered from the start of the new mission.
Average consumption
Average fuel consumption since the start
of the new mission.
Instant consumption
This value shows instant fuel consumption
(this value is updated second by second).
If parking the car with engine on,
the display will show “----”.Average speed
This value shows the car average speed as
a function of the overall time elapsed since
the start of the new mission.
Travel time
This value shows the time elapsed since
the start of the new mission.
IMPORTANT Lacking information, Trip
computer values are displayed with “----”.
When normal operating condition is re-
set, calculation of different units will
restart regularly. Values displayed before
the failure will not be reset.TRIP button fig. 30
Button TRIP, set on the top of the right
steering column stalk, shall be used (with
ignition key at ON) to display and to re-
set the previously described values to start
a new mission:
– short push to display the different val-
ues
– long push to reset and then start a new
mission.
New mission
New mission starts after:
– “manual” resetting by the user, by press-
ing the relevant button;
– “automatic” resetting, when the “Trip dis-
tance” reaches 9999.9 km or when the
“Travel time” reaches 99.59 (99 hours and
59 minutes);
– after disconnecting/reconnecting the
battery.
001-038 Croma TRW GB 28-05-2008 16:30 Pagina 37
Page 139 of 258
Roof rack/ski rack
Remove the roof rack or the ski rack from
the roof as soon as they are no longer
used. These accessories lower air pene-
tration and adversely affect consumption
levels. When needing to carry particular-
ly voluminous objects, preferably use a
trailer.
Electric devices
Use electric devices only for the amount
of time needed. Rear heated window, ad-
ditional headlights, windscreen wipers and
heater fan need a considerable amount of
energy, therefore increasing the require-
ment of current increases fuel consump-
tion (up to +25% in the urban cycle).
Climate control
The air conditioner is an additional load
which greatly affects the engine leading to
higher consumption (on average up to
+20%). When the temperature outside
the car permits it, use the air vents where
possible.
Spoilers
The use of non-certified aerodynamic
items may adversely affect air drag and
consumption levels.DRIVING STYLE
Starting
Do not warm the engine with the car at
a standstill or at idle or high speed: under
these conditions the engine warms up
much more slowly, increasing electrical
consumption and emissions. It is therefore
advisable to move off immediately, slow-
ly, avoiding high speeds. This way the en-
gine will warm faster.
Unnecessary actions
Avoid accelerating when waiting at traffic
lights or before switching off the engine.
This and also double declutching is ab-
solutely pointless on modern cars and al-
so increase consumption and pollution.
Gear selection
As soon as the conditions of the traffic and
road allow, use a higher gear. Using a low
gear to obtain brilliant performance in-
creases consumption.
In the same way improper use of a high
gear increases consumption, emissions an
engine wear.CONTAINING
RUNNING COSTS
Here are some suggestions which may
help you to keep the running costs of your
car down and lower the amount of toxic
emissions released into the atmosphere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out
in accordance with the “Service schedule”.
Tyres
Check the pressure of the tyres routine-
ly at an interval of no more than 4 weeks:
if the pressure is too low, consumption
levels increase as resistance to rolling is
higher.
Unnecessary loads
Do not travel with too much luggage
stowed in the boot. The weight of the car
(especially when driving in town) and its
trim greatly affects consumption and sta-
bility.
138
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
127-144 Croma TRW GB 28-05-2008 16:33 Pagina 138
Page 146 of 258
145
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

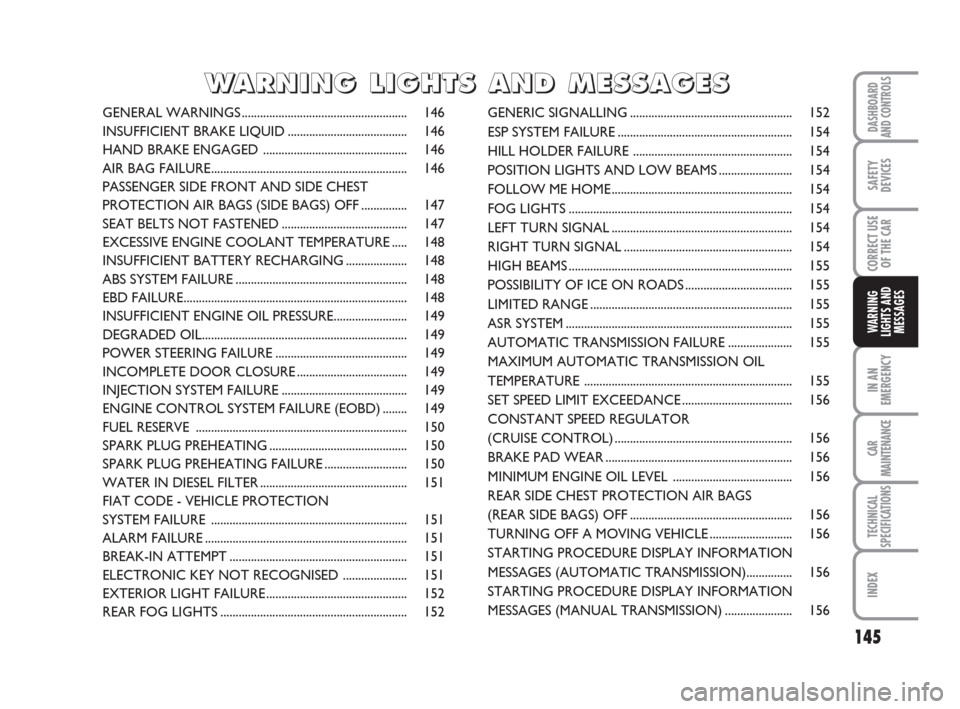

GENERAL WARNINGS ...................................................... 146
INSUFFICIENT BRAKE LIQUID ....................................... 146
HAND BRAKE ENGAGED ............................................... 146
AIR BAG FAILURE................................................................ 146
PASSENGER SIDE FRONT AND SIDE CHEST
PROTECTION AIR BAGS (SIDE BAGS) OFF ............... 147
SEAT BELTS NOT FASTENED ......................................... 147
EXCESSIVE ENGINE COOLANT TEMPERATURE ..... 148
INSUFFICIENT BATTERY RECHARGING .................... 148
ABS SYSTEM FAILURE ........................................................ 148
EBD FAILURE......................................................................... 148
INSUFFICIENT ENGINE OIL PRESSURE........................ 149
DEGRADED OIL................................................................... 149
POWER STEERING FAILURE ........................................... 149
INCOMPLETE DOOR CLOSURE .................................... 149
INJECTION SYSTEM FAILURE ......................................... 149
ENGINE CONTROL SYSTEM FAILURE (EOBD) ........ 149
FUEL RESERVE ..................................................................... 150
SPARK PLUG PREHEATING ............................................. 150
SPARK PLUG PREHEATING FAILURE ........................... 150
WATER IN DIESEL FILTER ................................................ 151
FIAT CODE - VEHICLE PROTECTION
SYSTEM FAILURE ................................................................ 151
ALARM FAILURE .................................................................. 151
BREAK-IN ATTEMPT .......................................................... 151
ELECTRONIC KEY NOT RECOGNISED ..................... 151
EXTERIOR LIGHT FAILURE .............................................. 152
REAR FOG LIGHTS ............................................................. 152GENERIC SIGNALLING ..................................................... 152
ESP SYSTEM FAILURE ......................................................... 154
HILL HOLDER FAILURE .................................................... 154
POSITION LIGHTS AND LOW BEAMS ........................ 154
FOLLOW ME HOME ........................................................... 154
FOG LIGHTS ......................................................................... 154
LEFT TURN SIGNAL ........................................................... 154
RIGHT TURN SIGNAL ....................................................... 154
HIGH BEAMS ......................................................................... 155
POSSIBILITY OF ICE ON ROADS ................................... 155
LIMITED RANGE .................................................................. 155
ASR SYSTEM .......................................................................... 155
AUTOMATIC TRANSMISSION FAILURE ..................... 155
MAXIMUM AUTOMATIC TRANSMISSION OIL
TEMPERATURE .................................................................... 155
SET SPEED LIMIT EXCEEDANCE .................................... 156
CONSTANT SPEED REGULATOR
(CRUISE CONTROL) .......................................................... 156
BRAKE PAD WEAR ............................................................. 156
MINIMUM ENGINE OIL LEVEL ....................................... 156
REAR SIDE CHEST PROTECTION AIR BAGS
(REAR SIDE BAGS) OFF ..................................................... 156
TURNING OFF A MOVING VEHICLE ........................... 156
STARTING PROCEDURE DISPLAY INFORMATION
MESSAGES (AUTOMATIC TRANSMISSION)............... 156
STARTING PROCEDURE DISPLAY INFORMATION
MESSAGES (MANUAL TRANSMISSION) ...................... 156
WW W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E E
S S
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 145
Page 153 of 258
Warning light vturns on
together with the dedicated
message on the display to in-
dicate that the cleaning pro-
cedure cannot be performed, contact
Fiat Dealership as soon as possible.
152
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
GENERIC FAILURE
INDICATION
(amber)
The warning light turns on in the follow-
ing circumstances.
Engine oil pressure
sensor failure
The warning light comes on when the en-
gine oil pressure sensor is faulty. Contact
Fiat Dealership as soon as possible.
The display will show the dedicated mes-
sage.
è
EXTERNAL LIGHT
FAILURE (amber)
The warning light turns on
when one of the following lights is failing:
– side/taillights
– brake lights (third brake light excluded)
– rear fog lights
– direction indicators
– number plate lights.
The failure referring to these lights could
be: one or more blown bulbs, a blown
protection fuse or an electric connection
cut-off.
The display will show the dedicated mes-
sage.
W
REAR FOG LIGHTS
(amber)
The warning light turns on
when the rear fog lights are turned on.
4
Diesel particulate filter clogged
(Multijet versions)
The warning light turns on together with
the message on the display and the buzzer
when the diesel particulate filter is clogged
and the driving conditions do not enable
to activate automatically the reclaiming
procedure.
To enable the cleaning procedure, keep
the car running until the warning light
turns off.
Inertial fuel cut-off switch
intervened
The warning light turns on together with
the message on the display, when the in-
ertial fuel cut-off switch is triggered.
To reset the fuel cut-off switch, see para-
graph “Power and fuel cut-off switch” in
section “Dashboard and controls”.
Rain sensor failure
The warning light on the dial turns on (on
certain versions together with the mes-
sage on the display) when the rain sensor
is faulty. Contact Fiat Dealership.
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 152
Page 187 of 258
186
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
F 12
F 13
F 31
F 32
F 33
F 34
F 35
F 36
F 37
F 38
F 39
F 40
F 41
F 42
F 43
F 4415
15
7.5
15
20
20
7.5
20
10
15
10
30
7.5
7.5/15 (*)
30
20 FUSE SUMMARY TABLE
Fuse box on dashboard
USERSFUSE AMPERE
RH low beam
LH low beam - Light stability corrector
+15 excluded during ignition for dashboard control unit relay coils / engine
compartment and Body computer
+30 nodes front driver and passenger doors (door lock), TEG reader
Boot compartment node power supply (rear left power window)
Boot compartment node power supply (rear right power window)
+15 backing lights, supplementary heater control unit, flow gauge, water in diesel fuel
sensor, NC switch on brake pedal
+30 boot compartment node (rear door locks)
+15 instrument panel, control unit on gas discharge headlamps, NA switch on brake
pedal, supplementary stop light
Boot opening actuator
+30 EOBD diagnostic socket , central front ceiling light, rear side ceiling lights, siren
and volumetric sensor control unit for the antitheft system, tyre pressure control unit,
air conditioning control unit, Blue-tooth control unit
Heated rear window
Windscreen / rear window washer nozzle demisters
+15 ABS / ESP control unit, electrohydraulic driving node, yaw sensor , steering
angle sensor
+15 excluded during ignition for electronic column switch module (windscreen wipers,
windscreen / rear window washer pump)
+15 excluded during ignition for cigar lighter, current outlet on tunnel
(*) Depending on the version
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 186
Page 196 of 258
195
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
35 70 105 140 175
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●
●●
●
●
●●●●●
SERVICE SCHEDULE
Thousands of km
Check tyre conditions/wear and adjust pressure if required
Check light system operation (headlights,
direction indicators, hazard lights, boot lights, passenger
compartment lights, glovebox lights, warning lights, etc.)
Check windscreen wiper/washer operation,
adjust nozzles if required
Check windscreen/rear window blade position/wear
Check front disk brake pad conditions and wear
and wear indicator operation
Check rear disk brake pad conditions and wear
Sight inspect the conditions of: body external parts, underbody
protection, pipes and hoses (exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanness of locks, bonnet and boot and lever cleanness
and lubrication
Check and top up, if required, fluid levels
(brakes/hydraulic clutch, power steering, windscreen washer,
battery, engine coolant, etc.)
Check power steering hydraulic system (2.2 version)
Check and adjust handbrake lever stroke
Sight inspect accessory drive belt conditions
(except 1.8 version)
Sight inspect accessory drive belt conditions (1.8 version)
Sight inspect timing belt conditions (1.8 version)
Check and adjust tappet clearance (1.9 Multijet 8v version)
193-216 Croma TRW GB 28-07-2009 12:15 Pagina 195
Page 198 of 258
197
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

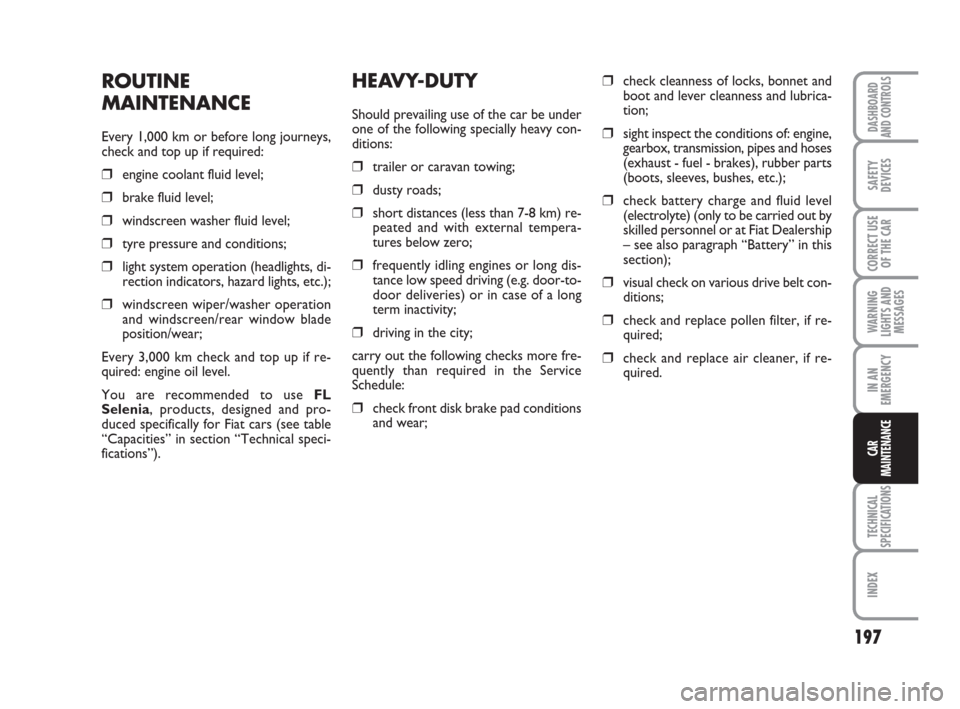

HEAVY-DUTY
Should prevailing use of the car be under
one of the following specially heavy con-
ditions:
❒trailer or caravan towing;
❒dusty roads;
❒short distances (less than 7-8 km) re-
peated and with external tempera-
tures below zero;
❒frequently idling engines or long dis-
tance low speed driving (e.g. door-to-
door deliveries) or in case of a long
term inactivity;
❒driving in the city;
carry out the following checks more fre-
quently than required in the Service
Schedule:
❒check front disk brake pad conditions
and wear;
❒check cleanness of locks, bonnet and
boot and lever cleanness and lubrica-
tion;
❒sight inspect the conditions of: engine,
gearbox, transmission, pipes and hoses
(exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.);
❒check battery charge and fluid level
(electrolyte) (only to be carried out by
skilled personnel or at Fiat Dealership
– see also paragraph “Battery” in this
section);
❒visual check on various drive belt con-
ditions;
❒check and replace pollen filter, if re-
quired;
❒check and replace air cleaner, if re-
quired.
ROUTINE
MAINTENANCE
Every 1,000 km or before long journeys,
check and top up if required:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre pressure and conditions;
❒light system operation (headlights, di-
rection indicators, hazard lights, etc.);
❒windscreen wiper/washer operation
and windscreen/rear window blade
position/wear;
Every 3,000 km check and top up if re-
quired: engine oil level.
You are recommended to use FL
Selenia, products, designed and pro-
duced specifically for Fiat cars (see table
“Capacities” in section “Technical speci-
fications”).
193-216 Croma TRW GB 28-07-2009 12:15 Pagina 197
Page 212 of 258
211
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

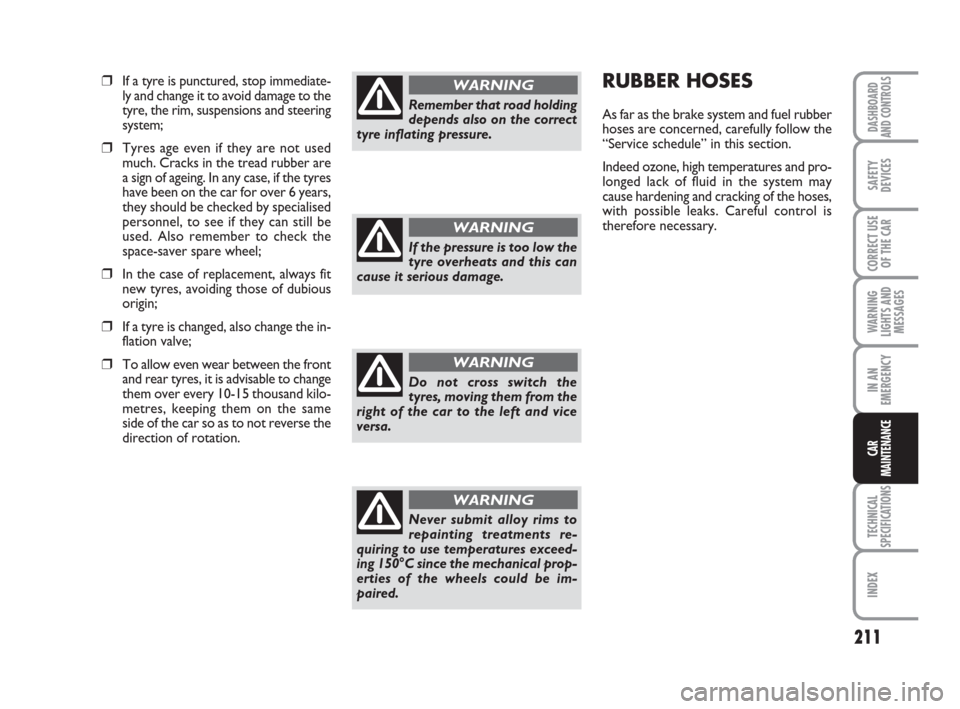

❒If a tyre is punctured, stop immediate-
ly and change it to avoid damage to the
tyre, the rim, suspensions and steering
system;
❒Tyres age even if they are not used
much. Cracks in the tread rubber are
a sign of ageing. In any case, if the tyres
have been on the car for over 6 years,
they should be checked by specialised
personnel, to see if they can still be
used. Also remember to check the
space-saver spare wheel;
❒In the case of replacement, always fit
new tyres, avoiding those of dubious
origin;
❒If a tyre is changed, also change the in-
flation valve;
❒To allow even wear between the front
and rear tyres, it is advisable to change
them over every 10-15 thousand kilo-
metres, keeping them on the same
side of the car so as to not reverse the
direction of rotation.
Remember that road holding
depends also on the correct
tyre inflating pressure.
WARNING
Do not cross switch the
tyres, moving them from the
right of the car to the left and vice
versa.
WARNING
If the pressure is too low the
tyre overheats and this can
cause it serious damage.
WARNING
Never submit alloy rims to
repainting treatments re-
quiring to use temperatures exceed-
ing 150°C since the mechanical prop-
erties of the wheels could be im-
paired.
WARNING
RUBBER HOSES
As far as the brake system and fuel rubber
hoses are concerned, carefully follow the
“Service schedule” in this section.
Indeed ozone, high temperatures and pro-
longed lack of fluid in the system may
cause hardening and cracking of the hoses,
with possible leaks. Careful control is
therefore necessary.
193-216 Croma TRW GB 28-07-2009 12:16 Pagina 211
Page 245 of 258
244
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
– excessive temperature warning
light................................................... 148
– level check....................................... 204
Engine cooling system liquid level .... 204
Engine hood.......................................... 90
Engine oil
– characteristics................................ 236
– consumption................................... 204
– degraded oil warning light ........... 149
– insufficient engine oil pressure
warning light................................... 149
– level check....................................... 203
– minimum engine oil level warning
light................................................... 156
Engine oil level...................................... 203
Environmental protection.................. 105
EOBD (system).................................... 98
EOBD system....................................... 98
ESP (system)......................................... 96
ESP system............................................ 96
– ESP system failure warning light . 154
Exterior lamp replacement................ 173
Exterior lights
– control............................................. 62
– exterior lights failure warning
light................................................... 152
Fiat CODE (system).......................... 9
– electronic key not recognised
warning light................................... 151
– vehicle protection system failure
warning light................................... 151
Fiat CODE system............................... 9
Fix & go automatic
(rapid tyre repair kit) ...................... 165Flashing................................................... 63
Fog light
– orientation...................................... 94
Follow me home (device).................. 64
Front air bags........................................ 118
– front driver’s side air bag............. 119
– front passenger’s side air bag ...... 120
– driver’s side knee air bag ............. 120
– general warnings............................ 124
– turning off the passenger side
front and side chest protection
air bags (Side Bags) ...................... 121
– passenger side front and side
chest protection air bag warnings
light (Side Bag) off ........................ 147
Front armrest with storage box
and cooled compartment................ 74
Front ceiling lights
– control............................................. 70
– lamp replacement.......................... 178
Front fog lights
– control............................................. 71
– fog lights warning light .................. 154
– lamp replacement.......................... 175
Front optical units
– lamp replacement.......................... 173
Fuel
– consumption................................... 238
– fuel block switch ........................... 72
– fuel reserve warning light ........... 150
– level indicator................................. 21
– saving fuel ....................................... 138
Fuel block switch and electric power
supply ................................................. 72
Fuel hatch.............................................. 104 Cup holder compartments................ 76
Cup/can holder.................................... 76
Dashboard and controls ................... 4
Dead lock (device).............................. 16
Diesel filter
– condensate water drain ............... 207
– water in diesel filter warning
light................................................... 151
Diesel Particulate Filter ..................... 106
Dimensions........................................... 230
Door clearance/puddle light.............. 180
Doors..................................................... 81
– centralized closing......................... 81
– child safety device.......................... 81
– emergency closing......................... 13
– emergency opening....................... 13
– incomplete door closure
warning light................................... 149
EBD (system)
– EBD system failure warning light 148
Electric socket...................................... 77
Electric window regulators
– controls........................................... 82
Emergency lights.................................. 71
Engine
– identification code......................... 220
– marking............................................ 219
– typical data...................................... 221
Engine compartment (washing)........ 215
Engine coolant temperature indicator 21
Engine cooling system liquid
243-256 Croma TRW GB 28-07-2009 12:15 Pagina 244
Page 248 of 258
Transmission
– Technical data................................ 223
Transporting children safely.............. 112
Trip computer...................................... 36
Turn signals
– control............................................. 63
– cornering lights.............................. 63
– front lamp replacement................ 174
– lane change function..................... 63
– left turn signal warning light ........ 154
– rear lamp replacement................. 176
– right turn signal warning light ..... 154
– side lamp replacement.................. 175
Tyre pressure....................................... 228
Tyres
– correct tyre reading...................... 225
– provided ......................................... 227
– snow................................................. 142
– wheel replacement........................ 159
User purchased accessories............ 101
Vehicle inactivity................................. 144
Vehicle lifting......................................... 190
Vehicle refuelling.................................. 103
Vehicle towing...................................... 191
Volumetric protection........................ 15
Warning lights and messages .......... 145
– general warnings............................ 146
Weight................................................... 232
Wheel
– Fix & go automatic rapid tyre
repair kit ......................................... 165– replacement.................................... 159
– spare (characteristics).................. 227
Wheel alignment.................................. 225
Wheel rims
– correct rim reading....................... 226
Wheels and tyres................................. 210
– cold inflating pressure................... 228
– correct rim reading....................... 226
– correct tyre reading...................... 225
– rims and tyres................................ 225
– rims and tyres................................ 227
– spare wheel..................................... 225
– wheel alignment............................. 225
Window cleaning................................. 65
Windows (cleaning)............................ 215
Windscreen washer
– control............................................. 65
– liquid level....................................... 205
Windscreen washer/rear window
washer-wiper/headlight
washer-wiper liquid
– level check....................................... 205
Windscreen washer/rear window
washer-wiper/headlight
washer-wiper liquid level................. 205
Windscreen wiper
– brushes............................................ 212
– control............................................. 65
– rain sensor...................................... 66
– sprayers........................................... 213
Windscreen wiper and rear window
wiper brushes.................................... 212 Starting the engine............................... 128
– coasting startup.............................. 159
– heating the just started engine.... 130
– ignition device................................ 17
– procedure for gasoline versions ... 128
– procedure for Multijet versions ... 129
– startup with an auxiliary battery... 158
– turning off the engine................... 130
Steering (characteristics).................... 224
Steering lock......................................... 19
Steering wheel (adjustment).............. 43
Storage box........................................... 76
Sun roof................................................. 78
Sun visor................................................ 77
Suspensions (characteristics)............. 224
Symbols.................................................. 8
T.P.M.S. system
(tyre pressure control).................... 99
Table (seat)........................................... 40
Tachometer.......................................... 20
Technical data....................................... 217
Trailer towing....................................... 139
– assembly diagram........................... 141
– tow hook installation.................... 140
– warnings........................................... 139
Transmission
– automatic transmission failure
warning light................................... 155
– maximum automatic transmission
oil temperature warning light ..... 155
– using the automatic electronic
transmission.................................... 133
– using the manual transmission .... 132
247
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
243-256 Croma TRW GB 28-07-2009 12:15 Pagina 247
