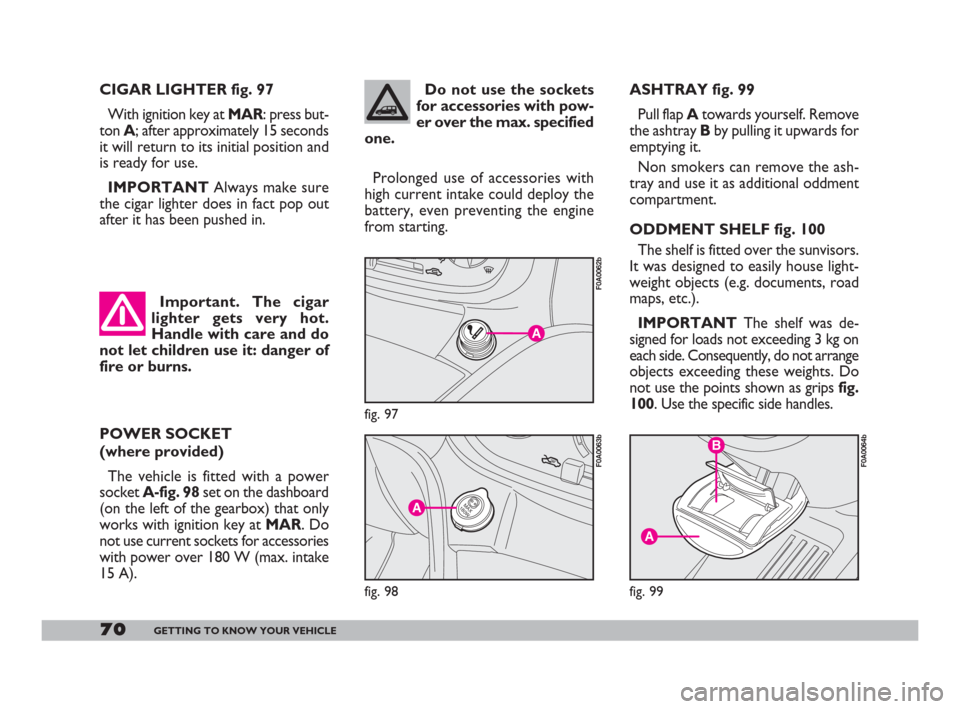

70GETTING TO KNOW YOUR VEHICLE
ASHTRAY fig. 99
Pull flap Atowards yourself. Remove
the ashtray Bby pulling it upwards for
emptying it.
Non smokers can remove the ash-
tray and use it as additional oddment
compartment.
ODDMENT SHELF fig. 100
The shelf is fitted over the sunvisors.
It was designed to easily house light-
weight objects (e.g. documents, road
maps, etc.).
IMPORTANTThe shelf was de-
signed for loads not exceeding 3 kg on
each side. Consequently, do not arrange
objects exceeding these weights. Do
not use the points shown as grips fig.
100. Use the specific side handles.
B
A
fig. 99
F0A0064b
POWER SOCKET
(where provided)
The vehicle is fitted with a power
socket A-fig. 98set on the dashboard
(on the left of the gearbox) that only
works with ignition key at MAR. Do
not use current sockets for accessories
with power over 180 W (max. intake
15 A).
A
fig. 97
F0A0062b
Do not use the sockets
for accessories with pow-
er over the max. specified
one.
U-
MAX
180
WA
fig. 98
F0A0063b
Prolonged use of accessories with
high current intake could deploy the
battery, even preventing the engine
from starting.
CIGAR LIGHTER fig. 97
With ignition key at MAR: press but-
ton A; after approximately 15 seconds
it will return to its initial position and
is ready for use.
IMPORTANTAlways make sure
the cigar lighter does in fact pop out
after it has been pushed in.
Important. The cigar
lighter gets very hot.
Handle with care and do
not let children use it: danger of
fire or burns.
001-105 Doblo GB 16-12-2008 14:22 Pagina 70

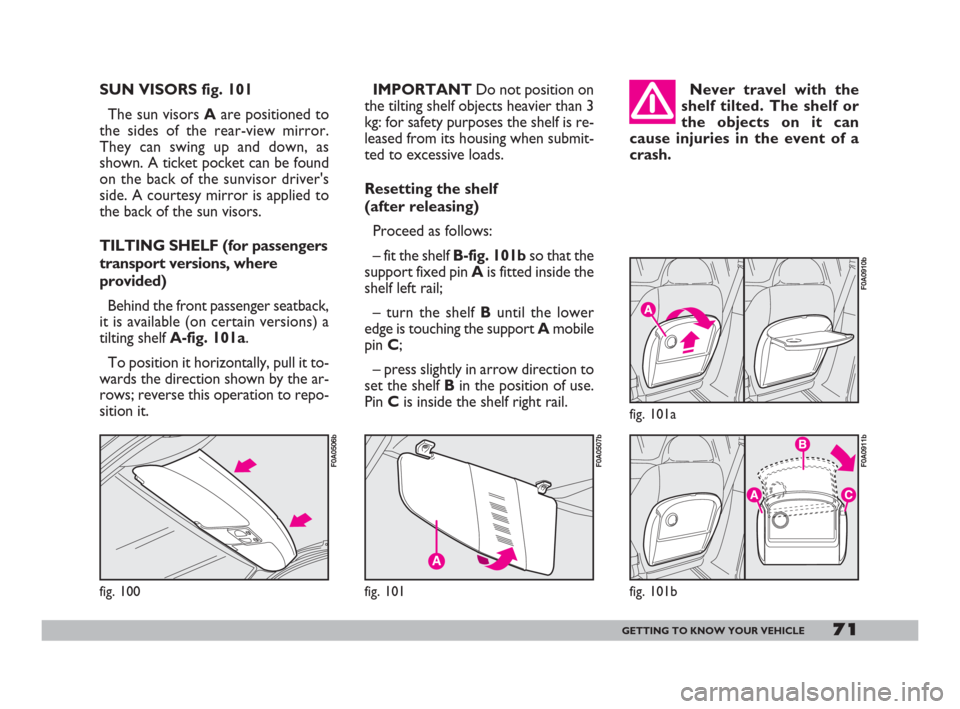

71GETTING TO KNOW YOUR VEHICLE
IMPORTANTDo not position on
the tilting shelf objects heavier than 3
kg: for safety purposes the shelf is re-
leased from its housing when submit-
ted to excessive loads.
Resetting the shelf
(after releasing)
Proceed as follows:
– fit the shelf B-fig. 101bso that the
support fixed pin Ais fitted inside the
shelf left rail;
– turn the shelf Buntil the lower
edge is touching the support Amobile
pin C;
– press slightly in arrow direction to
set the shelf Bin the position of use.
Pin Cis inside the shelf right rail. SUN VISORS fig. 101
The sun visors Aare positioned to
the sides of the rear-view mirror.
They can swing up and down, as
shown. A ticket pocket can be found
on the back of the sunvisor driver's
side. A courtesy mirror is applied to
the back of the sun visors.
TILTING SHELF (for passengers
transport versions, where
provided)
Behind the front passenger seatback,
it is available (on certain versions) a
tilting shelf A-fig. 101a.
To position it horizontally, pull it to-
wards the direction shown by the ar-
rows; reverse this operation to repo-
sition it.
fig. 100
F0A0506b
A
fig. 101
F0A0507b
fig. 101b
F0A0911b
Never travel with the
shelf tilted. The shelf or
the objects on it can
cause injuries in the event of a
crash.
fig. 101a
F0A0910b
001-105 Doblo GB 16-12-2008 14:22 Pagina 71

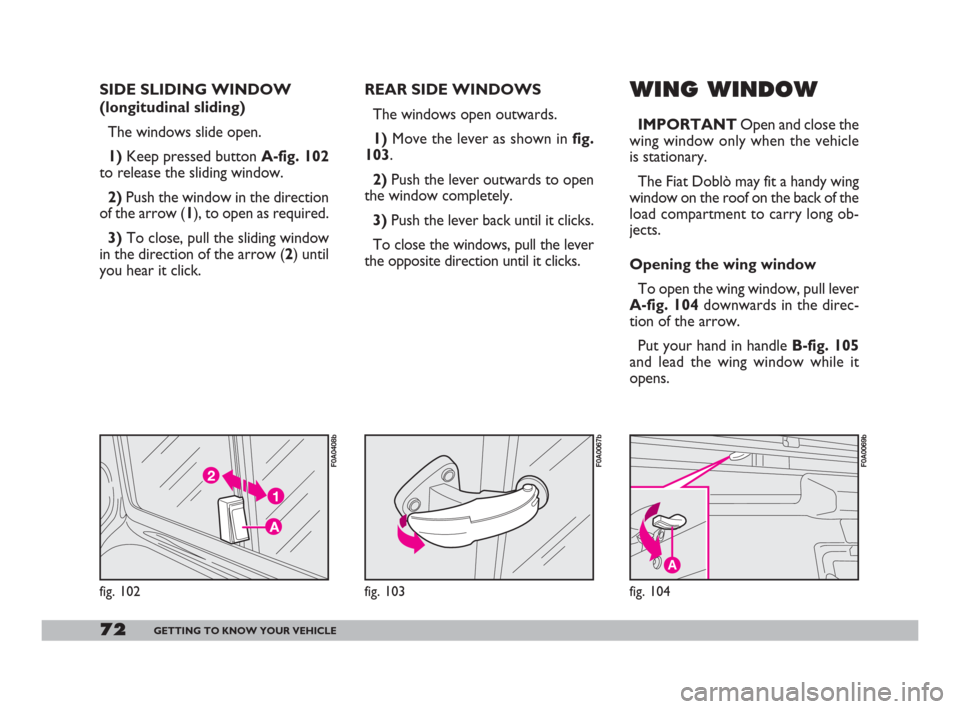

72GETTING TO KNOW YOUR VEHICLE
REAR SIDE WINDOWS
The windows open outwards.
1)Move the lever as shown in fig.
103.
2)Push the lever outwards to open
the window completely.
3)Push the lever back until it clicks.
To close the windows, pull the lever
the opposite direction until it clicks.WING WINDOW
IMPORTANTOpen and close the
wing window only when the vehicle
is stationary.
The Fiat Doblò may fit a handy wing
window on the roof on the back of the
load compartment to carry long ob-
jects.
Opening the wing window
To open the wing window, pull lever
A-fig. 104downwards in the direc-
tion of the arrow.
Put your hand in handle B-fig. 105
and lead the wing window while it
opens.
fig. 103
F0A0067b
A
fig. 104
F0A0069b
fig. 102
F0A0408b
SIDE SLIDING WINDOW
(longitudinal sliding)
The windows slide open.
1)Keep pressed button A-fig. 102
to release the sliding window.
2)Push the window in the direction
of the arrow (1), to open as required.
3)To close, pull the sliding window
in the direction of the arrow (2) until
you hear it click.
001-105 Doblo GB 16-12-2008 14:22 Pagina 72

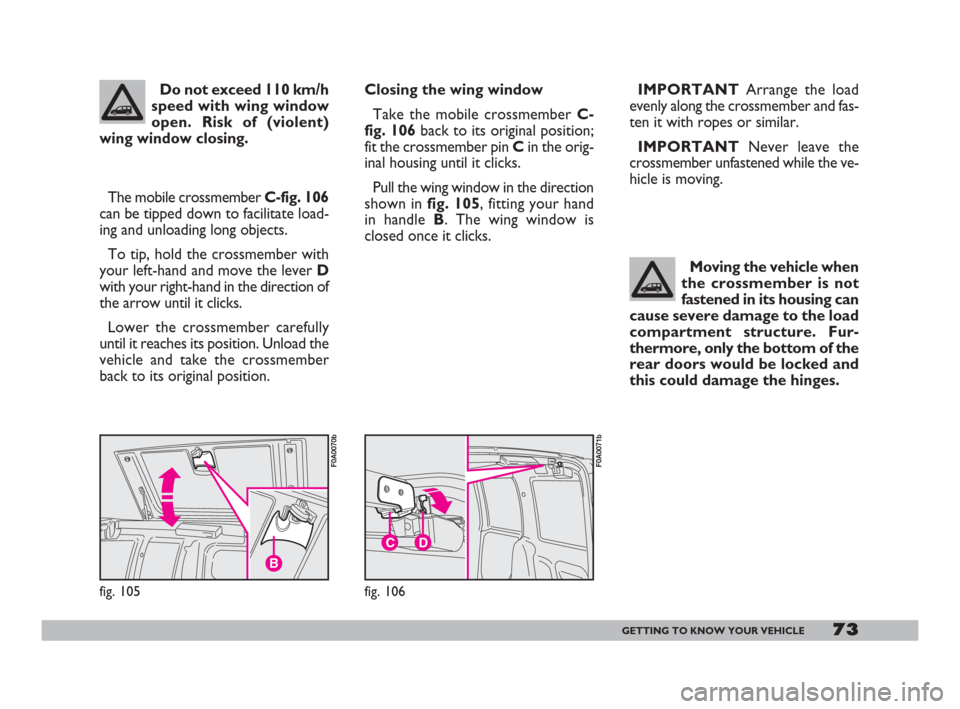

73GETTING TO KNOW YOUR VEHICLE
Closing the wing window
Take the mobile crossmember C-
fig. 106back to its original position;
fit the crossmember pin Cin the orig-
inal housing until it clicks.
Pull the wing window in the direction
shown in fig. 105, fitting your hand
in handle B. The wing window is
closed once it clicks.
DC
fig. 106
F0A0071b
Moving the vehicle when
the crossmember is not
fastened in its housing can
cause severe damage to the load
compartment structure. Fur-
thermore, only the bottom of the
rear doors would be locked and
this could damage the hinges.
IMPORTANTArrange the load
evenly along the crossmember and fas-
ten it with ropes or similar.
IMPORTANTNever leave the
crossmember unfastened while the ve-
hicle is moving.
B
fig. 105
F0A0070b
Do not exceed 110 km/h
speed with wing window
open. Risk of (violent)
wing window closing.
The mobile crossmember C-fig. 106
can be tipped down to facilitate load-
ing and unloading long objects.
To tip, hold the crossmember with
your left-hand and move the lever D
with your right-hand in the direction of
the arrow until it clicks.
Lower the crossmember carefully
until it reaches its position. Unload the
vehicle and take the crossmember
back to its original position.
001-105 Doblo GB 16-12-2008 14:22 Pagina 73

74GETTING TO KNOW YOUR VEHICLE
These operations are allowed for
two minutes after turning the ignition
key from MARto STOPor removed
only if the doors are closed.
AB
fig. 109
F0A0074b
fig. 109a
F0A0510b
Closing by hand from the inside
Front doors: close the door and
press the lever as shown in fig. 108
(LOCK).
ELECTRIC WINDOWS
According to versions, power win-
dow controls can be set on the dash-
board (in central position) fig. 109, or
on driver and passenger door panels
fig. 109a. They only work with igni-
tion key at MAR.
A- to open/close the front left-hand
window;
B- to open/close the front right-
hand window.
fig. 108
F0A0514b
DOORS
FRONT DOORS
Opening by hand from
the outside
Front doors: turn the key to 2-fig.
107and pull the handle.
Locking by hand from
the outside
Front doors: close the door and turn
the key to 1-fig. 107.
Opening by hand from
the inside
Front doors: pull the lever.
2
1
fig. 107
F0A0072b
001-105 Doblo GB 16-12-2008 14:22 Pagina 74

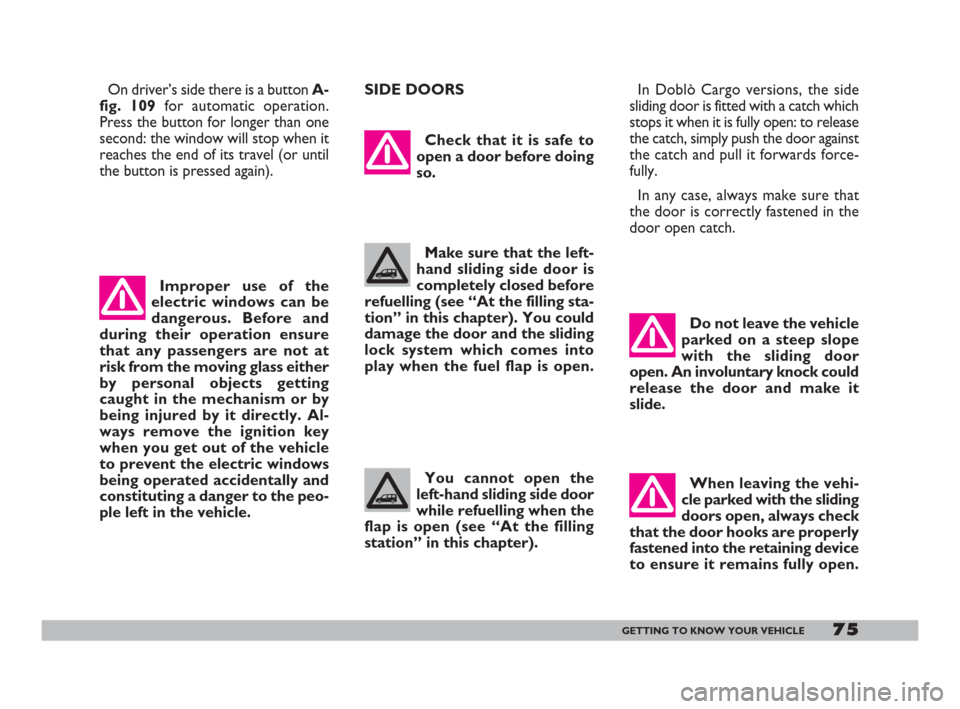

75GETTING TO KNOW YOUR VEHICLE
Check that it is safe to
open a door before doing
so.
Make sure that the left-
hand sliding side door is
completely closed before
refuelling (see “At the filling sta-
tion” in this chapter). You could
damage the door and the sliding
lock system which comes into
play when the fuel flap is open.
You cannot open the
left-hand sliding side door
while refuelling when the
flap is open (see “At the filling
station” in this chapter).
SIDE DOORSIn Doblò Cargo versions, the side
sliding door is fitted with a catch which
stops it when it is fully open: to release
the catch, simply push the door against
the catch and pull it forwards force-
fully.
In any case, always make sure that
the door is correctly fastened in the
door open catch.
Do not leave the vehicle
parked on a steep slope
with the sliding door
open. An involuntary knock could
release the door and make it
slide.
When leaving the vehi-
cle parked with the sliding
doors open, always check
that the door hooks are properly
fastened into the retaining device
to ensure it remains fully open.
Improper use of the
electric windows can be
dangerous. Before and
during their operation ensure
that any passengers are not at
risk from the moving glass either
by personal objects getting
caught in the mechanism or by
being injured by it directly. Al-
ways remove the ignition key
when you get out of the vehicle
to prevent the electric windows
being operated accidentally and
constituting a danger to the peo-
ple left in the vehicle.
On driver’s side there is a button A-
fig. 109for automatic operation.
Press the button for longer than one
second: the window will stop when it
reaches the end of its travel (or until
the button is pressed again).
001-105 Doblo GB 16-12-2008 14:22 Pagina 75

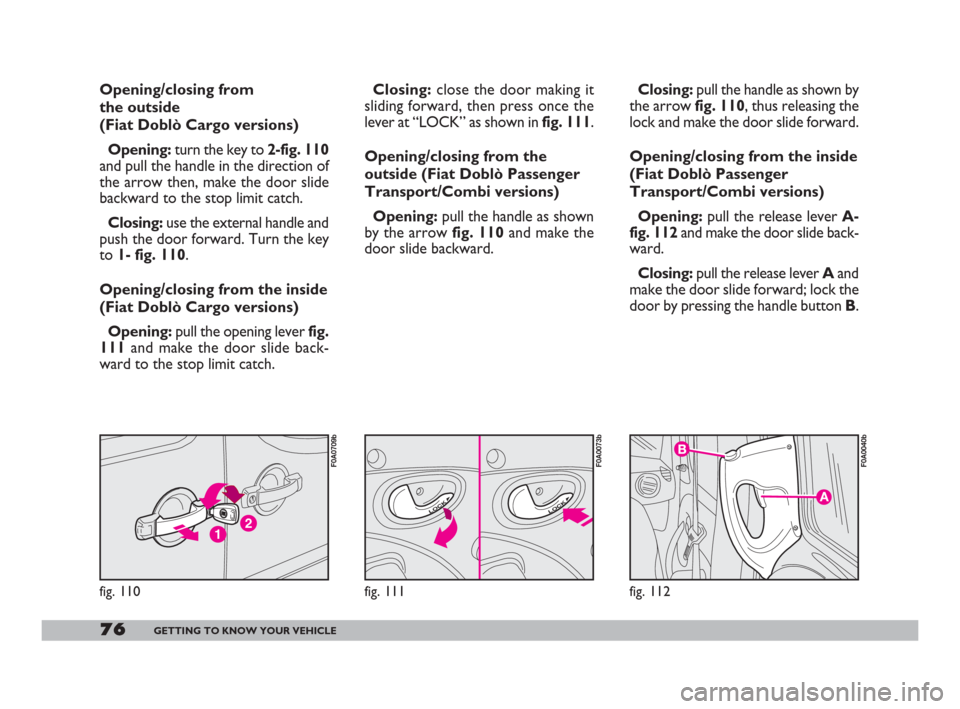

76GETTING TO KNOW YOUR VEHICLE
Closing:close the door making it
sliding forward, then press once the
lever at “LOCK” as shown in fig. 111.
Opening/closing from the
outside (Fiat Doblò Passenger
Transport/Combi versions)
Opening:pull the handle as shown
by the arrow fig. 110and make the
door slide backward.
fig. 112
F0A0040b
L
OCKL
OCK
fig. 111
F0A0073b
Closing:pull the handle as shown by
the arrow fig. 110, thus releasing the
lock and make the door slide forward.
Opening/closing from the inside
(Fiat Doblò Passenger
Transport/Combi versions)
Opening: pull the release lever A-
fig. 112 and make the door slide back-
ward.
Closing:pull the release lever Aand
make the door slide forward; lock the
door by pressing the handle button B. Opening/closing from
the outside
(Fiat Doblò Cargo versions)
Opening:turn the key to 2-fig. 110
and pull the handle in the direction of
the arrow then, make the door slide
backward to the stop limit catch.
Closing:use the external handle and
push the door forward. Turn the key
to1- fig. 110.
Opening/closing from the inside
(Fiat Doblò Cargo versions)
Opening: pull the opening lever fig.
111and make the door slide back-
ward to the stop limit catch.
12
fig. 110
F0A0709b
001-105 Doblo GB 16-12-2008 14:22 Pagina 76

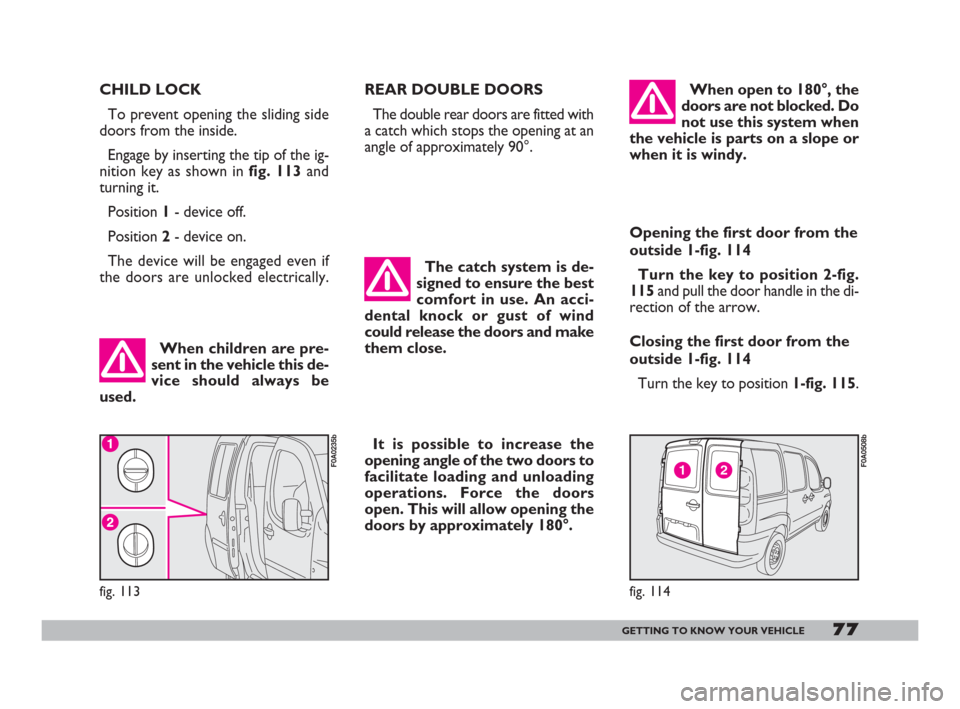

77GETTING TO KNOW YOUR VEHICLE
REAR DOUBLE DOORS
The double rear doors are fitted with
a catch which stops the opening at an
angle of approximately 90°.
The catch system is de-
signed to ensure the best
comfort in use. An acci-
dental knock or gust of wind
could release the doors and make
them close.
It is possible to increase the
opening angle of the two doors to
facilitate loading and unloading
operations. Force the doors
open. This will allow opening the
doors by approximately 180°.Opening the first door from the
outside 1-fig. 114
Turn the key to position 2-fig.
115and pull the door handle in the di-
rection of the arrow.
Closing the first door from the
outside 1-fig. 114
Turn the key to position 1-fig. 115. When open to 180°, the
doors are not blocked. Do
not use this system when
the vehicle is parts on a slope or
when it is windy.
12
fig. 114
F0A0508b
CHILD LOCK
To prevent opening the sliding side
doors from the inside.
Engage by inserting the tip of the ig-
nition key as shown in fig. 113and
turning it.
Position 1- device off.
Position 2- device on.
The device will be engaged even if
the doors are unlocked electrically.
fig. 113
F0A0235b
When children are pre-
sent in the vehicle this de-
vice should always be
used.
001-105 Doblo GB 16-12-2008 14:22 Pagina 77

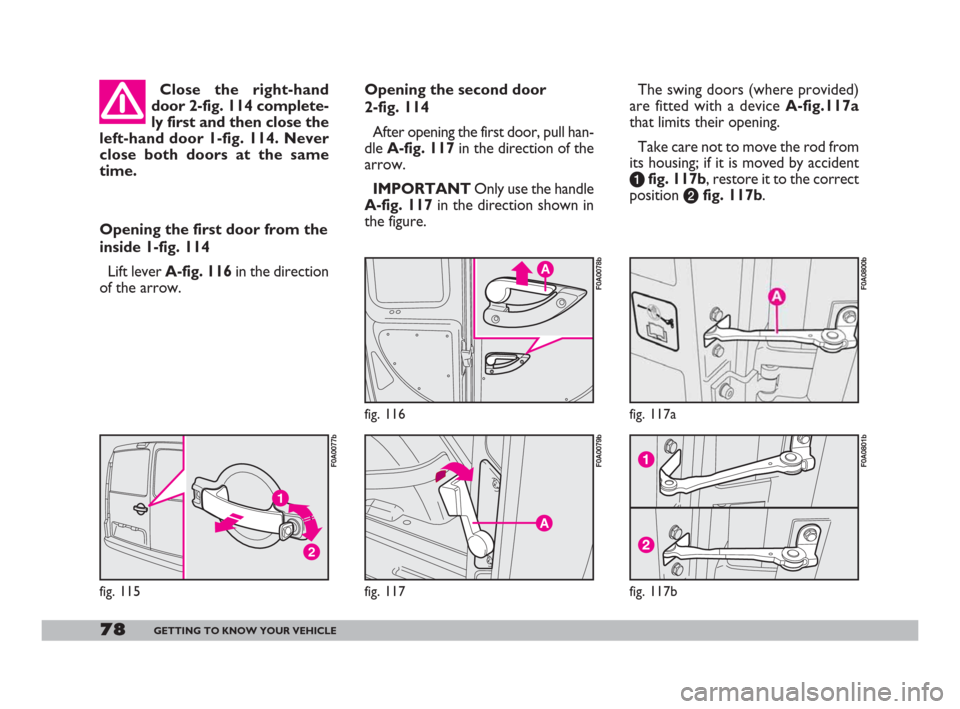

78GETTING TO KNOW YOUR VEHICLE
Opening the first door from the
inside 1-fig. 114
Lift lever A-fig. 116 in the direction
of the arrow.
A
fig. 116
F0A0078b
A
fig. 117
F0A0079b
Opening the second door
2-fig. 114
After opening the first door, pull han-
dle A-fig. 117in the direction of the
arrow.
IMPORTANTOnly use the handle
A-fig. 117in the direction shown in
the figure.
2
1
fig. 115
F0A0077b
Close the right-hand
door 2-fig. 114 complete-
ly first and then close the
left-hand door 1-fig. 114. Never
close both doors at the same
time.The swing doors (where provided)
are fitted with a device A-fig.117a
that limits their opening.
Take care not to move the rod from
its housing; if it is moved by accident
afig. 117b, restore it to the correct
position bfig. 117b.
fig. 117a
F0A0800b
fig. 117b
F0A0801b
001-105 Doblo GB 16-12-2008 14:22 Pagina 78

79GETTING TO KNOW YOUR VEHICLE
When using the boot,
make sure the load you
are carrying does not ex-
ceed the permitted weight (see
“Technical specifications”). Also
ensure the items in the boot are
arranged properly to prevent
them being thrown forwards and
injuring passengers should you
brake sharply. Do not travel with
the tailgate open: exhaust gas
could filter into the passenger
compartment.
If you are travelling in
areas where refuelling
can be difficult and you
want to carry a can of petrol, fol-
low the law in force. Use a ho-
mologated can and secure it ad-
equately. Even given these pre-
cautions, the risk of fire in the
event of an accident is increased.
Do not use the key as a
handle to open the tail-
gate. You could damage it.
TAILGATE
Opening/closing the tailgate
To open the tailgate from the out-
side, turn the ignition key in lock
fig. 118and pull handle Ain the di-
rection of the arrow.
The opening of the boot is made eas-
ier by the gas-filed struts on each side.
IMPORTANTFit the key well into
the lock before turning it.
You will be able to open the tailgate
with the key only if you remove the
key from the lock after turning it by 45
degrees.
To close, lower the tailgate until the
lock clicks.
CENTRAL DOOR LOCKING
SYSTEM
From the outside
With the doors closed, fit and turn
the key in one of the front door locks.IMPORTANTAdjust the height of
the dipped headlight beam when trav-
elling at night with a rather heavy load
in the boot (see “Headlights” in this
chapter).
Make sure the load does not exceed
the values shown in “Weights” para-
graph, “Technical specifications” chap-
ter for correct operation of the head-
light adjustment device.
Do not knock the tailgate
into objects on the roof
rack when you open it.
fig. 118
F0A0231b
001-105 Doblo GB 16-12-2008 14:22 Pagina 79
