FIAT DOBLO 2008 1.G Owners Manual

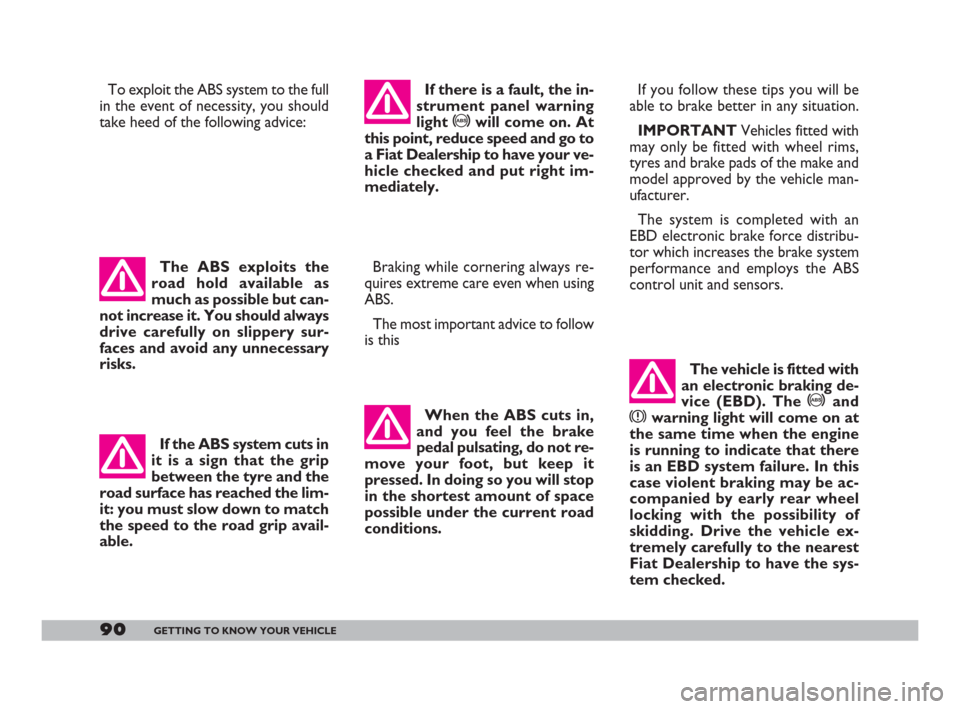

90GETTING TO KNOW YOUR VEHICLE
To exploit the ABS system to the full
in the event of necessity, you should
take heed of the following advice:
Braking while cornering always re-
quires extreme care even when using
ABS.
The most important advice to follow
is this The ABS exploits the
road hold available as
much as possible but can-
not increase it. You should always
drive carefully on slippery sur-
faces and avoid any unnecessary
risks.
If the ABS system cuts in
it is a sign that the grip
between the tyre and the
road surface has reached the lim-
it: you must slow down to match
the speed to the road grip avail-
able.
If there is a fault, the in-
strument panel warning
light >will come on. At
this point, reduce speed and go to
a Fiat Dealership to have your ve-
hicle checked and put right im-
mediately.
When the ABS cuts in,
and you feel the brake
pedal pulsating, do not re-
move your foot, but keep it
pressed. In doing so you will stop
in the shortest amount of space
possible under the current road
conditions.
If you follow these tips you will be
able to brake better in any situation.
IMPORTANTVehicles fitted with
may only be fitted with wheel rims,
tyres and brake pads of the make and
model approved by the vehicle man-
ufacturer.
The system is completed with an
EBD electronic brake force distribu-
tor which increases the brake system
performance and employs the ABS
control unit and sensors.
The vehicle is fitted with
an electronic braking de-
vice (EBD). The >and
xwarning light will come on at
the same time when the engine
is running to indicate that there
is an EBD system failure. In this
case violent braking may be ac-
companied by early rear wheel
locking with the possibility of
skidding. Drive the vehicle ex-
tremely carefully to the nearest
Fiat Dealership to have the sys-
tem checked.
001-105 Doblo GB 16-12-2008 14:22 Pagina 90

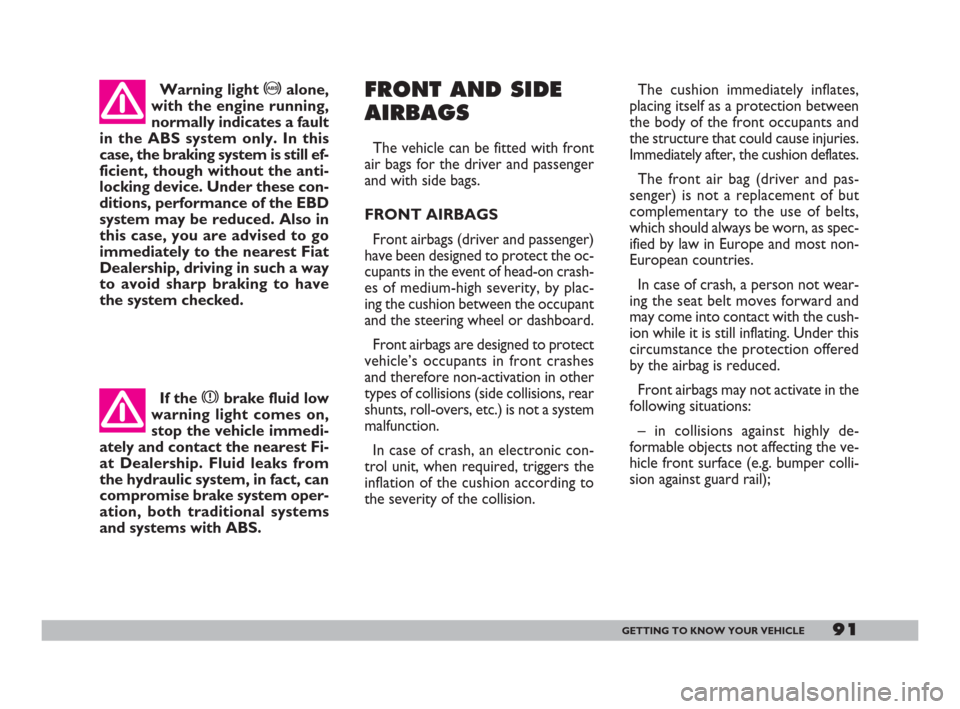

91GETTING TO KNOW YOUR VEHICLE
The cushion immediately inflates,
placing itself as a protection between
the body of the front occupants and
the structure that could cause injuries.
Immediately after, the cushion deflates.
The front air bag (driver and pas-
senger) is not a replacement of but
complementary to the use of belts,
which should always be worn, as spec-
ified by law in Europe and most non-
European countries.
In case of crash, a person not wear-
ing the seat belt moves forward and
may come into contact with the cush-
ion while it is still inflating. Under this
circumstance the protection offered
by the airbag is reduced.
Front airbags may not activate in the
following situations:
– in collisions against highly de-
formable objects not affecting the ve-
hicle front surface (e.g. bumper colli-
sion against guard rail); If the xbrake fluid low
warning light comes on,
stop the vehicle immedi-
ately and contact the nearest Fi-
at Dealership. Fluid leaks from
the hydraulic system, in fact, can
compromise brake system oper-
ation, both traditional systems
and systems with ABS.FRONT AND SIDE
AIRBAGS
The vehicle can be fitted with front
air bags for the driver and passenger
and with side bags.
FRONT AIRBAGS
Front airbags (driver and passenger)
have been designed to protect the oc-
cupants in the event of head-on crash-
es of medium-high severity, by plac-
ing the cushion between the occupant
and the steering wheel or dashboard.
Front airbags are designed to protect
vehicle’s occupants in front crashes
and therefore non-activation in other
types of collisions (side collisions, rear
shunts, roll-overs, etc.) is not a system
malfunction.
In case of crash, an electronic con-
trol unit, when required, triggers the
inflation of the cushion according to
the severity of the collision. Warning light >alone,
with the engine running,
normally indicates a fault
in the ABS system only. In this
case, the braking system is still ef-
ficient, though without the anti-
locking device. Under these con-
ditions, performance of the EBD
system may be reduced. Also in
this case, you are advised to go
immediately to the nearest Fiat
Dealership, driving in such a way
to avoid sharp braking to have
the system checked.
001-105 Doblo GB 16-12-2008 14:22 Pagina 91

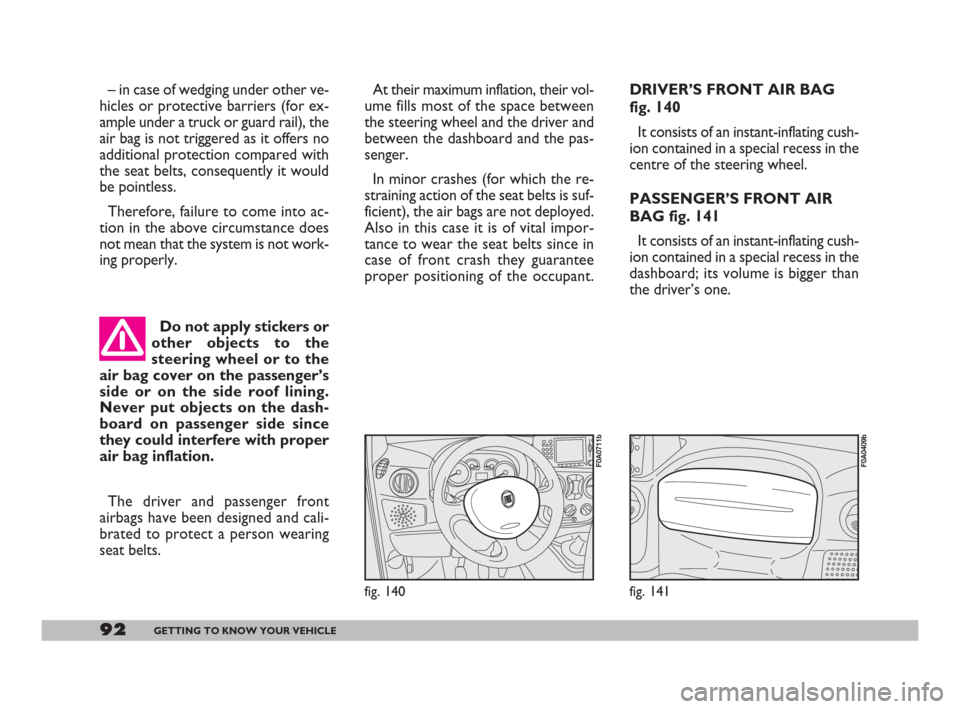

92GETTING TO KNOW YOUR VEHICLE
– in case of wedging under other ve-
hicles or protective barriers (for ex-
ample under a truck or guard rail), the
air bag is not triggered as it offers no
additional protection compared with
the seat belts, consequently it would
be pointless.
Therefore, failure to come into ac-
tion in the above circumstance does
not mean that the system is not work-
ing properly.At their maximum inflation, their vol-
ume fills most of the space between
the steering wheel and the driver and
between the dashboard and the pas-
senger.
In minor crashes (for which the re-
straining action of the seat belts is suf-
ficient), the air bags are not deployed.
Also in this case it is of vital impor-
tance to wear the seat belts since in
case of front crash they guarantee
proper positioning of the occupant.DRIVER’S FRONT AIR BAG
fig. 140
It consists of an instant-inflating cush-
ion contained in a special recess in the
centre of the steering wheel.
PASSENGER’S FRONT AIR
BAG fig. 141
It consists of an instant-inflating cush-
ion contained in a special recess in the
dashboard; its volume is bigger than
the driver’s one.
Do not apply stickers or
other objects to the
steering wheel or to the
air bag cover on the passenger’s
side or on the side roof lining.
Never put objects on the dash-
board on passenger side since
they could interfere with proper
air bag inflation.
The driver and passenger front
airbags have been designed and cali-
brated to protect a person wearing
seat belts.
fig. 140
F0A0711b
fig. 141
F0A0409b
001-105 Doblo GB 16-12-2008 14:22 Pagina 92

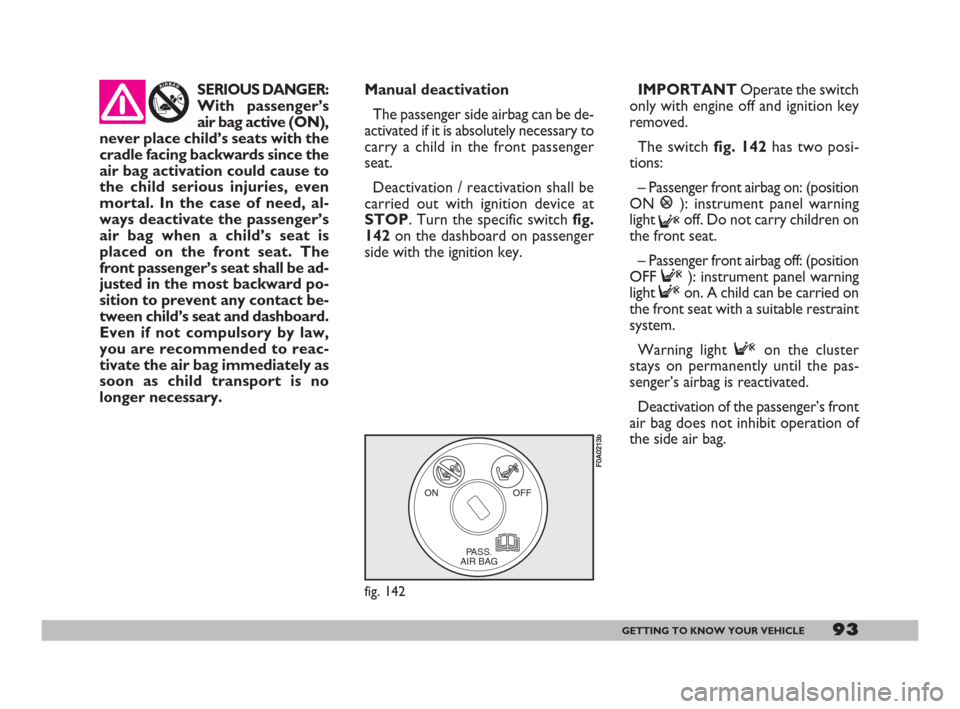

93GETTING TO KNOW YOUR VEHICLE
Manual deactivation
The passenger side airbag can be de-
activated if it is absolutely necessary to
carry a child in the front passenger
seat.
Deactivation / reactivation shall be
carried out with ignition device at
STOP. Turn the specific switch fig.
142on the dashboard on passenger
side with the ignition key.IMPORTANTOperate the switch
only with engine off and ignition key
removed.
The switch fig. 142has two posi-
tions:
– Passenger front airbag on: (position
ON P): instrument panel warning
light
Foff. Do not carry children on
the front seat.
– Passenger front airbag off: (position
OFF F): instrument panel warning
light Fon. A child can be carried on
the front seat with a suitable restraint
system.
Warning light Fon the cluster
stays on permanently until the pas-
senger’s airbag is reactivated.
Deactivation of the passenger’s front
air bag does not inhibit operation of
the side air bag.SERIOUS DANGER:
With passenger’s
air bag active (ON),
never place child’s seats with the
cradle facing backwards since the
air bag activation could cause to
the child serious injuries, even
mortal. In the case of need, al-
ways deactivate the passenger’s
air bag when a child’s seat is
placed on the front seat. The
front passenger’s seat shall be ad-
justed in the most backward po-
sition to prevent any contact be-
tween child’s seat and dashboard.
Even if not compulsory by law,
you are recommended to reac-
tivate the air bag immediately as
soon as child transport is no
longer necessary.
ON OFF
PASS.
AIR BAG
fig. 142
F0A0213b
001-105 Doblo GB 16-12-2008 14:22 Pagina 93

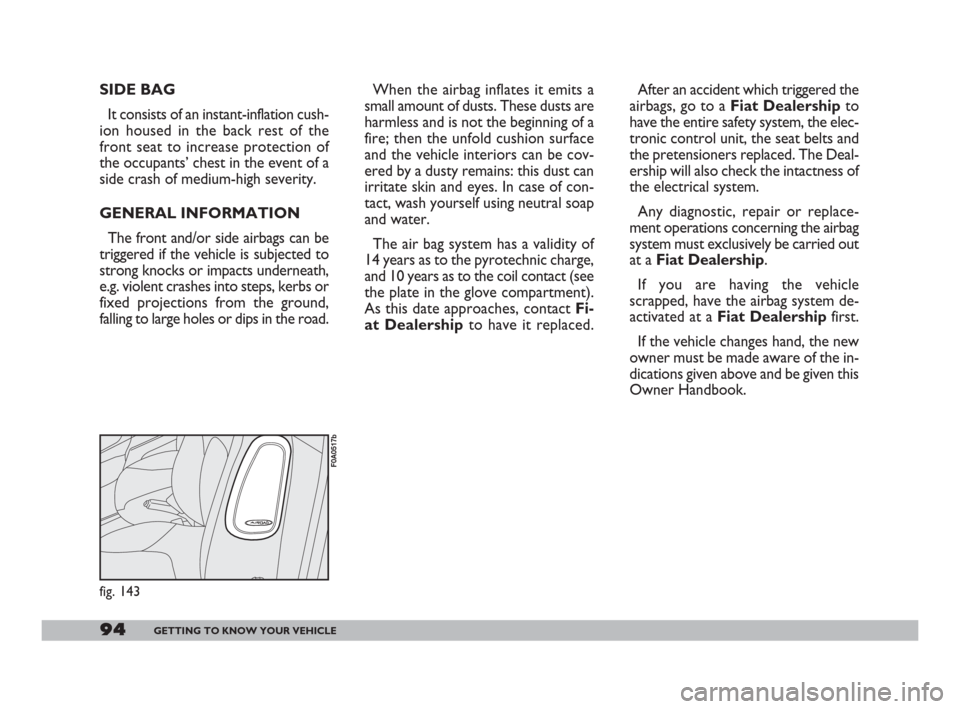

94GETTING TO KNOW YOUR VEHICLE
SIDE BAG
It consists of an instant-inflation cush-
ion housed in the back rest of the
front seat to increase protection of
the occupants’ chest in the event of a
side crash of medium-high severity.
GENERAL INFORMATION
The front and/or side airbags can be
triggered if the vehicle is subjected to
strong knocks or impacts underneath,
e.g. violent crashes into steps, kerbs or
fixed projections from the ground,
falling to large holes or dips in the road. When the airbag inflates it emits a
small amount of dusts. These dusts are
harmless and is not the beginning of a
fire; then the unfold cushion surface
and the vehicle interiors can be cov-
ered by a dusty remains: this dust can
irritate skin and eyes. In case of con-
tact, wash yourself using neutral soap
and water.
The air bag system has a validity of
14 years as to the pyrotechnic charge,
and 10 years as to the coil contact (see
the plate in the glove compartment).
As this date approaches, contact Fi-
at Dealershipto have it replaced.
fig. 143
F0A0517b
After an accident which triggered the
airbags, go to a Fiat Dealershipto
have the entire safety system, the elec-
tronic control unit, the seat belts and
the pretensioners replaced. The Deal-
ership will also check the intactness of
the electrical system.
Any diagnostic, repair or replace-
ment operations concerning the airbag
system must exclusively be carried out
at a Fiat Dealership.
If you are having the vehicle
scrapped, have the airbag system de-
activated at a Fiat Dealershipfirst.
If the vehicle changes hand, the new
owner must be made aware of the in-
dications given above and be given this
Owner Handbook.
001-105 Doblo GB 16-12-2008 14:22 Pagina 94

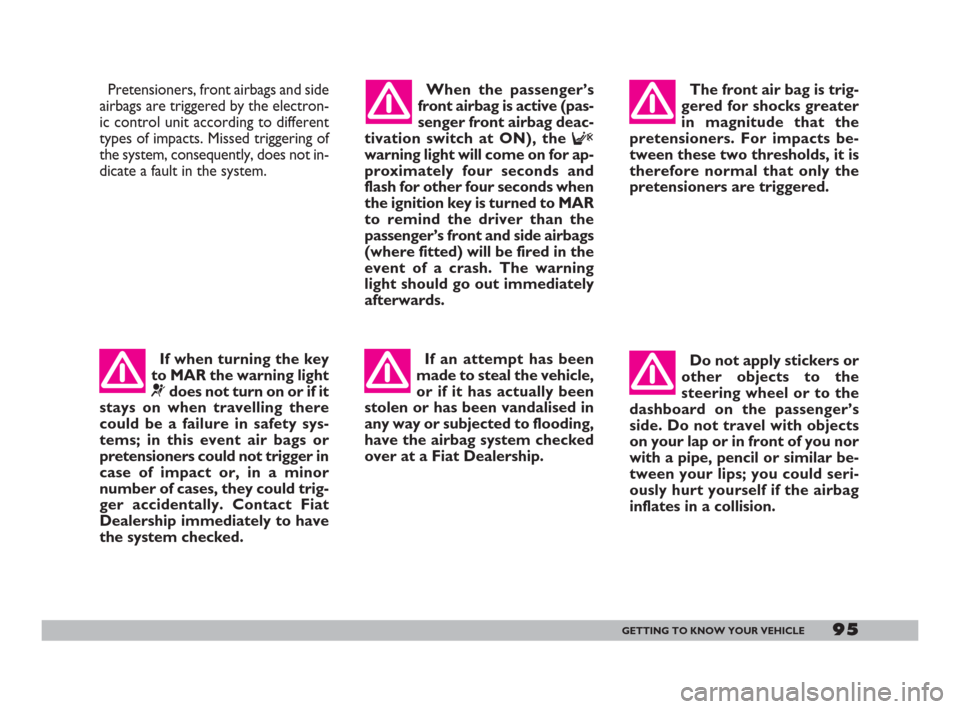

95GETTING TO KNOW YOUR VEHICLE
Pretensioners, front airbags and side
airbags are triggered by the electron-
ic control unit according to different
types of impacts. Missed triggering of
the system, consequently, does not in-
dicate a fault in the system.
If when turning the key
to MAR the warning light
¬does not turn on or if it
stays on when travelling there
could be a failure in safety sys-
tems; in this event air bags or
pretensioners could not trigger in
case of impact or, in a minor
number of cases, they could trig-
ger accidentally. Contact Fiat
Dealership immediately to have
the system checked.When the passenger’s
front airbag is active (pas-
senger front airbag deac-
tivation switch at ON), the
F
warning light will come on for ap-
proximately four seconds and
flash for other four seconds when
the ignition key is turned to MAR
to remind the driver than the
passenger’s front and side airbags
(where fitted) will be fired in the
event of a crash. The warning
light should go out immediately
afterwards.
If an attempt has been
made to steal the vehicle,
or if it has actually been
stolen or has been vandalised in
any way or subjected to flooding,
have the airbag system checked
over at a Fiat Dealership.The front air bag is trig-
gered for shocks greater
in magnitude that the
pretensioners. For impacts be-
tween these two thresholds, it is
therefore normal that only the
pretensioners are triggered.
Do not apply stickers or
other objects to the
steering wheel or to the
dashboard on the passenger’s
side. Do not travel with objects
on your lap or in front of you nor
with a pipe, pencil or similar be-
tween your lips; you could seri-
ously hurt yourself if the airbag
inflates in a collision.
001-105 Doblo GB 16-12-2008 14:22 Pagina 95

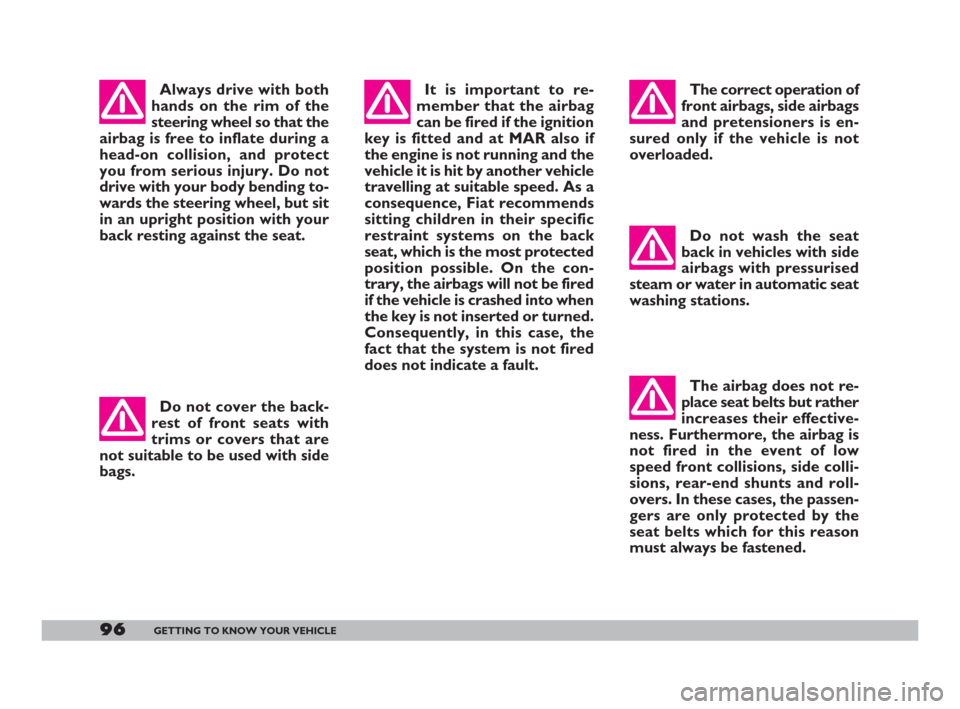

96GETTING TO KNOW YOUR VEHICLE
The correct operation of
front airbags, side airbags
and pretensioners is en-
sured only if the vehicle is not
overloaded.
Do not wash the seat
back in vehicles with side
airbags with pressurised
steam or water in automatic seat
washing stations.
The airbag does not re-
place seat belts but rather
increases their effective-
ness. Furthermore, the airbag is
not fired in the event of low
speed front collisions, side colli-
sions, rear-end shunts and roll-
overs. In these cases, the passen-
gers are only protected by the
seat belts which for this reason
must always be fastened.
Always drive with both
hands on the rim of the
steering wheel so that the
airbag is free to inflate during a
head-on collision, and protect
you from serious injury. Do not
drive with your body bending to-
wards the steering wheel, but sit
in an upright position with your
back resting against the seat.
Do not cover the back-
rest of front seats with
trims or covers that are
not suitable to be used with side
bags.
It is important to re-
member that the airbag
can be fired if the ignition
key is fitted and at MAR also if
the engine is not running and the
vehicle it is hit by another vehicle
travelling at suitable speed. As a
consequence, Fiat recommends
sitting children in their specific
restraint systems on the back
seat, which is the most protected
position possible. On the con-
trary, the airbags will not be fired
if the vehicle is crashed into when
the key is not inserted or turned.
Consequently, in this case, the
fact that the system is not fired
does not indicate a fault.
001-105 Doblo GB 16-12-2008 14:22 Pagina 96

97GETTING TO KNOW YOUR VEHICLE
EOBD SYSTEM
The EOBD system (European On
Board Diagnosis) allows continuos di-
agnosis of the components of the ve-
hicle correlated with emissions.
Furthermore, the system warns the
driver of deterioration concerning the
emission system components by
means of the Uwarning light on the
instrument panel.
The objective is to:
– monitor system efficiency;
– warn when failures can increase
emissions over the threshold estab-
lished by the European regulations;
– warn of the need to replace dete-
riorated components.
Furthermore, the system is equipped
with a connector for interfacing with
specific tools used to read the error
codes stored in the control unit mem-
ory along with a set of diagnostic and
engine specific parameters.IMPORTANTAfter eliminating the
problem, your Fiat Dealershipwill
run a bench test to fully check the sys-
tem. In some cases, a long road test
may be required. Contact a Fiat Dealer-
ship as soon as possible if
the Uwarning light ei-
ther does not come on when the
key is turned to MAR or comes
on, with fixed or flashing light,
when travelling. Warning light U
operation can be checked by
means of special equipment by
traffic agents. Always comply
with the traffic regulations in
force in the country where you
are travelling.
SOUND SYSTEM
If the “Sound System” has not been
requested, the vehicle features an odd-
ment compartment on the dashboard.
If you wish to have a radio
installed, after purchasing
the vehicle, first go to a Fiat
Dealership who will be able to
advise on the subject in order to
safeguard the life of the battery and
protect the vehicle electrical sys-
tem. Excessive absorption will drain
and damage the battery and may
invalidate the battery warranty. The
lack of protection provided with a
factory-fitted radio may adversely
affect the correct operation of the
vehicle diagnostic system.
LIGHT PRESETTING
The system consists of the following:
– sound system power wires;
– wires for front speakers on the
dashboard, doors (where provided)
and rear speakers for passengers
transport versions;
– sound system compartment;
– aerial wire and aerial.
001-105 Doblo GB 16-12-2008 14:22 Pagina 97

98GETTING TO KNOW YOUR VEHICLE
43 21
10987 65
fig. 146
F0A0099b
fig. 145
F0A0096B
CELLULAR PHONE
SET-UP
The system set-up consists of:
– a dual-purpose aerial (sound sys-
tem + cellular phone), on the vehicle
roof;
– a dual-purpose aerial connection
wires and ten-pin connector wiring
fig. 146.
– a double coil speaker (sound sys-
tem + cellular telephone), located on
the passenger side dashboard. HEAVY PRESETTING
The system consists of the following:
– sound system power wires;
– wires for front speakers on the
dashboard;
– 2 speakers on the dashboard;
– wires for door speakers (where
provided);
– 2 door speakers;
– 2 rear speakers (for passengers
transport versions);
– wires for rear speakers;
– sound system compartment;
– aerial wire and aerial.Speakers
– two mid-range speakers on dash-
board, diameter 100 mm, power 30W
max each.
– two woofer speakers on front
doors, diameter 165 mm, power 40W
max each (Panorama versions only).
– two full-range elliptic speakers on
rear window shelf, 95 x 154 mm, pow-
er 20W max each (Panorama versions
only).
Sound system installation
To fit the sound system, remove the
oddment compartment shown in fig.
145. To remove the compartment,
press it upwards and then pull it out
towards the inside of the vehicle.
fig. 144
F0A0162B
001-105 Doblo GB 16-12-2008 14:22 Pagina 98

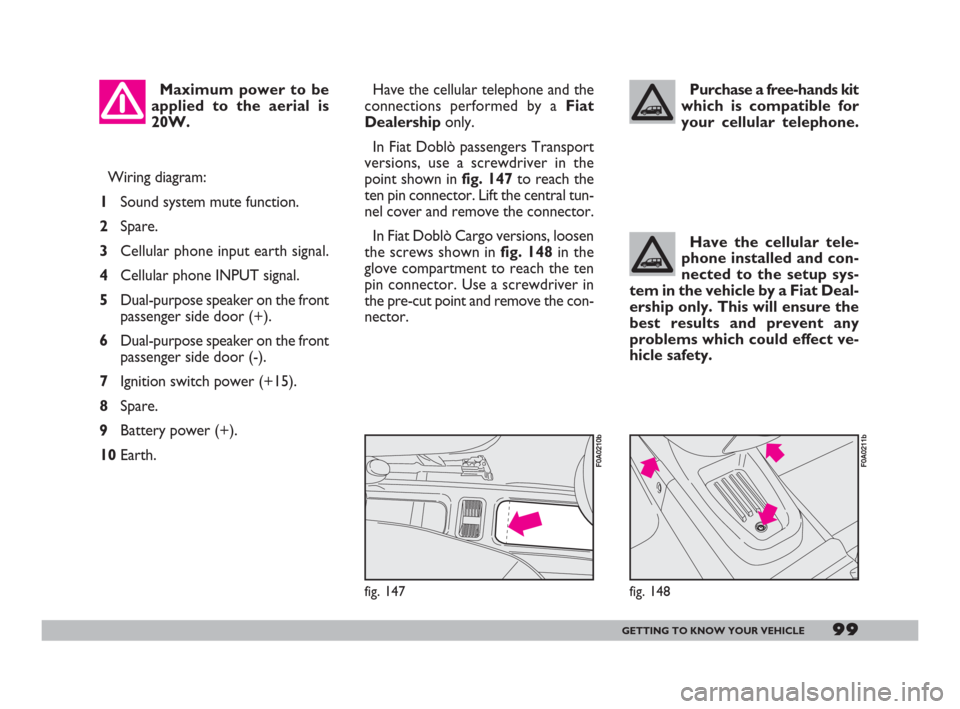

99GETTING TO KNOW YOUR VEHICLE
Wiring diagram:
1Sound system mute function.
2Spare.
3Cellular phone input earth signal.
4Cellular phone INPUT signal.
5Dual-purpose speaker on the front
passenger side door (+).
6Dual-purpose speaker on the front
passenger side door (-).
7Ignition switch power (+15).
8Spare.
9Battery power (+).
10Earth.Maximum power to be
applied to the aerial is
20W.
Have the cellular tele-
phone installed and con-
nected to the setup sys-
tem in the vehicle by a Fiat Deal-
ership only. This will ensure the
best results and prevent any
problems which could effect ve-
hicle safety.
Purchase a free-hands kit
which is compatible for
your cellular telephone.
fig. 147
F0A0210b
fig. 148
F0A0211b
Have the cellular telephone and the
connections performed by a Fiat
Dealershiponly.
In Fiat Doblò passengers Transport
versions, use a screwdriver in the
point shown in fig. 147to reach the
ten pin connector. Lift the central tun-
nel cover and remove the connector.
In Fiat Doblò Cargo versions, loosen
the screws shown in fig. 148in the
glove compartment to reach the ten
pin connector. Use a screwdriver in
the pre-cut point and remove the con-
nector.
001-105 Doblo GB 16-12-2008 14:22 Pagina 99
