Page 101 of 222

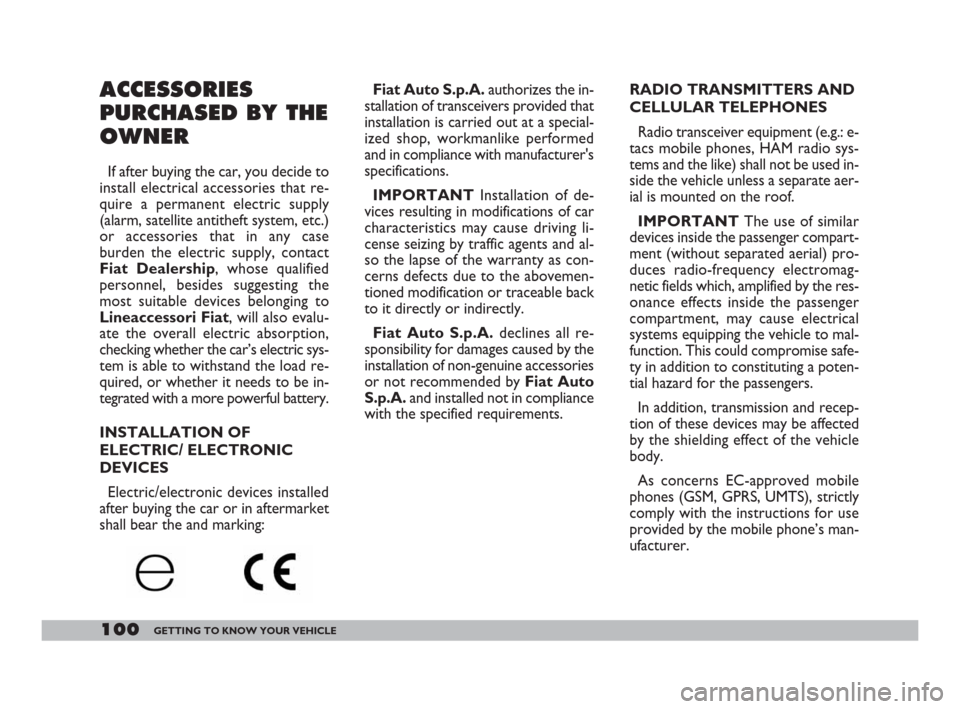

100GETTING TO KNOW YOUR VEHICLE
RADIO TRANSMITTERS AND
CELLULAR TELEPHONES
Radio transceiver equipment (e.g.: e-
tacs mobile phones, HAM radio sys-
tems and the like) shall not be used in-
side the vehicle unless a separate aer-
ial is mounted on the roof.
IMPORTANTThe use of similar
devices inside the passenger compart-
ment (without separated aerial) pro-
duces radio-frequency electromag-
netic fields which, amplified by the res-
onance effects inside the passenger
compartment, may cause electrical
systems equipping the vehicle to mal-
function. This could compromise safe-
ty in addition to constituting a poten-
tial hazard for the passengers.
In addition, transmission and recep-
tion of these devices may be affected
by the shielding effect of the vehicle
body.
As concerns EC-approved mobile
phones (GSM, GPRS, UMTS), strictly
comply with the instructions for use
provided by the mobile phone’s man-
ufacturer.ACCESSORIES
PURCHASED BY THE
OWNER
If after buying the car, you decide to
install electrical accessories that re-
quire a permanent electric supply
(alarm, satellite antitheft system, etc.)
or accessories that in any case
burden the electric supply, contact
Fiat Dealership, whose qualified
personnel, besides suggesting the
most suitable devices belonging to
Lineaccessori Fiat, will also evalu-
ate the overall electric absorption,
checking whether the car’s electric sys-
tem is able to withstand the load re-
quired, or whether it needs to be in-
tegrated with a more powerful battery.
INSTALLATION OF
ELECTRIC/ ELECTRONIC
DEVICES
Electric/electronic devices installed
after buying the car or in aftermarket
shall bear the and marking:Fiat Auto S.p.A. authorizes the in-
stallation of transceivers provided that
installation is carried out at a special-
ized shop, workmanlike performed
and in compliance with manufacturer's
specifications.
IMPORTANTInstallation of de-
vices resulting in modifications of car
characteristics may cause driving li-
cense seizing by traffic agents and al-
so the lapse of the warranty as con-
cerns defects due to the abovemen-
tioned modification or traceable back
to it directly or indirectly.
Fiat Auto S.p.A.declines all re-
sponsibility for damages caused by the
installation of non-genuine accessories
or not recommended by Fiat Auto
S.p.A.and installed not in compliance
with the specified requirements.
001-105 Doblo GB 16-12-2008 14:22 Pagina 100
Page 102 of 222

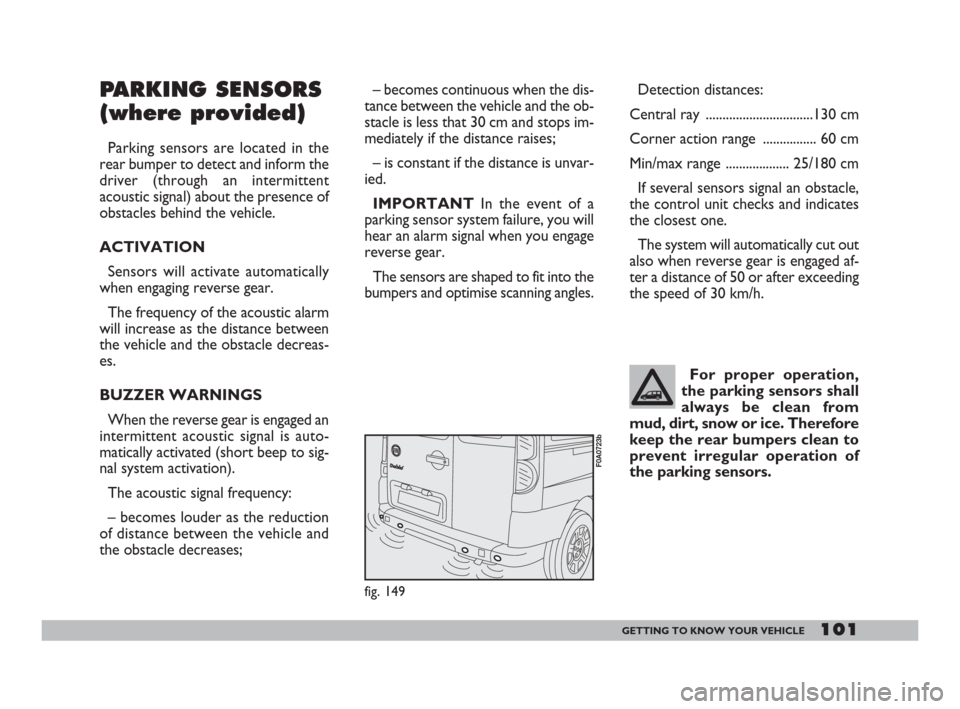

101GETTING TO KNOW YOUR VEHICLE
– becomes continuous when the dis-
tance between the vehicle and the ob-
stacle is less that 30 cm and stops im-
mediately if the distance raises;
– is constant if the distance is unvar-
ied.
IMPORTANTIn the event of a
parking sensor system failure, you will
hear an alarm signal when you engage
reverse gear.
The sensors are shaped to fit into the
bumpers and optimise scanning angles.
fig. 149
F0A0723b
PARKING SENSORS
(where provided)
Parking sensors are located in the
rear bumper to detect and inform the
driver (through an intermittent
acoustic signal) about the presence of
obstacles behind the vehicle.
ACTIVATION
Sensors will activate automatically
when engaging reverse gear.
The frequency of the acoustic alarm
will increase as the distance between
the vehicle and the obstacle decreas-
es.
BUZZER WARNINGS
When the reverse gear is engaged an
intermittent acoustic signal is auto-
matically activated (short beep to sig-
nal system activation).
The acoustic signal frequency:
– becomes louder as the reduction
of distance between the vehicle and
the obstacle decreases;Detection distances:
Central ray ................................130 cm
Corner action range ................ 60 cm
Min/max range ................... 25/180 cm
If several sensors signal an obstacle,
the control unit checks and indicates
the closest one.
The system will automatically cut out
also when reverse gear is engaged af-
ter a distance of 50 or after exceeding
the speed of 30 km/h.
For proper operation,
the parking sensors shall
always be clean from
mud, dirt, snow or ice. Therefore
keep the rear bumpers clean to
prevent irregular operation of
the parking sensors.
001-105 Doblo GB 16-12-2008 14:22 Pagina 101
Page 103 of 222

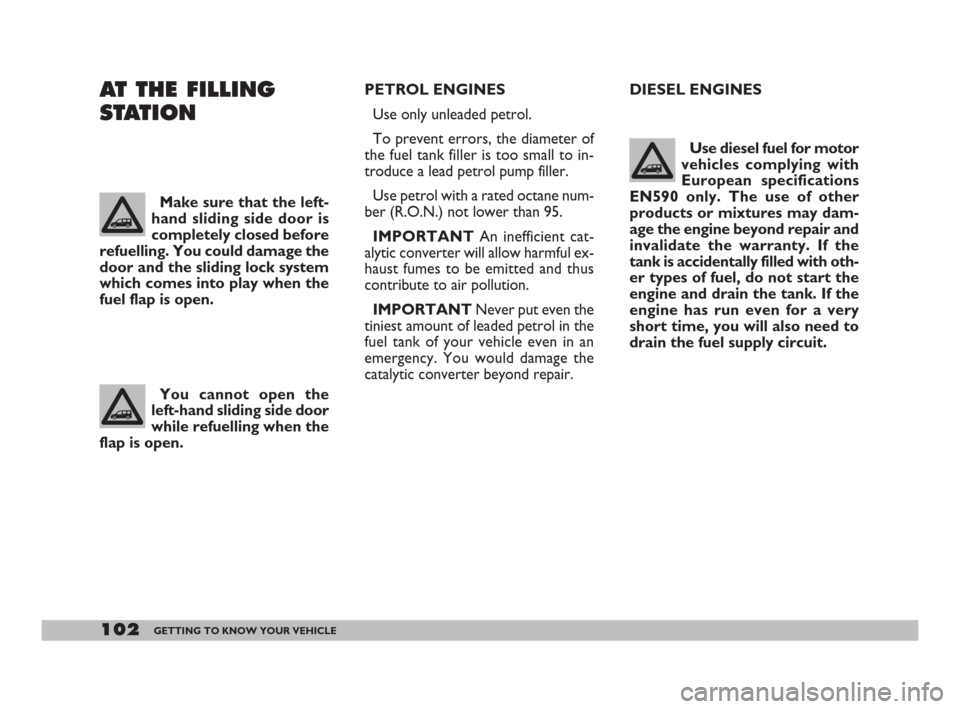

102GETTING TO KNOW YOUR VEHICLE
DIESEL ENGINES
Use diesel fuel for motor
vehicles complying with
European specifications
EN590 only. The use of other
products or mixtures may dam-
age the engine beyond repair and
invalidate the warranty. If the
tank is accidentally filled with oth-
er types of fuel, do not start the
engine and drain the tank. If the
engine has run even for a very
short time, you will also need to
drain the fuel supply circuit.AT THE FILLING
S TAT I O NPETROL ENGINES
Use only unleaded petrol.
To prevent errors, the diameter of
the fuel tank filler is too small to in-
troduce a lead petrol pump filler.
Use petrol with a rated octane num-
ber (R.O.N.) not lower than 95.
IMPORTANTAn inefficient cat-
alytic converter will allow harmful ex-
haust fumes to be emitted and thus
contribute to air pollution.
IMPORTANTNever put even the
tiniest amount of leaded petrol in the
fuel tank of your vehicle even in an
emergency. You would damage the
catalytic converter beyond repair. Make sure that the left-
hand sliding side door is
completely closed before
refuelling. You could damage the
door and the sliding lock system
which comes into play when the
fuel flap is open.
You cannot open the
left-hand sliding side door
while refuelling when the
flap is open.
001-105 Doblo GB 16-12-2008 14:22 Pagina 102
Page 104 of 222

103GETTING TO KNOW YOUR VEHICLE

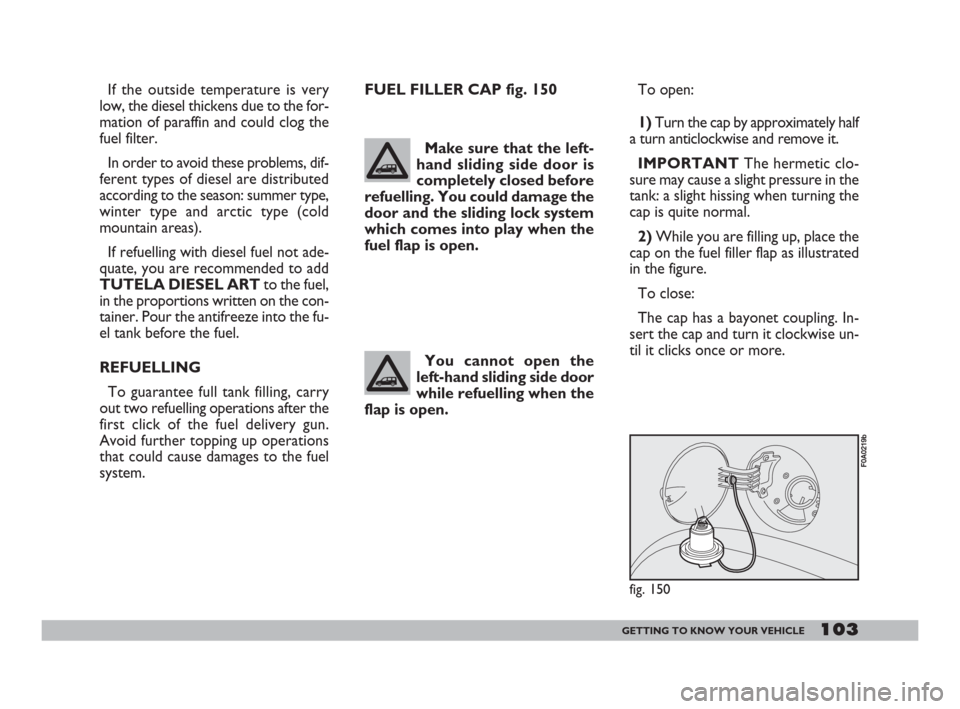

If the outside temperature is very
low, the diesel thickens due to the for-
mation of paraffin and could clog the
fuel filter.
In order to avoid these problems, dif-
ferent types of diesel are distributed
according to the season: summer type,
winter type and arctic type (cold
mountain areas).
If refuelling with diesel fuel not ade-
quate, you are recommended to add
TUTELA DIESEL ARTto the fuel,
in the proportions written on the con-
tainer. Pour the antifreeze into the fu-
el tank before the fuel.
REFUELLING
To guarantee full tank filling, carry
out two refuelling operations after the
first click of the fuel delivery gun.
Avoid further topping up operations
that could cause damages to the fuel
system.FUEL FILLER CAP fig. 150
Make sure that the left-
hand sliding side door is
completely closed before
refuelling. You could damage the
door and the sliding lock system
which comes into play when the
fuel flap is open.
You cannot open the
left-hand sliding side door
while refuelling when the
flap is open.
fig. 150
F0A0219b
To open:
1)Turn the cap by approximately half
a turn anticlockwise and remove it.
IMPORTANTThe hermetic clo-
sure may cause a slight pressure in the
tank: a slight hissing when turning the
cap is quite normal.
2)While you are filling up, place the
cap on the fuel filler flap as illustrated
in the figure.
To close:
The cap has a bayonet coupling. In-
sert the cap and turn it clockwise un-
til it clicks once or more.
001-105 Doblo GB 16-12-2008 14:22 Pagina 103
Page 105 of 222

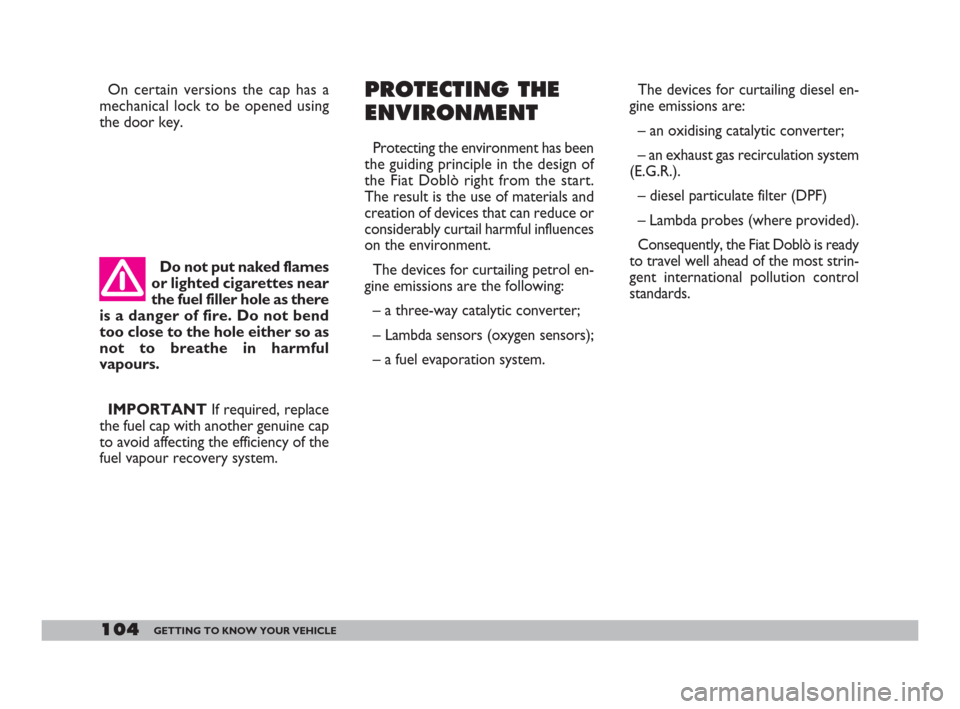

104GETTING TO KNOW YOUR VEHICLE
On certain versions the cap has a
mechanical lock to be opened using
the door key. PROTECTING THE
ENVIRONMENT
Protecting the environment has been
the guiding principle in the design of
the Fiat Doblò right from the start.
The result is the use of materials and
creation of devices that can reduce or
considerably curtail harmful influences
on the environment.
The devices for curtailing petrol en-
gine emissions are the following:
– a three-way catalytic converter;
– Lambda sensors (oxygen sensors);
– a fuel evaporation system. Do not put naked flames
or lighted cigarettes near
the fuel filler hole as there
is a danger of fire. Do not bend
too close to the hole either so as
not to breathe in harmful
vapours.
IMPORTANTIf required, replace
the fuel cap with another genuine cap
to avoid affecting the efficiency of the
fuel vapour recovery system.
The devices for curtailing diesel en-
gine emissions are:
– an oxidising catalytic converter;
– an exhaust gas recirculation system
(E.G.R.).
– diesel particulate filter (DPF)
– Lambda probes (where provided).
Consequently, the Fiat Doblò is ready
to travel well ahead of the most strin-
gent international pollution control
standards.
001-105 Doblo GB 16-12-2008 14:22 Pagina 104
Page 106 of 222

105GETTING TO KNOW YOUR VEHICLE

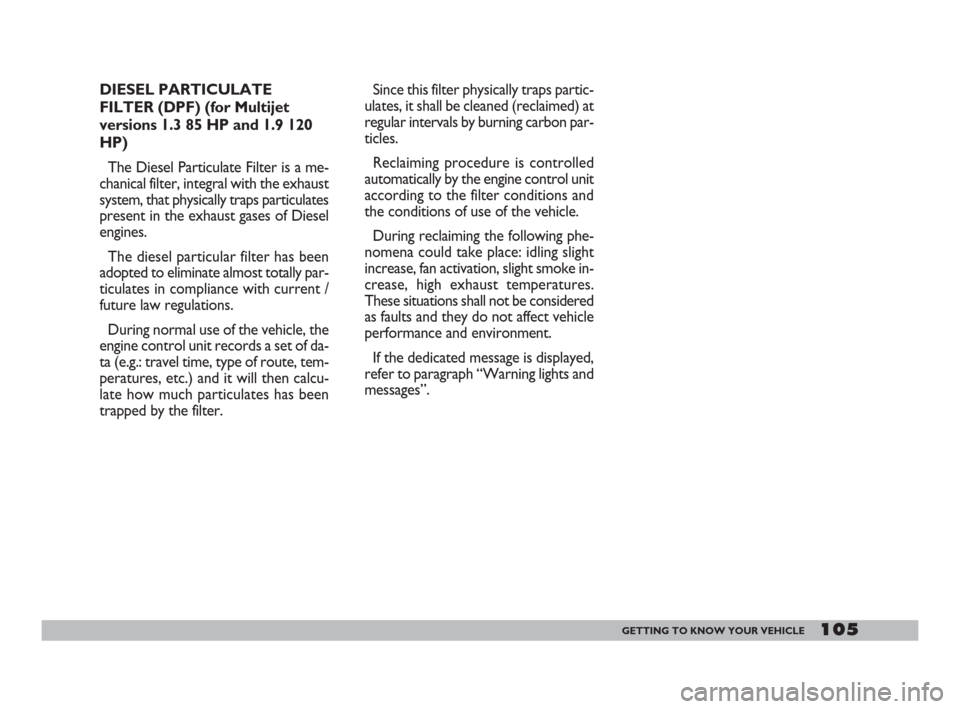

DIESEL PARTICULATE
FILTER (DPF) (for Multijet
versions 1.3 85 HP and 1.9 120
HP)
The Diesel Particulate Filter is a me-
chanical filter, integral with the exhaust
system, that physically traps particulates
present in the exhaust gases of Diesel
engines.
The diesel particular filter has been
adopted to eliminate almost totally par-
ticulates in compliance with current /
future law regulations.
During normal use of the vehicle, the
engine control unit records a set of da-
ta (e.g.: travel time, type of route, tem-
peratures, etc.) and it will then calcu-
late how much particulates has been
trapped by the filter.Since this filter physically traps partic-
ulates, it shall be cleaned (reclaimed) at
regular intervals by burning carbon par-
ticles.
Reclaiming procedure is controlled
automatically by the engine control unit
according to the filter conditions and
the conditions of use of the vehicle.
During reclaiming the following phe-
nomena could take place: idling slight
increase, fan activation, slight smoke in-
crease, high exhaust temperatures.
These situations shall not be considered
as faults and they do not affect vehicle
performance and environment.
If the dedicated message is displayed,
refer to paragraph “Warning lights and
messages”.
001-105 Doblo GB 16-12-2008 14:22 Pagina 105
Page 107 of 222

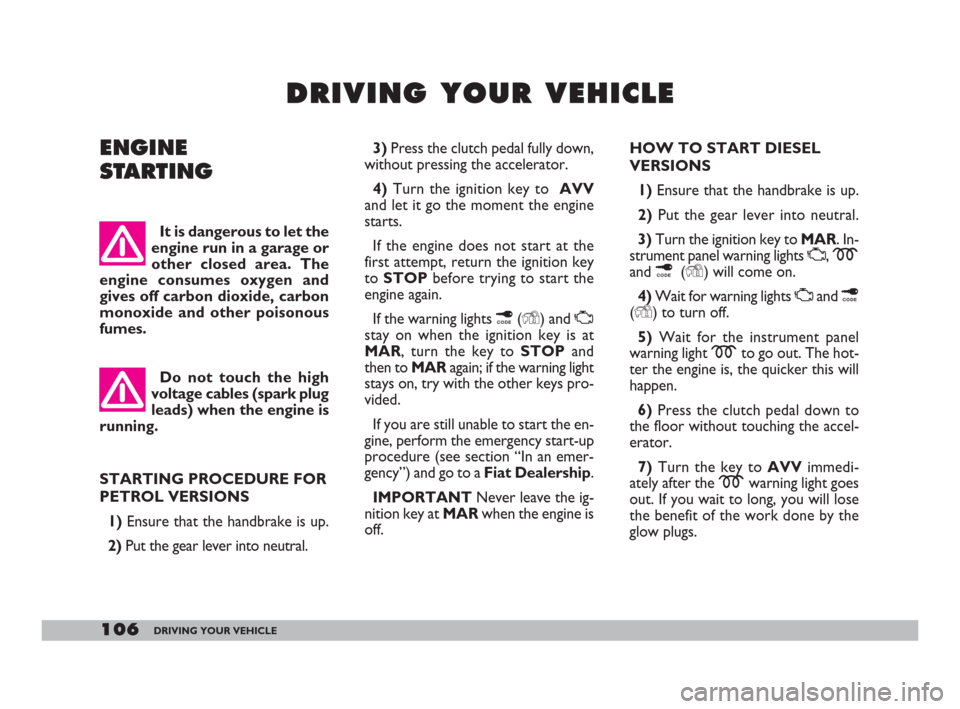

106DRIVING YOUR VEHICLE
ENGINE
STARTING3)Press the clutch pedal fully down,
without pressing the accelerator.
4) Turn the ignition key to AVV
and let it go the moment the engine
starts.
If the engine does not start at the
first attempt, return the ignition key
to STOPbefore trying to start the
engine again.
If the warning lights ¢(Y) and U
stay on when the ignition key is at
MAR, turn the key to STOPand
then to MARagain; if the warning light
stays on, try with the other keys pro-
vided.
If you are still unable to start the en-
gine, perform the emergency start-up
procedure (see section “In an emer-
gency”) and go to a Fiat Dealership.
IMPORTANTNever leave the ig-
nition key at MARwhen the engine is
off.HOW TO START DIESEL
VERSIONS
1) Ensure that the handbrake is up.
2)Put the gear lever into neutral.
3)Turn the ignition key to MAR. In-
strument panel warning lights U, m
and ¢(Y) will come on.
4)Wait for warning lights Uand ¢
(Y) to turn off.
5) Wait for the instrument panel
warning light mto go out. The hot-
ter the engine is, the quicker this will
happen.
6)Press the clutch pedal down to
the floor without touching the accel-
erator.
7) Turn the key to AVVimmedi-
ately after the mwarning light goes
out. If you wait to long, you will lose
the benefit of the work done by the
glow plugs.
D D
R R
I I
V V
I I
N N
G G
Y Y
O O
U U
R R
V V
E E
H H
I I
C C
L L
E E
It is dangerous to let the
engine run in a garage or
other closed area. The
engine consumes oxygen and
gives off carbon dioxide, carbon
monoxide and other poisonous
fumes.
Do not touch the high
voltage cables (spark plug
leads) when the engine is
running.
STARTING PROCEDURE FOR
PETROL VERSIONS
1) Ensure that the handbrake is up.
2)Put the gear lever into neutral.
106-118 Doblo GB 9-05-2008 12:09 Pagina 106
Page 108 of 222

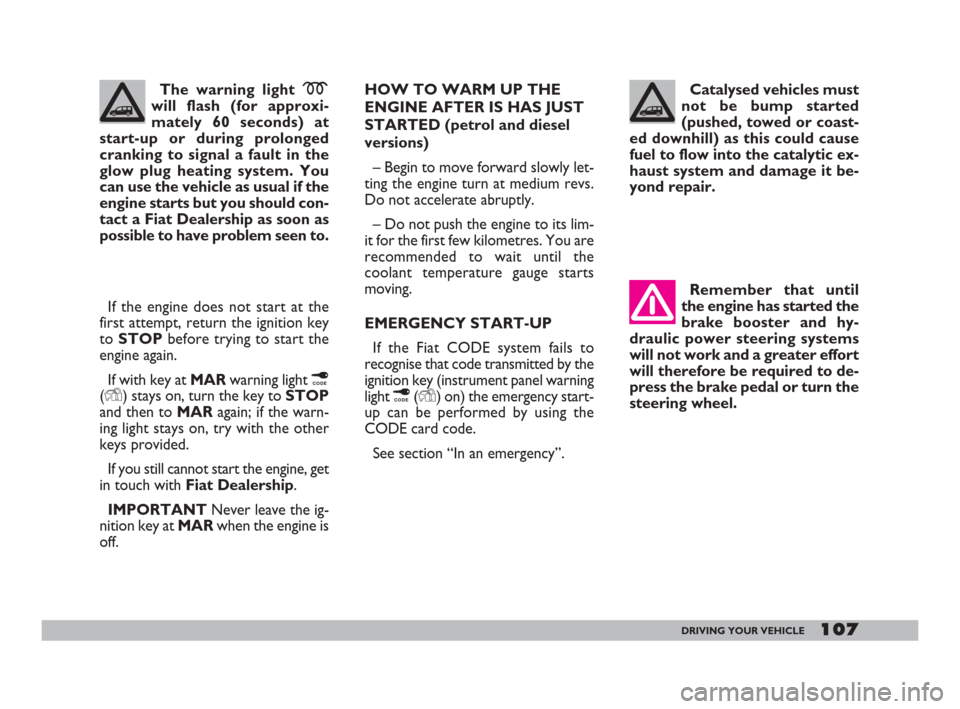

107DRIVING YOUR VEHICLE
HOW TO WARM UP THE
ENGINE AFTER IS HAS JUST
STARTED (petrol and diesel
versions)
– Begin to move forward slowly let-
ting the engine turn at medium revs.
Do not accelerate abruptly.
– Do not push the engine to its lim-
it for the first few kilometres. You are
recommended to wait until the
coolant temperature gauge starts
moving.
EMERGENCY START-UP
If the Fiat CODE system fails to
recognise that code transmitted by the
ignition key (instrument panel warning
light ¢(Y) on) the emergency start-
up can be performed by using the
CODE card code.
See section “In an emergency”. The warning light m
will flash (for approxi-
mately 60 seconds) at
start-up or during prolonged
cranking to signal a fault in the
glow plug heating system. You
can use the vehicle as usual if the
engine starts but you should con-
tact a Fiat Dealership as soon as
possible to have problem seen to.
If the engine does not start at the
first attempt, return the ignition key
to STOPbefore trying to start the
engine again.
If with key at MARwarning light ¢
(Y) stays on, turn the key to STOP
and then to MARagain; if the warn-
ing light stays on, try with the other
keys provided.
If you still cannot start the engine, get
in touch with Fiat Dealership.
IMPORTANTNever leave the ig-
nition key at MARwhen the engine is
off.Catalysed vehicles must
not be bump started
(pushed, towed or coast-
ed downhill) as this could cause
fuel to flow into the catalytic ex-
haust system and damage it be-
yond repair.
Remember that until
the engine has started the
brake booster and hy-
draulic power steering systems
will not work and a greater effort
will therefore be required to de-
press the brake pedal or turn the
steering wheel.
106-118 Doblo GB 9-05-2008 12:09 Pagina 107
Page 109 of 222

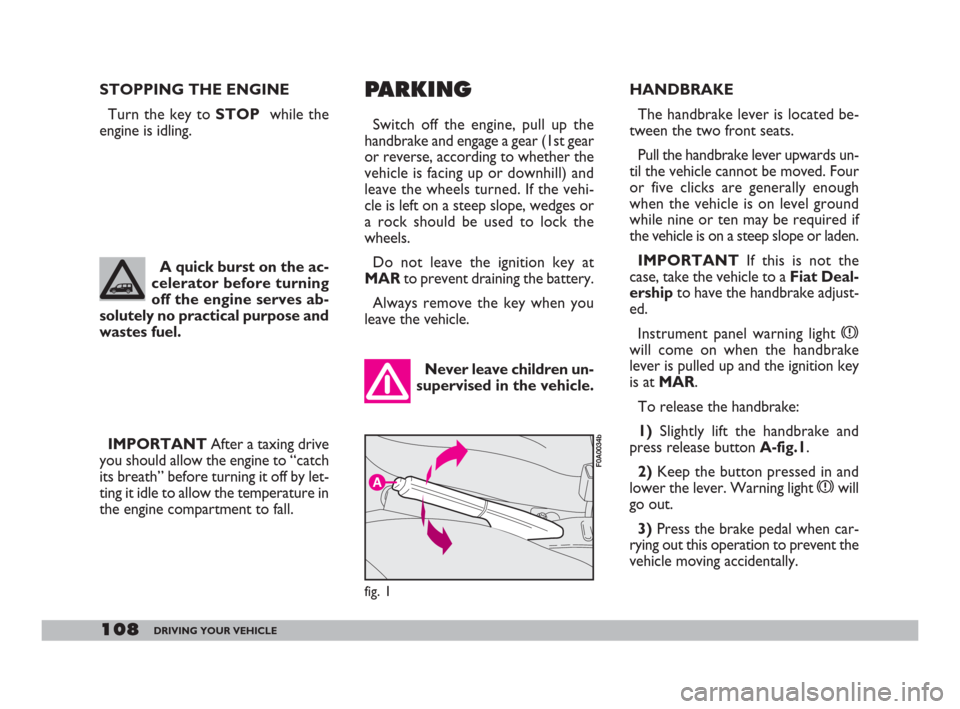

108DRIVING YOUR VEHICLE
IMPORTANTAfter a taxing drive
you should allow the engine to “catch
its breath” before turning it off by let-
ting it idle to allow the temperature in
the engine compartment to fall.
PARKING
Switch off the engine, pull up the
handbrake and engage a gear (1st gear
or reverse, according to whether the
vehicle is facing up or downhill) and
leave the wheels turned. If the vehi-
cle is left on a steep slope, wedges or
a rock should be used to lock the
wheels.
Do not leave the ignition key at
MARto prevent draining the battery.
Always remove the key when you
leave the vehicle.HANDBRAKE
The handbrake lever is located be-
tween the two front seats.
Pull the handbrake lever upwards un-
til the vehicle cannot be moved. Four
or five clicks are generally enough
when the vehicle is on level ground
while nine or ten may be required if
the vehicle is on a steep slope or laden.
IMPORTANTIf this is not the
case, take the vehicle to a Fiat Deal-
ership to have the handbrake adjust-
ed.
Instrument panel warning light x
will come on when the handbrake
lever is pulled up and the ignition key
is at MAR.
To release the handbrake:
1)Slightly lift the handbrake and
press release button A-fig.1.
2)Keep the button pressed in and
lower the lever. Warning light xwill
go out.
3)Press the brake pedal when car-
rying out this operation to prevent the
vehicle moving accidentally. STOPPING THE ENGINE
Turn the key to STOPwhile the
engine is idling.
A quick burst on the ac-
celerator before turning
off the engine serves ab-
solutely no practical purpose and
wastes fuel.
Never leave children un-
supervised in the vehicle.
A
fig. 1
F0A0034b
106-118 Doblo GB 9-05-2008 12:09 Pagina 108
Page 110 of 222

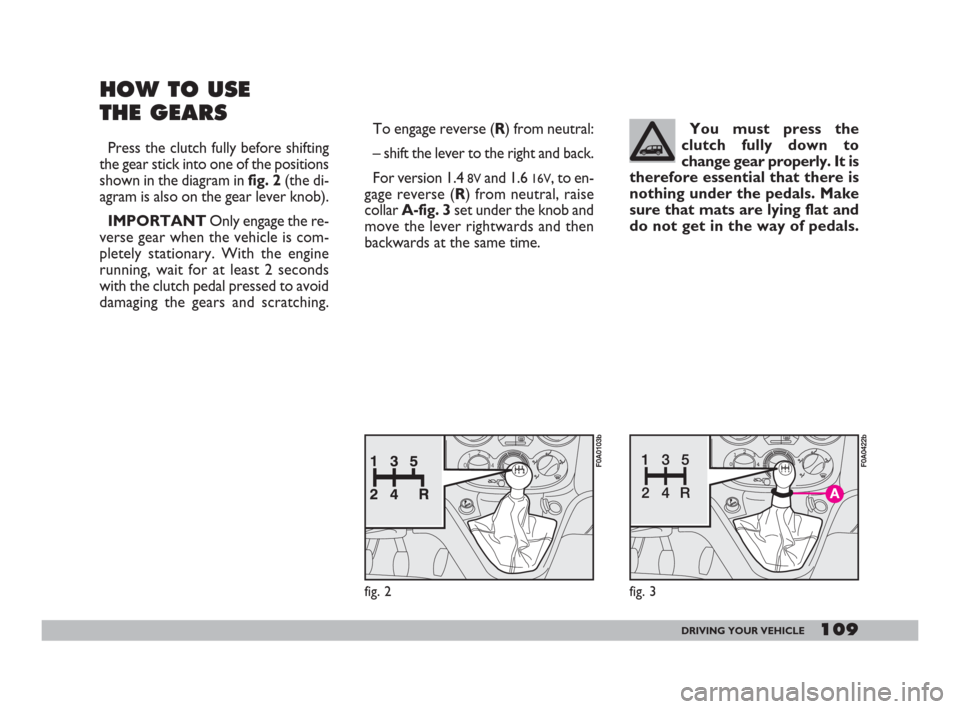

109DRIVING YOUR VEHICLE
HOW TO USE
THE GEARS
Press the clutch fully before shifting
the gear stick into one of the positions
shown in the diagram in fig. 2(the di-
agram is also on the gear lever knob).
IMPORTANTOnly engage the re-
verse gear when the vehicle is com-
pletely stationary. With the engine
running, wait for at least 2 seconds
with the clutch pedal pressed to avoid
damaging the gears and scratching.To engage reverse (R) from neutral:
– shift the lever to the right and back.
For version 1.4
8Vand 1.6 16V, to en-
gage reverse (R) from neutral, raise
collar A-fig. 3set under the knob and
move the lever rightwards and then
backwards at the same time.
fig. 2
F0A0103b
fig. 3
F0A0422b
You must press the
clutch fully down to
change gear properly. It is
therefore essential that there is
nothing under the pedals. Make
sure that mats are lying flat and
do not get in the way of pedals.
106-118 Doblo GB 9-05-2008 12:09 Pagina 109
