Page 11 of 82

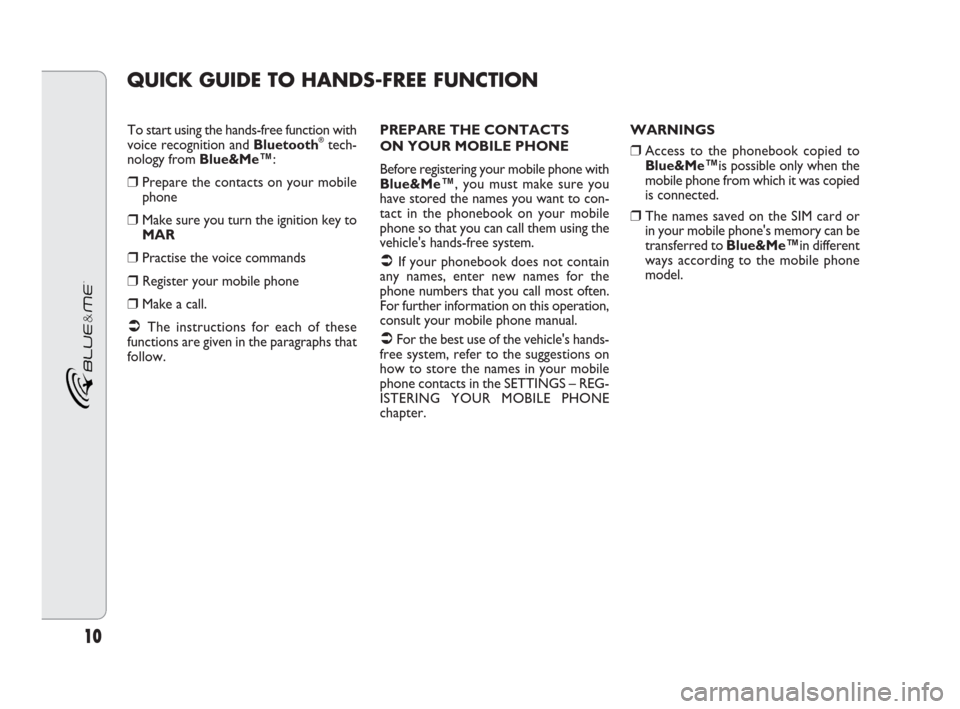

10
To start using the hands-free function with
voice recognition and Bluetooth®tech-
nology from Blue&Me™:
❒Prepare the contacts on your mobile
phone
❒Make sure you turn the ignition key to
MAR
❒Practise the voice commands
❒Register your mobile phone
❒Make a call.
The instructions for each of these
functions are given in the paragraphs that
follow.PREPARE THE CONTACTS
ON YOUR MOBILE PHONE
Before registering your mobile phone with
Blue&Me™, you must make sure you
have stored the names you want to con-
tact in the phonebook on your mobile
phone so that you can call them using the
vehicle's hands-free system.
If your phonebook does not contain
any names, enter new names for the
phone numbers that you call most often.
For further information on this operation,
consult your mobile phone manual.
For the best use of the vehicle's hands-
free system, refer to the suggestions on
how to store the names in your mobile
phone contacts in the SETTINGS – REG-
ISTERING YOUR MOBILE PHONE
chapter.WARNINGS
❒Access to the phonebook copied to
Blue&Me™is possible only when the
mobile phone from which it was copied
is connected.
❒The names saved on the SIM card or
in your mobile phone's memory can be
transferred to Blue&Me™in different
ways according to the mobile phone
model.
QUICK GUIDE TO HANDS-FREE FUNCTION
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 10
Page 12 of 82

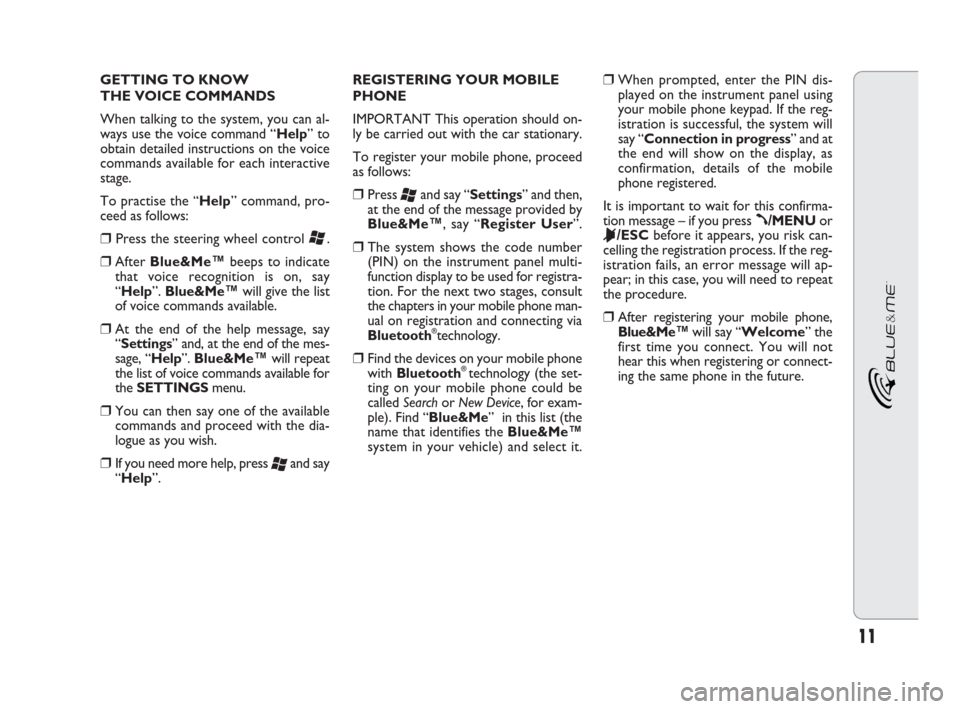

11
GETTING TO KNOW
THE VOICE COMMANDS
When talking to the system, you can al-
ways use the voice command “Help” to
obtain detailed instructions on the voice
commands available for each interactive
stage.
To practise the “Help” command, pro-
ceed as follows:
❒Press the steering wheel control ‘.
❒After Blue&Me™beeps to indicate
that voice recognition is on, say
“Help”. Blue&Me™will give the list
of voice commands available.
❒At the end of the help message, say
“Settings” and, at the end of the mes-
sage, “Help”. Blue&Me™will repeat
the list of voice commands available for
the SETTINGSmenu.
❒You can then say one of the available
commands and proceed with the dia-
logue as you wish.
❒If you need more help, press ‘and say
“Help”.REGISTERING YOUR MOBILE
PHONE
IMPORTANT This operation should on-
ly be carried out with the car stationary.
To register your mobile phone, proceed
as follows:
❒Press ‘and say “Settings” and then,
at the end of the message provided by
Blue&Me™, say “Register User”.
❒The system shows the code number
(PIN) on the instrument panel multi-
function display to be used for registra-
tion. For the next two stages, consult
the chapters in your mobile phone man-
ual on registration and connecting via
Bluetooth
®technology.
❒Find the devices on your mobile phone
with Bluetooth®technology (the set-
ting on your mobile phone could be
called Searchor New Device, for exam-
ple). Find “Blue&Me” in this list (the
name that identifies the Blue&Me™
system in your vehicle) and select it.
❒When prompted, enter the PIN dis-
played on the instrument panel using
your mobile phone keypad. If the reg-
istration is successful, the system will
say “Connection in progress” and at
the end will show on the display, as
confirmation, details of the mobile
phone registered.
It is important to wait for this confirma-
tion message – if you press
ß/MENUor
&/ESCbefore it appears, you risk can-
celling the registration process. If the reg-
istration fails, an error message will ap-
pear; in this case, you will need to repeat
the procedure.
❒After registering your mobile phone,
Blue&Me™will say “Welcome” the
first time you connect. You will not
hear this when registering or connect-
ing the same phone in the future.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 11
Page 13 of 82

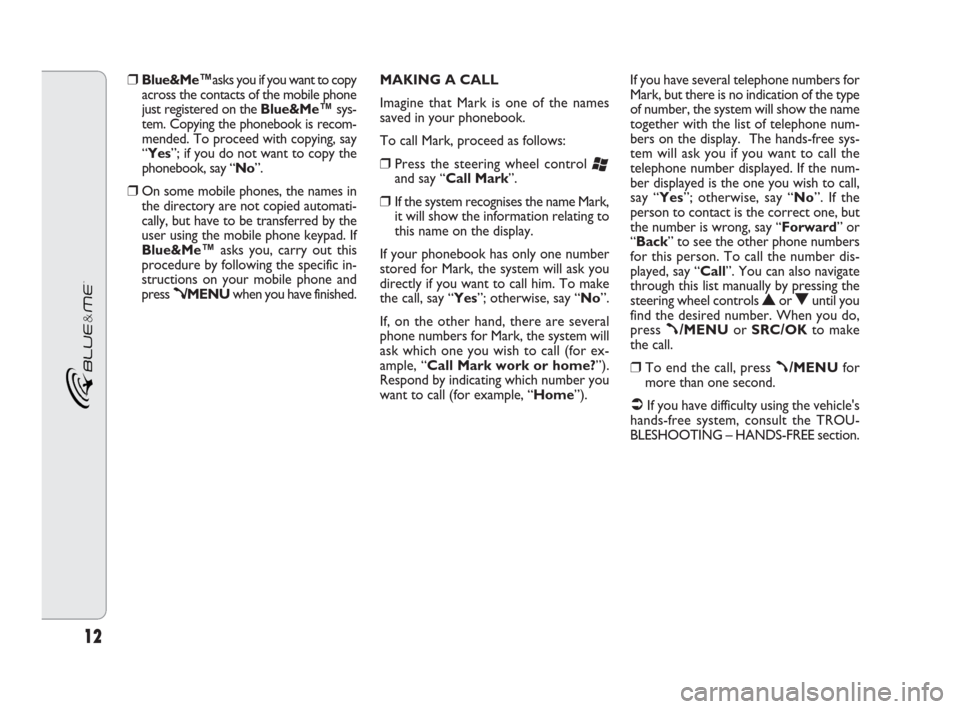

12
❒Blue&Me™asks you if you want to copy
across the contacts of the mobile phone
just registered on the Blue&Me™sys-
tem. Copying the phonebook is recom-
mended. To proceed with copying, say
“Yes”; if you do not want to copy the
phonebook, say “No”.
❒On some mobile phones, the names in
the directory are not copied automati-
cally, but have to be transferred by the
user using the mobile phone keypad. If
Blue&Me™asks you, carry out this
procedure by following the specific in-
structions on your mobile phone and
press
ß/MENUwhen you have finished. MAKING A CALL
Imagine that Mark is one of the names
saved in your phonebook.
To call Mark, proceed as follows:
❒Press the steering wheel control ‘and say “Call Mark”.
❒If the system recognises the name Mark,
it will show the information relating to
this name on the display.
If your phonebook has only one number
stored for Mark, the system will ask you
directly if you want to call him. To make
the call, say “Yes”; otherwise, say “No”.
If, on the other hand, there are several
phone numbers for Mark, the system will
ask which one you wish to call (for ex-
ample, “Call Mark work or home?”).
Respond by indicating which number you
want to call (for example, “Home”). If you have several telephone numbers for
Mark, but there is no indication of the type
of number, the system will show the name
together with the list of telephone num-
bers on the display. The hands-free sys-
tem will ask you if you want to call the
telephone number displayed. If the num-
ber displayed is the one you wish to call,
say “Yes”; otherwise, say “No”. If the
person to contact is the correct one, but
the number is wrong, say “Forward” or
“Back” to see the other phone numbers
for this person. To call the number dis-
played, say “Call”. You can also navigate
through this list manually by pressing the
steering wheel controls
Nor Ountil you
find the desired number. When you do,
press
ß/MENUor SRC/OKto make
the call.
❒To end the call, press ß/MENUfor
more than one second.
If you have difficulty using the vehicle's
hands-free system, consult the TROU-
BLESHOOTING – HANDS-FREE section.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 12
Page 14 of 82

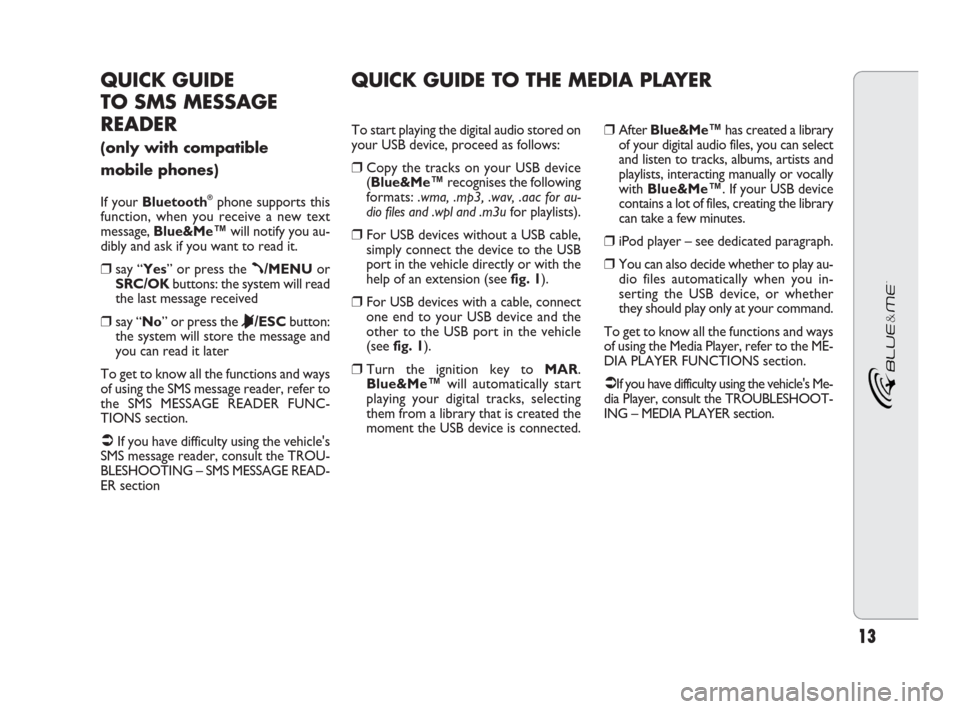

13
QUICK GUIDE
TO SMS MESSAGE
READER
(only with compatible
mobile phones)
If your Bluetooth®phone supports this
function, when you receive a new text
message, Blue&Me™will notify you au-
dibly and ask if you want to read it.
❒say “Yes” or press the ß/MENUor
SRC/OKbuttons: the system will read
the last message received
❒say “No” or press the &/ESCbutton:
the system will store the message and
you can read it later
To get to know all the functions and ways
of using the SMS message reader, refer to
the SMS MESSAGE READER FUNC-
TIONS section.
If you have difficulty using the vehicle's
SMS message reader, consult the TROU-
BLESHOOTING – SMS MESSAGE READ-
ER sectionTo start playing the digital audio stored on
your USB device, proceed as follows:
❒Copy the tracks on your USB device
(Blue&Me™recognises the following
formats: .wma, .mp3, .wav, .aac for au-
dio files and .wpl and .m3ufor playlists).
❒For USB devices without a USB cable,
simply connect the device to the USB
port in the vehicle directly or with the
help of an extension (see fig. 1).
❒For USB devices with a cable, connect
one end to your USB device and the
other to the USB port in the vehicle
(see fig. 1).
❒Turn the ignition key to MAR.
Blue&Me™will automatically start
playing your digital tracks, selecting
them from a library that is created the
moment the USB device is connected.
❒After Blue&Me™has created a library
of your digital audio files, you can select
and listen to tracks, albums, artists and
playlists, interacting manually or vocally
with Blue&Me™. If your USB device
contains a lot of files, creating the library
can take a few minutes.
❒iPod player – see dedicated paragraph.
❒You can also decide whether to play au-
dio files automatically when you in-
serting the USB device, or whether
they should play only at your command.
To get to know all the functions and ways
of using the Media Player, refer to the ME-
DIA PLAYER FUNCTIONS section.
If you have difficulty using the vehicle's Me-
dia Player, consult the TROUBLESHOOT-
ING – MEDIA PLAYER section.
QUICK GUIDE TO THE MEDIA PLAYER
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 13
Page 15 of 82

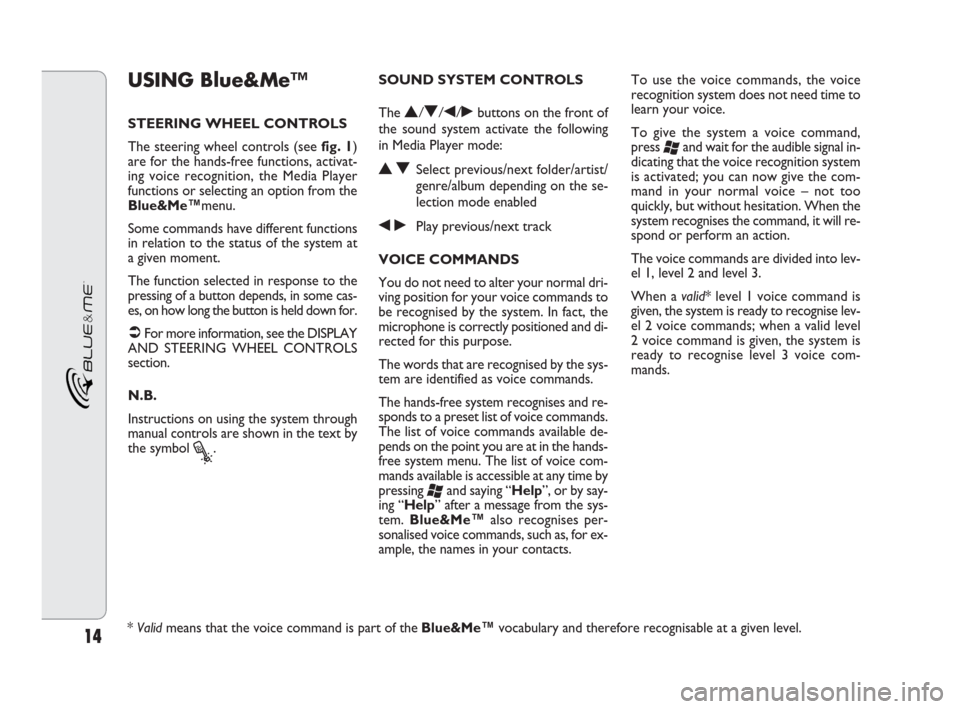

14
SOUND SYSTEM CONTROLS
The
N/O/¯/˙buttons on the front of
the sound system activate the following
in Media Player mode:
NOSelect previous/next folder/artist/
genre/album depending on the se-
lection mode enabled
¯˙Play previous/next track
VOICE COMMANDS
You do not need to alter your normal dri-
ving position for your voice commands to
be recognised by the system. In fact, the
microphone is correctly positioned and di-
rected for this purpose.
The words that are recognised by the sys-
tem are identified as voice commands.
The hands-free system recognises and re-
sponds to a preset list of voice commands.
The list of voice commands available de-
pends on the point you are at in the hands-
free system menu. The list of voice com-
mands available is accessible at any time by
pressing
‘and saying “Help”, or by say-
ing “Help” after a message from the sys-
tem. Blue&Me™also recognises per-
sonalised voice commands, such as, for ex-
ample, the names in your contacts.To use the voice commands, the voice
recognition system does not need time to
learn your voice.
To give the system a voice command,
press
‘and wait for the audible signal in-
dicating that the voice recognition system
is activated; you can now give the com-
mand in your normal voice – not too
quickly, but without hesitation. When the
system recognises the command, it will re-
spond or perform an action.
The voice commands are divided into lev-
el 1, level 2 and level 3.
When a valid* level 1 voice command is
given, the system is ready to recognise lev-
el 2 voice commands; when a valid level
2 voice command is given, the system is
ready to recognise level 3 voice com-
mands.
* Validmeans that the voice command is part of the Blue&Me™vocabulary and therefore recognisable at a given level.
USING Blue&Me™
STEERING WHEEL CONTROLS
The steering wheel controls (see fig. 1)
are for the hands-free functions, activat-
ing voice recognition, the Media Player
functions or selecting an option from the
Blue&Me™menu.
Some commands have different functions
in relation to the status of the system at
a given moment.
The function selected in response to the
pressing of a button depends, in some cas-
es, on how long the button is held down for.
For more information, see the DISPLAY
AND STEERING WHEEL CONTROLS
section.
N.B.
Instructions on using the system through
manual controls are shown in the text by
the symbol
?.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 14
Page 16 of 82
15
If the user gives a valid level 1 voice com-
mand, the sub-menu for that command re-
mains activated until a voice command
leading to another level is given or the in-
teraction is interrupted; the same rule ap-
plies for lower levels (2 and 3).
For a list of all the available voice com-
mands, refer to the LIST OF AVAILABLE
VOICE COMMANDS section.
To listen again to the last message given
by the system, press
‘for more than
one second or briefly press
‘and say
“Repeat”.
It is possible that the hands-free system
will provide spoken information. A vocal
announcement is a voice message spoken
directly by the system. To stop a vocal an-
nouncement, press
&/ESC, or press ‘and say “Cancel”.
A vocal interaction is an exchange of com-
munication/commands between the hands-
free system and the user. To start a vocal
interaction, press
‘and give a command.
To stop an interaction and start a new one,
press
‘at any time during the interaction
and give a voice command.
To end an interaction, press
&/ESC. You
will hear a signal indicating that voice
recognition has been deactivated.The help function can provide you, at any
time, with a list of commands available for
the level you are at. To use the help sys-
tem, say “Help”, listen to the list of com-
mands available and decide which com-
mand to give to the system.
Adjust the volume to the level that is best
for you with the vehicle in motion.
To adjust the preset Blue&Me™volume,
refer to the “EXTERNAL AUDIO func-
tion” section in the sound system in-
struction manual. To temporarily adjust
the volume of an ongoing call, press +
or−or turn the sound system knob. At
the end of the call, the volume will return
to its original level.
You can also press +or −to adjust the
volume of a vocal announcement while it
is being said by Blue&Me™.
Remember that to interrupt a vocal an-
nouncement you can press
‘at any time
during a vocal interaction and provide
a new voice command.N.B.
❒Instructions on using the system
through voice commands are shown in
the text by the symbol
}.
❒After having pressed ‘, if you do not
give a voice command within a few sec-
onds, the system will ask you to give
a voice command. If you do not re-
spond, voice recognition is deactivated.
This also happens if you do not provide
a response to a question from the sys-
tem. In these cases, you will hear a sig-
nal indicating that voice recognition has
been deactivated.
❒When the system fails to recognise
your voice command, it will give you an-
other chance to give the command. If
you are not sure that the voice com-
mand is correct at a given level, say
“Help”.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 15
Page 17 of 82
16
Using voice recognition
The voice recognition system, sometimes,
can make a mistake when recognising
a voice command. To make sure you that
your voice commands are always recog-
nised, use the following guidelines:
❒After having pressed ‘, give the voice
command after the system has provid-
ed the audible signal indicating that
voice recognition is on.
❒After the system has asked you a ques-
tion, wait a second before giving the an-
swer, in order to be sure that voice
recognition is on.
❒If you want to give a command without
waiting for the system to finish its mes-
sage or question, you can briefly press
the
‘button again to interrupt the sys-
tem and give your command.
❒Speak at a normal volume.
❒Say the words clearly: not too quickly,
but without hesitation.
❒If possible, try to reduce noise inside the
passenger compartment to a minimum.
❒Before giving voice commands, ask your
passengers not to speak. Since the sys-
tem recognises the words regardless of
who speaks, if several people speak at
the same time, the system may pick up
different or additional words to those
that you have said.
❒For optimum operation it is advisable
to close the sunroof if your vehicle has
one. N.B.
For countries where a mother-tongue
version is not available, voice recognition
of the commands and especially the
phonebook contacts could be difficult. We
advise adopting pronunciation that con-
forms to the language in Blue&Me™.
To change the voice recognition language,
contact a Fiat Dealership or see the dedi-
cated section on www.fiat.it.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 16
Page 18 of 82
17

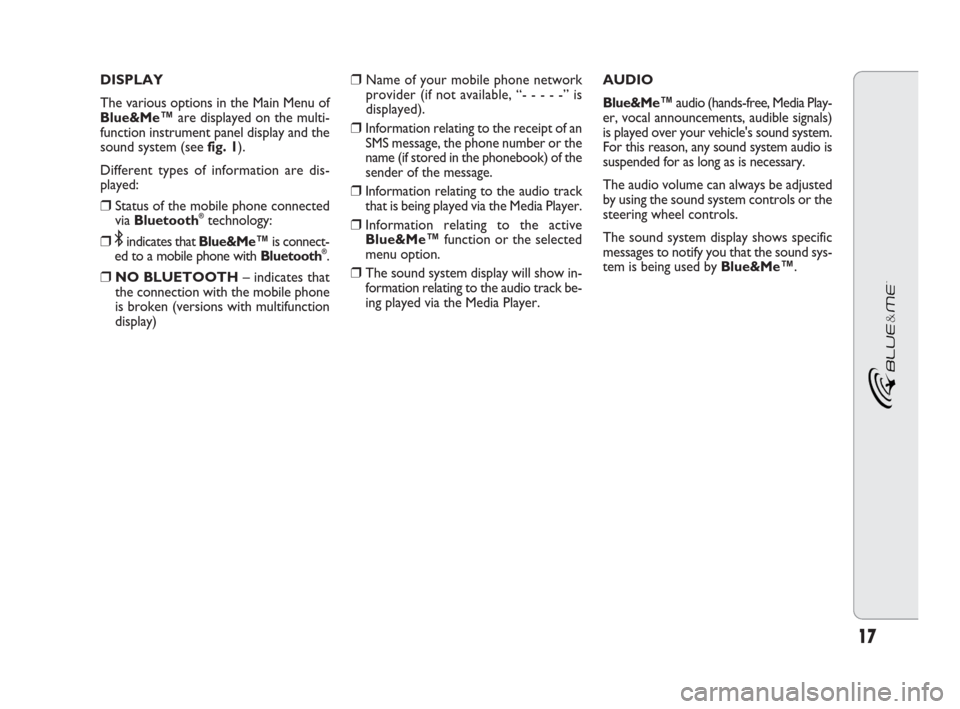

DISPLAY
The various options in the Main Menu of
Blue&Me™are displayed on the multi-
function instrument panel display and the
sound system (see fig. 1).
Different types of information are dis-
played:
❒Status of the mobile phone connected
via Bluetooth®technology:
❒;indicates that Blue&Me™is connect-
ed to a mobile phone with Bluetooth®.
❒NO BLUETOOTH– indicates that
the connection with the mobile phone
is broken (versions with multifunction
display)
❒Name of your mobile phone network
provider (if not available, “- - - - -” is
displayed).
❒Information relating to the receipt of an
SMS message, the phone number or the
name (if stored in the phonebook) of the
sender of the message.
❒Information relating to the audio track
that is being played via the Media Player.
❒Information relating to the active
Blue&Me™function or the selected
menu option.
❒The sound system display will show in-
formation relating to the audio track be-
ing played via the Media Player.AUDIO
Blue&Me™audio (hands-free, Media Play-
er, vocal announcements, audible signals)
is played over your vehicle's sound system.
For this reason, any sound system audio is
suspended for as long as is necessary.
The audio volume can always be adjusted
by using the sound system controls or the
steering wheel controls.
The sound system display shows specific
messages to notify you that the sound sys-
tem is being used by Blue&Me™.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 17
Page 19 of 82
18

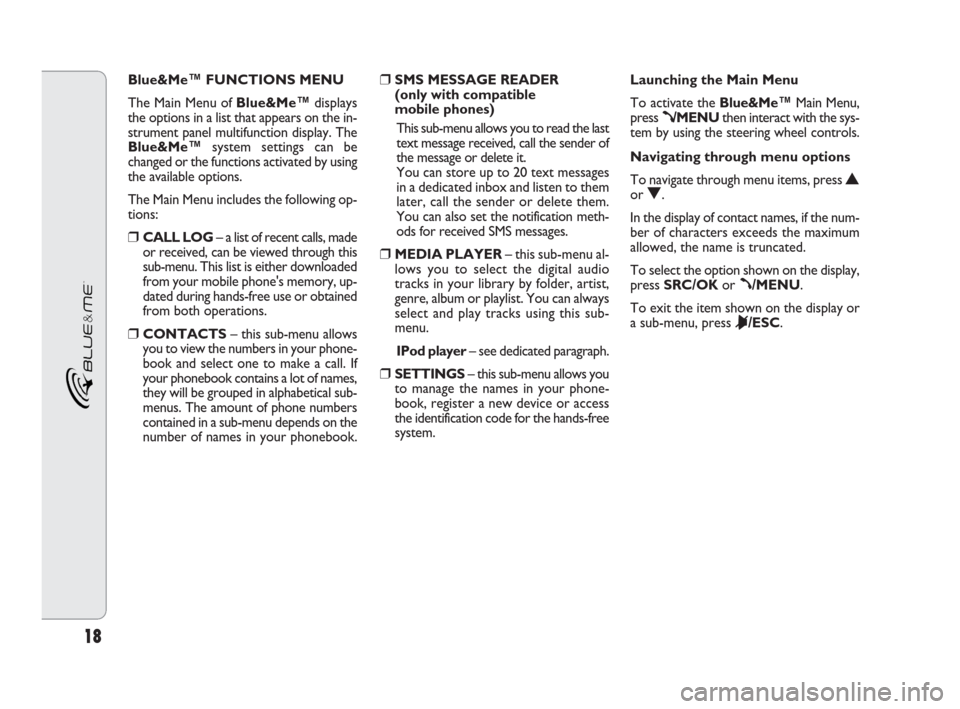

Launching the Main Menu
To activate the Blue&Me™Main Menu,
press
ß/MENUthen interact with the sys-
tem by using the steering wheel controls.
Navigating through menu options
To navigate through menu items, press
NorO.
In the display of contact names, if the num-
ber of characters exceeds the maximum
allowed, the name is truncated.
To select the option shown on the display,
press SRC/OKor
ß/MENU.
To exit the item shown on the display or
a sub-menu, press
&/ESC. Blue&Me™ FUNCTIONS MENU
The Main Menu of Blue&Me™displays
the options in a list that appears on the in-
strument panel multifunction display. The
Blue&Me™system settings can be
changed or the functions activated by using
the available options.
The Main Menu includes the following op-
tions:
❒CALL LOG – a list of recent calls, made
or received, can be viewed through this
sub-menu. This list is either downloaded
from your mobile phone's memory, up-
dated during hands-free use or obtained
from both operations.
❒CONTACTS– this sub-menu allows
you to view the numbers in your phone-
book and select one to make a call. If
your phonebook contains a lot of names,
they will be grouped in alphabetical sub-
menus. The amount of phone numbers
contained in a sub-menu depends on the
number of names in your phonebook.
❒SMS MESSAGE READER
(only with compatible
mobile phones)
This sub-menu allows you to read the last
text message received, call the sender of
the message or delete it.
You can store up to 20 text messages
in a dedicated inbox and listen to them
later, call the sender or delete them.
You can also set the notification meth-
ods for received SMS messages.
❒MEDIA PLAYER– this sub-menu al-
lows you to select the digital audio
tracks in your library by folder, artist,
genre, album or playlist. You can always
select and play tracks using this sub-
menu.
IPod player– see dedicated paragraph.
❒SETTINGS– this sub-menu allows you
to manage the names in your phone-
book, register a new device or access
the identification code for the hands-free
system.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 18
Page 20 of 82
19

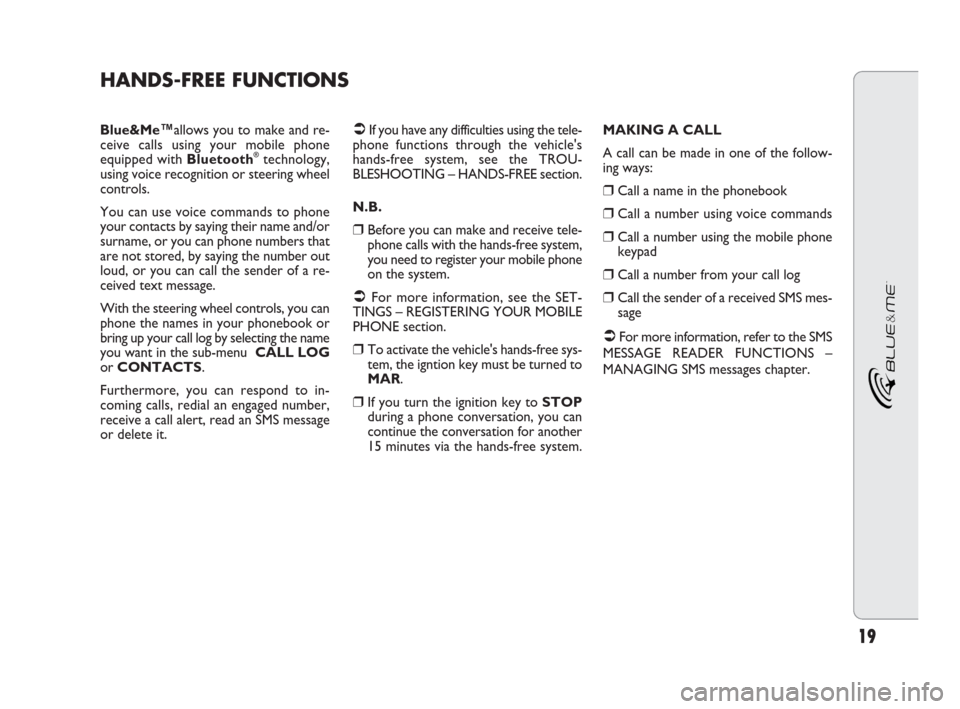

Blue&Me™allows you to make and re-
ceive calls using your mobile phone
equipped with Bluetooth
®technology,
using voice recognition or steering wheel
controls.
You can use voice commands to phone
your contacts by saying their name and/or
surname, or you can phone numbers that
are not stored, by saying the number out
loud, or you can call the sender of a re-
ceived text message.
With the steering wheel controls, you can
phone the names in your phonebook or
bring up your call log by selecting the name
you want in the sub-menu CALL LOG
or CONTACTS.
Furthermore, you can respond to in-
coming calls, redial an engaged number,
receive a call alert, read an SMS message
or delete it.
If you have any difficulties using the tele-
phone functions through the vehicle's
hands-free system, see the TROU-
BLESHOOTING – HANDS-FREE section.
N.B.
❒Before you can make and receive tele-
phone calls with the hands-free system,
you need to register your mobile phone
on the system.
For more information, see the SET-
TINGS – REGISTERING YOUR MOBILE
PHONE section.
❒To activate the vehicle's hands-free sys-
tem, the igntion key must be turned to
MAR.
❒If you turn the ignition key to STOP
during a phone conversation, you can
continue the conversation for another
15 minutes via the hands-free system.MAKING A CALL
A call can be made in one of the follow-
ing ways:
❒Call a name in the phonebook
❒Call a number using voice commands
❒Call a number using the mobile phone
keypad
❒Call a number from your call log
❒Call the sender of a received SMS mes-
sage
For more information, refer to the SMS
MESSAGE READER FUNCTIONS –
MANAGING SMS messages chapter.
HANDS-FREE FUNCTIONS
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 19
