Page 31 of 82
30

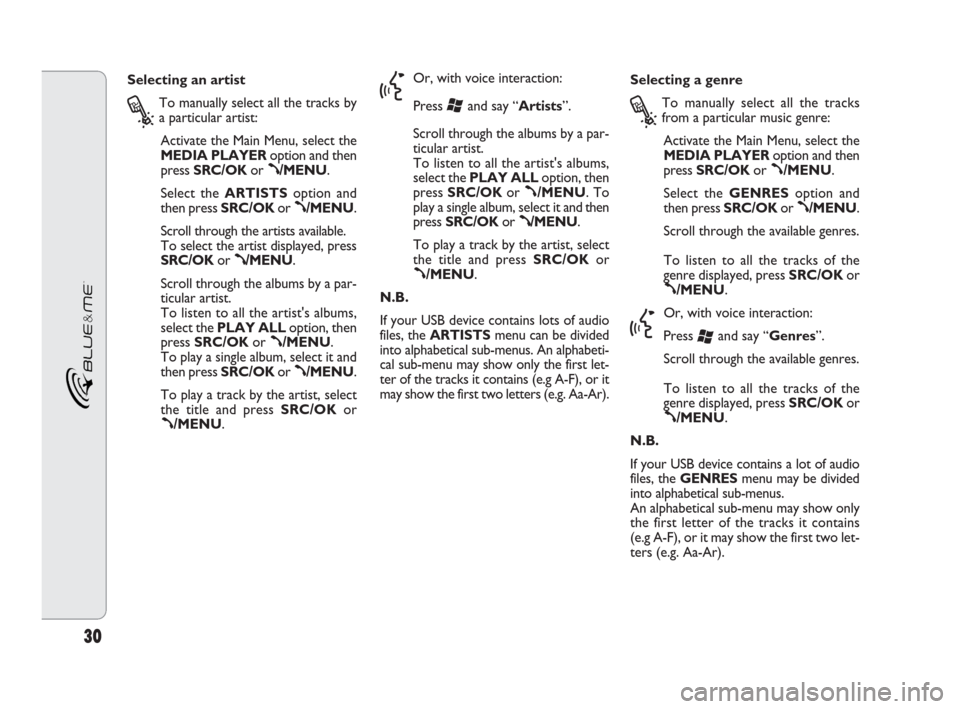

Selecting an artist
?
To manually select all the tracks by
a particular artist:
Activate the Main Menu, select the
MEDIA PLAYERoption and then
press SRC/OK or
ß/MENU.
Select the ARTISTSoption and
then press SRC/OKor
ß/MENU.
Scroll through the artists available.
To select the artist displayed, press
SRC/OKor
ß/MENU.
Scroll through the albums by a par-
ticular artist.
To listen to all the artist's albums,
select the PLAY ALLoption, then
press SRC/OKor
ß/MENU.
To play a single album, select it and
then press SRC/OKor
ß/MENU.
To play a track by the artist, select
the title and press SRC/OKor
ß/MENU.
}
Or, with voice interaction:
Press
‘and say “Artists”.
Scroll through the albums by a par-
ticular artist.
To listen to all the artist's albums,
select the PLAY ALLoption, then
press SRC/OKor
ß/MENU. To
play a single album, select it and then
press SRC/OKor
ß/MENU.
To play a track by the artist, select
the title and press SRC/OKor
ß/MENU.
N.B.
If your USB device contains lots of audio
files, the ARTISTSmenu can be divided
into alphabetical sub-menus. An alphabeti-
cal sub-menu may show only the first let-
ter of the tracks it contains (e.g A-F), or it
may show the first two letters (e.g. Aa-Ar).Selecting a genre
?
To manually select all the tracks
from a particular music genre:
Activate the Main Menu, select the
MEDIA PLAYERoption and then
press SRC/OK or
ß/MENU.
Select the GENRESoption and
then press SRC/OKor
ß/MENU.
Scroll through the available genres.
To listen to all the tracks of the
genre displayed, press SRC/OKor
ß/MENU.
}
Or, with voice interaction:
Press
‘and say “Genres”.
Scroll through the available genres.
To listen to all the tracks of the
genre displayed, press SRC/OKor
ß/MENU.
N.B.
If your USB device contains a lot of audio
files, the GENRESmenu may be divided
into alphabetical sub-menus.
An alphabetical sub-menu may show only
the first letter of the tracks it contains
(e.g A-F), or it may show the first two let-
ters (e.g. Aa-Ar).
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 30
Page 32 of 82
31

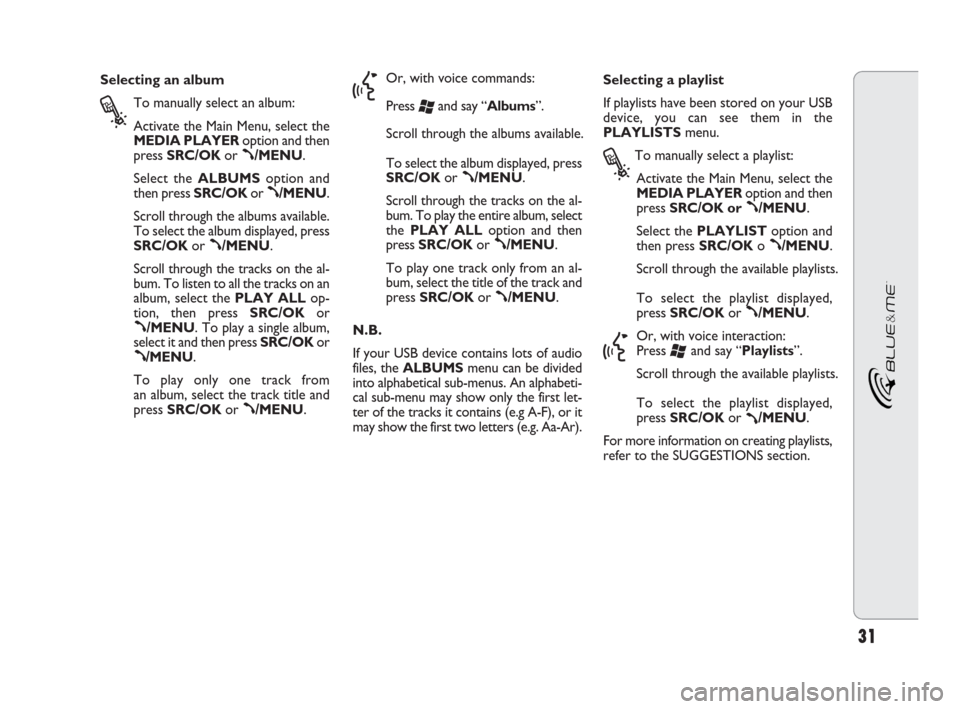

Selecting an album
?
To manually select an album:
Activate the Main Menu, select the
MEDIA PLAYERoption and then
press SRC/OK or
ß/MENU.
Select the ALBUMSoption and
then press SRC/OKor
ß/MENU.
Scroll through the albums available.
To select the album displayed, press
SRC/OKor
ß/MENU.
Scroll through the tracks on the al-
bum. To listen to all the tracks on an
album, select the PLAY ALLop-
tion, then press SRC/OKor
ß/MENU. To play a single album,
select it and then press SRC/OKor
ß/MENU.
To play only one track from
an album, select the track title and
press SRC/OKor
ß/MENU.
}
Or, with voice commands:
Press
‘and say “Albums”.
Scroll through the albums available.
To select the album displayed, press
SRC/OKor
ß/MENU.
Scroll through the tracks on the al-
bum. To play the entire album, select
the PLAY ALLoption and then
press SRC/OKor
ß/MENU.
To play one track only from an al-
bum, select the title of the track and
press SRC/OKor
ß/MENU.
N.B.
If your USB device contains lots of audio
files, the ALBUMSmenu can be divided
into alphabetical sub-menus. An alphabeti-
cal sub-menu may show only the first let-
ter of the tracks it contains (e.g A-F), or it
may show the first two letters (e.g. Aa-Ar).Selecting a playlist
If playlists have been stored on your USB
device, you can see them in the
PLAYLISTSmenu.
?
To manually select a playlist:
Activate the Main Menu, select the
MEDIA PLAYERoption and then
press SRC/OK or
ß/MENU.
Select the PLAYLISToption and
then press SRC/OKo
ß/MENU.
Scroll through the available playlists.
To select the playlist displayed,
press SRC/OKor
ß/MENU.
}
Or, with voice interaction:
Press
‘and say “Playlists”.
Scroll through the available playlists.
To select the playlist displayed,
press SRC/OKor
ß/MENU.
For more information on creating playlists,
refer to the SUGGESTIONS section.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 31
Page 33 of 82
32
LISTENING TO AUDIO TRACKS
Shuffling the entire
multimedia library
The “RANDOM” option allows you to
play the entire content of your multime-
dia library in a random order.
?
To manually activate the “RAN-
DOM” function:
Activate the Main Menu, select the
MEDIA PLAYERoption and then
press SRC/OK or
ß/MENU.
Select the RANDOMoption and
then press SRC/OKor
ß/MENU.
}
Or, with voice interaction:
Press
‘and say “Random”.
For more information on selecting
and playing digital audio, refer to
the SELECTING DIGITAL AUDIO
section.Track information
With the TRACK INFOfunction, the
display shows information for 15 seconds
on the track being listened to.
?
To manually access this information:
Activate the Main Menu, select the
MEDIA PLAYERoption and then
press SRC/OK or
ß/MENU.
Select the TRACK INFOoption
and then press SRC/OKor
ß/MENU.
}
Or, with voice interaction:
Press
‘and say “Track infor-
mation”.
N.B.
When a digital audio track starts playing,
the information on the track will be au-
tomatically shown on the display for 15
seconds.Playing audio
?
To manually start listening to digital
audio:
If the “AUTO PLAY” function is
on, connect your USB device to
Blue&Me™and the tracks will start
playing automatically.
SETTINGS – MEDIA PLAYER .
You can also select the digital audio
you want to listen to and then press
SRC/OKor
ß/MENUto start
playing it.
}
To start playing audio using voice
commands:
Press
‘and say “Random”.
Pause
To pause the track you are listening to:
press
&/ESCor the MUTEbutton on
the front of the sound system.
Resume
To resume listening to a track that you
have paued: press
&/ESCor the
MUTEbutton on the front of the sound
system.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 32
Page 34 of 82
33
Stop
To stop playing a track: say “Stop”.
Next track
?
To manually move to the next track:
Whilst listening to a track, press
N(steering wheel controls) or ˙(sound system controls).
}Or, with voice interaction:
When listening to a digital track,
press
‘and say “Next”.
Previous track
?
To manually go back to the
previous track:
Whilst listening to a track press
O(steering wheel controls) or ¯(sound system controls).
}
Or, with voice interaction:
When listening to a digital track,
press
‘and say “Previous”.
N.B.
If the command “Previous track” is given
(either vocally or manually) after the first
three seconds of the track, the same track
will be heard again. If the command is giv-
en during the first three seconds of the
track, the previous track will be heard.Change audio source
To change the active audio source (radio,
CD, CD changer, Media Player), press
SRC/OKor the appropriate buttons on
the front of the sound system (see rele-
vant manual).
N.B.
For further information on the voice com-
mands that can be used with the player,
see the LIST OF AVAILABLE VOICE
COMMANDS section.
To manage audio files from iPod or
iPhone devices, refer to the TECHNOL-
OGY COMPATIBLE WITH Blue&Me™
section.MEDIA PLAYER SETTINGS
Automatic play
With the Automatic playfunction, you
can set Blue&Me™so that the digital au-
dio on your USB device begins to play as
soon as you turn the ignition key to MAR.
Once you select this function, your music
will start playing automatically the first time
that you use the player.
If you want to turn Automatic playoff,
do so before inserting the device into the
vehicle's USB port and creating or updat-
ing the multimedia library.
?
To manually change the Auto-
matic playsetting:
Access the Main Menu, select
ME-
DIA PLAYER, SETTINGS, AU-
TO PLAYand then press SRC/OK
or
ß/MENU.
To turn on Automatic play,
choose ONand press SRC/OKor
ß/MENU. To switch off Auto -
matic play, choose OFFand press
SRC/OKor
ß/MENU.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 33
Page 35 of 82
34
}

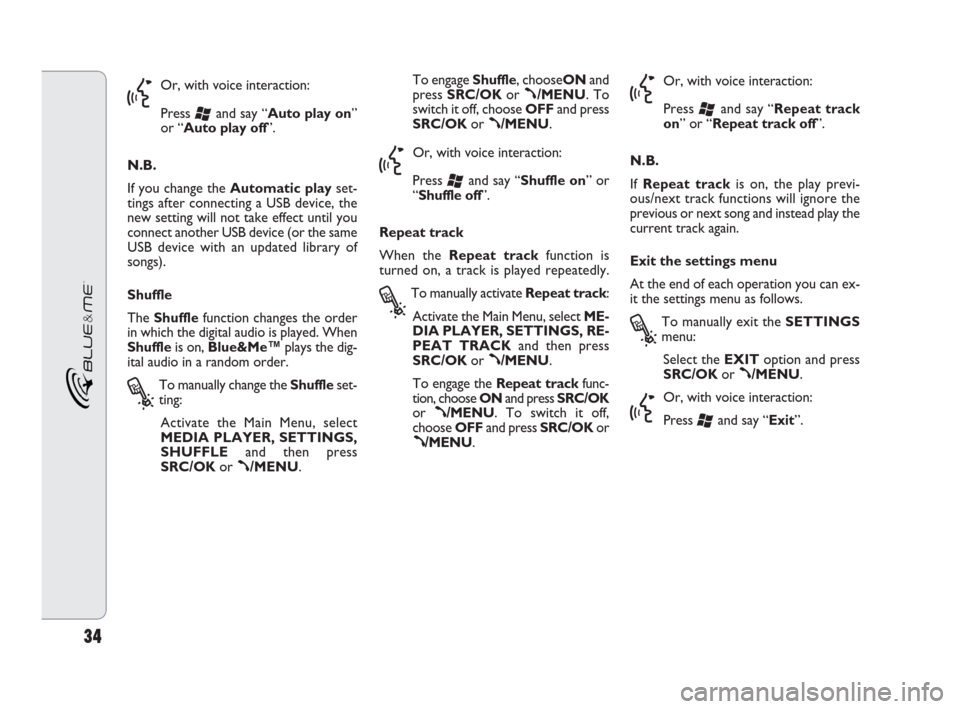

Or, with voice interaction:
Press
‘and say “Auto play on”
or “Auto play off”.
N.B.
If you change the Automatic playset-
tings after connecting a USB device, the
new setting will not take effect until you
connect another USB device (or the same
USB device with an updated library of
songs).
Shuffle
The Shufflefunction changes the order
in which the digital audio is played. When
Shuffleis on, Blue&Me™plays the dig-
ital audio in a random order.
?
To manually change the Shuffleset-
ting:
Activate the Main Menu, select
MEDIA PLAYER, SETTINGS,
SHUFFLEand then press
SRC/OKor
ß/MENU.To engage Shuffle, chooseONand
press SRC/OKor
ß/MENU. To
switch it off, choose OFFand press
SRC/OKor
ß/MENU.
}
Or, with voice interaction:
Press
‘and say “Shuffle on” or
“Shuffle off”.
Repeat track
When the Repeat trackfunction is
turned on, a track is played repeatedly.
?
To manually activate Repeat track:
Activate the Main Menu, select ME-
DIA PLAYER, SETTINGS, RE-
PEAT TRACKand then press
SRC/OKor
ß/MENU.
To engage the Repeat trackfunc-
tion, choose ONand press SRC/OK
or
ß/MENU. To switch it off,
choose OFFand press SRC/OKor
ß/MENU.
}
Or, with voice interaction:
Press
‘and say “Repeat track
on” or “Repeat track off”.
N.B.
If Repeat trackis on, the play previ-
ous/next track functions will ignore the
previous or next song and instead play the
current track again.
Exit the settings menu
At the end of each operation you can ex-
it the settings menu as follows.
?
To manually exit the SETTINGS
menu:
Select the EXIToption and press
SRC/OKor
ß/MENU.
}
Or, with voice interaction:
Press
‘and say “Exit”.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 34
Page 36 of 82
35

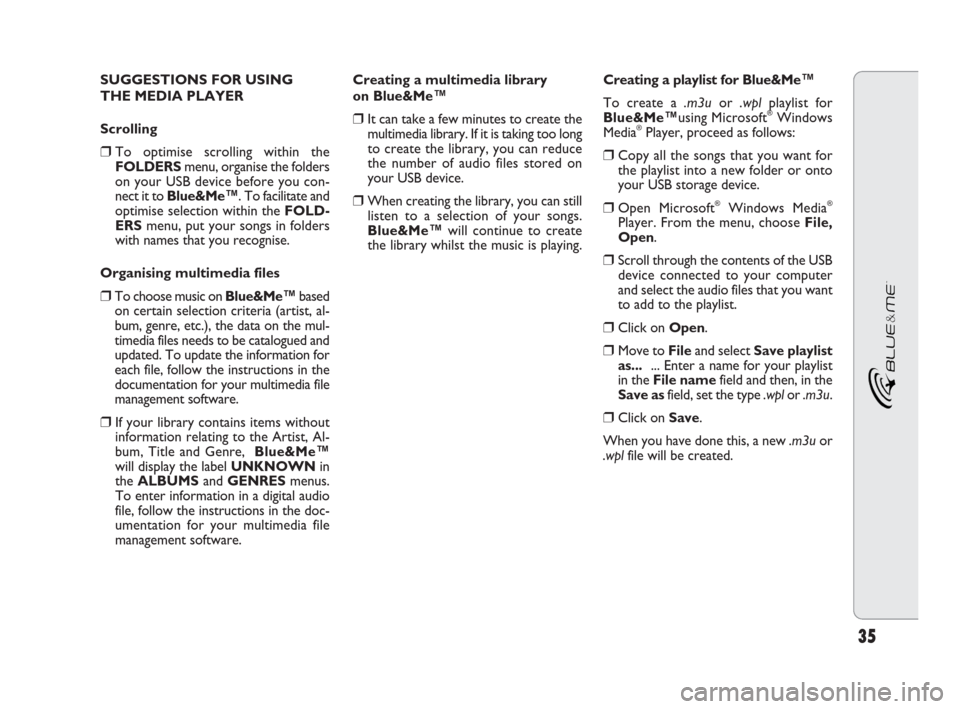

SUGGESTIONS FOR USING
THE MEDIA PLAYER
Scrolling
❒To optimise scrolling within the
FOLDERSmenu, organise the folders
on your USB device before you con-
nect it to Blue&Me™. To facilitate and
optimise selection within the FOLD-
ERSmenu, put your songs in folders
with names that you recognise.
Organising multimedia files
❒To choose music on Blue&Me™based
on certain selection criteria (artist, al-
bum, genre, etc.), the data on the mul-
timedia files needs to be catalogued and
updated. To update the information for
each file, follow the instructions in the
documentation for your multimedia file
management software.
❒If your library contains items without
information relating to the Artist, Al-
bum, Title and Genre, Blue&Me™
will display the label UNKNOWNin
the ALBUMSand GENRESmenus.
To enter information in a digital audio
file, follow the instructions in the doc-
umentation for your multimedia file
management software.Creating a multimedia library
on Blue&Me™
❒It can take a few minutes to create the
multimedia library. If it is taking too long
to create the library, you can reduce
the number of audio files stored on
your USB device.
❒When creating the library, you can still
listen to a selection of your songs.
Blue&Me™will continue to create
the library whilst the music is playing.Creating a playlist for Blue&Me™
To create a .m3uor .wplplaylist for
Blue&Me™using Microsoft
®Windows
Media®Player, proceed as follows:
❒Copy all the songs that you want for
the playlist into a new folder or onto
your USB storage device.
❒Open Microsoft®Windows Media®
Player. From the menu, choose File,
Open.
❒Scroll through the contents of the USB
device connected to your computer
and select the audio files that you want
to add to the playlist.
❒Click on Open.
❒Move to Fileand select Save playlist
as...... Enter a name for your playlist
in the File namefield and then, in the
Save asfield, set the type .wpl or .m3u.
❒Click on Save.
When you have done this, a new .m3uor
.wplfile will be created.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 35
Page 37 of 82
36

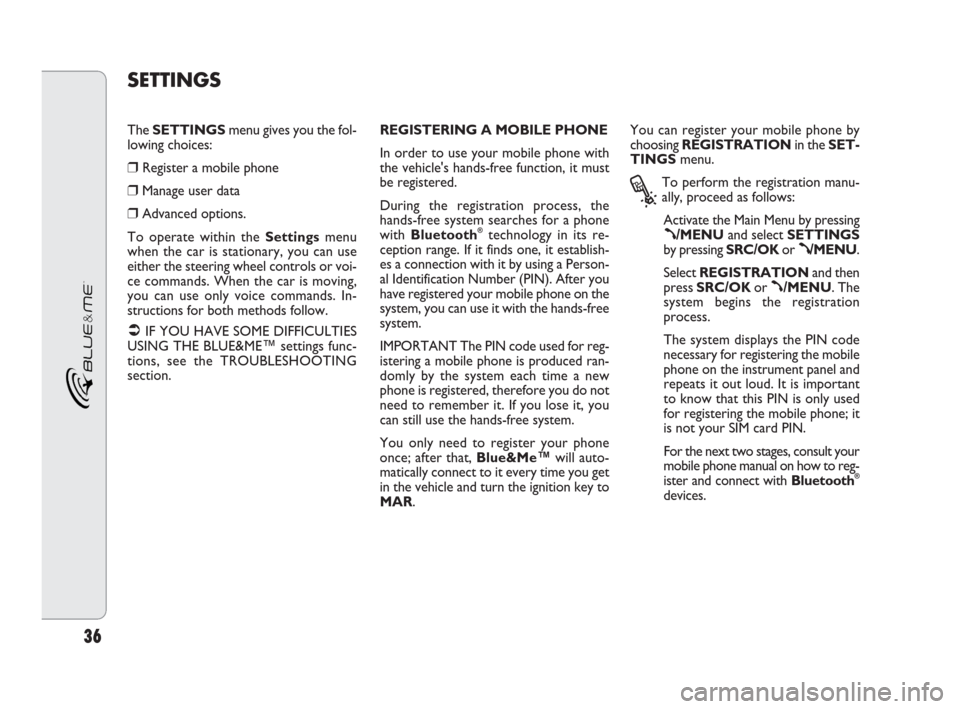

The SETTINGSmenu gives you the fol-
lowing choices:
❒Register a mobile phone
❒Manage user data
❒Advanced options.
To operate within the Settingsmenu
when the car is stationary, you can use
either the steering wheel controls or voi-
ce commands. When the car is moving,
you can use only voice commands. In-
structions for both methods follow.
IF YOU HAVE SOME DIFFICULTIES
USING THE BLUE&ME™ settings func-
tions, see the TROUBLESHOOTING
section.REGISTERING A MOBILE PHONE
In order to use your mobile phone with
the vehicle's hands-free function, it must
be registered.
During the registration process, the
hands-free system searches for a phone
with Bluetooth
®technology in its re-
ception range. If it finds one, it establish-
es a connection with it by using a Person-
al Identification Number (PIN). After you
have registered your mobile phone on the
system, you can use it with the hands-free
system.
IMPORTANT The PIN code used for reg-
istering a mobile phone is produced ran-
domly by the system each time a new
phone is registered, therefore you do not
need to remember it. If you lose it, you
can still use the hands-free system.
You only need to register your phone
once; after that, Blue&Me™will auto-
matically connect to it every time you get
in the vehicle and turn the ignition key to
MAR.You can register your mobile phone by
choosing REGISTRATIONin the SET-
TINGSmenu.
?
To perform the registration manu-
ally, proceed as follows:
Activate the Main Menu by pressing
ß/MENUand select SETTINGS
by pressing SRC/OKor
ß/MENU.
Select REGISTRATIONand then
press SRC/OKor
ß/MENU. The
system begins the registration
process.
The system displays the PIN code
necessary for registering the mobile
phone on the instrument panel and
repeats it out loud. It is important
to know that this PIN is only used
for registering the mobile phone; it
is not your SIM card PIN.
For the next two stages, consult your
mobile phone manual on how to reg-
ister and connect with Bluetooth
®
devices.
SETTINGS
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 36
Page 38 of 82
37

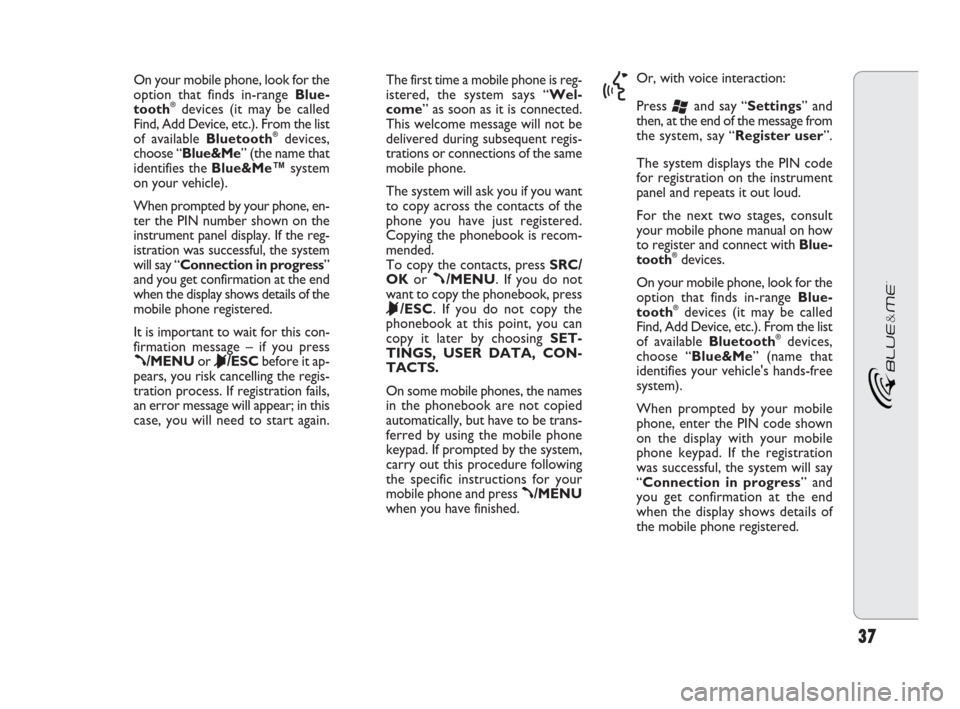

On your mobile phone, look for the
option that finds in-range Blue-
tooth
®devices (it may be called
Find, Add Device, etc.). From the list
of available Bluetooth
®devices,
choose “Blue&Me” (the name that
identifies the Blue&Me™system
on your vehicle).
When prompted by your phone, en-
ter the PIN number shown on the
instrument panel display. If the reg-
istration was successful, the system
will say “Connection in progress”
and you get confirmation at the end
when the display shows details of the
mobile phone registered.
It is important to wait for this con-
firmation message – if you press
ß/MENUor &/ESCbefore it ap-
pears, you risk cancelling the regis-
tration process. If registration fails,
an error message will appear; in this
case, you will need to start again.The first time a mobile phone is reg-
istered, the system says “Wel-
come” as soon as it is connected.
This welcome message will not be
delivered during subsequent regis-
trations or connections of the same
mobile phone.
The system will ask you if you want
to copy across the contacts of the
phone you have just registered.
Copying the phonebook is recom-
mended.
To copy the contacts, press SRC/
OKor
ß/MENU. If you do not
want to copy the phonebook, press
&/ESC. If you do not copy the
phonebook at this point, you can
copy it later by choosing SET-
TINGS, USER DATA, CON-
TACTS.
On some mobile phones, the names
in the phonebook are not copied
automatically, but have to be trans-
ferred by using the mobile phone
keypad. If prompted by the system,
carry out this procedure following
the specific instructions for your
mobile phone and press
ß/MENU
when you have finished.
}
Or, with voice interaction:
Press
‘and say “Settings” and
then, at the end of the message from
the system, say “Register user”.
The system displays the PIN code
for registration on the instrument
panel and repeats it out loud.
For the next two stages, consult
your mobile phone manual on how
to register and connect with Blue-
tooth
®devices.
On your mobile phone, look for the
option that finds in-range Blue-
tooth
®devices (it may be called
Find, Add Device, etc.). From the list
of available Bluetooth
®devices,
choose “Blue&Me” (name that
identifies your vehicle's hands-free
system).
When prompted by your mobile
phone, enter the PIN code shown
on the display with your mobile
phone keypad. If the registration
was successful, the system will say
“Connection in progress” and
you get confirmation at the end
when the display shows details of
the mobile phone registered.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 37
Page 39 of 82
38

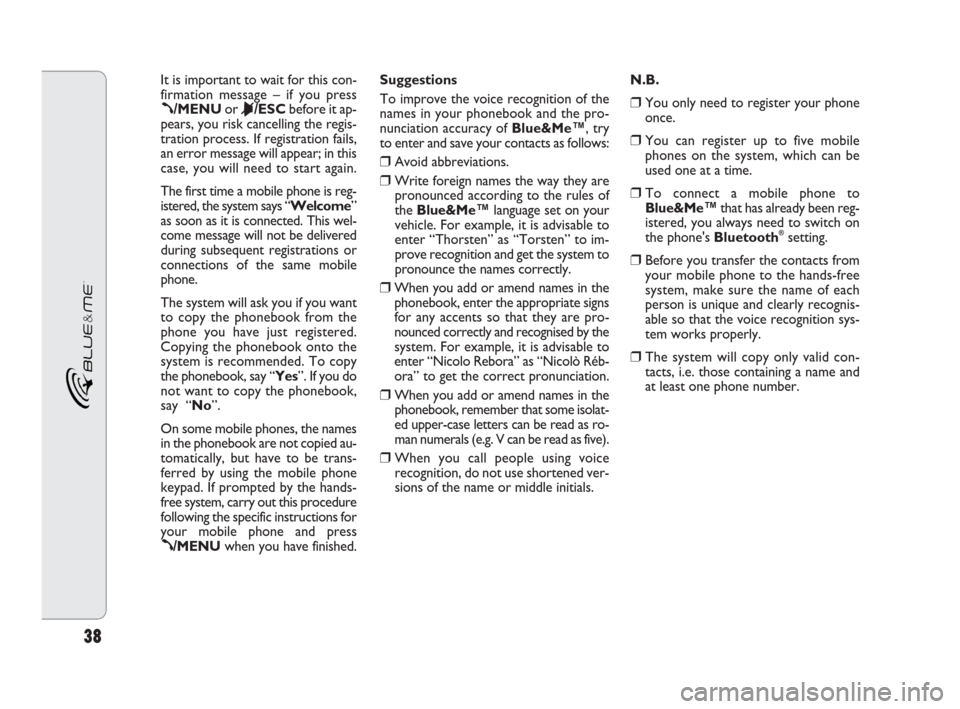

It is important to wait for this con-
firmation message – if you press
ß/MENUor &/ESCbefore it ap-
pears, you risk cancelling the regis-
tration process. If registration fails,
an error message will appear; in this
case, you will need to start again.
The first time a mobile phone is reg-
istered, the system says “Welcome”
as soon as it is connected. This wel-
come message will not be delivered
during subsequent registrations or
connections of the same mobile
phone.
The system will ask you if you want
to copy the phonebook from the
phone you have just registered.
Copying the phonebook onto the
system is recommended. To copy
the phonebook, say “Yes”. If you do
not want to copy the phonebook,
say “No”.
On some mobile phones, the names
in the phonebook are not copied au-
tomatically, but have to be trans-
ferred by using the mobile phone
keypad. If prompted by the hands-
free system, carry out this procedure
following the specific instructions for
your mobile phone and press
ß/MENUwhen you have finished.Suggestions
To improve the voice recognition of the
names in your phonebook and the pro-
nunciation accuracy of Blue&Me™, try
to enter and save your contacts as follows:
❒Avoid abbreviations.
❒Write foreign names the way they are
pronounced according to the rules of
the Blue&Me™language set on your
vehicle. For example, it is advisable to
enter “Thorsten” as “Torsten” to im-
prove recognition and get the system to
pronounce the names correctly.
❒When you add or amend names in the
phonebook, enter the appropriate signs
for any accents so that they are pro-
nounced correctly and recognised by the
system. For example, it is advisable to
enter “Nicolo Rebora” as “Nicolò Réb-
ora” to get the correct pronunciation.
❒When you add or amend names in the
phonebook, remember that some isolat-
ed upper-case letters can be read as ro-
man numerals (e.g. V can be read as five).
❒When you call people using voice
recognition, do not use shortened ver-
sions of the name or middle initials. N.B.
❒You only need to register your phone
once.
❒You can register up to five mobile
phones on the system, which can be
used one at a time.
❒To connect a mobile phone to
Blue&Me™that has already been reg-
istered, you always need to switch on
the phone's Bluetooth
®setting.
❒Before you transfer the contacts from
your mobile phone to the hands-free
system, make sure the name of each
person is unique and clearly recognis-
able so that the voice recognition sys-
tem works properly.
❒The system will copy only valid con-
tacts, i.e. those containing a name and
at least one phone number.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 38
Page 40 of 82
39

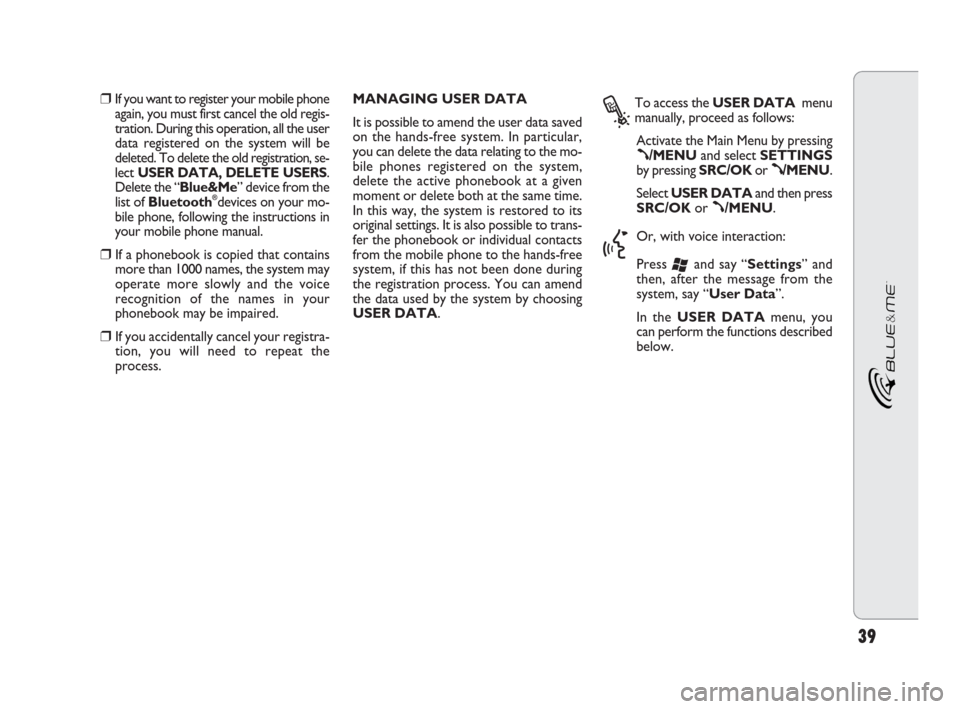

❒If you want to register your mobile phone
again, you must first cancel the old regis-
tration. During this operation, all the user
data registered on the system will be
deleted. To delete the old
registration, se-
lect USER DATA, DELETE USERS.
Delete the “Blue&Me” device from the
list of Bluetooth®devices on your mo-
bile phone, following the instructions in
your mobile phone manual.
❒If a phonebook is copied that contains
more than 1000 names, the system may
operate more slowly and the voice
recognition of the names in your
phonebook may be impaired.
❒If you accidentally cancel your registra-
tion, you will need to repeat the
process. MANAGING USER DATA
It is possible to amend the user data saved
on the hands-free system. In particular,
you can delete the data relating to the mo-
bile phones registered on the system,
delete the active phonebook at a given
moment or delete both at the same time.
In this way, the system is restored to its
original settings. It is also possible to trans-
fer the phonebook or individual contacts
from the mobile phone to the hands-free
system, if this has not been done during
the registration process. You can amend
the data used by the system by choosing
USER DATA.
?
To access the USER DATAmenu
manually, proceed as follows:
Activate the Main Menu by pressing
ß/MENUand select SETTINGS
by pressing SRC/OKor
ß/MENU.
Select USER DATAand then press
SRC/OKor
ß/MENU.
}
Or, with voice interaction:
Press
‘and say “Settings” and
then, after the message from the
system, say “User Data”.
In the USER DATAmenu, you
can perform the functions described
below.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 39
