20
}

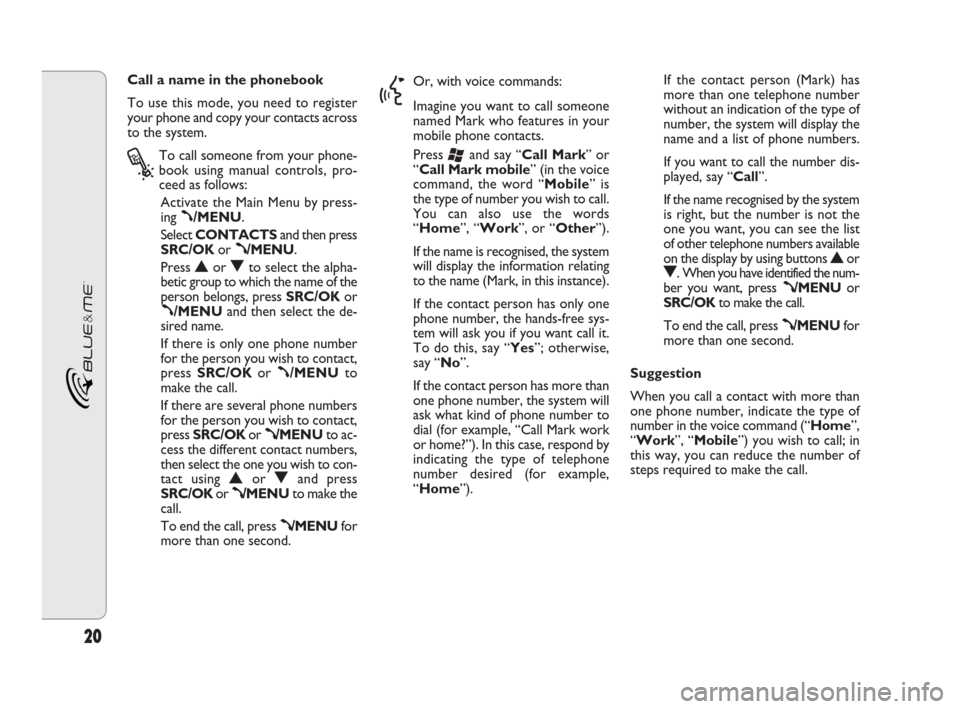

Or, with voice commands:
Imagine you want to call someone
named Mark who features in your
mobile phone contacts.
Press
‘and say “Call Mark” or
“Call Mark mobile” (in the voice
command, the word “Mobile” is
the type of number you wish to call.
You can also use the words
“Home”, “Work”, or “Other”).
If the name is recognised, the system
will display the information relating
to the name (Mark, in this instance).
If the contact person has only one
phone number, the hands-free sys-
tem will ask you if you want call it.
To do this, say “Yes”; otherwise,
say “No”.
If the contact person has more than
one phone number, the system will
ask what kind of phone number to
dial (for example, “Call Mark work
or home?”). In this case, respond by
indicating the type of telephone
number desired (for example,
“Home”). If the contact person (Mark) has
more than one telephone number
without an indication of the type of
number, the system will display the
name and a list of phone numbers.
If you want to call the number dis-
played, say “Call”.
If the name recognised by the system
is right, but the number is not the
one you want, you can see the list
of other telephone numbers available
on the display by using buttons
NorO. When you have identified the num-
ber you want, press
ß/MENUor
SRC/OKto make the call.
To end the call, press
ß/MENUfor
more than one second.
Suggestion
When you call a contact with more than
one phone number, indicate the type of
number in the voice command (“Home”,
“Work”, “Mobile”) you wish to call; in
this way, you can reduce the number of
steps required to make the call. Call a name in the phonebook
To use this mode, you need to register
your phone and copy your contacts across
to the system.
?
To call someone from your phone-
book using manual controls, pro-
ceed as follows:
Activate the Main Menu by press-
ing
ß/MENU.
Select CONTACTSand then press
SRC/OKor
ß/MENU.
Press
NorOto select the alpha-
betic group to which the name of the
person belongs, press SRC/OKor
ß/MENUand then select the de-
sired name.
If there is only one phone number
for the person you wish to contact,
press SRC/OKor
ß/MENUto
make the call.
If there are several phone numbers
for the person you wish to contact,
press SRC/OKor
ß/MENUto ac-
cess the different contact numbers,
then select the one you wish to con-
tact using
NorOand press
SRC/OKor
ß/MENUto make the
call.
To end the call, press
ß/MENUfor
more than one second.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 20

21
Call a number using voice
commands
}
To dial a phone number using voice
interaction, proceed as follows:
Press
‘and say “Callnumber”.
The system will respond with “The
number, please”.
Say the phone number as a se-
quence of individual numbers (for
example, “0”, “1”, “2”, “3”, “4”, “5”,
“6”, “7”, “8”, “9”, “+” (plus), “#”
(hash) or “*” (star).
For example, 0113 290103 is pro-
nounced “zero, one, one, three, two,
nine, zero, one, zero, three”.
The system will display and vocally
repeat the number.
If the number is correct, say
“Call”. If the number is not cor-
rect, say the missing digits and at
the end say “Call”.The system will call the number dis-
played.
To end the call, press
ß/MENUfor
more than one second.
You can say the phone number in
“groups of digits”; this will allow you
to check the correctness of one
group of digits at a time. The groups
of digits are created from the paus-
es that you make while saying the
number. If you pause after saying
a certain number of digits, a group
is created. The system will repeat
the numbers as it heard them.
If the digits are said correctly, you
can continue to dictate the phone
number. If they are incorrect, you
can delete the group of digits by say-
ing “Cancel”. The system will can-
cel the last group of digits and will
display the partially dialled phone
number. You can then say the
phone number's remaining digits.
To stop dialling the phone number,
say “Cancel”.To cancel the whole number
shown and re-dial from scratch, say
“Restart”.
To ask the system to say back the
number, say “Repeat”. If no phone
number is dialled, the system says
“No number available”.
If the phone number repeated is
correct, say “Call” to make the call.
N.B.
When dialling a number by voice com-
mands, it is important that the noise inside
the passenger compartment is reduced as
much as possible and that your passengers
do not speak while you dictate the num-
ber to the system. The voice recognition
works regardless of who is speaking. Be-
cause of this, if several people talk during
this operation, there is a risk that some
numbers will be recognised accidentally,
while others will be recognised correctly
or not recognised at all.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 21

22

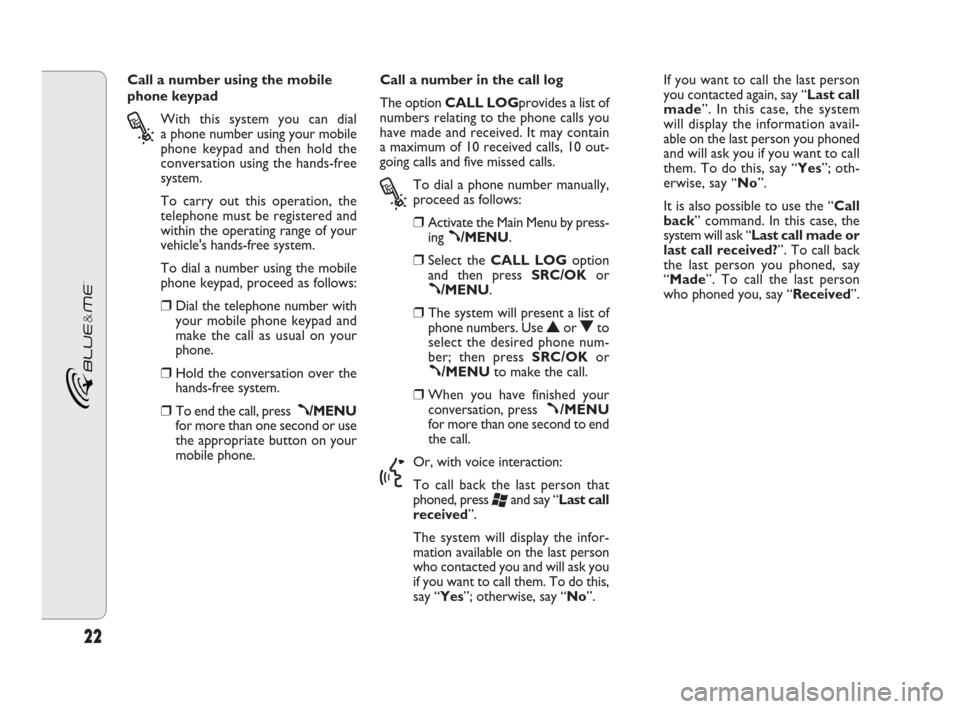

Call a number using the mobile
phone keypad
?
With this system you can dial
a phone number using your mobile
phone keypad and then hold the
conversation using the hands-free
system.
To carry out this operation, the
telephone must be registered and
within the operating range of your
vehicle's hands-free system.
To dial a number using the mobile
phone keypad, proceed as follows:
❒Dial the telephone number with
your mobile phone keypad and
make the call as usual on your
phone.
❒Hold the conversation over the
hands-free system.
❒To end the call, press ß/MENU
for more than one second or use
the appropriate button on your
mobile phone. Call a number in the call log
The option CALL LOGprovides a list of
numbers relating to the phone calls you
have made and received. It may contain
a maximum of 10 received calls, 10 out-
going calls and five missed calls.
?
To dial a phone number manually,
proceed as follows:
❒Activate the Main Menu by press-
ing
ß/MENU.
❒Select the CALL LOGoption
and then press SRC/OKor
ß/MENU.
❒The system will present a list of
phone numbers. Use NorOto
select the desired phone num-
ber; then press SRC/OKor
ß/MENUto make the call.
❒When you have finished your
conversation, press
ß/MENU
for more than one second to end
the call.
}
Or, with voice interaction:
To call back the last person that
phoned, press
‘and say “Last call
received”.
The system will display the infor-
mation available on the last person
who contacted you and will ask you
if you want to call them. To do this,
say “Yes”; otherwise, say “No”.If you want to call the last person
you contacted again, say “Last call
made”. In this case, the system
will display the information avail-
able on the last person you phoned
and will ask you if you want to call
them. To do this, say “Yes”; oth-
erwise, say “No”.
It is also possible to use the “Call
back” command. In this case, the
system will ask “Last call made or
last call received?”. To call back
the last person you phoned, say
“Made”. To call the last person
who phoned you, say “Received”.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 22

23

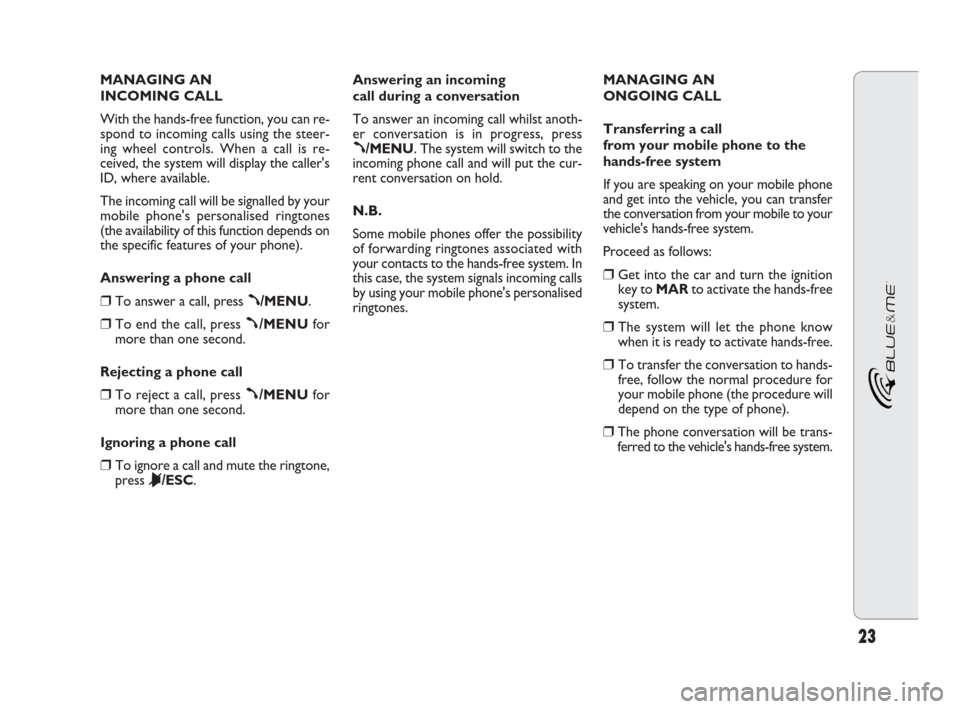

MANAGING AN
INCOMING CALL
With the hands-free function, you can re-
spond to incoming calls using the steer-
ing wheel controls. When a call is re-
ceived, the system will display the caller's
ID, where available.
The incoming call will be signalled by your
mobile phone's personalised ringtones
(the availability of this function depends on
the specific features of your phone).
Answering a phone call
❒To answer a call, press ß/MENU.
❒To end the call, press ß/MENUfor
more than one second.
Rejecting a phone call
❒To reject a call, press ß/MENUfor
more than one second.
Ignoring a phone call
❒To ignore a call and mute the ringtone,
press
&/ESC.Answering an incoming
call during a conversation
To answer an incoming call whilst anoth-
er conversation is in progress, press
ß/MENU. The system will switch to the
incoming phone call and will put the cur-
rent conversation on hold.
N.B.
Some mobile phones offer the possibility
of forwarding ringtones associated with
your contacts to the hands-free system. In
this case, the system signals incoming calls
by using your mobile phone's personalised
ringtones.MANAGING AN
ONGOING CALL
Transferring a call
from your mobile phone to the
hands-free system
If you are speaking on your mobile phone
and get into the vehicle, you can transfer
the conversation from your mobile to your
vehicle's hands-free system.
Proceed as follows:
❒Get into the car and turn the ignition
key to MARto activate the hands-free
system.
❒The system will let the phone know
when it is ready to activate hands-free.
❒To transfer the conversation to hands-
free, follow the normal procedure for
your mobile phone (the procedure will
depend on the type of phone).
❒The phone conversation will be trans-
ferred to the vehicle's hands-free system.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 23

24

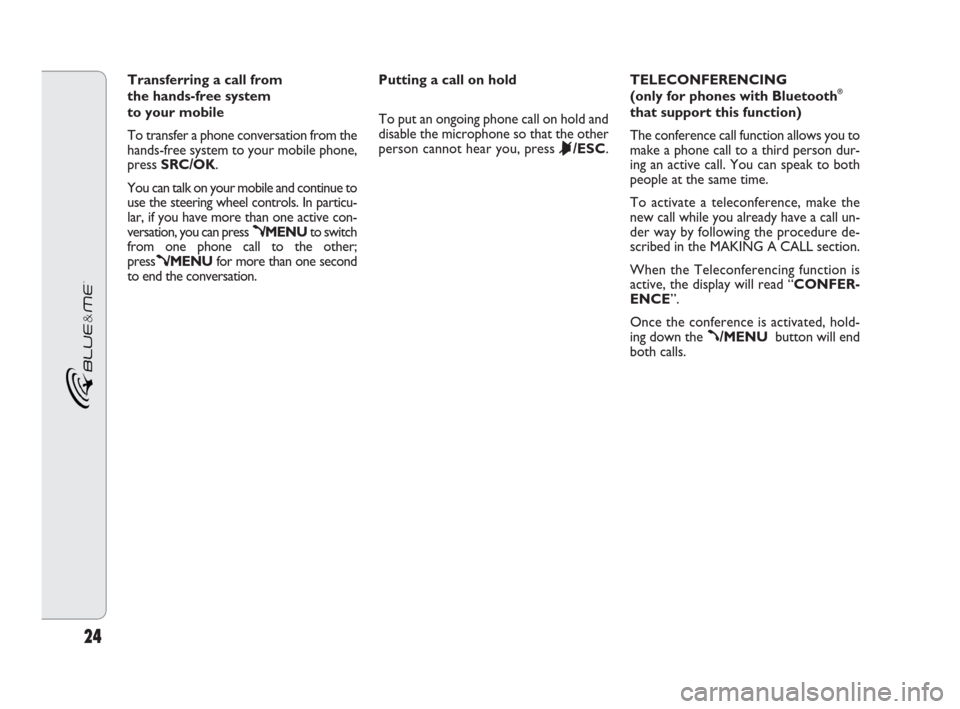

Transferring a call from
the hands-free system
to your mobile
To transfer a phone conversation from the
hands-free system to your mobile phone,
press SRC/OK.
You can talk on your mobile and continue to
use the steering wheel controls. In particu-
lar, if you have more than one active con-
versation, you can press
ß/MENUto switch
from one phone call to the other;
press
ß/MENUfor more than one second
to end the conversation.Putting a call on hold
To put an ongoing phone call on hold and
disable the microphone so that the other
person cannot hear you, press
&/ESC. TELECONFERENCING
(only for phones with Bluetooth
®
that support this function)
The conference call function allows you to
make a phone call to a third person dur-
ing an active call. You can speak to both
people at the same time.
To activate a teleconference, make the
new call while you already have a call un-
der way by following the procedure de-
scribed in the MAKING A CALL section.
When the Teleconferencing function is
active, the display will read “CONFER-
ENCE”.
Once the conference is activated, hold-
ing down the
ß/MENU button will end
both calls.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 24

25

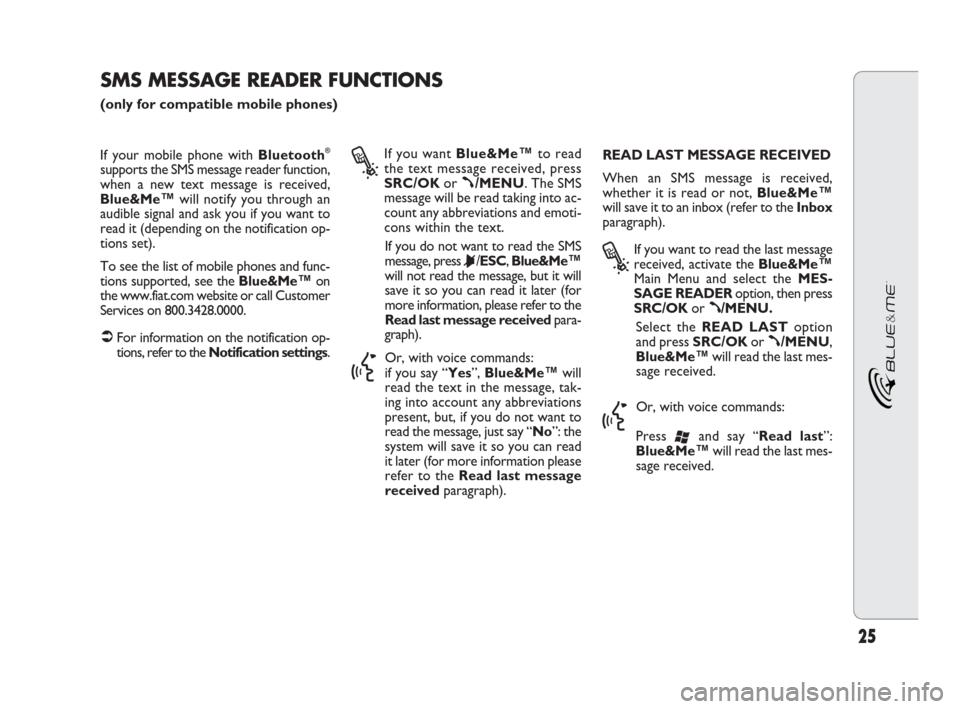

If your mobile phone with Bluetooth®
supports the SMS message reader function,
when a new text message is received,
Blue&Me
™will notify you through an
audible signal and ask you if you want to
read it (depending on the notification op-
tions set).
To see the list of mobile phones and func-
tions supported, see the Blue&Me
™on
the www.fiat.com website or call Customer
Services on 800.3428.0000.

For information on the notification op-
tions, refer to the Notification settings.
?
If you want Blue&Me™to read
the text message received, press
SRC/OKor
ß/MENU. The SMS
message will be read taking into ac-
count any abbreviations and emoti-
cons within the text.
If you do not want to read the SMS
message, press
&/ESC,Blue&Me™
will not read the message, but it will
save it so you can read it later (for
more information, please refer to the
Read last message receivedpara-
graph).
}
Or, with voice commands:
if you say “Yes”, Blue&Me™will
read the text in the message, tak-
ing into account any abbreviations
present, but, if you do not want to
read the message, just say “No”: the
system will save it so you can read
it later (for more information please
refer to the Read last message
receivedparagraph). READ LAST MESSAGE RECEIVED
When an SMS message is received,
whether it is read or not, Blue&Me
™will save it to an inbox (refer to theInbox
paragraph).
?
If you want to read the last message
received, activate the Blue&Me™Main Menu and select the MES-
SAGE READERoption, then press
SRC/OKor
ß/MENU.
Select the READ LASToption
and press SRC/OKor
ß/MENU,
Blue&Me™will read the last mes-
sage received.
}
Or, with voice commands:
Press
‘and say “Read last”:
Blue&Me™will read the last mes-
sage received.
SMS MESSAGE READER FUNCTIONS
(only fo r compatible mobile phones)
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 25

26

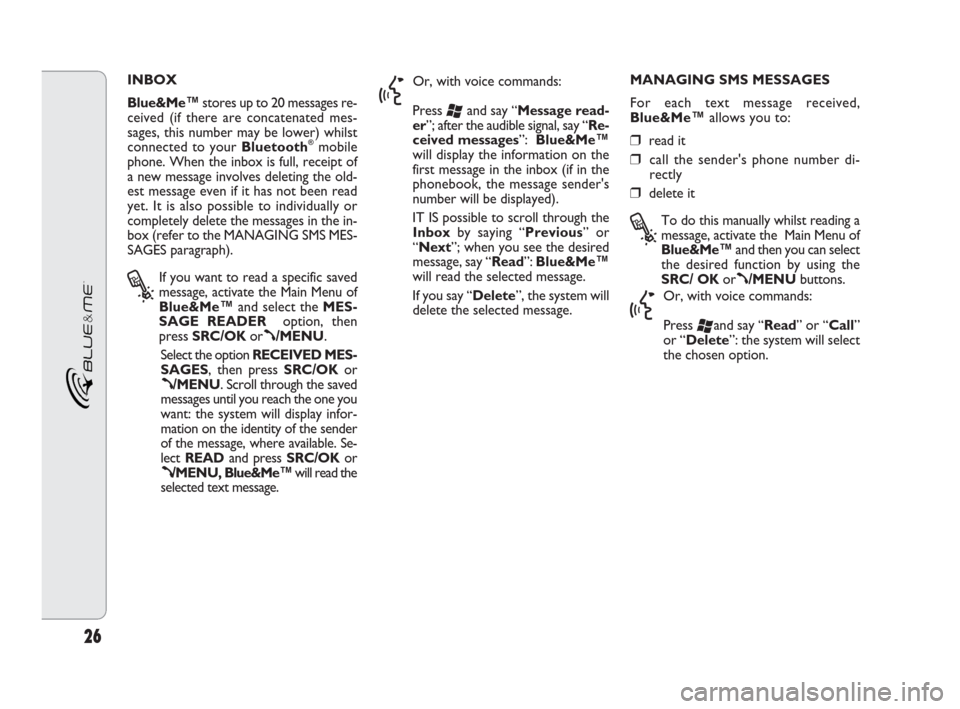

INBOX
Blue&Me™stores up to 20 messages re-
ceived (if there are concatenated mes-
sages, this number may be lower) whilst
connected to your Bluetooth
®mobile
phone. When the inbox is full, receipt of
a new message involves deleting the old-
est message even if it has not been read
yet. It is also possible to individually or
completely delete the messages in the in-
box (refer to the MANAGING SMS MES-
SAGES paragraph).
?
If you want to read a specific saved
message, activate the Main Menu of
Blue&Me™and select the MES-
SAGE READERoption, then
press SRC/OKor
ß/MENU.
Select the option RECEIVED MES-
SAGES, then press SRC/OKor
ß/MENU. Scroll through the saved
messages until you reach the one you
want: the system will display infor-
mation on the identity of the sender
of the message, where available. Se-
lect READand press SRC/OKor
ß/MENU, Blue&Me™will read the
selected text message.
}
Or, with voice commands:
Press
‘and say “Message read-
er”; after the audible signal, say “Re-
ceived messages”: Blue&Me™
will display the information on the
first message in the inbox (if in the
phonebook, the message sender's
number will be displayed).
IT IS possible to scroll through the
Inboxby saying “Previous” or
“Next”; when you see the desired
message, say “Read”: Blue&Me™
will read the selected message.
If you say “Delete”, the system will
delete the selected message.MANAGING SMS MESSAGES
For each text message received,
Blue&Me™allows you to:
❒ read it
❒ call the sender's phone number di-
rectly
❒ delete it
?
To do this manually whilst reading a
message, activate the Main Menu of
Blue&Me™and then you can select
the desired function by using the
SRC/ OKor
ß/MENUbuttons.
}
Or, with voice commands:
Press
‘and say “Read” or “Call”
or “Delete”: the system will select
the chosen option.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 26

27

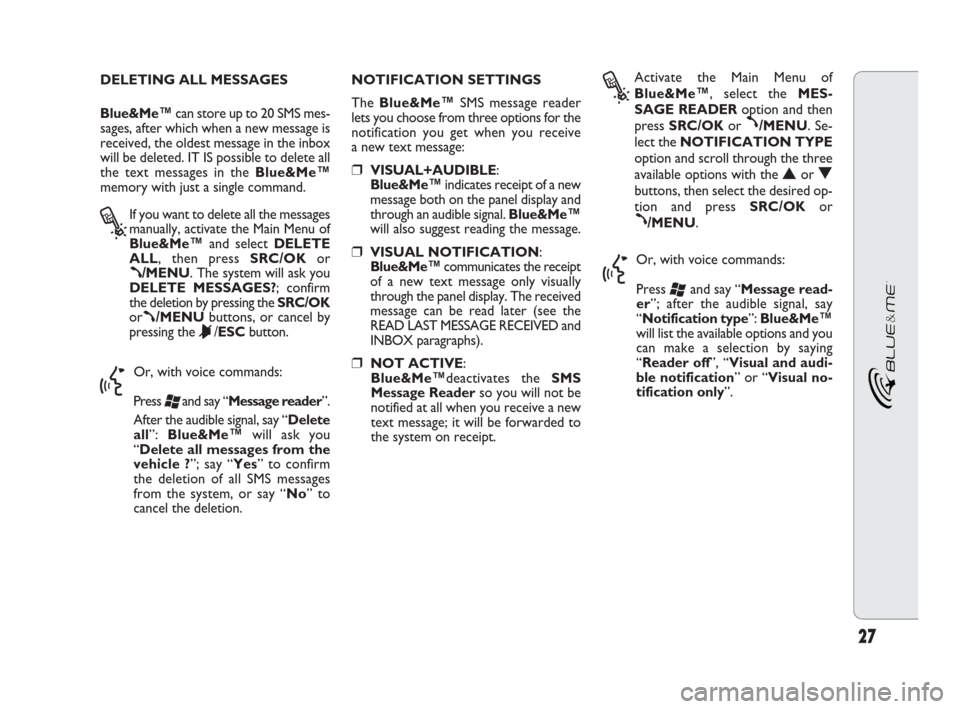

NOTIFICATION SETTINGS
The Blue&Me™SMS message reader
lets you choose from three options for the
notification you get when you receive
a new text message:
❒ VISUAL+AUDIBLE:
Blue&Me™indicates receipt of a new
message both on the panel display and
through an audible signal. Blue&Me™
will also suggest reading the message.
❒VISUAL NOTIFICATION:
Blue&Me™communicates the receipt
of a new text message only visually
through the panel display. The received
message can be read later (see the
READ LAST MESSAGE RECEIVED and
INBOX paragraphs).
❒ NOT ACTIVE:
Blue&Me™deactivates the SMS
Message Readerso you will not be
notified at all when you receive a new
text message; it will be forwarded to
the system on receipt. DELETING ALL MESSAGES
Blue&Me™can store up to 20 SMS mes-
sages, after which when a new message is
received, the oldest message in the inbox
will be deleted. IT IS possible to delete all
the text messages in the Blue&Me™
memory with just a single command.
?
If you want to delete all the messages
manually, activate the Main Menu of
Blue&Me™and select DELETE
ALL, then press SRC/OKor
ß/MENU. The system will ask you
DELETE MESSAGES?; confirm
the deletion by pressing the SRC/OK
or
ß/MENUbuttons, or cancel by
pressing the
&/ESCbutton.
}
Or, with voice commands:
Press
‘and say “Message reader”.
After the audible signal, say “Delete
all”: Blue&Me™ will ask you
“Delete all messages from the
vehicle ?”; say “Yes” to confirm
the deletion of all SMS messages
from the system, or say “No” to
cancel the deletion.
?
Activate the Main Menu of
Blue&Me™, select the MES-
SAGE READERoption and then
press SRC/OKor
ß/MENU. Se-
lect the NOTIFICATION TYPE
option and scroll through the three
available options with the
NorO
buttons, then select the desired op-
tion and press SRC/OKor
ß/MENU.
}
Or, with voice commands:
Press
‘and say “Message read-
er”; after the audible signal, say
“Notification type”: Blue&Me™
will list the available options and you
can make a selection by saying
“Reader off”, “Visual and audi-
ble notification” or “Visual no-
tification only”.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 27

28

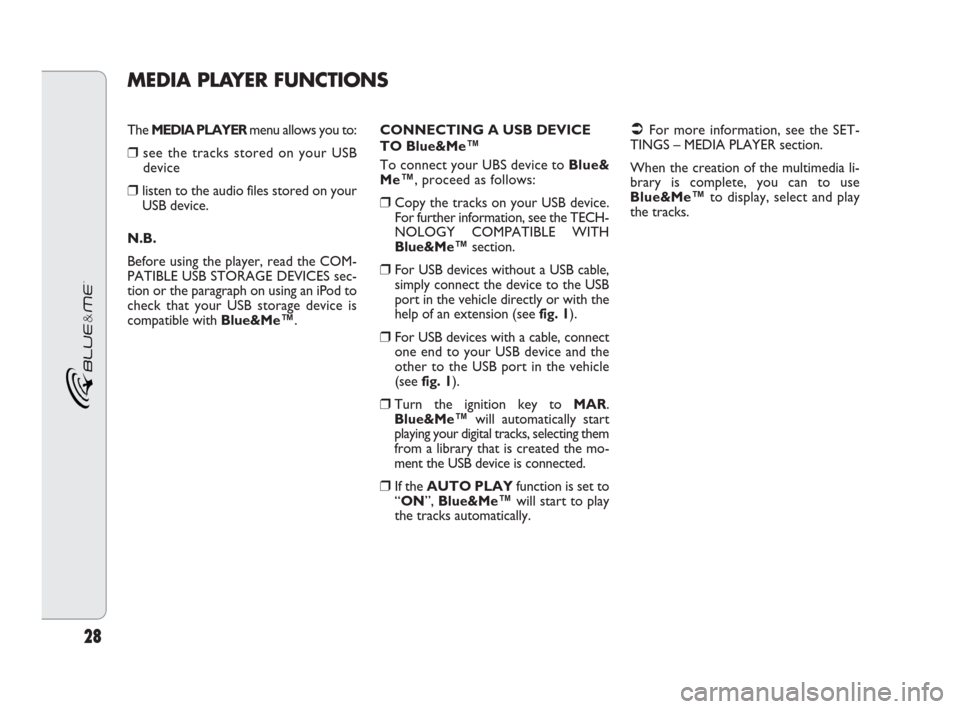

The MEDIA PLAYERmenu allows you to:
❒see the tracks stored on your USB
device
❒listen to the audio files stored on your
USB device.
N.B.
Before using the player, read the COM-
PATIBLE USB STORAGE DEVICES sec-
tion or the paragraph on using aniPod to
check that your USB storage device is
compatible with Blue&Me™.CONNECTING A USB DEVICE
TO Blue&Me™
To connect your UBS device to Blue&
Me™, proceed as follows:❒Copy the tracks on your USB device.
For further information, see the TECH-
NOLOGY COMPATIBLE WITH
Blue&Me™section.
❒For USB devices without a USB cable,
simply connect the device to the USB
port in the vehicle directly or with the
help of an extension (see fig. 1).
❒For USB devices with a cable, connect
one end to your USB device and the
other to the USB port in the vehicle
(see fig. 1).
❒Turn the ignition key to MAR.
Blue&Me™will automatically start
playing your digital tracks, selecting them
from a library that is created the mo-
ment the USB device is connected.
❒If the AUTO PLAYfunction is set to
“ON”, Blue&Me™will start to play
the tracks automatically.

For more information, see the SET-
TINGS – MEDIA PLAYER section.
When the creation of the multimedia li-
brary is complete, you can to use
Blue&Me™to display, select and play
the tracks.
MEDIA PLAYER FUNCTIONS
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 28

29

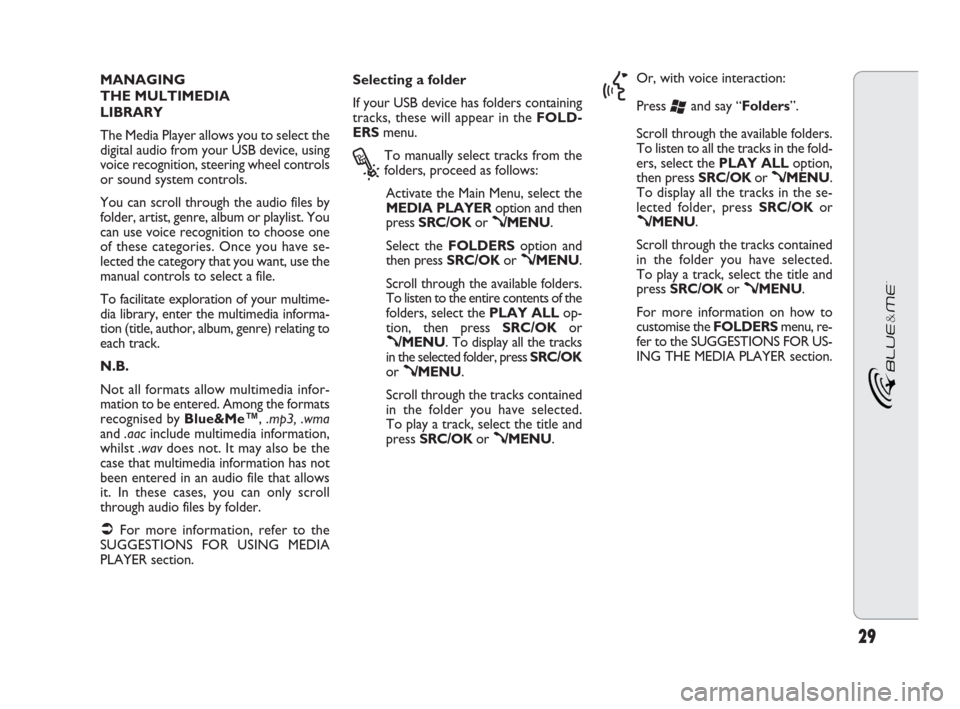

MANAGING
THE MULTIMEDIA
LIBRARY
The Media Player allows you to select the
digital audio from your USB device, using
voice recognition, steering wheel controls
or sound system controls.
You can scroll through the audio files by
folder, artist, genre, album or playlist. You
can use voice recognition to choose one
of these categories. Once you have se-
lected the category that you want, use the
manual controls to select a file.
To facilitate exploration of your multime-
dia library, enter the multimedia informa-
tion (title, author, album, genre) relating to
each track.
N.B.
Not all formats allow multimedia infor-
mation to be entered. Among the formats
recognised by Blue&Me™, .mp3, .wma
and.aacinclude multimedia information,
whilst .wavdoes not. It may also be the
case that multimedia information has not
been entered in an audio file that allows
it. In these cases, you can only scroll
through audio files by folder.

For more information, refer to the
SUGGESTIONS FOR USING MEDIA
PLAYER section.Selecting a folder
If your USB device has folders containing
tracks, these will appear in the FOLD-
ERSmenu.
?
To manually select tracks from the
folders, proceed as follows:
Activate the Main Menu, select the
MEDIA PLAYERoption and then
press SRC/OK or
ß/MENU.
Select the FOLDERSoption and
then press SRC/OKor
ß/MENU.
Scroll through the available folders.
To listen to the entire contents of the
folders, select thePLAY ALLop-
tion, then press SRC/OKor
ß/MENU. To display all the tracks
in the selected folder, press SRC/OK
or
ß/MENU.
Scroll through the tracks contained
in the folder you have selected.
To play a track, select the title and
press SRC/OKor
ß/MENU.
}
Or, with voice interaction:
Press
‘and say “Folders”.
Scroll through the available folders.
To listen to all the tracks in the fold-
ers, select the PLAY ALLoption,
then press SRC/OKor
ß/MENU.
To display all the tracks in the se-
lected folder, press SRC/OKor
ß/MENU.
Scroll through the tracks contained
in the folder you have selected.
To play a track, select the title and
press SRC/OKor
ß/MENU.
For more information on how to
customise the FOLDERSmenu, re-
fer to the SUGGESTIONS FOR US-
ING THE MEDIA PLAYER section.
604_39_206 DOBLO BLUE GB 1ed 17-09-2009 16:55 Pagina 29
