FIAT DOBLO COMBI 2010 Owner handbook (in English)

F0V0019mfig. 56

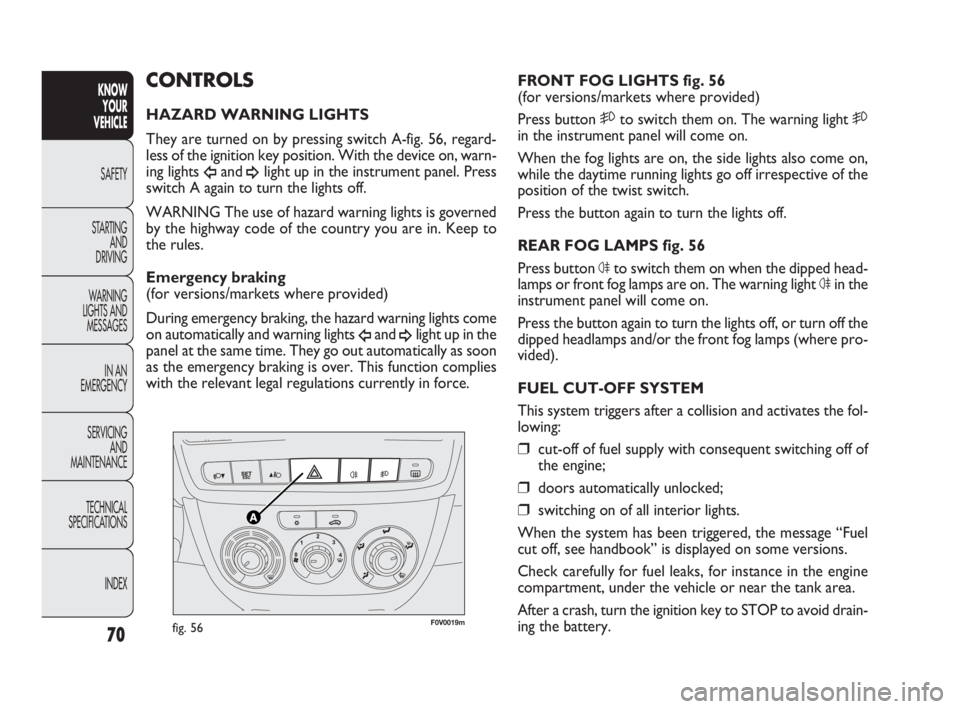

FRONT FOG LIGHTS fig. 56
(for versions/markets where provided)
Press button 5to switch them on. The warning light 5
in the instrument panel will come on.
When the fog lights are on, the side lights also come on,
while the daytime running lights go off irrespective of the
position of the twist switch.
Press the button again to turn the lights off.
REAR FOG LAMPS fig. 56
Press button
4to switch them on when the dipped head-
lamps or front fog lamps are on. The warning light
4in the
instrument panel will come on.
Press the button again to turn the lights off, or turn off the
dipped headlamps and/or the front fog lamps (where pro-
vided).
FUEL CUT-OFF SYSTEM
This system triggers after a collision and activates the fol-
lowing:
❒cut-off of fuel supply with consequent switching off of
the engine;
❒doors automatically unlocked;
❒switching on of all interior lights.
When the system has been triggered, the message “Fuel
cut off, see handbook” is displayed on some versions.
Check carefully for fuel leaks, for instance in the engine
compartment, under the vehicle or near the tank area.
After a crash, turn the ignition key to STOP to avoid drain-
ing the battery.
CONTROLS
HAZARD WARNING LIGHTS
They are turned on by pressing switch A-fig. 56, regard-
less of the ignition key position. With the device on, warn-
ing lights
Îand¥light up in the instrument panel. Press
switch A again to turn the lights off.
WARNING The use of hazard warning lights is governed
by the highway code of the country you are in. Keep to
the rules.
Emergency braking
(for versions/markets where provided)
During emergency braking, the hazard warning lights come
on automatically and warning lights
Îand¥light up in the
panel at the same time. They go out automatically as soon
as the emergency braking is over. This function complies
with the relevant legal regulations currently in force.
70
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 70

71
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

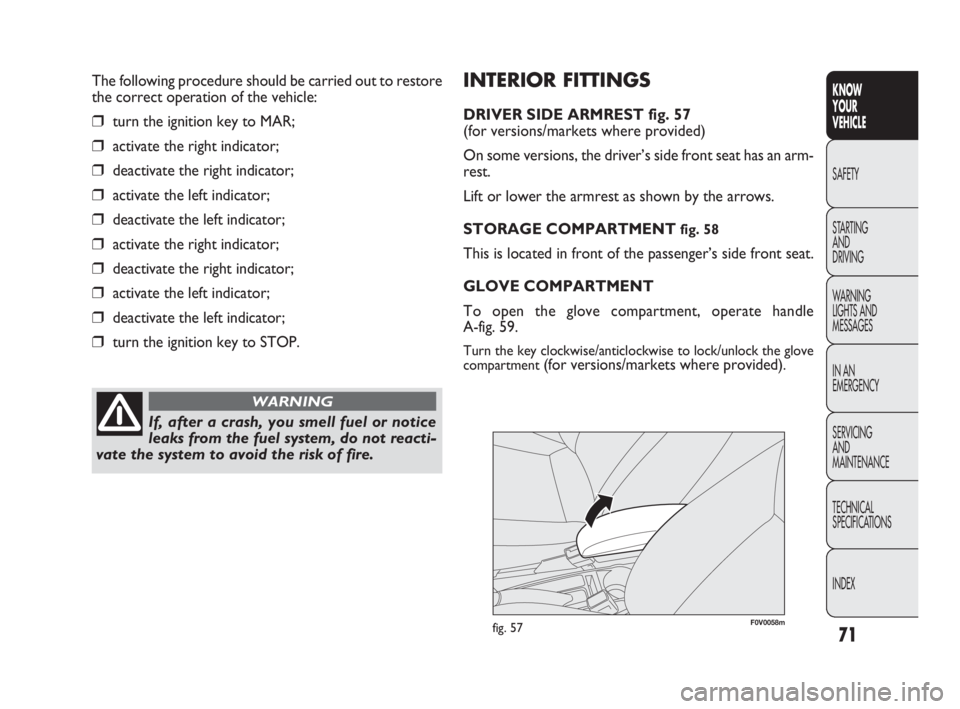

INTERIOR FITTINGS
DRIVER SIDE ARMREST fig. 57
(for versions/markets where provided)
On some versions, the driver’s side front seat has an arm-
rest.
Lift or lower the armrest as shown by the arrows.
STORAGE COMPARTMENT
fig. 58
This is located in front of the passenger’s side front seat.
GLOVE COMPARTMENT
To open the glove compartment, operate handle
A-fig. 59.
Turn the key clockwise/anticlockwise to lock/unlock the glove
compartment (for versions/markets where provided).
The following procedure should be carried out to restore
the correct operation of the vehicle:
❒turn the ignition key to MAR;
❒activate the right indicator;
❒deactivate the right indicator;
❒activate the left indicator;
❒deactivate the left indicator;
❒activate the right indicator;
❒deactivate the right indicator;
❒activate the left indicator;
❒deactivate the left indicator;
❒turn the ignition key to STOP.
If, after a crash, you smell fuel or notice
leaks from the fuel system, do not reacti-
vate the system to avoid the risk of fire.
WARNING
F0V0058mfig. 57
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 71

F0V0060mfig. 59
F0V0059mfig. 58F0V0062mfig. 60

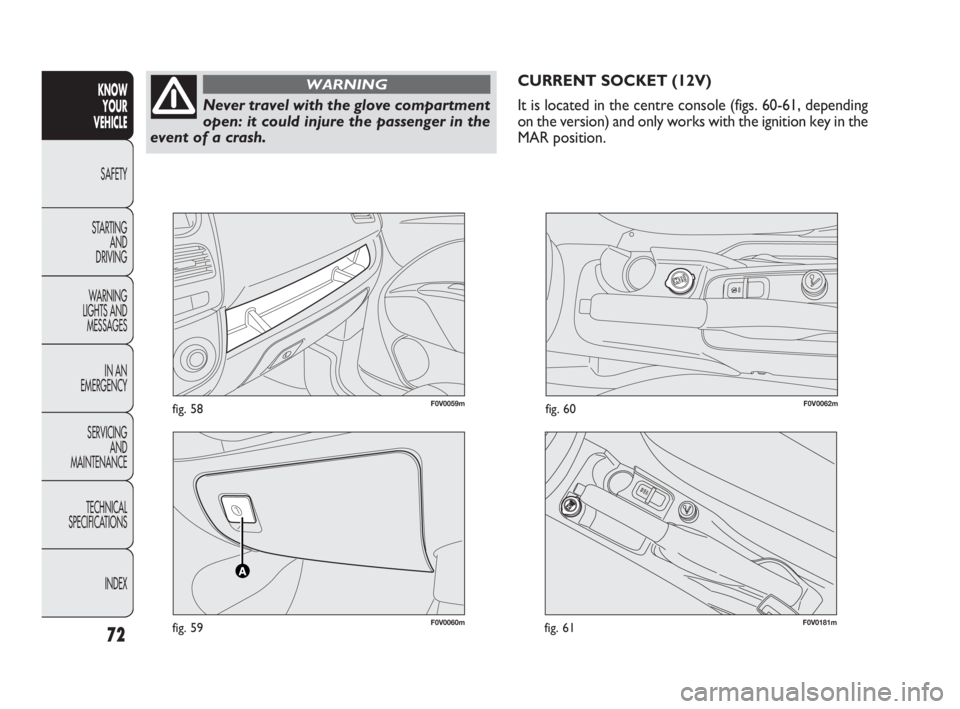

CURRENT SOCKET (12V)
It is located in the centre console (figs. 60-61, depending
on the version) and only works with the ignition key in the
MAR position.
72
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Never travel with the glove compartment
open: it could injure the passenger in the
event of a crash.
WARNING
F0V0181mfig. 61
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 72

73
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0101mfig. 62

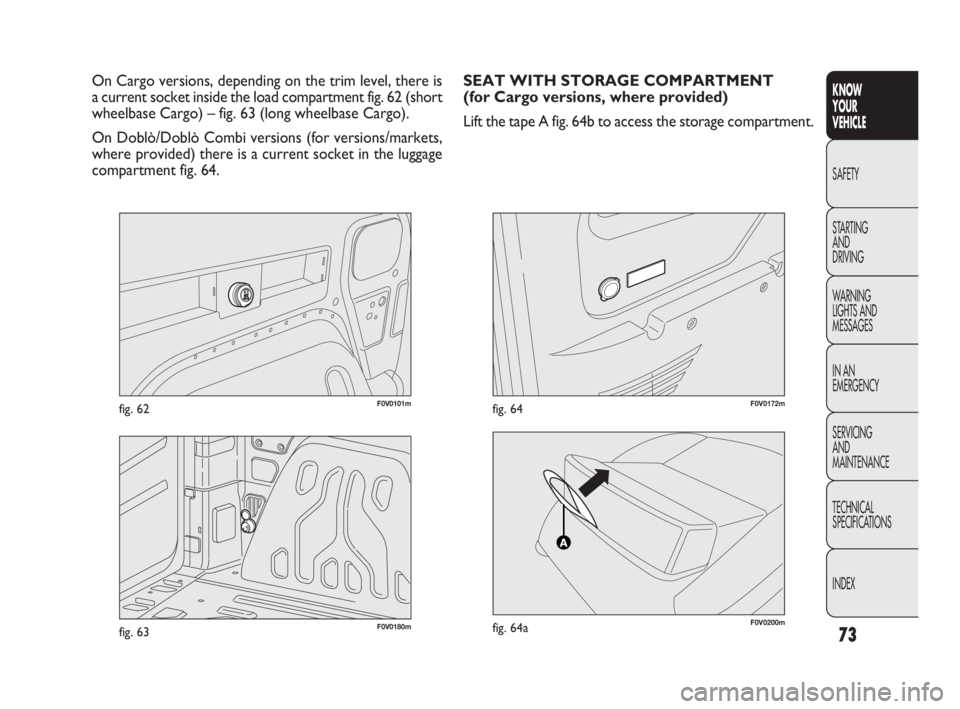

On Cargo versions, depending on the trim level, there is
a current socket inside the load compartment fig. 62 (short
wheelbase Cargo) – fig. 63 (long wheelbase Cargo).
On Doblò/Doblò Combi versions (for versions/markets,
where provided) there is a current socket in the luggage
compartment fig. 64.
F0V0180mfig. 63
SEAT WITH STORAGE COMPARTMENT
(for Cargo versions, where provided)
Lift the tape A fig. 64b to access the storage compartment.
F0V0172mfig. 64
F0V0200mfig. 64a
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 73

ASHTRAY fig. 68
(for versions/markets where provided)
The ashtray is a removable spring-loaded plastic box that
can be fitted into the cup/can holders in the central con-
sole.
74
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0061mfig. 65
F0V0063mfig. 66

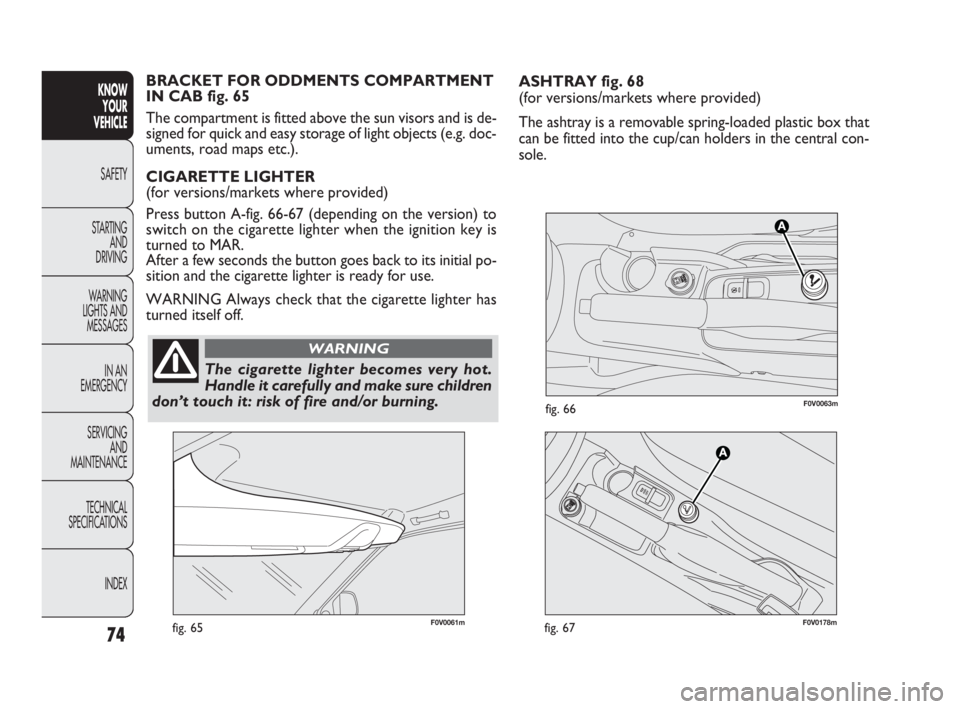

BRACKET FOR ODDMENTS COMPARTMENT
IN CAB fig. 65
The compartment is fitted above the sun visors and is de-
signed for quick and easy storage of light objects (e.g. doc-
uments, road maps etc.).
CIGARETTE LIGHTER
(for versions/markets where provided)
Press button A-fig. 66-67 (depending on the version) to
switch on the cigarette lighter when the ignition key is
turned to MAR.
After a few seconds the button goes back to its initial po-
sition and the cigarette lighter is ready for use.
WARNING Always check that the cigarette lighter has
turned itself off.
The cigarette lighter becomes very hot.
Handle it carefully and make sure children
don’t touch it: risk of fire and/or burning.
WARNING
F0V0178mfig. 67
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 74

75
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0064mfig. 68

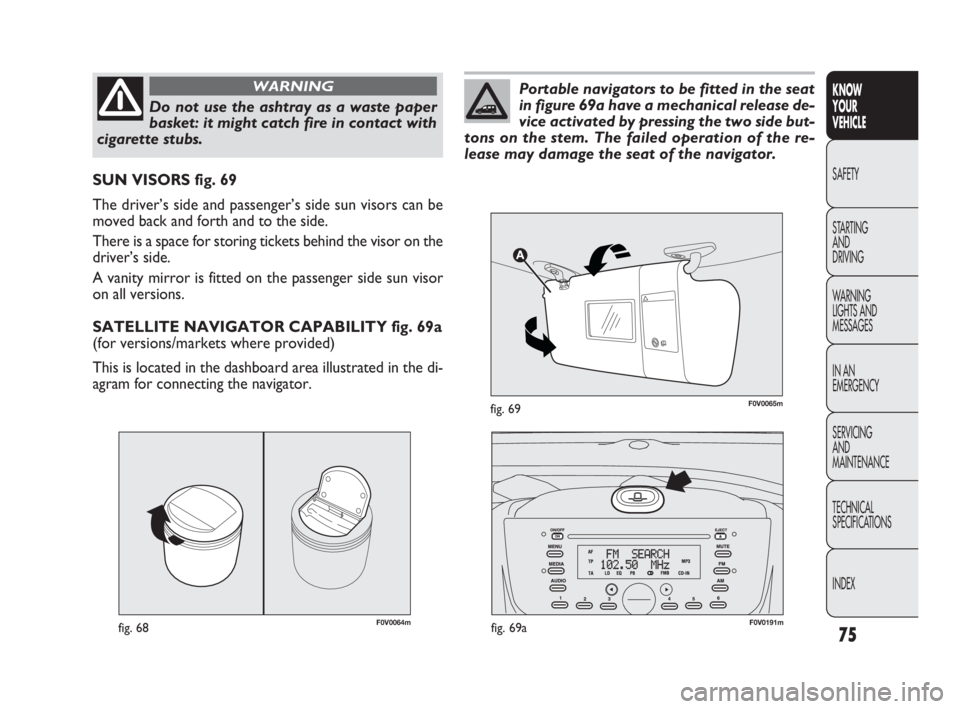

SUN VISORS fig. 69
The driver’s side and passenger’s side sun visors can be
moved back and forth and to the side.
There is a space for storing tickets behind the visor on the
driver’s side.
A vanity mirror is fitted on the passenger side sun visor
on all versions.
SATELLITE NAVIGATOR CAPABILITY fig. 69a
(for versions/markets where provided)
This is located in the dashboard area illustrated in the di-
agram for connecting the navigator.
Do not use the ashtray as a waste paper
basket: it might catch fire in contact with
cigarette stubs.
WARNING
F0V0191mfig. 69a
F0V0065mfig. 69
Portable navigators to be fitted in the seat
in figure 69a have a mechanical release de-
vice activated by pressing the two side but-
tons on the stem. The failed operation of the re-
lease may damage the seat of the navigator.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 75

76
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0132mfig. 71
To refit the bookrest in its housing:
❒reverse the above movement with open hand till hear-
ing the clicks of the front and rear fasteners (detail C).
HINGED REAR SIDE WINDOWS
(Doblò/Doblò Combi versions) fig. 71
To open, proceed as follows:
❒move lever A-fig. 71 outwards until the window is ful-
ly open.
❒push the lever back until it locks into place.
To close them, carry out the process in reverse until the
lever clicks back into its original place.

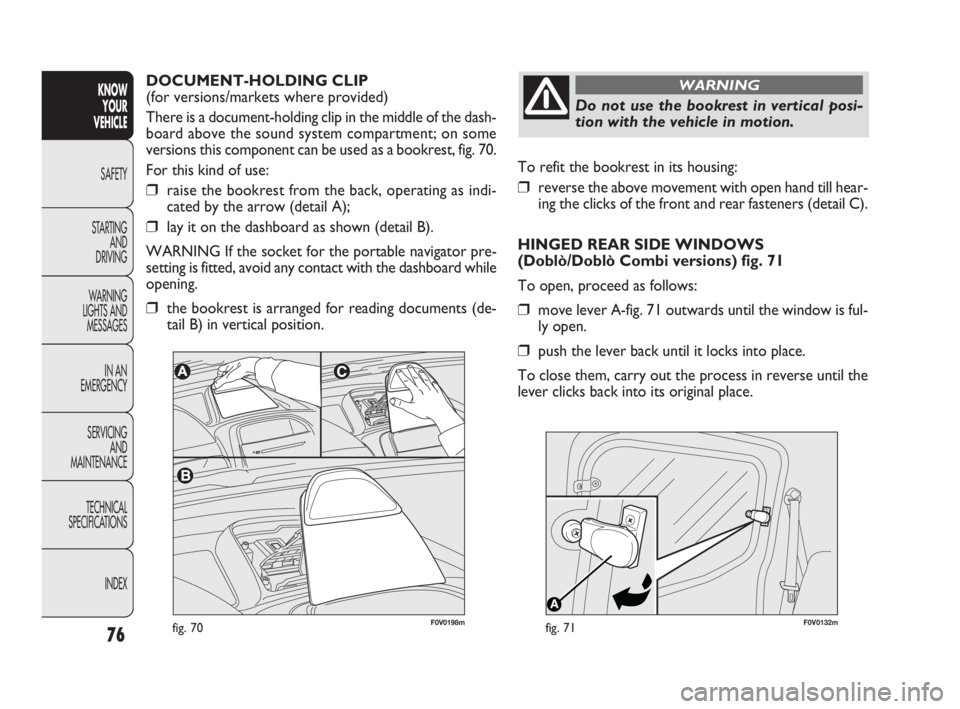

Do not use the bookrest in vertical posi-
tion with the vehicle in motion.
WARNINGDOCUMENT-HOLDING CLIP
(for versions/markets where provided)
There is a document-holding clip in the middle of the dash-
board above the sound system compartment; on some
versions this component can be used as a bookrest, fig. 70.
For this kind of use:
❒raise the bookrest from the back, operating as indi-
cated by the arrow (detail A);
❒lay it on the dashboard as shown (detail B).
WARNING If the socket for the portable navigator pre-
setting is fitted, avoid any contact with the dashboard while
opening.
❒the bookrest is arranged for reading documents (de-
tail B) in vertical position.
F0V0198mfig. 70
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 76

77
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0046mfig. 72F0V0022mfig. 73
Press button Pshortly to remotely unlock the load com-
partment (Cargo version), to turn on the rear roof lights
for a limited period and to double flash the direction in-
dicators. Turn the metal tang counterclockwise in the dri-
ver's door to unlock the front doors only.
Press button
Qshortly to remotely unlock only the front
doors (Cargo version), to turn on the front roof light for
a limited period and to double flash the direction indica-
tors. Press button Pshortly to remotely unlock the load
compartment (Cargo version), to turn on the rear roof
lights for a limited period and to double flash the direction
indicators. Turn the metal tang counterclockwise in the
driver's door to unlock the front doors only.
Unlocking the load compartment from inside
the vehicle (Cargo version)
Press button A-fig. 73 (Cargo version) to unlock the load
compartment (rear swing doors/tailgate and sliding side
doors) from inside the vehicle. If the LED is on, the load
compartment is locked.

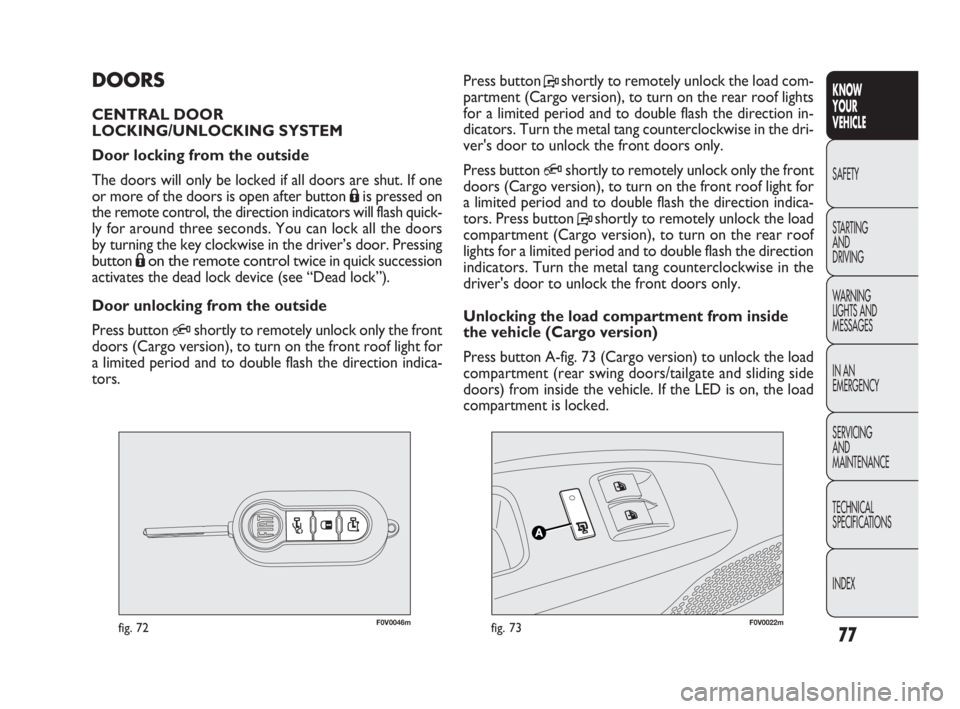

DOORS
CENTRAL DOOR
LOCKING/UNLOCKING SYSTEM
Door locking from the outside
The doors will only be locked if all doors are shut. If one
or more of the doors is open after button Áis pressed on
the remote control, the direction indicators will flash quick-
ly for around three seconds. You can lock all the doors
by turning the key clockwise in the driver’s door. Pressing
button Á
on the remote controltwice in quick succession
activates the dead lock device (see “Dead lock”).
Door unlocking from the outside
Press button
Qshortly to remotely unlock only the front
doors (Cargo version), to turn on the front roof light for
a limited period and to double flash the direction indica-
tors.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 77

78
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

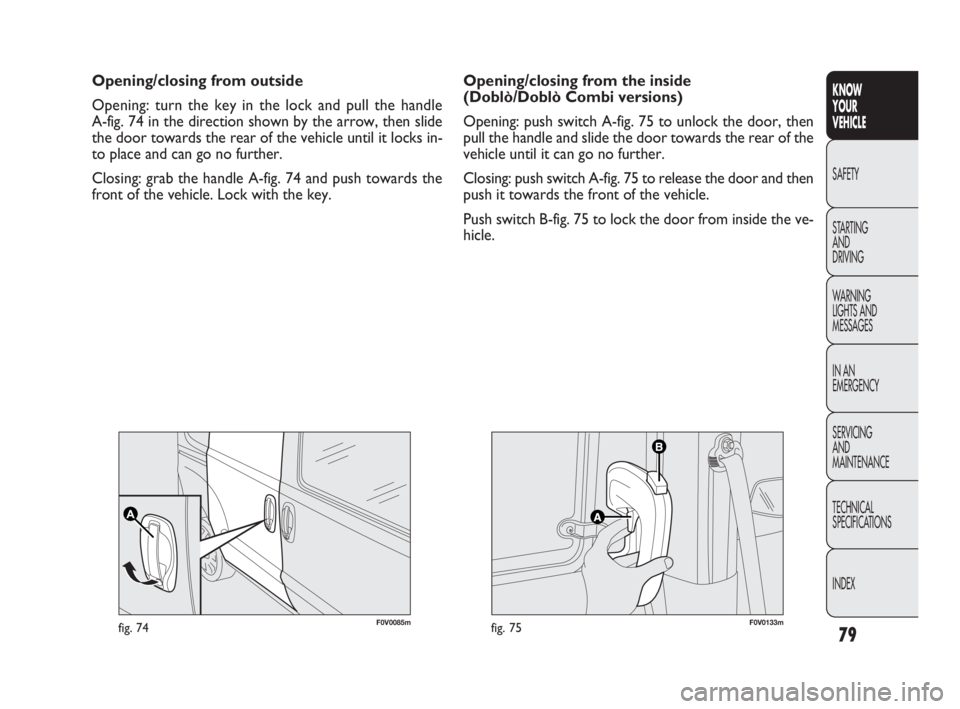

On Cargo versions, the sliding side door is fitted with
a spring-loaded latch that stops the door from opening any
further. To lock it, simply push the door as far as it will go;
to unlock it, pull forward firmly.
In any case, make sure that the door is properly attached
to the device which keeps it fully open.SLIDING SIDE DOORS
(for versions/markets where provided)
Before opening a door, check that you can
do so safely.
WARNING
Before refuelling, check that the left sliding
side door is fully closed; if it is not, you could
damage the door and the slide locking
mechanism when the fuel cap is open.
You must not open the left-hand sliding
side door with the fuel cap open while re-
fuelling. Check that the fuel cap is closed while
opening/closing the sliding side door to avoid dam-
age.
WARNING
If you are parked on a slope, do not leave
the sliding door locked in the open posi-
tion. An involuntary impact could unhook the
door, causing it to move.
WARNING
Before leaving the vehicle parked with the
sliding doors open, always check that they
are locked into place.
WARNING
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 78

79
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0085mfig. 74F0V0133mfig. 75
Opening/closing from the inside
(Doblò/Doblò Combi versions)
Opening: push switch A-fig. 75 to unlock the door, then
pull the handle and slide the door towards the rear of the
vehicle until it can go no further.
Closing: push switch A-fig. 75 to release the door and then
push it towards the front of the vehicle.
Push switch B-fig. 75 to lock the door from inside the ve-
hicle. Opening/closing from outside
Opening: turn the key in the lock and pull the handle
A-fig. 74 in the direction shown by the arrow, then slide
the door towards the rear of the vehicle until it locks in-
to place and can go no further.
Closing: grab the handle A-fig. 74 and push towards the
front of the vehicle. Lock with the key.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 79
