FIAT DOBLO COMBI 2010 Owner handbook (in English)

80
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0066mfig. 76F0V0186mfig. 77
The device remains engaged even if the doors are unlocked
remotely. Opening/closing from the inside
(Cargo versions)

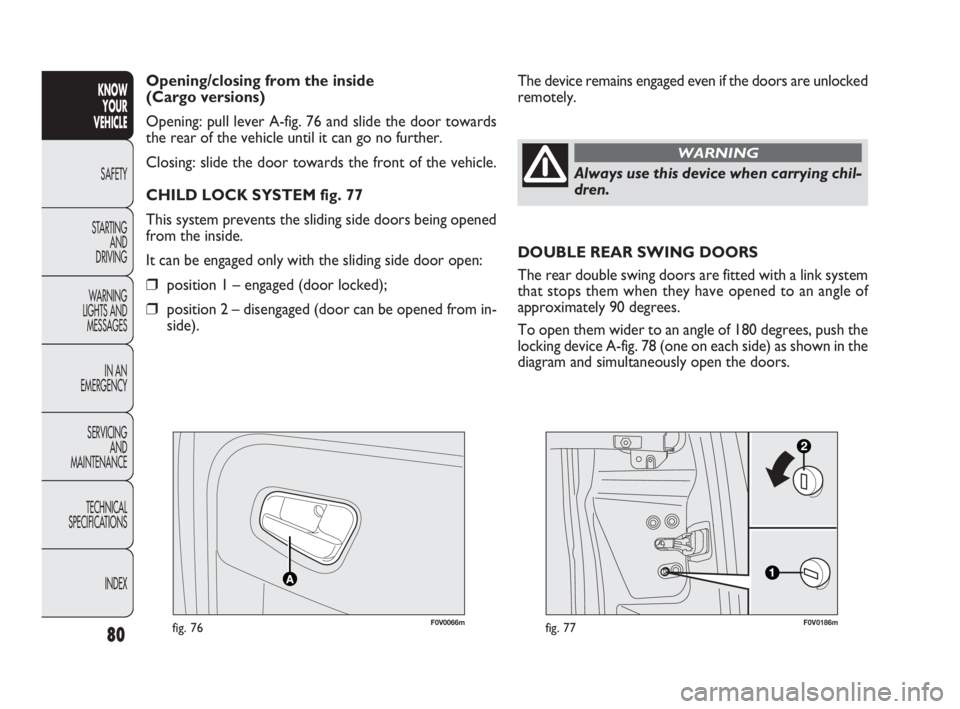

Opening: pull lever A-fig. 76 and slide the door towards
the rear of the vehicle until it can go no further.
Closing: slide the door towards the front of the vehicle.
CHILD LOCK SYSTEM fig. 77
This system prevents the sliding side doors being opened
from the inside.
It can be engaged only with the sliding side door open:
❒position 1 – engaged (door locked);
❒position 2 – disengaged (door can be opened from in-
side).
Always use this device when carrying chil-
dren.
WARNING
DOUBLE REAR SWING DOORS
The rear double swing doors are fitted with a link system
that stops them when they have opened to an angle of
approximately 90 degrees.
To open them wider to an angle of 180 degrees, push the
locking device A-fig. 78 (one on each side) as shown in the
diagram and simultaneously open the doors.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 80

81
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0067mfig. 78F0V0079mfig. 79

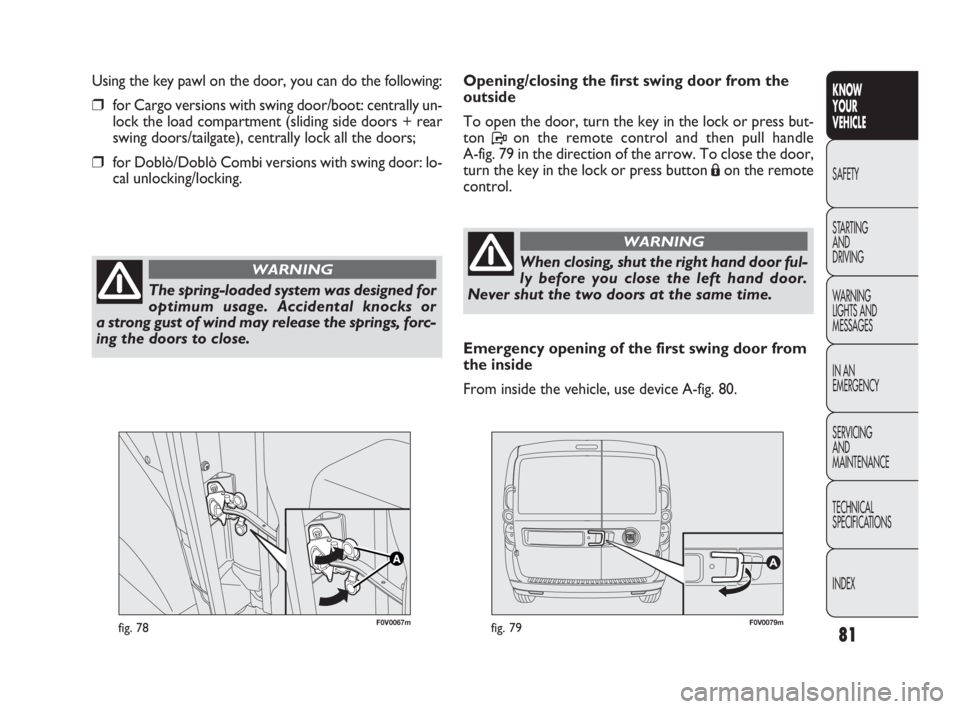

Opening/closing the first swing door from the
outside
To open the door, turn the key in the lock or press but-
ton Pon the remote control and then pull handle
A-fig. 79 in the direction of the arrow. To close the door,
turn the key in the lock or press button
Áon the remote
control. Using the key pawl on the door, you can do the following:
❒for Cargo versions with swing door/boot: centrally un-
lock the load compartment (sliding side doors + rear
swing doors/tailgate), centrally lock all the doors;
❒for Doblò/Doblò Combi versions with swing door: lo-
cal unlocking/locking.
The spring-loaded system was designed for
optimum usage. Accidental knocks or
a strong gust of wind may release the springs, forc-
ing the doors to close.
WARNINGWhen closing, shut the right hand door ful-
ly before you close the left hand door.
Never shut the two doors at the same time.
WARNING
Emergency opening of the first swing door from
the inside
From inside the vehicle, use device A-fig. 80.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 81

82
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0078mfig. 81
F0V0080mfig. 80

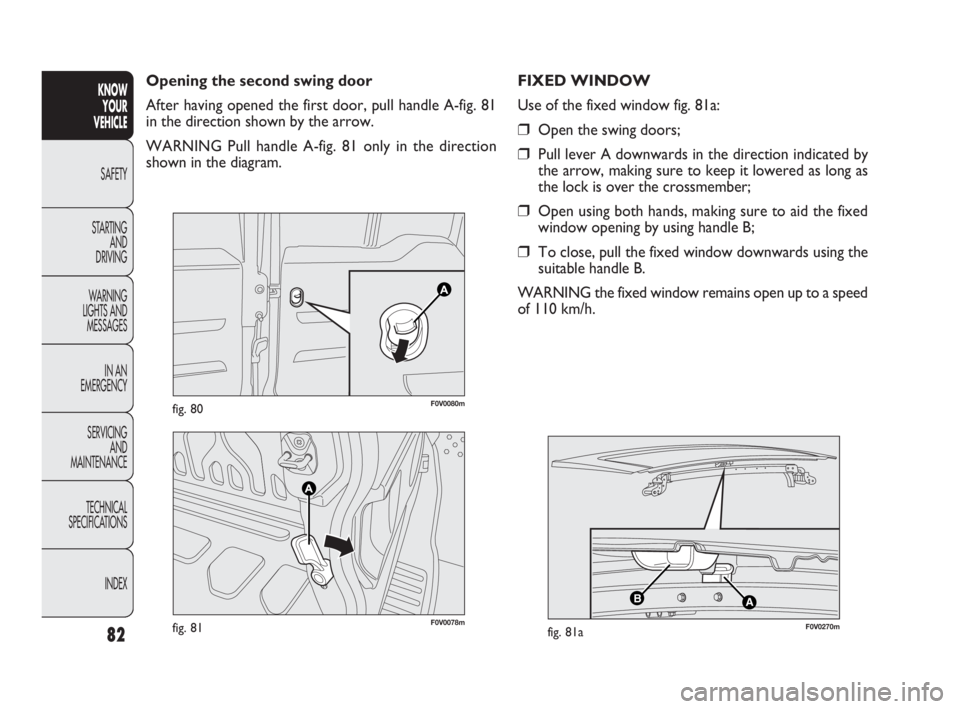

Opening the second swing door
After having opened the first door, pull handle A-fig. 81
in the direction shown by the arrow.
WARNING Pull handle A-fig. 81 only in the direction
shown in the diagram.
AB
F0V0270mfig. 81a
FIXED WINDOW
Use of the fixed window fig. 81a:
❒Open the swing doors;
❒Pull lever A downwards in the direction indicated by
the arrow, making sure to keep it lowered as long as
the lock is over the crossmember;
❒Open using both hands, making sure to aid the fixed
window opening by using handle B;
❒To close, pull the fixed window downwards using the
suitable handle B.
WARNING the fixed window remains open up to a speed
of 110 km/h.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 82

83
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
WARNING In the event that the anti-crushing function
is activated five times in less than a minute, the system will
automatically enter “recovery” mode (self-protection).
This condition is apparent from the window closing in
stages.
On such occasions, it is necessary to carry out the system
restore procedure, acting as follows:
❒open the windows;
or
❒turn the ignition key to STOP and then to MAR.
If no malfunction is present, the window returns to its nor-
mal operation automatically.
WARNING With the ignition key at STOP or removed,
the window opening mechanism remains activated for
about two minutes and is deactivated as soon a door is
opened.

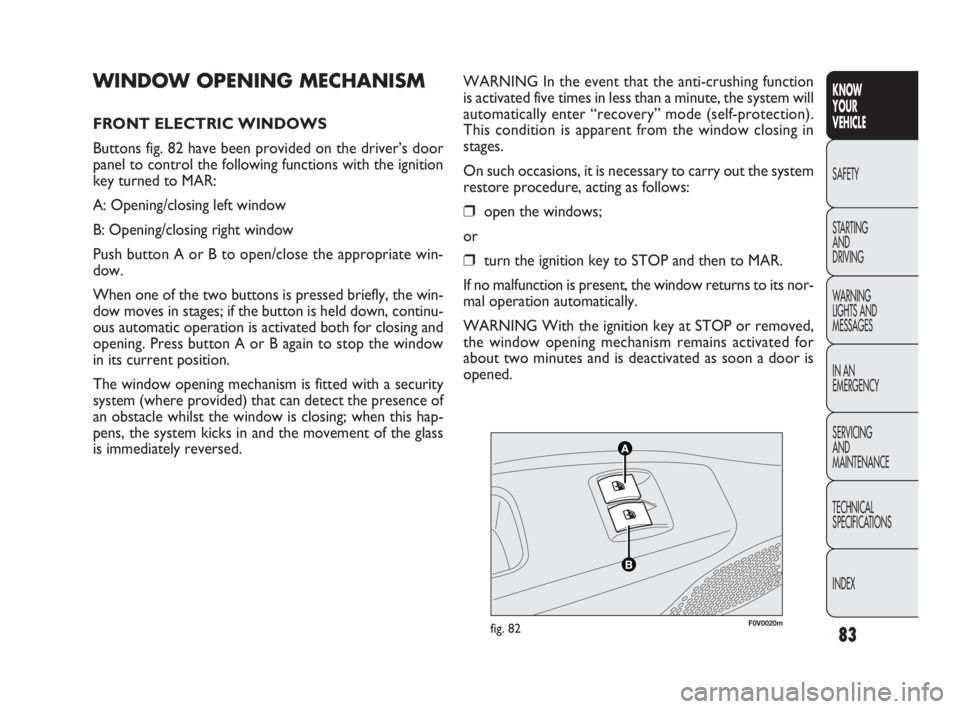

WINDOW OPENING MECHANISM
FRONT ELECTRIC WINDOWS
Buttons fig. 82 have been provided on the driver’s door
panel to control the following functions with the ignition
key turned to MAR:
A: Opening/closing left window
B: Opening/closing right window
Push button A or B to open/close the appropriate win-
dow.
When one of the two buttons is pressed briefly, the win-
dow moves in stages; if the button is held down, continu-
ous automatic operation is activated both for closing and
opening. Press button A or B again to stop the window
in its current position.
The window opening mechanism is fitted with a security
system (where provided) that can detect the presence of
an obstacle whilst the window is closing; when this hap-
pens, the system kicks in and the movement of the glass
is immediately reversed.
F0V0020mfig. 82
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 83

84
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Front and rear passenger’s doors
(for versions/markets where provided)
The switch controlling the corresponding window is lo-
cated on the inner armrest of each door.
Incorrect use of the electric window open-
ing mechanism may be dangerous. Before
and during operation, always check that no-one
is exposed to the risk of being injured directly by
the moving window or by objects getting caught
and dragged.
WARNING
When leaving the vehicle, always remove
the ignition key to avoid the risk of injury
due to accidental operation of the electric win-
dow opening mechanism.
WARNING
F0V0175mfig. 83

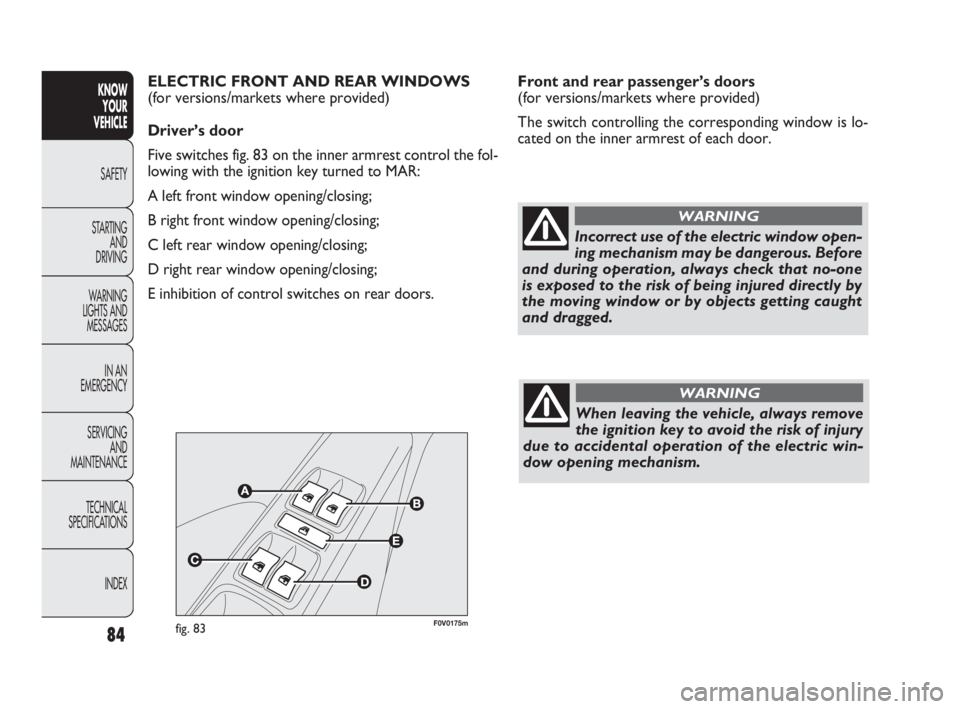

ELECTRIC FRONT AND REAR WINDOWS
(for versions/markets where provided)
Driver’s door
Five switches fig. 83 on the inner armrest control the fol-
lowing with the ignition key turned to MAR:
A left front window opening/closing;
B right front window opening/closing;
C left rear window opening/closing;
D right rear window opening/closing;
E inhibition of control switches on rear doors.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 84

85
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0134mfig. 84F0V0135mfig. 85

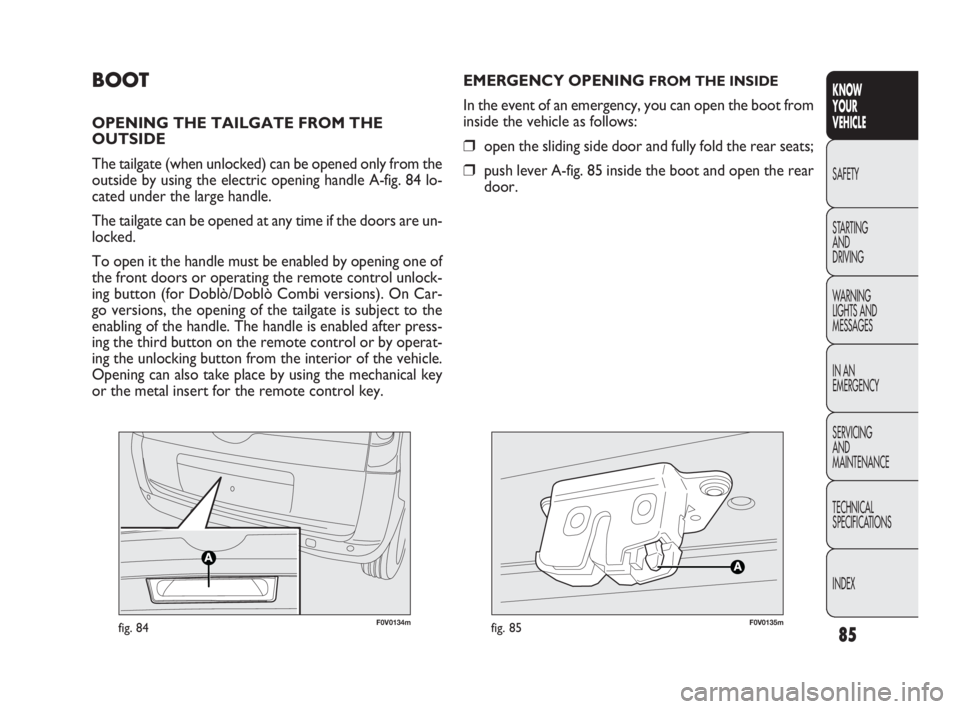

EMERGENCY OPENING FROM THE INSIDE
In the event of an emergency, you can open the boot from
inside the vehicle as follows:
❒open the sliding side door and fully fold the rear seats;
❒push lever A-fig. 85 inside the boot and open the rear
door.
BOOT
OPENING THE TAILGATE FROM THE
OUTSIDE
The tailgate (when unlocked) can be opened only from the
outside by using the electric opening handle A-fig. 84 lo-
cated under the large handle.
The tailgate can be opened at any time if the doors are un-
locked.
To open it the handle must be enabled by opening one of
the front doors or operating the remote control unlock-
ing button (for Doblò/Doblò Combi versions). On Car-
go versions, the opening of the tailgate is subject to the
enabling of the handle. The handle is enabled after press-
ing the third button on the remote control or by operat-
ing the unlocking button from the interior of the vehicle.
Opening can also take place by using the mechanical key
or the metal insert for the remote control key.
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 85

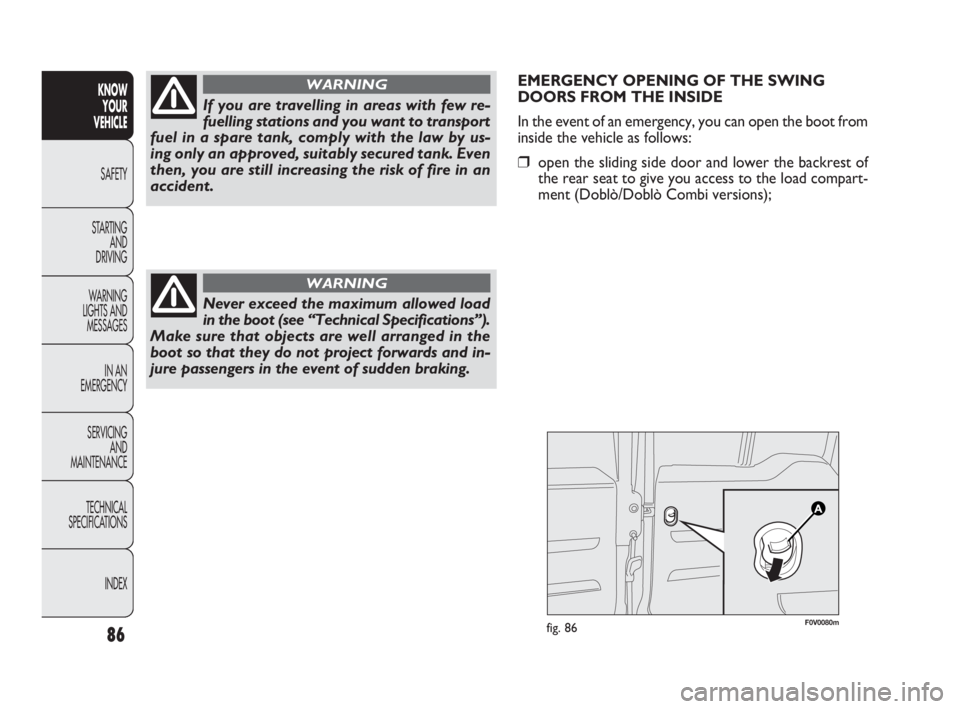

EMERGENCY OPENING OF THE SWING
DOORS FROM THE INSIDE
In the event of an emergency, you can open the boot from
inside the vehicle as follows:
❒open the sliding side door and lower the backrest of
the rear seat to give you access to the load compart-
ment (Doblò/Doblò Combi versions);
86
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Never exceed the maximum allowed load
in the boot (see “Technical Specifications”).
Make sure that objects are well arranged in the
boot so that they do not project forwards and in-
jure passengers in the event of sudden braking.
WARNING
F0V0080mfig. 86
If you are travelling in areas with few re-
fuelling stations and you want to transport
fuel in a spare tank, comply with the law by us-
ing only an approved, suitably secured tank. Even
then, you are still increasing the risk of fire in an
accident.
WARNING
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 86

87
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

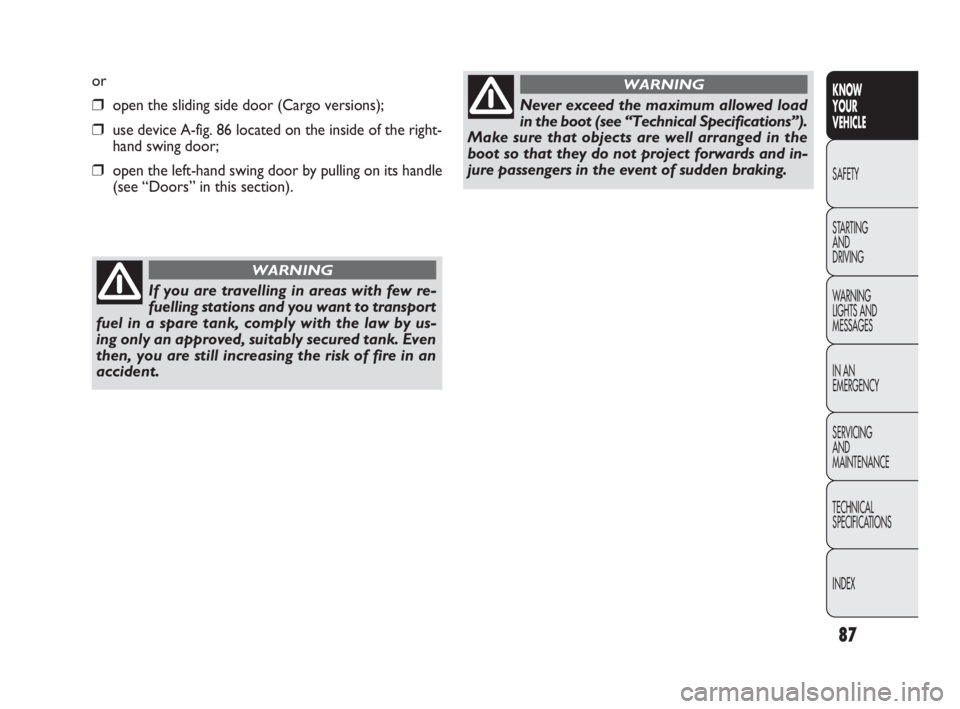

or
❒open the sliding side door (Cargo versions);
❒use device A-fig. 86 located on the inside of the right-
hand swing door;
❒open the left-hand swing door by pulling on its handle
(see “Doors” in this section).
If you are travelling in areas with few re-
fuelling stations and you want to transport
fuel in a spare tank, comply with the law by us-
ing only an approved, suitably secured tank. Even
then, you are still increasing the risk of fire in an
accident.
WARNING
Never exceed the maximum allowed load
in the boot (see “Technical Specifications”).
Make sure that objects are well arranged in the
boot so that they do not project forwards and in-
jure passengers in the event of sudden braking.
WARNING
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 87

F0V0136mfig. 87F0V0137mfig. 88

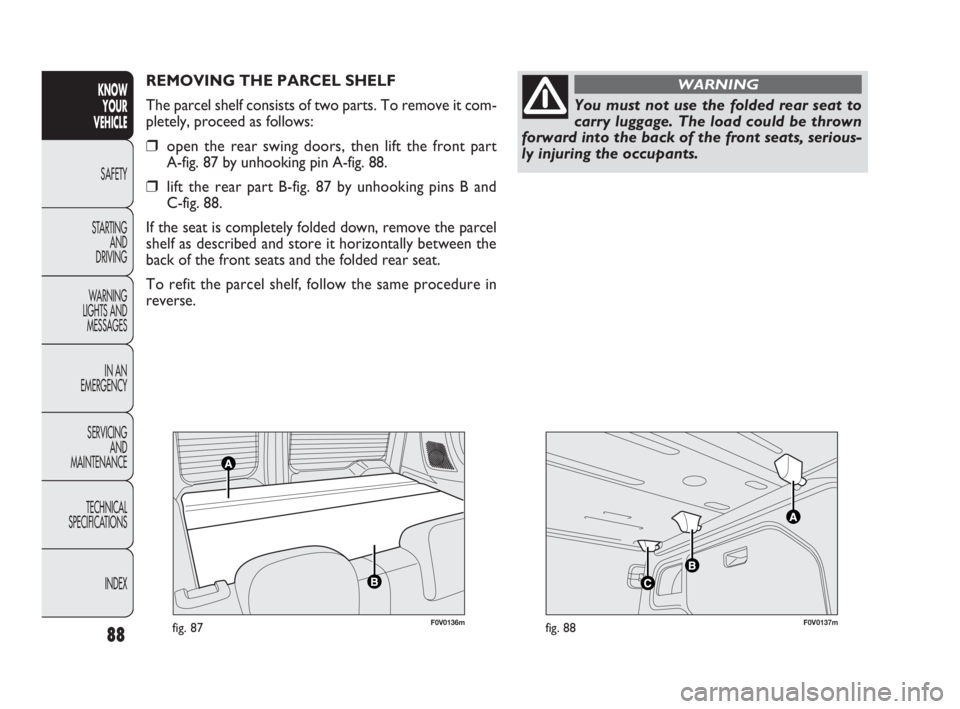

REMOVING THE PARCEL SHELF
The parcel shelf consists of two parts. To remove it com-
pletely, proceed as follows:
❒open the rear swing doors, then lift the front part
A-fig. 87 by unhooking pin A-fig. 88.
❒lift the rear part B-fig. 87 by unhooking pins B and
C-fig. 88.
If the seat is completely folded down, remove the parcel
shelf as described and store it horizontally between the
back of the front seats and the folded rear seat.
To refit the parcel shelf, follow the same procedure in
reverse.
88
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
You must not use the folded rear seat to
carry luggage. The load could be thrown
forward into the back of the front seats, serious-
ly injuring the occupants.
WARNING
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 88

89
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0127mfig. 89a

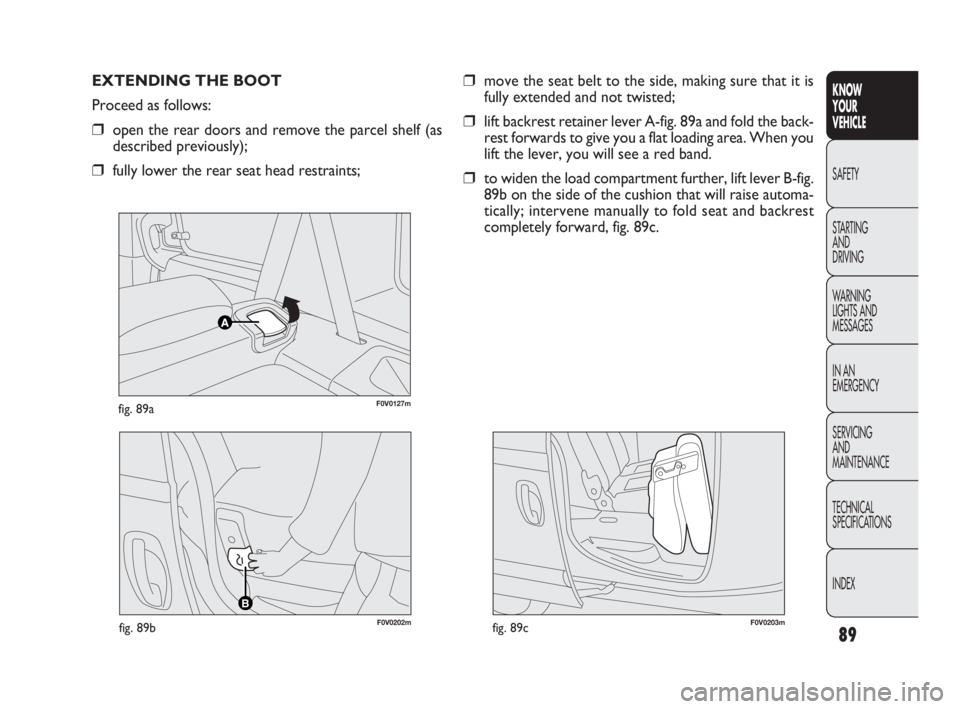

EXTENDING THE BOOT
Proceed as follows:
❒open the rear doors and remove the parcel shelf (as
described previously);
❒fully lower the rear seat head restraints;
❒move the seat belt to the side, making sure that it is
fully extended and not twisted;
❒lift backrest retainer lever A-fig. 89a and fold the back-
rest forwards to give you a flat loading area. When you
lift the lever, you will see a red band.
❒to widen the load compartment further, lift lever B-fig.
89b on the side of the cushion that will raise automa-
tically; intervene manually to fold seat and backrest
completely forward, fig. 89c.
B
F0V0202mfig. 89bF0V0203mfig. 89c
035-114 DOBLO LUM EN 2e 7.0 21-05-2010 9:54 Pagina 89
