F0V0088mfig. 173

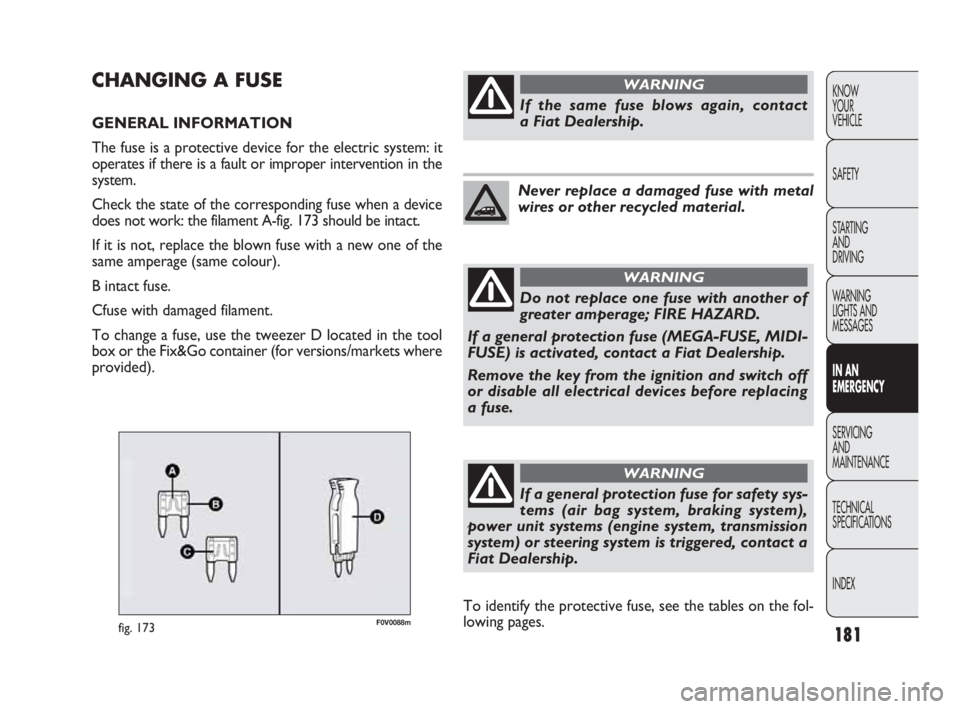

CHANGING A FUSE
GENERAL INFORMATION
The fuse is a protective device for the electric system: it
operates if there is a fault or improper intervention in the
system.
Check the state of the corresponding fuse when a device
does not work: the filament A-fig. 173 should be intact.
If it is not, replace the blown fuse with a new one of the
same amperage (same colour).
B intact fuse.
Cfuse with damaged filament.
To change a fuse, use the tweezer D located in the tool
box or the Fix&Go container (for versions/markets where
provided).
If the same fuse blows again, contact
a Fiat Dealership.
WARNING
Never replace a damaged fuse with metal
wires or other recycled material.
Do not replace one fuse with another of
greater amperage; FIRE HAZARD.
If a general protection fuse (MEGA-FUSE, MIDI-
FUSE) is activated, contact a Fiat Dealership.
Remove the key from the ignition and switch off
or disable all electrical devices before replacing
a fuse.
WARNING
To identify the protective fuse, see the tables on the fol-
lowing pages.
If a general protection fuse for safety sys-
tems (air bag system, braking system),
power unit systems (engine system, transmission
system) or steering system is triggered, contact a
Fiat Dealership.
WARNING
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 181
Page 183 of 274

182
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0081mfig. 174F0V0089mfig. 175

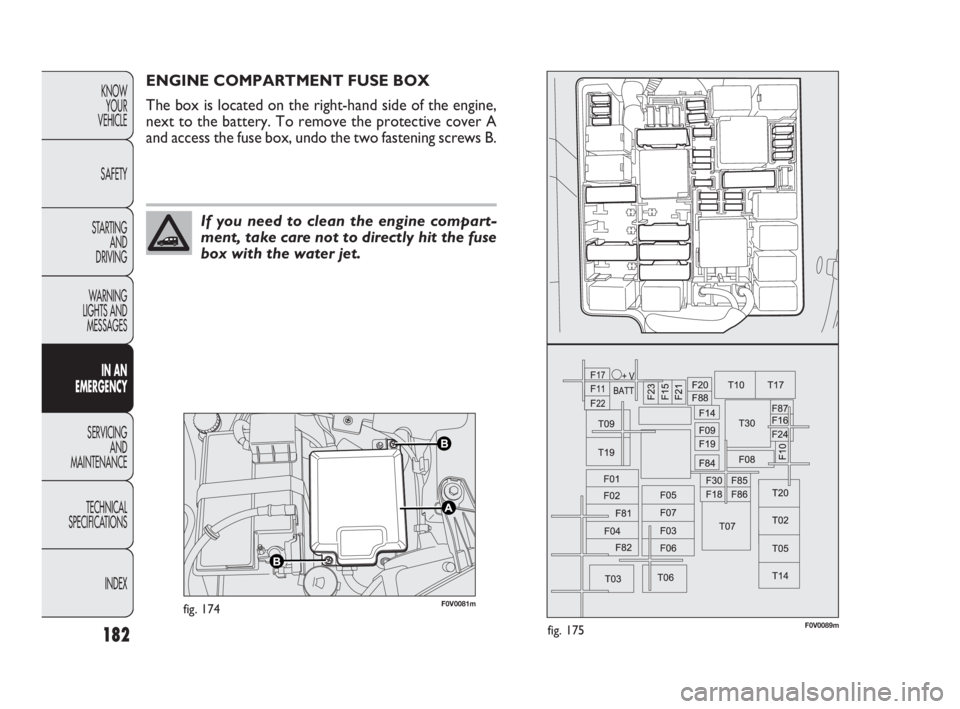

ENGINE COMPARTMENT FUSE BOX
The box is located on the right-hand side of the engine,
next to the battery. To remove the protective cover A
and access the fuse box, undo the two fastening screws B.
If you need to clean the engine compart-
ment, take care not to directly hit the fuse
box with the water jet.
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 182
Page 184 of 274

183
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

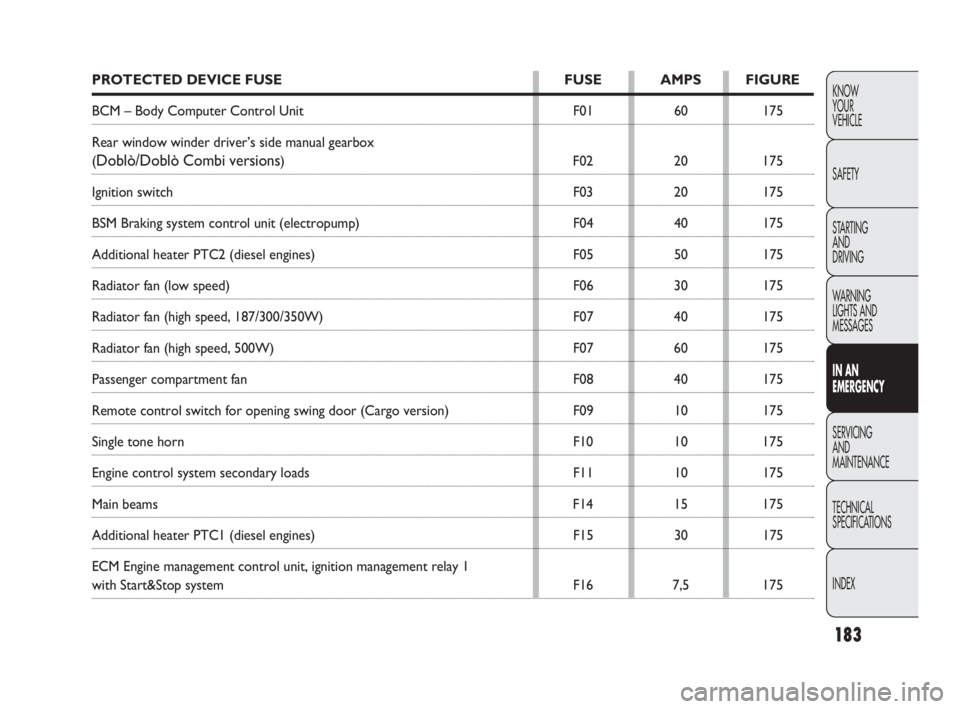

PROTECTED DEVICE FUSE FUSE AMPS FIGURE
BCM – Body Computer Control Unit F01 60 175
Rear window winder driver’s side manual gearbox
(Doblò/Doblò Combi versions) F02 20 175
Ignition switch F03 20 175
BSM Braking system control unit (electropump) F04 40 175
Additional heater PTC2 (diesel engines) F05 50 175
Radiator fan (low speed) F06 30 175
Radiator fan (high speed, 187/300/350W) F07 40 175
Radiator fan (high speed, 500W) F07 60 175
Passenger compartment fan F08 40 175
Remote control switch for opening swing door (Cargo version) F09 10 175
Single tone horn F10 10 175
Engine control system secondary loads F11 10 175
Main beams F14 15 175
Additional heater PTC1 (diesel engines) F15 30 175
ECM Engine management control unit, ignition management relay 1
with Start&Stop system F16 7,5 175
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 183
Page 185 of 274

184
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
PROTECTED DEVICE FUSE FUSE AMPS FIGURE
ECM Engine control unit (power supply)
(1.3 Multijet Euro 4, 1.4 BZ, 1.6 Multijet – 2.0 JTD) F17 10 175
ECM Engine control unit, engine control system
management main relay F18 7,5 175
Climate control compressor F19 7,5 175
Heated rear window F20 30 175
Fuel pump on tank F21 15 175
Engine management system primary loads (1.3 Multijet Euro 4, 1.4) F22 15 175
Engine management system primary loads
(1.3 Multijet Euro / Euro 5, 1.6 Multijet – 2.0 JTD) F22 20 175
BSM Braking system ECU (control unit and solenoid unit) F23 20 175
BSM Braking system control unit (supply and key),
steering angle sensor F24 5 175
Fog lights F30 15 175
Glow plug pre-heating control unit
(1.3 Multijet Euro 4, 1.3 Multijet Euro 5, 1.6 Multijet – 2.0 JTD Euro 4 – Euro 5) F81 60 175
Rear window winder passenger’s side
(Doblò/Doblò Combi versions with manual gearbox) F82 20 175
Headlight washer pump F83 20 175
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 184
Page 187 of 274

186
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0082mfig. 176F0V0083mfig. 177

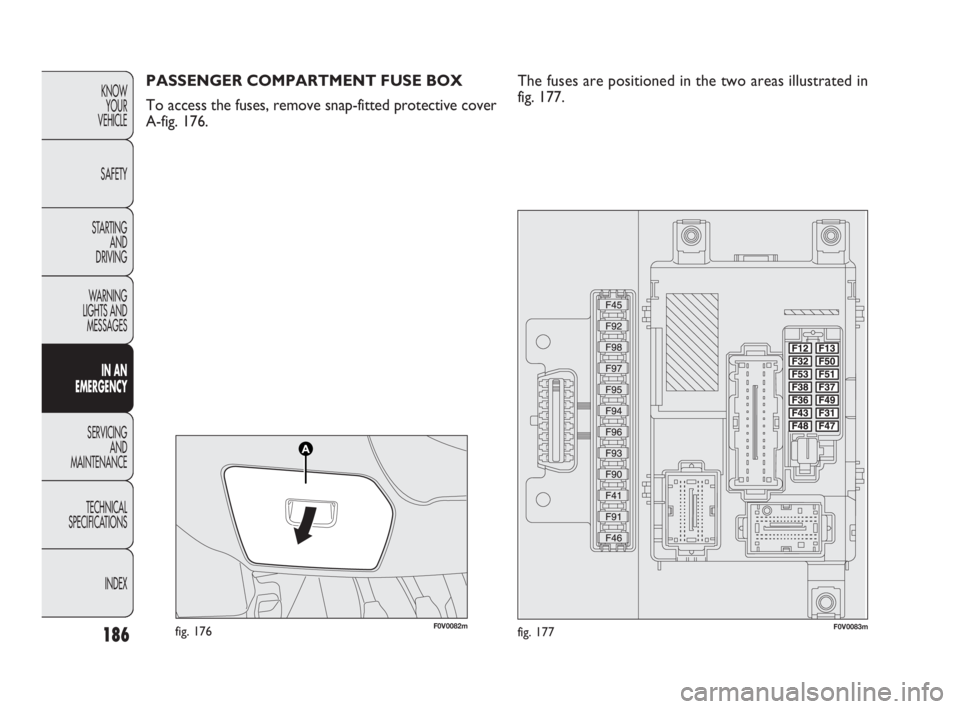

PASSENGER COMPARTMENT FUSE BOX
To access the fuses, remove snap-fitted protective cover
A-fig. 176.The fuses are positioned in the two areas illustrated in
fig. 177.
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 186
Page 188 of 274

187
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
PROTECTED DEVICE FUSE FUSE AMPS FIGURE
Right low beamF12 7,5 177
Front courtesy light, rear courtesy light, lights on sun visors,
door clearance lights, boot light F32 7,5 177
Instrument panel F53 5 177
Door lock/unlock motors, dead lock actuator motors,
tailgate lock motor F38 20 177
Power + battery for EOBD diagnostic socket, automatic climate control unit,
alarm siren, sound system, convergence control unit Blue&Me™, tyre pressure
detector control unit F36 10 177
Windscreen/rear window washer pump F43 15 177
Window winder motor for front door passenger side F48 20 177
Left low beam, headlight corrector F13 7,5 177
Int. power for brake pedal switch,
clutch pedal switch, interior heater,
convergence control unit Blue&Me™, sound system set-up F51 7,5 177
Int. power for instrument panel, brake pedal switch,
third brake light F37 5 177
Int. power for control panel lights, parking control unit,
tyre pressure detector control unit, electric door mirror motor,
rain sensor, electric top control unit, My-port infotainment socket F49 5 177
Int. power for engine fusebox relay coils and
body computer relay coils F31 5 177
Window winder motor for front door driver’s side F47 20 177
Rear socketF94 15 177
Cigarette lighter/Passenger compartment socket F95 15 177
Cigarette lighter/Passenger compartment socket F96 15 177
Heated driver seat F97 10 177
Heated passenger seat F98 10 177
155-190 DOBLO LUM EN 2e 7.0 21-05-2010 11:34 Pagina 187
Page 267 of 274

266
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

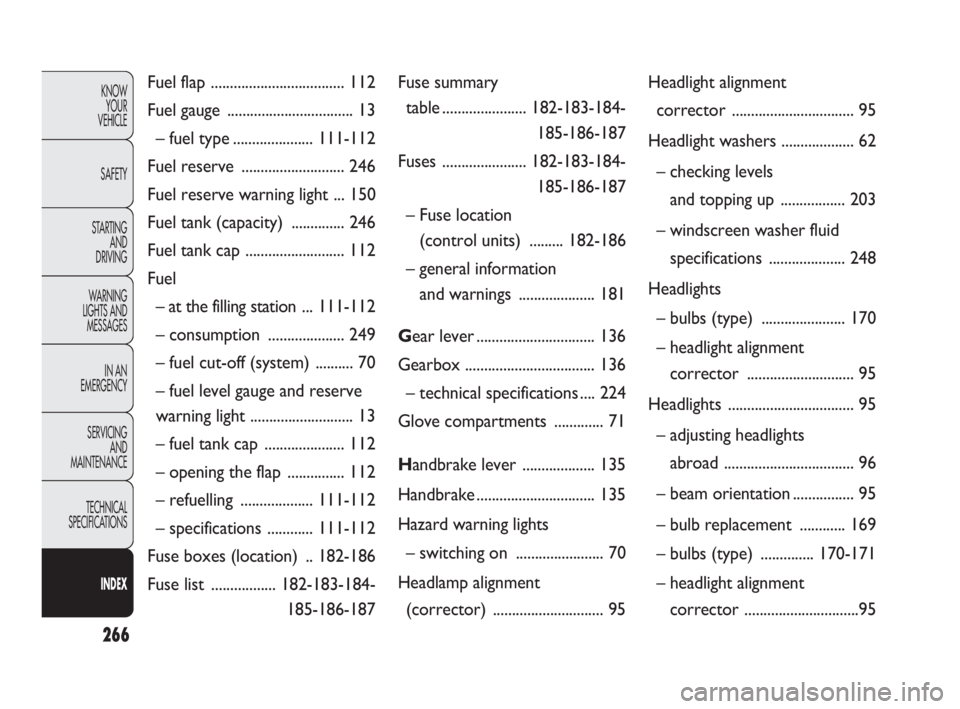

Fuel flap ................................... 112
Fuel gauge ................................. 13
– fuel type .....................111-112
Fuel reserve ........................... 246
Fuel reserve warning light ... 150
Fuel tank (capacity) .............. 246
Fuel tank cap .......................... 112
Fuel
– at the filling station ...111-112
– consumption .................... 249
– fuel cut-off (system) .......... 70
– fuel level gauge and reserve
warning light ........................... 13
– fuel tank cap ..................... 112
– opening the flap ............... 112
– refuelling ...................111-112
– specifications ............111-112
Fuse boxes (location) .. 182-186
Fuse list .................182-183-184-
185-186-187Fuse summary
table......................182-183-184-
185-186-187
Fuses ......................182-183-184-
185-186-187
– Fuse location
(control units) ......... 182-186
– general information
and warnings .................... 181
Gear lever ............................... 136
Gearbox .................................. 136
– technical specifications .... 224
Glove compartments ............. 71
Handbrake lever ................... 135
Handbrake ............................... 135
Hazard warning lights
– switching on ....................... 70
Headlamp alignment
(corrector) ............................. 95Headlight alignment
corrector ................................ 95
Headlight washers ................... 62
– checking levels
and topping up ................. 203
– windscreen washer fluid
specifications .................... 248
Headlights
– bulbs (type) ...................... 170
– headlight alignment
corrector ............................ 95
Headlights ................................. 95
– adjusting headlights
abroad .................................. 96
– beam orientation................ 95
– bulb replacement ............ 169
– bulbs (type) ..............170-171
– headlight alignment
corrector ..............................95
