Rack and pinion with hydraulic power steering
11.2 (*)/12.5 (
)
self-ventilated discs
drum
controlled by hand lever, acting on rear brakes
Independent McPherson type
Multi-link independent, coil springs, telescopic shock absorbers
and anti-roll bar (according to version)

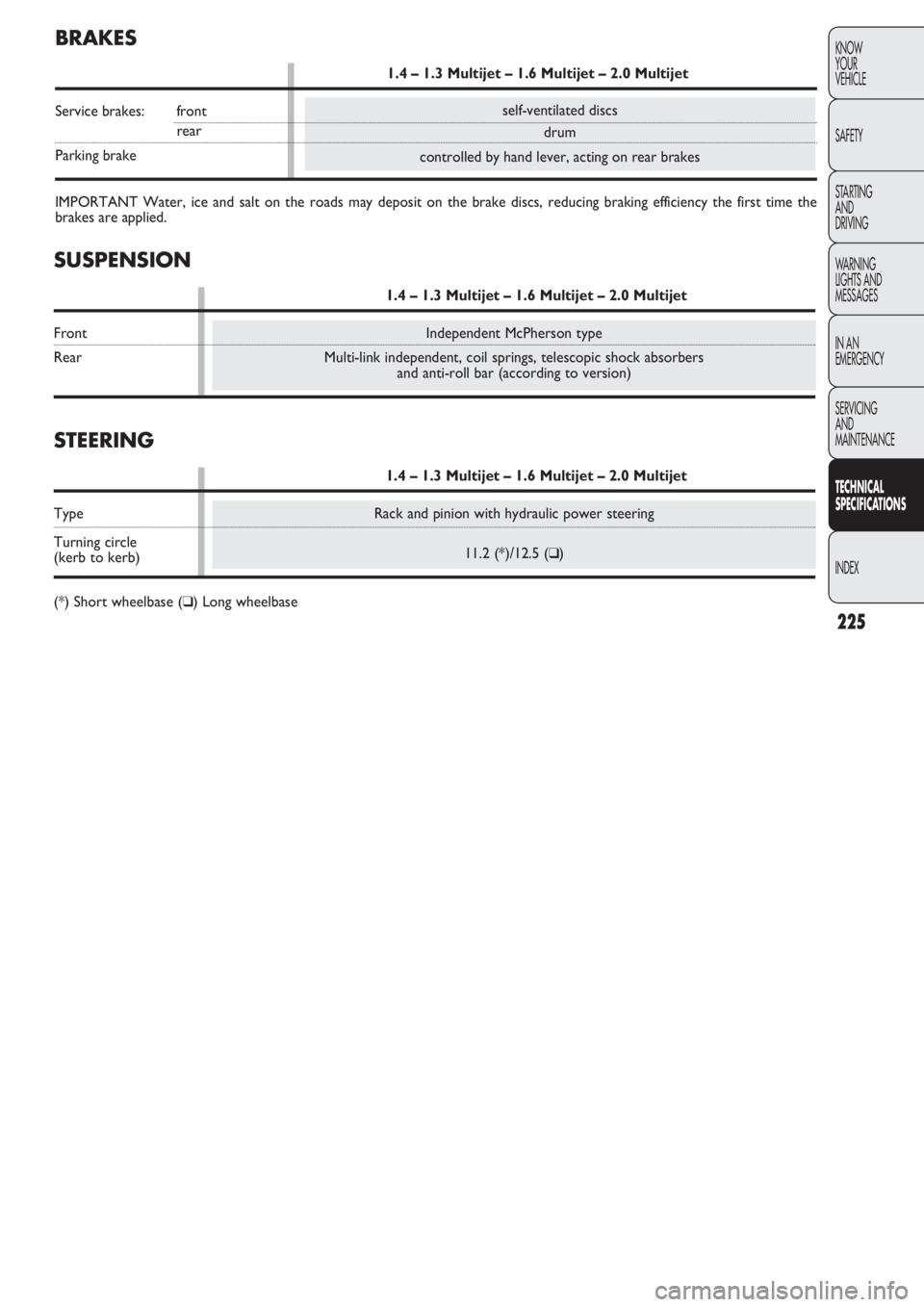

BRAKES
1.4 – 1.3 Multijet – 1.6 Multijet – 2.0 Multijet
Service brakes: front
rear
Parking brake
IMPORTANT Water, ice and salt on the roads may deposit on the brake discs, reducing braking efficiency the first time the
brakes are applied.
SUSPENSION
1.4 – 1.3 Multijet – 1.6 Multijet – 2.0 Multijet
Front
Rear
STEERING
1.4 – 1.3 Multijet – 1.6 Multijet – 2.0 Multijet
Type
Turning circle
(kerb to kerb)
(*) Short wheelbase (
) Long wheelbase

226
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

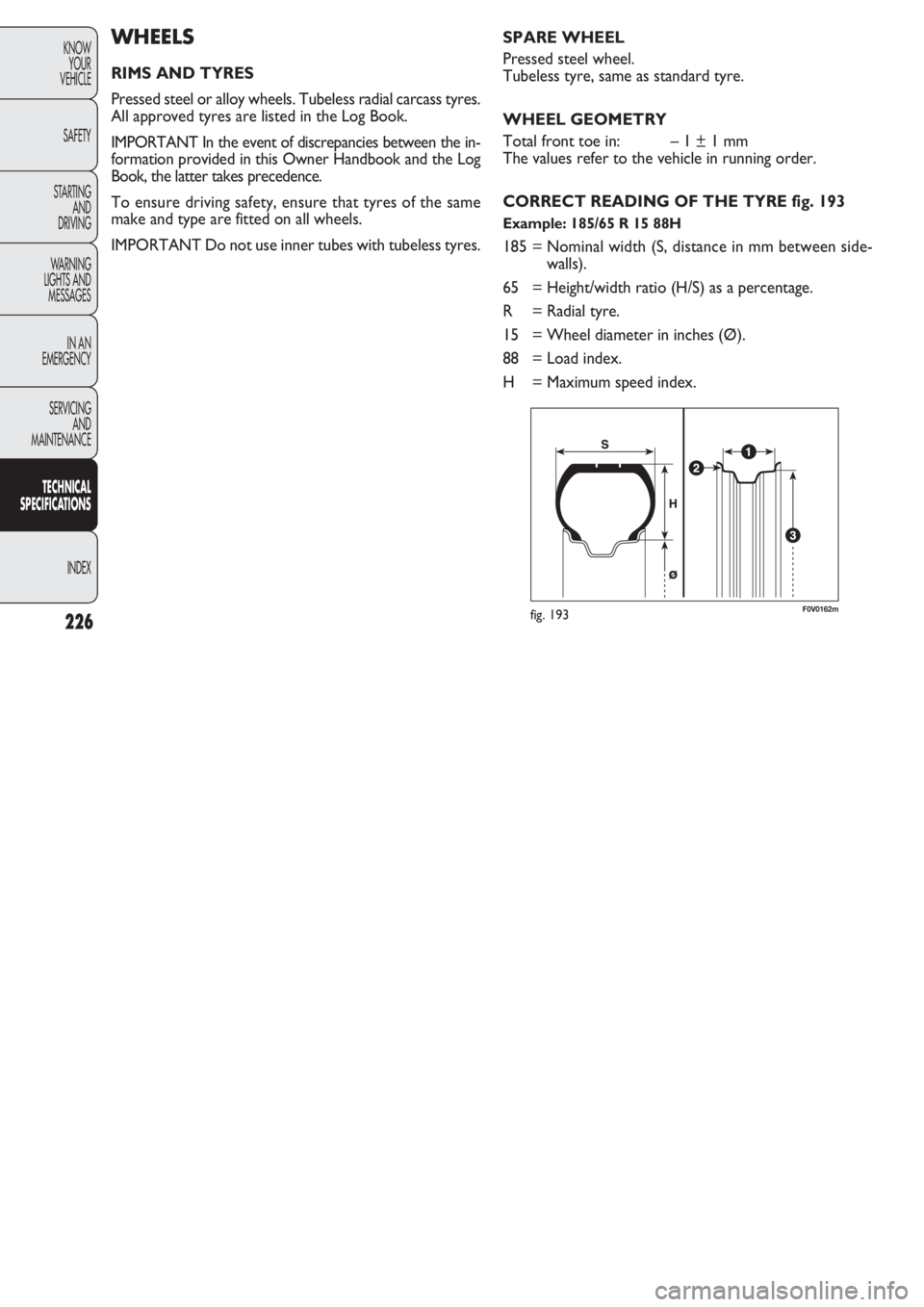

WHEELS
RIMS AND TYRES
Pressed steel or alloy wheels. Tubeless radial carcass tyres.
All approved tyres are listed in the Log Book.
IMPORTANT In the event of discrepancies between the in-
formation provided in this Owner Handbook and the Log
Book, the latter takes precedence.
To ensure driving safety, ensure that tyres of the same
make and type are fitted on all wheels.
IMPORTANT Do not use inner tubes with tubeless tyres.
F0V0162mfig. 193
SPARE WHEEL
Pressed steel wheel.
Tubeless tyre, same as standard tyre.
WHEEL GEOMETRY
Total front toe in: – 1 ± 1 mm
The values refer to the vehicle in running order.
CORRECT READING OF THE TYRE fig. 193
Example: 185/65 R 15 88H
185 = Nominal width (S, distance in mm between side-
walls).
65 = Height/width ratio (H/S) as a percentage.
R = Radial tyre.
15 = Wheel diameter in inches (Ø).
88 = Load index.
H = Maximum speed index.

227
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.
Maximum speed index
Maximum speed index for snow tyres
Load indexRIM PROTECTOR TYRES fig. 193a
If the car has integral cups fixed (by springs) to the
sheet rim and it has after-sale tyres “Rim Protec-
tor” (fig. 193a) are used, DO NOT fit wheel cups. The use
of unsuitable tyres and wheel cups could cause a sudden
pressure loss of the tyre.
WARNING
F0V0217mfig. 193a
CORRECT READING OF THE WHEEL
Example: 6J x 15 ET43
6 = wheel width in inches 1.
J = rim drop centre outline (side projection
where the tyre bead rests)
2.
15 = fitting diameter in inches (corresponds to
diameter of the tyre to be fitted)
3= Ø.
ET43: = wheel camber (distance between the
disc/wheel support plane and the wheel
centre line).

228
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

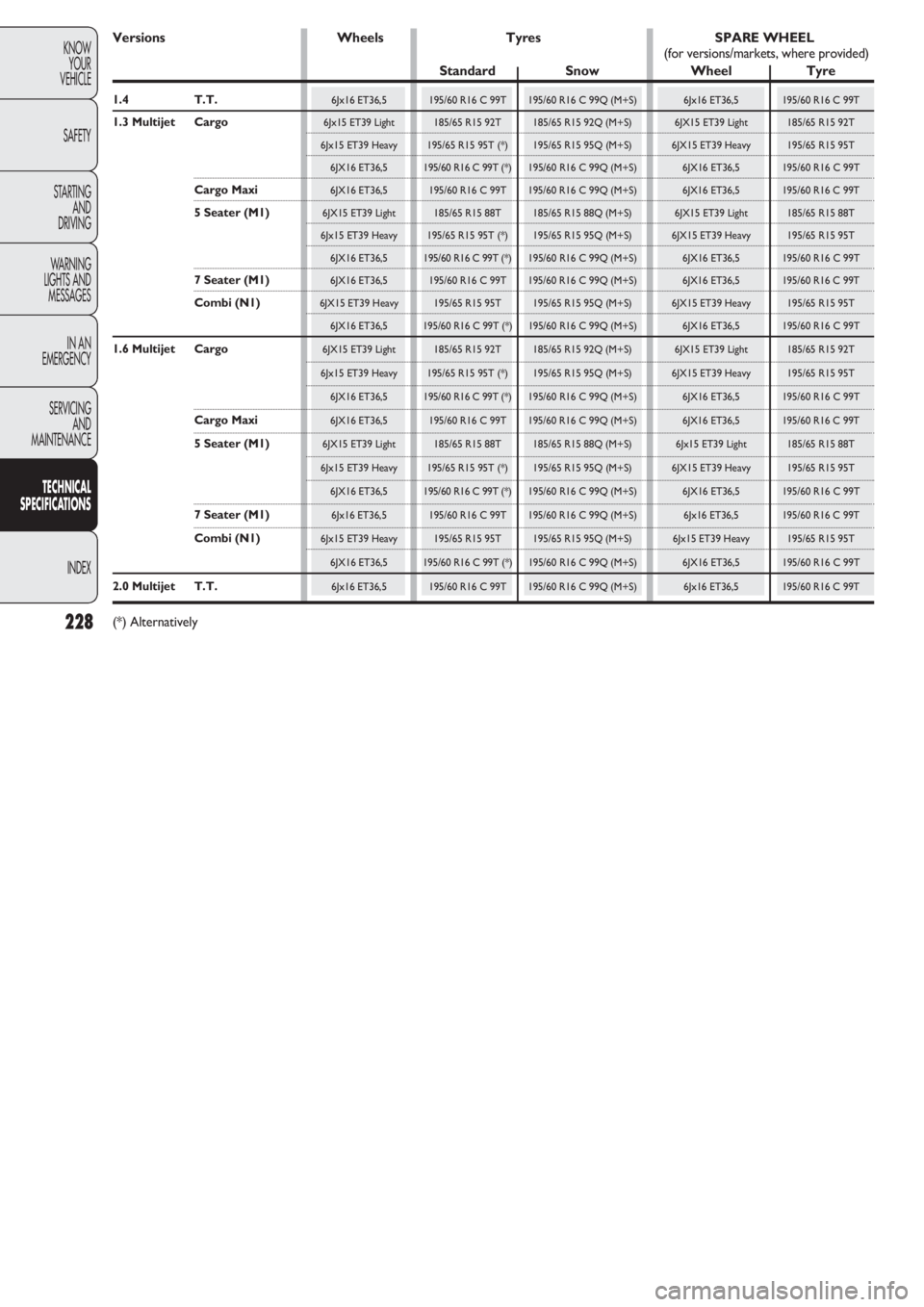

Versions Wheels Tyres SPARE WHEEL
(for versions/markets, where provided)
Standard Snow Wheel Tyre
1.4 T.T.6Jx16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6Jx16 ET36,5 195/60 R16 C 99T
1.3 Multijet Cargo6Jx15 ET39 Light 185/65 R15 92T 185/65 R15 92Q (M+S) 6JX15 ET39 Light 185/65 R15 92T
6Jx15 ET39 Heavy 195/65 R15 95T (*) 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*)195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
Cargo Maxi6JX16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
5 Seater (M1)6JX15 ET39 Light 185/65 R15 88T 185/65 R15 88Q (M+S) 6JX15 ET39 Light 185/65 R15 88T
6Jx15 ET39 Heavy 195/65 R15 95T (*) 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*)195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
7 Seater (M1)6JX16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
Combi (N1)6JX15 ET39 Heavy 195/65 R15 95T 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*) 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
1.6 Multijet Cargo6JX15 ET39 Light 185/65 R15 92T 185/65 R15 92Q (M+S) 6JX15 ET39 Light 185/65 R15 92T
6Jx15 ET39 Heavy 195/65 R15 95T (*) 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*)195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
Cargo Maxi6JX16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
5 Seater (M1)6JX15 ET39 Light 185/65 R15 88T 185/65 R15 88Q (M+S) 6Jx15 ET39 Light 185/65 R15 88T
6Jx15 ET39 Heavy 195/65 R15 95T (*) 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*)195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
7 Seater (M1)6Jx16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6Jx16 ET36,5 195/60 R16 C 99T
Combi (N1)6Jx15 ET39 Heavy 195/65 R15 95T 195/65 R15 95Q (M+S) 6Jx15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*) 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
2.0 Multijet T.T.6Jx16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6Jx16 ET36,5 195/60 R16 C 99T
(*) Alternatively

229
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

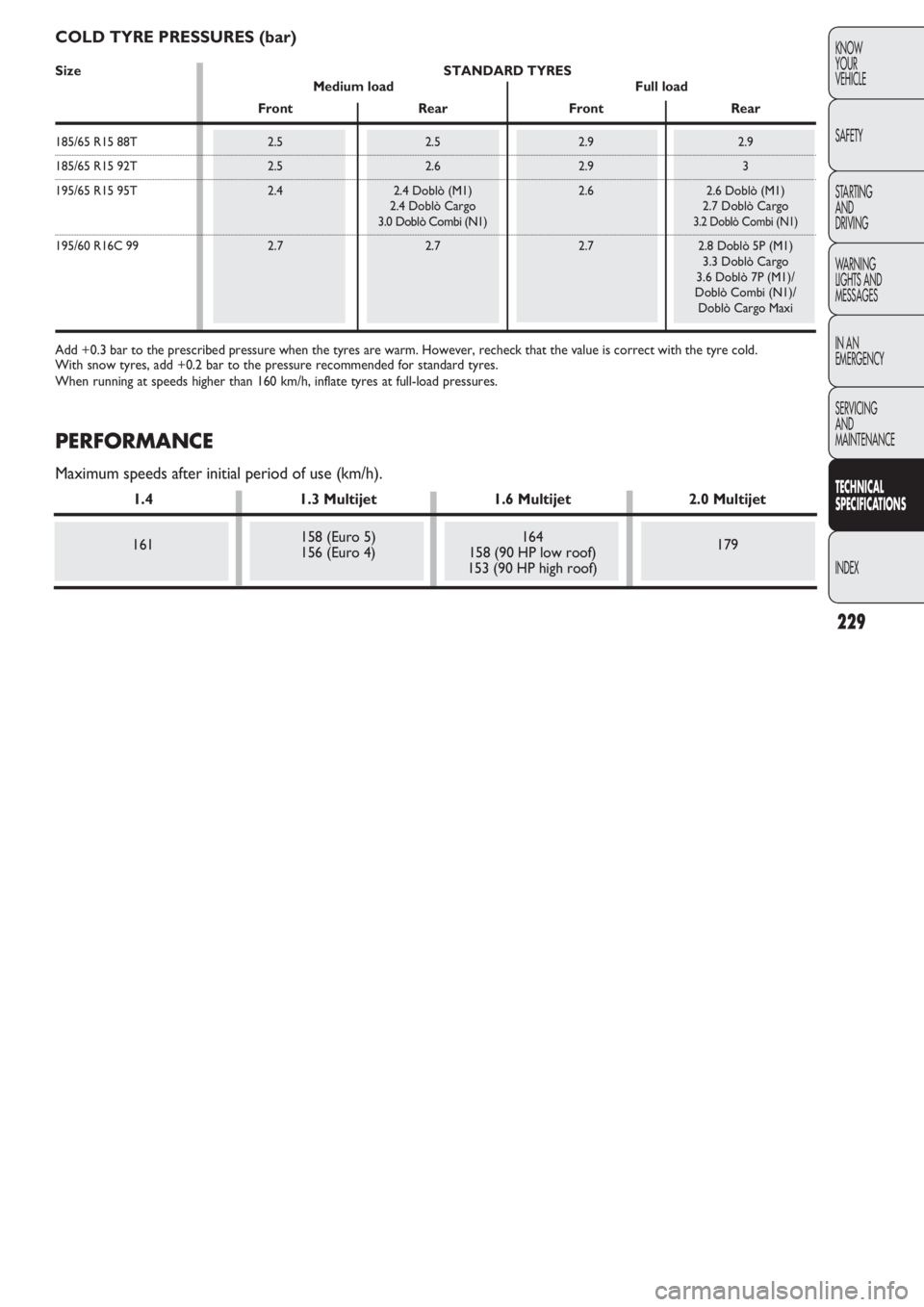

COLD TYRE PRESSURES (bar)
Add +0.3 bar to the prescribed pressure when the tyres are warm. However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure recommended for standard tyres.
When running at speeds higher than 160 km/h, inflate tyres at full-load pressures.
Size STANDARD TYRES
Medium load Full load
Front Rear Front Rear
185/65 R15 88T 2.5 2.5 2.9 2.9
185/65 R15 92T 2.5 2.6 2.9 3
195/65 R15 95T 2.4 2.4 Doblò (M1) 2.6 2.6 Doblò (M1)
2.4 Doblò Cargo 2.7 Doblò Cargo
3.0 Doblò Combi (N1)3.2 Doblò Combi (N1)
195/60 R16C 99 2.7 2.7 2.7 2.8 Doblò 5P (M1)
3.3 Doblò Cargo
3.6 Doblò 7P (M1)/
Doblò Combi (N1)/
Doblò Cargo Maxi
PERFORMANCE
Maximum speeds after initial period of use (km/h).
1.4 1.3 Multijet 1.6 Multijet 2.0 Multijet
161158 (Euro 5) 164
179
156 (Euro 4) 158 (90 HP low roof)
153 (90 HP high roof)

230
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

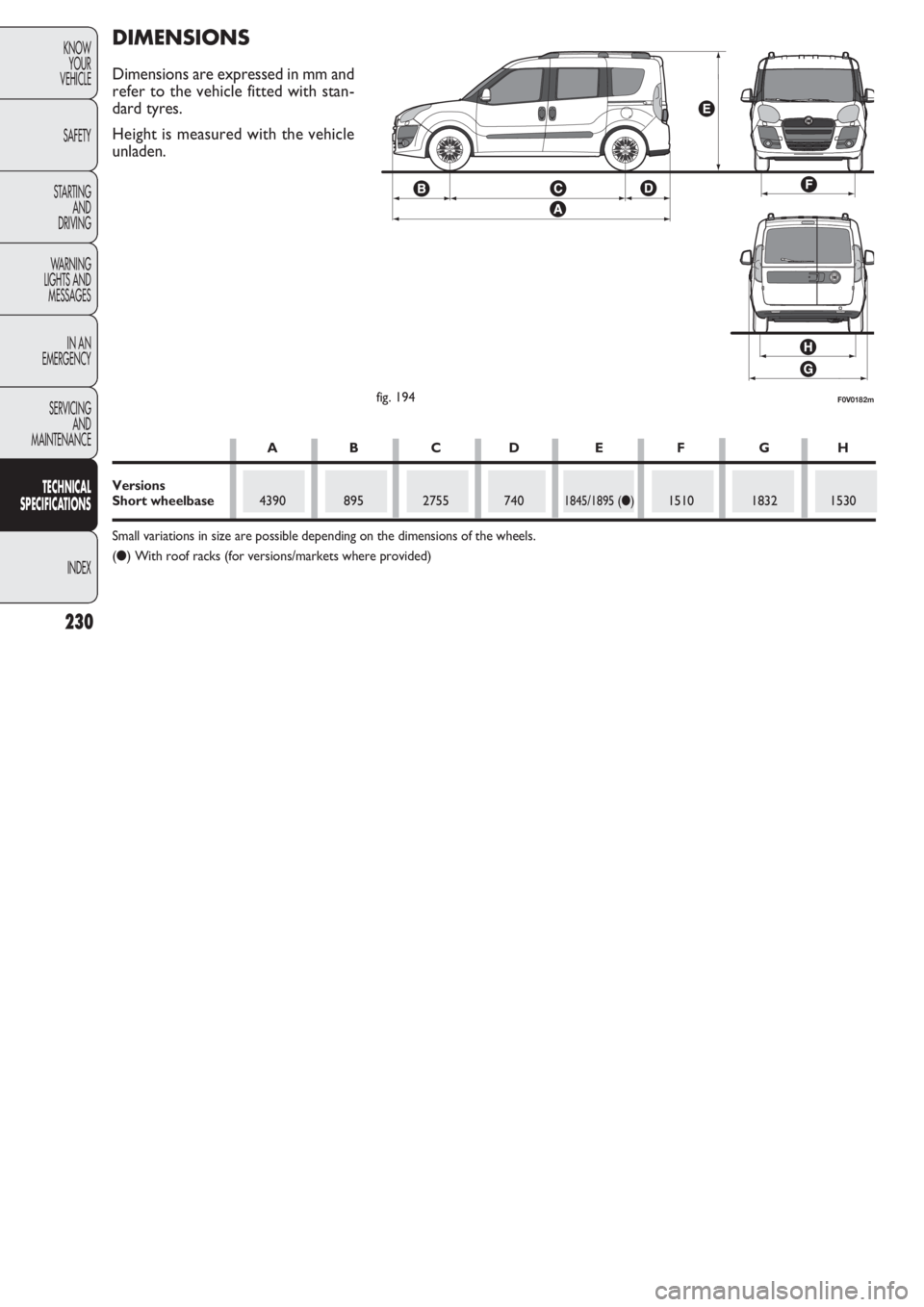

F0V0182mfig. 194
DIMENSIONS
Dimensions are expressed in mm and
refer to the vehicle fitted with stan-
dard tyres.
Height is measured with the vehicle
unladen.
AB CD E F GH
Versions
Short wheelbase4390 895 2755 7401845/1895 ()1510 1832 1530
Small variations in size are possible depending on the dimensions of the wheels.
() With roof racks (for versions/markets where provided)

231
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

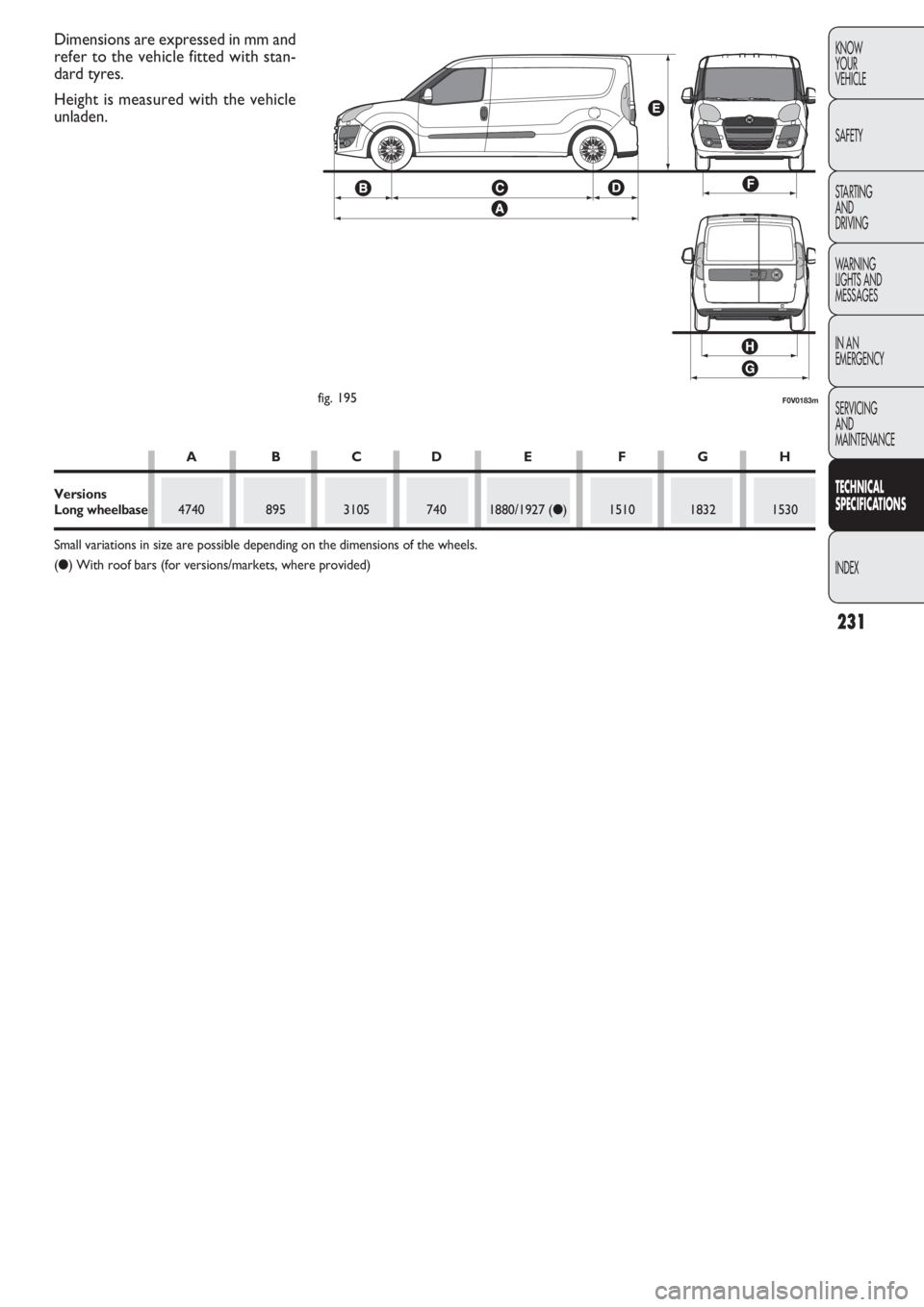

F0V0183mfig. 195
Dimensions are expressed in mm and
refer to the vehicle fitted with stan-
dard tyres.
Height is measured with the vehicle
unladen.
ABCD E FGH
Versions
Long wheelbase4740 895 3105 740 1880/1927 () 1510 1832 1530
Small variations in size are possible depending on the dimensions of the wheels.
() With roof bars (for versions/markets, where provided)

232
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

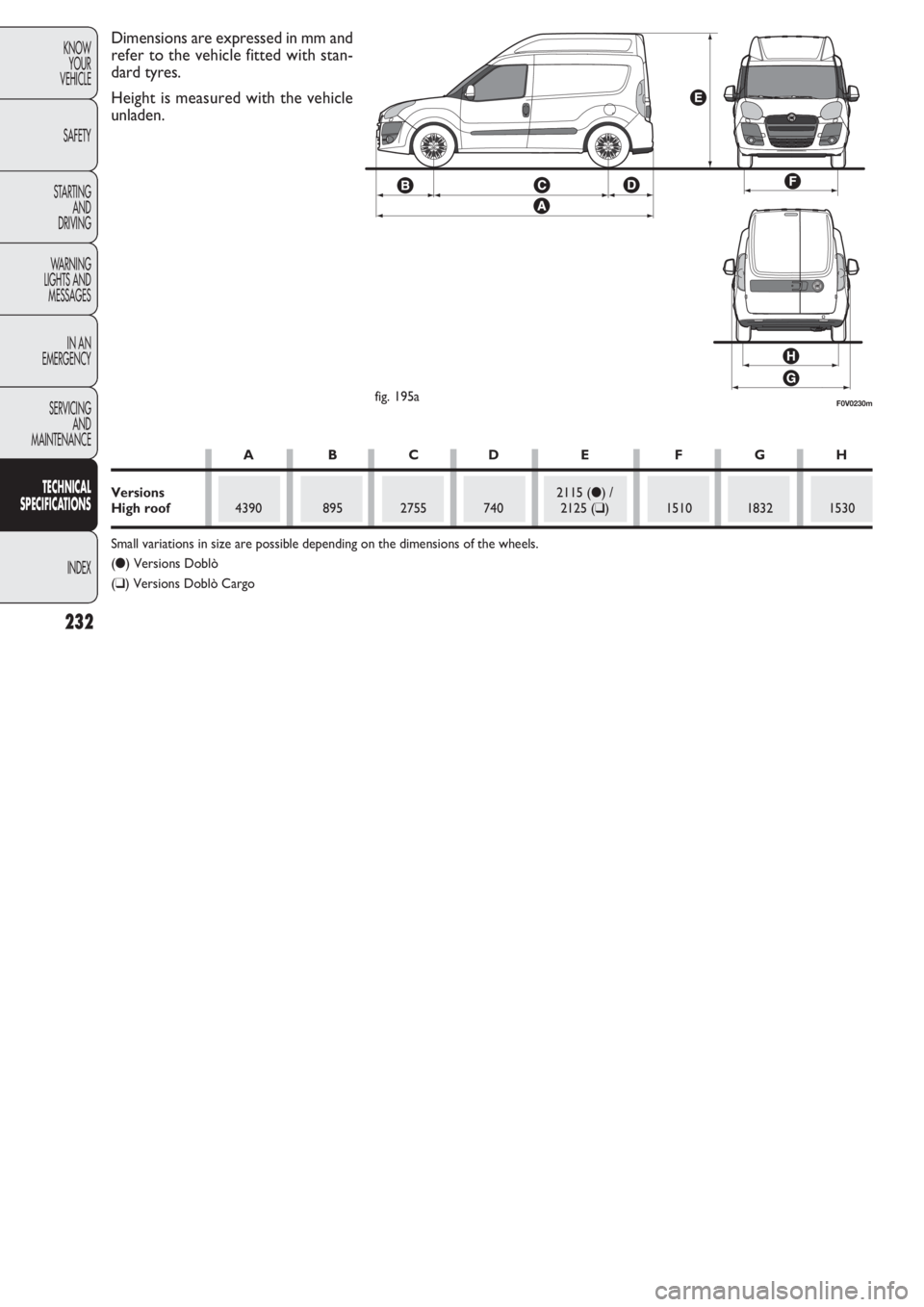

F0V0230mfig. 195a
Dimensions are expressed in mm and
refer to the vehicle fitted with stan-
dard tyres.
Height is measured with the vehicle
unladen.
ABCD E FGH
Versions 2115 () /
High roof4390 895 2755 740 2125 () 1510 1832 1530
Small variations in size are possible depending on the dimensions of the wheels.
() Versions Doblò
() Versions Doblò Cargo

1.4
233
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
1340
600
525
1090
1140
1940
1000
500
100
601370
600
525
1075
1075
1970
1000
500
100
601410
600
525
1075
1075
2010
1300
500
100
60
1.3 Multijet1.6 Multijet2.0 Multijet
1450
600
525
1120
1140
2050
1500
500
100
60

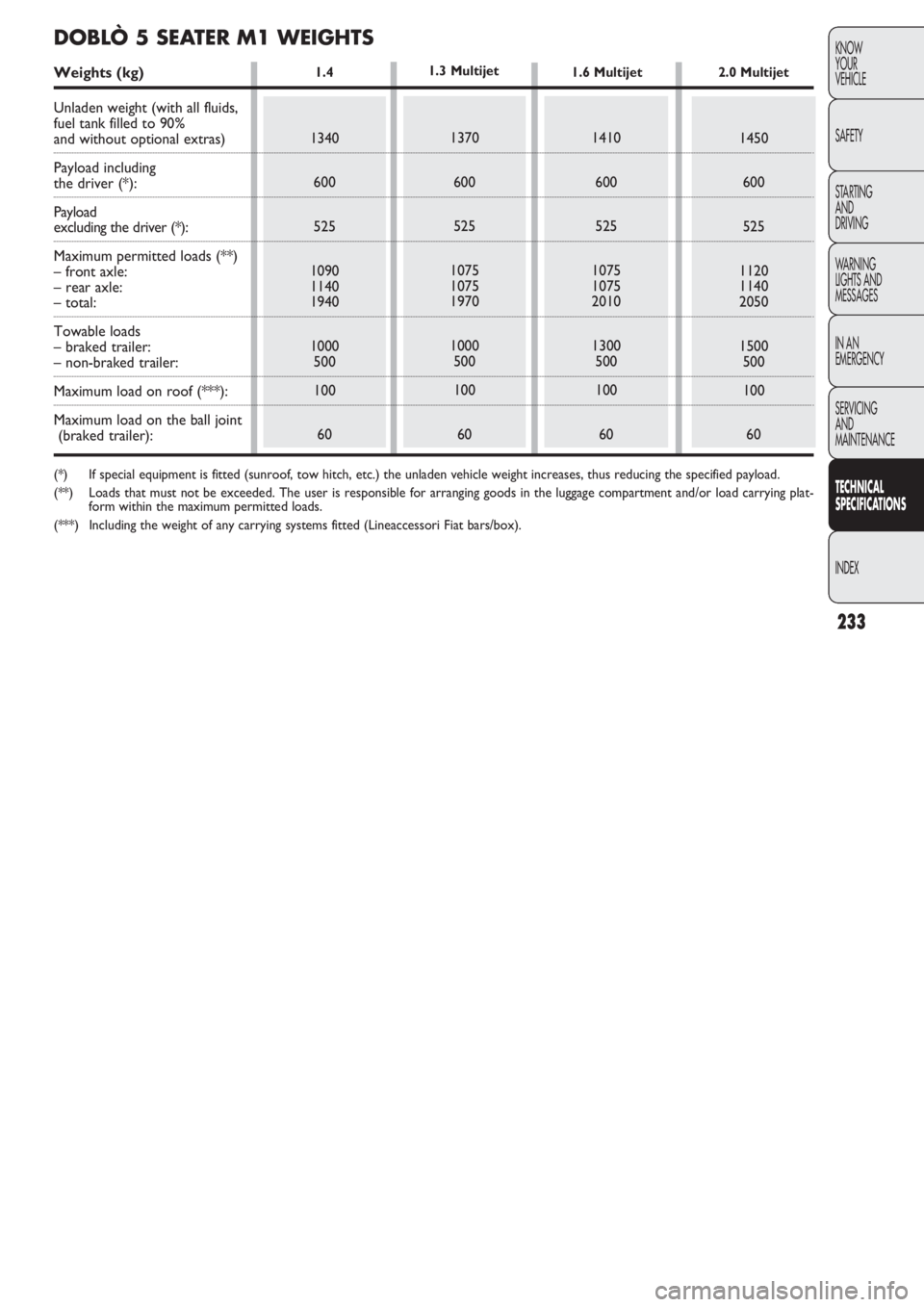

DOBLÒ 5 SEATER M1 WEIGHTS
Weights (kg)
Unladen weight (with all fluids,
fuel tank filled to 90%
and without optional extras)
Payload including
the driver (*):
Payload
excluding the driver (*):
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– braked trailer:
– non-braked trailer:
Maximum load on roof (***):
Maximum load on the ball joint
(braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads that must not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load carrying plat-
form within the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).

234
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
1360
600
525
1090
1140
1960
1000
500
–
60
1.4
1430
600
525
1075
1075
2030
1300
500
–
60
1.6 Multijet2.0 Multijet
1470
600
525
1120
1140
2070
1500
500
–
60

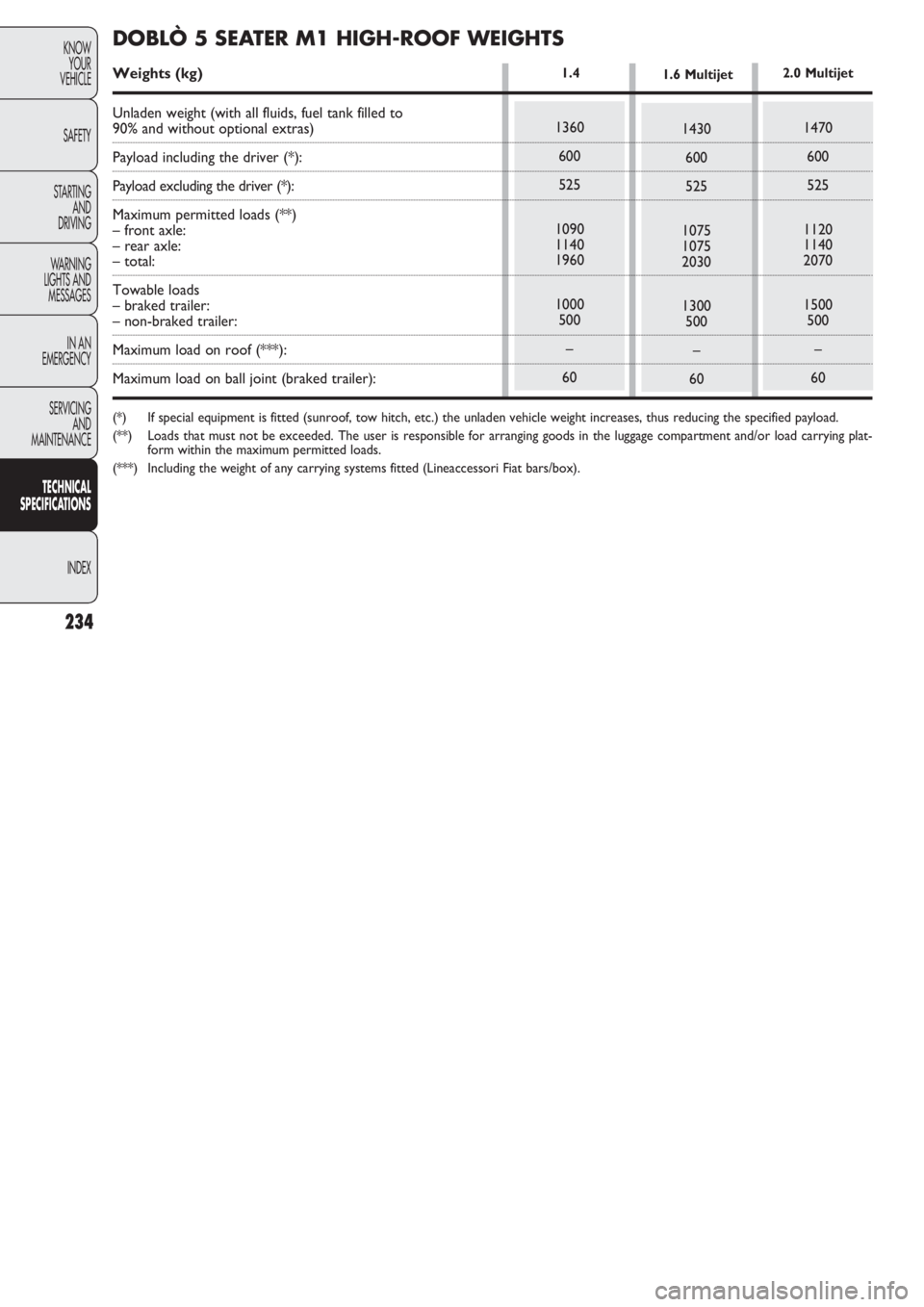

DOBLÒ 5 SEATER M1 HIGH-ROOF WEIGHTS
Weights (kg)
Unladen weight (with all fluids, fuel tank filled to
90% and without optional extras)
Payload including the driver (*):
Payload excluding the driver (*):
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– braked trailer:
– non-braked trailer:
Maximum load on roof (***):
Maximum load on ball joint (braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload.
(**) Loads that must not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load carrying plat-
form within the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
