F0V0101mfig. 62

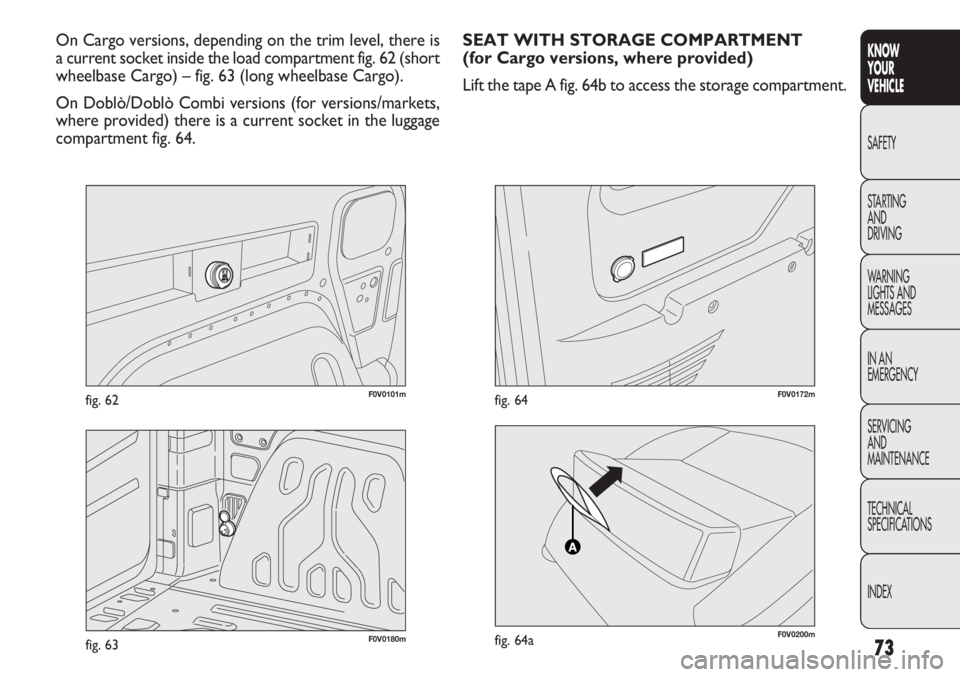

On Cargo versions, depending on the trim level, there is
a current socket inside the load compartment fig. 62 (short
wheelbase Cargo) – fig. 63 (long wheelbase Cargo).
On Doblò/Doblò Combi versions (for versions/markets,
where provided) there is a current socket in the luggage
compartment fig. 64.
F0V0180mfig. 63
SEAT WITH STORAGE COMPARTMENT
(for Cargo versions, where provided)
Lift the tape A fig. 64b to access the storage compartment.
F0V0172mfig. 64
F0V0200mfig. 64a

ASHTRAY fig. 68
(for versions/markets where provided)
The ashtray is a removable spring-loaded plastic box that
can be fitted into the cup/can holders in the central con-
sole.
74
KNOWYOUR
VEHICLE
SAFETY
ST AR

TING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0061mfig. 65
F0V0063mfig. 66
BRACKET FOR ODDMENTS COMPARTMENT
IN CAB fig. 65
The compartment is fitted above the sun visors and is de-
signed for quick and easy storage of light objects (e.g. doc-
uments, road maps etc.).
CIGARETTE LIGHTER
(for versions/markets where provided)
Press button A-fig. 66-67 (depending on the version) to
switch on the cigarette lighter when the ignition key is
turned to MAR.
After a few seconds the button goes back to its initial po-
sition and the cigarette lighter is ready for use.
WARNING Always check that the cigarette lighter has
turned itself off.
The cigarette lighter becomes very hot.
Handle it carefully and make sure children
don’t touch it: risk of fire and/or burning.
WARNING
F0V0178mfig. 67

75
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0064mfig. 68

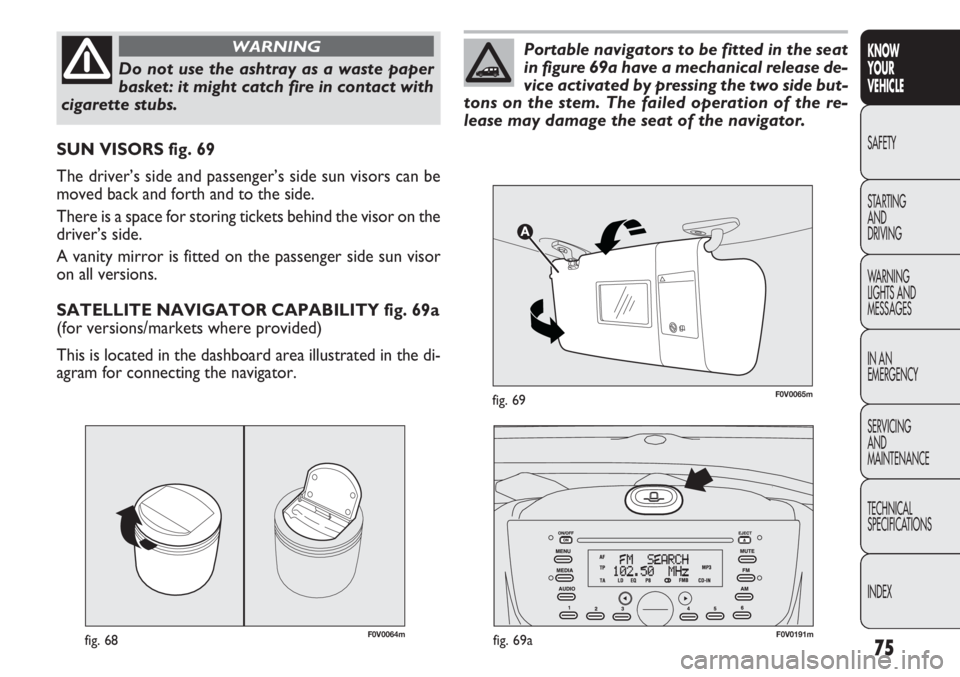

SUN VISORS fig. 69
The driver’s side and passenger’s side sun visors can be
moved back and forth and to the side.
There is a space for storing tickets behind the visor on the
driver’s side.
A vanity mirror is fitted on the passenger side sun visor
on all versions.
SATELLITE NAVIGATOR CAPABILITY fig. 69a
(for versions/markets where provided)
This is located in the dashboard area illustrated in the di-
agram for connecting the navigator.
Do not use the ashtray as a waste paper
basket: it might catch fire in contact with
cigarette stubs.
WARNING
F0V0191mfig. 69a
F0V0065mfig. 69
Portable navigators to be fitted in the seat
in figure 69a have a mechanical release de-
vice activated by pressing the two side but-
tons on the stem. The failed operation of the re-
lease may damage the seat of the navigator.

76
KNOWYOUR
VEHICLE
SAFETY
ST AR

TING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0132mfig. 71

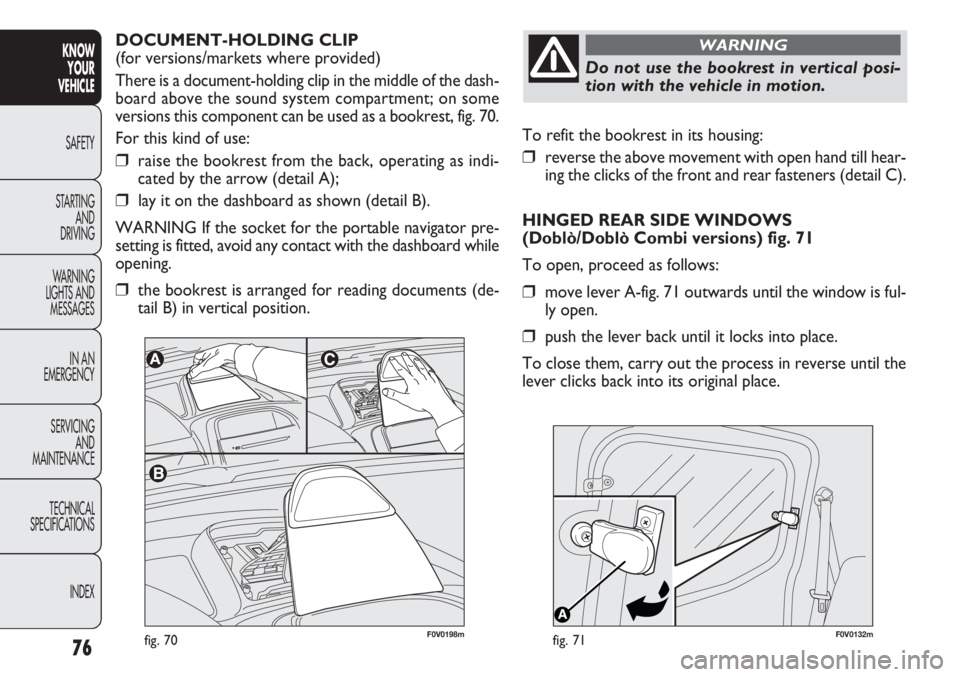

To refit the bookrest in its housing:
❒reverse the above movement with open hand till hear-
ing the clicks of the front and rear fasteners (detail C).
HINGED REAR SIDE WINDOWS
(Doblò/Doblò Combi versions) fig. 71
To open, proceed as follows:
❒move lever A-fig. 71 outwards until the window is ful-
ly open.
❒push the lever back until it locks into place.
To close them, carry out the process in reverse until the
lever clicks back into its original place.
Do not use the bookrest in vertical posi-
tion with the vehicle in motion.
WARNINGDOCUMENT-HOLDING CLIP
(for versions/markets where provided)
There is a document-holding clip in the middle of the dash-
board above the sound system compartment; on some
versions this component can be used as a bookrest, fig. 70.
For this kind of use:
❒raise the bookrest from the back, operating as indi-
cated by the arrow (detail A);
❒lay it on the dashboard as shown (detail B).
WARNING If the socket for the portable navigator pre-
setting is fitted, avoid any contact with the dashboard while
opening.
❒the bookrest is arranged for reading documents (de-
tail B) in vertical position.
F0V0198mfig. 70

77
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0046mfig. 72F0V0022mfig. 73

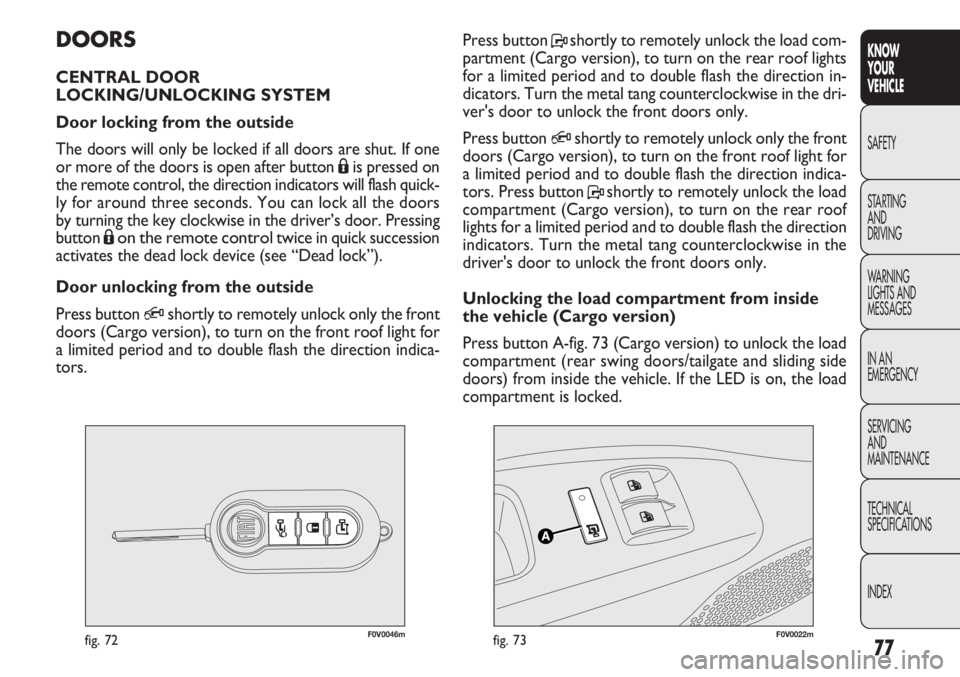

Press button P shortly to remotely unlock the load com-
partment (Cargo version), to turn on the rear roof lights
for a limited period and to double flash the direction in-
dicators. Turn the metal tang counterclockwise in the dri-
ver's door to unlock the front doors only.
Press button
Qshortly to remotely unlock only the front
doors (Cargo version), to turn on the front roof light for
a limited period and to double flash the direction indica-
tors. Press button Pshortly to remotely unlock the load
compartment (Cargo version), to turn on the rear roof
lights for a limited period and to double flash the direction
indicators. Turn the metal tang counterclockwise in the
driver's door to unlock the front doors only.
Unlocking the load compartment from inside
the vehicle (Cargo version)
Press button A-fig. 73 (Cargo version) to unlock the load
compartment (rear swing doors/tailgate and sliding side
doors) from inside the vehicle. If the LED is on, the load
compartment is locked.
DOORS
CENTRAL DOOR
LOCKING/UNLOCKING SYSTEM
Door locking from the outside
The doors will only be locked if all doors are shut. If one
or more of the doors is open after button Áis pressed on
the remote control, the direction indicators will flash quick-
ly for around three seconds. You can lock all the doors
by turning the key clockwise in the driver’s door. Pressing
button Á
on the remote controltwice in quick succession
activates the dead lock device (see “Dead lock”).
Door unlocking from the outside
Press button
Qshortly to remotely unlock only the front
doors (Cargo version), to turn on the front roof light for
a limited period and to double flash the direction indica-
tors.

78
KNOWYOUR
VEHICLE
SAFETY
ST AR

TING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
On Cargo versions, the sliding side door is fitted with
a spring-loaded latch that stops the door from opening any
further. To lock it, simply push the door as far as it will go;
to unlock it, pull forward firmly.
In any case, make sure that the door is properly attached
to the device which keeps it fully open.SLIDING SIDE DOORS
(for versions/markets where provided)
Before opening a door, check that you can
do so safely.
WARNING
Before refuelling, check that the left sliding
side door is fully closed; if it is not, you could
damage the door and the slide locking
mechanism when the fuel cap is open.
You must not open the left-hand sliding
side door with the fuel cap open while re-
fuelling. Check that the fuel cap is closed while
opening/closing the sliding side door to avoid dam-
age.
WARNING
If you are parked on a slope, do not leave
the sliding door locked in the open posi-
tion. An involuntary impact could unhook the
door, causing it to move.
WARNING
Before leaving the vehicle parked with the
sliding doors open, always check that they
are locked into place.
WARNING

79
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0085mfig. 74F0V0382mfig. 75

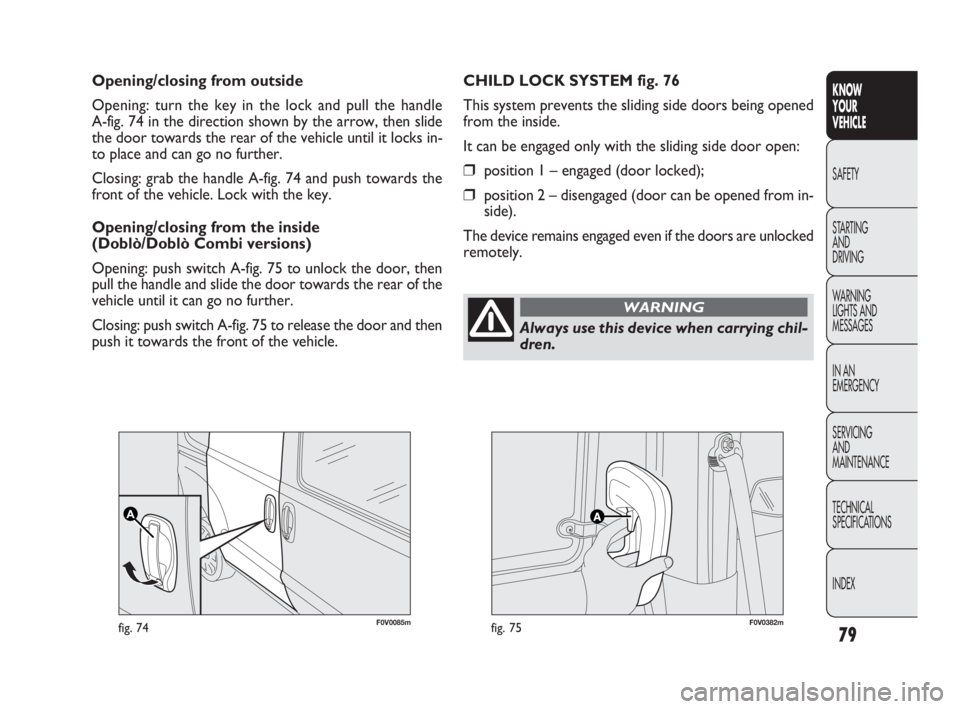

CHILD LOCK SYSTEM fig. 76
This system prevents the sliding side doors being opened
from the inside.
It can be engaged only with the sliding side door open:
❒position 1 – engaged (door locked);
❒position 2 – disengaged (door can be opened from in-
side).
The device remains engaged even if the doors are unlocked
remotely. Opening/closing from outside
Opening: turn the key in the lock and pull the handle
A-fig. 74 in the direction shown by the arrow, then slide
the door towards the rear of the vehicle until it locks in-
to place and can go no further.
Closing: grab the handle A-fig. 74 and push towards the
front of the vehicle. Lock with the key.
Opening/closing from the inside
(Doblò/Doblò Combi versions)
Opening: push switch A-fig. 75 to unlock the door, then
pull the handle and slide the door towards the rear of the
vehicle until it can go no further.
Closing: push switch A-fig. 75 to release the door and then
push it towards the front of the vehicle.
Always use this device when carrying chil-
dren.
WARNING
035-114 DOBLO LUM EN 1ed 6-02-2012 9:39 Pagina 79

80
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0186mfig. 76

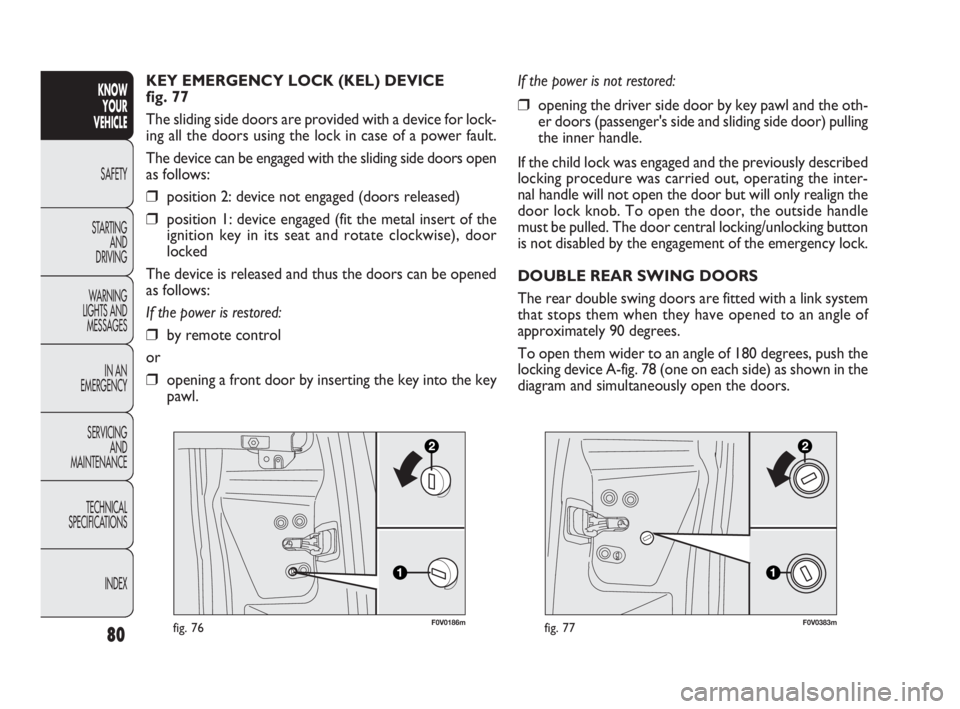

KEY EMERGENCY LOCK (KEL) DEVICE
fig. 77
The sliding side doors are provided with a device for lock-
ing all the doors using the lock in case of a power fault.
The device can be engaged with the sliding side doors open
as follows:
❒position 2: device not engaged (doors released)
❒position 1: device engaged (fit the metal insert of the
ignition key in its seat and rotate clockwise), door
locked
The device is released and thus the doors can be opened
as follows:
If the power is restored:
❒by remote control
or
❒opening a front door by inserting the key into the key
pawl.
F0V0383mfig. 77
If the power is not restored:
❒opening the driver side door by key pawl and the oth-
er doors (passenger's side and sliding side door) pulling
the inner handle.
If the child lock was engaged and the previously described
locking procedure was carried out, operating the inter-
nal handle will not open the door but will only realign the
door lock knob. To open the door, the outside handle
must be pulled. The door central locking/unlocking button
is not disabled by the engagement of the emergency lock.
DOUBLE REAR SWING DOORS
The rear double swing doors are fitted with a link system
that stops them when they have opened to an angle of
approximately 90 degrees.
To open them wider to an angle of 180 degrees, push the
locking device A-fig. 78 (one on each side) as shown in the
diagram and simultaneously open the doors.
035-114 DOBLO LUM EN 1ed 6-02-2012 9:39 Pagina 80

81
KNOW
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0067mfig. 78F0V0079mfig. 79

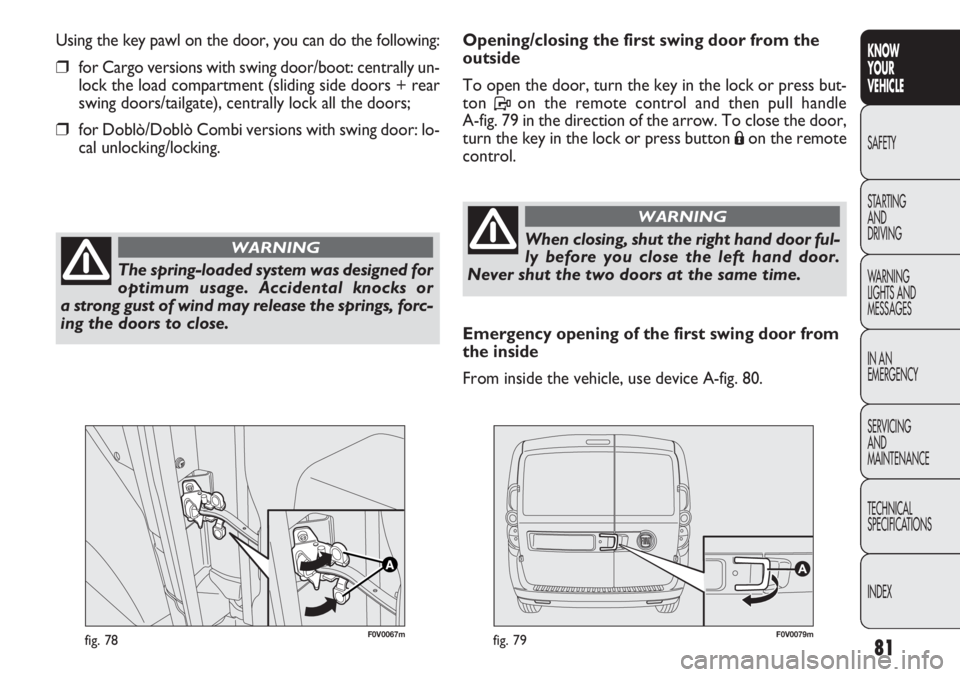

Opening/closing the first swing door from the
outside
To open the door, turn the key in the lock or press but-
ton Pon the remote control and then pull handle
A-fig. 79 in the direction of the arrow. To close the door,
turn the key in the lock or press button
Áon the remote
control.
Using the key pawl on the door, you can do the following:
❒for Cargo versions with swing door/boot: centrally un-
lock the load compartment (sliding side doors + rear
swing doors/tailgate), centrally lock all the doors;
❒for Doblò/Doblò Combi versions with swing door: lo-
cal unlocking/locking.
The spring-loaded system was designed for
optimum usage. Accidental knocks or
a strong gust of wind may release the springs, forc-
ing the doors to close.
WARNINGWhen closing, shut the right hand door ful-
ly before you close the left hand door.
Never shut the two doors at the same time.
WARNING
Emergency opening of the first swing door from
the inside
From inside the vehicle, use device A-fig. 80.

82
KNOWYOUR
VEHICLE
SAFETY
ST AR

TING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0078mfig. 81
F0V0080mfig. 80

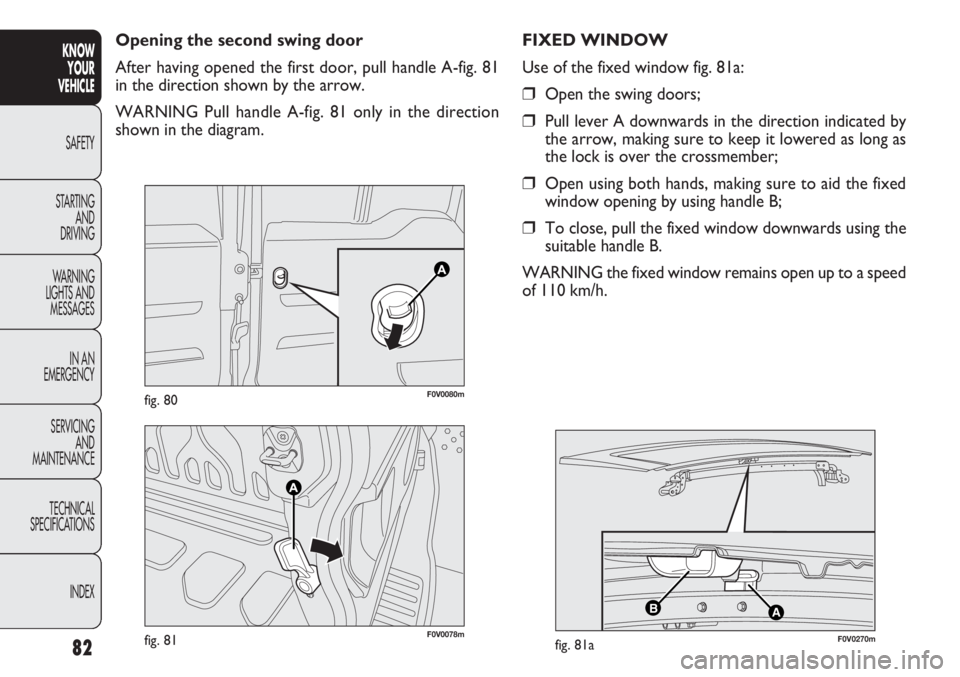

Opening the second swing door
After having opened the first door, pull handle A-fig. 81
in the direction shown by the arrow.
WARNING Pull handle A-fig. 81 only in the direction
shown in the diagram.
AB
F0V0270mfig. 81a
FIXED WINDOW
Use of the fixed window fig. 81a:
❒Open the swing doors;
❒Pull lever A downwards in the direction indicated by
the arrow, making sure to keep it lowered as long as
the lock is over the crossmember;
❒Open using both hands, making sure to aid the fixed
window opening by using handle B;
❒To close, pull the fixed window downwards using the
suitable handle B.
WARNING the fixed window remains open up to a speed
of 110 km/h.
