❒move the seat belt to the side,
making sure that it is fully extended
and not twisted;

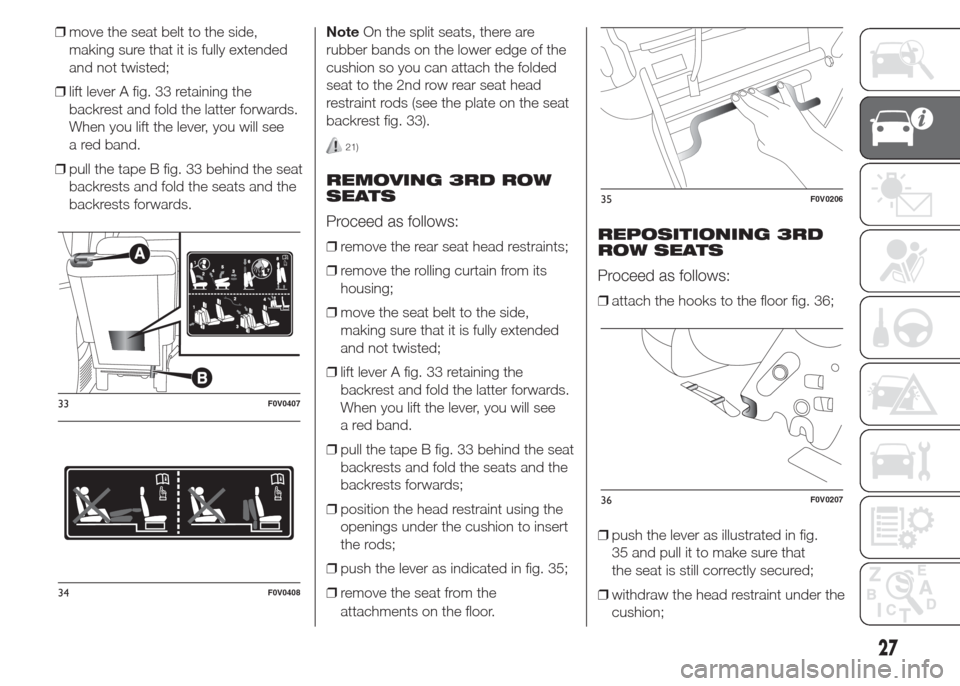

❒lift lever A fig. 33 retaining the
backrest and fold the latter forwards.
When you lift the lever, you will see
a red band.
❒pull the tape B fig. 33 behind the seat
backrests and fold the seats and the
backrests forwards.NoteOn the split seats, there are
rubber bands on the lower edge of the
cushion so you can attach the folded
seat to the 2nd row rear seat head
restraint rods (see the plate on the seat
backrest fig. 33).
21)
REMOVING 3RD ROW
SEATS
Proceed as follows:
❒remove the rear seat head restraints;
❒remove the rolling curtain from its
housing;
❒move the seat belt to the side,
making sure that it is fully extended
and not twisted;
❒lift lever A fig. 33 retaining the
backrest and fold the latter forwards.
When you lift the lever, you will see
a red band.
❒pull the tape B fig. 33 behind the seat
backrests and fold the seats and the
backrests forwards;
❒position the head restraint using the
openings under the cushion to insert
the rods;
❒push the lever as indicated in fig. 35;
❒remove the seat from the
attachments on the floor.REPOSITIONING 3RD
ROW SEATS
Proceed as follows:
❒attach the hooks to the floor fig. 36;
❒push the lever as illustrated in fig.
35 and pull it to make sure that
the seat is still correctly secured;
❒withdraw the head restraint under the
cushion;
3
124
12437856
33F0V0407
34F0V0408
35F0V0206
36F0V0207
27
Page 32 of 323
❒fold the cushion and the backrest
over;
❒reposition the head restraint;
❒re-position the rolling curtain in its
housing.
IMPORTANT Make sure that the
seat is properly secured to the
fastenings on the floor and that the
lever A fig. 33 is tightened (red band
not visible).

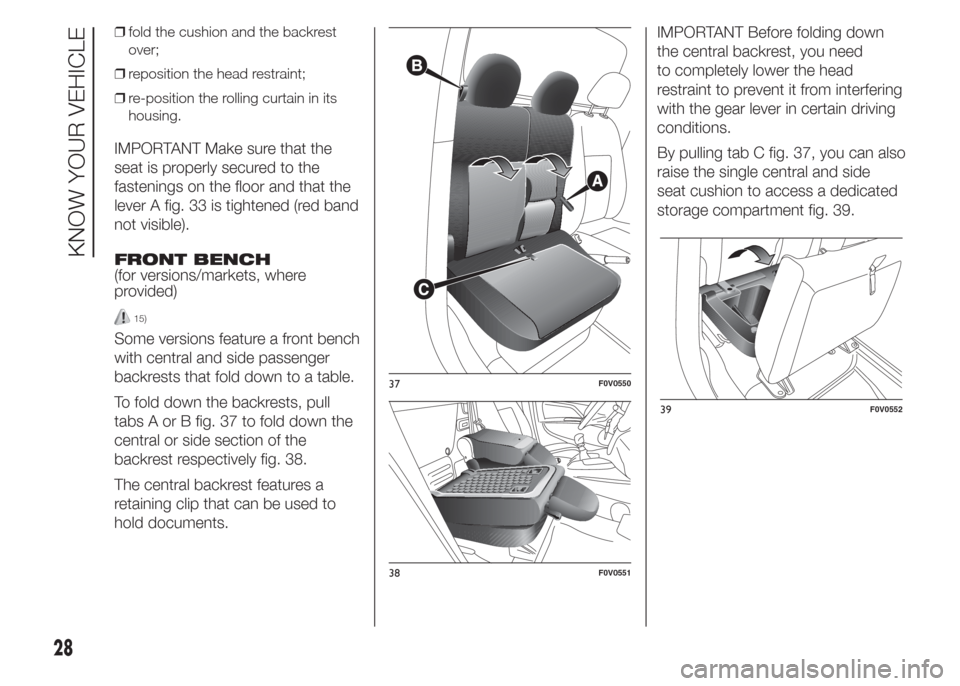

FRONT BENCH
(for versions/markets, where
provided)
15)
Some versions feature a front bench
with central and side passenger
backrests that fold down to a table.
To fold down the backrests, pull
tabs A or B fig. 37 to fold down the
central or side section of the
backrest respectively fig. 38.
The central backrest features a
retaining clip that can be used to
hold documents.IMPORTANT Before folding down
the central backrest, you need
to completely lower the head
restraint to prevent it from interfering
with the gear lever in certain driving
conditions.
By pulling tab C fig. 37, you can also
raise the single central and side
seat cushion to access a dedicated
storage compartment fig. 39.
37F0V0550
38F0V0551
39F0V0552
28
KNOW YOUR VEHICLE
Page 33 of 323
WARNING
15) All adjustments must be made
with the vehicle stationary.
16) After releasing the adjustment
lever, always check that the seat
is locked on the guides by trying
to move it back and forth. If it
is not locked, the seat may move
unexpectedly and make you lose
control of the vehicle.
17) Close the dashboard console
before folding the retractable
front passenger seat to avoid
damage.
18) When the passenger seat is
folded away, the space created
cannot be used for loading. When
the vehicle is in motion, you are
therefore advised to remove or
secure any objects that might
interfere with the driver.19) If there is no partition between
the cab and the load
compartment, tall objects or
packages may take up part of the
passenger area. Make sure that
these items are well secured
by using the available hooks and
that they cannot interfere with the
driver.
20) Close the dashboard console
before folding the front passenger
seat into table position to avoid
damage.
21) While travelling, before using the
third row seats, make sure that
the second row seats are in
driving position and correctly
secured (see dedicated plate fig.
34.
PARTITIONS
FIXED PANEL
PARTITION
(for versions/markets, where
provided)
Separates the passenger area from
the load compartment fig. 40.
FIXED GLAZED
PARTITION
(for versions/markets, where
provided)
This has a central window so you
can keep an eye on your load fig.
41.
40F0V0102
29
Page 34 of 323

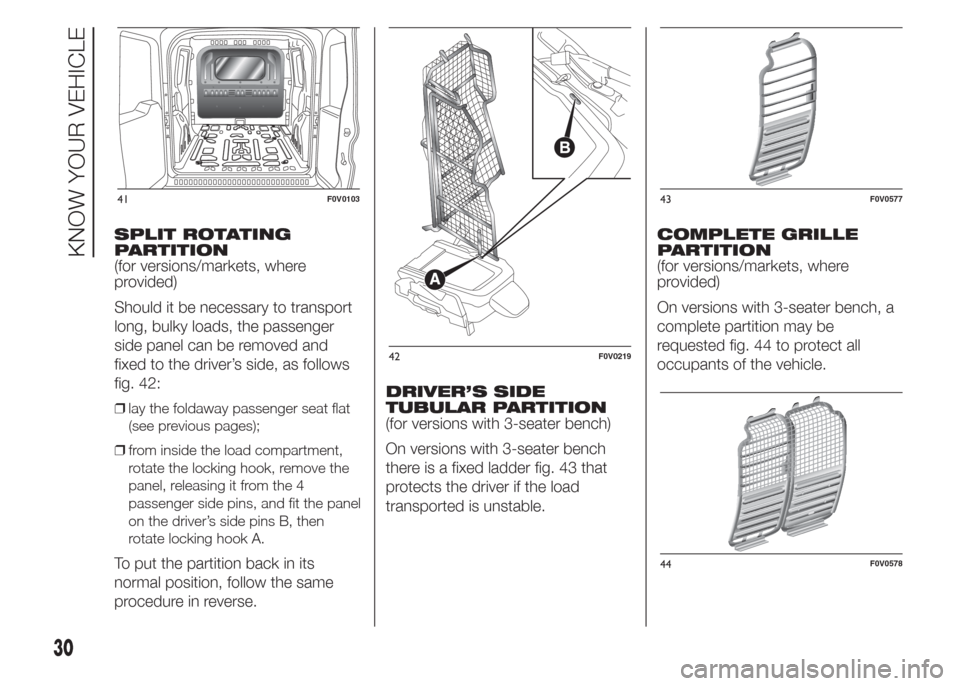

SPLIT ROTATING
PARTITION
(for versions/markets, where
provided)
Should it be necessary to transport
long, bulky loads, the passenger
side panel can be removed and
fixed to the driver’s side, as follows
fig. 42:
❒lay the foldaway passenger seat flat
(see previous pages);
❒from inside the load compartment,
rotate the locking hook, remove the
panel, releasing it from the 4
passenger side pins, and fit the panel
on the driver’s side pins B, then
rotate locking hook A.
To put the partition back in its
normal position, follow the same
procedure in reverse.DRIVER’S SIDE
TUBULAR PARTITION
(for versions with 3-seater bench)
On versions with 3-seater bench
there is a fixed ladder fig. 43 that
protects the driver if the load
transported is unstable.COMPLETE GRILLE
PARTITION
(for versions/markets, where
provided)
On versions with 3-seater bench, a
complete partition may be
requested fig. 44 to protect all
occupants of the vehicle.
41F0V0103
42F0V0219
43F0V0577
44F0V0578
30
KNOW YOUR VEHICLE
Page 35 of 323
HEAD RESTRAINTS
FRONT
The head restraints are height-
adjustable and lock into the desired
position automatically.Adjustment❒upward adjustment: raise the head
restraint until it clicks into place.
❒downwards adjustment: press button
A fig. 45 - fig. 46 and lower the head
restraint.
22) 23)
REAR
(for versions/markets, where
provided)
To use them, lift them up.
To put them away, press buttons A
fig. 47and push the head restraints
down into the backrest.
To extract the head restraints, raise
them until you hear the click (which
indicates they are in the position
of use).IMPORTANT If the rear seats are
used, always set the head restraints
in the "completely raised" position.
WARNING
22) All adjustments must only be
carried out with the vehicle
stationary and the engine off.
Head restraints must be adjusted
so that the head, rather than
the neck, rests on them. Only in
this case can they protect your
head correctly.
23) To make the best use of the
head restraint's protective action,
adjust the backrest so that your
torso is upright and keep your
head as close as possible to the
head restraint.
45F0V0105
46 - Front bench versionF0V055347F0V0119
31
Page 36 of 323
STEERING WHEEL
The height and axial position of the
steering wheel can be adjusted
on all versions.
To carry out the adjustment,
proceed as follows:
❒release lever A fig. 48 by pushing it
forwards (position 1);
❒adjust the steering wheel;
❒lock lever A fig. 48 by pulling it
towards the steering wheel (position
2).
24) 25)
WARNING
24) All adjustments must only be
carried out with the vehicle
stationary and the engine off.
25) Under no circumstances should
aftermarket operations involving
steering system or steering
column modifications (e.g.:
installation of anti-theft device) be
carried out that could badly
affect performance and safety.
This also causes the warranty to
become null and void and results
in vehicle non-compliance with
type-approval requirements.
REAR VIEW
MIRRORS
INTERIOR MIRROR
(for versions/markets, where
provided)
The mirror is fitted with a safety
device that causes its release in the
event of a violent impact with the
passenger.
Lever A fig. 49 can be used to move
the mirror to two different positions:
normal or antiglare.
Some versions may feature an
internal child surveillance mirror B
fig. 50.
48F0V001449F0V0125
32
KNOW YOUR VEHICLE
Page 37 of 323
DOOR MIRRORS
Manual mirror folding
When required (for example when
the shape causes difficulty in narrow
spaces), it is possible to fold the
mirrors by moving them from
position A fig. 51 to position B.
26)
Manual adjustment
From inside, use device A fig. 52.
Electric adjustment
(for versions/markets, where
provided)
Door mirrors can be adjusted only if
the ignition key is in MAR position.
Proceed as follows:
❒select the required mirror with switch
A fig. 53 (right or left);
❒move switch A to position B and
manipulate it to adjust the left door
mirror;
❒turn switch A to position D and
manipulate it to adjust the right door
mirror.
Once you have finished the
adjustment, return switch A to
intermediate locking position C.Electric folding
Door mirrors can be folded only if
the ignition key is in MAR position.
Bring switch A fig. 53 to position
E to fold the mirrors in the closed
position.
Bring switch A to position C to move
the mirrors back to the driving
position.
50F0V0542
51F0V0084
52F0V0120
53F0V0560
33
Page 38 of 323
WARNING
26) When driving, these mirrors must
always be in position A fig. 51. As
door mirrors are curved, they
may slightly alter the perception
of distance.
EXTERIOR LIGHTS
IN BRIEF
The left stalk includes the controls
for the exterior lights.
The external lights can only be
switched on when the ignition key
is at MAR.
The instrument panel and the
various dashboard controls will
come on with the external lights.
DAYTIME RUNNING
LIGHTS (DRL)
(for versions/markets, where
provided)
With the ignition key turned to MAR
and the ring nut turned to position
Othe daytime running lights are
automatically activated; the other
lights and interior lighting remain off.
In some markets, the automatic
operation of the daytime running
lights can be activated/deactivated
via the display menu (see "Digital/
multifunction display" in this
section). If the daytime running lights
are deactivated, no light comes on
when the ring nut is turned toO.
27)
DIPPED HEADLIGHTS/
SIDE LIGHTS
With the ignition key turned to MAR,
turn the ring nut to
. If dipped
headlights are activated, the daytime
running lights switch off and the
side lights and dipped headlights
switch on. The
warning light
switches on in the instrument panel.
When the ignition key is turned to
STOP or removed and the ring nut is
turned fromOto
, all the side
lights and the number plate lights
come on. The
warning light will
come on in the instrument panel.
54F0V0515
34
KNOW YOUR VEHICLE
Page 39 of 323
MAIN BEAM
HEADLIGHTS
With ring nut in position
, push
the stalk forward toward the
dashboard (stable position). The
warning light switches on in the
instrument panel. Pulling the stalk
towards the steering wheel, the
main beams are turned off and the
dipped headlights on.
FLASHING
You can flash the beams pulling the
stalk toward the steering wheel
(unstable position). The
warning
light switches on in the instrument
panel.
DIRECTION
INDICATORS
Bring the stalk into (stable) position
fig. 55:
❒up (position 1): to activate the right
direction indicator;
❒down (position 2): activates the left
direction indicator.
Warning lightorwill blink on
the instrument panel.Direction indicators switch off
automatically when the vehicle is
back in a straight line.
Lane change function
If you wish to signal a lane change,
place the left stalk in the unstable
position for less than half a second.
The direction indicator on the side
selected will flash five times and
then switch off automatically.
"FOLLOW ME HOME"
DEVICE
This device allows the illumination of
the space in front of the vehicle for
a preset time.Activation
With the ignition key in the STOP
position or extracted, pull the stalk
towards the steering wheel and
move it within 2 minutes of the
engine switching off.
Each time the stalk is moved, the
lights stay on for an extra 30
seconds up to a maximum of 210
seconds; then the lights are
switched off automatically.
The warning light
on the
instrument panel will light up and the
corresponding message will appear
in the display (see “Warning lights
and messages” section) for as long
as the function is activated.
The warning light comes on when
the stalk is operated and stays
on until the function is automatically
deactivated.
Each movement of the stalk only
increases the amount of time the
lights stay on.55F0V0516
35
Page 40 of 323
Deactivation
Keep the stalk pulled towards the
steering wheel for more than 2
seconds.
WARNING
27) The daytime running lights are
an alternative to dipped
headlights for driving during the
daytime. They are compliant in
countries where is it obligatory to
have lights on during the day
and permitted in those where it is
not obligatory. Daytime running
lights cannot replace dipped
headlights when driving at night
or through tunnels. The use of
daytime running lights is
governed by the highway code of
the country in which you are
driving. Comply with the
prescriptions.
INTERIOR LIGHTS
FRONT ROOF LIGHT
WITH MOVABLE LENS
The light fades up or reaches full
brightness immediately if pushed at
the sides.
On the Doblò Cargo versions, it is
only connected to the front doors.
On the Doblò/Doblò Combi people
carrier versions, it is connected to
the front doors and the sliding
side doors.FRONT ROOF LIGHT
WITH SPOT LIGHTS
(for versions/markets, where
provided)
On the Doblò Cargo versions, it is
only connected to the front doors.
On the Doblò/Doblò Combi people
carrier versions, it is connected to
the front doors and the sliding
side doors.
Switch A fig. 56 is used to switch
on/off roof lights.
With switch A in the middle position,
lights C and D go on/off when the
doors are opened/closed.
With switch A pressed to the left,
the lights C and D are always off.
With switch A pressed to the right,
the lights C and D are always on.
Lights switch on/off progressively.
Switch B controls the spot light
function; when the roof light is off, it
switches on individually:
light C if pressed on the left side;
light D if pressed on the right side.
56F0V0055
36
KNOW YOUR VEHICLE
