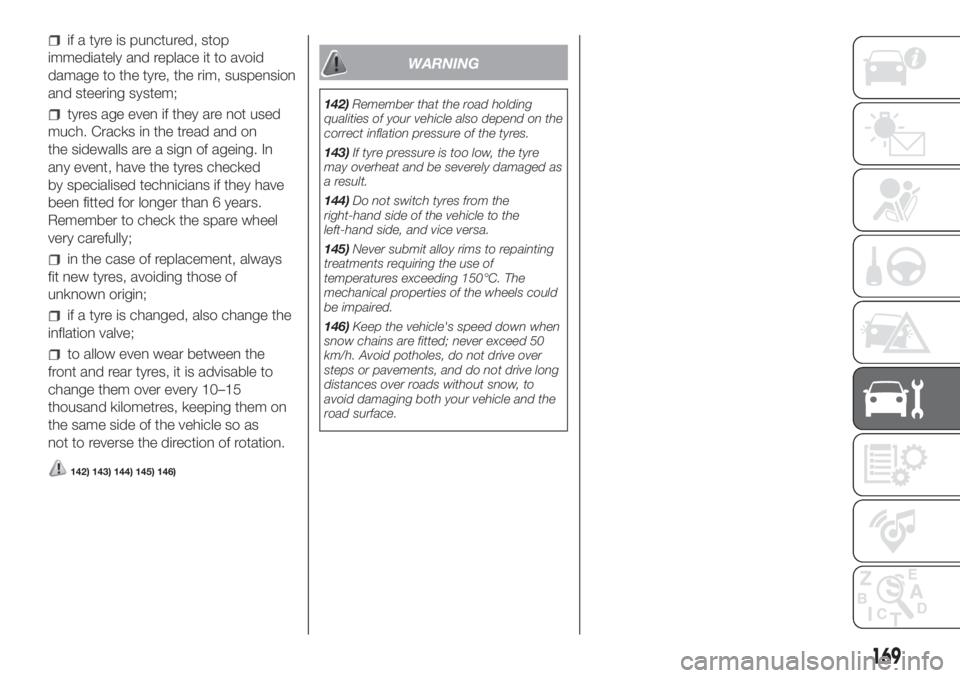

if a tyre is punctured, stop
immediately and replace it to avoid
damage to the tyre, the rim, suspension
and steering system;
tyres age even if they are not used
much. Cracks in the tread and on
the sidewalls are a sign of ageing. In
any event, have the tyres checked
by specialised technicians if they have
been fitted for longer than 6 years.
Remember to check the spare wheel
very carefully;
in the case of replacement, always
fit new tyres, avoiding those of
unknown origin;
if a tyre is changed, also change the
inflation valve;
to allow even wear between the
front and rear tyres, it is advisable to
change them over every 10–15
thousand kilometres, keeping them on
the same side of the vehicle so as
not to reverse the direction of rotation.
142) 143) 144) 145) 146)
WARNING
142)Remember that the road holding
qualities of your vehicle also depend on the
correct inflation pressure of the tyres.
143)If tyre pressure is too low, the tyre
may overheat and be severely damaged as
a result.
144)Do not switch tyres from the
right­hand side of the vehicle to the
left­hand side, and vice versa.
145)Never submit alloy rims to repainting
treatments requiring the use of
temperatures exceeding 150°C. The
mechanical properties of the wheels could
be impaired.
146)Keep the vehicle's speed down when
snow chains are fitted; never exceed 50
km/h. Avoid potholes, do not drive over
steps or pavements, and do not drive long
distances over roads without snow, to
avoid damaging both your vehicle and the
road surface.
169

TECHNICAL DATA
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.IDENTIFICATION DATA....................171
ENGINE ..........................................173
WHEELS .........................................176
DIMENSIONS ..................................181
WEIGHTS AND LOADS...................187
REFUELLING ..................................190
FLUIDS AND LUBRICANTS ............193
PERFORMANCE .............................196
FUEL CONSUMPTION ....................198
CO2 EMISSIONS ............................213
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................224
170
TECHNICAL DATA

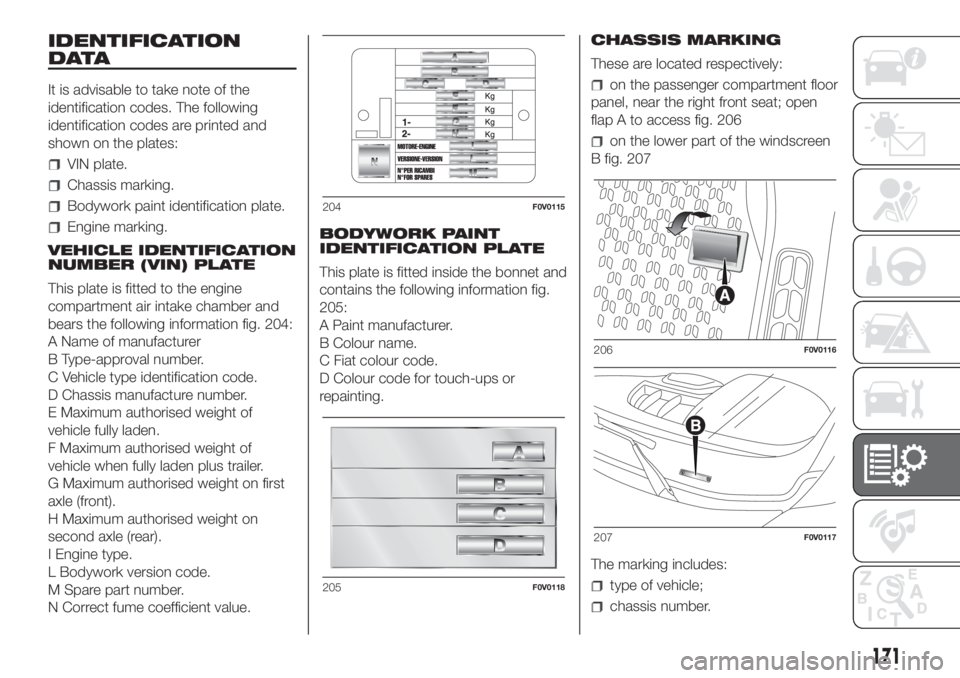

IDENTIFICATION
DATA
It is advisable to take note of the
identification codes. The following
identification codes are printed and
shown on the plates:
VIN plate.
Chassis marking.
Bodywork paint identification plate.
Engine marking.
VEHICLE IDENTIFICATION
NUMBER (VIN) PLATE
This plate is fitted to the engine
compartment air intake chamber and
bears the following information fig. 204:
A Name of manufacturer
B Type-approval number.
C Vehicle type identification code.
D Chassis manufacture number.
E Maximum authorised weight of
vehicle fully laden.
F Maximum authorised weight of
vehicle when fully laden plus trailer.
G Maximum authorised weight on first
axle (front).
H Maximum authorised weight on
second axle (rear).
I Engine type.
L Bodywork version code.
M Spare part number.
N Correct fume coefficient value.BODYWORK PAINT
IDENTIFICATION PLATE
This plate is fitted inside the bonnet and
contains the following information fig.
205:
A Paint manufacturer.
B Colour name.
C Fiat colour code.
D Colour code for touch-ups or
repainting.CHASSIS MARKING
These are located respectively:
on the passenger compartment floor
panel, near the right front seat; open
flap A to access fig. 206
on the lower part of the windscreen
B fig. 207
The marking includes:
type of vehicle;
chassis number.
204F0V0115
205F0V0118
206F0V0116
207F0V0117
171

ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.
CYLINDER MARKING
45)
Each methane cylinder is identified in
the plant by information stamped on
the cylinder cone.
The plates (provided with the vehicle
documentation) contain the date for the
first inspection of the cylinders.
SYSTEM INSPECTION
The cylinders must be inspected, in
accordance with ECE Regulation
Procedure no. 110, every 4 years from
the vehicle registration date or in
accordance with specific regulations in
individual countries.
WARNING
45)If the vehicle has been registered in a
country other than Italy, the certification
data, identification and inspection
procedures for the methane cylinders
should conform to the legislation in that
country. In any case, it should be
remembered that the life of the cylinders is
20 years from the production date as set
out in ECE Regulation no. 110.
208F0V0361
172
TECHNICAL DATA

ENGINE
Versions 1.4 1.4 T-JET 1.4 T-JET Natural Power
Engine code 843A1000 198A4000 198A4000
Cycle Otto Otto Otto
Number and position of
cylinders4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72x84 72x84 72x84
Total displacement (cm³) 1368 1368 1368
Compression ratio 11:1 9.8:1 9.8:1
Maximum power (EC) (kW) 70 88 88
Maximum power (EEC) (HP) 95 120 120
corresponding engine speed
(rpm)6000 5000 5000
Maximum torque (EEC) (Nm) 127 206 206
Maximum torque (EEC)
(kgm)12.95 21 21
corresponding engine speed
(rpm)4500 3000 3000
Spark plugs NGK DCPR7E NGK IKR9F8 FIAT 55210685 - NGK IKR9F8
FuelUnleaded petrol 95 R.O.N.
(EN228 specifications)Unleaded petrol 95 R.O.N.
(EN228 specifications)MethaneUnleaded
petrol 95 RON
(EN228
standard)
173

Versions 1.3 MultiJet without DPF 1.3 MultiJet with DPF 1.3 Multijet Euro 6
Engine code 199A3000 263A2000 / 263A6000 330A1000/225A2000
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 69.6x82 69.6x82 69.6x82
Total displacement (cm³) 1248 1248 1248
Compression ratio 17.6:1 16.8:1 16.8:1
Maximum power (EC) (kW) 66 66/55 70/59
Maximum power (EEC) (HP) 90 90/75 95/80
corresponding engine speed (rpm) 4000 4000 3750
Maximum torque (EEC) (Nm) 200 200 200
Maximum torque (EEC) (kgm) 20.4 20.4 20.4
corresponding engine speed (rpm) 1750 1500 1500
Spark plugs - - -
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
174
TECHNICAL DATA

Versions 1.6 Multijet Euro 4 / Euro 5
/ Euro 5+1.6 Multijet Euro 6 2.0 Multijet
Engine code198A3000 / 263A3000 /
263A4000 / 263A5000940C1000 / 263A8000 /
263A7000 / 263A9000263A1000
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 79.5x80.5 79.5x80.5 83x90.5
Total displacement (cm³) 1598 1598 1956
Compression ratio 16.5:1 16.5+-0.4 16.5:1
Maximum power (EC) (kW) 77/74/66 88/77/70/74 99
Maximum power (EEC) (HP) 105/100/90 120/105/95/100 135
corresponding engine speed (rpm) 4000 3750/3750/2500/3750 3500
Maximum torque (EEC) (Nm)
290/200
(*)320/300/300/300 320
Maximum torque (EEC) (kgm)
29.6/20.4
(*)32.6/30.6/30.6/30.6 32.6
corresponding engine speed (rpm) 1500 1750 1500
Spark plugs - - -
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
(*) Engine code 263A5000
175

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless
radial carcass tyres. All approved tyres
are listed in the registration document.
IMPORTANT If there are any
discrepancies between the Owner
Handbook and the registration
document, take the information from
the latter.
For safe driving, the vehicle must be
fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use air chambers
with tubeless tyres.
176
TECHNICAL DATA

.

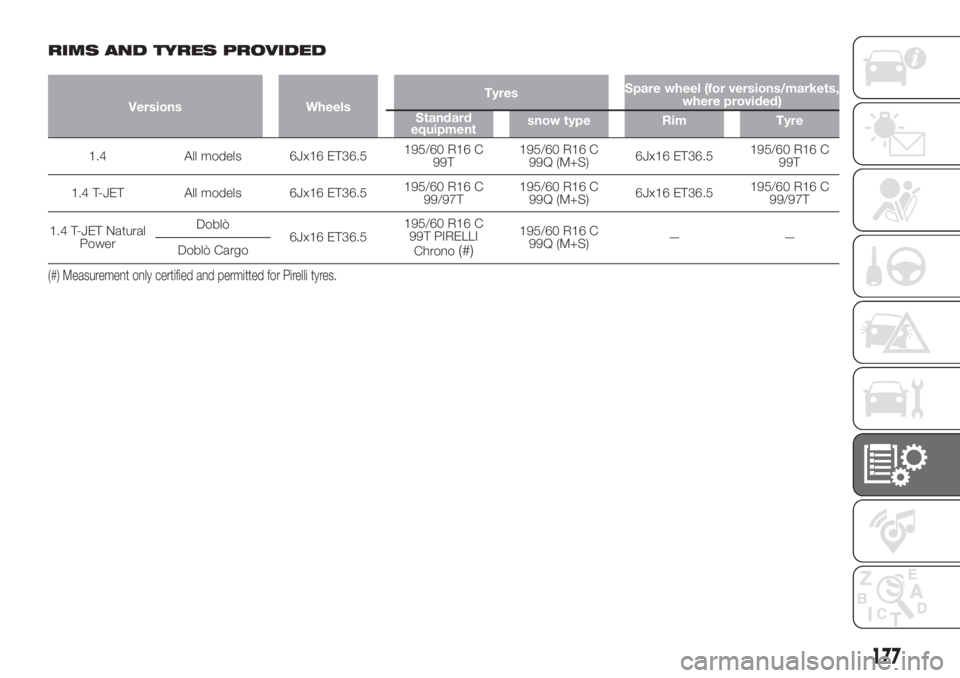

RIMS AND TYRES PROVIDED
Versions WheelsTyresSpare wheel (for versions/markets,
where provided)
Standard
equipmentsnow type Rim Tyre
1.4 All models 6Jx16 ET36.5195/60 R16 C
99T195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
1.4 T-JET All models 6Jx16 ET36.5195/60 R16 C
99/97T195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99/97T
1.4 T-JET Natural
PowerDoblò
6Jx16 ET36.5195/60 R16 C
99T PIRELLI
Chrono
(#)
195/60 R16 C
99Q (M+S)——
Doblò Cargo
(#) Measurement only certified and permitted for Pirelli tyres.
177

Versions WheelsTyresSpare wheel (for versions/markets,
where provided)
Standard
equipmentsnow type Rim Tyre
1.3 MultijetCargo6Jx15 ET39 Light 185/65 R15 92T185/65 R15 92Q
(M+S)6JX15 ET39 Light 185/65 R15 92T
6JX15 ET39
Heavy195/65 R15 95T
(*)195/65 R15 95Q
(M+S)6JX15 ET39
Heavy195/65 R15 95T
6JX16 ET36.5195/60 R16 C
99T
(*)195/60 R16 C
99Q (M+S)6JX16 ET36.5195/60 R16 C
99T
Cargo Maxi 6JX16 ET36.5195/60 R16 C
99T195/60 R16 C
99Q (M+S)6JX16 ET36.5195/60 R16 C
99T
5-seater (M1)6JX15 ET39 Light 185/65 R15 88T185/65 R15 88Q
(M+S)6JX15 ET39 Light 185/65 R15 88T
6JX15 ET39
Heavy195/65 R15 95T
(*)195/65 R15 95Q
(M+S)6JX15 ET39
Heavy195/65 R15 95T
6JX16 ET36.5195/60 R16 C
99T
(*)195/60 R16 C
99Q (M+S)6JX16 ET36.5195/60 R16 C
99T
7-seater (M1) 6JX16 ET36.5195/60 R16 C
99T195/60 R16 C
99Q (M+S)6JX16 ET36.5195/60 R16 C
99T
Combi (N1)6JX15 ET39
Heavy195/65 R15 95T195/65 R15 95Q
(M+S)6JX15 ET39
Heavy195/65 R15 95T
6JX16 ET36.5195/60 R16 C
99T
(*)195/60 R16 C
99Q (M+S)6JX16 ET36.5195/60 R16 C
99T
(*) As an alternative
178
TECHNICAL DATA
