Wing door versions fig. 202
Proceed as follows:
press the retaining tag A and pull the
brush out making it slide in the
direction indicated by the arrow.
Swing door versions fig. 203
Proceed as follows:
press the retainer reversely operating
as shown, then remove the blade.
WARNING
141)Driving with worn windscreen wiper
blades is a serious hazard, because
visibility is reduced in bad weather
conditions.
WHEELS AND TYRES
For the type of wheel rims and tyres
fitted on the vehicle see the "Wheels"
paragraph in the "Technical data"
chapter.
SNOW CHAINS
The use of snow chains should be in
compliance with local regulations.
Snow chains can be fitted to the tyres
of the front wheels (drive wheels) only.
Check the tension of the snow chains
after the first few metres have been
driven.
IMPORTANT NOTES
As far as possible, avoid sharp
braking, screech starts and violent
shocks against pavements, potholes or
other hard obstacles. Driving for long
stretches over uneven roads can
damage the tyres;
periodically check that the tyres
have no cuts in the side wall, abnormal
swelling or irregular tyre tread wear.
Go to a Fiat Dealership if required;
avoid overloading the car when
travelling: this may cause serious
damage to the wheels and tyres;
202F0V0250
203F0V0211
168
SERVICING AND CARE
Replacing the rear window wiper
blade fig. 202fig. 203
(for versions/markets, where provided)

TECHNICAL DATA
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.IDENTIFICATION DATA....................171
ENGINE ..........................................173
WHEELS .........................................176
DIMENSIONS ..................................181
WEIGHTS AND LOADS...................187
REFUELLING ..................................190
FLUIDS AND LUBRICANTS ............193
PERFORMANCE .............................196
FUEL CONSUMPTION ....................198
CO2 EMISSIONS ............................213
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................224
170

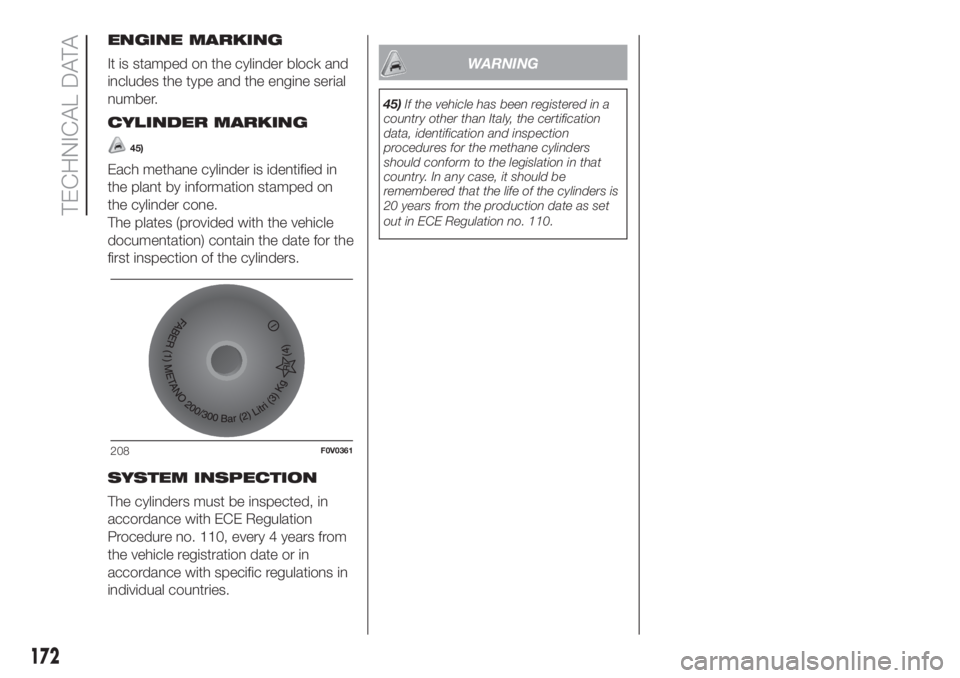

TECHNICAL DATA

ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.
CYLINDER MARKING
45)
Each methane cylinder is identified in
the plant by information stamped on
the cylinder cone.
The plates (provided with the vehicle
documentation) contain the date for the
first inspection of the cylinders.
SYSTEM INSPECTION
The cylinders must be inspected, in
accordance with ECE Regulation
Procedure no. 110, every 4 years from
the vehicle registration date or in
accordance with specific regulations in
individual countries.
WARNING
45)If the vehicle has been registered in a
country other than Italy, the certification
data, identification and inspection
procedures for the methane cylinders
should conform to the legislation in that
country. In any case, it should be
remembered that the life of the cylinders is
20 years from the production date as set
out in ECE Regulation no. 110.
208F0V0361
172
TECHNICAL DATA

Versions 1.3 MultiJet without DPF 1.3 MultiJet with DPF 1.3 Multijet Euro 6
Engine code 199A3000 263A2000 / 263A6000 330A1000/225A2000
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 69.6x82 69.6x82 69.6x82
Total displacement (cm³) 1248 1248 1248
Compression ratio 17.6:1 16.8:1 16.8:1
Maximum power (EC) (kW) 66 66/55 70/59
Maximum power (EEC) (HP) 90 90/75 95/80
corresponding engine speed (rpm) 4000 4000 3750
Maximum torque (EEC) (Nm) 200 200 200
Maximum torque (EEC) (kgm) 20.4 20.4 20.4
corresponding engine speed (rpm) 1750 1500 1500
Spark plugs - - -
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
174
TECHNICAL DATA

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless
radial carcass tyres. All approved tyres
are listed in the registration document.
IMPORTANT If there are any
discrepancies between the Owner
Handbook and the registration
document, take the information from
the latter.
For safe driving, the vehicle must be
fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use air chambers
with tubeless tyres.
176
TECHNICAL DATA

Versions WheelsTyresSpare wheel (for versions/markets,
where provided)
Standard
equipmentsnow type Rim Tyre
1.3 MultijetCargo6Jx15 ET39 Light 185/65 R15 92T185/65 R15 92Q
(M+S)6JX15 ET39 Light 185/65 R15 92T
6JX15 ET39
Heavy195/65 R15 95T
(*)195/65 R15 95Q
(M+S)6JX15 ET39
Heavy195/65 R15 95T
6JX16 ET36.5195/60 R16 C
99T
(*)195/60 R16 C
99Q (M+S)6JX16 ET36.5195/60 R16 C
99T
Cargo Maxi 6JX16 ET36.5195/60 R16 C
99T195/60 R16 C
99Q (M+S)6JX16 ET36.5195/60 R16 C
99T
5-seater (M1)6JX15 ET39 Light 185/65 R15 88T185/65 R15 88Q
(M+S)6JX15 ET39 Light 185/65 R15 88T
6JX15 ET39
Heavy195/65 R15 95T
(*)195/65 R15 95Q
(M+S)6JX15 ET39
Heavy195/65 R15 95T
6JX16 ET36.5195/60 R16 C
99T
(*)195/60 R16 C
99Q (M+S)6JX16 ET36.5195/60 R16 C
99T
7-seater (M1) 6JX16 ET36.5195/60 R16 C
99T195/60 R16 C
99Q (M+S)6JX16 ET36.5195/60 R16 C
99T
Combi (N1)6JX15 ET39
Heavy195/65 R15 95T195/65 R15 95Q
(M+S)6JX15 ET39
Heavy195/65 R15 95T
6JX16 ET36.5195/60 R16 C
99T
(*)195/60 R16 C
99Q (M+S)6JX16 ET36.5195/60 R16 C
99T
(*) As an alternative
178
TECHNICAL DATA

COLD TYRE INFLATION PRESSURE (bar)
MeasurementMedium load Full load
Front Rear Front Rear
185/65 R15 88T 2.5 2.5 2.9 2.9
185/65 R15 92T 2.5 2.6 2.9 3
195/65 R15 95T 2.42.4 Doblò (M1)
2.62.6 Doblò (M1)
2.4 Doblò Cargo 2.7 Doblò Cargo
3.0 Doblò Combi (N1) 3.2 Doblò Combi (N1)
195/60 R16C 99/97T 2.7 2.7 2.72.8 Doblò 5P (M1)
3.3 Doblò Cargo
3.6 Doblò (for 1.4 T-JET
Natural Power versions)
3.6 Doblò Cargo (for 1.4
T-JET Natural Power
versions)
3.6 Doblò 7P (M1) /
3.6 Doblò Combi (N1) /
3.6 Doblò Cargo Maxi
195/60 R16C 99/97T
M+S2.7 2.7 2.73.6 (on all versions and
always with Traction Plus)
The pressure value can be up to +1.0 bar more than the recommended one when the tyres are warm. However, recheck that
the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres. When running at speeds over 160 km/h,
inflate tyres at full-load pressures.
180
TECHNICAL DATA

Long wheelbase versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH
Long
Wheelbase
versions4756 911 3105 7401880 /
1927
(*)1510 1832 1530
Long
Wheelbase
M1 versions4756 911 3105 7401857 /
1905
(*)1510 1832 1530
(*) With roof bars (for versions/markets where provided)
Small variations in size are possible depending on the dimensions of the rims.
210F0V0556
